DEMO MANUAL DC2230A-B
Description
LTM4636-1
40A DC/DC µModule Regulator with
Overvoltage/Overtemperature Protection
Demonstration circuit 2230A-B features the LT M
®
4636-
1EY, a 40A high efficiency, switch mode step-down power
µModule
®
regulator withovertemperature and input/output
overvoltage protection. The input voltage range is from
4.7V to 15V. For input voltage range from 4.7V to 5.5V,
short PVCC pin to VIN pin with R8 = R21 = 0Ω and remove
R17. The output voltage range is 0.6V to 3.3V. Derating
is necessary for certain VIN, VOUT, frequency and thermal
conditions. The board operates in continuous conduc-
tion mode in heavy load conditions. For high efficiency
at low load currents, the MODE_PLLIN jumper selects
pulse-skipping mode for noise sensitive applications or
Burst Mode
®
operation in less noise sensitive applica-
L, LT, LTC, LTM, Linear Technology, the Linear logo, Burst Mode and μModule are registered
trademarks of Linear Technology Corporation. All other trademarks are the property of their
respective owners.

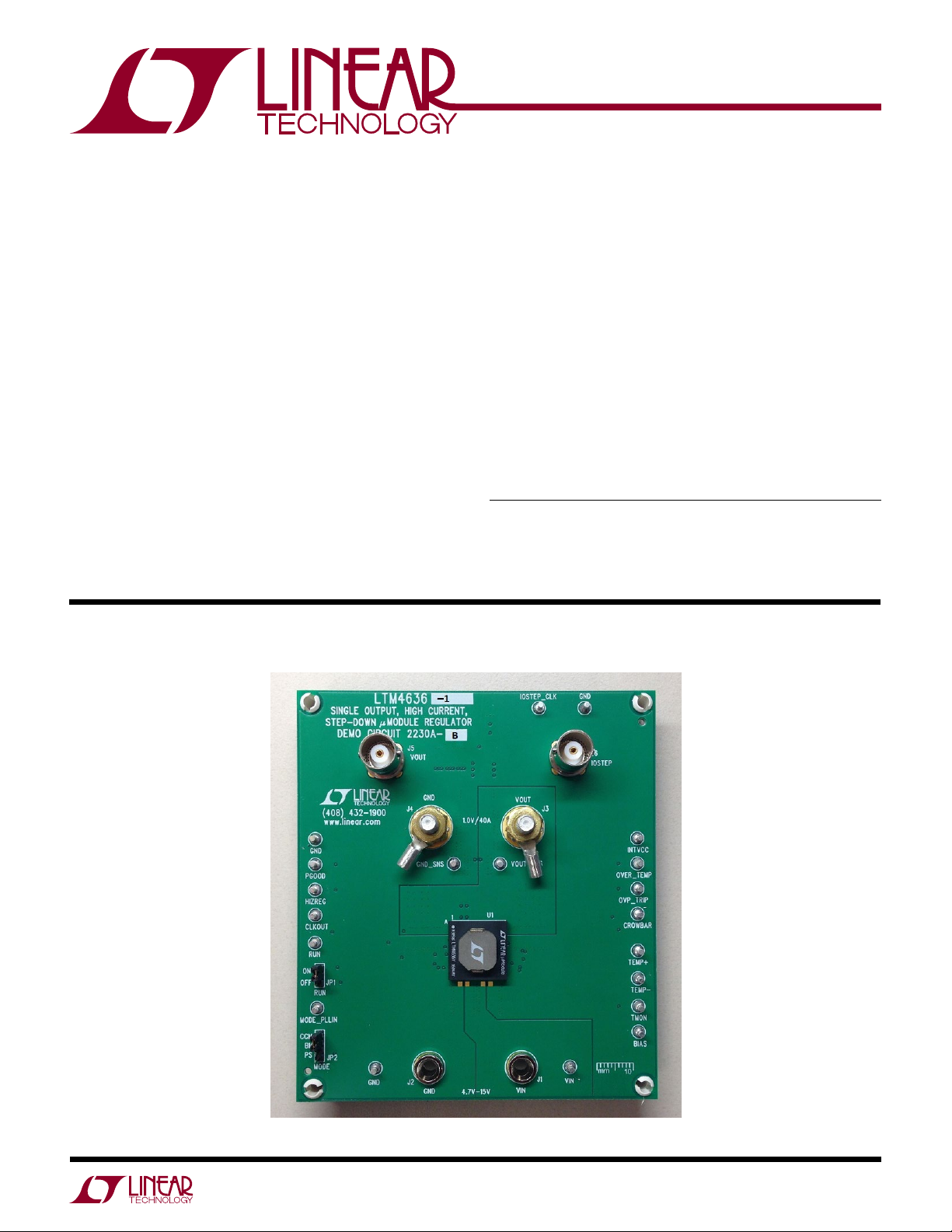

BoarD photo
tions. The MODE_PLLIN pin also allows the LTM4636
to synchronize to an external clock signal. DC2230A-B
has the option of choosing both internal and external
compensation circuit for LTM4636-1. Tying the PHASMD
pin to different voltage generates certain phase difference
between MODE_PLLIN and CLKOUT. The LTM4636-1 data
sheet must be read in conjunction with this demo manual
prior to working on or modifying demo circuit DC2230A-B.
Design files for this circuit board are available at
http://www.linear.com/demo/DC2230A-B

2
dc2230abf
DEMO MANUAL DC2230A-B
Quick start proceDure
performance summary
PARAMETER CONDITIONS/NOTES VALUE
Input Voltage Range 4.7V to 15V
Output Voltages 1.0V ± 1.3%
Maximum Continuous Output Current Derating is Necessary for Certain Operating Conditions. See Data Sheet for Details. 40ADC
Operating Frequency 350kHz
Efficiency VIN = 12V, VOUT = 1.0V, IOUT = 40A, Q2 Not Included 87.7% (see Figure 2)
Load Transient VIN = 12V, VOUT = 1.0V, ISTEP = 0A to 10A 81mV (see Figure 3)
Overtemperature Trip Point ROTP = R56 = 66.5kΩ 130°C
Overvoltage Trip Point ROVP = R10 = 86.6kΩ 1.18V
Demonstration circuit 2230A-B is an easy way to evalu-
ate the performance of the LTM4636-1EY. Please refer to
Figure1 for proper measurement equipment setup and
follow the procedure below.
1. Place jumpers in the following positions for a typical
application:
MODE RUN
CCM ON
2. With power off, connect the input power supply, load
and meters as shown in Figure 1. Preset the load to 0A
and VIN supply to 12V.
3. Turn on the power supply at the input. The output volt-
age should be 1.0V ± 1.3% (0.987V to 1.013V).
4. Vary the input voltage from 6V to 15V and adjust the
load current from 0A – 40A. Observe the output volt-
age regulation, ripple voltage, efficiency, and other
parameters.
5. (Optional) For optional load transient test, apply an
adjustable pulse signal between IOSTEP_CLK and GND
test points. The pulse amplitude sets the load step cur-
rent amplitude. Keep the pulse width short (<1ms) and
pulse duty cycle low (<5%) to limit the thermal stress
on the load transient circuit.
6. (Optional) LTM4636 can be synchronized to an external
clock signal. Place the JP1 jumper on EXT_CLK and
apply a clock signal (0V to 5V, square wave) on the
MODE_PLLIN test point.

3
dc2330abf
DEMO MANUAL DC2230A-B
Figure 1. Measurement Setup of DC2230A-A
+
–
+
–
+
–
+
–
LOAD
Quick start proceDure
Figure 1. Proper Measurement Equipment Setup

4
dc2230abf
DEMO MANUAL DC2230A-B
Quick start proceDure

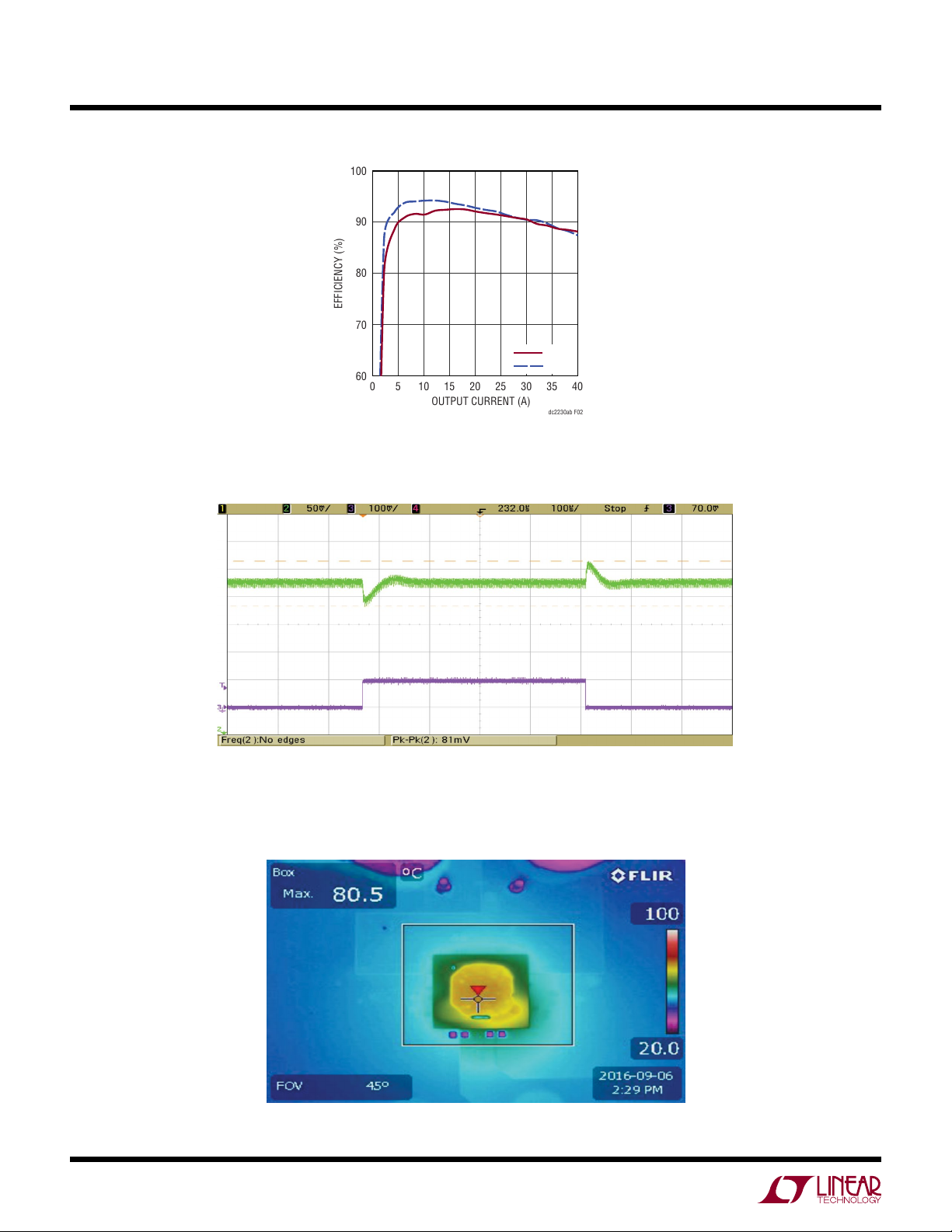

Figure 2. Measured Efficiency at VIN = 5V/12V, VOUT = 1V, fSW = 350kHz, CCM, Q2 Not Included
Figure 3. Measured Load Transient, VIN = 12V, VOUT = 1.0V, ISTEP = 0A to 10A
V
OUT
50mV/DIV
I
OUT_STEP
10A/DIV
Figure 4. Thermal Image, VIN = 12V, VOUT = 1.0V, ILOAD = 40A, Ambient Temperature = 23.0°C, No Forced Airflow
OUTPUT CURRENT (A)
0
5
10
15
20
25
30
35
40
60
70
80
90
100
EFFICIENCY (%)
dc2230ab F02
12VIN
5VIN

5
dc2330abf
DEMO MANUAL DC2230A-B
parts List
ITEM QTY REFERENCE PART DESCRIPTION MANUFACTURER/PART #
Required Circuit Components
1 1 CIN1 CAP, ALUM ELECT, 150µF, 25V, CE SERIES SUN ELECT, 25CE150AX
2 6 CIN4, CIN5, CIN6, CIN7, CIN8, CIN9 CAP, 22µF, X5R, 16V, 20%,1210 MURATA, GRM32ER61C226ME20
3 8 COUT1, COUT2, COUT3, COUT4,
COUT6, COUT7, COUT11, COUT12
CAP, 100µF, X5R, 6.3V, 20%,1210 MURATA, GRM32ER60J107ME20L
4 3 COUT8, COUT13, COUT14 CAP, POSCAP, 470µF, 2.5V, 20%, D3L PANASONIC, 2R5TPE470M9
5 1 C15 CAP, 100pF, NP0, 50V, 5%, 0603 MURATA, GRM1885C1H101JA01D
6 1 C17 CAP, 0.01µF, X7R, 25V, 10%, 0603 AVX, 06033C103KAT2A
7 1 C18 CAP, 2200pF, X7R, 25V, 10%, 0603 MURATA, GRM188R71E222KA01D
8 2 C19, C25 CAP, 0.1µF, X5R, 16V, 10%, 0603 MURATA, GRM188R61C104KA01D
9 1 C22 CAP, 4.7µF, X5R, 10V, 10%, 0603 TDK, C1608X5R1A475K080AC
10 1 C23 CAP, 1µF, X5R, 25V, 10%, 0603 MURATA, GRM188R61E105KA12D
11 1 C24 CAP, 22µF, X5R, 6.3V, 20%, 0805 KEMET, C0805C226M9PACTU
12 1 C26 CAP, 1µF, X5R, 25V, 10%, 0603 MURATA, GRM188R61E105KA12D
13 1 Q1 XSTR, MOSFET, N-CH, 40V, 50A, TO-252 VISHAY, SUD50N04-8M8P-4GE3
14 1 R9 RES, 7.5k, 0.5%, 0603 VISHAY, CRCW06037K5FKEA
15 1 R10 RES, 86.6k, 1/10W, 1%, 0603 VISHAY, CRCW060386K6FKEA
16 4 R11, R12, R16, R54 RES, 10k, 1/10W, 1%, 0603 VISHAY, CRCW060310K0FKEA
17 2 R13, R14 RES, 10k, 1/10W, 1%, 0603 VISHAY, CRCW060310K0FKEA
18 1 R18 RES, 15k, 1/10W, 1%, 0603 VISHAY, CRCW060315K0FKEA
19 1 R20 RES, 100k, 1/10W, 1%, 0603 VISHAY, CRCW0603100K0FKEA
20 2 R25, R32 RES, 10Ω, 1/10W, 1%, 0603 VISHAY, CRCW060310R0FKEA
21 1 R35 RES, 2.2, 1/8W, 5%, 0805 VISHAY, CRCW08052R20JNEA
22 1 R40 RES, 34.8k, 1/10W, 1%, 0603 VISHAY, CRCW060334K8FKEA
23 1 R55 RES, SENSE, 0.01Ω, 1/2W, 1%, 2010 VISHAY, WSL2010R0100FEA
24 1 R56 RES, 66.5k, 1/10W, 1%, 0603 VISHAY, CRCW060366K5FKEA
25 1 U1 LTM4636-1EY#PBF, 16X16X5.01 BGA LINEAR TECHNOLOGY, LTM4636-1EY#PBF
Additional Demo Board Circuit Components
1 0 COUT9 (OPT) CAP, OPTION, D3L OPT
2 0 COUT10, COUT15, COUT16 (OPT) CAP, OPTION, 1210 OPT
3 0 C14, C16 (OPT) CAP, OPTION, 0603 OPT
4 0 R8, R15, R19, R21, R22, R38 (OPT) RES, OPTION, 0603 OPT
5 4 R17, R23, R24, R33 RES, 0Ω, 1/10W, 0603 VISHAY, CRCW06030000Z0EA
6 0 Q2 XSTR, OPT, TO-252 OPT

6
dc2230abf
DEMO MANUAL DC2230A-B
parts List
Hardware
1 20 E1 TO E20 TEST POINT, TURRET, 0.064" MTG. HOLE MILL-MAX, 2308-2-00-80-00-00-07-0
2 1 JP1 CONN, HEADER, 1 × 3, 2mm SULLINS, NRPN031PAEN-RC
3 1 JP2 CONN, HEADER, 1 × 4, 2mm SULLINS, NRPN041PAEN-RC
4 2 J1, J2 CONN, JACK, BANANA, NON-INSULATED,
0.218"
KEYSTONE, 575-4
5 2 J3, J4 STUD, TEST PIN PEM, KFH-032-10
6 4 J3, J4 × 2 NUT, BRASS 10-32 ANY, #10-32M/S BR PL
7 2 J3, J4 RING, LUG #10 KEYSTONE, 8205
8 2 J3, J4 WASHER, TIN PLATED BRASS ANY, #10 EXT BZ TN
9 2 J5, J6 CONN, BNC, 5PINS CONNEX, 112404
10 2 XJP1, XJP2 SHUNT, 2mm SAMTEC 2SN-BK-G
11 4 (STAND-OFF) STANDOFF, NYLON, SNAP-ON, 0.500" KEYSTONE, 8833 (SNAP ON)

7
dc2330abf
DEMO MANUAL DC2230A-B
Information furnished by Linear Technology Corporation is believed to be accurate and reliable.
However, no responsibility is assumed for its use. Linear Technology Corporation makes no representa-
tion that the interconnection of its circuits as described herein will not infringe on existing patent rights.
