Linhai LH50DU Owner's manual

WARNING：
Read this Manual,
and any
Supplements
Carefully
Before Operating
Vehicle.
yAssembly
yOperation
yMaintenance
THIS VEHICLE IS
NOT DESIGENED
FOR USE ON
RENTAL TRACKS
OR RACING
OWNER’S/OPERATOR’S
MANUAL
19.0
LH50DU
（Independent Rear Suspension）
BEFORE OPERATING THIS VEHICLE, THE OWNER AND EACH OPERATOR
MUST HAVE READ AND HAVE AN UNDERSTANDING OF ALL THE
INSTRUCTIONS FOR PROPER ASSEMBLY AND SAFE OPERATION, AS
WELL AS THE INSTRUCTIONS CONCERNING THE BATTERIES AND ALL
OTHER PORTIONS OF THE VEHICLE.

NOTE: A storage area/toolbox has been provided on the CUV for storage of
this manual, and addendums.
Please keep this manual and addendums in the glove compartment so that it can
be found easily and referenced when needed.

CONTENTS
1. INTRODUCTION ·····························1.1
2. UNDERSTANDING WARNINGS··············· 2.1
3. SAFETY WARNING·····························3.1
4. DAILY PRE-RIDE INSPECTION·············4.1
5. OPERATION WARNING······
················5.1
6. VIN·································· 6.1
7. CONTROL AND PARTS FUNCTIONS·········7.1
8. RIDING GEAR························ 8.1
9. CARRYING LOAD··········
··············9.1
10. DRIVING YOUR VEHICLE················10.1
11. BATTERY···························11.1
12. MAINTENANCE······················12.1
13. TOOL ··············
······················13.1
14. SPECIFICATION ··························14.1
15. WIRING DIAGRAM ······················ 15.1

LH50DU OWNER’S/OPERATOR’S MANUAL19.0
1. INTRODUCTION
1- 1
Introduction
Congratulations on the purchase of your Cargo Utility Vehicle (CUV).
We take pride in offering you this product engineered and manufactured
to the highest performance and quality standards. We are sure that you
will enjoy superior levels of performance, reliability, riding comfort, and
safety.
This manual is provided to help the owner and operators of this CUV
become familiar with the operating characteristic, and the many
features offered on the CUV. The manual also covers information on
the care and maintenance of your CUV.
Please read this manual carefully. The information contained in this
Owner’s Manual, the Warning Labels supplied with this product will help
you to understand the safe use and maintenance of your CUV. Make
sure that you understand and follow all Warnings and Instructions in
this material.
If you did not receive any of the material listed above, please call your
dealer and request to have them sent to you.
This is a utility vehicle. Never operate on public roads.This vehicle does
not meet National Highway Traffic Safety Administration(NHTSA)
regulations for operation on public streets, roads and highways.
Familiarize yourself with all laws and regulations concerning the
operation of this vehicle in your area.
The following signal words and symbols appear throughout this manual
and on your vehicle. Your safety is involved when these words and
symbols are used. Become familiar with their meanings before reading
the manual.
Product and specifications are subject to change without notice.

LH50DU OWNER’S/OPERATOR’S MANUAL19.0
1. INTRODUCTION
1- 2
Important Safety Notice
●This vehicle is designed and manufactured for off-road use.
●Check the laws and regulations in force before choosing where to
operate this vehicle. It is illegal to operate this vehicle on public lands
where vehicles its size are prohibited.
●Never make any modifications to the drive system, mechanical or
electrical systems of your CUV. Never install aftermarket parts or
accessories intended to increase the speed or power of your CUV.
●Failure to follow these warnings increases the possibility of accidents
leading to DEATH or SERIOUS INJURY!
●Additionally, failure to follow these requirements will void the
Warranty on your CUV.
NOTE
The addition and use of certain accessories including, (but not limited to)
mowers, blades, sprayers and windshields will change the handling
characteristics and the performance of your CUV.
Practice Responsible CUV Riding
Make sure that you understand and follow all local, state/province, and
federal/national riding laws and requirements.
Remember……Respect your vehicle, respect the environment and
respect the property of others. You are responsible for your safety and
the safety of others around you when you ride!

LH50DU OWNER’S/OPERATOR’S MANUAL19.0
1. INTRODUCTION
1- 3
A CUV CAN BE HAZARDOUS TO OPERATE. A CUV handles
differently from other vehicles including motorcycles, ATVs and cars. A
collision rollover can occur quickly, even during routine maneuvers
such as turning and driving on hills or over obstacles, if you fail to take
proper precautions.
SERIOUS INJURY OR DEATH can result if you do
not follow these instructions.
Read this manual and all labels carefully and follow the operating
procedures described.

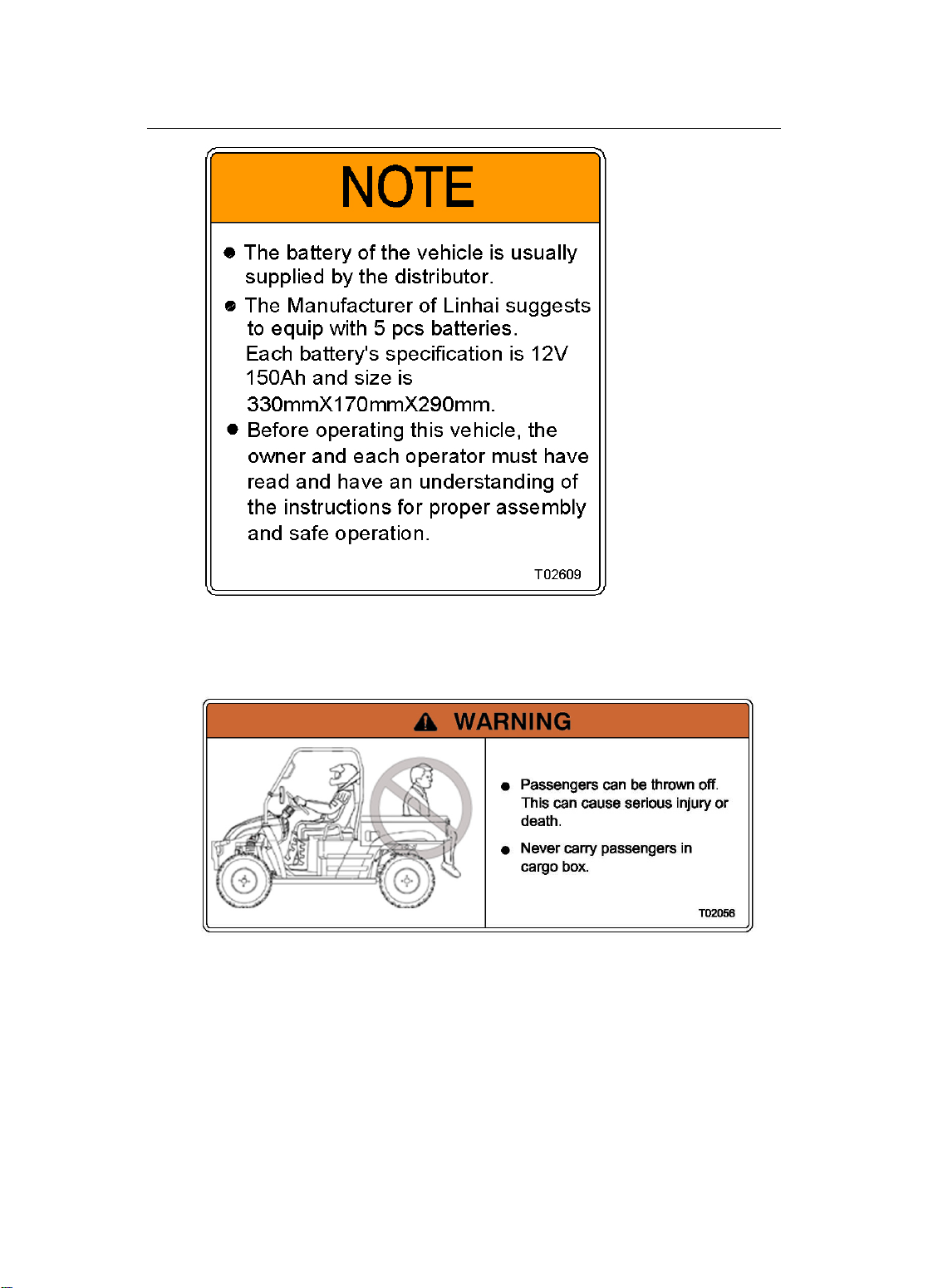

This vehicle is designed to carry the driver and one passenger.
Never carry passengers in the cargo bed.
Always be sure the driver and passenger are wearing seat belts.
Never allow anyone who is not an adult to operate this CUV.
Never permit a guest to operate this CUV unless the guest has read
this manual and all product labels.
The driver and passenger must wear approved off-road motorcycle
-type helmets that fits properly. The driver and passenger should
also wear eye protections (goggles or face shields), gloves, boots,
long-sleeved shirts or jackets, and long pants.

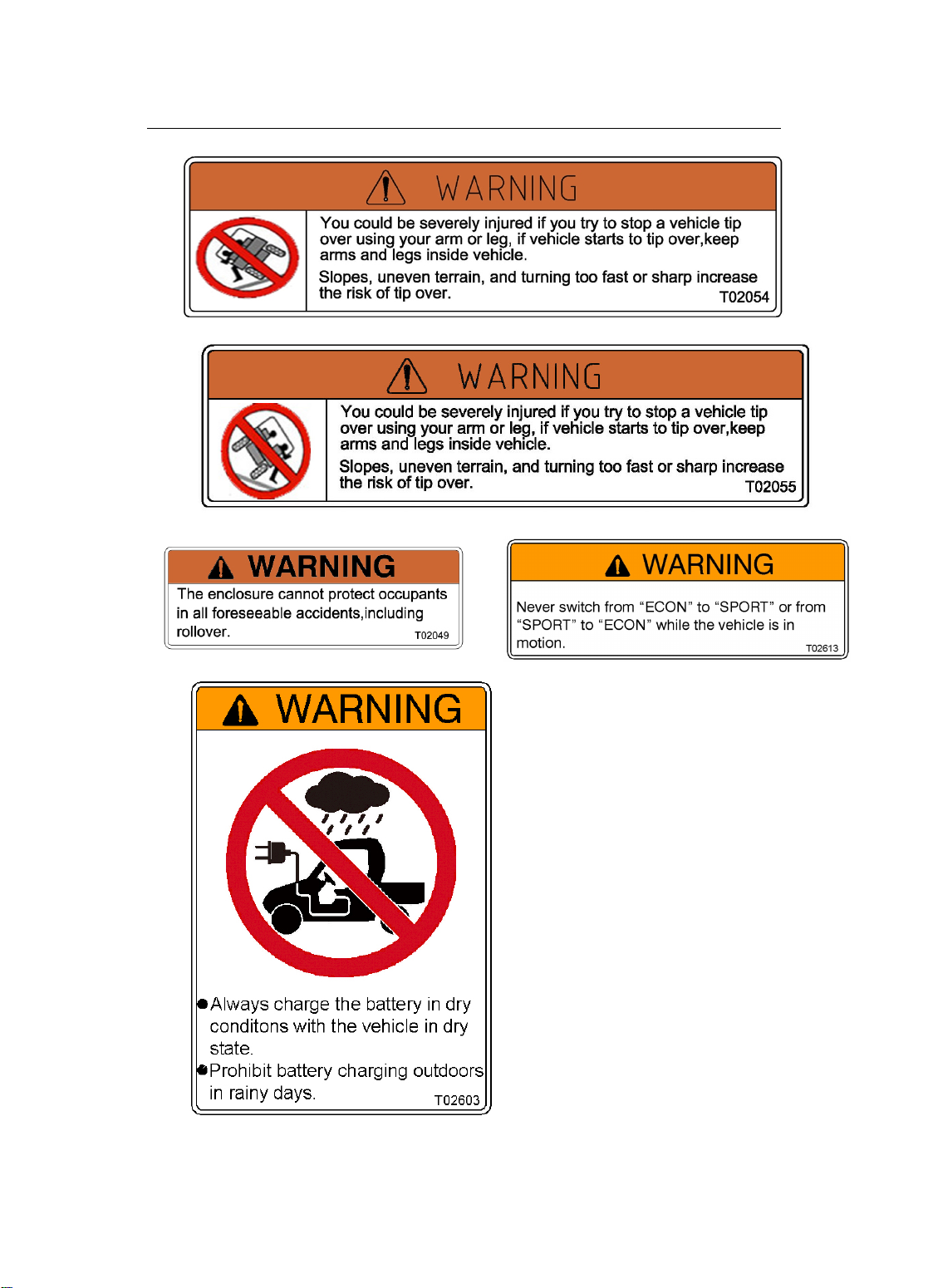

As with any off-road-capable vehicle, there is a risk of tip over or
rollover under certain conditions. Uneven terrain or slopes which
pitch the vehicle sideways, turning too fast or sharp, or a
combination of conditions increase the risk of tip over. If you are in a
situation where the vehicle is tipping over, do not put your arm or/
and leg outside the vehicle, do not try to stop tipping with your arm
or leg. You could be severely injured. You could suffer a crushed
hand, arm, leg, or foot, if part of your body is caught underneath the
vehicle.
You must keep your arms and legs inside the vehicle until it has
stopped moving.
Never consume alcohol or drugs before or while operating this
CUV.
Never operate at excessive speeds. Always travel at a speed which
is proper for the terrain, visibility and operating conditions, and your
experience.

LH50DU OWNER’S/OPERATOR’S MANUAL19.0
1. INTRODUCTION
1- 4
Never attempt wheelies, jumps or other stunts.
Always inspect your CUV each time you use it to make sure it is in
safe operating condition. Always follow the inspection and
maintenance procedures and schedules described in this manual.
Always keep both hands, arms, feet, and legs inside the vehicle at
all times during operation. Keep your feet on the floorboard. Never
hold onto the enclosure except when using the handgrip inside the
enclosure. Otherwise, your hand could be injured if it is caught
between the enclosure and an obstacle outside the vehicle.
Always keep both hands on the steering wheel when driving.
Never wrap your thumbs and fingers around the steering wheel.
This is particularly important when driving in rough terrain. The front
wheels will move right and left as they respond to the terrain, and
this movement will be felt in the steering wheel. A sudden jolt could
wrench the steering wheel around, and your thumbs or fingers
could be injured if they are in the way of the steering wheel spokes.
Always go slowly and be extra careful when operating on unfamiliar
terrain. Always be alert to changing terrain conditions when
operating the CUV.
Never operate on excessively rough, slippery or loose terrain.
Always follow proper procedures for turning as described in this
manual. Practice turning at low speeds before attempting to turn at
faster speeds. Do not turn at excessive speed.
Always have the CUV checked by an authorized dealer if it has
been involved in an accident.
Never operate CUV on hills too steep for the CUV or for your
abilities. Practice on smaller hills before attempting larger hills.
Always follow proper procedures for climbing hills as described in
this manual. Check the terrain carefully before you start up any hill.
Never climb hills with excessively slippery or loose surfaces. Never
open accelerator pedal suddenly or make sudden gear changes.
Never go over the top of any hill at high speed.
Always follow proper procedures for going down hills and for
braking on hills as described in this manual. Check the terrain
carefully before you start down any hill. Never go down a hill at high
speed. Avoid going down a hill at an angle which would cause the
vehicle to lean sharply to one side. Go straight down the hill where
possible.

LH50DU OWNER’S/OPERATOR’S MANUAL19.0
1. INTRODUCTION
1- 5
Always follow proper procedures for crossing the side of a hill as
described in this manual. Avoid hills with excessively slippery or
loose surfaces. Never attempt to turn the CUV around on any hill.
Avoid crossing the side of a steep hill if possible.
Always use proper procedures if you stall or roll backwards when
climbing a hill. To avoid stalling, maintain a steady speed when
climbing a hill. If you stall or roll backwards, follow the special
procedure for braking described in this manual.
Always check for obstacles before operating in a new area. Never
attempt to operate over obstacles, such as large rocks or fallen
trees. Always follow proper procedures when operating over
obstacles as described in this manual.
Always be careful of skidding of sliding. On slippery surfaces, such
as ice, go slowly and be very cautious in order to reduce the chance
of skidding or sliding out of control.
Avoid operating the CUV through deep or fast flowing water. Avoid
water which exceeds the recommended maximum depth. Go slowly,
carefully avoiding sudden movements, maintain a slow and steady
forward motion, do not make sudden turns or stops, and do not
make sudden accelerator pedal changes.
Wet brakes may have reduced stopping ability. Test your brakes
after leaving water. If necessary apply them lightly several times to
let friction dry out the pads.
Always be sure there are no obstacles or people behind you when
you operate in reverse. When it is safe to proceed in reverse, go
slowly. Avoid turning at sharp angles in reverse.
Always use the size and type tires specified in this manual. Always
maintain proper tire pressure as described in this manual.
Never modify A CUV through improper installation or use of
accessories.

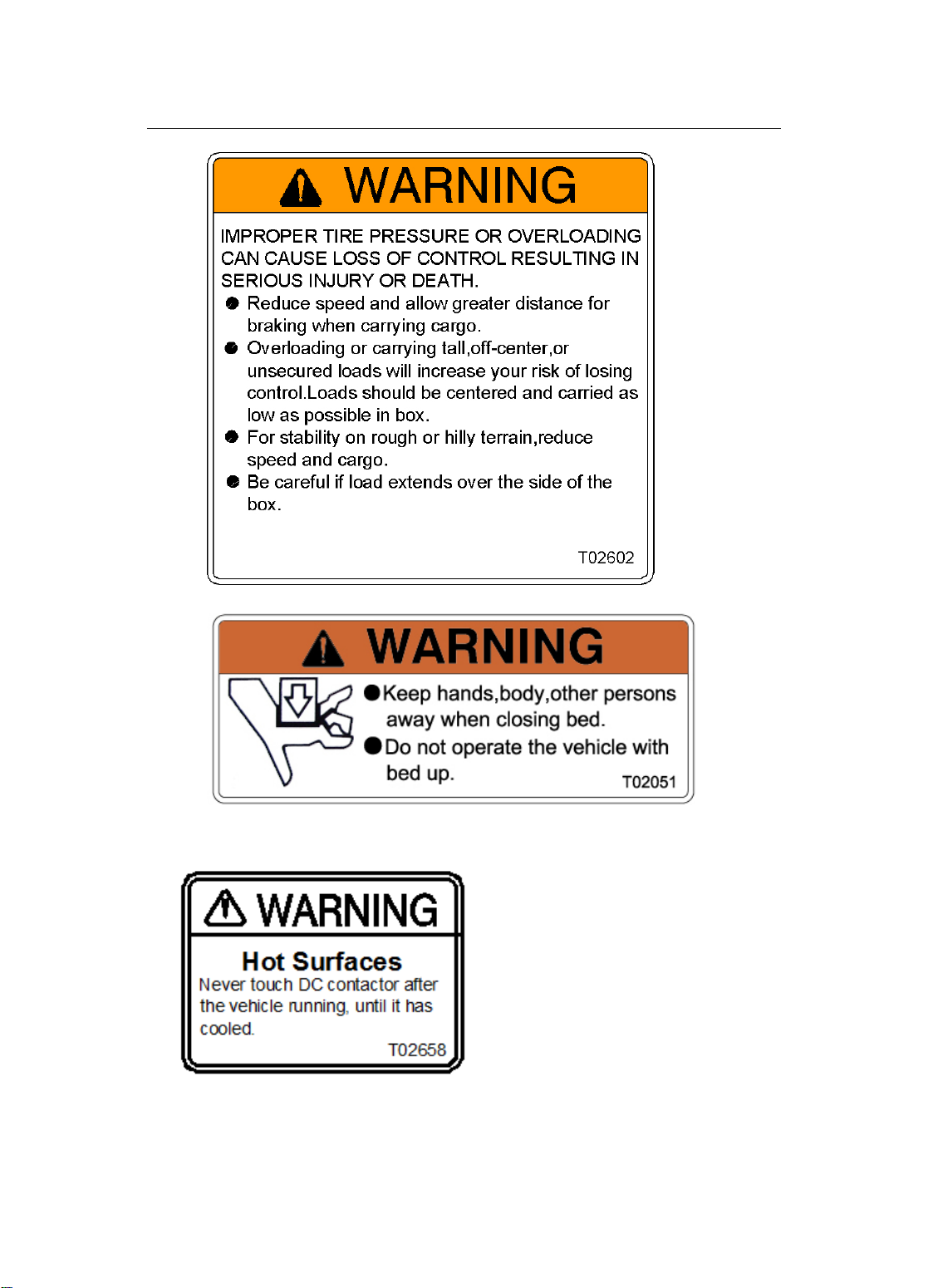

Never exceed the stated load capacity. Cargo should be as far
forward in the bed as possible, and distributed evenly from side to
side. Be sure cargo is secured so that it cannot move around during
operation. Reduce speed and follow instructions in this manual for
carrying cargo or pulling a trailer. Allow greater distance for braking.
Avoid operating the CUV through water. There is a risk of short
circuit or leakage from wading driving the vehicle. It might lead to
operator and passenger severe injured or dead, vehicle damaged

LH50DU OWNER’S/OPERATOR’S MANUAL19.0
1. INTRODUCTION
1- 6
or even ignited.
Always operate the vehicle on the smooth terrain. It might lead to
operator and passenger severe injured or dead, the damage of the
suspension, battery , circuit and motor while driving on extreme
off-road terrain , extreme slopes or jumping .

LH50DU OWNER’S/OPERATOR’S MANUAL 1.0
2. UNDERSTANDING WARNINGS
2- 1
ATTENTION:
This is an ADULT VEHICLE ONLY! Not a toy! READ AND
UNDERSTAND WARNINGS AND OWNER’S MANUAL BERORE
OPERATION.
KNOW YOUR VEHICLE BEFORE YOU BEGING RIDING!
Read this manual thoroughly referring to the various areas which are
being discussed on your machine. Operating this vehicle carries with it
responsibilities for your personal safety, the safety of others, and the
protection of our environment.
NOTE: Illustrations used in this manual are for general representation
only. Your model may differ.

LH50DU OWNER’S/OPERATOR’S MANUAL 1.0
2. UNDERSTANDING WARNINGS
2- 2
SAFETY ALERT
WARNINGS identify special instructions or procedures which, if
not correctly followed, could result in personal injury, or loss of
life. Read all WARNINGS in this manual care fully. Follow their
instructions to remain safe.
The following precautionary signal words are used throughout this
manual to convey the following messages:
This is the safety alert symbol. When you see
this symbol on your machine or in this manual, be
alert to the potential for personal injury. Your safety is
involved!
WARNING
Indicates a potential hazard which could result in severe injury or
death.
CAUTION
Indicates a potential hazard which may result in minor personal
injury or damage to the CUV.
CAUTION
Indicates a situation that can result in damage to the machine.
NOTE The word “NOTE” in this manual will alert you to key
information or instructions.
The Prohibition Safety Sign indicates an action NOT to
taken in order to avoid a hazard.

LH50DU OWNER’S/OPERATOR’S MANUAL1.0
3. SAFETY WARNING
3- 1
NOTE：
Warning decals have been placed on the vehicle for your protection.
Read and follow the instructions on each decal carefully. In the event
any decal becomes illegible or comes off, contact your dealer for a
replacement.
Attention: There is a risk of fire from driving the vehicle on the ground
where grass has dried up or parking the vehicle on such surface while
the engine is hot.

LH50DU OWNER’S/OPERATOR’S MANUAL1.0
3. SAFETY WARNING
3- 2
1

LH50DU OWNER’S/OPERATOR’S MANUAL1.0
3. SAFETY WARNING
3- 3
2
3
4

LH50DU OWNER’S/OPERATOR’S MANUAL1.0
3. SAFETY WARNING
3- 4
5
6
7 8
9

LH50DU OWNER’S/OPERATOR’S MANUAL1.0
3. SAFETY WARNING
3- 5
10 11
12

LH50DU OWNER’S/OPERATOR’S MANUAL1.0
3. SAFETY WARNING
3- 6
13
14

LH50DU OWNER’S/OPERATOR’S MANUAL1.0
3. SAFETY WARNING
3- 7
15
16
17

LH50DU OWNER’S/OPERATOR’S MANUAL1.0
3. SAFETY WARNING
3- 8
18
19
20
21 (ONLY FOR USA )

LH50DU OWNER’S/OPERATOR’S MANUAL1.0
3. SAFETY WARNING
3- 9
22
