liniLED Top Power Colour User manual

LED strip manual
liniLED® Top Power Colour
24
V DC
UV RESISTANT
GLOW WIRE
850 °C
FROST
RESISTANT
F
CLEANING AGENTS
RESISTANT
IP40/IP68 SWIMMING POOL
ENVIRONMENT
IK08 SWIMMING POOL
SUBMERSIBLE
MAC
ADAM
3
S D C M
BEND RADIUS
R
30 mm CRI
80+
5
System
RoHS SEA WATER
RESISTANT
V100920

liniLED® Top Power Colour
Technical notes 4
Top Power Colour - Product drawings 5
Product information 5
Product specications 5
Cable selection 6
Area advice 7
Product care and handling 8
Cutting instructions 9
Solder 11
Connect IP40 13
Uninstalling the connector 15
Power supply 16
Welded connector 17
Symbols 18

4LED strip manual | liniLED® Top Power Colour
Read the instructions and safety precautions before installation, usage and storage of the products to secure safety of the user and reliability of the product.
- Hand over the instructions to the end user and those responsible for installation and usage.
- Triolight B.V. cannot be held responsible for improper handling, product installation, usage or storage.
Handling
- Handle with care.
- The product may not be modied or converted otherwise than prescribed.
- Products are transported in proper packaging. Products should remain packed until installation.
- Take ESD (Electrostatic Discharge) protection measures when handling liniLED® products.
- The products and their components may not be exposed to mechanical, static loads and other tension/compression other than from the product itself.
Installation
- Attention: The power has to be switched o the main power supply or the connection before installation. Not doing so may damage the product.
- Use a suitable LED power supply/driver: 24 V DC constant voltage. Do not drive the product on other voltages than described in their datasheet/products
specications.
- Installation has to be done by a certied professional with knowledge of electrical circuits or a specialised maintenance person known with valid directives.
- General and local construction-, safety- and installation regulations should be respected.
- Use only supplied parts, accessories and required tools as prescribed in the installation manual to guarantee a safe installation and use of the product.
- Products may solely be installed in the areas according to their prescribed IP-rating, IK-rating, temperature range and chemical resistances.
- The LED strip should be installed on an adequate cooling body for proper heat dissipation to ensure smooth operation and long lifetime.
- Do not fasten anything to the product. The same applies when hanging.
- Do not install the product in the following cases:
- Damage is visible on the product or its cables.
- The inside of the product is moistened or dirty.
- The product or its cables have been modied. This could lead to an electrical shock or a short circuit may occur.
- Children may not play unsupervised with electrical products as they cannot judge the dangers in dealing with electrical circuits correctly.
- Use proper mounting surfaces when installing in environments with large variations in temperature and operating lengths more than 2 metres. This should
absorb the stress of any dierence in expansion.
Operation and use
Solely use the product when it’s working correctly. If not, switch the power o immediately and ask an electrical specialist for advice in the following cases:
- Damage is visible on the product and/or the product does not function.
- The product is overheating and/or smoke or steam rises from the product.
- Crackling sounds are noticeable.
Repairs on the installation may only be performed by qualied electricians. Product repairs may solely be done by Triolight B.V.
Cleaning and maintenance
- Attention: Disconnect the power before maintenance and cleaning.
- Dust and dirt accumulated over time should be removed from the light emitting surface to assure optimal functioning of the product.
- Paints, solvents and corrosive cleaning chemicals may not contact and thus aect the product.
Environment and waste
- Exterior decorative lighting should only be used after sunset.
- This product may not be treated as household waste. Dispose of the material through the waste recycling of electrical and electronic equipment.
Warranty
This product comes with a 2 year warranty. Warranty void if:
- The installation guide has not been consulted (installation mistake).
- The installation is not done by a certied installer.
- Local rules and guidelines are not respected.
- The invoice cannot be shown and/or has been altered.
- Damage is caused by negligence, abnormal use or improper handling, use, maintenance and/or cleaning of the product.
Technical notes

5LED strip manual | liniLED® Top Power Colour
The liniLED® Top Power LED strip IP40 (IP68*) is a high quality, exible LED strip, with a unique co-extrusion technology.
The combination of high quality and exceptional exibility, allows for an endless range of indoor and outdoor applications.
*For usage in wet enviroments, use the liniLED® IP68 Kit mirror welded.

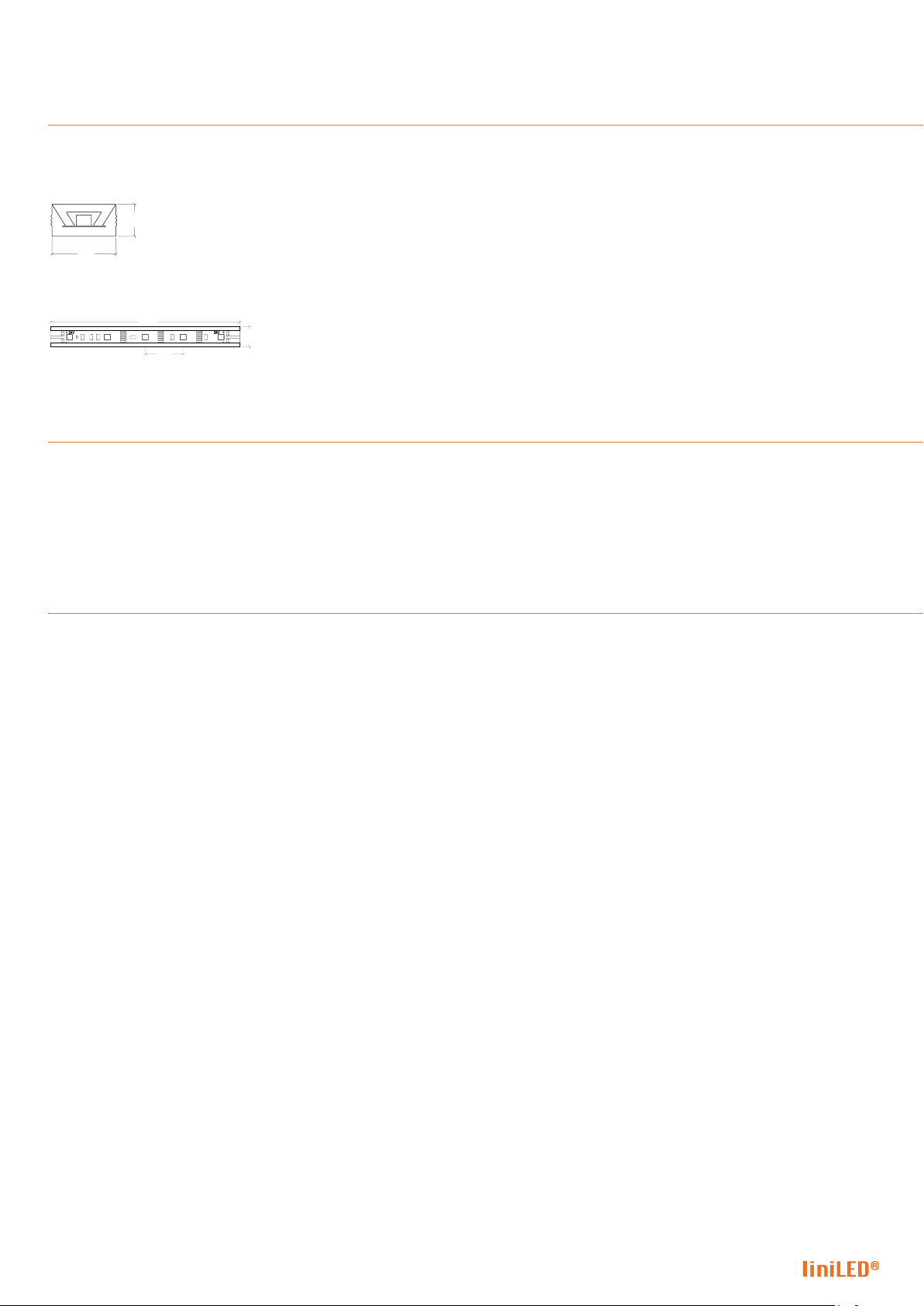

LED strip top view
LED strip front view
6
12
100
12
20
Product information
Product specications
Colour LED/m V DC W/m lm/m Temp ˚C Max. Length B50/L70
Red 50 24 8.3 102 -30...5510 m > 50.000 h
Green 50 24 4.9 153 -30...5510 m > 50.000 h
Blue 50 24 7.2 68 -30...5510 m > 50.000 h
Amber 50 24 8.3 94 -30...5510 m > 50.000 h
Max. connection length between -30 °C and -20 °C is 14 metres.
Top Power Colour - Product drawings

6LED strip manual | liniLED® Top Power Colour
1. Colour temperature Red. Amber
2. LED strip length 1 m 2 m 5 m 10 m
3. Output voltage 24 V DC 25 V DC 24 V DC 25 V DC 24 V DC 25 V DC 24 V DC 25 V DC
4. Cable cross section 0.50 mm - 0.035 Ω/m 36.0 m 70.4 m 17.3 m 34.5 m 6.1 m 13.0 m 2.4 m 5.8 m
0.75 mm - 0.023 Ω/m 54.2 m 105.9 m 26.1 m 51.9 m 9.3 m 19.6 m 3.6 m 8.8 m
1.00 mm - 0.018 Ω/m 72.1 m 140.8 m 34.7 m 69.1 m 12.3 m 26.1 m 4.8 m 11.7 m
1.50 mm - 0.012 Ω/m 108.4 m 211.8 m 52.3 m 103.9 m 18.6 m 39.2 m 7.3 m 17.7 m
2.50 mm - 0.007 Ω/m 180.5 m 352.5 m 87.0 m 173.0 m 30.9 m 65.3 m 12.2 m 29.4 m
1. Colour temperature Blue
2. LED strip length 1 m 2 m 5 m 10 m
3. Output voltage 24 V DC 25 V DC 24 V DC 25 V DC 24 V DC 25 V DC 24 V DC 25 V DC
4. Cable cross section 0.50 mm - 0.035 Ω/m 41.7 m 81.3 m 20.2 m 40.0 m 7.3 m 15.2 m 3.0 m 6.9 m
0.75 mm - 0.023 Ω/m 62.8 m 122.3 m 30.4 m 60.2 m 11.0 m 22.9 m 4.5 m 10.5 m
1.00 mm - 0.018 Ω/m 83.5 m 162.7 m 40.4 m 80.0 m 14.6 m 30.4 m 6.0 m 13.9 m
1.50 mm - 0.012 Ω/m 125.6 m 244.7 m 60.8 m 120.4 m 22.0 m 45.8 m 9.0 m 21.0 m
2.50 mm - 0.007 Ω/m 209.0 m 407.3 m 101.3 m 200.4 m 36.6 m 76.3 m 15.1 m 34.9 m
1. Colour temperature Green
2. LED strip length 1 m 2 m 5 m 10 m
3. Output voltage 24 V DC 25 V DC 24 V DC 25 V DC 24 V DC 25 V DC 24 V DC 25 V DC
4. Cable cross section 0.50 mm - 0.035 Ω/m 61.9 m 120.1 m 30.3 m 59.4 m 11.3 m 23.0 m 5.0 m 10.8 m
0.75 mm - 0.023 Ω/m 93.2 m 180.7 m 45.6 m 89.4 m 17.0 m 34.6 m 7.5 m 16.3 m
1.00 mm - 0.018 Ω/m 123.9 m 240.3 m 60.6 m 118.8 m 22.7 m 46.0 m 10.0 m 21.7 m
1.50 mm - 0.012 Ω/m 186.4 m 361.4 m 91.2 m 178.8 m 34.1 m 69.2 m 15.1 m 32.6 m
2.50 mm - 0.007 Ω/m 310.2 m 601.6 m 151.9 m 297.5 m 56.9 m 115.1 m 25.2 m 54.3 m
Note: Calculations are based on a standard connector with 1 metre cable (0.5 mm).
1= Select colour temperature.
2 = Select LED strip length.
3= Select output voltage.
4= Select cable cross section.
Result = Maximum cable length based
on the cable thickness and power supply
voltage.
-+
Top/Side Connector (1000 mm)
1
2
3
4
Result
Cable selection

7LED strip manual | liniLED® Top Power Colour

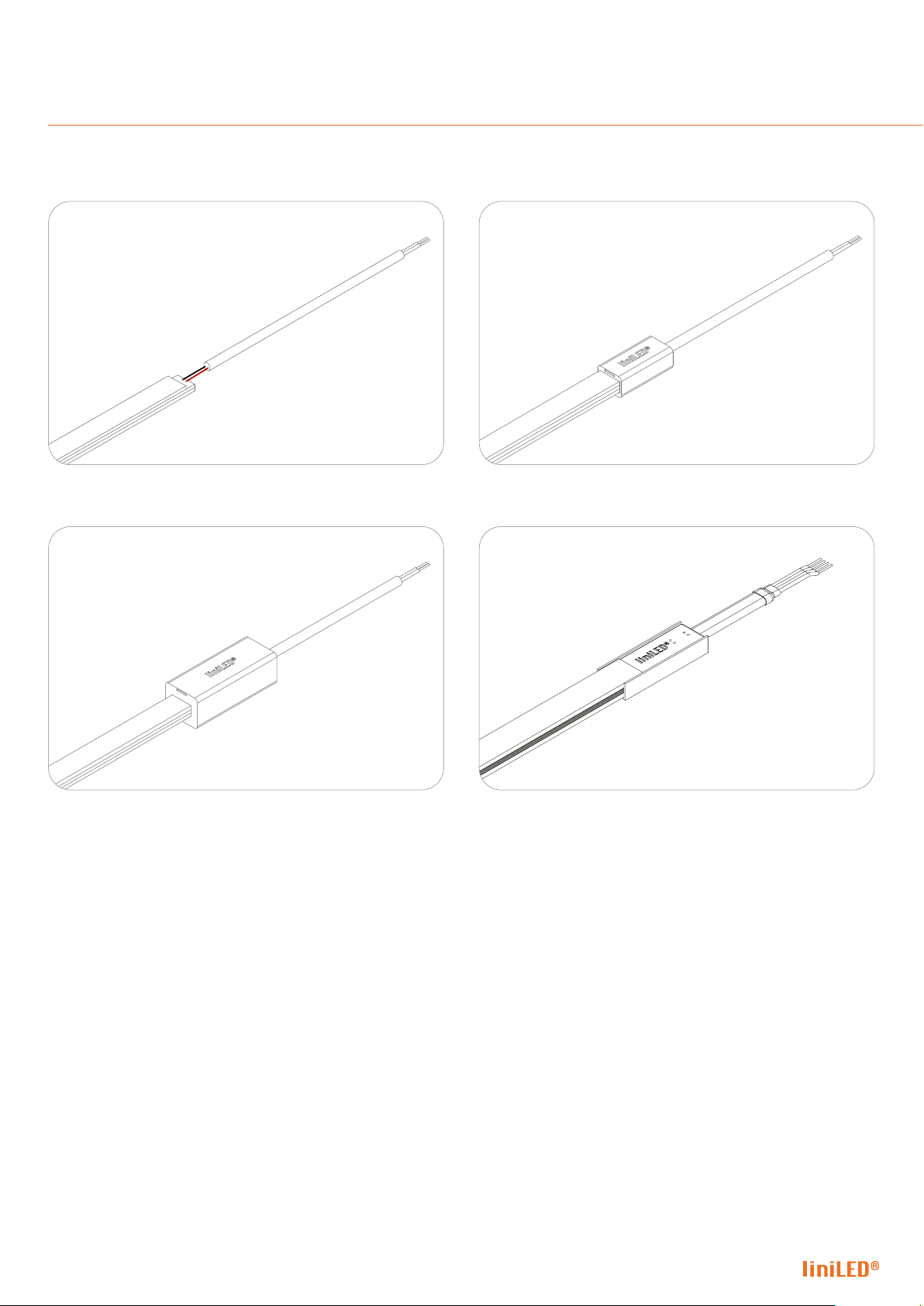

Depending on the installation area of the liniLED® LED strip we oer a range of IP40, IP67 and IP68 solutions to cope with external factors. Below the dierent
connectors are displayed for use in dierent environments. See corresponding pages or individual product manual for further instructions.
Indoor environment | (IP20)
Solder
Indoor environment | (IP40) | liniLED® Top Connector set.
Product code: 11200 (1 m), 11201 (5 m)
Wet environment | (IP67) | liniLED® Top IP67 Kit
Product code: 11490
See Manual liniLED® Top IP67 Kit for installation instructions.
Submersible, chlorine resistant | (IP68) | Welded Connector
Product code: 12296 1m
12297 5m
The connector is pre-assembled to the LED strip.
Area advice

8LED strip manual | liniLED® Top Power Colour

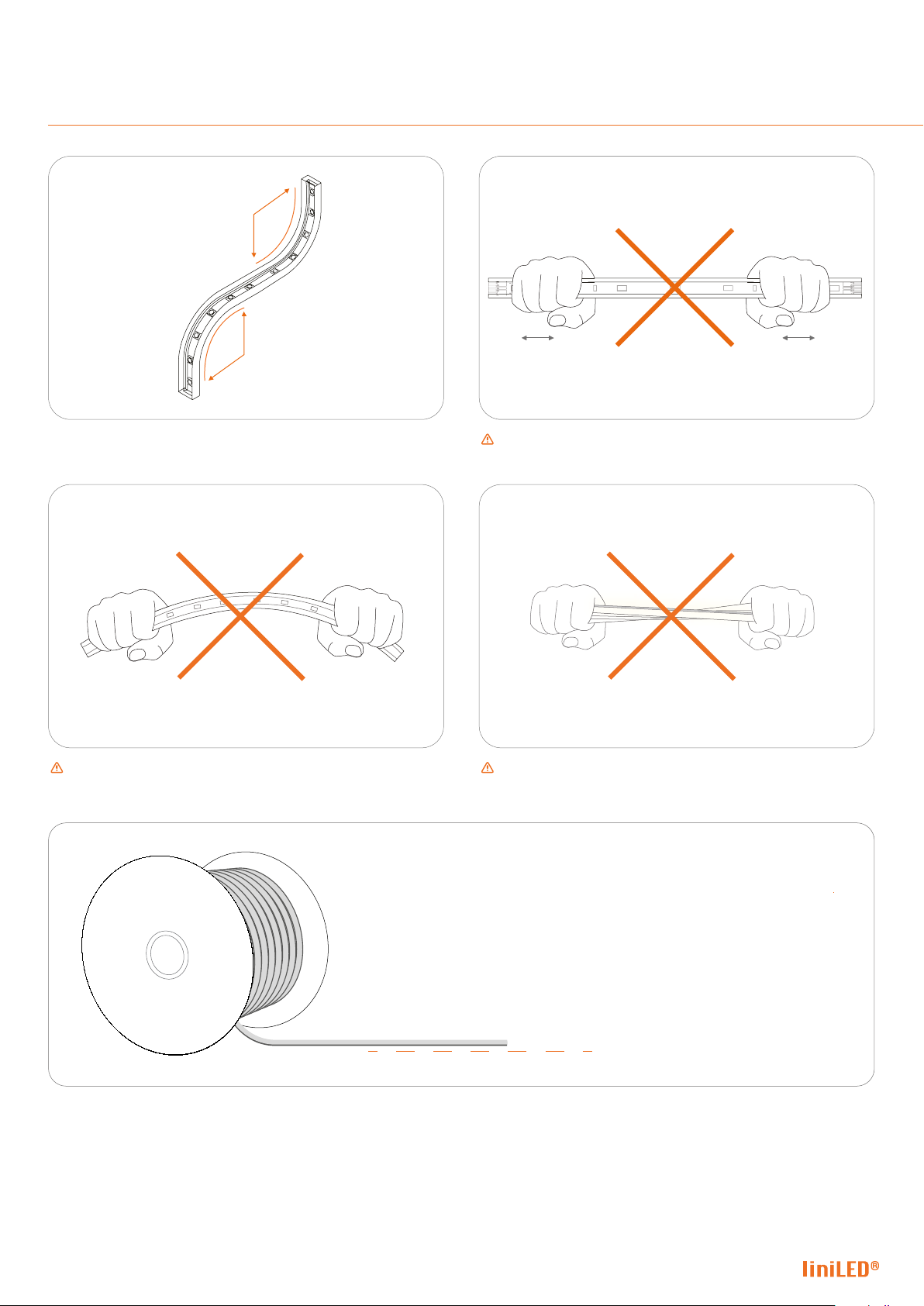

Product care and handling
30 mm
30 mm
Maximum bending radius is 30 mm. Solely bend up or downward. Do not compress or stretch the LED strip.
Do not bend the LED strip sidewards. Do not twist the LED strip.
The LED strip has to be unreeled on a horizontal surface at the time of installation. Do not unreel the spool of LED strip before installation.

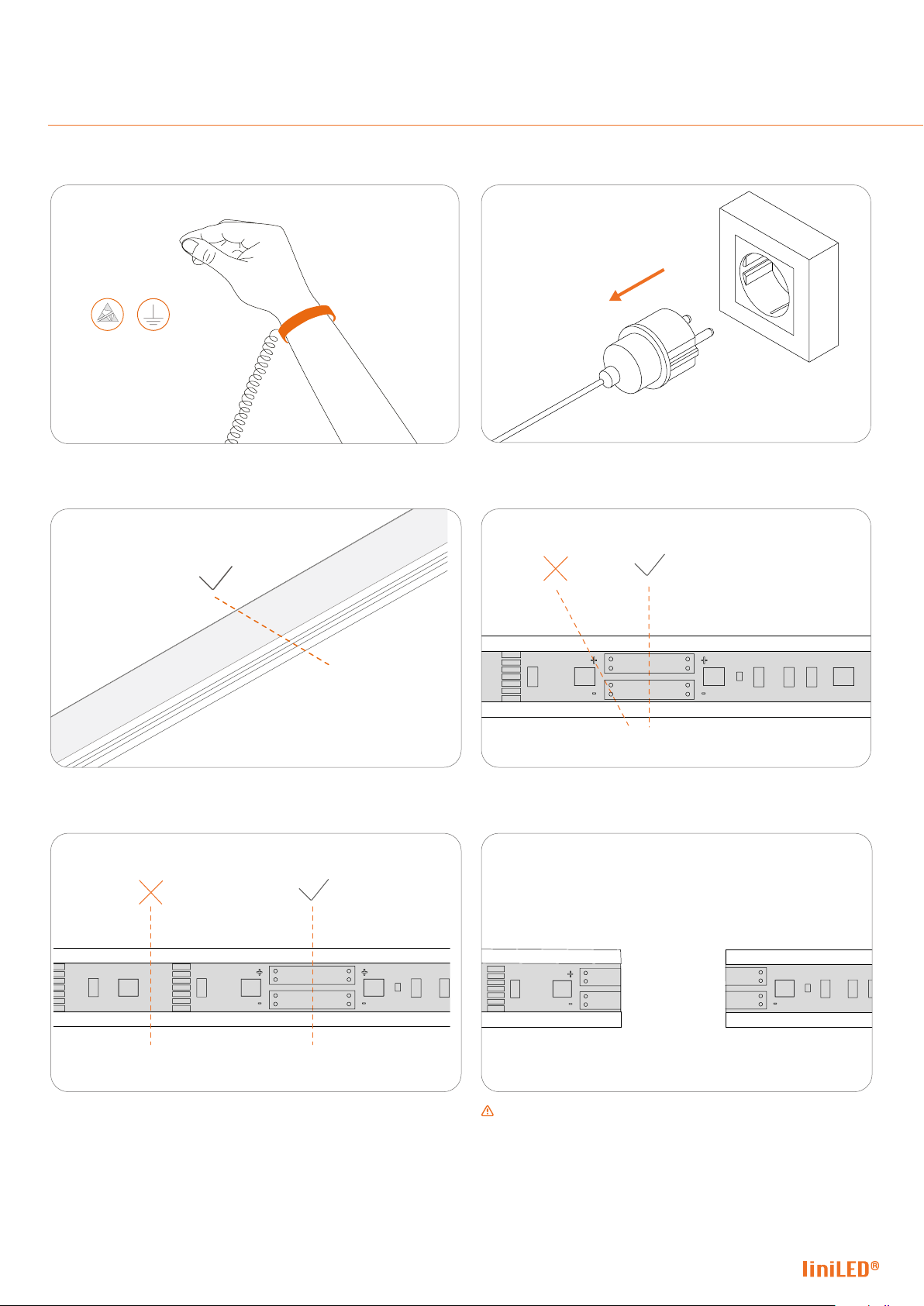

9LED strip manual | liniLED® Top Power Colour
Work in an ESD protected environment. Make use of an anti-static
strap.
Turn o the power before cutting the LED strip.
Side view | Make sure the cut is vertical as illustraded in the image
above.
Top view | Make sure the cut is vertical as illustraded in the image
above.
Top view | Only cut on the dotted lines to prevent damaging the LED
strip.
Dispose of the unnecessary material through waste recycling of
electrical and electronic equipment.
Cutting instructions
5
3
2
4
6
1

10 LED strip manual | liniLED® Top Power Colour
Place the liniLED® LED strip on the base of the cutting tool. Not doing so may result in a deformed LED strip.
Cutting instructions
7

11 LED strip manual | liniLED® Top Power Colour
Work in an ESD protected environment. Make use of an anti-static
strap.
Turn o the power. Make sure the wires are not under electric
current.
0.5 mm
2
8 mm
Solder the wires to the PCB. We advise to use a cable with an area not
higher then 0.5 mm
Top view | Only cut the LED strip extrusion on the dotted line of
the extrusion to prevent damaging the PCB. Carefully cut away this
part of the extrusion.
Side view | Do not cut the PCB! The end result after cutting the LED strip extrusion should look
similar to the image above.
Solder
5
3
2
4
6
1

12 LED strip manual | liniLED® Top Power Colour
300°C
Max. 4 sec.

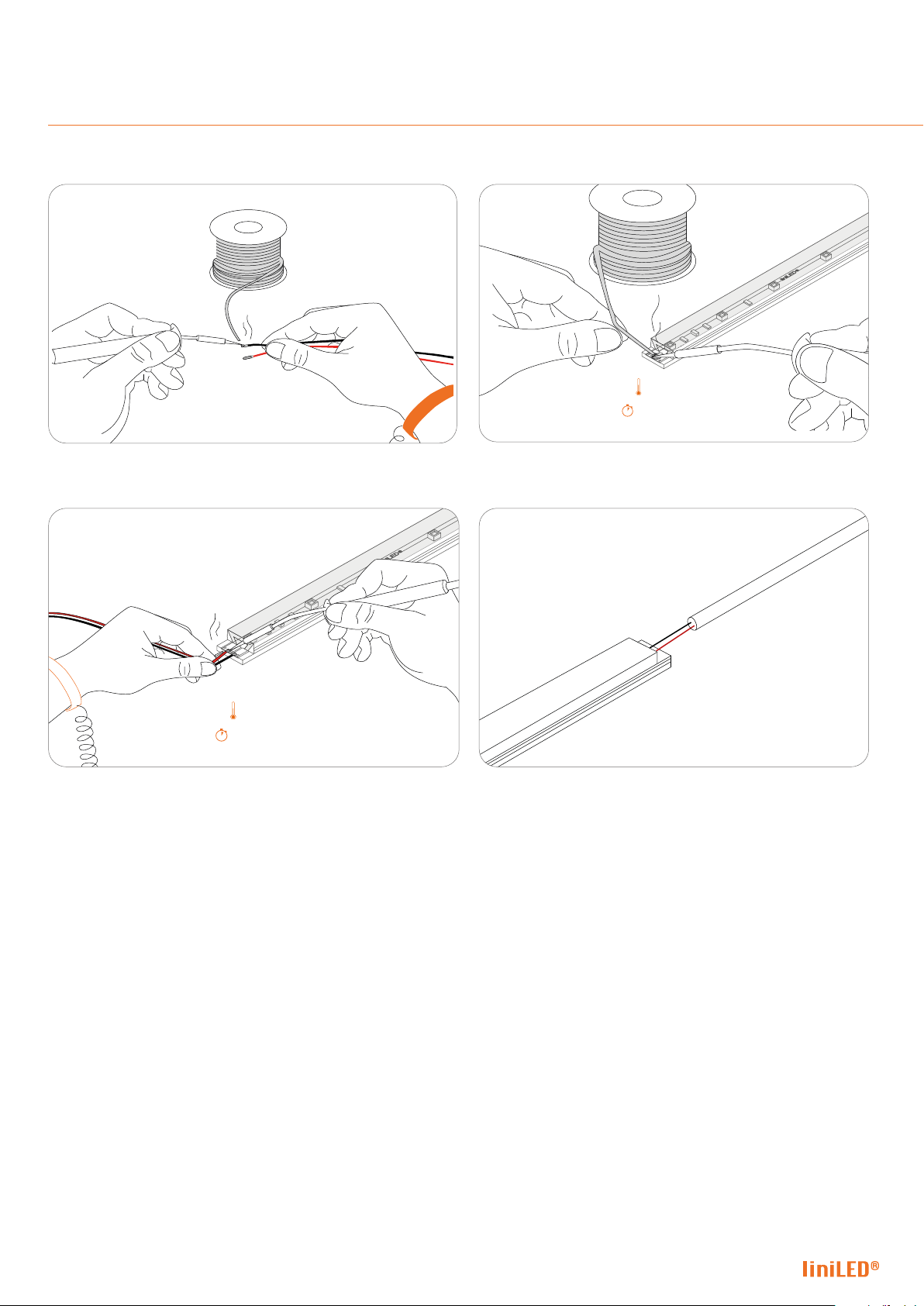

Pre-solder the connector pads. Pre-solder the wires.
300°C
Max. 4 sec.
Solder the wires to the connector pads. Connect the liniLED® LED strip to the power supply (24 V DC) con-
stant voltage.
Solder
9
8
10
7

13 LED strip manual | liniLED® Top Power Colour
1
2
3
4

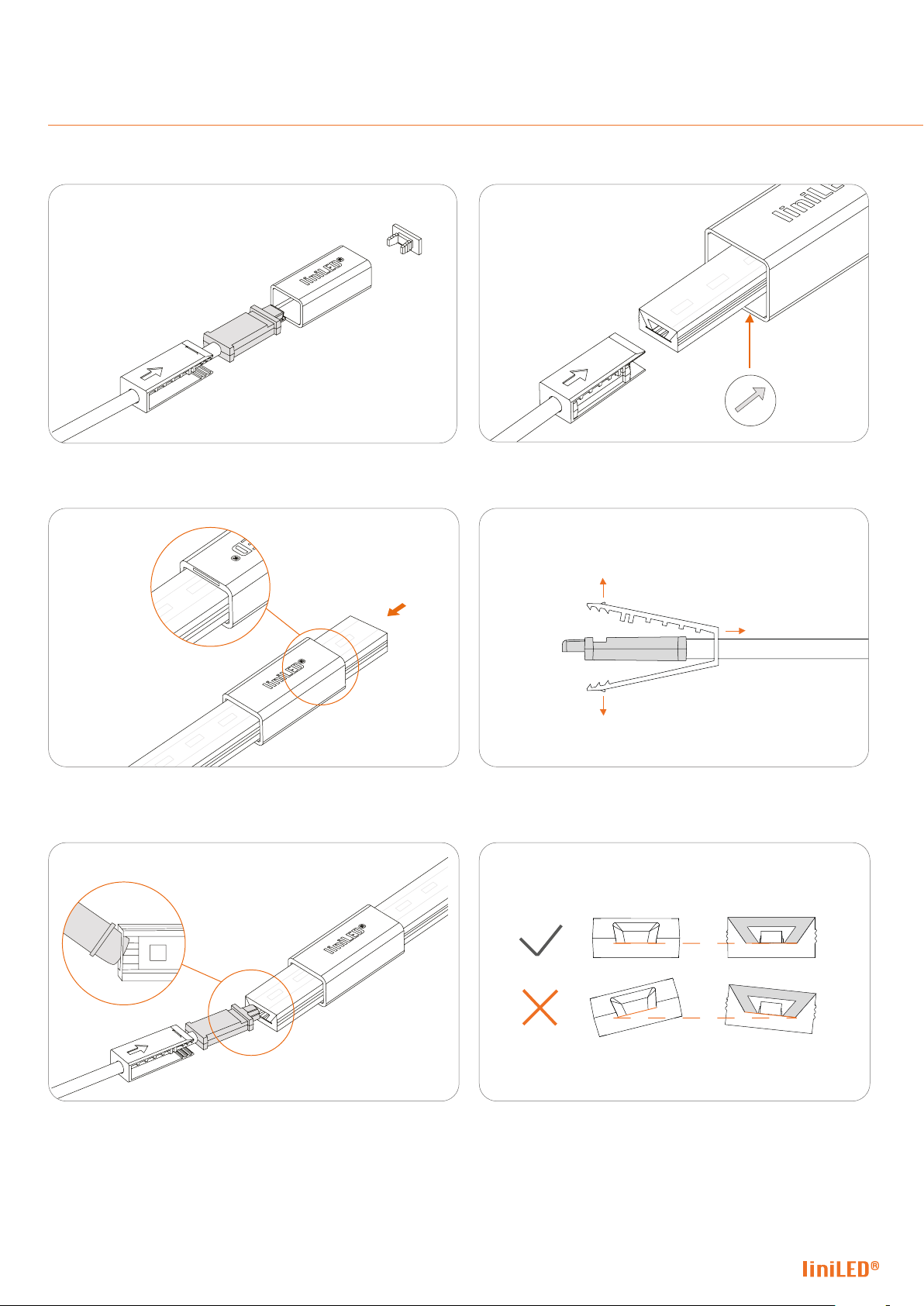

The liniLED® IP40 Connector consists of: End cap (1), Shell (2),
Connector (3), Clamp (4).
Take into account the direction of the arrow on the bottom of the
liniLED® LED strip and allign it with the arrow on the clamp (4).
Place the shell (2) over the LED strip. Make sure the side with the small-
est opening is put on rst.
Side view | Slide the clamp (4) over the cable to reveal the
connector (3).
Slide the connector (3) sideways into the hollow chamber of the
liniLED® LED strip. Side view | Do not cut the PCB!
Front view | Make sure the connector and the PCB are perfectly
horizontally alligned.
Connect IP40
5
3
2
4
6
1

14 LED strip manual | liniLED® Top Power Colour

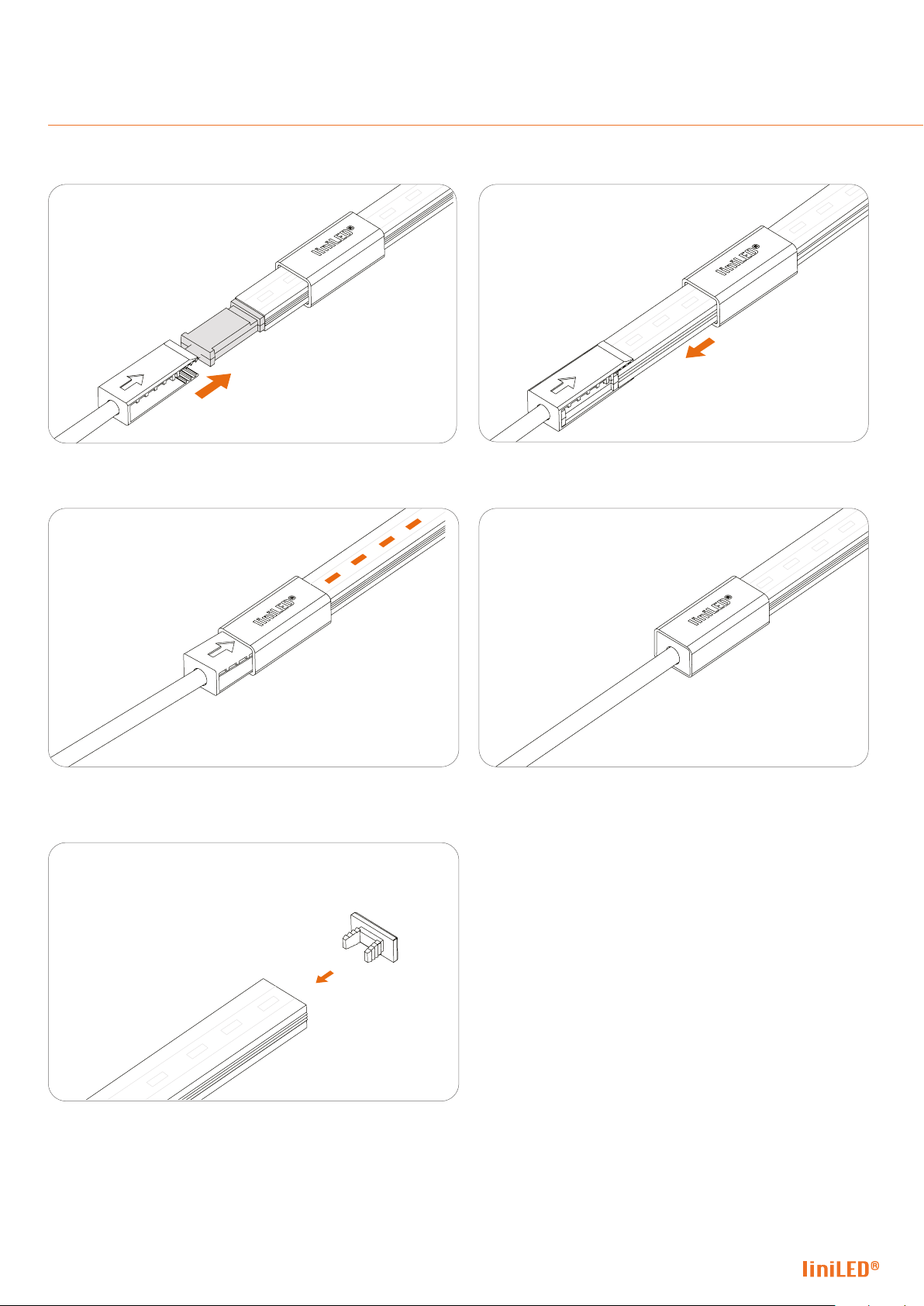

Slide the clamp (4) over the connector (3) and make sure that the
arrow is on the upper side.
Slide the shell (2) partly over the clamp (4).
‘ Click ’
Test the liniLED® LED strip before you slide it fully over the clamp (4). Slide the shell (2) entirely over the clamp (4) and push rmly until it
‘clicks‘.
Finish the connection by inserting an end cap (1) in the hollow
chamber on the end side of the liniLED® LED strip.
Connect IP40
11
9
8
10
7

15 LED strip manual | liniLED® Top Power Colour

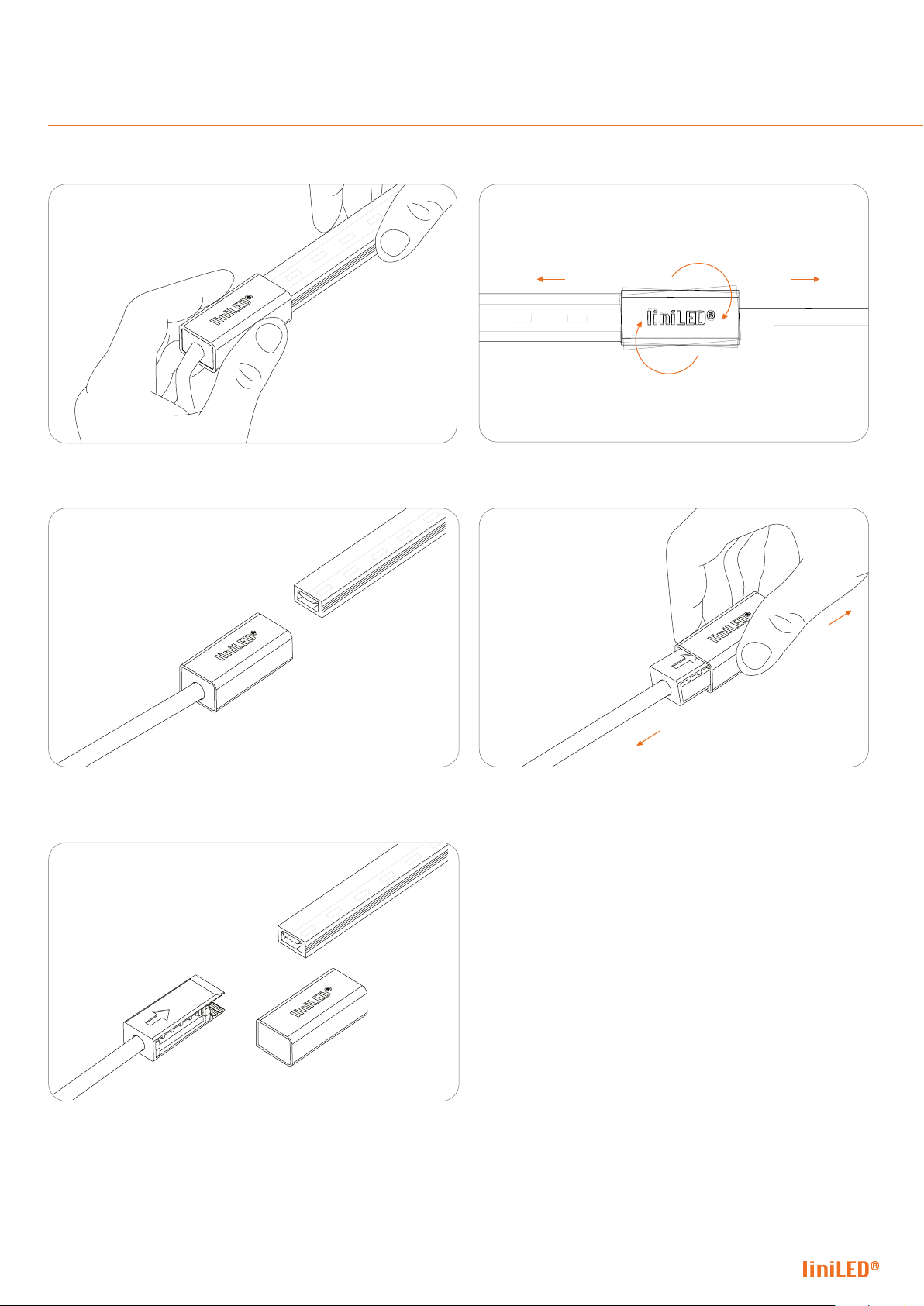

Firmly grab the outer shell and gently grab the liniLED® LED strip. Gently wiggle the connector and pull in opposite direction.
The connector should look like this when it is removed. Firmly press the sides of the shell and pull gently while holding the
cable to remove it.
Article number Description
11200 liniLED® Top Connector set 1 m
11201 liniLED® Top Connector set 5 m
11208 liniLED® Top Extension Cord
Uninstalling the connector
5
3
2
4
1

16 LED strip manual | liniLED® Top Power Colour

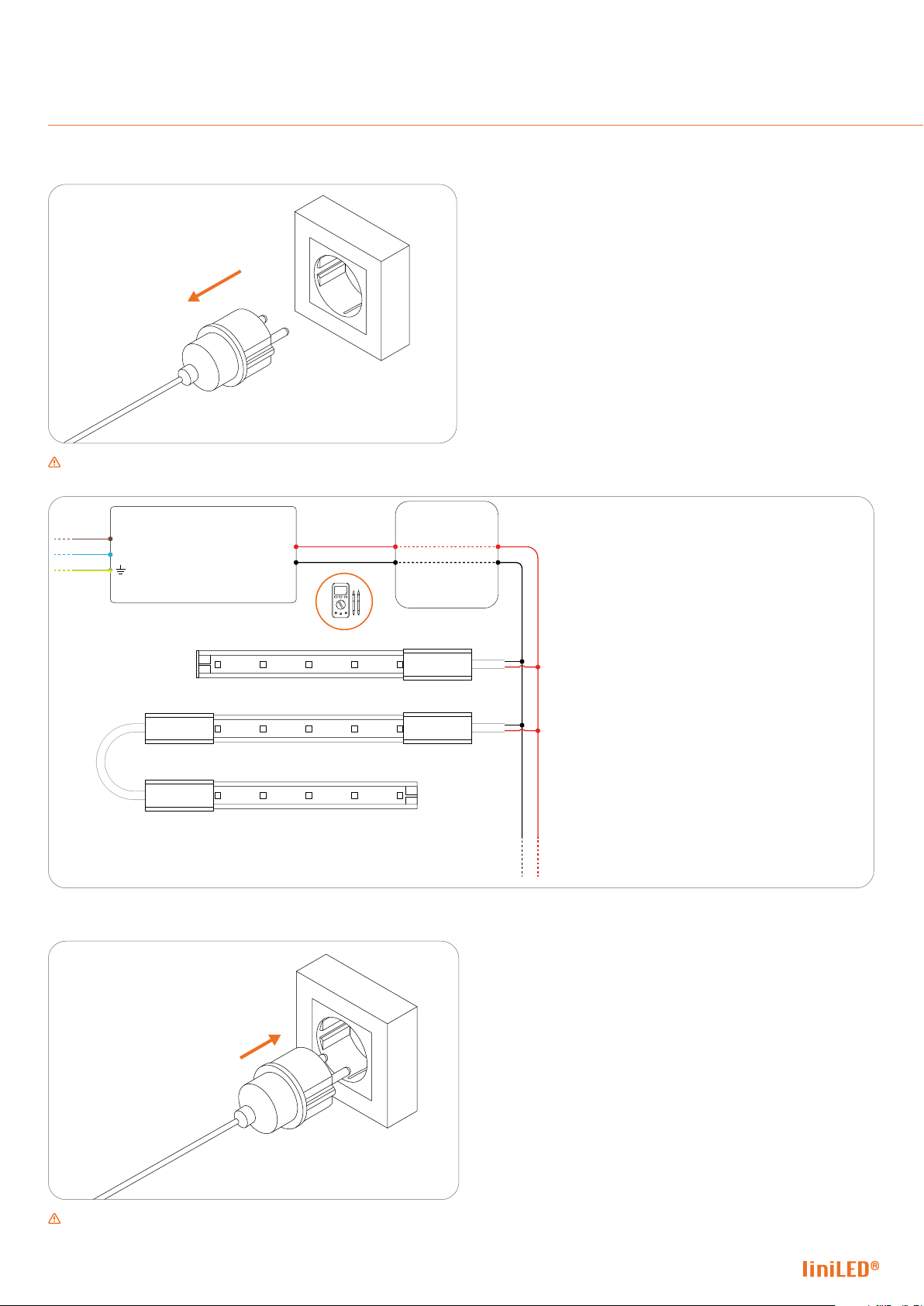

Turn o the power before connecting the LED strip to the power
liniLED® Control
(Optional)
L
NPower
Supply
24 V
DC -
+
230 V
AC
Measure output (23-25 V DC)
before installing liniLED® system
Connect the LED strip as indicated in the gure above. The wires should be connected as follows: Red (+) and Black (-).
Insert the power plug.
Power supply

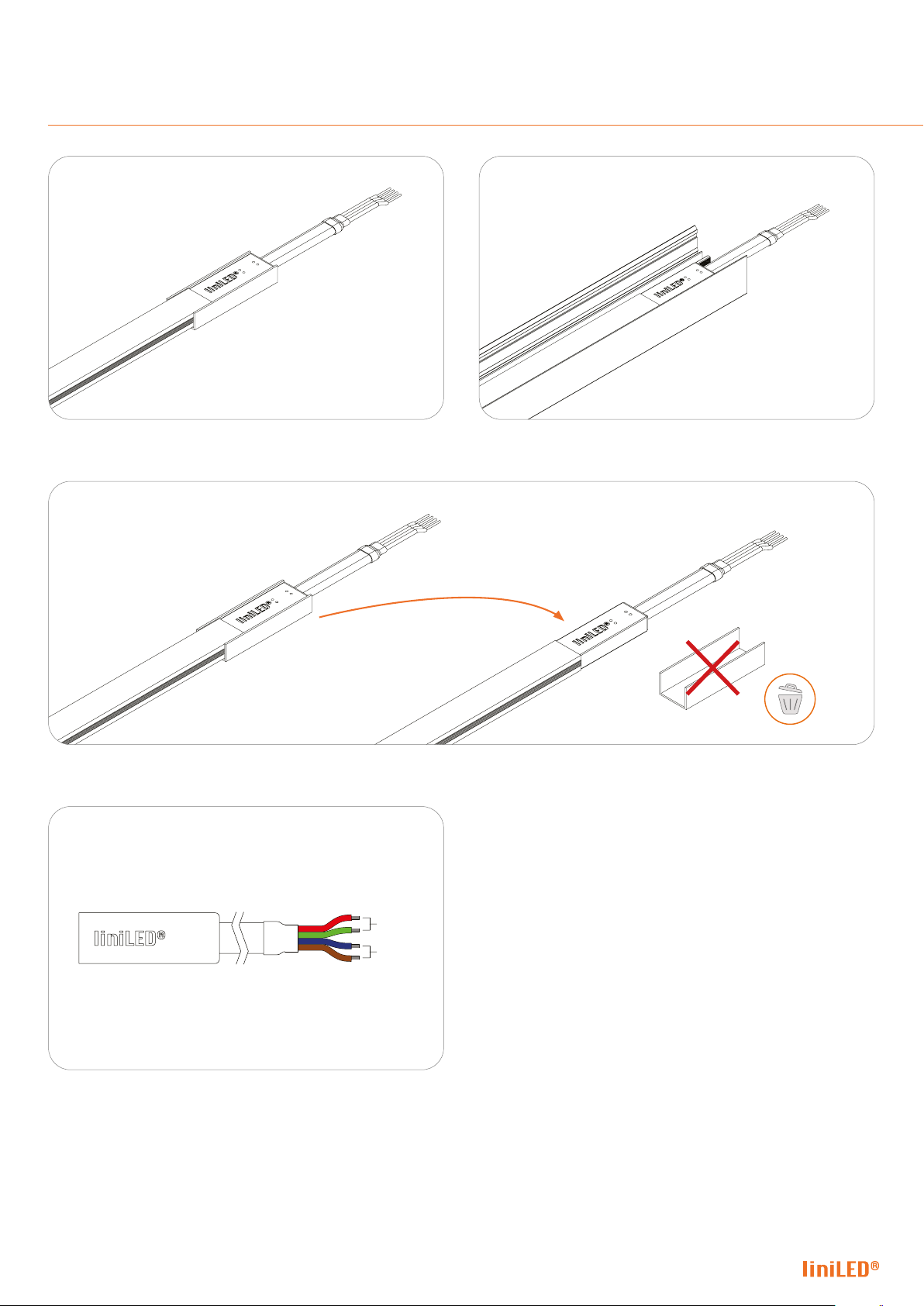

17 LED strip manual | liniLED® Top Power Colour
Option 1 Glued profile | Please do not try to remove the U-prole
because this damages the connector.
Option 2 Pre-installed | The liniLED® Welded connector and LED
strip are pre-installed in a xture/prole.
After installation
Option 3 Removable sleeve | The U-prole can be removed after installation, but this will void warranty.
+
-
How to connect | Please use Blue and Brown for + and use Red
and Green for -.
Welded connector

18 LED strip manual | liniLED® Top Power Colour

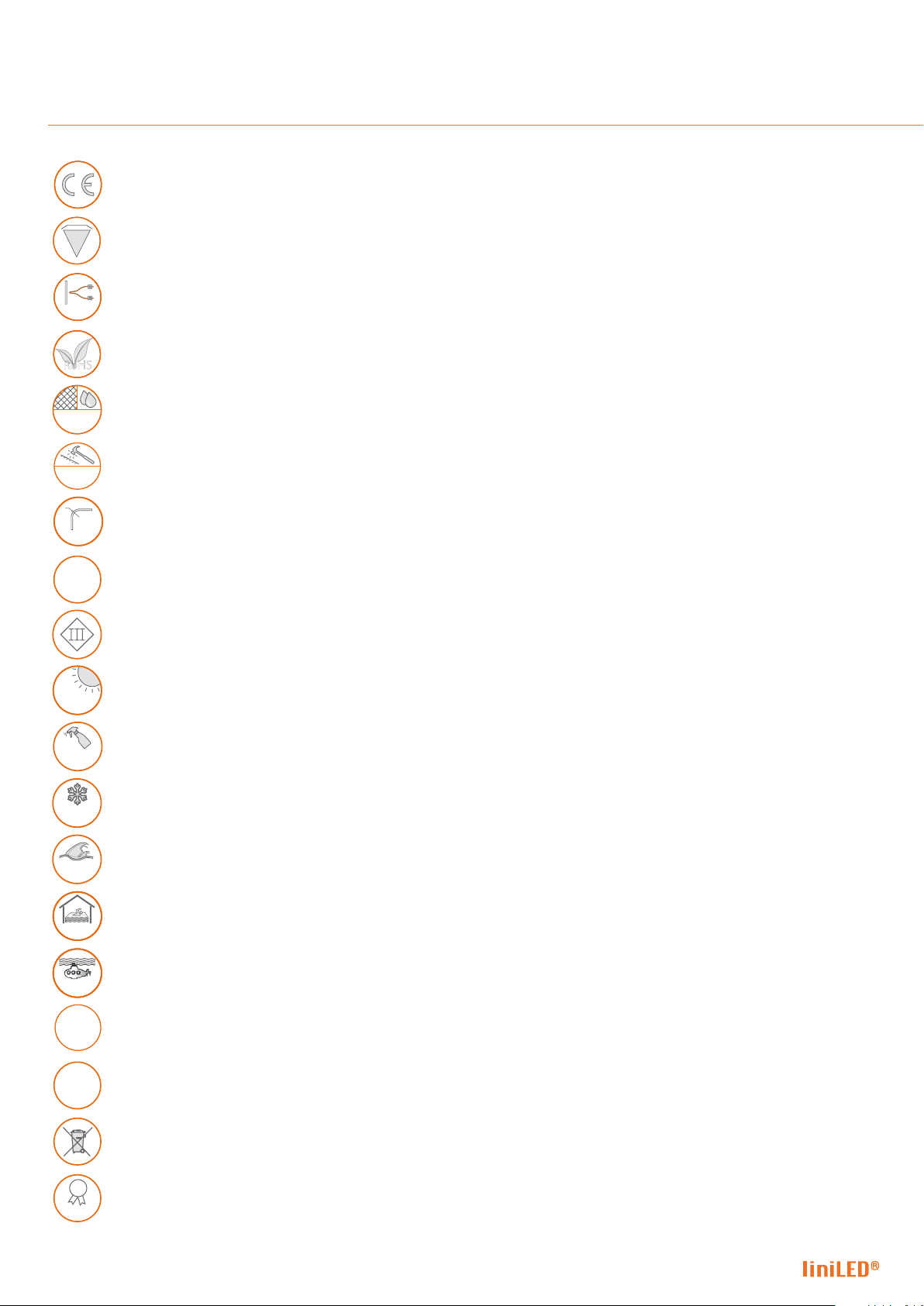

Symbols
Manufacturer’s declaration that the product meets the applicable EC directives.
GLOW WIRE
850 °C
Passed glow wire test at 850 degrees Celsius. Global European regulations specify 650 degrees Celsius by default.
This product can be both IP40 and IP68 depending on the conguration and application. See the documentation for the exact IP rating.
IP40/IP68
IP40/IP68
Bending of the LED strip is possible with a radius of ≥ 30 millimetres in the specied direction.
BEND RADIUS
R
30 mm
Electrical appliance class III: this product is designed to be supplied from an extra-low voltage (≤ 60.0 V DC or ≤ 42.4 V AC).
Product can be cleaned with normal cleaning agents.
CLEANING
This product can be applied in seawater and its environment. Elements in seawater will have no harmful eect on the product.
For chemical specications of these elements see the liniLED® material sheet. Verify the IP rating for proper use.
SEA
MAC
ADAM
3
S D C M
The binning tolerance of this product is 3 MacAdam.
This product can be applied inside swimming pool environments. Elements in the air will have no harmful eect on the product.
For chemical specications of these elements see the liniLED® material sheet. Verify IP rating for proper use.
SWIMMING POOL
ENVIRONMENT
FSuitable for mounting on all surfaces and suitable to cover with insulating material.
RoHS
Restriction of Hazardous Substances (RoHS): product complies with the RoHS directive and each homogeneous material does not exceed
the limits for the materials mentioned under the RoHS directive (Pb, Hg, Cd, Cr6+, PBB and PBDE).
Protected against impact energy of 5 joules.
IK08
IK08
Operating voltage of 24 V DC.
24
24
V D
C
Product is resistant against ultraviolet (UV) light or sunlight. Non-UV resistant products can degrade or discolour fast when exposed to UV light.
UV
This product can be stored and used below 0 degrees Celsius. Verify the minimum storage and operating temperature in the datasheet or manual
for the lowest temperature allowed.
FROST
This product is available on request and can be applied submerged in swimming pools and their environment. Disinfectants will have
no harmful eect on the product. For chemical specications of these elements see the liniLED® material sheet. Verify IP rating for proper use.
SWIMMING POOL
SUBMERSIBLE
This product needs to be disposed of separately from normal household waste so it can be recycled. Verify the IP rating for proper use.
The CRI value of this product is 80 or higher.
CRI
80
+
5
5
System
System guarantee of 5 years when the complete system consist of liniLED® products with the 5 years system warranty logo.
Terms & conditions apply.
Disclaimer
The published information is checked to be as accurate as possible, however Triolight B.V. or any reseller of liniLED® cannot be held liable for any damages resulting
from misprints, errors, modications or outdated information. No legal rights can be derived from this document. Triolight B.V. reserves the right to modify the
information without informing the customers. Please check for the latest version on www.liniLED.com. This product should not be used in applications, devices or
systems where incorrect operation of the product may result in personal injury (includes emergency lighting) without written permission from the board of Triolight
B.V. If nevertheless used in such applications, devices or systems, Triolight B.V. cannot be held liable for any resulting injury. liniLED® is a registered trademark of
Triolight B.V.

Disclaimer
The published information is checked to be as accurate as possible, however Triolight B.V. or any reseller of liniLED® cannot be held liable for any damages resulting
from misprints, errors, modications or outdated information. No legal rights can be derived from this document. Triolight B.V. reserves the right to modify the
information without informing the customers. Please check for the latest version on www.liniLED.com. This product should not be used in applications, devices or
systems where incorrect operation of the product may result in personal injury (includes emergency lighting) without written permission from the board of Triolight
B.V. If nevertheless used in such applications, devices or systems, Triolight B.V. cannot be held liable for any resulting injury. liniLED® is a registered trademark of
Triolight B.V.
