Quick Installation Guide
WUSB54GSC (EU/LA)
USB Network Adapter
Wireless-G
GHz
2
802.11g
4
,
Package Contents
• Compact Wireless-G USB Network Adapter with SpeedBooster
• USB Extension Cable
• Setup Wizard CD-ROM
•UserGuideonCD-ROM
• Quick Installation
Compact
with SpeedBooster

2
1Begin Installation

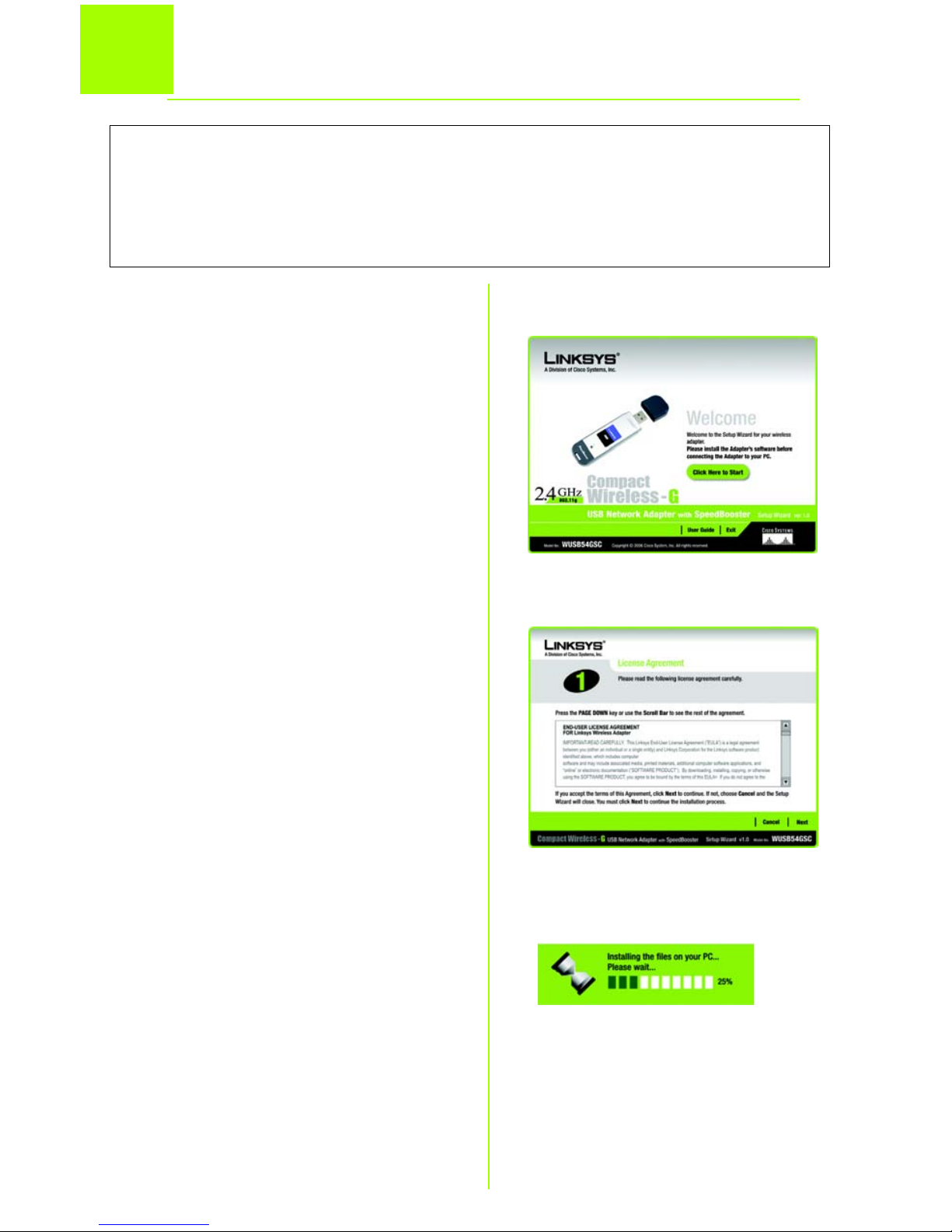

The USB Adapter is installed and set
up using the Setup Wizard that
comes on the enclosed CD.
ATo begin, insert the Setup
Wizard CD-ROM into your CD-
ROM drive. The Setup Wizard
should run automatically, and
a
Welcome screen should
appear.
BIf asked to choose a
language, do so and click
Next or Install. At the
Welcome
screen, click the Click Here to
Start button.
CAfter reading the License
Agreement, click Next to
continue the installation or
click Cancel to end the
installation.
DWindows will begin copying the
necessary files onto your PC.
EThe Setup Wizard will prompt
you to install the Adapter into
your PC’s USB port.
Proceed to Step 2.
B
C
IMPORTANT: Do not connect the Adapter to your PC
until you are instructed to do so in Step 2 or the
Adapter will not install correctly.
D

3
2
Connect the Adapter
AConnect the Adapter’s connector
to one of the USB ports on your
computer.
BOnce the Adapter has been
connected, click Next.
Proceed to Step 3.
Connecting
the Adapter

4
3Set Up the Adapter
The Creating a Profile screen will display.
Click Use SecureEasySetup if your
wireless router supports it. Click Skip if
SecureEasySetup is not enabled.
Setting Up the Adapter with
Available Networks
Network choices are listed on the
Available Wireless Network screen in the
center table by SSID. Select the wireless
network you wish to connect to and click
Connect. (If you do not see your network
listed, you can click Refresh.)
Click Manual Setup if you are not using
SecureEasySetup and your network is not
listed in the Available Wireless Network
list.
If the network utilizes wireless security,
you will need to configure security on
the Adapter. If not, you will be taken
directly to the
Congratulations screen,
referenced in Step B.
IMPORTANT: For Quick Installation, use
this document only if your network
appears on the Available Wireless
Network screen.
SecureEasySetup: If you are utilitizing
SecureEasySetup, click the
SecureEasySetup button and follow
the on screen prompts. For detailed
instructions on this feature, refer to
the User Guide.
Creating a Profile
Available Wireless Network
NOTE: You can use this screen
later to set up configuration
profiles with connection settings
for different networks.

5
WEP Key Needed
A If wireless security has been
enabled on this network, you will
see the IMPORTANT message.
Click
Continue . If your network uti-
lizes WEP (Wired Equivalent Pri-
vacy) encryption, the
WEP Key
Needed for Connection
screen
will appear. If your network utilizes
WPA Personal (Wi-Fi Protected
Access), the
WPA Personal
Needed for Connection
screen
will appear. If your network utilizes
WPA-2 (Pre-Shared Key 2) encryp-
tion, the
WPA-2 Key Needed for
Connection
screen will appear.
WEP Key Needed for Connection
Select 64-bit or 128-bit .
Then, enter a passphrase or WEP
key.
Passphrase - Enter a passphrase
in the
Passphrase field. This is
case-sensitive and should not be
longer than 16 alphanumeric
characters.
WEP Key - The WEP key must
match the WEP key of your wire-
less network. For 64-bit encryp-
tion, enter exactly 10
hexadecimal characters. For 128-
bit encryption, enter exactly 26
hexadecimal characters. Valid
hexadecimal characters are “0”
to “9” and “A” to “F”.
Then, click
Connect and pro-
ceed to Step B.
NOTE: Your passphrase must match
the passphrase of your other wireless
network devices and is compatible
with Linksys wireless products only.
(Non-Linksys wireless products,
require a WEP key to be entered.)
A

6

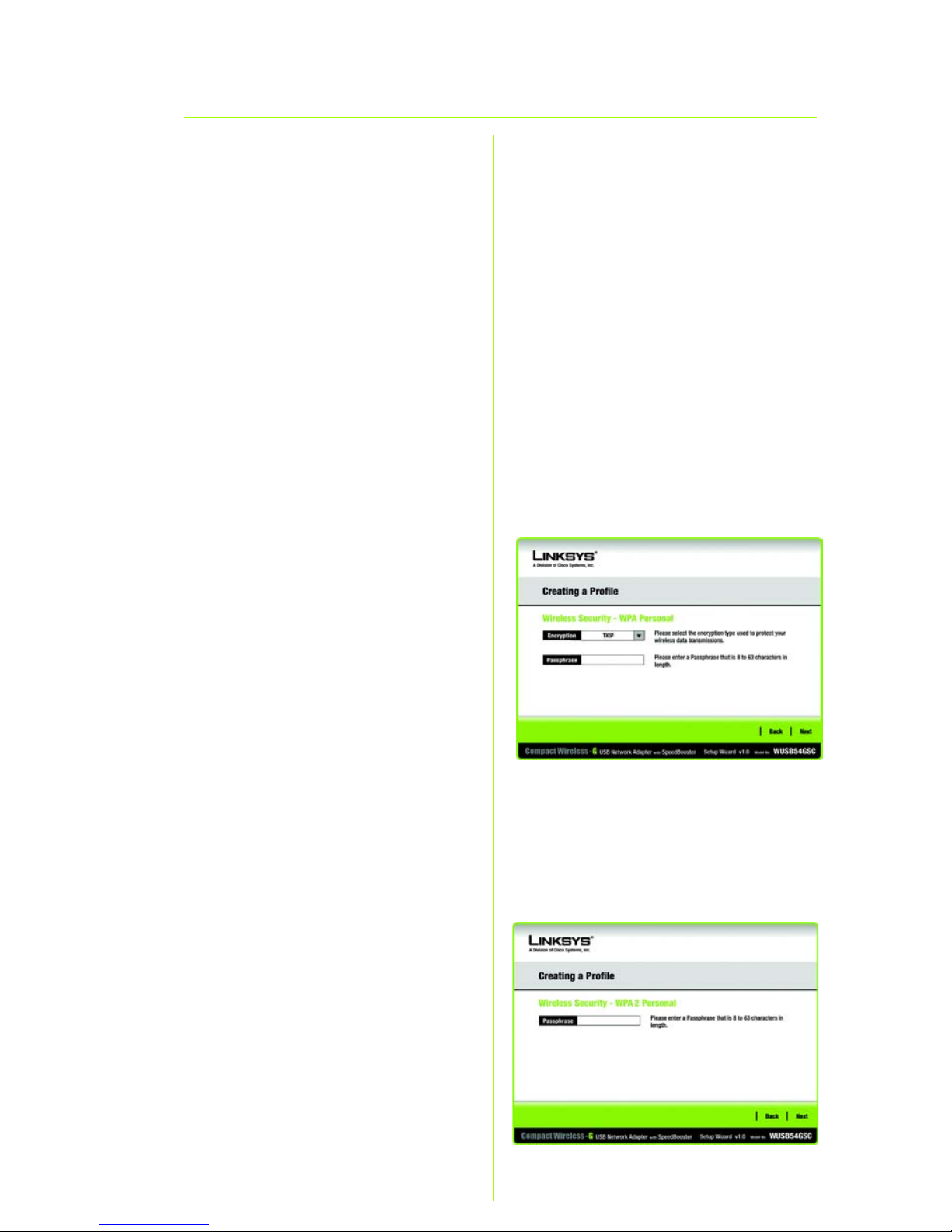

WPA Personal Needed for
Connection
Encryption - Select the type of
algorithm you want to use, TKIP
or AES,from the
Encryption
menu.
Passphrase - Enter a Passphrase
of 8-63 characters in the
Pass-
phrase
field. The longer and
more complex your Passphrase
is, the more secure your network
will be.
Click Connect and go to Step B.
WPA2 Personal Needed for
Connection
Enter a Passphrase of 8-63 char-
acters in the
Passphrase field.
Click Connect and go to Step B.
B After the Adapter has been config-
ured for the network, the
Congratu-
lations
screen will appear. Click
Connect to Network to connect to
your network.
Congratulations! Setup is complete.
Proceed to Step 4 to learn about the
Wireless Network Monitor.
WPA2 Personal Needed
WPA Personal Needed
Congratulations

7
Setting Up the Adapter with
Manual Setup
Click Manual Setup on the Available
Wireless Network
screen to set up the
Adapter manually.
AIf your network has a router or
other DHCP server, click Obtain
network settings automatically
(DHCP).
If your network does not have a
DHCP server, click Specify net-
work settings. You must specify
the IP Address and Subnet Mask
on this screen. If you are unsure
about the Default Gateway and
DNS addresses, leave those
blank.
IP Address - This must be unique
to your network.
Subnet Mask - The Adapter’s
Subnet Mask must match your
wired network’s Subnet Mask.
Default Gateway - Enter the IP
address of your network’s Gate-
way here.
DNS 1 and DNS 2 - Enter the DNS
address(es) of your wired Ether-
net network here.
Click Next.
Available Wireless Network
Network Settings

8
BSelect the wireless mode you
want to use. Then, enter the
SSID for your network.
Infrastructure Mode - Use this
mode if the Adapter will
connect to a wireless router or
access point.
Ad-Hoc Mode - Use this mode
if the Adapter will directly
connect to another wireless
device without using a wireless
router or access point.
SSID - Enter the name of your
wireless network.All devices in
your wireless network must use
this name. It is case sensitive.
Click Next.
If you chose Infrastructure
Mode, the
Wireless Security
screen will appear. If you
chose Ad-Hoc Mode, the
Ad-Hoc Mode Settings screen
will appear. Select your chan-
nel and network mode settings.
Channel - Select the correct
channel for your network.
Network Mode - Select Mixed
Mode if you want Wireless-B
and Wireless-G devices in the
network. Select G-Only Mode if
you do not want any Wireless-B
devices in the network.
Click Next.

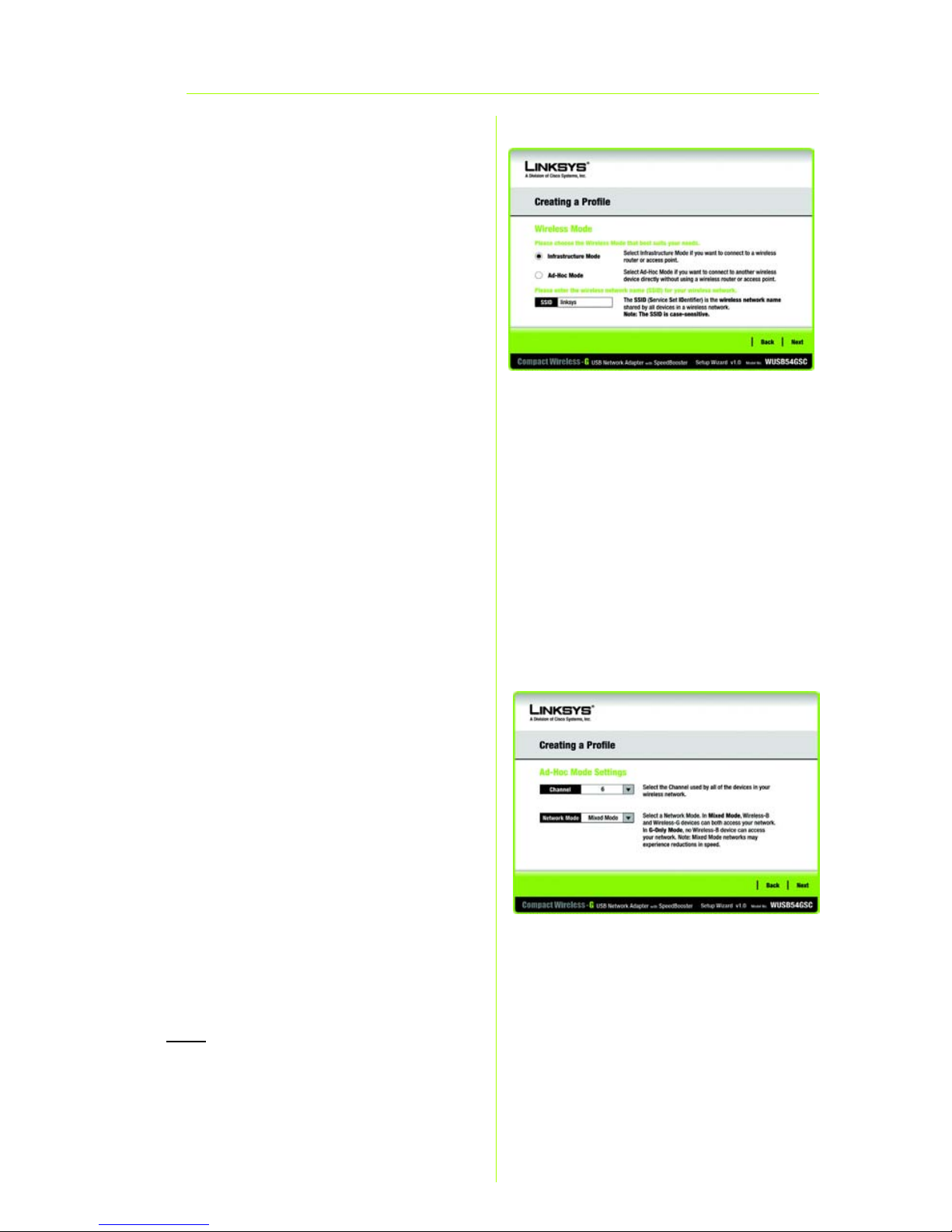

Wireless Mode
Ad-Hoc Mode Settings

9
CThe Wireless Security screen will
appear.
If your wireless network doesn’t
use wireless security, select Dis-
abled and then click Next. Pro-
ceed to Step D.
To use wireless security, select
WEP, WPA-Personal, WPA2-Personal,
WPA-Enterprise, or Radius for the
Encryption Method. WEP stands for
Wired Equivalent Privacy, WPA (Wi-
Fi Protected Access) Personal is a
security standard stronger than
WEP encryption, WPA2-Personal is
a newer security standard stronger
than WPA-Personal, RADIUS stands
for Remote Authentication Dial-In
User Service and is utilized by WPA
Enterprise as well.
WEP
Select a level of WEP encryp-
tion to use, and then enter a
passphrase or WEP key
WEP - Select 64-bit or 128-bit.
Passphrase - Enter a case-sensi-
tve passphrase, and a WEP key will
automatically be generated.
WEP Key - This must match the
WEP key of your wireless net-
work. For 64-bit encryption,
enter exactly 10 and for 128-
bit encryption enter exactly 26
NOTE: Your passphrase must match
the passphrase of your other wireless
network devices and is compatible
with Linksys wireless products only.
(Non-Linksys wireless products,
require a WEP key to be entered.)
Wireless Security
WEP

10
hexadecimal characters. Valid
hexadecimal characters are
“0” to “9” and “A” to “F”.
TX Key - Select the appropriate
transmit key number (The
default is 1).
Authentication - Select the
appropriate authentication
method. All points on your net-
work must use the same
authentication type (The
default is Auto).
Click Next. Proceed to Step D.
WPA Personal
Select an encryption method
and then enter a passphrase.
Encryption - Select the type of
algorithm, TKIP or AES.
Passphrase - Enter a
Passphrase, also called a
pre-shared key, of 8-63
characters.
Click Next.Proceed to Step D.
WPA2 Personal
Passphrase - Enter a
Passphrase, also called a
pre-shared key, of 8-63
characters.
Click Next. Proceed to Step D.
WPA Personal
WPA2 Personal

11
WPA Enterprise EAP-TLS
WPA Enterprise PEAP
WPA Enterprise
Use this WPA security feature
only in coordination with a
RADIUS server.
Authentication - Select the
authentication method your
network is using, EAP-TLS or PEAP.
EAP-TLS screen - Enter the
Login
Name
of your wireless network.
Enter the
Server Name
(optional) used for authentica-
tion. Select the
Certificate you
have installed to authenticate
you on your wireless network.
Select the
Encryption type,
TKIP or AES.
Click Next. Proceed to Step D.
PEAP screen - Enter the
Login
Name
and Password of your
wireless network. Enter the
Server Name (optional) used
for authentication. Select the
Certificate you have installed
to authenticate you on your
wireless network; if you want to
use any certificate, keep the
default setting, Trust Any. Select
the
Inner Authen (authentica-
tion) method used inside the
PEAP tunnel. Select the
Encryption type, TKIP or AES.
Click Next. Proceed to Step D.

12

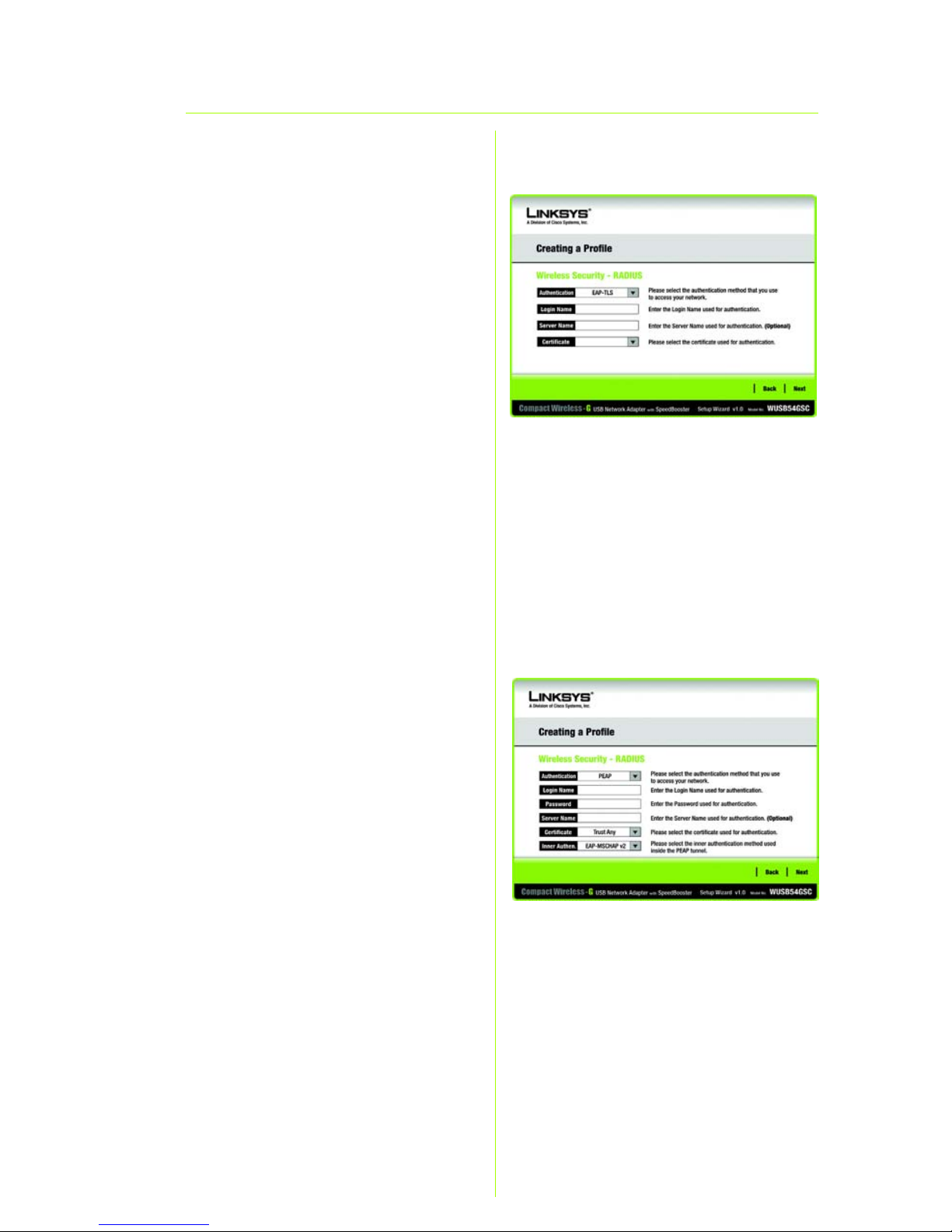

RADIUS
Use only when a RADIUS server
is connect to the Router.
Authentication - Select the
authentication method your
network is using, EAP-TLS or PEAP.
EAP-TLS screen - Enter the
Login
Name
of your wireless network.
Enter the
Server Name
(optional) used for authentica-
tion. Select the
Certificate you
have installed to authenticate
you on your wireless network.
Select the
Encryption type,
TKIP or AES.
Click Next. Proceed to Step D.
PEAP screen - Enter the
Login
Name
and Password of your
wireless network. Enter the
Server Name (optional) used
for authentication. Select the
Certificate you have installed
to authenticate you on your
wireless network; if you want to
use any certificate, keep the
default setting, Trust Any. Select
the
Inner Authen (authentica-
tion) method used inside the
PEAP tunnel.
Click Next. Proceed to Step D.
RADIUS EAP-TLS
RADIUS PEAP

13
Congratulations
Confirm New Settings
DConfirm the new settings.
Click Save to accept the
settings.
After the software has been suc-
cessfully installed, the
Congratu-
lations
screen will appear. Click
Connect to Network to connect
to your network. Click Return to
Profiles screen to open the Wire-
less Network Monitor’s
Profiles
screen.
Congratulations! Setup is
complete.
Proceed to Step 4 to learn
about the Wireless Network Mon-
itor

14
4Using the Wireless Network Monitor
NOTE: The Wireless Network
Monitor should only be accessed
AFTER installing the Adapter.
Wireless Network
Monitor icon
Wireless Network
Use the Wireless Network Monitor to
check the link information, search for
available wireless networks (Site Sur-
vey tab, or create profiles that hold
different configuration settings.
Accessing the Wireless Net-
work Monitor
After setting up and connecting the
Adapter, the Wireless Network Moni-
tor icon will appear in your PC’s sys-
tem tray. If the Wireless Network
Monitor is enabled, the icon will be
green. If the Wireless Network Monitor
is disabled or the Adapter is not con-
nected, the icon will be gray.
To work with profiles, click the
Profiles
tab. The Profile screen will list the
current profiles and offer five
options:
•New - Click New to create a
profile.
•Edit - To change a profile,
select the profile, and then
click Edit.
•Import and Export - Refer to
the User Guide (English only) on
the CD-ROM for instructions.
•Delete - To delete a profile,
select the profile, and then
click Delete.
Monitor

15
WUSB54GSC -QI-EU-60609-NC DF
For additional information or troubleshooting help, refer
to the User Guide on the Setup CD-ROM. You can also
email for further support.
Website
http://www.linksys.com/international
Product Registration
http://www.linksys.com/registration
Profile
To create a new profile, follow these
instructions:
AOn the Profiles screen, click
New.
BEnter a name for the new
profile, and click OK.
Refer to Step 3 of this Quick
Installation Guide for
instructions on how to create
the profile.
Linksys is a registered trademark or trademark of Cisco
Systems, Inc. and/or its affiliates in the U.S. and certain
other countries. Copyright © 2006 Cisco Systems, Inc.
All rights reserved.

Modelnr.
Wireless
1
WUSB54GSC (DK)
USB-netværkskort
Trådløs-G
GHz
2
802.11g
4
,
Pakkens indhold
• Kompakt trådløs-G USB-netværkskort med SpeedBooster
• USB-forlængerkabel
• Cd-rom med guidet konfiguration
• Brugervejledning på cd-rom
• Installationsvejledning
Kompakt
med SpeedBooster Installationsvejledning

2
1Start installation
USB-netværkskortet installeres og
konfigureres ved hjælp af den guidede
konfiguration på den medfølgende cd.
APlacer først Setup Wizard
CD-ROM (Cd med guidet
konfiguration) i cd-rom-drevet.
Den guidede konfiguration køres
automatisk, og skærmbilledet
Welcome (Velkommen) vises.
BVælg sprog, hvis du bliver bedt
om det, og klik på Next (Næste)
eller Install (Installer). På
skærmbilledet Welcome
(Velkommen), skal du klikke på
knappen Click Here to Start (Klik
her for at starte).
CNår du har læst licensaftalen,
skal du klikke på Next (Næste) for
at fortsætte installationen eller på
Cancel (Annuller) for at afslutte
installationen.
DWindows begynder at kopiere de
Nødvendig filer over på din pc.
EDen guidede konfiguration vil nu
bede dig om at tilslutte
adapteren til pc'ens USB-port.
Fortsæt til trin 2.
B
C
VIGTIGT: Installer ikke netværkskortet på din pc,
før du bliver bedt om det i trin 2 - ellers installeres
netværkskortet ikke korrekt.
D

3
2
Tilslutning af kortet
ATilslut kortets USB-stik til en af USB-
portene på computeren.
BNår adapteren er blevet tilsluttet,
skal du klikke på Next (Næste).
Fortsæt til trin 3.
Connecting the
Adapter (Tilslutning
af kortet)

4
3Konfiguration af netværkskortet
Skærmbilledet Creating a Profile
(Oprettelse af en profil) bliver vist. Klik på
Use SecureEasySetup (Brug SikkerNem-
Konfiguration), hvis din trådløse router
understøtter denne funktion. Klik på Skip
(Gå videre) hvis SecureEasySetup ikke er
aktiveret.
Konfiguration af netværkskortet
med tilgængelige netværk
De tilgængelige netværk står på listen
over netværk på skærmbilledet
Available Wireless Network
(Tilgængelige trådløse netværk) i den
midterste tabel opstillet efter SSID. Vælg
det trådløse netværk, du vil oprette
forbindelse til, og klik på Connect (Opret
forbindelse). (Hvis du ikke kan finde
netværket på listen, kan du klikke på
knappen Refresh (Opdater)).
Klik på Manual Setup (Manuel
konfiguration), hvis du ikke bruger
SecureEasySetup, og dit netværk ikke står
på listen over Available Wireless Network
(Tilgængelige trådløse netværk).
Hvis netværket bruger trådløs sikkerhed,
skal du konfigurere sikkerhed på
netværkskortet. Hvis det ikke gør, føres du
direkte til skærmbilledet Congratulations
(Tillykke) - vist i trin B.
VIGTIGT: I forbindelse med hurtig
installation skal du kun bruge dette
dokument, hvis dit netværk vises på
skærmbilledet Available Wireless Network
(Tilgængelige trådløse netværk).
SecureEasySetup: Hvis du bruger
SecureEasySetup, skal du klikke på
knappen SecureEasySetup og følge
vejledningen på skærmen. Se
brugervejledningen for at få
detaljeret vejledning vedr. denne
funktion.
BEMÆRK: Senere kan du bruge
dette skærmbillede igen for at
oprette konfigurationsprofiler i
forbindelse med indstillinger for
forskellige netværk.
Creating a profile
(Oprettelse af en profil)
Available wireless
network (Tilgængelige
trådløse netværk)

5
AHvis trådløs sikkerhed er blevet
aktiveret på dette netværk, vil du
få vist meddelelsen IMPORTANT
(VIGTIGT). Klik på Continue
(Fortsæt). Hvis dit netværk bruger
WEP-kryptering (Wired Equivalent
Privacy), vises skærmbilledet WEP
Key Needed for Connection (WEP-
nøgle skal bruges til oprettelse af
forbindelse). Hvis dit netværk
bruger WPA-Personal-kryptering
(Wi-Fi Protected Access), vises
skærmbilledet WPA-Personal
Needed for Connection (WPA-
Personal skal bruges til oprettelse
af forbindelse). Hvis netværket
anvender WPA-2-kryptering (Pre-
Shared Key 2 (Foruddelt nøgle 2)),
vil skærmbilledet WPA-2 Key
Needed for Connection (WPA-2-
nøgle skal bruges til oprettelse af
forbindelse) blive vist.
WEP Key Needed for Connection
(WEP-nøgle skal bruges til
oprettelse af forbindelse)
Vælg 64-bit eller 128-bit.
Indtast derefter et adgangsord
eller en WEP-nøgle.
Passphrase (Adgangsord) -
indtast et adgangsord i feltet
Passphrase (Adgangsord). Der
skelnes mellem store og små
bogstaver i adgangsordet, og det
bør ikke være længere end 16
alfanumeriske tegn.
WEP Key - WEP-nøglen skal være
identisk med WEP-nøglen i dit
trådløse netværk. Ved 64-bit-
kryptering skal du indtaste præcis
10 hexadecimale tegn. Ved 128
bit-kryptering skal du indtaste
præcis 26 hexadecimale tegn.
Gyldige hexadecimale tegn er "0"
til "9" og "A" til "F".
Klik derefter på Connect (Opret
forbindelse) og fortsæt til trin B.
BEMÆRK: Dit adgangsord skal
stemme overens med det
adgangsord, der er tilknyttet de andre
trådløse netværksenheder, og er kun
kompatibelt med trådløse Linksys-
produkter (til trådløse produkter fra
andre producenter skal der indtastes
en WEP-nøgle).
A
WEP Key Needed
(WEP-nøgle skal
bruges)
