Linksys SLM248G4S (G5) User manual

USER GUIDE
BUSINESS SERIES
24-Port or 48-Port 10/100 +
4-Port 10/100/1000 Gigabit
Resilient Clustering Smart
Switch with 2 Combo SFPs
Model: SLM224G4S (G5), SLM248G4S (G5)

i
About This Guide
24/48-Port 10/100 + 4-Port Gigabit Resilient Clustering Smart Switch with 2 Combo SFPs
About This Guide
Icon Descriptions
While reading through the User Guide you may see
various icons that call attention to specific items. Below is
a description of these icons:
NOTE: This check mark indicates that there is
a note of interest and is something that you
should pay special attention to while using the
product.
WARNING: This exclamation point indicates
that there is a caution or warning and it is
something that could damage your property or
product.
WEB: This globe icon indicates a noteworthy
website address or e-mail address.
Online Resources
Website addresses in this document are listed without
http:// in front of the address because most current web
browsers do not require it. If you use an older web browser,
you may have to add http:// in front of the web address.
Resource Website
Linksys Europe www.linksys.eu
Linksys International www.linksys.com/international
Linksys www.linksys.com
Glossary www.linksys.com/glossary
Network Security www.linksys.com/security
Copyright and Trademarks
Linksys is a registered trademark or
trademark of Cisco Systems, Inc. and/
or its affiliates in the U.S. and certain
other countries. Copyright © 2008
Cisco Systems, Inc. All rights reserved.
Other brands and product names are
trademarks or registered trademarks
of their respective holders.

i
Table of Contents
24/48-Port 10/100 + 4-Port Gigabit Resilient Clustering Smart Switch with 2 Combo SFPs
Chapter 1: Introduction 1
Chapter 2: Product Overview 2
SLM224G4S . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Back Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
SLM248G4S . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Front Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Back Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Chapter 3: Installation 4
Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Pre-Installation Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Fast Ethernet Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Full-Duplex Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1000BASE-T Cable Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Positioning the Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Placement Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Desktop Placement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Rack-Mount Placement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Hardware Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Uplinking the Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Conguring Stacking Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Reassigning a Slave Unit as the Master Unit . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Replacing a Stacked Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Chapter 4: Conguration Using the Console Interface 8
Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Using the HyperTerminal Application. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Using telnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
How to Use the Console Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Login . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Switch Main Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
System Conguration Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Port Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Port Conguration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
System Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Logout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Chapter 5: Conguration Using the Web-based Utility 15
Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Setup > Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Setup > Zoom. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

ii
Table of Contents
24/48-Port 10/100 + 4-Port Gigabit Resilient Clustering Smart Switch with 2 Combo SFPs
Setup > Network Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Setup > Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Setup > Stack Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Port Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Port Management > Port Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Port Management > Link Aggregation . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Port Management > LACP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
VLAN Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
VLAN Management > Create VLAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
VLAN Management > Port Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
VLAN Management > Port to VLAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
VLAN Management > VLAN to Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Statistics > RMON Statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Statistics > RMON History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Statistics > RMON Alarms. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Statistics > RMON Events . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Statistics > Port Utilization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Statistics > Interface Statistics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Security. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Security > 802.1x Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Security > Port Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Security > Storm Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Security > RADIUS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
QoS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
QoS > CoS Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
QoS > Queue Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
QoS > DSCP Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
QoS > Bandwidth. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
QoS > Basic Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
Spanning Tree. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
Spanning Tree > STP Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
Spanning Tree > Global STP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
Spanning Tree > STP Port Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
Multicast . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
Multicast > IGMP Snooping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
Multicast > Bridge Multicast . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
Multicast > Bridge Multicast Forward All . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
SNMP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
SNMP > Global Parameters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
SNMP > Views . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
SNMP > Group Prole . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
SNMP > Group Membership. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

iii
Table of Contents
24/48-Port 10/100 + 4-Port Gigabit Resilient Clustering Smart Switch with 2 Combo SFPs
SNMP > Communities. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
SNMP > Notication Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
SNMP > Notication Recipient . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
Admin. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
Admin > User Authentication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
Admin > Static Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43
Admin > Dynamic Address. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43
Admin > Port Mirroring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
Admin > Cable Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
Admin > Save Conguration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
Admin > Firmware Upgrade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
Admin > Reboot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
Admin > Factory Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
Admin > Logging. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
Admin > Server Logs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
Admin > Memory Logs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
Admin > Flash Logs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
Logout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
Appendix A: About Gigabit Ethernet and Fiber Optic Cabling 49
Gigabit Ethernet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49
Fiber Optic Cabling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49
Appendix B: About Switch Stacking 50
Standalone Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50
Stack Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50
Stack Building Quick Start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50
Normal (Self-Ordering) Stack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50
Manually Ordered Stack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50
Stack Resiliency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51
Advanced Stacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51
Unit IDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51
Stack Units Startup Process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52
User Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
Stacking Examples. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
Replacing a Failed Stack Member in a Running Stack . . . . . . . . . . . . . . . . . . . .53
Stack Master Failure and Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54
Splitting a Stack. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55
Merging Two Stacks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56
Stacking Cable Failure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57
Inserting Too Many Units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57
Standalone Unit Inserted into a Running Stack . . . . . . . . . . . . . . . . . . . . . . . .57
Appendix C: Glossary 58

iv
Table of Contents
24/48-Port 10/100 + 4-Port Gigabit Resilient Clustering Smart Switch with 2 Combo SFPs
Appendix D: Specications 62
SLM224G4S/SLM248G4S . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62
Appendix E: Warranty Information 64
Limited Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64
Exclusions and Limitations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64
Obtaining Warranty Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64
Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65
Appendix F: Regulatory Information 66
FCC Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66
Safety Notices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66
Industry Canada Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66
Avis d’Industrie Canada . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66
EC Declaration of Conformity (Europe) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66
User Information for Consumer Products Covered by EU Directive 2002/96/EC on Waste
Electric and Electronic Equipment (WEEE) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67
Appendix G: Contact Information 71

1
Introduction
Chapter 1
24/48-Port 10/100 + 4-Port Gigabit Resilient Clustering Smart Switch with 2 Combo SFPs
Chapter 1:
Introduction
Thank you for choosing the Linksys 24/48-Port 10/100
+ 4-Port Gigabit Smart Switch with Resilient Clustering
Technology and 2 Combo SFPs.
These switches allow you to expand your network securely.
Configuration of the switch is secured using SSL for Web
access. User control is secured using 802.1x security using
a RADIUS authentication mechanism and can also be
controlled using MAC filtering.
Extensive QoS features makes the solution ideal for real-
time applications like Voice and Video. The four priority
queues together with the Weighted Round Robin and
Strict Priority scheduling techniques facilitate efficient
co-existence of real-time traffic with data traffic allowing
them each to meet their QoS needs. Individual users or
applications can be prioritized above others using various
Class of Service options—by port, Layer 2 priority (802.1p),
and Layer 3 priority (TOS or DSCP). Intelligent Broadcast
and Multicast storm control minimize and contain the
effects of these types of traffic on regular traffic. IGMP
Snooping limits bandwidth-intensive video traffic to only
the requestors without flooding to all users. Incoming
traffic can be policed and outgoing traffic can be shaped
allowing you to control network access and traffic flow.
There are features that allow you to expand and grow your
network of switches. Link aggregation allows multiple
high-bandwidth trunks between switches to be set up.
This also provides a level of reliability in that the system
continues to operate if one of the links breaks. Spanning
Tree (STP) and Fast Link allow you to build a mesh of
switches increasing the availibility of the system.
The rich management functionality of the Smart Switches
with Resilient Clustering Technology includes SNMP,
RMON, Telnet, and HTTP Management options, allowing
you to flexibly integrate and manage these devices in your
network.
NOTE: Throughout this User Guide, the term
reset refers to cycling the power to the Switch;
that is, powering the Switch off, then on again.

2
Product Overview
Chapter 2
24/48-Port 10/100 + 4-Port Gigabit Resilient Clustering Smart Switch with 2 Combo SFPs
Chapter 2:
Product Overview
SLM224G4S
Front Panel
The Switch’s LEDs and ports are located on the front panel.
Front Panel of the SLM224G4S
System (Green/Amber) Lights up green to
indicate that the Switch is powered on.
Lights up amber while the Switch is performing a
system self-test. Blinks amber if the self-test fails.
LINK/ACT (1-24) (Green) Lights up to indicate
a functional 10/100 Mbps network link through
the corresponding port (1 through 24) with
an attached device. Blinks while the Switch is
actively sending or receiving data over that port.
Stack (G1-G4) (Amber) Lights up to indicate
that the corresponding port (G1 through G4) is
linked to another switch. (Two of these LEDs will
be lit if switch stacking is properly configured.)
LINK/ACT (G1-G4) (Green) Blinks when the
Switch is actively sending or receiving data over
the corresponding port (G1 through G4).
1000M (G1-G4) (Yellow) Lights up to indicate a
functional1 Gbpsconnectiononthecorresponding
port (G1 through G4) with an attached device.
Ethernet 1-24 The Switch is equipped with 24
auto-sensing, Ethernet network ports, which
use RJ-45 connectors. The Fast Ethernet ports
support network speeds of 10 Mbps or 100 Mbps.
They can operate in half- and full-duplex modes.
Auto-sensing technology enables each port to
automatically detect the speed of the device
connected to it (10 Mbps or 100 Mbps), and
adjust its speed and duplex accordingly.
G1-G4 The Switch is equipped with 4 auto-
sensing Gigabit Ethernet network ports, which
use RJ-45 connectors. The Gigabit Ethernet ports
support network speeds of 10 Mbps, 100 Mbps, or
1000 Mbps.They can operate in half- and full-duplex
modes. Auto-sensing technology enables each port
to automatically detect the speed of the device
connected to it (10 Mbps, 100 Mbps, or 1000 Mbps),
and adjust its speed and duplex accordingly.
miniGBIC (1-2) The miniGBIC (gigabit interface
converter) port is a connection point for a
miniGBIC expansion module, so the Switch can
be uplinked via fiber to another switch. The
MiniGBIC port provides a link to a high-speed
network segment or individual workstation at
speeds of up to 1000 Mbps.
To establish a Gigabit Ethernet connection using
a miniGBIC port, you will need to install a MGBT1,
MGBSX1, or MGBLH1 Gigabit expansion module
and use Category 5e cabling or fiber optic cabling.
To establish a Fast Ethernet connection using a
miniGBIC port, you will need to install a MFEFX1
(100BASE-FX) or MFELX1 (100BASE-LX) 100SFP
Transceiver and use fiber optic cabling.
Stack ID Displays the S witch’s unit ID number if
the Switch is in stack mode.
Stack Master (Amber) Lights up if the switch is
the stack Master during stack mode.
NOTE: On the SLM224G4S, MiniGBIC ports are
shared with standard ports. If a miniGBIC port is
used,then the shared standardport on the Switch
cannot be used. The following table defines the
shared port mapping of the SLM224G4S Switch.
SLM224G4S Shared Port Mapping
miniGBIC Port Standard Port
miniGBIC 1 G3
miniGBIC 2 G4
Back Panel
The Console port and power port are located on the back
panel of the Switch.
Back Panel of the SLM224G4S
CONSOLE The Console port is a serial port that
allows you to connect to a computer’s serial port
(for configuration purposes) using the provided
serial cable. You can use HyperTerminal to
manage the Switch using the console port.
POWER The Power port is where you connect
the AC power.

3
Product Overview
Chapter 2
24/48-Port 10/100 + 4-Port Gigabit Resilient Clustering Smart Switch with 2 Combo SFPs
SLM248G4S
Front Panel
The Switch’s LEDs and ports are located on the front
panel.
Front Panel of the SLM248G4S
System (Green/Amber) Lights up green to
indicate that the Switch is powered on.
Lights up amber while the Switch is performing a
system self-test. Blinks amber if the self-test fails.
LINK/ACT (1-48) (Green) Lights up to indicate
a functional 10/100 Mbps network link through
the corresponding port (1 through 24) with
an attached device. Blinks while the Switch is
actively sending or receiving data over that port.
Stack (G1-G4) (Amber) Lights up to indicate
that the corresponding port (G1 through G4) is
linked to another switch. (Two of these LEDs will
be lit if switch stacking is properly configured.)
G1-G4 (Green/Amber) Blinks green
when the Switch is actively sending or
receiving data at 10/100 Mbps over the
corresponding port (G1 through G4).
Blinks yellow when the Switch is actively
sending or receiving data at 1000 Gbps over the
corresponding port (G1 through G4).
Ethernet 1-48 The Switch is equipped with 48
auto-sensing, Ethernet network ports, which
use RJ-45 connectors. The Fast Ethernet ports
support network speeds of 10 Mbps or 100 Mbps.
They can operate in half- and full-duplex modes.
Auto-sensing technology enables each port to
automatically detect the speed of the device
connected to it (10 Mbps or 100 Mbps), and
adjust its speed and duplex accordingly.
G1-G4 The Switch is equipped with 4 auto-
sensing Gigabit Ethernet network ports, which
use RJ-45 connectors. The Gigabit Ethernet ports
support network speeds of 10 Mbps, 100 Mbps, or
1000 Mbps.They can operate in half- and full-duplex
modes. Auto-sensing technology enables each port
to automatically detect the speed of the device
connected to it (10 Mbps, 100 Mbps, or 1000 Mbps),
and adjust its speed and duplex accordingly.
miniGBIC (1-2) The miniGBIC (gigabit interface
converter) port is a connection point for a
miniGBIC expansion module, so the Switch can
be uplinked via fiber to another switch. The
MiniGBIC port provides a link to a high-speed
network segment or individual workstation at
speeds of up to 1000 Mbps.
To establish a Gigabit Ethernet connection using
a miniGBIC port, you will need to install a MGBT1,
MGBSX1, or MGBLH1 Gigabit expansion module
and use Category 5e cabling or fiber optic cabling.
To establish a Fast Ethernet connection using a
miniGBIC port, you will need to install a MFEFX1
(100BASE-FX) or MFELX1 (100BASE-LX) 100SFP
Transceiver and use fiber optic cabling.
Stack ID Displays the S witch’s unit ID number if
the Switch is in stack mode.
Stack Master (Amber) Lights up if the switch is
the stack Master during stack mode.
NOTE: On the SLM248G4S, MiniGBIC ports are
shared with Gigabit Ethernet ports. If a miniGBIC
port is used, then the shared Gigabit Ethernet
port on the Switch cannot be used. The following
table defines the shared port mapping of the
SLM248G4S Switch.
SLM248G4S Shared Port Mapping
miniGBIC Port Gigabit Port
miniGBIC 1 Port G3
miniGBIC 2 Port G4
Back Panel
The Console port and power port are located on the back
panel of the Switch .
Back Panel of the SLM248G4S
CONSOLE The Console port is a serial port that
allows you to connect to a computer’s serial port
(for configuration purposes) using the provided
serial cable. You can use HyperTerminal to
manage the Switch using the console port.
POWER The Power port is where you connect
the AC power.

4
Installation
Chapter 3
24/48-Port 10/100 + 4-Port Gigabit Resilient Clustering Smart Switch with 2 Combo SFPs
Chapter 3:
Installation
Overview
This chapter will explain how to connect network devices
to the Switch. The following diagram shows a typical
network configuration.
Internet
Cable/DSL
Modem Router Wireless Access Point Server
Uplink via Fiber to
Switch
10/100/1000
Desktop
10/100
Notebook
Typical Network Configuration for the SLM248G4S
When you connect your network devices, make sure you
do not exceed the maximum cabling distances, which are
listed in the following table:
Maximum Cabling Distances
From To Maximum Distance
Switch Switch or Hub 100 meters
Hub† Hub 5 meters
Switch or Hub† Computer 100 meters
A hub refers to any type of 100 Mbps hub. A 10 Mbps hub connected
to another 10 Mbps hub can span up to 100 meters.
†
Pre-Installation Considerations
Fast Ethernet Considerations
If you are using the Switch for Fast Ethernet (100 Mbps)
applications, you must observe the following guidelines:
Full-Duplex Considerations
The Switch provides full-duplex support for its RJ-45
ports. Full-duplex operation allows data to be sent and
received simultaneously, doubling a port’s potential data
throughput. If you will be using the Switch in full-duplex
mode, the maximum cable length using Category 5 cable
is 100 meters.
1000BASE-T Cable Requirements
All Category 5 UTP cables that are used for 100BASE-TX
connections should also work for 1000BASE-T, providing
that all four wire pairs are connected. However, it is
recommended that for all critical connections, or any
new cable installations, Category 5e (enhanced Category
5) or Category 6 cable should be used. The Category
5e specification includes test parameters that are only
recommendations for Category 5. Therefore, the first
step in preparing existing Category 5 cabling for running
1000BASE-T is a simple test of the cable installation to be
sure that it complies with the IEEE 802.3ab standards.
Positioning the Switch
Before you choose a location for the Switch, observe the
following guidelines:
Make sure that the Switch is accessible and that the
cables can be connected easily.
Keep cabling away from sources of electrical noise,
power lines, and fluorescent lighting fixtures.
Position the Switch away from water and moisture
sources.
To ensure adequate air flow around the Switch, be
sure to provide a minimum clearance of two inches
(50 mm).
Do not stack free-standing Switches more than four
units high.
Placement Options
There are two ways to physically install the Switch, either
settheSwitch onitsfour rubberfeetfordesktopplacement
or mount the switch in a standard-sized, 486,2-mm wide,
1U-high rack for rack-mount placement.
•
•
•
•
•

5
Installation
Chapter 3
24/48-Port 10/100 + 4-Port Gigabit Resilient Clustering Smart Switch with 2 Combo SFPs
Desktop Placement
Attach the rubber feet to the recessed areas on the
bottom of the Switch.
Place the Switch on a desktop near an AC power source.
Keep enough ventilation space for the switch and
check the environmental restrictions mentioned in the
Specifications Appendix as you are placing the Switch.
Connect the Switch to network devices according to
the Hardware Installation instructions below.
Attaching the Switch’s Rubber Feet
Rack-Mount Placement
When rack-mounting the Switch, please observe the
following guidelines
Elevated Operating Ambient If installed in a closed
or multi-unit rack assembly, the operating ambient
temperature of the rack environment may be greater
than room ambient. Therefore, consideration should
be given to installing the equipment in an environment
compatible with the maximum ambient temperature
(Tma) specified by the manufacturer.
Reduced Air Flow Installation of the equipment
in a rack should be such that the amount of air flow
required for safe operation of the equipment is not
compromised.
Mechanical Loading Mounting of the equipment in
the rack should be such that a hazardous condition is
not achieved due to uneven mechanical loading.
Circuit Overloading Consideration should be given
to the connection of the equipment to the supply
circuit and the effect that overloading of the circuits
might have on overcurrent protection and supply
wiring. Appropriate consideration of equipment
nameplate ratings should be used when addressing
this concern.
Reliable Earthing Reliable earthing of rack-mounted
equipment should be maintained. Particular attention
should be given to supply connections other than
direct connections to the branch circuit (e.g. use of
power strips).
•
•
•
•
•
•
•
•
•
To rack-mount the Switch in any standard 486,2-mm wide,
1U-high rack, follow the instructions described below.
Place the Switch on a hard flat surface with the front
panel facing you.
Attach a rack–mount bracket to one side of the Switch
with the supplied screws and secure the bracket
tightly.
Attaching the Brackets
Follow the same steps to attach the other bracket to
the opposite side.
After the brackets are attached to the Switch, use
suitable screws to securely attach the brackets to any
standard 486,2-mm rack.
Mounting in Rack
Connect the Switch to network devices according to
the Hardware Installation instructions below.
Hardware Installation
To connect network devices to the Switch, follow these
instructions:
Make sure all the devices you will connect to the Switch
are powered off.
For a 10/100 Mbps device:
Connect a Category 5 Ethernet network cable to
one of the numbered ports on the Switch.
1.
2.
3.
4.
5.
1.
2.
•

6
Installation
Chapter 3
24/48-Port 10/100 + 4-Port Gigabit Resilient Clustering Smart Switch with 2 Combo SFPs
For a 1000 Mbps device:
Connect a Category 5e Ethernet network cable to
port G1, G2, G3, or G4 on the Switch.
Connect the other end of the network cable to a PC or
other network device.
Repeat steps 2 and 3 to connect additional devices.
If you are using a miniGBIC port, then connect a
miniGBIC module to a miniGBIC port. For more detailed
instructions, refer to “Uplinking the Switch“.
Connect the supplied power cord to the Switch’s
power port, and plug the other end into an electrical
outlet. When connecting power, always use a surge
protector.
IMPORTANT: Make sure you use the power
cord that is supplied with the Switch. Use of a
different power cord could damage the Switch.
Power on the devices connected to the Switch. Each
active port’s corresponding LED will light up on the
Switch.
Uplinking the Switch
To uplink the Switch using a 1000 Mbps Ethernet port,
connect one end of a Cat 5e (or better) Ethernet network
cable to a Gigabit port, then connect the other end of the
cable into the peripheral device’s uplink port. MDI/MDIX
will automatically detect the speed and cable type.
To uplink the Switch using the miniGBIC port, connect
a miniGBIC module to a miniGBIC port whose shared
Ethernet port is not being used (a miniGBIC port and its
shared Ethernet port cannot be used at the same time).
The following table shows which Ethernet ports are shared
with the miniGBIC ports.
Ethernet Ports Shared with miniGBIC Ports
Switch Port Shared with
miniGBIC1
Port Shared with
miniGBIC2
SLM248G4S G3 G4
SLM224G4S G3 G4
To establish a Gigabit Ethernet connection using a miniGBIC
port, you will need to install a MGBT1, MGBSX1, or MGBLH1
Gigabit expansion module and use Category 5e cabling or
fiber optic cabling.
To establish a Fast Ethernet connection using a miniGBIC
port, you will need to install a MFEFX1 (100BASE-FX) or
MFELX1 (100BASE-LX) 100SFP Transceiver and use fiber
optic cabling.
•
3.
4.
5.
6.
7.
The hardware installation is complete. Proceed to
“Chapter 5: Configuration Using the Web-based Utility”,
for directions on how to set up the Switch.
Configuring Stacking Mode
The SLM224G4S and SLM248G4S Switches can operate in
either standalone mode or stacking mode. In standalone
mode, the switch operates independently of other
switches. In stacking mode, multiple Resilient Clustering
Smart Switches are connected together to effectively form
a single switch. The default operating mode is stacking
mode.
A Switch stack can contain any combination of SLM224G4S
and SLM248G4S units, with the following limits:
SLM224G4S only: Maximum of 6 units
SLM248G4S only: Maximum of 4 units
SLM224G4S and SLM248G4S: Maximum of 192 10/100
ports (total among all switches)
Each switch in a stack is assigned a unique unit number.
These numbers indicate the switch’s status in the stack:
Unit 1:The switch is the Master unit.The master handles
the management functions for the entire stack.
Unit 2:The switch is the Backup Master unit.The backup
master automatically becomes the new master if the
master fails.
Unit 3, 4, 5, 6: The switch is a Slave unit. (Depending on
the switch models used, 5 and 6 may not be valid.)
TheSwitchesareconnectedtogetherusingapairofGigabit
ports on each Switch: G1 and G2, G3 and G4, or miniGBIC1
and miniGBIC2. Linksys recommends using Gigabit ports
G1 and G2 (the default stacking ports). Connections are
made using Category 5e Ethernet network cables.
To set up a stack with six switches, follow these steps:
Connect one end of a Category 5e Ethernet network
cable to port G1 on Unit 1.
Connect the cable’s other end to port G2 on Unit 2.
Connect one end of a Category 5e Ethernet network
cable to port G1 on Unit 2.
Connect the cable’s other end to port G2 on Unit 3.
Connect one end of a Category 5e Ethernet network
cable to port G1 on Unit 3.
Connect the cable’s other end to port G2 on Unit 4.
Connect one end of a Category 5e Ethernet network
cable to port G1 on Unit 4.
Connect the cable’s other end to port G2 on Unit 5.
Connect one end of a Category 5e Ethernet network
cable to port G1 on Unit 5.
•
•
•
•
•
•
1.
2.
3.
4.
5.
6.
7.
8.
9.

7
Installation
Chapter 3
24/48-Port 10/100 + 4-Port Gigabit Resilient Clustering Smart Switch with 2 Combo SFPs
Connect the cable’s other end to port G2 on Unit 6.
Connect one end of a Category 5e Ethernet network
cable to port G1 on Unit 6.
Connect the cable’s other end to port G2 on Unit 1.
For a stack with less than 6 switches, the steps are similar
except that port G1 of the last switch in the stack must be
connected back to port G2 of the first switch in the stack.
The following is an example of setting up a stacked
configuration using three SLM248G4S switches.
Connect port G1 on Unit 1 to port G2 on Unit 2.
Connect Unit 1 to Unit 2
Connect port G1 on Unit 2 to port G2 on Unit 3.
Connect Unit 2 to Unit 3
Connect port G1 on Unit 3 to port G2 on Unit 1.
Connect Unit 3 to Unit 1
10.
11.
12.
1.
2.
3.
For detailed information on switch stacking, refer to
“Appendix B: About Switch Stacking.”
For more information on stack configuration using the
Console Interface, refer to “Stack Configuration” and
“System Mode” in “Chapter 4: Configuration Using the
Console Interface”.
For more information on stack configuration using the
Web-based Utility, refer to “Setup > Stack Management”
in“Chapter 5: Configuration Using the Web-based Utility”.
Reassigning a Slave Unit as the Master Unit
You can reassign a slave unit so that it becomes the master
unit. To do this, you swap their unit numbers. For example,
to make slave unit 5 be the master, you change the master’s
unit number from 1 to 5 and the slave’s unit number from
5 to 1. To change the unit numbers, you can use either the
Web-based utility or the console interface.
The following describes the procedure for changing a
slave unit into the master unit. In this example, unit 5 is
made the master unit.
Swap the unit numbers. That is, change the unit
number of the current master from 1 to 5, and change
the unit number of slave unit 5 from 5 to 1. (The order
in which these are performed is not significant.)
Power off the new unit 5 (the former master unit).
Power off the new master unit 1 (the former slave unit
5) briefly, then power it on again.
Power up the new unit 5.
NOTE: If unit 2 (the backup master) is made the
master unit, steps 2 through 4 can be skipped.
Replacing a Stacked Switch
To replace one switch in a stack with another switch
without having to reboot or power down the stack:
Run the Web-based utility.
Go to the Setup > Stack Configuration screen.
Make sure that the Stacking Ports After Reset setting
matches the type of stacking ports (Copper Ports or
Combo Ports) that are used to connect the switches.
Verify that the Unit No. After Reset settings specify the
correct unit number for the switch being replaced.
Click Save Settings to save the stack settings.
Disconnect the switch being replaced, then connect
the new switch using the same stacking ports (copper
or combo) as before.
The stack should continue to operate as before.
1.
2.
3.
4.
1.
2.
3.
4.
5.
6.

8
Installation
Chapter 4
24/48-Port 10/100 + 4-Port Gigabit Resilient Clustering Smart Switch with 2 Combo SFPs
Chapter 4:
Configuration Using the
Console Interface
Overview
The Switch features a menu-driven console interface that
lets you perform basic switch configuration and easily
manage your network. To use the console interface, you
either run the HyperTerminal application to configure a
serial connection through the Switch’s console port, or
run a telnet session over an Ethernet connection.
Using the HyperTerminal Application
To access the console interface using HyperTerminal:
Click the Start button.
SelectAllPrograms>Accessories>Communications
> HyperTerminal.
Start > All Programs > Accessories > Communications > HyperTerminal
Enter a name for this connection. Select an icon for the
application, then click OK.
HyperTerminal Connection Description Screen
Select a port to communicate with the switch. Select
COM1 or COM2.
HyperTerminal Connect To Screen
1.
2.
3.
4.
Set the serial port settings as follows, then click OK.
Bits per Second: 38400
Databits: 8
Parity: None
Stop bits: 1
Flow control: None
HyperTerminal Properties Screen
The Login screen appears. Proceed to the “Login”
section below.
Using telnet
In addition to using HyperTerminal to operate the console
interface through the Switch’s console port, you can also
use a telnet session to operate the console interface
through an Ethernet connection.
Click Start, then select All Programs > Accessories >
Command Prompt to open a command prompt.
At the prompt, enter telnet 192.168.1.254, then press
Enter.
The Login screen appears. Proceed to the “Login”
section below.
5.
6.
1.
2.
3.

9
Installation
Chapter 4
24/48-Port 10/100 + 4-Port Gigabit Resilient Clustering Smart Switch with 2 Combo SFPs
How to Use the Console Interface
The Console Interface consists of a hierarchical series of
menu screens and settings screens. Each menu displays
a list of options. Selecting an option brings up a settings
screen where you can configure the relevant settings.
To select a menu option, either press the number of the
option in the list (for example, press 5to select Help from
the Main Menu), or use the arrow keys to move up or down
the list until the option is highlighted, then press Enter.
The lower portion of each settings screen lists the actions
and navigation keys. The actions (Edit, Save, Quit) allow
you to make changes to the settings. The navigation keys
(Arrow Keys, Tab, Backspace, Space, Esc) allow you to
highlight and select different items within the screen.
To change a setting, highlight Edit, then press Enter. Use
the arrow keys to highlight the setting to be changed,
then enter its new value (or press Space to toggle through
the list of values). To save your changes and remain in the
settings screen, highlight Save, then press Enter.To return
to the previous screen, highlight Quit, then press Enter.
To cancel all changes and return to the previous screen,
press Esc, then select Quit.
Login
The console interface starts by displaying the Login screen.
The first time you open the console interface, use the
default username admin and leave the password blank,
then press the Enter key. You can set a password later
from the User and Password Settings screen.
Console Login Screen
If you are using HyperTerminal, enter the username and
password at the prompts. Then press Enter to log in.
If you are using telnet, use the arrow keys to select Edit
and press Enter. Enter the username and password in the
respective fields. Then press Esc to return to the Login
screen. Use the arrow keys to select Execute and press
Enter to complete the login process.
Switch Main Menu
After successful login, the Main Menu screen appears. This
screen displays six menu choices: System Configuration
Menu, Port Status, Port Configuration, System Mode, Help,
and Log Out.
Main Menu
System Configuration Menu
System Configuration Menu
The System Configuration Menu provides the following
options:
System Information
Management Settings
User and Password Settings
Security Settings
IP Configuration
File Management
Restore System Default Settings
Reboot System
Stack Configuration
0. Back to Main Menu
1.
2.
3.
4.
5.
6.
7.
8.
9.

10
Installation
Chapter 4
24/48-Port 10/100 + 4-Port Gigabit Resilient Clustering Smart Switch with 2 Combo SFPs

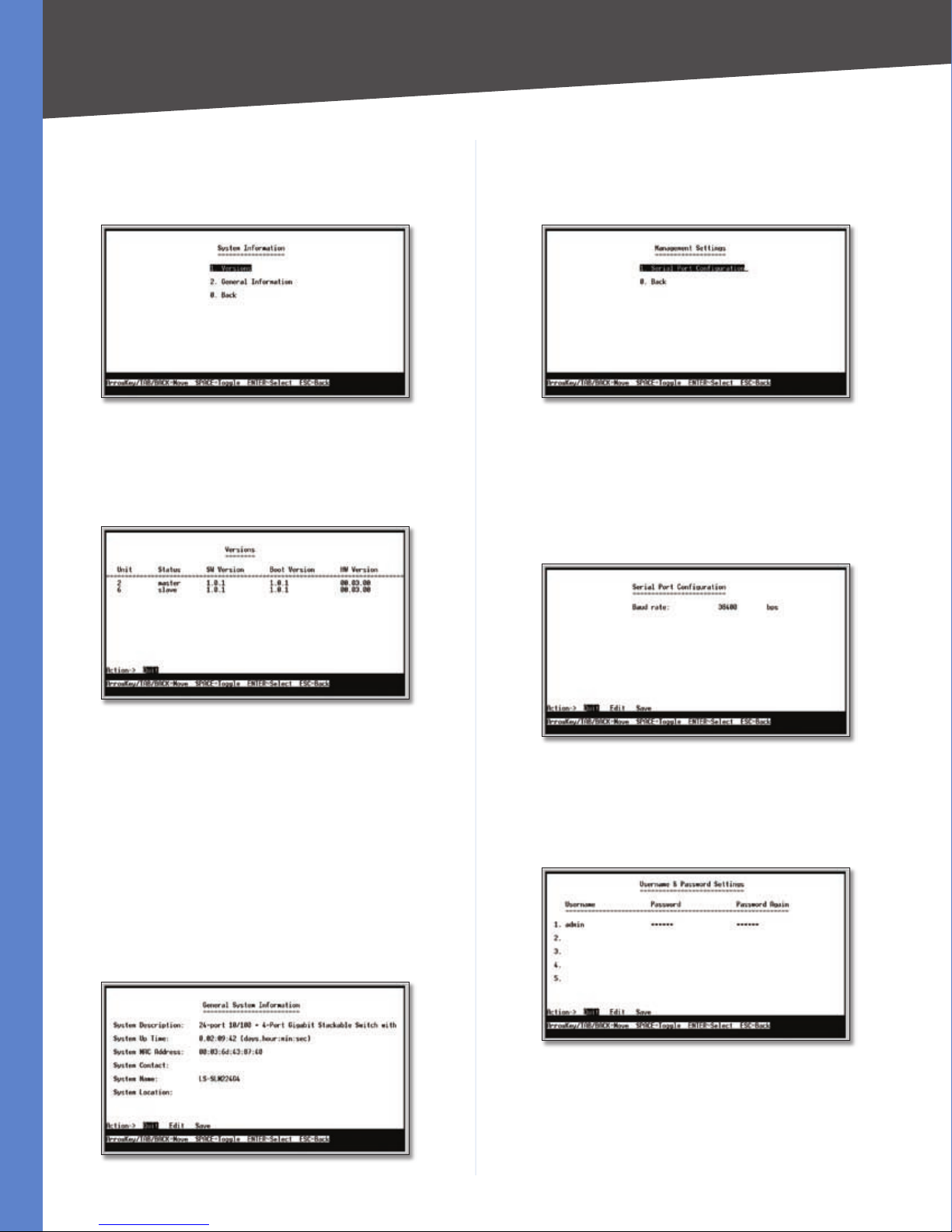

System Information
From the System Information screen you can check current
firmware versions and other general switch information.
System Information
Versions
The Versions screen displays version-related information
for each switch in the system.
Versions
Unit The unit number of the switch, from 1 to 6.
Status The status of the switch, either master or slave.
Software Version The version number of the software .
Boot Version The version number of the boot file.
Hardware Version The Switch’s current hardware setup.
General System Information
The General System Information screen displays the System
Description, SystemUpTime,SystemMACAddress,System
Contact, System Name and System Location.
General System Information
Management Settings
The Management Settings screen displays the Serial Port
Configuration option.
Management Settings
Serial Port Configuration
The Serial Port Configuration screen displays the current
baud rate setting. To change the baud rate, select Edit,
then use the spacebar to toggle through the different
baud rates. Use the Save action to set the new baud rate.
Serial Port Configuration
User & Password Settings
The User & Password Settings screen displays all the user
accounts defined on the system.
User & Password Settings
The default account is admin.You cannot edit this account
(its user name and password cannot be changed). For
security purposes, Linksys recommends creating at least
one user account with a unique user name and password.
You can create up to five user accounts total.

11
Installation
Chapter 4
24/48-Port 10/100 + 4-Port Gigabit Resilient Clustering Smart Switch with 2 Combo SFPs
(When you create your first user account, it will appear as
though you are editing the admin account; however, you
areonly replacingthe admin accountwith thenewaccount.
The admin account is not overwritten or deleted.)
Once you have created a user account, you can edit it
(change the user name and/or password) or delete it. If the
system contains only one user account and you delete that
account, the original admin account will reappear in its
place. This is because the system must always have at least
one account.
To add a new user, use the arrow keys to select Edit,
press Enter, then enter the new account’s user name and
password in the Username and Password columns, and
re-enter the password in the Password Again column to
confirm the password.
To delete an existing user account, use the arrow keys to
select Edit, press Enter, then delete the user name in the
Username column.
To save your changes, press Esc, use the arrow keys to
select Save, then press Enter.
Security Settings
The IP Configuration screen displays one option: Disable
Active Management Access Profile.
Security Settings
Selecting this option will prompt you to confirm that you
want to disable the active management access profile.
NOTE: This setting has no effect when
Management Access Rules are not defined.
IP Configuration
The IP Configuration screen displays three menu choices:
IP Address Settings, HTTP Configuration, and Network
Configuration.
IP Configuration
IP Address Settings
The IP Address Settings screen allows you to set the IP
information for the Switch.
IP Address Configuration
IP Address This sets the Switch’s IP Address. The default
setting is 192.168.1.254. If you change the IP address,
verify that the address you enter is correct and does not
conflict with another device on the network.
Subnet Mask This combined with the IP Address defines
the Switch’s network address.
Default Gateway This defines the IP Address for the
default gateway of the network.
Management VLAN This is the ID number of the
Management VLAN.
DHCP Client The status of the DHCP client is displayed.
If you want the Switch to be a DHCP client, then select
ENABLE. If you want to assign an static IP address to the
Switch, then enter the IP settings and select DISABLE.
HTTP
The HTTP screen allows you to set the Hyper Text Transfer
Protocol server (web server) information for the Switch.

12
Installation
Chapter 4
24/48-Port 10/100 + 4-Port Gigabit Resilient Clustering Smart Switch with 2 Combo SFPs
HTTP
HTTP Server Enable or disable the Switch’s HTTP server
function.
HTTP Server port Set the TCP port that HTTP packets are
sent and received from.
Network Configuration
The Network Configuration screen offers a choice of two
tests, Ping and TraceRoute.
Network Configuration
Ping The Ping screen displays the IP address of the
location you want to contact.
Ping
Select Edit to change the IP address, and select Execute
to begin the ping test.
After the ping test is complete, the Ping screen displays
the IP address, status, and statistics of the ping test.
TraceRoute The TraceRoute screen displays the IP address
of the address whose route you want to trace.
TraceRoute
Select Edit to change the IP address, and select Execute
to begin the traceroute test.
After the traceroute test is complete, the TraceRoute
screen displays the IP address, status, and statistics of the
traceroute test.
File Management
The File Management screen allows you to upload or
download files, such as the startup configuration, boot, or
image file, using a TFTP server.
File Management
Source File Specify the location of the file to transfer.
Select one of the following:
TFTP If the file is located on a TFTP server.
Image If the file is a software code file.
Startup-config If the file is a configuration file.
DestinationFile Specifywherethe fileistobetransferred.
Select one of the following:
TFTP If the file is to be uploaded to a TFTP server.
Image If the file is to be downloaded as a software
code file.
Startup-config If the file is a configuration file
Boot If the file is a boot file.
File Name Enter the name of the file to be uploaded or
downloaded.
IP Address Enter the IP address of the TFTP server that
will transfer the file.
•
•
•
•
•
•
•

13
Installation
Chapter 4
24/48-Port 10/100 + 4-Port Gigabit Resilient Clustering Smart Switch with 2 Combo SFPs
Select Edit to change the settings. When your changes
are complete, press Esc to return to the Action menu, and
select Execute to upload or download the designated file.
If you are downloading a new boot image, please follow
these steps:
Download the new boot code. DO NOT RESET THE
DEVICE!
Download the new software image.
Reset the device now.
1.
2.
3.
Restore System Default Settings
To restore the Switch back to the factory default settings,
select Restore System Default Setting and press Enter.
A prompt appears in the lower part of the screen asking
you to confirm the requested action. Press Yto continue
or Nto cancel the action.
Restore Default
Reboot System
If you want to restart the Switch, select Reboot System
and press Enter. When you are prompted to confirm the
action, press Yto continue or Nto cancel the action.
Reboot System
Stack Configuration
The Stack Configuration screen displays information about
the switch stack and allows you to change those settings.
Stack Configuration
Unit The unit number of the switch, from 1 to 6.
MAC Address The MAC address of the switch.

14
Installation
Chapter 4
24/48-Port 10/100 + 4-Port Gigabit Resilient Clustering Smart Switch with 2 Combo SFPs
Software The version number of the software that runs
the switch.
Uplink The ID number of the switch that has an uplink
connection to this switch.
Downlink The ID number of the switch that has a
downlink connection from this switch.
Status The status of the switch, either master or slave.
ID After Reset The ID number that the Switch will have
after the next system reset. Values are Auto or 1to 6.
Back to Main Menu
Select Back to Main Menu to exit the System Configuration
Menu and return to the Main Menu screen.
Port Status
The Port Status screen displays status information for each
of the switch’s ports, consisting of the port number, the
port’s status, the link status, the port’s speed and duplex
mode, and flow control status.
The settings on the Port Status screen cannot be edited.
If you want to change a port’s settings, use the Port
Configuration screen.
Port Status
Port Configuration
The Port Configuration screen allows you to change a
port’s settings. You can enable or disable a port, or set
its auto-negotiation status, speed and duplex mode, and
flow control status.
Port Configuration
System Mode
The System Mode screen displays information about the
system mode:
System Mode
Current System Mode This is always set to Layer 2.
System Mode The system mode, either Stack or
Standalone. This cannot be changed.
Stacking Mode after Reset This indicates the mode,
Stack or Standalone, that the system will be in following
the next system reset. The default mode is Stack.
Help
The Help screen explains how to navigate the various
screens of the console interface.
Help
Logout
Select Logout to log out of the console interface.
