Lissmac SBM-M 1000 S2 ALU MIX User manual

METAL PROCESSING
OPERATING MANUAL
GRINDING MACHINE
SBM-M 1000 S2 ALU MIX
SBM-M 1500 S2 ALU MIX
LISSMAC Maschinenbau GmbH
Lanzstrasse 4
D-88410 Bad Wurzach
Telefon [phone] / 307 - 0
Telefax +49 (0) 7564 / 307 - 500
[email protected]
www.lissmac.com

About this manual
Grinding machine SBM-M 1000/1500 S2 ALU MIX 3
Imprint
Operating manual for
Grinding machine SBM-M 1000 S2 ALU MIX
SBM-M 1500 S2 ALU MIX
Issue date: 05-2017
Translation of the original operating manual
Manufacturer:
LISSMAC
Maschinenbau GmbH
Lanzstraße 4
D-88410 Bad Wurzach
Telephone: [phone] / 307 - 0
Fax: + 49 (0) 7564 / 307 - 500
E-mail: [email protected]
Web: www.lissmac.com
The dissemination or duplication of this operating manual and the reuse or
disclosure of its contents are forbidden unless explicitly permitted. Non-
compliance is subject to compensation for damages. All rights reserved for
the purpose of patent, utility model, or design patent registration.

About this manual
4 Grinding machine SBM-M 1000/1500 S2 ALU MIX
Table of Contents
Imprint ............................................................................................................3
Table of Contents ..........................................................................................4
1About this manual...................................................................................6
1.1Target group ......................................................................................6
1.2Additional documents........................................................................6
1.3Presentation of warnings...................................................................7
1.4Additional representations ................................................................7
2Safety........................................................................................................8
2.1Safety instructions.............................................................................8
2.2Organisational measures ..................................................................8
2.3Personnel selection and qualifications..............................................9
2.4Transport ...........................................................................................9
2.5Normal operation...............................................................................9
2.6Maintenance, Service and Troubleshooting....................................10
2.7Safety instructions for special types of dangers .............................11
2.7.1Electric power .....................................................................11
2.7.2Dust.....................................................................................11
2.7.3Fire hazard..........................................................................11
2.7.4Explosion hazard ................................................................12
2.8Symbols on the machine.................................................................13
2.9Explanation of labels on the machine .............................................14
3Product description ..............................................................................15
3.1Appropriate usage...........................................................................15
3.2Technical data .................................................................................16
3.3Type plate........................................................................................17
3.4Structure SBM-M 1000/1500 S2 ALU MIX grinding machine .........18
3.5Machining units ...............................................................................20
3.6Control elements .............................................................................21
3.6.1Operating elements on the machine...................................21
3.7Function ..........................................................................................23
3.8Safety equipment ............................................................................24
4Preparation for use ...............................................................................25
4.1Transporting the machine ...............................................................25
4.2Storing the machine ........................................................................26
4.3Installation and assembly................................................................26
4.3.1Installing machine ...............................................................26
4.3.2Connecting the machine electrically ...................................26
5Operation ...............................................................................................27
5.1Operation – overview ......................................................................27
5.1.1Control elements.................................................................27
5.2Operation ........................................................................................28
5.2.1S-unit selection switch ........................................................28
5.2.2Wear display .......................................................................29
5.2.3Transport belt speed and direction .....................................29

About this manual
Grinding machine SBM-M 1000/1500 S2 ALU MIX 5
5.2.4Hydraulic belt tensioner ......................................................30
5.2.5S-unit gear selection lever ..................................................31
5.2.6Setting sheet thickness.......................................................32
5.2.7Turn on motors in the grinding units ...................................33
5.3Processing material.........................................................................34
5.4Connecting the extractor.................................................................35
5.4.1"Fault" lamp (see 3.4 Grinding machine structure) lights ...36
5.5Switching machining material .........................................................36
5.6Changing abrasives ........................................................................37
5.7Replacing S-unit abrasive belt ........................................................37
5.7.1Preparing to replace the abrasive belt................................37
5.8Measuring wear / setting wear display to "zero". ............................38
5.8.1Releasing/removing the tension on the S-unit
abrasive belt .......................................................................39
5.8.2Place the abrasive belt on the S-unit..................................40
5.8.3Tensioning the S-unit abrasive belt.....................................40
6Service/Repair .......................................................................................41
6.1Replacing S-unit drive belts ............................................................41
6.1.1Remove support bar ...........................................................41
6.1.2Removing the V-belts..........................................................41
6.1.3Installing the V-belt .............................................................42
6.1.4Tensioning the V-belts.........................................................43
6.1.5Installing the support bar ....................................................43
6.1.6Replacing the V-belt on the back of the S-unit ...................44
6.1.7Tensioning the V-belt on the back of the S-unit ..................45
6.2Lubrication points/ Hydraulic oil ......................................................46
6.2.1Lubrication points, left rear .................................................46
6.2.2Lubrication points, right rear ...............................................46
6.2.3Lubricating the flanged bearing of the S-unit......................47
6.2.4Check hydraulic oil level .....................................................47
6.3Cleaning ..........................................................................................48
6.4Cleaning interval .............................................................................49
7Service....................................................................................................50
7.1Service intervals..............................................................................50
7.2Maintenance material......................................................................50
7.3Tightening torques ..........................................................................50
7.4Troubleshooting ..............................................................................51
7.5Customer service ............................................................................52
8Wear parts and consumables...............................................................53
8.1SBM-M 1000/1500 S2 ALU MIX grinding machine.........................53
9Taking out of operation and disposal .................................................54
10Warranty conditions..............................................................................55

About this manual
6 Grinding machine SBM-M 1000/1500 S2 ALU MIX
1 About this manual
1.1 Target group
The operating manual is directed at the machine operator and the operating
and maintenance personnel.
This operating manual contains important information on how to operate the
machine safely, properly and economically.
Each person responsible for operating and maintenance work on the
machine must have read and understood this operating manual.
The operating manual is to be supplemented by directives for accident
prevention and environmental protection, according to national requirements.
In addition to this operating manual, country-specific regulations for accident
protection and also recognised technical regulations for safety and proper
work are to be observed
1.2 Additional documents
Additional documentation of the respective manufacturers of individual
components of the machine are available as supplements to this operating
manual:
- Dust extraction
- Operating manual BALLUFF

About this manual
Grinding machine SBM-M 1000/1500 S2 ALU MIX 7
1.3 Presentation of warnings
In this operating manual warnings are presented according to the following
examples:
SIGNAL WORD!
Type and source of danger
Consequences of non-compliance
Actions to avert the danger
The signal word next to the danger symbol indicates the degree of danger:
DANGER This signal word signifies an extremely dangerous situation. If the situation is
not avoided, fatal or serious injuries will result.
WARNING This signal word signifies a dangerous situation. If the situation is not
avoided, fatal or serious injuries will result.
CAUTION This signal word signifies a dangerous situation. If the situation is not
avoided, medium to slight injuries will result.
NOTE This signal word signifies a situation which presents risks to objects. If the
situation is not avoided, property damage will result. The signal word is
present without a danger symbol.
1.4 Additional representations
In this operating manual important information is presented according to the
following examples:
Import information is denoted by »i«.
Requests and results
Texts, which request action, are marked by a triangle (). The immediate
effect of this action is marked as result ().
Position numbers
The positions s of the figures are marked by numbers in parentheses (1).

Safety
8 Grinding machine SBM-M 1000/1500 S2 ALU MIX
2 Safety
2.1 Safety instructions
The SBM-M 1000/1500 S2 ALU MIX grinding machine is constructed
according to the state of the art and recognised technical safety rules.
However, during its use, danger for persons and property damage can occur.
The machine is to be used only for intended use in technically faultless
condition and in observance of safety instructions.
2.2 Organisational measures
Personnel authorised to work on the machine must have read and
understood the operating manual before starting work. This applies notably
to personnel who only work occasionally on the machine, e.g. for
changeovers and service.
The operating manual is to be kept permanently at the machine location
and easily accessible.
Perform checks for safe and hazard awareness work by operators while
following the operating manual.
If necessary or required by country-specific regulation, use personal
protective clothing (e.g. work gloves, safety glasses, hearing protection).
Observe all safety and danger instructions on the machine.
Keep all safety instructions and danger warnings on the machine
complete and in legible condition.
No changes, removal or addition of parts to the machine without the
written approval of the manufacturer!
Only use original replacement parts from the manufacturer.
Keep intervals for service work which are given in the operating manual.
Employees must be trained at regular intervals about the dangers of
grinding aluminium workpieces. This training must be documented in
writing.
The measures specified in the operating manual (cleaning measures,
etc.) that must be taken when switching from steel workpieces to
aluminium, or from aluminium to steel, must be observed and
documented.
Before starting the grinding machines, it must be ensured in the context
of a commissioning inspection that the measures required by the
operating manual have been implemented. The commissioning process
must be documented.

Safety
Grinding machine SBM-M 1000/1500 S2 ALU MIX 9
2.3 Personnel selection and qualifications
Only authorised personnel of legal minimum age may work on the machine.
Personnel who are being trained or orientated on the machine may only
work on the machine under continuous supervision of an experienced
person.
Only use trained or orientated personnel. Clearly establish responsibilities
of the personnel for operating, maintaining and servicing.
Establish a machine operator responsibility. The machine operator must
refuse to follow instructions that are contrary to safety.
2.4 Transport
Only use lifting gear and load carrying equipment with sufficient lifting
capacity during loading work (see Technical Data for weights).
Name an expert instructor for the lifting process!
Only lift the machine properly with the lifting gear according to
instructions in the operating manual. Only use the provided attachment
points for the load carrying equipment.
Only use suitable transport vehicles with sufficient load capacity.
Reliably secure the machine during vehicle transport. Use suitable
attachment points.
Perform recommissioning after transport only according to the operating
manual.
2.5 Normal operation
Before beginning work become familiar with the operating location and
working environment. The work environment includes, for example, work
area obstructions and assistance options in case of accidents.
Only operate the machine in a safe and functional condition.
Refrain from working in any manner that is questionable in regard to
safety.
Immediately stop and secure the machine in case of malfunctions.
Immediately correct malfunctions.
At least once per shift check the machine for externally recognisable
damage and deficiencies. Report any changes occurring (including
operating behaviour) to the responsible department or person. If
necessary, immediately stop the machine and secure it.

Safety
10 Grinding machine SBM-M 1000/1500 S2 ALU MIX
2.6 Maintenance, Service and Troubleshooting
Adjustment, maintenance and service work may only be carried out by
authorised technical personnel.
Perform adjustment, maintenance and service work according to
instructions in the operating manual. Keep the specified intervals for
service work.
Inform operating personnel before beginning adjustment, repair, or
maintenance work. Name a supervisor.
Always disconnect the machine from electrical power during maintenance
and repair work (main switch in the 0 position).
When the machine is being cleaned of material residues, always
disconnect the machine and the extraction system from the mains supply
(set main switch to 0).
Before cleaning with cleaning agents, close all openings with suitable
materials in which no water or cleaning agent can penetrate, for safety or
functional reasons. Electric motors and switches are especially at risk.
Do not perform any cleaning with high pressure cleaners.
Openings which were sealed before cleaning, must be completely
opened after cleaning.
Always tighten loosened screw connections with the specified tightening
torques during maintenance and service work.
If safety equipment is dismantled during changeover, maintenance,
service and repair, remount and check the safety equipment immediately
after the work is completed.
Dispose of operating and auxiliary materials and replacement parts safely
and in accordance with country-specific regulations.

Safety
Grinding machine SBM-M 1000/1500 S2 ALU MIX 11
2.7 Safety instructions for special types of dangers
2.7.1 Electric power
Work on the machine's electrical systems may only be carried out by
electricians according to the rules of electronics.
In case of problems with the electrical power supply, turn the machine off
immediately.
When changing fuses only use original fuses with specified amperage.
Regularly check machine electrical equipment. Immediately correct
deficiencies, such as loose connections or scorched cable.
2.7.2 Dust
The machine may only be operated with two functional dust extraction
systems approved pursuant to the EC Directives for aluminium and steel
dust.
All federal requirements for extraction systems for potentially explosive
aluminium and steel dusts must be met.
Please observe the separate operating manual of the dust extraction
system.
It must be guaranteed that the continued operation of machine is
impossible if the dust extraction system fails.
The volume flow rate of the extraction system must be at least 2900
m³/hr.
The flow velocity in the suction pipes must not be below 20m/s.
No dust deposits should form in the suction pipes.
2.7.3 Fire hazard
Do not process any workpieces which have been treated with a
flammable corrosion resistant agent or flammable additive.
Do not operate the machine near easily flammable materials.
Make sure that the machine is always cleaned of machining residues
according to the operating manual.

Safety
12 Grinding machine SBM-M 1000/1500 S2 ALU MIX
2.7.4 Explosion hazard
2.7.4.1 Description of explosion hazard
The machining of aluminium produces flammable dust by grinding that,
when mixed with air, can form a potentially explosive atmosphere. This also
applies to the machining of steel and stainless steel.
In a mixture of aluminium and steel dust, explosive gas can be produced
from corrosion
Moreover, there is always the possibility that contact between water (e.g. air
humidity) and aluminium dust can produce hydrogen gas, resulting in a gas
explosion.
During machining of aluminium, wet separators must always be used.
During machining of steel, you must connect the dry vacuum.
2.7.4.2 Division of zones
The extraction of the aluminum or steel dust with a suitable extraction
system (see 2.7.2) and performance of the cleaning intervals (see 7.3 and
7.4) prevents the formation of an explosive atmosphere within the machine
or in the suction pipes.
Only if this is ensured may the machine be operated.

Safety
Grinding machine SBM-M 1000/1500 S2 ALU MIX 13

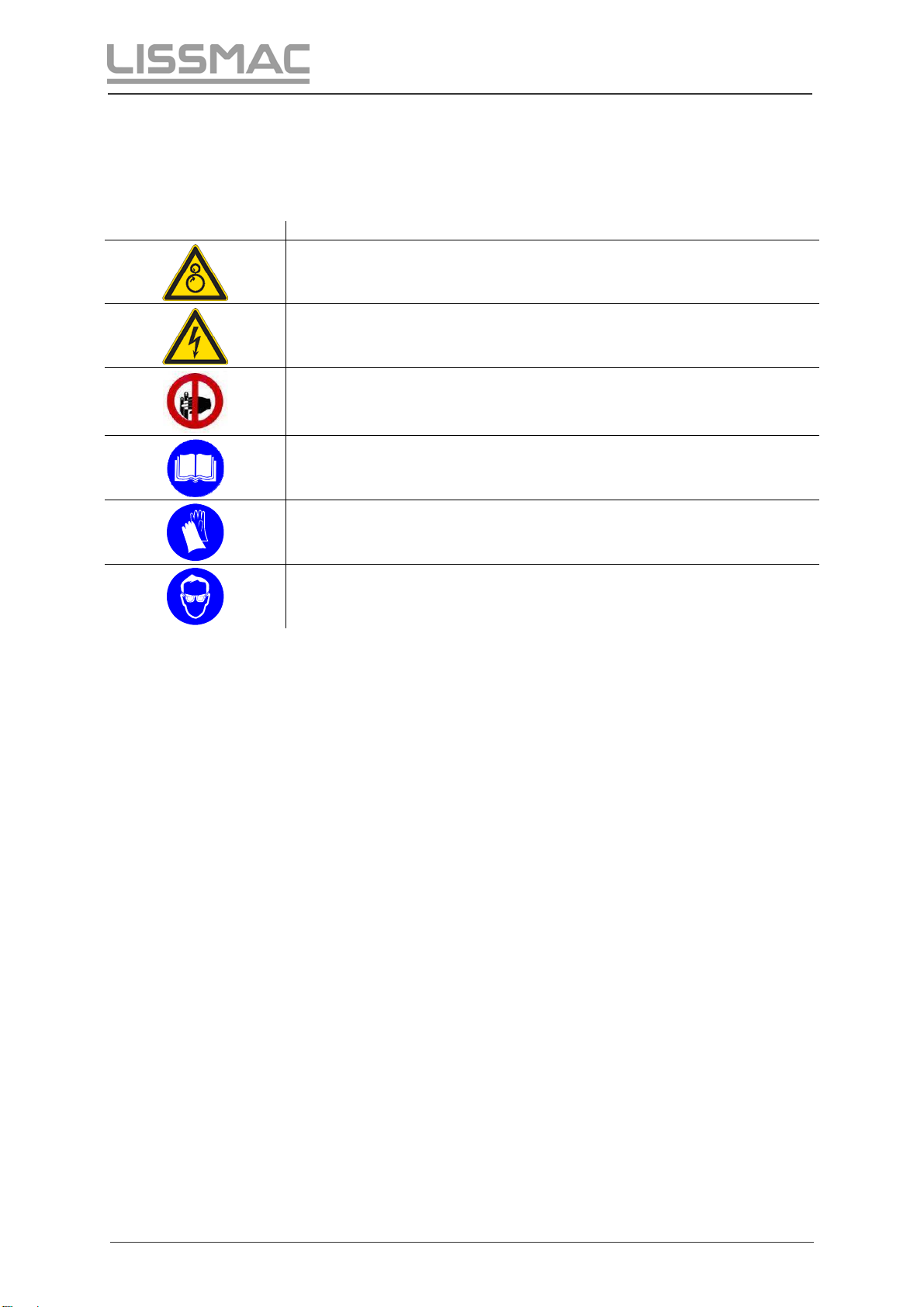

2.8 Symbols on the machine
The following symbols are located on the machine and warn of dangers
coming from the machine:
Symbol Meaning
This symbol on both conveyor belts indicates the danger that hands or body
parts can be pulled in and sheared off.
This symbol on the control cabinet indicates dangerous electrical voltage.
This symbol indicates the danger that hands or body parts can be pulled in
and crushed.
Read the operating manual and follow the information in the operating
manual.
Wear protective gloves when placing and removing workpieces.
This symbol indicates that dust and splinter may be ejected from the
machine during operation.
Wear safety glasses.

Safety
14 Grinding machine SBM-M 1000/1500 S2 ALU MIX
2.9 Explanation of labels on the machine
The following labels are located on the machine and provide additional
information.
Symbol Meaning
This symbol on the hydraulic tank indicates the hydraulic oil
level.
This symbol indicates the EMERGENCY STOP button.
The symbol indicates the minimum length of the workpiece to
be machined.
Symbol, Hand wheel for moving bottom S-unit
Symbol, Hand wheel for adjusting sheet thickness.
Symbol, Hand wheel for moving top S-unit
Lubricate here.
Transport with crane possible.
Transport with forklift possible.

Product description
Grinding machine SBM-M 1000/1500 S2 ALU MIX 15
3 Product description
The SBM-M 1000/1500 S2 ALU MIX grinding machine is described below.
3.1 Appropriate usage
The SBM-M 1000/1500 S2 ALU MIX grinding machine is intended
exclusively for the two-sided deburring and edge rounding of punch, laser,
and fine plasma cut workpieces.
Workpieces of 0.5 mm to 50 mm in thickness may be processed.
The SBM-M 1000/1500 S2 ALU MIX grinding machine may be used
exclusively for the edge rounding of workpieces of aluminium or aluminium
alloys as well as steel or stainless steel. Workpieces up to a warpage of
maximum 3mm can be processed.
This machine may only be operated as a system with a dust extraction
system that is provided and approved for it.
These materials may not be machined simultaneously.
When machining aluminium, the wet separator must always be connected,
or the dry extractor when machining steel (see 5.4 + 5.5).
Always note the danger of explosion (see 2.7.4) and machine cleaning (7.3
and 7.4); only then is safe work possible.
Use for any other purposes is non-intended use.
The machine must only be installed in an indoor space, which meets the
following conditions:
Fortified, level floor with a load carrying capacity of at least 2.5 t.
Temperature range +10° to 40 °C
Humidity 5 – 95 % (not condensing)
Non-intended use particularly includes the machining of workpieces of
composite materials in which both aluminium and steel dust could be
produced simultaneously.
The manufacturer accepts no liability for damages which occur for use which
is non-intended use.

Product description
16 Grinding machine SBM-M 1000/1500 S2 ALU MIX
3.2 Technical data
The following specifications apply to the
SBM-M 1000 S2 ALU MIX / SBM-M 1500 S2 ALU MIX grinding machine.
SBM-M 1000 S2
ALU MIX SBM-M 1500 S2 ALU MIX
Material throughput Automatic Automatic
Aperture width 1000 mm 1500 mm
Sheet thickness max. 50 mm 50 mm
Drive power, motor S 4x 3 kW 4x 3 kW
Speed, motor S 1405 U/min / 1705 U/min 1405 U/min / 1705 U/min
Voltage, motor S 400V/50Hz / 480V/60Hz 400V/50Hz / 480V/60Hz
Current consumption, motor
S 6,3 A / 5,3 A 6,3 A / 5,3 A
Power consumption of feed
motor 1,18 A 1,18 A
Noise power level approx. 80 dB (A) approx. 80 dB (A)
protection class IP 42 IP 42
Feed infinitely variable
0-4 m/min
infinitely variable
0-4 m/min
Sheet thickness adjustment electrical electrical
Medium adjustment electrical electrical
Medium Grinding block Grinding block
weight 2100 kg 2300 kg
width 2800 mm 3300 mm
Depth 1400 mm 1400 mm
height 1800 mm 1800 mm
Voltage 400V/50Hz / 480V/60Hz 400V/50Hz / 480V/60Hz
Network configuration 3~ PEN / 3~ PE+N 3~ PEN / 3~ PE+N
Rated current total
(without suction) 28 A / 24 A 28 A / 24 A
Rated power total
(without suction) 15,2 kW / 15,5 kW 15,2 kW / 15,5 kW
Power rating (without
suction) 18,5 kVA / 19 kVA 18,5 kVA / 19 kVA

Product description
Grinding machine SBM-M 1000/1500 S2 ALU MIX 17
3.3 Type plate
Abb. 1: Type plate
1 Name of machine
2 Machine number of the machine
3 Connection values and weights
The type plate is located on the left side of the back of the grinding machine.

Product description
18 Grinding machine SBM-M 1000/1500 S2 ALU MIX

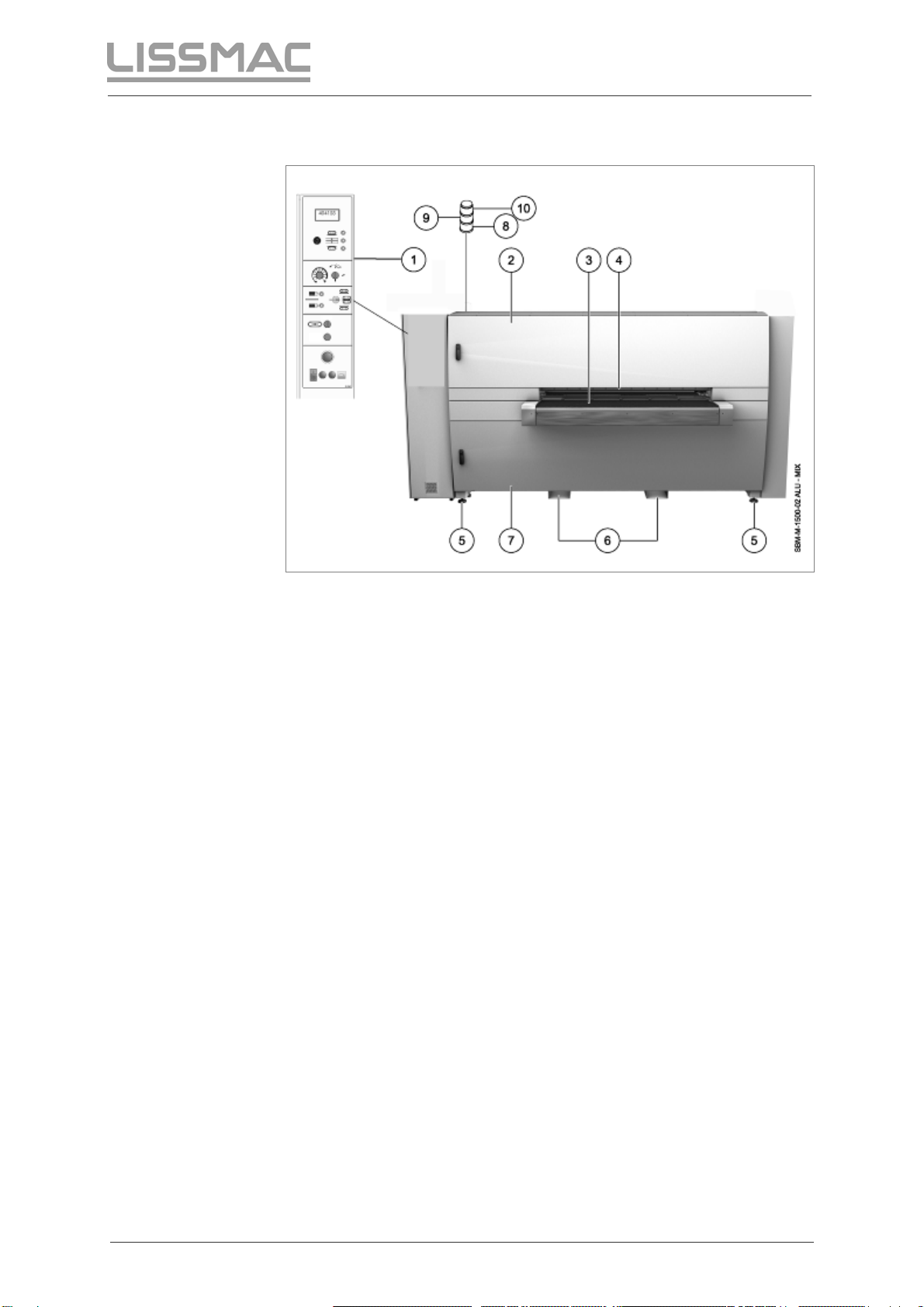

3.4 Structure SBM-M 1000/1500 S2 ALU MIX grinding machine
Abb. 2: Components of the machine, input side (front side of SBM-M S2 ALU MIX)
1 Control panel with selection switches
2 Upper device door
3 Transport belt for workpiece input
4 Safety flap
5 Adjustable machine foot
6 Support for transport with forklift
7 Lower device door
8 Steel machining indicator lamp
9 Aluminium machining indicator lamp
10 Extraction indicator not functional

Product description
Grinding machine SBM-M 1000/1500 S2 ALU MIX 19
Abb. 3: Components of the machine, output side (back of SBM-M S2 ALU MIX)
1 Upper device door
2 Transport belt for workpiece outlet
3 Main switch OFF/ON for entire machine
4 EMERGENCY STOP switch for immediate shutdown of the
entire machine
5 Ventilation grate on switching cabinet
6 Type plate
7 Electrical connection
8 Lower device door

Product description
20 Grinding machine SBM-M 1000/1500 S2 ALU MIX

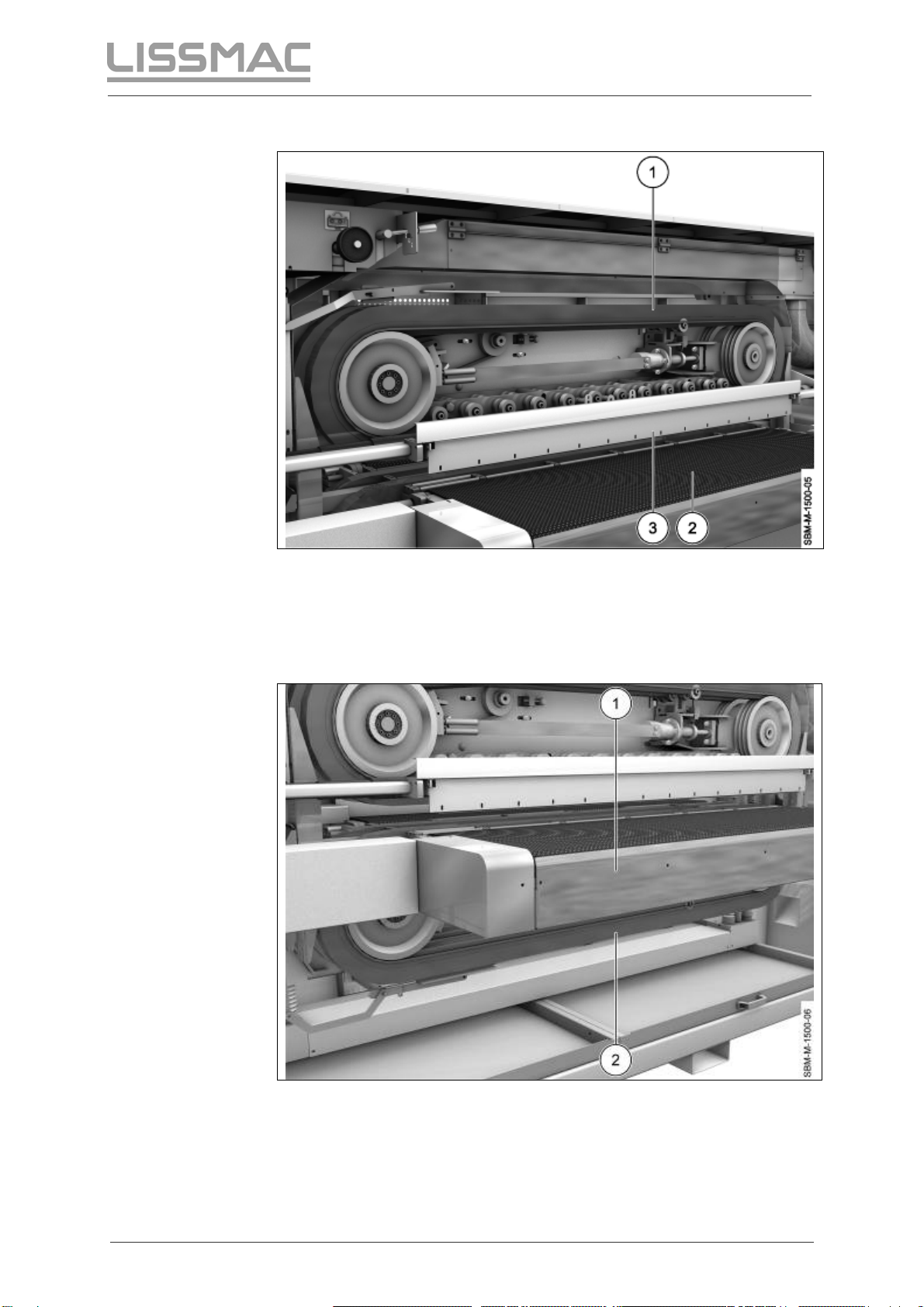

3.5 Machining units
Abb. 4: Machining unit, top
1 Abrasive belt
2 Transport belt for workpiece input
3 Safety shutdown bar
(the transport belt will stop as long as it is actuated)
Abb. 5: Machining unit, bottom
1 Safety shutdown bar
(the transport belt will stop as long as it is actuated)
2 Abrasive belt
