Lite-on Tech TR101 User manual

TR101
Intel® 810E Motherboard
USER’S MANUAL
Intel® Celeron®, Coppermine®, Tualatin® Processor Motherboard
Rev. 1.0

TR101 Motherboard
Revision History
Revision Date Description
1.0 Initial release of TR101 motherboard user’s manual
Item Checklist
1 TR101 Motherboard
1 Floppy Cable
1 ATA Cable 66/100
1 I/O Shield
1 CD for Motherboard Driver
TR101 User Manual
Quick Installation Guide
Intel® Celeron®, Coppermine®, Tualatin® are registered trademark of Intel Corporation.
Copyright © 2001, Lite-On Tech./ System BU

TR101 Motherboard
Safety Instructions
Please follow some precautions when operating your computer.
1. Always unplug the power cord when inserting any add-on card or module inside the system.
2. Use a grounded wrist strap before handling computer components. If one is not available, touch both of your
hands to a safely grounded object or to a metal object.
3. Place components on a level grounded antistatic pad or on the packaging that came with the components
whenever the components are separated from the system.
4. Keep equipment away from moisture and humidity.
5. Keep this User’s Manual for future reference.

TR101 Motherboard
Table of Contents
Chapter 1. Introduction …………………………………………………………………… 1
Motherboard Specification …………………………………………………………………………. 1
TR100 Motherboard Layout …………………………………………………………………….…. 3
Chapter 2. Hardware Installation Process ………………………………………..4
Installing Central Process Unit (CPU) ……………………………………………………………..4
Installing Memory Modules ………………………………………………………………………… 6
Connecting IDE and Floppy Disk Cables and Drives ……………………………………………7
Installing Expansion Cards ………………………………………………………………………… 9
Connect Power Supply Cable ……………………………………………………………………. 10
I/O Back Panel Introduction ………………………………………………………………………. 11
Jumpers Introduction ……………………………………………………………………………… 13
Chapter 3. AMI® BIOS Setup ………………………………………………………….. 16
Entering Setup ……………………………………………………………………………………... 16
The Main Menu ……………………………………………………………………………………. 16
Standard CMOS Setup …………………………………………………………………………… 17
Advanced CMOS Setup ………………………………………………………………………….. 18
Advanced Chipset Setup ………………………………………………………………………… 19
Power Management Setup ……………………………………………………………………….. 20
PCI/Plug and Play Setup …………………………………………………………………………. 21
Peripheral Setup …………………………………………………………………………………… 22
Hardware Monitor Setup ………………………………………………………………………….. 23
Auto-Detect Hard Disks …………………………………………………………………………… 24
Change User Password …………………………………………………………………………... 25
Change Supervisor Password ……………………………………………………………………. 26
Auto Configuration with Optimal Settings ……………………………………………………….. 27
Auto Configuration with Fail Safe Settings ……………………………………………………… 28
Save Settings and Exit ……………………………………………………………………………. 29
Exit Without Saving ………………………………………………………………………………...30

TR101 Motherboard
1
Chapter 1 Introduction
Motherboard Specifications
Form Factor:
• Micro ATX Form Factor
• Size 9.0” x 8.4”, Four Layer Board
Processor:
• Support Intel Celeron®/ Pentium III/ Tualatin®.
• Intel Socket-370 mechanism for universal motherboard.
• 66/100/133MHz Front Side Bus frequency.
Cache Memory:
• Processor integrated on-die 32KB level-one (L1) and 128KB/256KB level-two (L2) cache.
System Memory:
• 2 DIMM Sockets support up to 512MB memory capacity.
• Support PC100 SDRAM DIMM module.
• Un-buffered, Non-ECC DIMM only.
Core Logic Chipset:
• Intel 810E GMCH (Graphics and Memory Controller Hub).
• ICHX (I/O Controller Hub).
PCI bus:
• PCI 2.2 compliant.
• PME# and 3.3V Aux signals to support power management.
Audio/Modem:
• AC’97 interface in ICHX.
• AC’97 CODEC ADI AD1885.
• Compliant with AC’97 revision 2.1 specification.
• 3 Audio jacks (Line out, Line In, Mic In).
• 3 Audio headers (CD In, Modem In, Aux In).
• Front audio headers (Line In, Mic In)

TR101Motherboard
2
On Board EIDE:
• 2 Bus Master IDE Ports (Up to 4 IDE devices). Support Ultra DMA 33/66 MB/sec integrated in
ICHX.
On Board I/O:
• LPC revision 1.0 super I/O controller Winbond W83627HF.
• 1 Floppy connector.
• Stacked PS/2 keyboard & mouse connector.
• 4 USB ports, Dual stacked ports at back and 2 at front header (W81181D Option).
• 1 Parallel port (ECP/EPP).
• 1 Serial port.
• 1 Serial port header.
• Hardware monitor capability by Winbond W83627HF (Option).
• 3 Fan headers.
Integrated Graphics:
• Integrated full 2D/3D/DirectX acceleration. (AGP 2X Mode).
• Integrated 230MHz RAMDAC and hardware motion compensation (30 frame/sec).
• Desktop display modes up to 1600x1200x8bit @ 85Hz.
• 4MB Video Display Cache (Option).
• 1 VGA output port.
Additional Features:
• Wake-on-LAN function.
• Wake-on-Ring function.
• Keyboard/Mouse/USB wake up function.
• Supports S1, S3, S4 and S5 ACPI states.
Expansion Slots:
• 3 PCI slots.

TR101Motherboard
3
TR101 Motherboard Layout
A CPU Socket H Front Side USB
B CPU Fan Socket I Expansion Slots
C Memory Sockets J Audio Connector
D Power Supply Connector K Back Panel Connectors
E Floppy Connector L COM 2 Port
F IDE Connectors M Jumper Connector
G Front Panel Connector
Front Panel Connector Pin Definition
Pin Signal Name I/O Description
1 HD_PWR O Hard Disk LED pull-up to VCC
2 HDR_BLNK_GRN O Front panel Green LED signal
3 HDA* O Hard Disk Active LED signal
4 HDR_BLNK_YEL O Front panel Yellow LED signal
5 GND - Ground
6 FPBUT_IN I Front panel On/Off button signal
7 FP_RESET* I Front panel Reset button signal
8 GND - Ground
9 VCC O
10 FPSLP* I Front panel sleep button signal
11 IRRX I IRDA serial input
12 GND - Ground
13 GND - Ground
14 KEY - KEY
15 IRTX O IRDA serial output
16 VCC O
17 NC - not connected
18 NC - not connected
A
B
C
D
E
FG
H
J
K
I
L
M

TR101 Motherboard
4
Chapter 2 Hardware Installation Process
Installing the Central Process Unit (CPU)
CPU Installation
1. Unlock the CPU socket by pulling the lever up to a 90-degree angle.
2. Position the CPU above the socket such that the marked corner (pin1) matches the corner near the base
of the lever.
3. Place the CPU into the socket. If the CPU is unable to insert properly, check its orientation and attempt
to re-install.
Warning! Do not force the CPU into the socket. Doing so will prompt bending of the pins and create
damage to the CPU.
4. Close the socket by lowering the lever and locking the lever in place.
90 degree angle

TR101 Motherboard
5
Installing the Central Process Unit (CPU)
cont.
CPU Heat Sink Installation
1. Read the related CPU heat sink user’s manual for more detailed installation procedures.

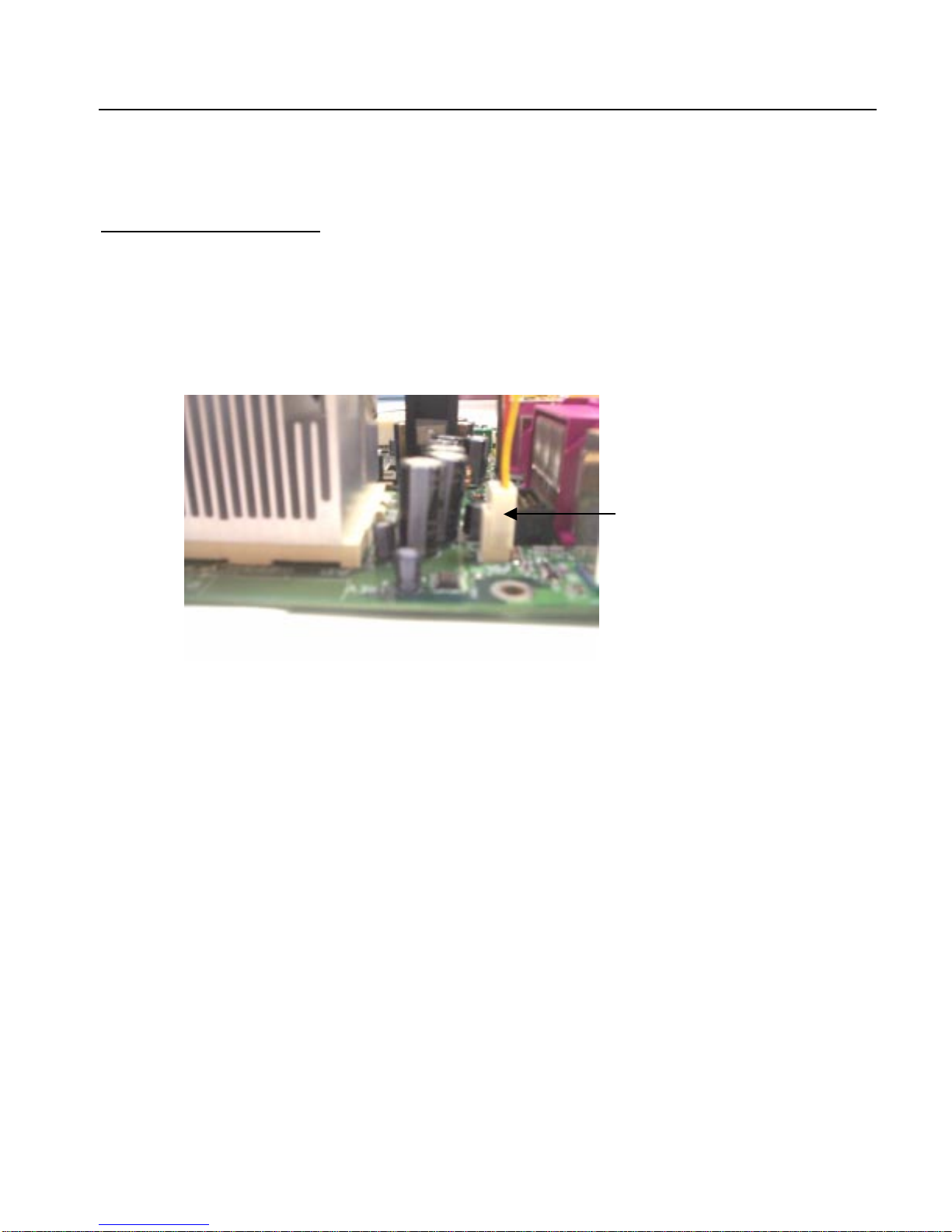

2. Connect CPU fan power cable into the CPU fan connector on the motherboard.
CPU Fan Connector

TR101 Motherboard
6

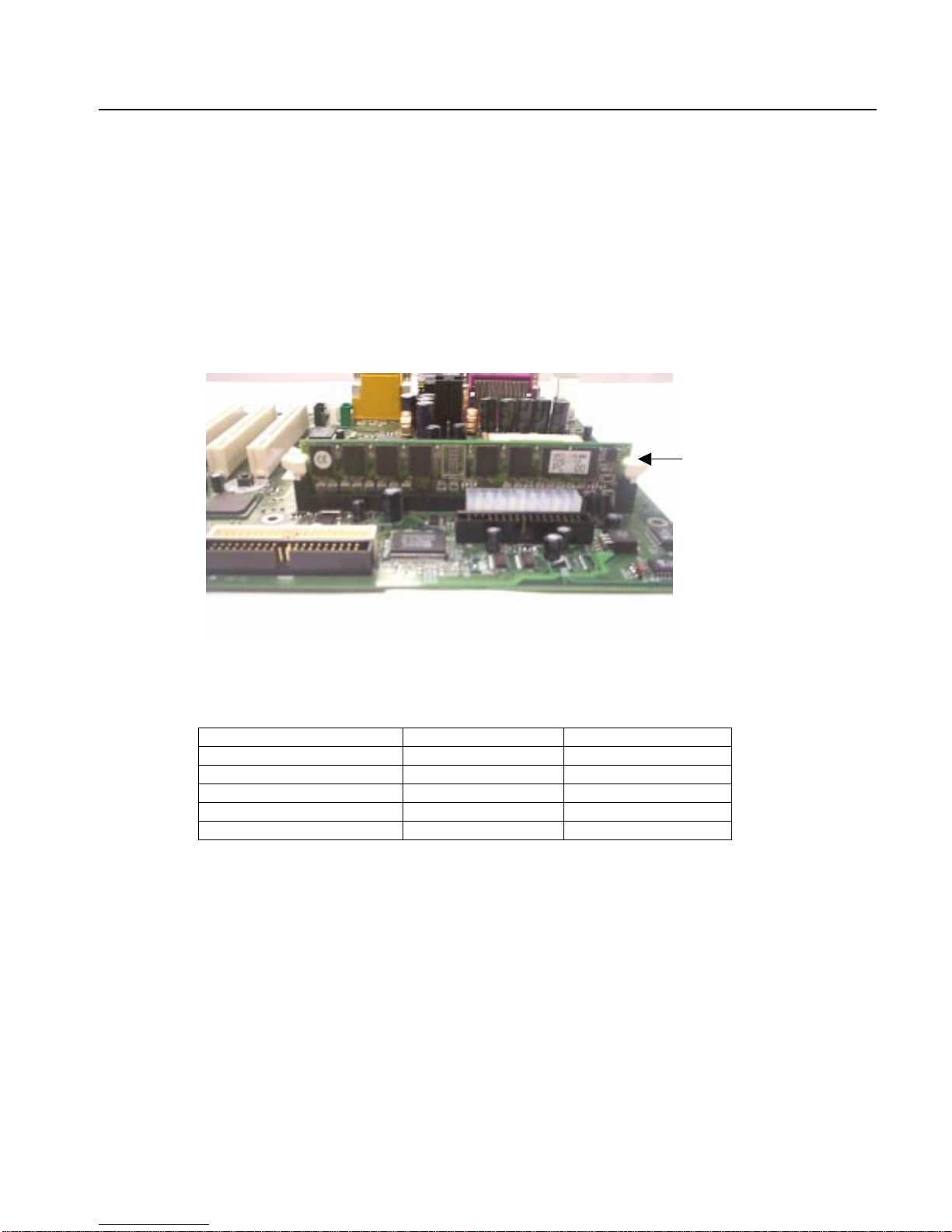

Installing Memory Modules
1. Push the white retaining clips on each of the memory socket outwards.
2. Match the notches on the contact edge of the memory module to the ridges in the memory socket.
3. Insert the memory module vertically into place. When properly inserted, the white retaining clips will
move inward to lock in the module.
4. Repeat installation process when adding additional modules.
Total Memory Sizes With SDRAM DIMM
Devices used on DIMM 1 DIMMx64/x72 2 DIMMsx64/x72
64 Mbit (2Mx8x4 banks) 128 MBytes 256 MBytes
64 Mbit (1Mx16x4 banks) 64 MBytes 128 MBytes
128 Mbit (4Mx8x4 banks) 256 MBytes 512 MBytes
128 Mbit (2Mx16x4 banks) 128 MBytes 256 MBytes
256 Mbit (4Mx16x4 banks) 256 MBytes 512 MBytes
Retaining Clip

TR101 Motherboard
7

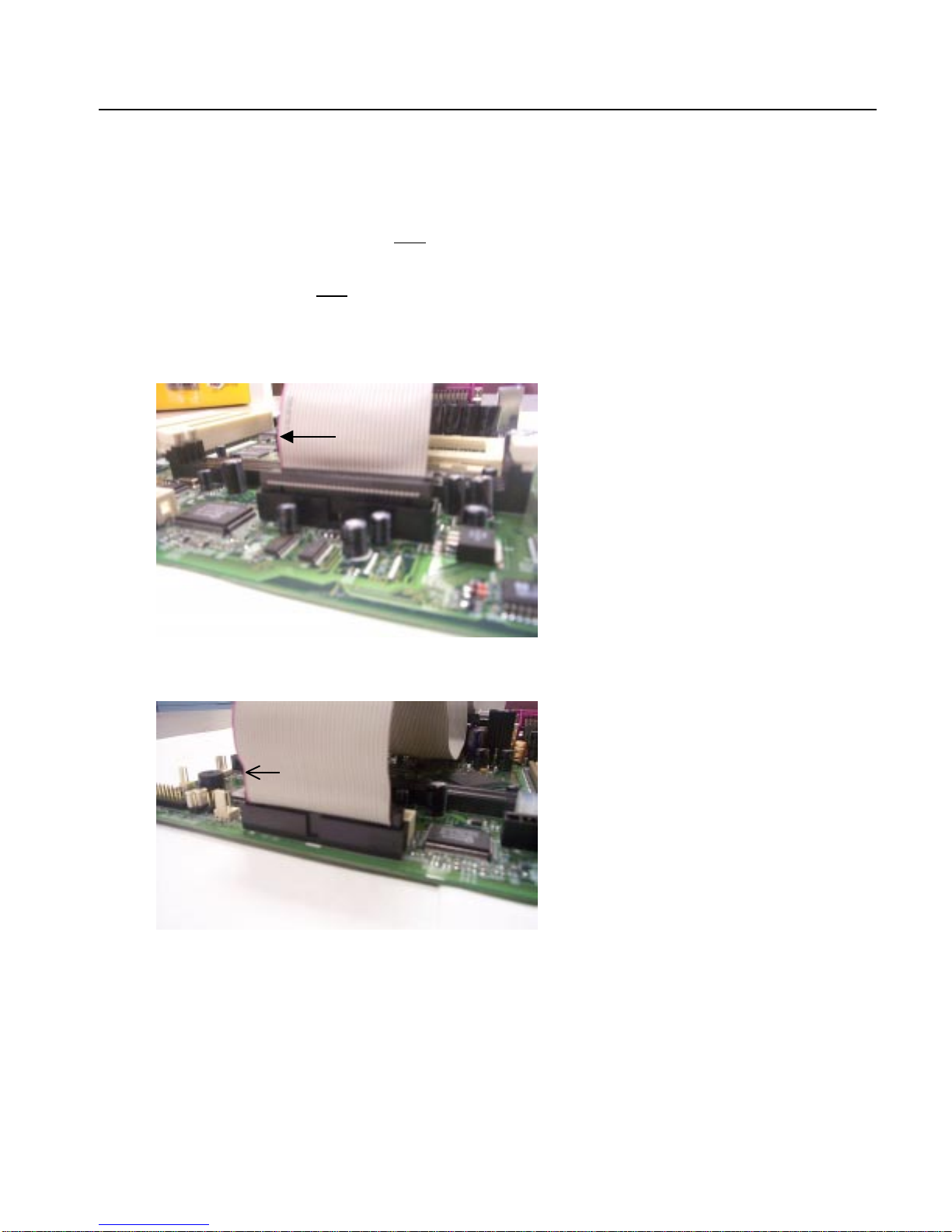

Connecting IDE and Floppy Disk Cables
1. Connecting the floppy disk ribbon cable into the motherboard. The side of the cable with the red
stripe needs to be inserted into the Pin1 side of the floppy disk connector.
2. Connecting the IDE ribbon cable into the motherboard. The side of the cable with the red stripe
should be inserted into Pin1 side of the IDE connector.
Floppy Connector
IDE Connectors
Red Stripe
to Pin1
Red Stripe
to Pin1

TR101 Motherboard
8

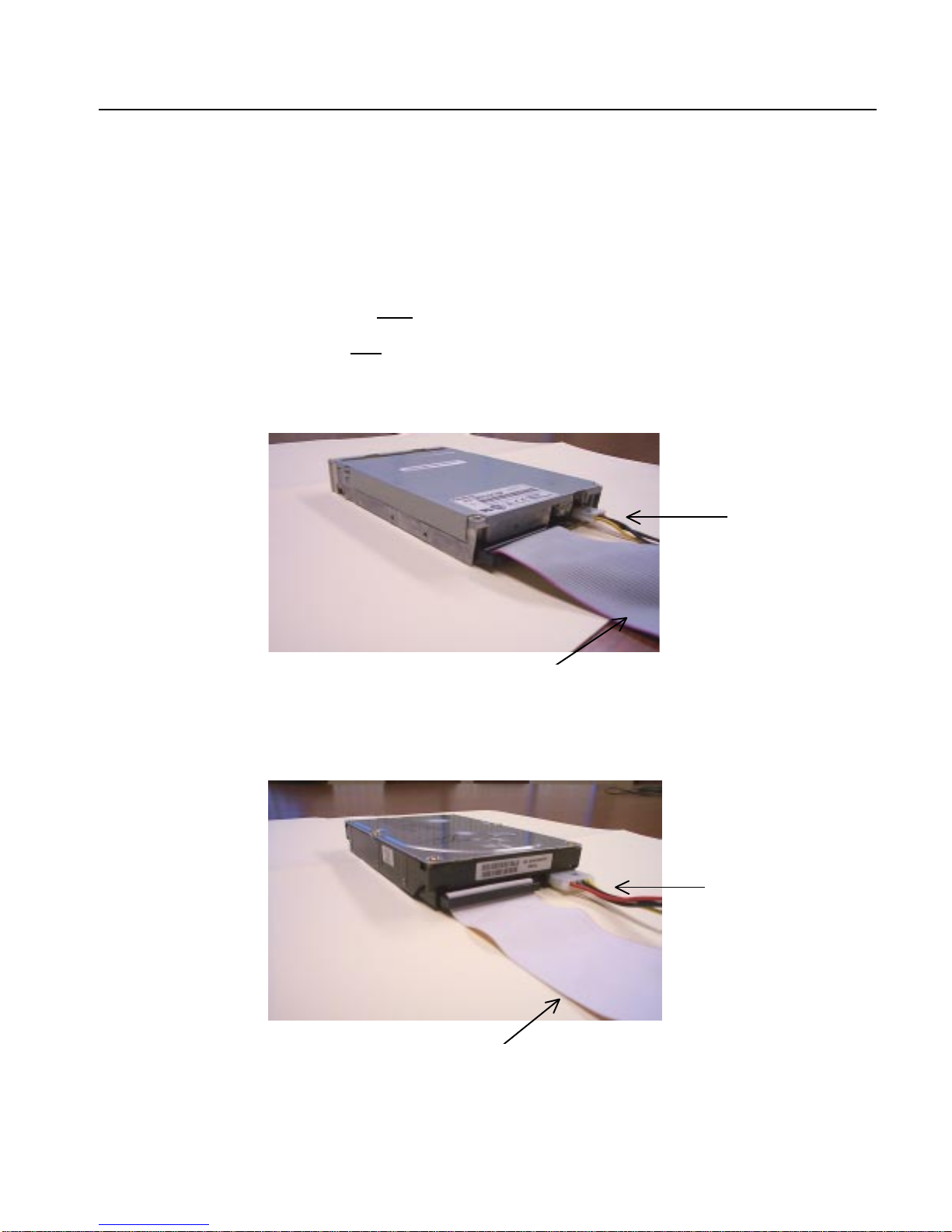

Connect Floppy and IDE Drives
NOTE: If installing two IDE devices on the same ribbon cable, one device is to be set as “master” and the
second as “slave”. Please refer to IDE device manuals for master and slave settings.
1. Mount the desired drives into the chassis case.
2. Connect the floppy disk ribbon cable and power cable into the device. The side of the cable with the
red stripe must be inserted to Pin1 of the floppy disk drive.
3. Connect the IDE ribbon cable and power cable into the device. The side of the cable with the red
stripe must be inserted to Pin1 of the hard drive.
Power Cable
Floppy Disk Drive
Floppy Disk Ribbon Cable
Hard Disk Drive
Power Cable
IDE Ribbon Cable

TR101 Motherboard
9
Installing Expansion Cards
1. Read the related expansion card’s installation instructions before inserting the expansion card into the
motherboard.
2. Remove the slot covers from the chassis case where the expansion cards will be placed.
3. Press the expansion card firmly into the expansion slot of the motherboard.
4. Secure the card with the screw provided.
5. Repeat same procedure when adding additional expansion cards.

TR101 Motherboard
10
Connect the Power Supply Cables
NOTE: The ATX power connector is keyed for proper insertion.
1. Place the plastic clip of the power connector over the plastic tab on the motherboard power connector.
The plastic clip should lock into the plastic tab.
Power Supply Connector

TR101 Motherboard
11

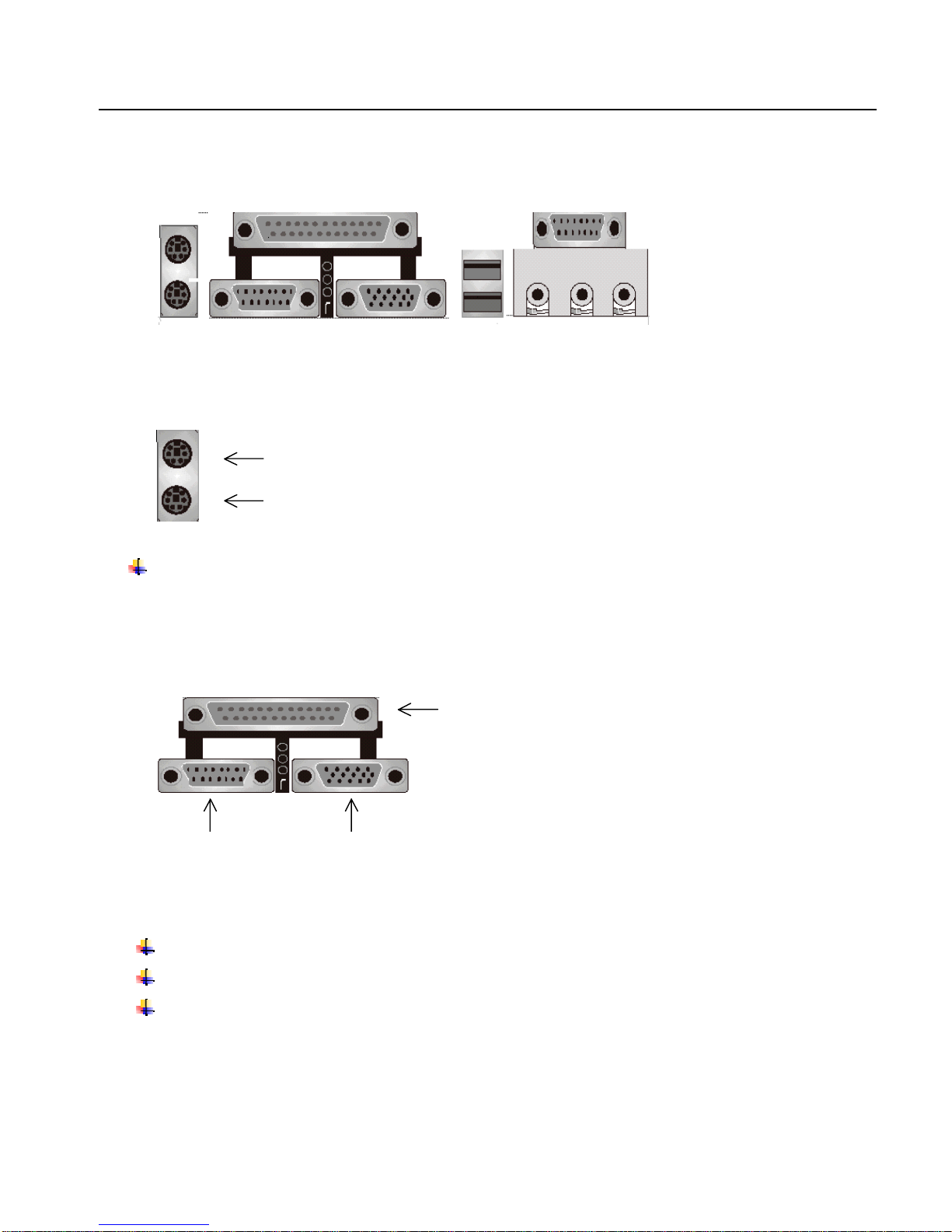

I/O Back Panel Introduction
(1) PS/2 Keyboard and PS/2 Mouse Connector
This connector supports standard PS/2 keyboard and PS/2 mouse.
(2) Parallel Port and Serial Ports (COM1/COM2)
This connector supports 2 standard COM ports and 1 Parallel port.
Devices (i.e. printer) can be connected into the Parallel port.
Devices (i.e. mouse, modem, monitor etc. can be connected into the Serial ports.)
PS/2 Mouse Connector (6 pin Female)
PS/2 Keyboard Connector (6 pin Female)
Parallel Port (25 pin Female)
COM 1 COM 2
Serial Ports (9 pin Male)

TR101 Motherboard
12
I/O Back Panel Introduction
cont….
(3) USB Connector
Before connecting device(s) into the USB connections, determine if devices have a standard interface.
Make sure your computer Operating System (OS) supports the USB controller. If not, contact your OS
or device(s) vendors for more information.
(4) Game Port
This connector supports joystick, MIDI keyboard and other related audio devices.
(5) Audio Connectors
Once onboard audio driver has been installed, the speakers may be connected into the Line out jack,
audio devices such as CD-ROM etc., and a microphone into the MIC in jack.
Line out Line In MIC in
USB 1
USB 2

TR101 Motherboard
13
Jumper Introduction
Jumper Settings
The following graphic shows the meaning of the jumper with cover and without cover.
PIN 1 PIN 1
OFF ON (1-2)
FWH Lock
This jumper allows you to set FWH lock.
Reference: JP1
Connector Type: 1 x 3
JP1 Description Jumper Placement
1-2
FWH Lock Put the jumper cover on pin1 and pin2.
2-3
FWH Unlock (Default) Put the jumper cover on pin2 and pin3.
Safe Speed
This jumper allows you to set safe speed.
Reference: JP2
Connector Type: 1 x 3 male straight 0.100
JP2 Description Jumper Placement
2-3
Safe Speed Put the jumper cover on pin1 and pin2.
1-2
Normal Mode(Default) Put the jumper cover on pin2 and pin3.

TR101 Motherboard
14
Jumper Introduction
cont.
Clear CMOS (Optional)
This jumper allows you to clear the content of the CMOS.
Reference: JP1
Connector Type: 1 x 3
JP1 Description Jumper Placement
1-2
Normal Put the jumper cover on pin1 and pin2.
2-3
Clear content of CMOS Put the jumper cover on pin2 and pin3.
Clear Password
This jumper allows you to clear the password of the BIOS.
Reference: JP4
Connector Type: 1 x 3
JP4 Description Jumper Placement
1-2
Normal (Default) Put the jumper cover on pin1 and pin2.
2-3
Clear BIOS password Put the jumper cover on pin2 and pin3.

TR101 Motherboard
15
Jumper Introduction
cont.
The following table shows the Front Side USB Connector Pin Definition.
J19
Front Side USB Connector Pin Definition
Pin Signal Name Description
1 V2+ Front Side USB Port2 VCC
2 V1+ Front Side USB Port1 VCC
3 USB2+ Front Side USB Port2
Signal+
4 USB1+ Front Side USB Port1
Signal+
5 USB2- Front Side USB Port2
Signal-
6 USB1- Front Side USB Port1
Signal-
7 GND2 Front Side USB Port2 GND
8 GND1 Front Side USB Port1 GND
9 NC No Connect
10 USBOC USB Over-Current Detect
USB1+
V1+V2+
USB2+
USB2- USB1-
GND2 GND1
NC USBOC

TR101 Motherboard
16
AMI® BIOS Setup
Entering Setup
To enter the setup menu, first power up the computer and press <Delete> key to enter the CMOS setup.
The Main Menu
When you enter the AMI® HIFLEX Setup Utility, the below Main Menu will appear. The Main menu allows you
to select and modify your computer system. To navigate through the menu, simply use the arrow keys to select
among the items and press <Enter> to accept or enter the sub-menu.
AMI HIFLEX SETUP UTILITY - VERSION 1.37
©2001 AMERICAN MEGATRENDS, INC. ALL RIGHTS RESERVED
TR101 BIOS Rev: 1.00
Standard CMOS Features
Advanced CMOS Features
Advanced Chipset Features
Power Management Setup
PCI / Plug and Play Setup
Peripheral Setup
Hardware Monitor Setup
Auto-Detect Hard Disks
Change User Password
Change Supervisor Password
Auto Configuration with Optimal Setting
Auto Configuration with Fail Safe Settings
Save Settings and Exit
Exit without Saving
Standard CMOS setup for changing time, date, hard disk type, etc.
ESC: Exit
KL
: Sel F2/F3: Color F10: Save & Exit
