Lite Tracker 2016A User manual

© Grace Industries, Inc.
Printed in U.S.A.
Lite Tracker 2016A USCG UI 1118
Warranty Information
Grace Industries, Inc. warrants the Lite Tracker® to be free from defects in workmanship and materials for a
period of one year from the date of purchase. This warranty is valid only when the returned unit is accompanied
by a sales slip or other proof of purchase that states the date and location of purchase.Grace Industries, Inc.will not
repair or replace any merchandise under warranty which has been damaged because of accident, misuse or abuse
of the Lite Tracker® while in possession or control of the consumer.This warranty is void if any attempt to repair or
replace parts was made or attempted by other than qualied Grace Industries, Inc. personnel.This warranty is
void if any of the sealed compartments are opened or tampered with. Send all returned merchandise, prepaid and
accompanied by proof of purchase to: Grace Industries, Inc., Repair Division, 305 Bend Hill Road, Fredonia, PA
16124. Grace Industries, Inc. shall not be liable for any direct, incidental or other consequential loss or damage
arising out of the failure of the device to operate.
The sole and exclusive remedy under all guarantees or warranties, expressed or implied, is strictly limited to
repair or replacement as herein provided. ALL IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO,
WARRANTIES OF FITNESS AND MERCHANTABILITY, ARE HEREBY LIMITED IN DURATION TO A PERIOD ENDING
ONE (1) YEAR FROM THE DATE OF PURCHASE.The warranty and liability set forth in the prior paragraphs are in lieu
of all other warranties, expressed or implied, in law or in fact, including implied warranties of merchantability and
tness for a particular purpose. Some states do not allow limitations on how long an implied warranty lasts, so
the above limitations may not apply to you.
This warranty gives you specic legal rights and you may also have other rights which may vary from state to
state.
The information contained in this booklet is believed to be accurate and reliable. Grace Industries, Inc.
provides this information as a guide only.
Lite Tracker® technical assistance is available by contacting Grace Industries, Inc. at 724-962-9231.
For training purposes a copy of this information is available by contacting Grace Industries, Inc.
305 Bend Hill Road, Fredonia PA 16124
724.962.9231 • www.graceindustries.com
Model 2016A
U.S. Coast Guard Approved
®
Specications
Size: 1-3/4” wide, 2-3/4” high, 1-1/2” deep
Weight: 3.5 oz. with batteries
Power: 2-AAA Alkaline batteries - Duracell
#MN2400 or ProCell #PC2400 1.5 volt required
Battery Life: 50 hours
3 LEDs: Luminance 10 Candela
Optical: omni-directional
Flash Rate: 50-70 ashes per minute
U.S. Coast Guard Approved:
No. 161.012/107/0
Case: High impact plastic
Operating Instructions
1. To activate Lite Tracker® immerse in water.
Once contacts are wet, Lite Tracker® will start
Flashing.
2. To deactivate Lite Tracker®, remove from
water and dry o contacts. Unit will shut o
in approximately 120 seconds.

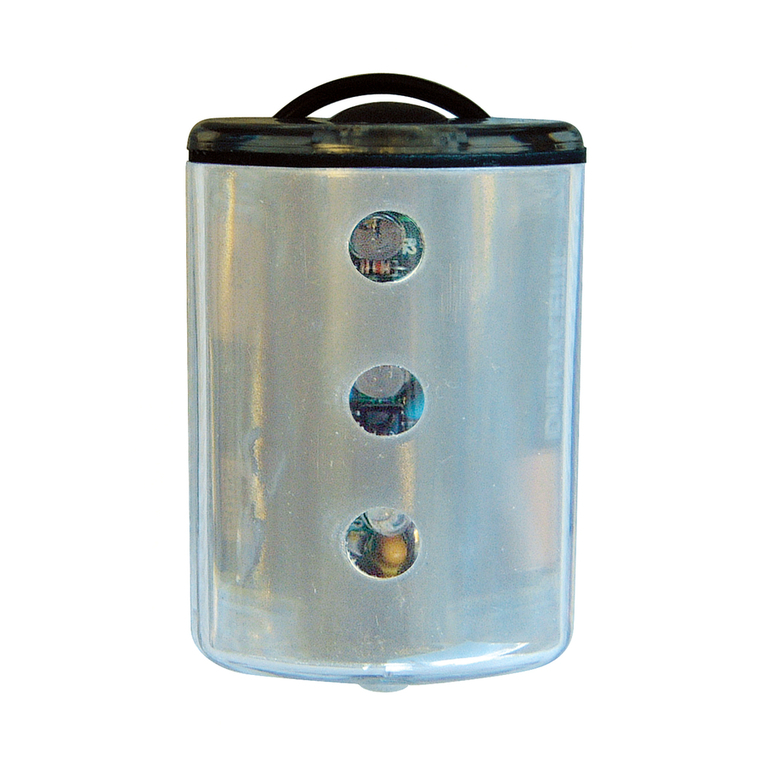

Introduction
Lite Tracker® provides instant recognition of
personnel wearing these bright ashing indica-
tors. The lightweight Lite Tracker® should be
attached to the front shoulder area of Personal
Flotation Device with the Grip Clip or“D” Ring.
All Lite Trackers® are water resistant and will
provide many years of carefree service. Lite
Tracker® are shipped with batteries and ready
to use.
Battery Replacement
Remove One Screw and Slide Apart
for Quick Battery Replacement
U.S. Coast Guard
Approval Label
“D” Ring
and
Grip Clip
Water Sensing
Contacts
Reexite with holes
above Amber LEDs
®MODEL 2016A
U.S. Coast Guard Approved

Warranty Information
Grace Industries, Inc. warrants the Lite Tracker® to be free from defects in workmanship and materials for a
period of one year from the date of purchase. This warranty is valid only when the returned unit is accompanied
by a sales slip or other proof of purchase that states the date and location of purchase.Grace Industries, Inc.will not
repair or replace any merchandise under warranty which has been damaged because of accident, misuse or abuse
of the Lite Tracker® while in possession or control of the consumer.This warranty is void if any attempt to repair or
replace parts was made or attempted by other than qualied Grace Industries, Inc. personnel.This warranty is
void if any of the sealed compartments are opened or tampered with. Send all returned merchandise, prepaid and
accompanied by proof of purchase to: Grace Industries, Inc., Repair Division, 305 Bend Hill Road, Fredonia, PA
16124. Grace Industries, Inc. shall not be liable for any direct, incidental or other consequential loss or damage
arising out of the failure of the device to operate.
The sole and exclusive remedy under all guarantees or warranties, expressed or implied, is strictly limited to
repair or replacement as herein provided. ALL IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO,
WARRANTIES OF FITNESS AND MERCHANTABILITY, ARE HEREBY LIMITED IN DURATION TO A PERIOD ENDING
ONE (1) YEAR FROM THE DATE OF PURCHASE.The warranty and liability set forth in the prior paragraphs are in lieu
of all other warranties, expressed or implied, in law or in fact, including implied warranties of merchantability and
tness for a particular purpose. Some states do not allow limitations on how long an implied warranty lasts, so
the above limitations may not apply to you.
This warranty gives you specic legal rights and you may also have other rights which may vary from state to
state.
The information contained in this booklet is believed to be accurate and reliable. Grace Industries, Inc.
provides this information as a guide only.
Lite Tracker® technical assistance is available by contacting Grace Industries, Inc. at 724-962-9231.
For training purposes a copy of this information is available by contacting Grace Industries, Inc.
Model 2017A
U.S. Coast Guard Approved
305 Bend Hill Road, Fredonia PA 16124
724.962.9231 • www.graceindustries.com
®
© Grace Industries, Inc.
Printed in U.S.A.
Lite Tracker 2017A USCG UI 1118
Specications
Size: 1-3/4” wide, 2-3/4” high, 1-1/2” deep
Weight: 3.5 oz. with batteries
Power: 2-AAA Alkaline batteries - Duracell
#MN2400 or ProCell #PC2400 1.5 volt required
Battery Life: Active ash time approximately
50 hours
3 LEDs: Luminance 10 Candela
Optical: omni-directional
Flash Rate: 50-70 ashes per minute
U.S. Coast Guard Approved:
No. 161.012/107/0
Case: High impact plastic
Battery Replacement
Remove One Screw and Slide Apart
for Quick Battery Replacement
Operating Instructions
Press Button once and 3 LEDs will start
Flashing. Press Button again to turn O.
Introduction
Lite Tracker® provides instant recognition of
personnel wearing these bright ashing indica-
tors. The lightweight Lite Tracker® should be
attached to the front shoulder area with the
Grip Clip or “D” Ring.
All Lite Trackers® are water resistant and will
provide many years of carefree service. Lite
Trackers® are shipped with batteries and ready
to use.
“D” Ring
and
Grip Clip
Button (see operating
instructions below)
Reexite with holes
above LEDs
®MODEL 2017A
U.S. Coast Guard Approved

305 Bend Hill Road, Fredonia PA 16124
724.962.9231 • www.graceindustries.com
General Purpose Series
Models: G, G1, G2 & G3
LITETRACKER GENERAL PURPOSE 05 2015 UIPrinted in U.S.A.© Grace Industries, Inc.
Warranty Information
Grace Industries, Inc. warrants the Lite Tracker® to be free from defects in workmanship
and materials for a period of one year from the date of purchase. This warranty is valid
only when the returned unit is accompanied by a sales slip or other proof of purchase that
states the date and location of purchase. Grace Industries, Inc.will not repair or replace any
merchandise under warranty which has been damaged because of accident, misuse or
abuse of the Lite Tracker® while in possession or control of the consumer. This warranty is
void if any attempt to repair or replace parts was made or attempted by other than quali-
ed Grace Industries, Inc. personnel.This warranty is void if any of the sealed compartments
are opened or tampered with. Send all returned merchandise, prepaid and accompanied
by proof of purchase to: Grace Industries, Inc., Repair Division, 305 Bend Hill Road, Fredo-
nia, PA 16124. Grace Industries, Inc. shall not be liable for any direct, incidental or other
consequential loss or damage arising out of the failure of the device to operate.
The sole and exclusive remedy under all guarantees or warranties, expressed or implied, is
strictly limited to repair or replacement as herein provided. ALL IMPLIED WARRANTIES,
INCLUDING BUT NOT LIMITED TO, WARRANTIES OF FITNESS AND MERCHANTABILITY, ARE
HEREBY LIMITED IN DURATION TO A PERIOD ENDING ONE (1) YEAR FROM THE DATE OF
PURCHASE.The warranty and liability set forth in the prior paragraphs are in lieu of all other
warranties, expressed or implied, in law or in fact, including implied warranties of
merchantability and tness for a particular purpose. Some states do not allow limitations
on how long an implied warranty lasts, so the above limitations may not apply to you.
This warranty gives you specic legal rights and you may also have other rights which may
vary from state to state.
The information contained in this booklet is believed to be accurate and reliable. Grace
Industries, Inc. provides this information as a guide only.
Lite Tracker® technical assistance is available by contacting Grace Industries, Inc. at
800-969-6933.
For training purposes a copy of this information is available by contacting Grace Industries,
Inc.
R

G Series Operating Instructions
Press button once and 3 LEDs will start
Flashing.
Press again to turn OFF.
Lite Tracker Flash Only - G Series
Model G: 3 Amber LEDs
Model G1: 3 Red LEDs
Model G2: 3 Green LEDs
Model G3: 3 Blue LEDs
Specications
Size: 1-3/4” wide, 2-3/4“ high, 1-1/2” deep
Weight: 3.5 oz with batteries
Power: Two (2) AAA Alkaline batteries -
Duracell #MN2400 or ProCell #PC2400
recommended.
Battery Life: approximately 50 hours of
active ash time.
3 LEDs: luminance 10 Candela
Optical: omni-directional
Flash Rate: 120-140 ashes per minute
Case: high impact plastic
Introduction
Lite Tracker® provides instant recognition
of personnel wearing these bright,
ashing indicators. The lightweight Lite
Tracker® may be easily attached using the
Grip-Clip or “D” Ring.
All Lite Trackers are water resistant and
will provide many years of carefree
service. Lite Tracker® is shipped with
batteries, ready to use.
R
General Purpose Series
Models: G, G1, G2 & G3
Battery Replacement
Remove One Screw and Slide Apart
for Quick Battery Replacement
Reexite with holes
above LEDs
Button (see operating
instructions below)
“D” Ring
and
Grip Clip

R
305 Bend Hill Road, Fredonia PA 16124
724-962-9231 • FAX: [phone]
www.graceindustries.com
Warranty Information
Grace Industries, Inc. warrants the Lite Tracker®to be free from defects in workman-
ship and materials for a period of one year from the date of purchase. This warranty
is valid only when the returned unit is accompanied by a sales slip or other proof of
purchase that states the date and location of purchase. Grace Industries, Inc. will not
repair or replace any merchandise under warranty which has been damaged because
of accident, misuse or abuse of the Lite Tracker®while in possession or control of the
consumer. This warranty is void if any attempt to repair or replace parts was made or
attempted by other than qualified Grace Industries, Inc. personnel. This warranty is
void if any of the sealed compartments are opened or tampered with.Send all returned
merchandise, prepaid and accompanied by proof of purchase to: Grace Industries,
Inc., Repair Division, 305 Bend Hill Road, Fredonia, PA 16124. Grace Industries, Inc.
shall not be liable for any direct, incidental or other consequential loss or damage
arising out of the failure of the device to operate.
The sole and exclusive remedy under all guarantees or warranties, expressed or
implied, is strictly limited to repair or replacement as herein provided. ALL IMPLIED
WARRANTIES, INCLUDING BUT NOT LIMITED TO, WARRANTIES OF FITNESS
AND MERCHANTABILITY, ARE HEREBY LIMITED IN DURATION TO A PERIOD
ENDING ONE (1) YEAR FROM THE DATE OF PURCHASE. The warranty and li-
ability set forth in the prior paragraphs are in lieu of all other warranties, expressed or
implied, in law or in fact, including implied warranties of merchantability and fitness
for a particular purpose. Some states do not allow limitations on how long an implied
warranty lasts, so the above limitations may not apply to you.
This warranty gives you specific legal rights and you may also have other rights
which may vary from state to state.
The information contained in this booklet is believed to be accurate and reliable.
Grace Industries, Inc. provides this information as a guide only.
Lite TrackerTM system technical assistance is available by contacting Grace
Industries, Inc. at 724-962-9231.
The Lite Tracker®provides various combinations of lighting
effects. Each model has it’s own unique light pattern and mode of opera-
tion. Lite Tracker®offers high visibility from all directions. Lite Tracker®
are water resistant and will provide many years of carefree service. All
Lite Trackers®are shipped with batteries ready to use.
SPECIFICATIONS
Dimensions: 1-3/4” wide, 2-3/4” high, 1-1/2” deep
Weight: 3.5 oz. with batteries
Case: rugged, high impact plastic
Optical: omni directional
Activation: push button
Batteries: two AAAs required, for use with Duracell # MN2400 or ProCell #
PC2400, 1.5 volt alkaline batteries only
Hours of use: 96 hours of continuous use depending on model
ATTACHMENT OPTIONS:
Flex Clip Grip Clip with “D’ Ring Magnetic Swivel Clip
ONE BUTTON OPERATION
BATTERY REPLACEMENT
Remove One Screw and Slide Apart
for Quick Battery Replacement
Individually Tested to Insure Reliability
© Grace Industries, Inc. Printed in U.S.A. P/N LITETRACKER 2000 SERIES 05 2017, UI
2000 Series

Model Number LED Colors Description Lens Color
Lite Tracker® Model 2004: Alternating Pattern.
Operation: Press button located on top of Lite Tracker® to turn ON. Two Red LEDs at each end and one Blue
center LED will start an alternating pulsing pattern. Press button again to turn OFF.
Model 2004 Red Blue Red 2 Red &
1 Blue LEDs
produce an
alternating
pattern White
Lite Tracker® Model 2005: Star Burst.
Operation: Press button located on top of Lite Tracker® to turn ON. Two Red LEDs at each end and one Blue
center LED will start an alternating flash and pulsing pattern. Press button again to turn OFF.
Model 2005 Red Blue Red 2 Red and
1 Blue LED
produce a
flash &
pulse pattern White
Lite Tracker® Model 2006: All American Alternating Pattern.
Operation: Press button located on top of Lite Tracker® to turn ON. One Red LED one White LED and one Blue
LED will start an alternating pulsing pattern. Press button again to turn OFF.
Model 2006 Red White Blue Red, White
& Blue LEDs
produce an
alternating
pattern White
Lite Tracker® Models 2008, 2009, 2012, 2013: Glow, Flash and Strobing LED Alternating Pattern.
Operation: Press button located on top of Lite Tracker® to turn ON. Three LEDs will glow, press and hold button all
3 LEDs flash, continuing to press button will cause all 3 LEDs to strobe. Press button again to turn OFF.
Model 2008 Red Red Red Glow, Flash
or Strobe Red
Model 2009 Amber Amber Amber Glow, Flash
or Strobe Green
Model 2012 Green Green Green Glow, Flash
or Strobe White
Model 2013 Blue Blue Blue Glow, Flash
or Strobe White
Model 2018 White White White Glow, Flash
or Strobe White
Lite Tracker®2000 Series Operation

MSHA APPROVED
R
305 Bend Hill Road, Fredonia PA 16124
PH: 724-962-9231 • FAX: [phone]
www.graceindustries.com
Warranty Information
Grace Industries, Inc. warrants the MSHA Approved Lite Tracker® to be free
from defects in workmanship and materials for a period of one year from the
date of purchase. This warranty is valid only when the returned unit is accompanied
by a sales slip or other proof of purchase that states the date and location of
purchase. Grace Industries, Inc. will not repair or replace any merchandise under
warranty which has been damaged because of accident, misuse or abuse of
the MSHA Approved Lite Tracker® while in possession or control of the
consumer. This warranty is void if any attempt to repair or replace parts was
made or attempted by other than qualified Grace Industries, Inc. personnel. This
warranty is void if any of the sealed compartments are opened or tampered
with. Send all returned merchandise, prepaid and accompanied by proof of
purchase to: Grace Industries, Inc., Repair Division, 305 Bend Hill Road, Fredonia,
PA 16124. Grace Industries, Inc. shall not be liable for any direct, incidental or
other consequential loss or damage arising out of the failure of the device to operate.
The sole and exclusive remedy under all guarantees or warranties, expressed or implied,
is strictly limited to repair or replacement as herein provided. ALL IMPLIED WARRANTIES,
INCLUDING BUT NOT LIMITED TO, WARRANTIES OF FITNESS AND MERCHANTABILITY,
ARE HEREBY LIMITED IN DURATION TO A PERIOD ENDING ONE (1) YEAR FROM THE DATE
OF PURCHASE. The warranty and liability set forth in the prior paragraphs are in lieu of
all other warranties, expressed or implied, in law or in fact, including implied warranties
of merchantability and fitness for a particular purpose. Some states do not allow
limitations on how long an implied warranty lasts, so the above limitations may not
apply to you.
This warranty gives you specific legal rights and you may also have other rights which
may vary from state to state.
The information contained in this booklet is believed to be accurate and reliable. Grace
Industries, Inc. provides this information as a guide only.
MSHA Approved Lite Tracker® system technical assistance is available by contacting
Grace Industries, Inc. at 724-962-9231.
The MSHA Approved Lite Tracker® provides various combinations of lighting
effects. Each model has it’s own unique light pattern and mode of operation. Lite
Tracker® offers high visibility from all directions. Lite Tracker® is water resistant and will
provide many years of carefree service. All Lite Tracker® are shipped with batteries ready
to use.
SPECIFICATIONS
Dimensions: 1-3/4” wide, 2-3/4” high, 1-1/2” deep
Weight: 3.5 oz. with batteries
Case: rugged, high impact plastic
Optical: omni directional
Activation: push button
Batteries: two AAA size Duracell MN2400 or Procell PC2400 alkaline batteries must
be used.
Hours of use: 96 or more hours of continuous use depending on model
Approval: design meets the requirements of Title 30 Code of Federal Regulations, Part
18 and is approved as permissible for use in gassy underground mines
MSHA Approval No. 18-A100007-0
ATTACHMENT OPTIONS
• GC-Grip Clip (Standard Attachment)
• MG-Magnetic
• SC-Swivel Clip
• FC-Flex Clip
ONE BUTTON OPERATION
Remove One Screw and Slide Apart
for Quick Battery Replacement
Individually Tested to Ensure Reliability
BATTERY REPLACEMENT
© Grace Industries, Inc. Printed in U.S.A. P/N MSHA LITETRACKER 2019-02, UI

MSHA Approved Lite Tracker® Operation
MSHA Approved Lite Tracker® Flash Only:
Press button located on top of Lite Tracker® to turn ON. Press button again to turn OFF.
Model Number LED Colors Description Lens Color
Model 2000M Amber Amber Amber Flash Only Green
Model 2001M Red Red Red Flash Only Red
Model 2002M Green Green Green Flash Only White
Model 2003M Blue Blue Blue Flash Only White
MSHA Approved Lite Tracker® Special Effects:
Press button located on top of Lite Tracker® to turn ON. Press button again to turn OFF.
Model 2004M Red Blue Red 2 Red &
1 Blue LEDs
produce an
alternating
pattern
White
Model 2005M Red Blue Red 2 Red and 1
Blue LED
produce a
flash & pulse
pattern
White
Model 2006M Red White Blue Red, White &
Blue LEDs
produce an
alternating
pattern
White
MSHA Approved Lite Tracker® Glow, Flash, Strobe:
Press button located on top of Lite Tracker® to turn ON in Glow mode, hold button two seconds for
Flash mode, and three seconds for Strobe mode. Press button again to turn OFF.
Model 2008M Red Red Red Glow, Flash
or Strobe
Red
Model 2009M Amber Amber Amber Glow, Flash
or Strobe
Green
Model 2012M Green Green Green Glow, Flash
or Strobe
White
Model 2013M Blue Blue Blue Glow, Flash
or Strobe
White
Model 2018M White White White Glow, Flash
or Strobe
White
