LiteOn AP900 series User manual

f
CRUISE CONTROL
&
SPEED LIMITER
AP 900Series
SL900Series
U
US SE ER RG GU UI ID DE E
231.000xxx rev.1.0

f
CRUISE CONTROL
&
SPEED LIMITER
AP 900Series
SL900Series
U
US SE ER RG GU UI ID DE E
231.000xxx rev.1.0

1
1 2
CONTENTS
:
Chapters
1 Product variants……….……………………………….……….
…
2
2 Cruise Control Safety Features ……………………….……..…
…
3
3 Operating Instructions………………...…………..….…………
…
4
3.1 Speed Limiter………………………………………..…..………
…
4
3.2 Cruise Control..…………………………………………...……
…
6
4 System Diagnostics………………………………..…….………
…
8

1
1 2
CONTENTS
:
Chapters
1 Product variants……….……………………………….……….
…
2
2 Cruise Control Safety Features ……………………….……..…
…
3
3 Operating Instructions………………...…………..….…………
…
4
3.1 Speed Limiter………………………………………..…..………
…
4
3.2 Cruise Control..…………………………………………...……
…
6
4 System Diagnostics………………………………..…….………
…
8

2
1 2
PRODUCT VARIANTS :
1.1 SL900 / SL900C SPEED LIMITER
SL900 Speed Limiter will operate solely as a speed limiter to 1 preprogrammed
fixed maximum speed value. The programming of the Speed Limit needs to be
executed during the product installation by an authorized dealer.
Adding a Command Module to this device will give the product the additional
functionality to set, increase, decrease, resume, memorize and cancel other speed
limit values below the fixed maximum speed limit. Follow the operating
instructions described in chapter 3.
For safety the driver can override the self set speed limit by pressing the
accelerator pedal fast to its maximum.
1.2 AP900/AP900C CRUISE CONTROL & SPEED LIMITER
The AP900 / AP900C is featuring the same Speed Limiter functionality as the
SL900 / SL900C and also offers a comprehensive Cruise Control.
One touch of the ON command key will activate the Cruise Control, and when
switched off an over 1 second press & hold of the ON command key will activate
the Speed Limiter. Activation of both functions will be confirmed via a buzzer
with respective 2-low beeps and 1-low-2-high beeps.
With the system setup as fixed Speed Limiter, the Cruise Control will also not be
able to engage above the fixed maximum speed value. Speed Limits programmed
with the command module can be exceeded by the Cruise Control.
With the system setup as Speed Alert, the Speed Limiter function will be disabled.
The Cruise Control will be able to engage above the set Speed Alert value but will
give the warning (3 high tone beeps) when this speed value is passed.
The operation of the Cruise Control is identical to the other LITE-ON Cruise
Controls. Follow the operating instructions described in chapter 3.
1
9
Dealer address details:

8
SYSTEM DIAGNOSTICS:
The Cruise Control has integrated self-diagnostics. The self-diagnostics will send a
code via the buzzer when the system disengages automatically for safety reasons
or if a system error is detected.
1 Hi tone beep – When any command module key get stuck or hold down for
over 20 seconds. The cruise control will disengage and issue one Hi tone beep
for the idendification.
2 Hi tone beeps – When the speed accelerate exceptional (over 9 kmh / s), the
cruise control will disengage and issue two Hi tone beeps for the
idendification.
3 Hi tone beeps – When the Speed drops below 33 km/hr the cruise control will
disengage and issue three Hi tone beeps for the idendification.
4 Hi tone beeps – When the Speed exceeds 250 km/hr the cruise control will
disengage and issue 4 Hi tone beeps for the idendification.
5 Hi tone beeps – When the Speed drops below 75% of set speed (uphill), the
cruise control will disengage and issure 5 Hi tone beeps for the idendification.
6 Hi tone beeps – When the Speed exceeds 150% of set speed (down-hill), the
cruise control will disengage and issue 6 Hi tone beeps for the idendification.
7 Hi tone beeps – When an error is detected at the throttle pedal connections.
The cruise control will disengage and issure 7 Hi tone beeps for the
idendification.
8 Hi tone beeps – When RPM increases exceptional, the cruise control will
disengage and issue 8 Hi tone beeps for the idendification.
4
3
CRUISE CONTROL SAFETY FEATURES:
The cruise control is fitted with numerous safety features, which will
disengage the cruise control in the following situations:
1. When pushing the brake pedal.
2. When pushing the command module COAST or CANCEL key.
3. When pushing the command module OFF key.
4. When pushing the clutch pedal (only with clutch switch mounted).
5. When the automatic gearbox is placed in Neutral or Park.
6. When pressing any command module key over 20 seconds.
7. When turning the ignition OFF.
8. When engine revs increase faster than 150% per second.
9. When decelerating to 75% of the set speed (up-hill).
10. When accelerating to 150% of the set speed (down-hill).
11. When the brake fuse blows.
12. When any of the connections becomes disconnected.
13. Minimum engage speed 40 km/hr.
14. Automatic disengages at less than 33 km/hr.
15. Maximum engage speed 240 km/hr.
16. Automatic disengages over 250 km/hr.
For a safe and economical operation, NEVER operate the Cruise Control
in congested traffic or on wet or slippery roads.
SAFETY NOTE: Should a situation ever arise where action 1 through
to 4 above will not disengage the cruise you can always turn the ignition OFF
(action 5).
If your vehicle has a steering lock, be sure it cannot be activated when the ignition
key is in the ignition lock or the car is in gear.
2

4
OPERATING INSTRUCTIONS
3.1 SPEED LIMITER
ON / OFF:
Pressing the ON/OFF key for more than 1 second will turn the Speed
Limiter ON or OFF.
LED GREEN - Speed Limiter Stand-by
LED RED - Speed Limiter Activated
CANCEL:
Press and release the CANCEL key after the Speed Limiter is engaged and
the speed limiter will disengage. The previous set speed limit is memorized.
SET / + :
SET
Press and release the SET/+ key while the Speed Limiter is disengaged and
the Speed Limiter will activate and start to limit at the present vehicle
speed.
3

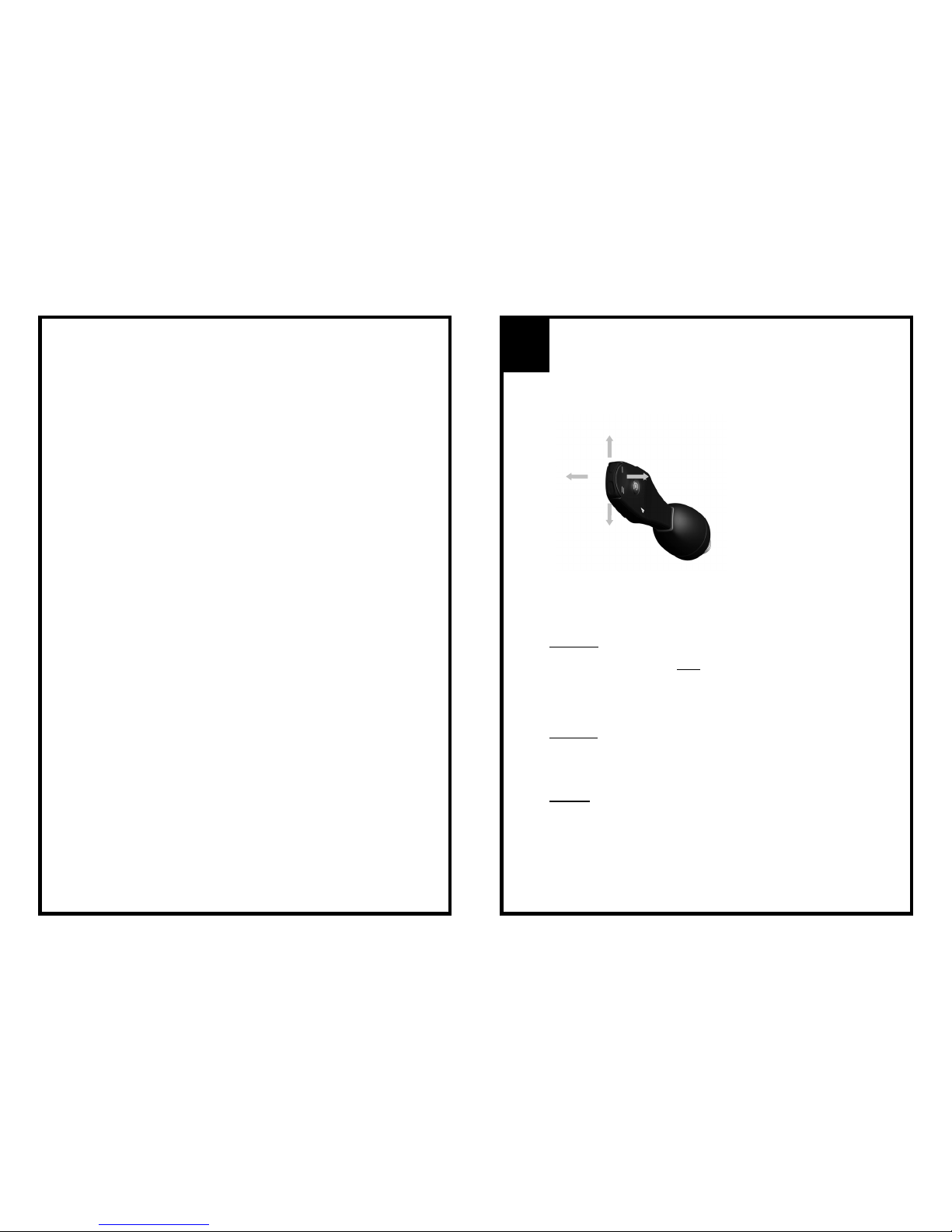

SET / + INCREASE
CANCEL
}
ON / OFF
RESUME / - DECREASE
(CM35 command module)
7
DECEL (-)
Press and hold the RES/- key after the Cruise Control is engaged and the
vehicle will decelerate at a controlled rate of 2,5 km/hr/sec. The Cruise
Control will reset to the current vehicle speed when the RES/DEC key is
released.
TAP DOWN (-)
Press and release the RES/- key while the Cruise Control is engaged and the
set speed will be decreased by 1 km/hr.

6
3.2 CRUISE CONTROL
ON / OFF:
Pressing the ON/OFF key for less than 1 second will turn the Cruise
Control ON or OFF.
LED GREEN - Cruise Control Stand-by
LED RED - Cruise Control Activated
CANCEL:
Press and release the CANCEL key after the Cruise Control is engaged and
the cruise control will disengage. The previous set speed is memorized.
SET / + :
SET
Press and release the SET/+ key while the Cruise Control is disengaged and
the Cruise Control will engage and maintain the present vehicle speed.
ACCELERATE(+)
Press and hold the SET/+ key after the Cruise Control is engaged and the
vehicle will accelerate at a controlled rate of 2,5 km/hr/Sec. The Cruise
Control will reset to the current vehicle speed when the SET/+ key is
pressed.
TAP UP (+)
Press and release the SET/+ key while the Cruise Control is engaged and
the set speed will be increased with 1 km/hr.
RES/ - :
RESUME
Press and release the RES/- key while the Cruise Control is disengaged and
the Cruise Control will engage and resume control at the previous set speed.
If no valid resume speed is memorized, the Cruise Control will set to the
vehicle speed.
5
ACCELERATE(+)
Press and hold the SET/+ key after the Speed Limiter is engaged and the
speed limit value will increase at a controlled rate of 2,5 km/hr/sec. The
Speed Limiter will reset to the current vehicle speed when the SET/+ key is
pressed.
TAP UP (+)
Press and release the SET/+ key while the Speed Limiter is engaged and the
set speed limit will be increased with 1 km/hr.
RES/ - :
RESUME
Press and release the RES/- key while the Speed Limiter is disengaged and
the Speed Limiter will engage and restore the speed limit at the previous set
value. If no valid restore speed limit is memorized, the Speed Limiter will
set to the current vehicle speed.
DECEL (-)
Press and hold the RES/- key after the Speed Limiter is engaged and the
speed limit value will decrease at a controlled rate of 2,5 km/hr/sec. The
Cruise Control will reset to the current vehicle speed when the RES/- key is
released.
TAP DOWN (-)
Press and release the RES/- key while the Speed Limiter is engaged and the set
speed limit will be decreased with 1 km/hr.
