Livestrong LS5.9IC User manual

LS5.9IC
INDOOR CYCLE OWNER’S MANUAL
MANUEL DU PROPRIÉTAIRE DU CARDIOVÉLO

2
2 ENGLISH
26 FRANÇAIS
LIVESTRONG®is a registered trademark of the LIVESTRONG Foundation.
The LIVESTRONG Foundation fights for the more than 25 million people around the world living with cancer today. There can be – and should be – life after cancer for more people.
The Foundation’s support kicks in at the moment of diagnosis, giving people the resources and support they need to fight cancer head-on. They find innovative ways to raise awareness,
fund research and end the stigma about cancer that many survivors face. They connect people and communities to drive social change, and call for state, national and world leaders
to help fight this disease. Anyone, anywhere can join the fight against cancer. Join them at LIVESTRONG.org.
INTRODUCTION
Congratulations and thank you for your purchase of this LIVESTRONG®indoor cycle!
Purchases of this product ensure that a minimum of $4M will go to the LIVESTRONG Foundation and the fight against
cancer.
Whether your goal is to win races or simply enjoy a fuller, healthier lifestyle, a LIVESTRONG indoor cycle can
help you attain it – adding club-quality performance to your at-home workouts, with the ergonomics and innovative
features you need to get stronger and healthier, faster. Because we’re committed to designing fitness equipment
from the inside out, we use only the highest quality components. It’s a commitment we back with one of the
strongest warranty packages in the industry.
You want exercise equipment that offers the most comfort, the best reliability and the highest quality in its class.
LIVESTRONG indoor cycles deliver.

3
IMPORTANT PRECAUTIONS
SAVE THESE INSTRUCTIONS
When using an exercise product, basic precautions should always be followed, including the following: Read all instructions
before using this indoor cycle. It is the responsibility of the owner to ensure that all users of this indoor cycle are adequately
informed of all warnings and precautions. If you have any questions after reading this owner’s manual, contact Customer
Tech Support at the number listed on the back panel.

4
READ AND SAVE ALL INSTRUCTIONS BEFORE ASSEMBLING OR USING THIS INDOOR
CYCLE. IT IS STRONGLY RECOMMENDED TO TAKE THE FOLLOWING SAFETY
INSTRUCTIONS.
• CAUTION: If you experience chest pains, nausea, dizziness or shortness of breath, stop exercising immediately and consult your
physician before continuing.
• Use this cycle for its intended purpose as described in this manual. Do not use attachments that have not been recommended by
the manufacturer.
• Never operate the cycle if it is not working properly, or if it has been damaged. Contact LIVESTRONG Fitness or the authorized
dealers for examination and repair.
• Do not use the cycle without proper footwear. NEVER operate the cycle with bare feet.
• Do not wear any clothing that might catch on any moving parts of this cycle.
• Keep hands and feet clear at all times from moving parts to avoid injury. Never turn the pedal cranks by hand.
• Do not dismount the cycle until the pedals are at a complete STOP.
• Do not attempt to ride the cycle in a standing position at high RPMs until you have practiced at slower speeds.
• Do not insert any object, hands or feet into any openings, or expose hands, arms or feet to the drive mechanism or other potentially
moving part of the cycle.
• Do not use any equipment that is damaged or has worn or broken parts. Use only replacement parts supplied by LIVESTRONG
Fitness or the authorized dealers.
• Do not operate where aerosol (spray) products are being used or when oxygen is being administered.
• Close supervision is necessary when used near children, invalids or disabled people.
• When the cycle is in use, young children and pets should be kept at least 3 meters / 10 feet away.
• After exercising, push down on the tension knob or turn the tension knob in a clockwise direction to slow the flywheel down and
decrease the potential for injury.
• Ensure that adjustment levelers (saddle and handlebar height, saddle and handlebar fore-and-aft) are properly secured and do not
interfere with range of motion during exercise.
• It is the sole responsibility of the owner to ensure that all users of the indoor cycle are informed of all warnings and precautions.
• Keep the indoor cycle indoors, away from moisture and dust. Do not place the indoor cycle in a garage, covered patio or near
water.
• Place the indoor cycle on a level surface. To protect the floor or carpet from damage, place a mat beneath the indoor cycle.
• The indoor cycle does not have a independently moving flywheel; the pedals will continue to move together with the flywheel until
the flywheel stops.
WARNING

5
ASSEMBLY
There are several areas during the assembly process that special attention must be paid. It is very important to follow the
assembly instructions correctly and to make sure all parts are firmly tightened. If the assembly instructions are not followed
correctly, the indoor cycle could have parts that are not tightened and will seem loose and may cause irritating noises. To
prevent damage to the indoor cycle, the assembly instructions must be reviewed and corrective actions should be taken.

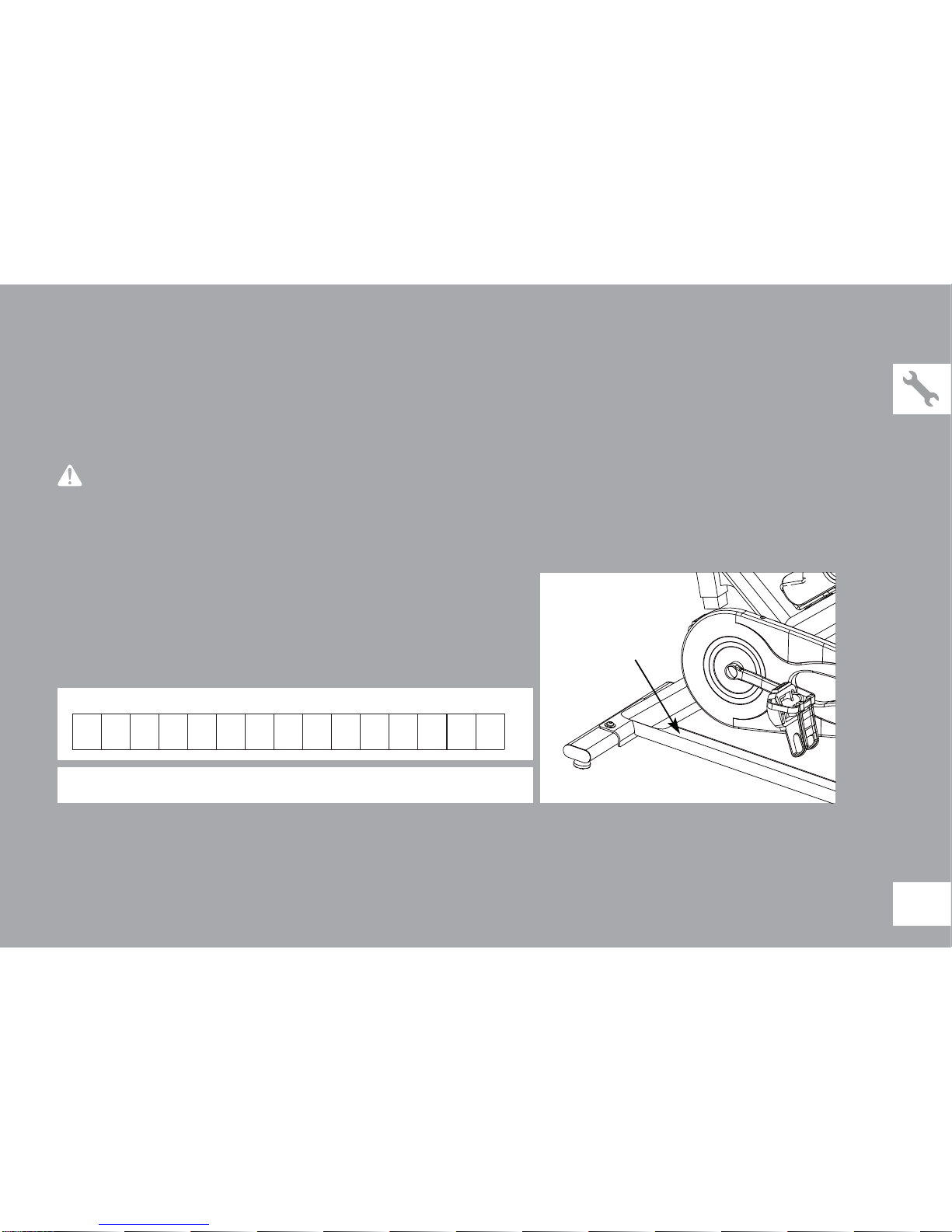

Before proceeding, find your indoor cycle’s serial number located on
the rear base frame of the cycle and enter it in the space provided below.
ENTER YOUR SERIAL NUMBER IN THE BOX BELOW:
» Refer to the SERIAL NUMBER and MODEL NAME when calling for service.
» Be sure to enter both the SERIAL NUMBER and MODEL NAME on your warranty card.
SERIAL NUMBER:
MODEL NAME: LIVESTRONG LS5.9IC INDOOR CYCLE
WARNING

6
21
3
6
7
8
10
9
6
7
8
4
5

7
If you have questions or if there
are any missing parts, contact
Customer Tech Support.
Contact information is located on
the back panel of this manual.
UNPACKING
Due to the weight of the indoor cycle, it is
recommended that two persons perform the
assembly. Set the indoor cycle in a cleared
area and remove all packing materials; do not
dispose of the packing materials until assembly is
completed.
NOTE: During each assembly step, ensure that
ALL nuts and bolts are in place and partially
threaded in before completely tightening any
ONE bolt.
NOTE: A light application of grease may aid in
the installation of hardware. Any grease, such as
lithium bike grease is recommended.
NEED HELP?

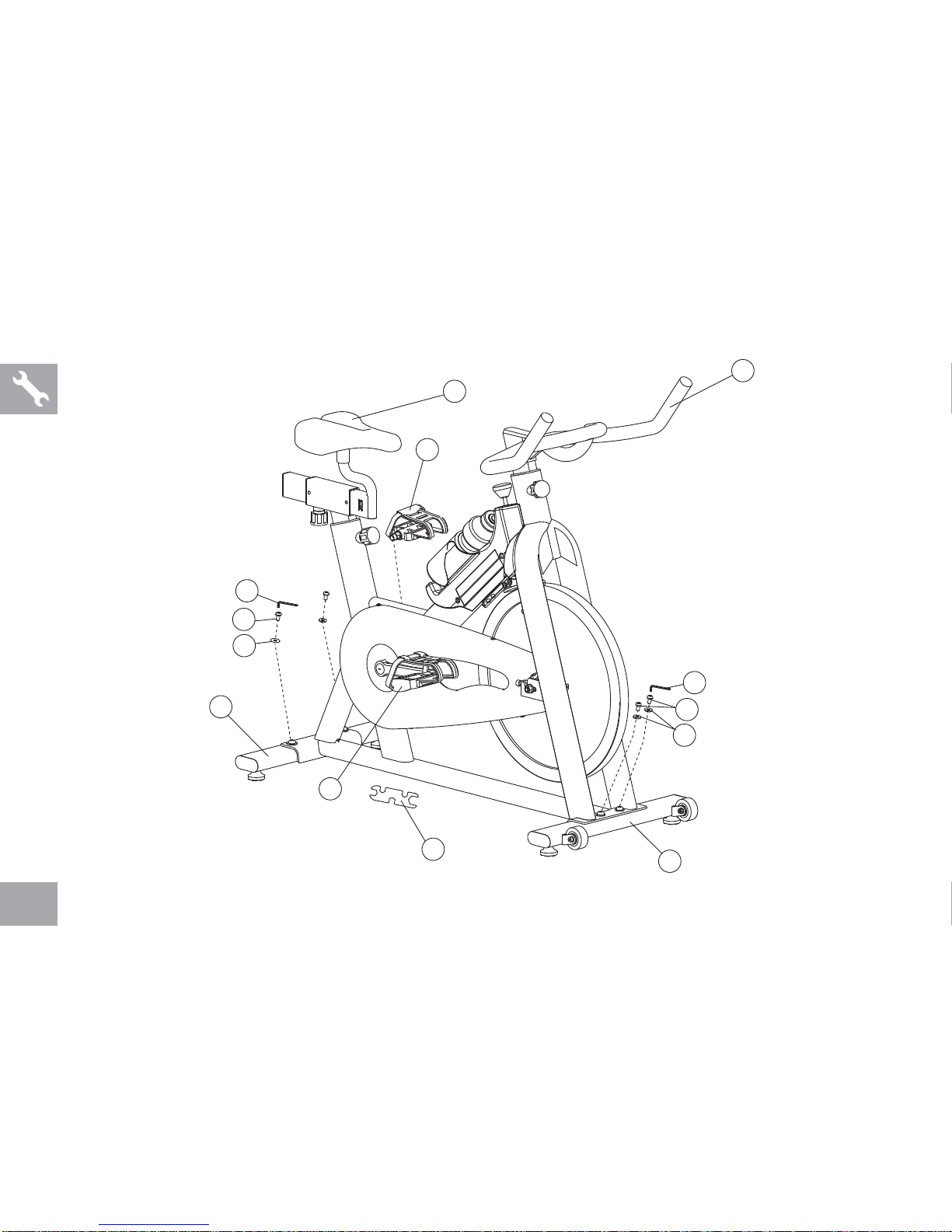

PRE ASSEMBLY
ASSEMBLY PARTS LIST:
ITEM DESCRIPTION QTY SPECIFICATION
1Handlebar 1Chrome & PVC dipping
2Saddle Post 1Chrome
3Pedal (L) 1Left threaded
4Pedal (R) 1Right threaded
5Combination Wrench 1
6Allen Wrench 1for 2 stabilizers
7Allen Bolt 4M8 x 16L
8Washer 4
9Front Base Frame 1With 2 transportation wheels
10 Rear Stabilizer 1Without 2 transportation wheels
Lubricant Bottle 1 See maintenance section for use

8

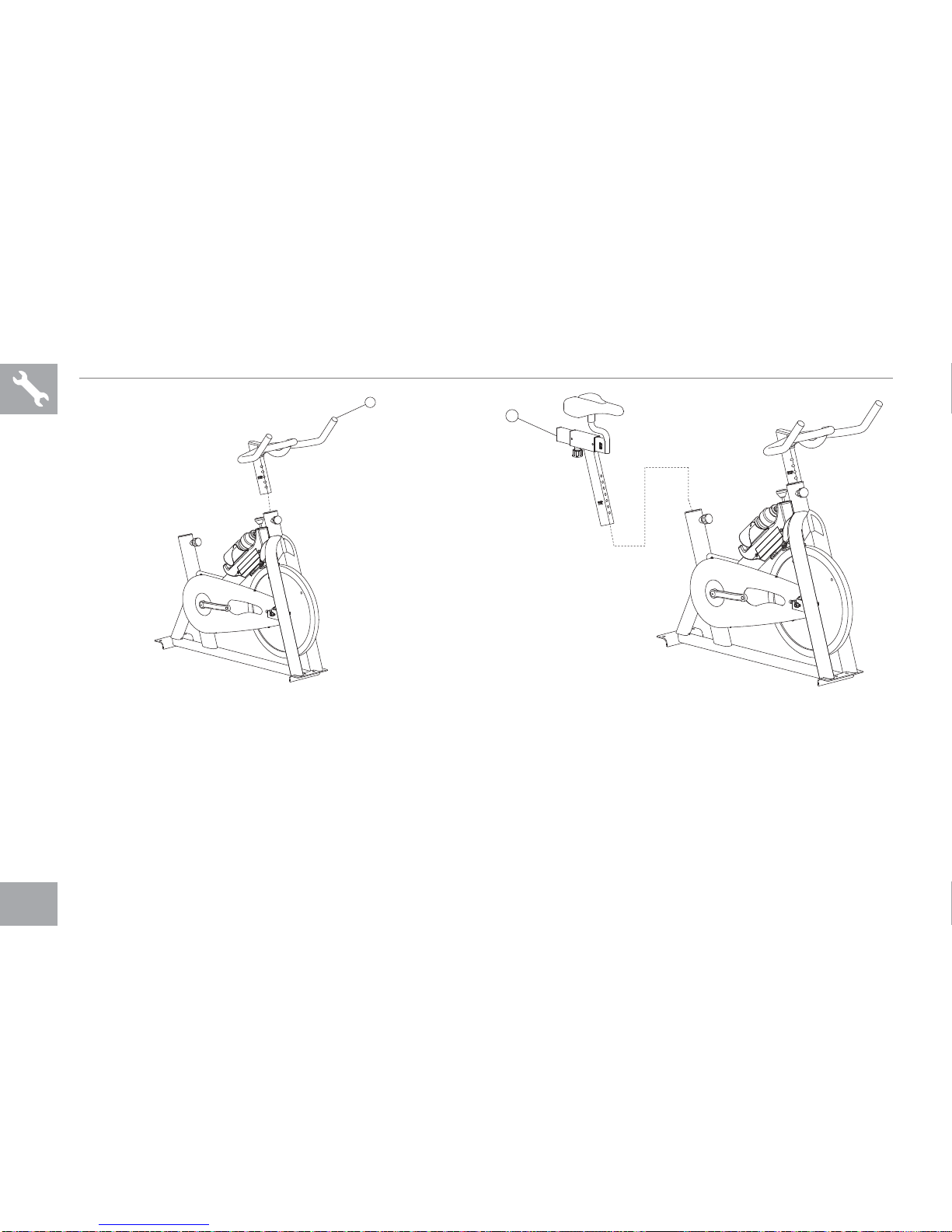

ASSEMBLY STEP 1 & 2
1 Install the handlebar (1) into the
frame receptor and secure with
the knob.
2 Install the saddle post (2) into the
frame receptor and secure with the
knob.
1
2

9
ASSEMBLY STEP 3 & 4
3 Thread the left pedal (3) that has “L” on the spindle to the
left side arm of the cycle using the Combination Wrench
(5). Please note that the L pedal is left-hand threaded
which needs to be turned counter clockwise to tighten.
Thread the right pedal (4) that has “R” on the spindle
to the right side arm of the cycle using the Combination
Wrench (5). Please note that the R pedal is right-hand
threaded which needs to be turned clockwise to tighten.
4 Attach the Front Base Frame (9) to the
frame using two Allen bolts (7) and two
Washers (8), and secure firmly by Allen
Wrench (6).
5
4
3
6
7
8
9

10

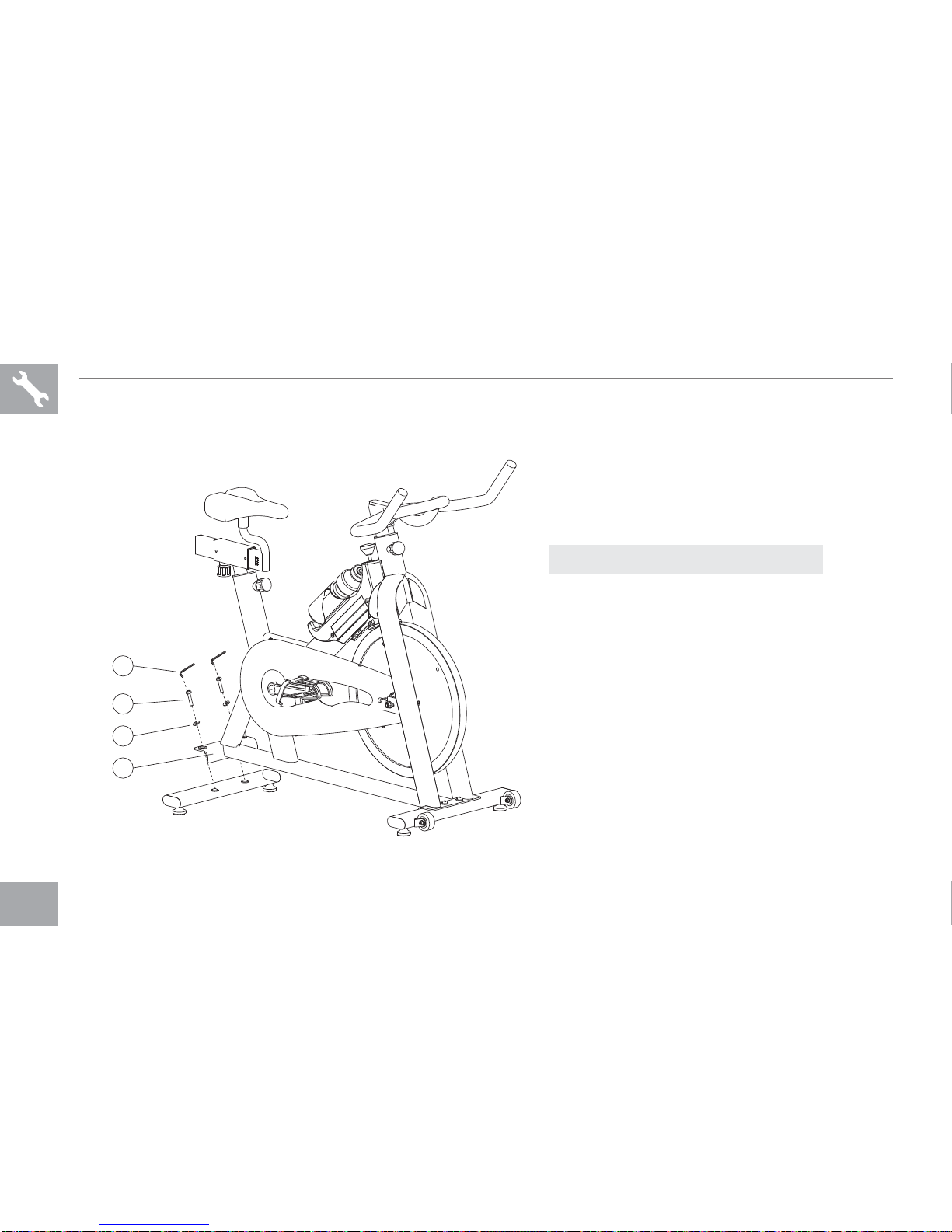

ASSEMBLY STEP 5
5 Attach the rear stabilizer (10) to the
frame using two Allen bolts (7) and two
Washers (8), and secure firmly by Allen
Wrench (6).
6
7
8
10
ASSEMBLY COMPLETE!

11
INDOOR CYCLE OPERATION

12
A
H
I
B
CD
A
F
G
E

13

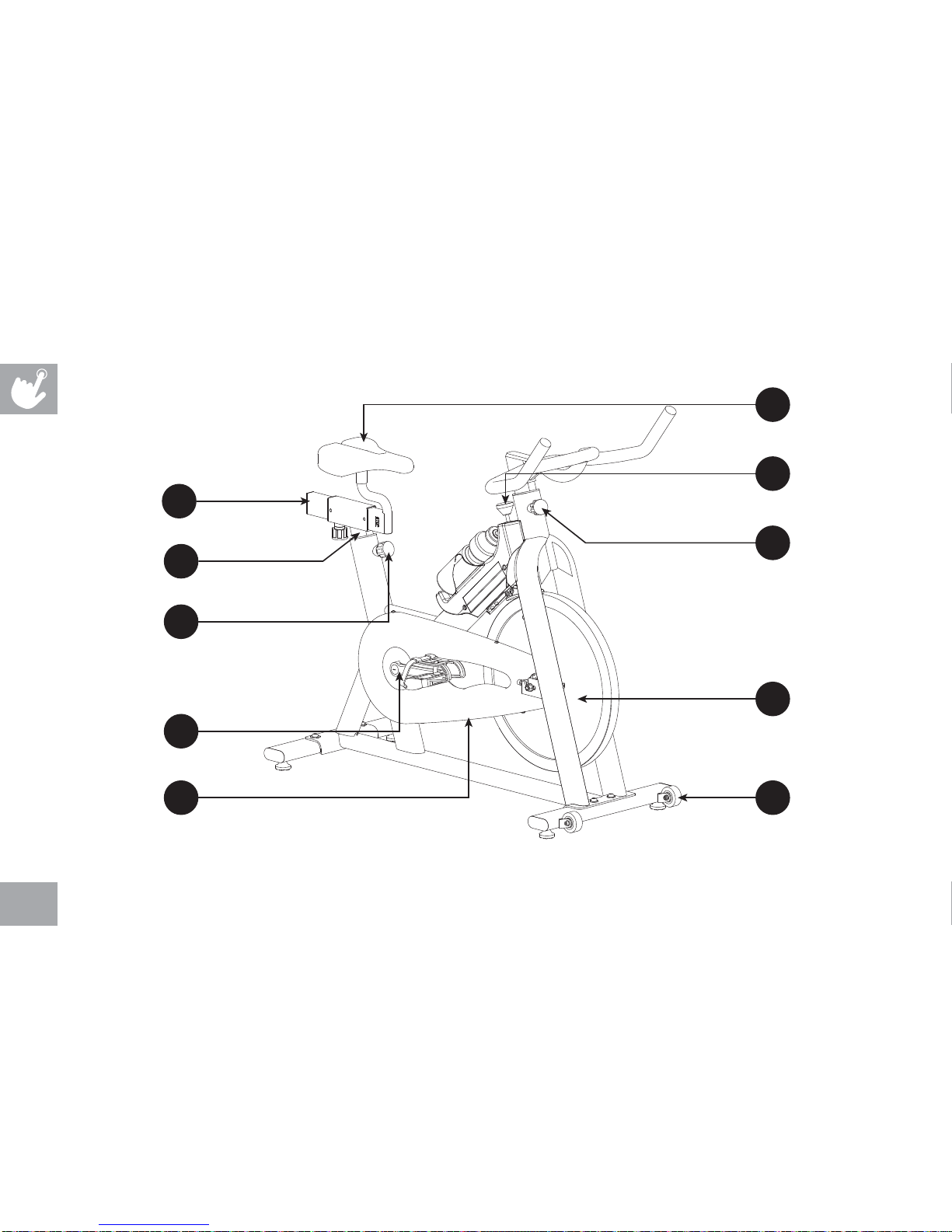

MODEL INFORMATION
A ADJUSTABLE KNOB: allows adjustment to the height of both saddle post &
handlebar
B HEAVY FLYWHEEL: high-inertia flywheel creates a smooth feel
C TRANSPORTATION WHEEL: allows for easy movement of the machine
D CHAIN: simulates the feel of road riding
E CRANK: initiates movement to the flywheel
F SADDLE POST: allows vertical adjustment to customize height for any user
G SADDLE SLIDER: allows fore/aft adjustment to customize for any user
H SADDLE: extra padding to provide a comfortable ride
I TENSION CONTROL & EMERGENCY BRAKE: friction brake with micro-adjustable
knob and push-down emergency stop.
NOTE: In case of emergency, you may press directly down on the Tension Control
knob to bring the flywheel to an abrupt stop.

14
HOW TO MOVE THE INDOOR CYCLE
Due to the weight of the Indoor Cycle, it is
recommended that two persons move it. While one
person lifts the back of the indoor cycle, the second
person firmly holds the handlebar and tips the indoor
cycle forward until it rolls on the wheels. Carefully move
the Indoor Cycle to the desired location and then lower
it.
If the Indoor Cycle rocks on the floor after being set
down, turn the leveling feet underneath the front or rear
stabilizer until the rocking motion is eliminated.
Leveling Feet
To reduce the risk of injury, use extreme caution
while moving the indoor cycle. Do not attempt to
move it over uneven surfaces and make sure there’s
a safety space of 20 inch (minimum) to the nearest
equipment is recommended.
WARNING
LOCATION OF THE
INDOOR CYCLE
Place the Indoor Cycle on a
level surface. There should be
6 feet (183 cm) of clearance
behind the Indoor Cycle, 3 feet
(91 cm) on each side and 1 foot
(30 cm) in front of the Indoor
Cycle. Do not place the cycle
in any area that will block any
vent or air openings. The Indoor
Cycle should not be located in
a garage, covered patio, near
water or outdoors.
3 ft
6 ft
3 ft
91 cm 91 cm
1 ft
183 cm
30 cm
FRONT
REAR
BIKE

15
HOW TO ADJUST THE INDOOR CYCLE
The Indoor Cycle can be adjusted for maximum comfort and exercise effectiveness. The instructions below describe one
approach to adjusting the Indoor Cycle to ensure optimal user comfort and ideal body positioning; you may choose to adjust the
Indoor Cycle differently.

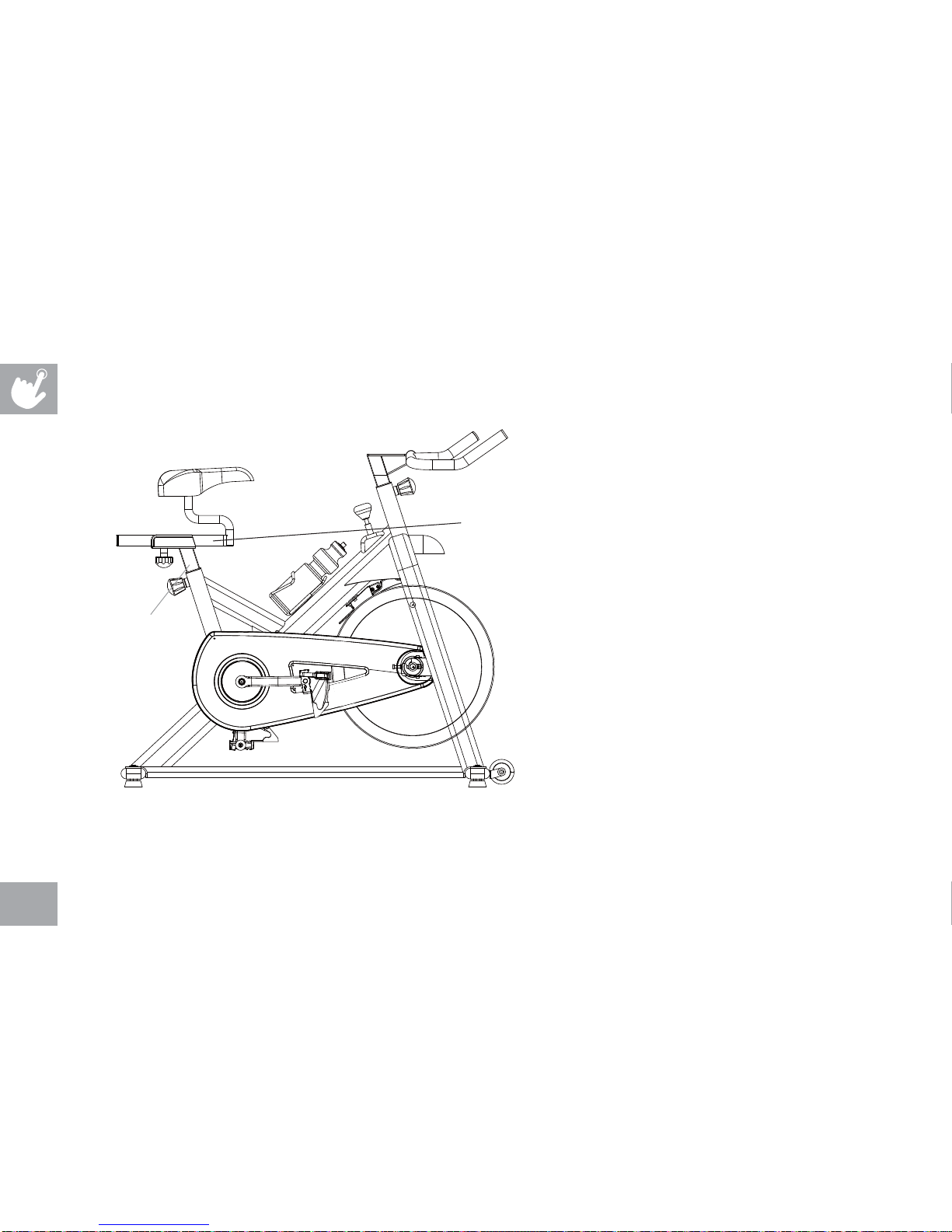

SADDLE ADJUSTMENT
Proper saddle height helps ensure maximum
exercise efficiency and comfort, while
reducing the risk of injury. Adjust the saddle
height to make sure it’s in proper position, one
that keeps a slightly bend in your knee while
your legs are in the extended position.

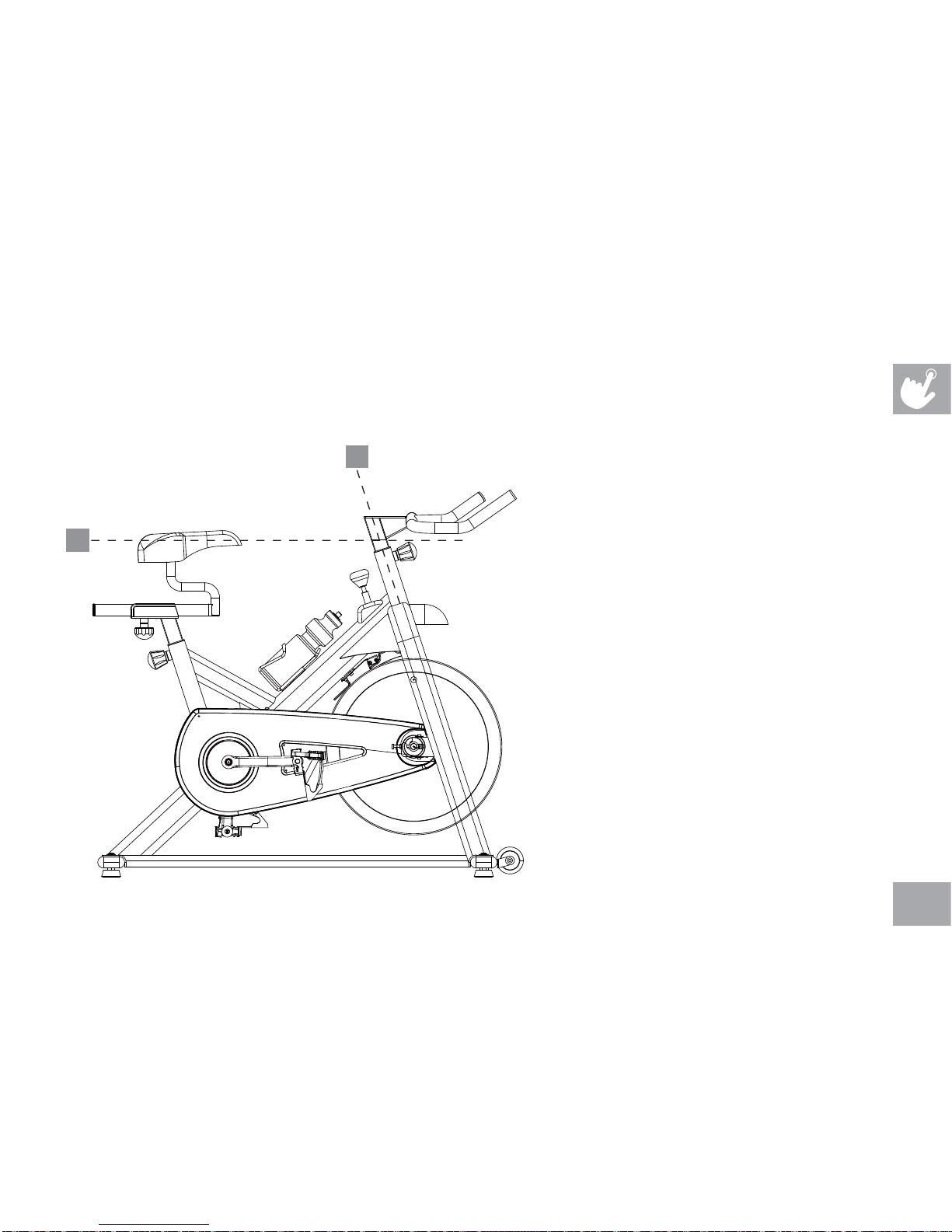

HANDLEBAR ADJUSTMENT
Proper position for the handlebar is based
primarily on comfort. Typically, the handlebar
should be positioned slightly higher than
the saddle for beginning cyclists. Advanced
cyclists could try different heights to get the
arrangement most suitable for you.
A
B

16
TO ADJUST THE
SADDLE HEIGHT:
Rotating the knob to loosen the
screw, then pull out the knob and
adjust the saddle to a comfortable
pedaling position. Lock the screw
by rotating knob clockwise until it
tightens.
TO ADJUST THE SADDLE
LIVESTRONGTAL
POSITION:
Unscrew the saddle slider pin and
pull out the knob to slide the saddle
forward or backward as desired.
Re-apply the quick release lever and
screw clockwise to lock. Test the
saddle slide for proper operation.
Do not adjust the
saddle position
beyond the stop
marks on the
saddle slider
Do not adjust
saddle height
beyond the
stop mark on
the stem

17
TO ADJUST THE
HANDLEBAR HEIGHT:
Rotating the knob to loosen the screw,
then pull out the knob and adjust the
handlebar height. Raise or lower the
handlebar to the desired height. Lock the
screw by rotating knob clockwise until it
tightens.
TO ADJUST THE PEDAL
STRAPS:
Place each foot ankle on the pedal
and in the toe clip that the foot ankle is
centered over the pedal spindle (center
of the pedal). Rotate one foot to arms
reach and pull up on the toe clip strap.
Repeat for the other foot. Keep your
knees over your feet as you pedal.
To remove your foot from the toe clip,
loosen the strap and pull out.
Do not adjust the
handlebar height
beyond the stop
mark on the stem
The pedal
straps should be
adjusted to hold
the foot snugly in
the pedal

18
TENSION CONTROL AND EMERGENCY BRAKE
The preferred level of difficulty in pedaling (resistance) can be regulated in fine increments by use of the tension control
knob. To increase the resistance, turn the tension control knob clockwise. To decrease the resistance, turn the knob
counter clockwise.
IMPORTANT:
• To stop the flywheel while pedaling, push down on the
red brake knob (same knob as the tension control).
• The flywheel should quickly come to a complete stop.
• Make sure your shoes are fixed into the toe clip.
• Apply full resistance load when the bike is not in
use to prevent injuries due to moving drive gear
components.
Tension control knob/Emergency
brake
The Indoor Cycle does not have a free
moving flywheel; the pedals will continue
to move together with the flywheel until
the flywheel stops. Reducing speed in a
controlled manner is required. To stop the
flywheel immediately, push down the red
emergency brake knob. Always pedal in a
controlled manner and adjust your desired
cadence according to your own abilities.
Push the red knob down = emergency stop
WARNING

19
DISMOUNTING THE CYCLE
The Indoor Cycle uses a fixed flywheel that builds momentum and will keep the pedals turning even after
the user stops pedaling or if the user’s feet slip off. DO NOT ATTEMPT TO REMOVE YOUR FEET FROM
THE PEDALS OR DISMOUNT THE MACHINE UNTIL BOTH THE PEDALS AND THE FLYWHEEL HAVE
COMPLETELY STOPPED. Failure to follow these instructions may lead to loss of control and the potential
for serious injury.
WARNING

20
