INSTRUCTION MANUAL
DYD-W16A411/DYD-W20A412
DEHUMIDIFIER
NZ
SALES
AFTER
SUPPORT
0800 422 274

NZ
SALES
AFTER
SUPPORT
0800 422 274
1

Safety Instructions 3
5
7
8
Cleaning
12
Storage
13
Trouble Shooting 14
Technical Specifications 1 5
Product Overview
Prior to Operation
Operation Instructions
Display Error Codes 13
Contents
Page
NZ
SALES
AFTER
SUPPORT
0800 422 274
2

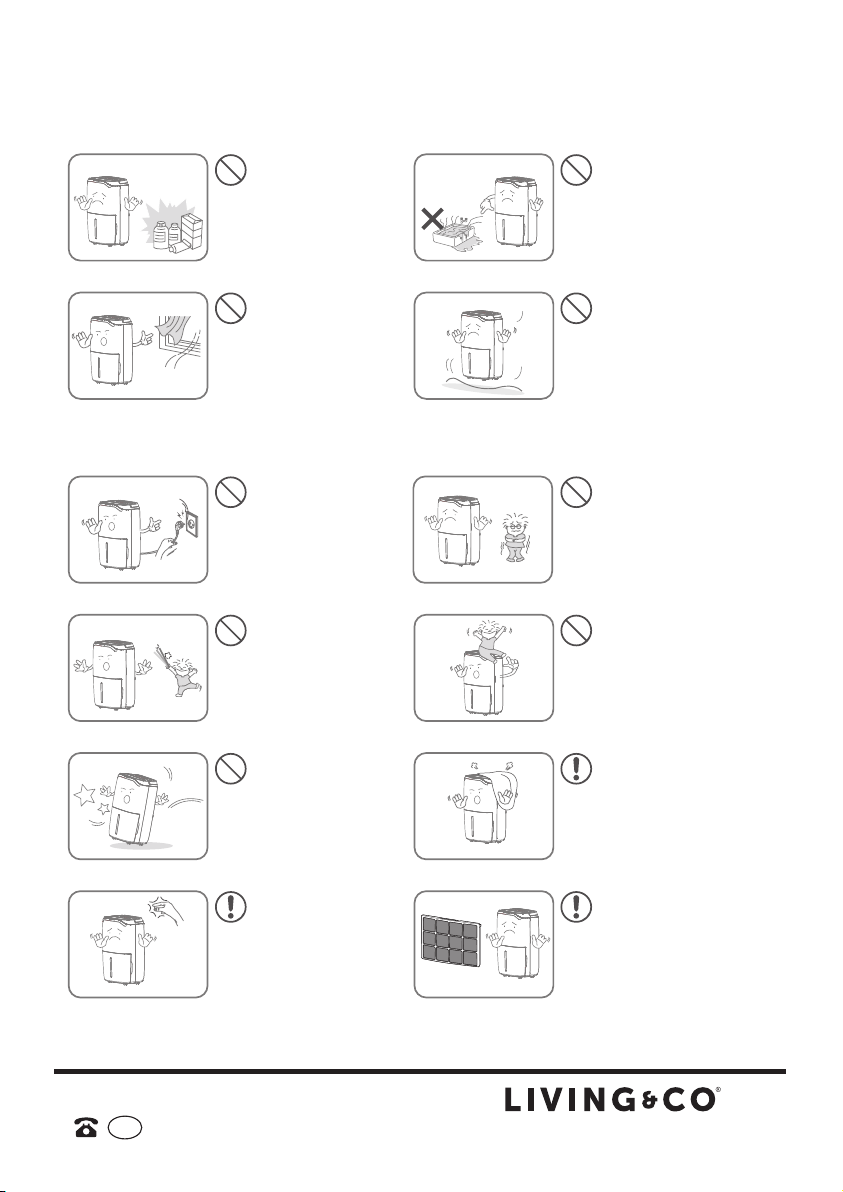

Warning
Do not pull the power
cord in order to unplug
the device from the
socket.
Do not touch the plug with
wet hands in order to avoid
electric shock.
Do not put any heavy
objects
on the power
cord in order to avoid
safety hazard.
Do not use the appliance
in overloaded extension
cord.
Do not use the appliance
the supply plug has any signs
of damage.
Do not attempt to change
the power cord, contact
the authorized service
centre for repair.
The socket has to be
earthed and
appropriately secured.
Please pull out the plug
during lightning storms.
Cautions Wet hands not allowed Warning
This appliance is intended for use in a domestic environment only. Any other use is not recommended
by the manufacturer and may cause fire, electrical shocks or other person injury or property damage.
Power Cord
Safety Instructions
NZ
SALES
AFTER
SUPPORT
0800 422 274
3

Please turn off the
power and unplug the
power cord before
moving it.
Children should be
supervised to ensure
that they do not place
any objects into the
appliance.
Do not put hands on the
air outlet in order to avoid
injury or malfunction.
Do not let the appliance
topple over or let the
appliance
be subjected
to strong impact in
order
to avoid malfunction.
Do not let the elderly or sick
people stay near the
appliance for an extended period
in
order to avoid lack of oxygen.
Do not put any heavy objects
on the appliance in order
to avoid malfunction.
Do not use the appliance
at a swimming pool or similar
facility in order to avoid a
safety hazard.
Do not put flammable
or explosive objects
around the appliance in
order to avoid fire.
Do not use the
appliance in a
draughty location.
Place the appliance on a
stable, flat surface.
The appliance must not be
covered when being used.
Please install the air filter
before using it.
Placement
During Use
Safety Instructions
NZ
SALES
AFTER
SUPPORT
0800 422 274
4

Figure1
Figure2
1
2
4
5
8
7
6
21
13 15
14 19
18
16
24
17 20
26 23 22
25
9
110
11
Figure3
28
27
12
(2S)
NZ
SALES
AFTER
SUPPORT
0800 422 274
5
Product Overview

Components
Control Panel
Drainage
1. Handle
2. Air Inlet Grille
3. Drainage Outlet
4. Power Cord Bracket
5. Casters
6. Air Outlet
7. Rear Cover
8. Water Tank
10. Control Panel
11. Front Cover
12. Triple Humidity Light
9. Power Cord
27. Drainage Outlet Plug
28. Drainage Pipe
13. Laundry Drying Indicator
14. Manual Dehumidifying Indicator
15. Air Purifying Indicator
16. Auto Indicator
17. Humidity Reading
18. Timer Indicator
19. Tank Full Indicator
20. Running Indicator
21. Defrost Indicator
22. Power Button
23. Timer Off Button
24. Up and Down Buttons
25. Auto Button/Child Lock Button
26. Mode Button
NZ
SALES
AFTER
SUPPORT
0800 422 274
6
Product Overview

Place the dehumidifier in an upright position on a stable, flat surface.
Ensure the dehumidifier is at a safe distance at least 50cm away from a wall or furniture.
Supply power should be in correspondence with the value on the nameplate, power outlet needs to
be grounded.
Ensure the tank is correctly fitted, if the tank is full or not in place, the tank full light comes on and
the dehumidifier will stop working.
Continuous Drainage
In general, water will be collected by tank, if you want continuous drainage, please
in figure 3.
1. Unplug the drainage outlet plug.
2. Insert the drainage pipe with 19mm inner diameter into water outlet.
Note: always make sure the pipe is going downhill, is not blocked or kinked.
Prior to Operation
follow the steps
NZ
SALES
AFTER
SUPPORT
0800 422 274
7

Desired setting will be confirmed 3s after the operation.
Tri-color light will reflect the environment humidity: Red light: RH%＞65%;
Green light: 55%≤RH%≤65%; Yellow light: RH%＜55%.

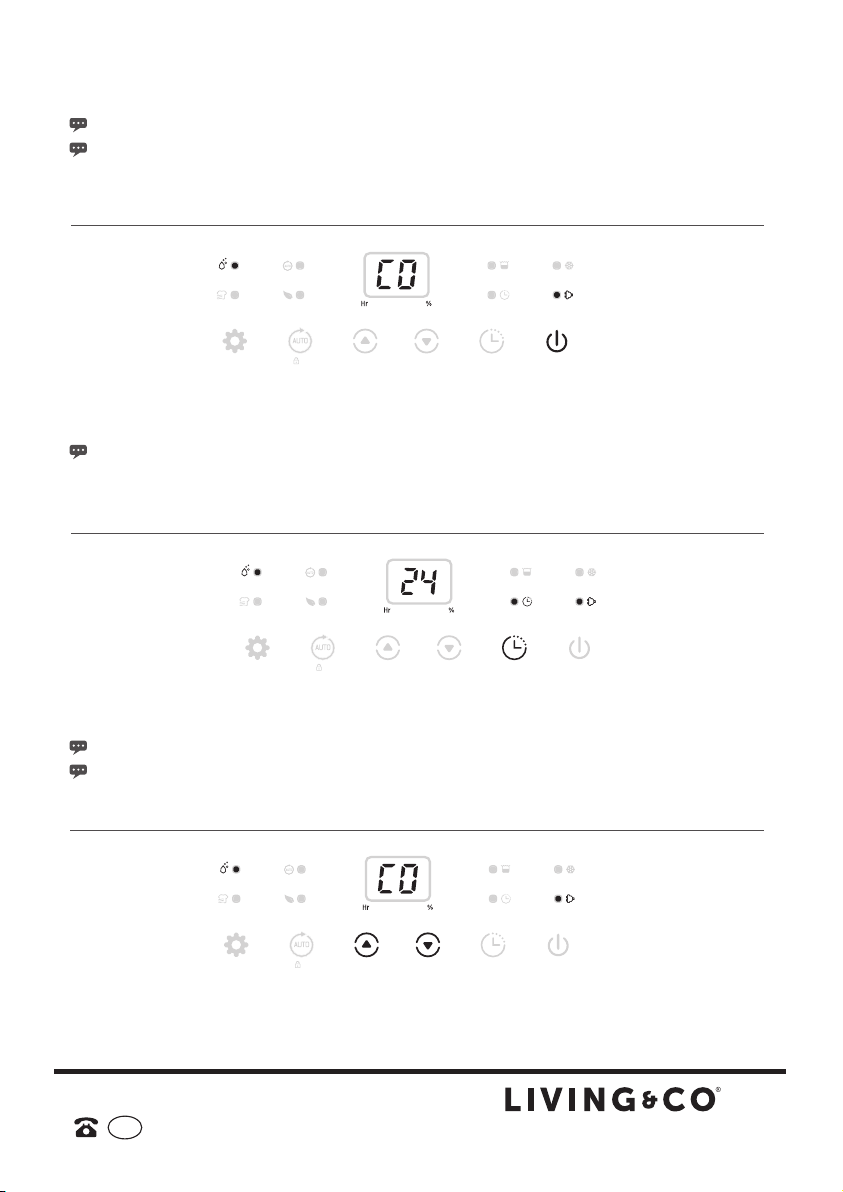

Switch On / Switch Off The Unit [ Power button ]
Connect to the power supply and press the power button once to turn on the unit, the unit runs by
default mode on manual continuous dehumidifying with low fan speed.
Auto Shut-off Timer Function [ Timer button ]
Press the timer button, then press up/down buttons to select your preferred number of hour from 00-24-00
The appliance will shut off automatically once the selected number of hours is reached.
Auto timer function will be canceled if the timer button is pressed twice in 5 seconds.
Auto timer function will be canceled if the appliance is switch off and on again.
Humidity Setting [ Up and Down buttons ]
Press the up/down buttons to select your preferred humidity from CO-30%-35%-40%-45%- 50%
-55%-60%-65%-70%-75%-80%-CO. CO means continuous dehumidifying regardless of ambient
humidity.
Operation Instructions
Press the power button to turn the unit off, the fan will continue to operate for a few seconds to
blow out the hot air inside the unit.
(2S)
(2S)
(2S)
NZ
SALES
AFTER
SUPPORT
0800 422 274
8

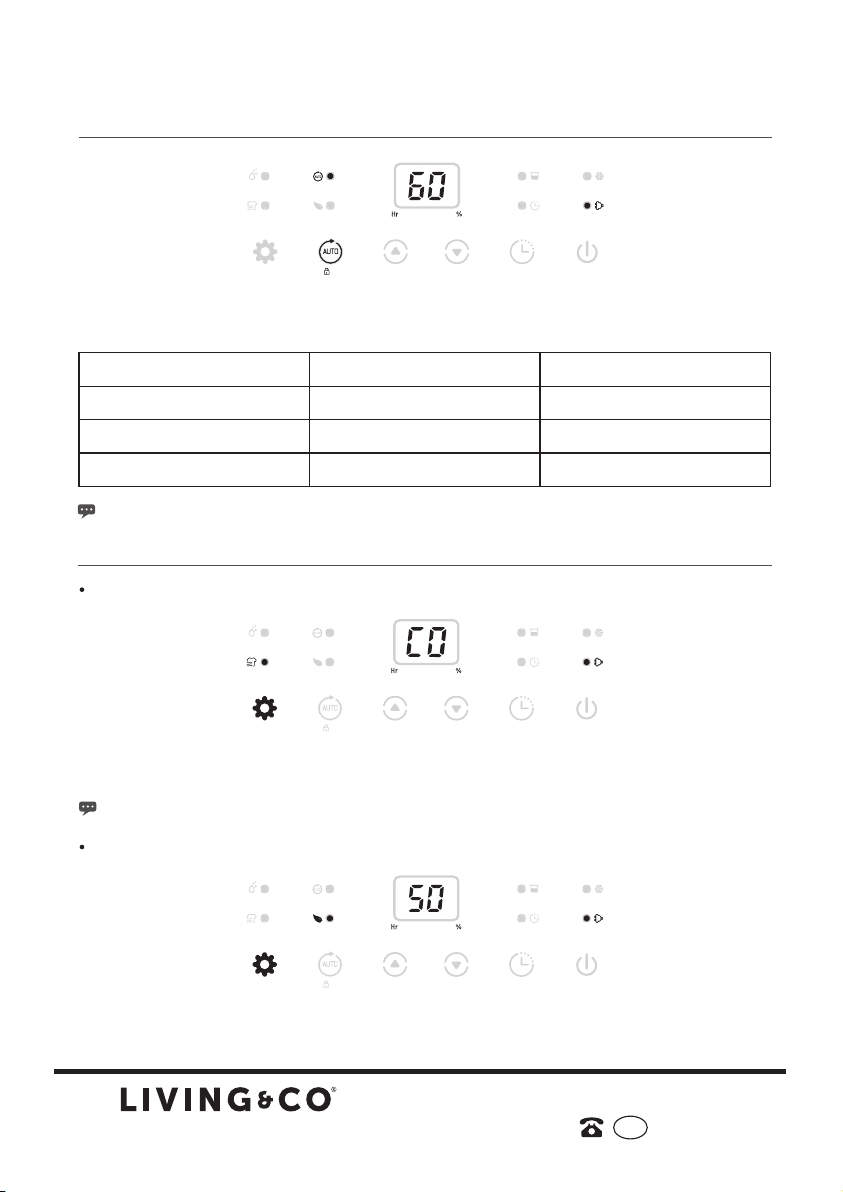

Auto Dehumidifying Function [ Auto button ]
Press the auto button to select the Auto dehumidifying mode, the unit runs automatically accordance
to the ambient humidity detected below.
Ambient RH% detected
RH%＞65%
55 ≤RH%≤65% %
RH%＜55%
Compressor
Woking
Woking
Not working
Fan Speed Level
High
Low
Low
Up/Down buttons are invalid.
Operation Instructions

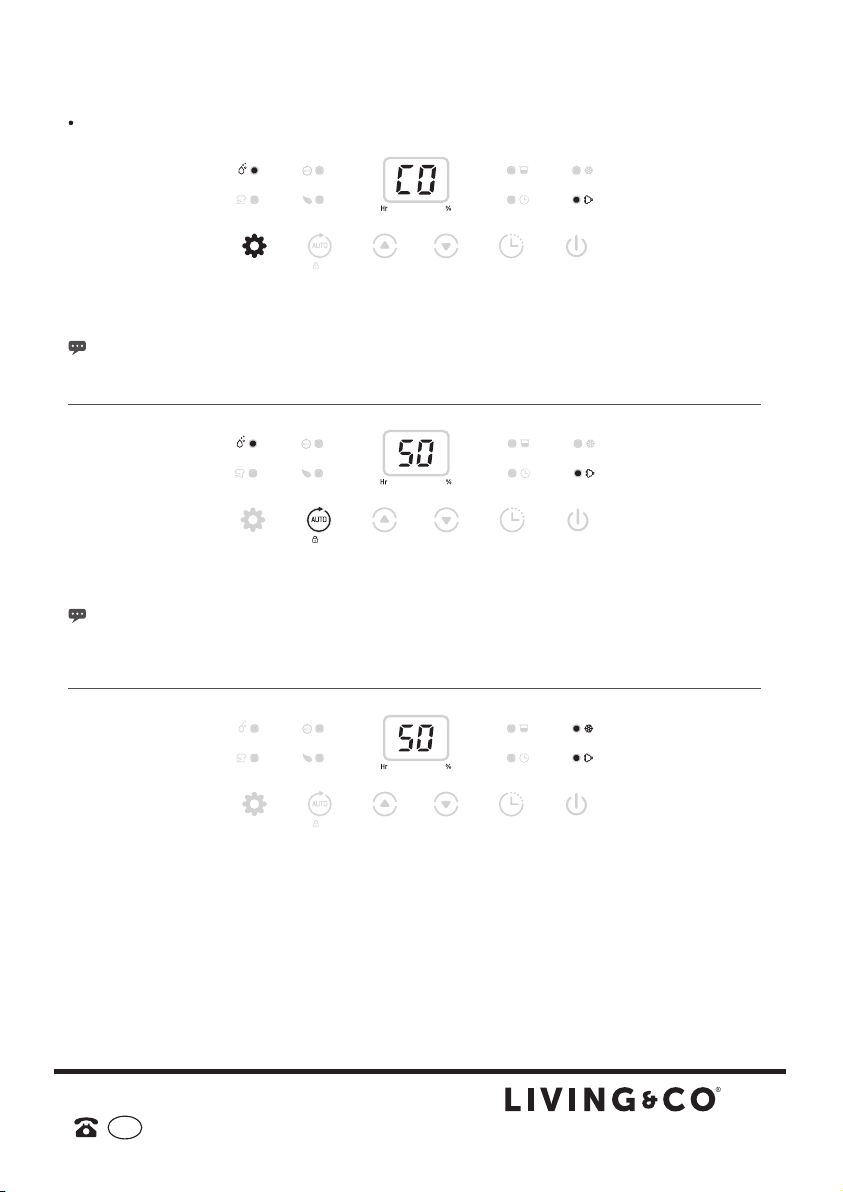

Multifunction Optional [ Mode button ]
Laundry Drying Mode
At manual mode, press the mode button once to select Laundry Drying mode, the unit runs in continuous
dehumidification with high fan speed for 6 hours then switches off automatically.
Timer button is invalid.
Air Purifying Mode
Press the mode button 2 times to select Air Purifying mode, the unit runs with fan speed without
dehumidifying.
high
(2S)
(2S)
(2S)
NZ
SALES
AFTER
SUPPORT
0800 422 274
9

Operation Instructions
Press the Auto button for 2s to lock all buttons with a beeping sound, the same operation can unlock
it.
when the water tank is full.
When the ambient temperature is too low, dehumidifier will enter into the defrost mode, the unit runs
with high fan speed without dehumidifying.
Safety Childlock Function [ Auto button-2 seconds ]
Low Temperature Defrost Indicator
Press the mode button 3 times to select Manual mode, the unit runs by default continuous
dehumidifying with low fan speed.
In manual mode all buttons are valid.
Manual Mode
(2S)
(2S)
(2S)
NZ
SALES
AFTER
SUPPORT
0800 422 274
10
Safety childlock function can be set at standby mode and working mode but can’t be activated

Operation Instructions
Memory Function:
a.When the unit is unplugged or after a power cut, the dehumidifier will run in the mode prior to the
shutdown. The timer setting will be maintained.
b.Press the power button to switch off the dehumidifier, and then press the power button to switch it
back on. The dehumidifier will run in the mode prior to the shutdown. The timer setting will be
canceled.
c.Switch off the dehumidifier and unplug the power plug, then reconnect the power supply and switch on
the dehumidifier. It will run in the factory preset mode like the first time you received the dehumidifier.

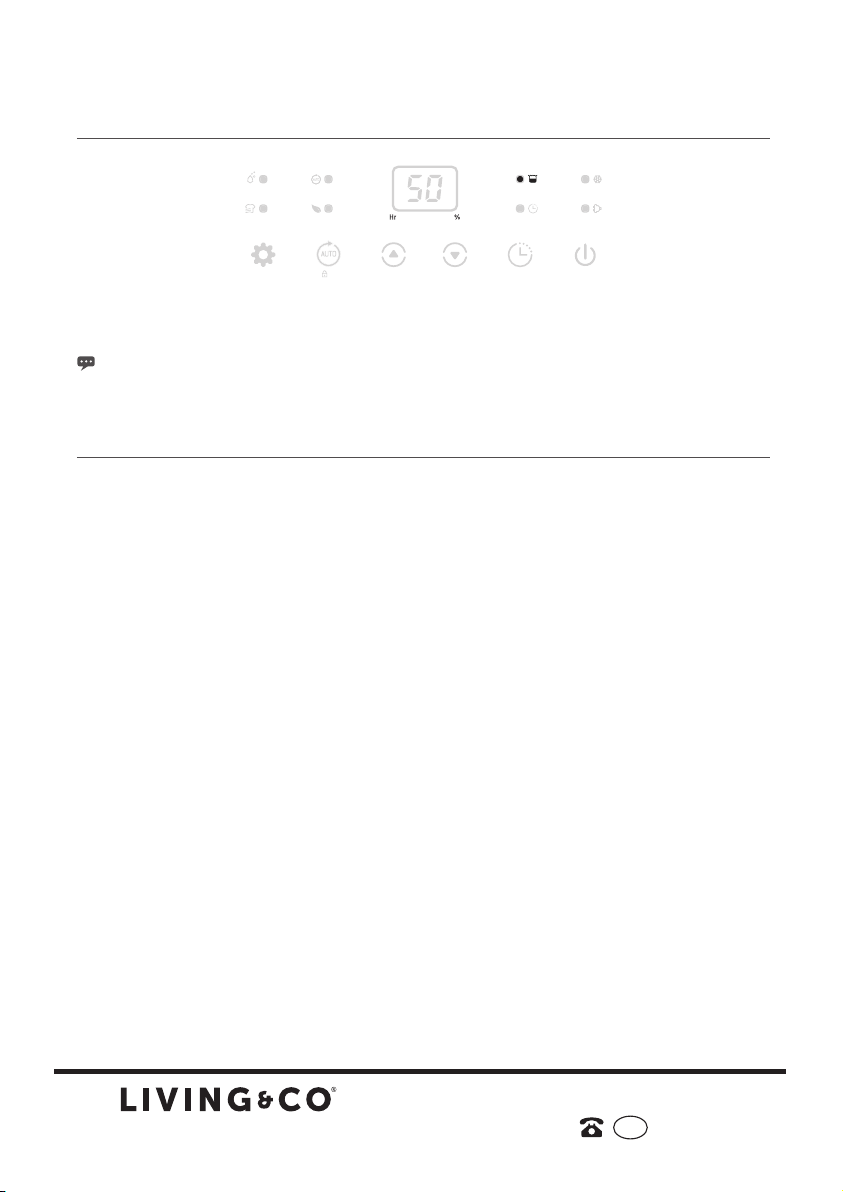

The unit will enter into standby mode when the water tank is full or the water tank is not installed properly.
After emptying and re-installing the water tank, the unit will go on to the previous mode.
Except for the power button, all other buttons are invalid.
Auto Shut off with Water Tank Full Indicator
(2S)
NZ
SALES
AFTER
SUPPORT
0800 422 274
11

When used regularly , the filter may become clogged with dust and particles. Therefore the filter should
be cleaned at least every two weeks. Follow these steps:
1. Switch the device off and remove the plug from the socket before
cleaning.
2. Clean the housing with a soft, dry cloth. If the device is extremely dirty,
use a mild cleaning agent. Wipe the dehumidifier with a slightly damp
cloth. Never spray the device with water.
3. Remove the filter. Clean the filter with a vacuum cleaner or soapy
water no hotter than 40℃.
4. Rinse and dry the filter completely before installing back on the
device.
Cleaning
NZ
SALES
AFTER
SUPPORT
0800 422 274
12

If the dehumidifier will not be used for a long period of time, take the following steps:
1. Remove the plug from the socket and empty the tank. Allow the tank and the dehumidifier to dry
completely, This may take a couple of days.
2. Clean the air filter .
3. Check the dehumidifier for damage.
4. Pack the device with the suitable packaging.
5. Store the dehumidifier in a dust-free and out of direct sunlight location, preferably covered with a
sheet of plastic.
Storage
Display Code E1 E2
Error Temperature sensor error Humidity sensor error
Display Flash every 30 seconds Flash every 30 seconds
What is happening
Device still dehumidifies but is in
defrost mode only.
Device still dehumidifies but is in
continuous dehumidifying mode
only.
Please contact local distributor if any of the error codes below appears.
Display Error Codes
NZ
SALES
AFTER
SUPPORT
0800 422 274
13

Check the following before contacting technical support.
PROBLEM POSSIBLE CAUSE SOLUTION
The device does
not work
The power is not connected Insert the plug into the wall outlet
The water tank is full Empty the tank
The tank has not
been replaced correctly Replace the tank
Runtime is too short Be patient and leave the unit running for a longer duration
Ambient temperature or
humidity is too low
It is normal that the device does not dehumidify in
these conditions
The room is too big We recommend using a dehumidifier with a
greater capacity
Water removal
capacity is too low
There is too much ventilation Reduce ventilation(e.g. close windows and shut
doors)
The air filter is clogged Clean the air filter
Set humidity is higher than
the ambient humidity Set the humidity lower than ambient humidity
Dehumidifier is
blowing out warm air This is normal, a dehumidifier is not an air cooler
The device works,
but reduces the
relative humidity
in a dequately
The dried air is passed over
heating coils before it is blown
into the room as part of the
dehumidifying process
The display is not
showing the humidity
set point
The display shows the room
relative humidity not the set
point
Press the up or down button once to see the target
relative humidity
Water on floor
There is residual water in the
tank and the device is moved
abruptly
Be careful when moving the tank
The dehumidifier is
noisy
The air filter is blocked or
the device is on an uneven
surface
Clean the filter or put the device on a flat surface
Trouble Shooting
NZ
SALES
AFTER
SUPPORT
0800 422 274
14

Technical Specifications
NZ
SALES
AFTER
SUPPORT
0800 422 274
15
The above technical data is indicative and for reference only. Some variation may exist between batches.
At the end of its working life, make the appliance unserviceable by unplugging it
from the power outlet and cutting the power cord.
Do not throw this appliance out with your household rubbish. Electrical and electronic
products contain substances which can have a detrimental effect on the environment
and human health if disposal of inappropriately. Observe any local regulations
regarding the disposal of electrical consumer goods and dispose of it appropriately
for recycling. Contact your local authorities for advice on recycling facilities in your area.
The RCM Mark(Regulatory Compliance Mark) indicates that the product
complies with relevant guidelines of the ACMA as well as corresponding
government requirements for the safety of electrical devices.
Responsible disposal
Compliance
This appliance has been fully tested and meets all requirements as set out by standards
AS/NZS 60335.1 and AS/NZS 60335.2.40.
Power Supply
Dehumidifying Capacity
Power Consumption
Air flow
Water Tank Capacity
Noise Level
Operating Temperature
Refrigerant
Net Weight
Product Size (W×D×H)
Model DYD-W20A412
220-240V~ 50Hz
20L/day(30 RH80%)℃
12L/day(27℃RH60%)
5~35℃
13.5 kg
360 × 285 × 564 mm
265W nominal / 370 maximum
145 m³/h
6.5L
43 dB(A)
R134a
DYD-W16A411
220-240V~ 50Hz
16L/day(30 RH80%)℃
8L/day(27℃RH60%)
5~35℃
12.5 kg
360 × 285 × 564 mm
205W nominal / 265 maximum
145 m³/h
6.5L
43 dB(A)
R134a

NZ
SALES
AFTER
SUPPORT
0800 422 274
16
We pride ourselves on producing a range
of quality home appliances that are both packed with features
and completely reliable. We are so confident in our products,
we back them up with a 3 year warranty
Now you too can relax knowing that you are covered.
accompanied by proof of purchase.
Customer Helpline NZ:0800 422 274
This Product is covered by 3 year warranty when
IM Version 1.0 - Oct 2018
