LIVING AND HOME R500/80E User manual

1
OIL FILLED HEATER

2
SAFETY INSTRUCTIONS
 This appliance can be used by children aged from 8 and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand
the hazards involved.
 Children shall not play with the appliance. Cleaning and user maintenance
shall not be made by children without supervision.

Children of less than 3 years old should be kept away unless continuously
supervised.

Children aged from 3 to 8 shall only switch on/off the appliance provided
that it has been placed or installed in its intended normal operating
position and they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the hazards involved.
Children aged from 3 to 8 shall not plug in, regulate and clean the
appliance or perform user maintenance.
 CAUTION-Some parts of this product can become very hot and cause
burns. Particular attention has to be given where children and
vulnerable people are present.

If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
 The heater must not be located immediately below an electrical socket-
outlet.
 Don’t use this heater in the immediate surroundings of a bath, a shower
or a swimming pool.
 Do not use this heater with a programmer, timer, separate remote-control
system or any other device that switches the heater on automatically, since
a fire risk exists if the heater is covered or positioned incorrectly.

3
 WARNING: In order to avoid overheating, do not cover the heater.
 Keep the device at a minimum distance of one meter from flammable
objects such as curtains, textiles...
 CAUTION: In order to avoid a hazard due to inadvertent resetting of the
thermal cut-out, this appliance must not be supplied through an external
switching device, such as a timer, or connected to a circuit that is regularly
switched on and off by the utility.
 This heater is filled with a precise quantity of special oil. Repairs requiring
opening of the oil container are only to be made by the manufacturer or
his service agent who should be contacted if there is an oil leak.

When scrapping the heater, follow the regulations concerning the disposal
of oil.
 Regarding the instructions for fixed installation, refer to the below
paragraph of the manual.
Electrical Connection
 Your heater must only be installed in a fixed position in accordance with
national installation rules (for France, NFC 15100).
Indoors Use Only

This installation must be done by a qualified electrician to avoid any
danger.

Means for disconnection having a contact separation in all poles must be
incorporated in the fixed wiring in accordance with the wiring rules.
 Attention: Connect the three conductors of the supply cable to a
connection box in respecting the polarities as below:
- Live: Brown
- Neutral: Blue
- Black: Pilot wire

4
 Warning: this product shall be installed in the volumes 2 & 3 only
according the national wiring rules (For France NFC 15-100)
 Note: The below drawing is for reference only.

If you are not sure, we suggest that you to contact a professional
electrician for assistance.

5

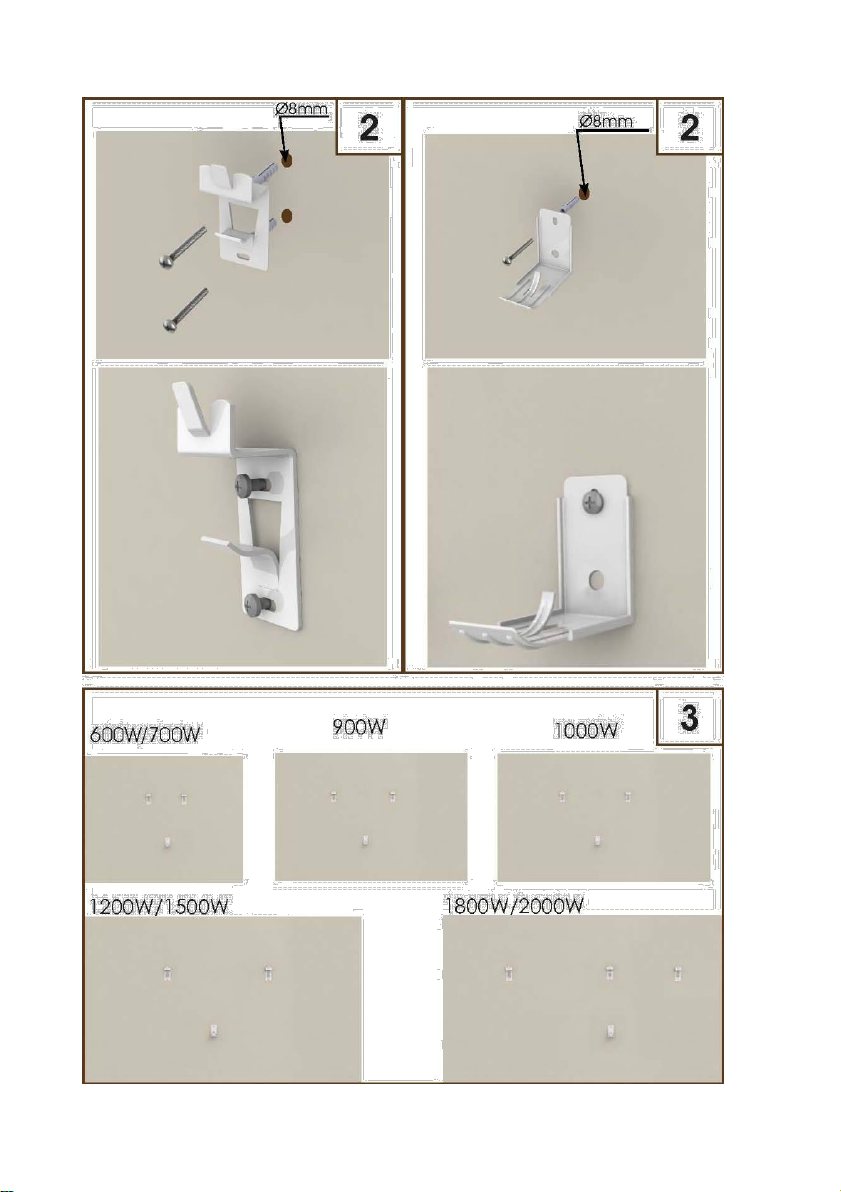

WALL MOUNTING
To install your heater:
- Use the screws, plugs and brackets supplied by the manufacturer.
- Drilling dimensions see the drilling template.
- Read the installation step instruction below and make sure the heater is well
positioned in the house.

6

7

8
SPECIFICATION
Power Supply
230V ~ 50Hz
Models
R500/80E
(600W/700W/900W/1000W/1200W/1500W
/1800W/2000W)
Insulation Class
ClassⅡ
Water Protection Class
IP 24
Temperature Range
Setting
7~35 ℃
Timing Mode
24-hours System
Week Mode
Mon~ Sun
OPERATION

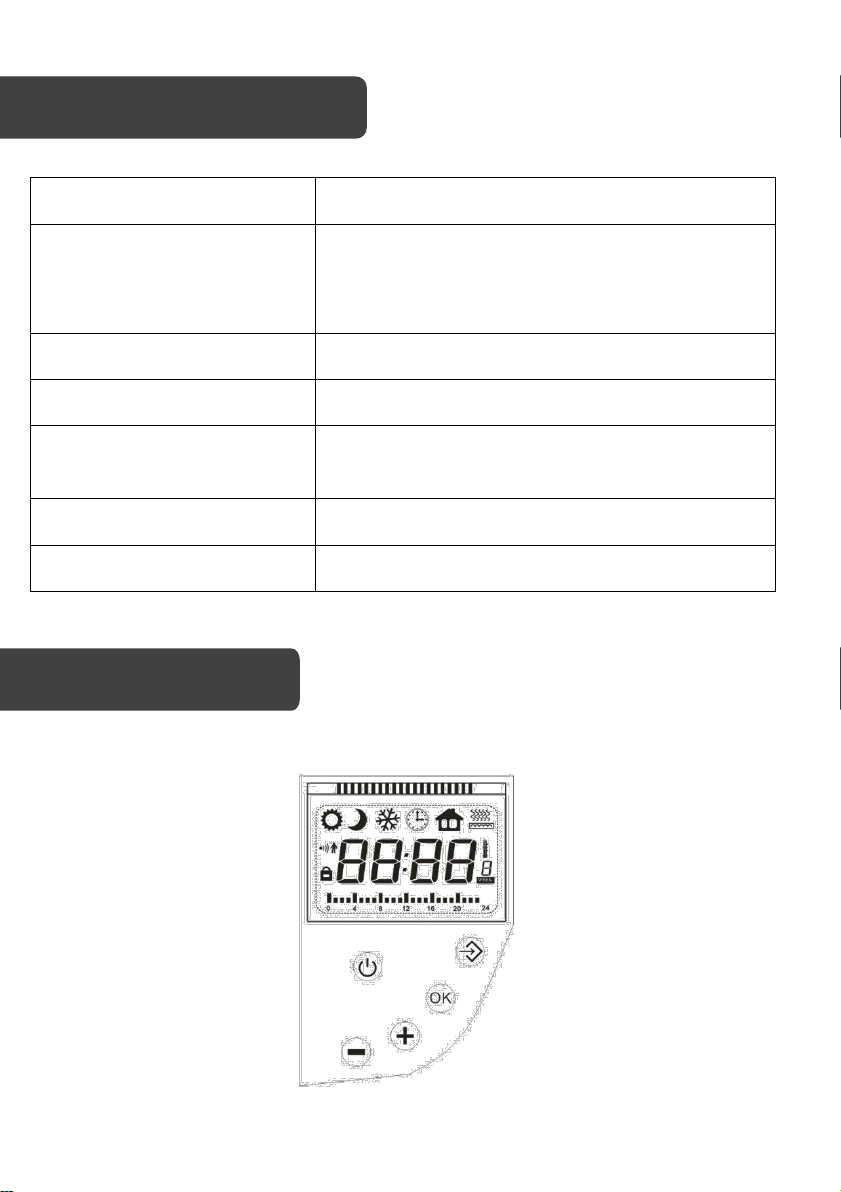

Description of the control panel

9
To switch on or off your heater, press briefly the ON / OFF button. After
pressing button, your heater turns into COMFORT mode.
To change the MODE, press the ENTER button. Each time you change
the MODE as follows: COMFORT- ECO-ANTIFREEZE – PILOT WIRE.
LED Display
ON / OFF Button
ENTER Button
OK Button
UP Button
DOWN Button
TIME / TEMPERATURE
COMFORT MODE
ECONOMIC MODE
ANTIFREEZE MODE
PROGRAM MODE
PILOT WIRE MODE
KEYBORD LOCK

10
COMFORT MODE
The temperature will be maintained as you set. The pre-set temperature is 22 º
C. Set COMFORT MODE for your heater when rooms are occupied.
ECONOMIC MODE
The appliance starts to work when the room temperature is about 3.5 ° C
below the temperature that you set. The pre-set temperature is 18.5 ° C. Use
ECO MODE when rooms are unoccupied.
If you want to increase or decrease the temperature of the ECONOMIC and
COMFORT MODE, press the UP / DOWN buttons to reach the desired
temperature, stepping 0.5 ºC. The temperature can be adjusted from 7 °C to
35 ºC.
ANTIFREEZE MODE
The appliance starts to work when the room temperature is around 7 ° C. Use
this position when rooms are unoccupied for long periods of time (e.g.
holidays).
PILOT WIRE MODE
The appliance will be controlled by the external control box. Under wire
control mode, 6 modes are available: 1) comfort, 2) comfort-1, 3) comfort-2, 4)
Economic, 5) anti-frozen 6) Power off.
PROGRAM MODE
At the first use of your heater (or after a power failure), you must set the time
and day of the week:
1. Press the button for 3 seconds until the time flashes.
2. First set the hours by pressing the buttons UP and DOWN, press OK.

11
3. Then set the minutes by pressing the buttons UP and DOWN, press OK.
4. Then select the day of the week 1 = Monday, 2 = Tuesday, 3 =
Wednesday, 4 = Thursday, 5 = Friday, 6 = Saturday, 7 = Sunday, press OK.
The next step is time setting of your heater for each day (from 00 :00 to24 :00)
of the week (Mon to Sun). For every hour, you must choose either COMFORT
mode or ECONOMIC mode.
Press UP to make your heater work on the COMFORT mode during this time
or press DOWN to run on the ECO mode. COMFORT is represented by a solid
bar, ECO by empty bar.
Once you have made your selection for the day, you can:
a. press OK to enter into the next day.
b. press OK for 3 seconds to enter into next day by copying the program of
the day you just chose.
c. change the day by continuing to press the UP / DOWN buttons until you
have created a program that satisfies you.
KEYBOARD LOCK
The screen is unlocked and all the buttons make no response.
To activate the screen lock, press UP and DOWN buttons simultaneously for 3
seconds until you see appears in the screen.
Press again UP and DOWN buttons for 3 seconds to deactivate screen lock.
Factory Reset: Press button ON / OFF for 20 seconds to reset your
thermostat and reinstall the original factory configuration. Warning: time,
day of the week, your temperature levels of COMFORT and ECO mode
and your weekly schedules will be all lost.

12
MAINTENANCE
Always disconnect the appliance and let it completely cool before
any maintenance.
1. Use a vacuum cleaner to remove dust on the unit.
2. Clean the outside of the unit with a soft damp cloth and then dry it with
a dry cloth.
3. Never immerse the appliance in water or any other liquid.
This marking indicates that this product should not be disposed with other
household wastes throughout the EU. To prevent possible harm to the
environment or human health from uncontrolled waste disposal, recycle it
responsibly to promote the sustainable reuse of material resources. To return
your used device, please use the return and collection systems or contact the
retailer where the product was purchased. They can take this product for
environmental safe recycling.
