Livoo DOD188 User manual

Instruction manual
WWW.LIVOO.FR
Reference : DOD188
Version : 1.4
Language : English
Electric juicer

ser manual
1
Thank you to have purchased a product brand LIVOO. We take great care in design, ergonomics and simple
use of our products. We hope that this product will give you complete satisfaction.
General Instructions
PLEASE, TAKE TIME TO READ WELL THE INSTR CTIONS FOR SE
PARTIC LARLY BEFORE THE FIRST SE.
A misuse of the appliance can damage it or hurt the user. Assure
that you use the appliance for the use for which it is designed; we
refuse any responsibilities as for the damages by an incorrect use
or a bad manipulation.
1. Check that your mains voltage corresponds to that stated
on the appliance.
2. The safety instructions do not by themselves eliminate any
danger completely and proper accident prevention
measures must always be used.
3. Never leave the appliance unsupervised when in use.
4. If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard (*).
5. Only use the appliance for domestic purposes and in the
way indicated in these instructions.
6. Never immerse the base of your appliance in water or any
other liquid for any reason whatsoever. Never place it into
the dishwasher.
7. Never use the appliance near hot surfaces.
8. Never use the appliance outside and always place it in a dry
environment.

ser manual
2
9. Never move the appliance by pulling the cord. Make sure
the cord cannot get caught in any way. Do not wind the
cord around the appliance and do not bend it.
10. Stand the appliance on a table or flat surface.
11. nplug the appliance when not in use.
12. This kind of appliance cannot function continuously, it is
not a professional type of appliance. It is necessary to make
temporary stops.
13. Do not use the appliance if the rotating sieve is damaged.
14. It is absolutely necessary to keep this appliance clean at all
times as it comes into direct contact with food.
15. Never touch the movable part with your hands in order not
to get hurt. Do not force the mechanism by squeezing the
fruits you are pressing too much. There is a device that
prevents if the press hold too firm is. So the cone rotation
will reverse itself, which means that you have to release
the pressure on the fruit lightly before continuing to
prepare.
16. The appliance is not intended to be operated by means of
external timer or separate remote control system.
17. Keep this manual with the appliance. If the appliance is to
be used by a third party, this instruction manual must be
supplied with it.
18. This appliance can be used by children aged from 8 years
and above if they have been given supervision or
instruction concerning use of the appliance in a safe way
and if they understand the hazards involved.

ser manual
3
19. Cleaning and user maintenance shall not be made by
children unless they are aged from 8 years and above and
supervised.
20. This appliance shall not be used by children. Keep the
appliance and its cord out of reach of children aged less
than 8 years.
21. Always disconnect the appliance from the supply if it is left
unattended and before assembling, disassembling or
cleaning.
22. Appliances can be used by persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way
and if they understand the hazards involved.
23. Children shall not play with the appliance.
24. Regarding the instruction for cleaning surfaces in contact
with food or oil, thanks to refer to the below paragraph
“cleaning” in manual.
25. There is potential injury for misuse.
26. Switch off the appliance and disconnect from supply
before changing accessories or approaching parts that
move in use.
27. Regarding the instructions for the use of accessories,
operation times and speed settings, thanks to refer to the
below paragraphs
28. Accessories, other than those supplied with the appliance,
include instructions for their safe use.

ser manual
4
29. This appliance is intended to be used for household and
similar applications such as:
-staff kitchen areas in shops, offices and other working
environments
-farm houses
-by clients in hotels, motels and other residential type
environments
-bed and breakfast type environments
(*)
Competent qualified electrician: after sales department of the producer or importer or any person who
is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any
case you should return the appliance to this electrician
This instruction manual is available too on our website www.livoo.fr
TECHNICAL SPECIFICATIONS
Voltage: 220-240V~ 50-60Hz
Power: 40W
Capacity of juice tray: 0,5L
One cycle operation: ON: 15sec / OFF: 15sec
Number of cycles: 10

ser manual
5

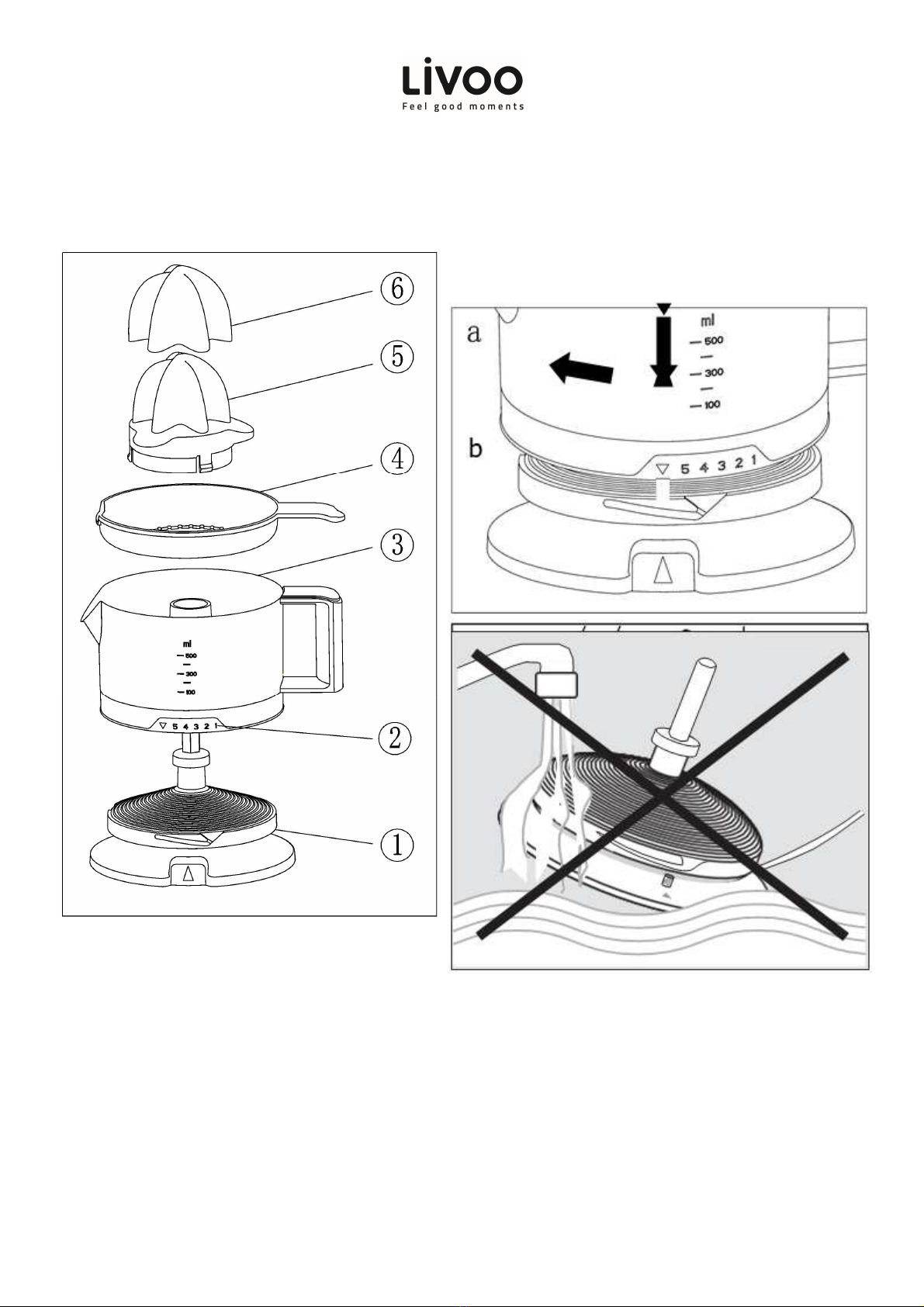

DESCRIPTION
1. Power base
2. Pulp content scale (5= High pulp content; 1=Low pulp content)
3. Juice cup
4. Dreg filter
5. Small cone
6. Big cone

ser manual
6
Before first use
Keep the packaging material away from children, they could suffocate.
npack the citrus juices and remove all of the packaging. Examine the juicer for visible damage and check
that all of the parts are present.
You should clean the appliance before using it for the first time, wipe the motor base with a damp cloth,
rinse the cones, strainer, juice container with warm water and a few drops of washing-up liquid.
SE
Selecting accessories
Depending on the size of the fruit you are using, you can use the large or the small cone.
•The large cone is suitable for juicing citrus fruit, such as grape fruit, oranges, etc
•The small cone is suitable for juicing small citrus fruit, such as lemons, limes etc.
Installation and Disassembly
•Press down the small juicing cone (5) directly onto the dreg filter (4), then place the dreg filter on
the juice cup (3).
•If you wish to use the big cone (6), fit directly the large cone over the top of the small cone.
•Install the juice cup on the power base (1). The installation process is as following:
Aim the arrow on the left end of pulp content scale (2) at an arrow on the power base (a)
and install it on the base.
Then rotate the juice cup clockwise until it is locked onto the power base. Rotate
counterclockwise when it is disassembled.
Juicing
After installing the product, press the half citrus fruit on the cone head. When the fruit is pressed down,
the juicer starts immediately. when the fruit is removed from the cone head, the motor stops
automatically. The motor can be stopped and started by lifting and pressing the fruit on the cone head,
or the rotating direction of the cone juicer head can be changed to increase the amount of juice.
Remove the juice cup from the power base before pouring.
Caution: if you apply too much pressure to the juicing cone, the motor may seize.
After use
nplug the appliance.
Remove cone, dreg filter, juice container from base of the appliance and clean them.
Juicing advice
Citrus fruit juices should be consumed immediately and never stored in a metal container.
Citrus juices are ideal for mixing.
Freshly squeezed juice gives cocktails a particularly tangy twist and better flavor.

ser manual
7
CLEANING AND STORAGE
nplug the citrus juicer before you clean it.
The motor base must not be immersed in water or other liquids or held under running water as this could
give you an electric shock.
The juicing cones, strainer and juice container can go in the dishwasher.
Wipe the motor base with a damp cloth.
If you use the spout on the juice container frequently, pulp may build up in the spout. Therefore, clean
the spout after each use.
Correct Disposal of this product
(Waste lectrical & lectronic quipment)
(Applicable in the uropean Union and other uropean countries with separate collection systems)
The European Directive 2012/19/E on Waste Facilities Electrical and Electronic (WEEE)
This marking shown on the product or its literature, indicates that it should not be disposed with other
household wastes at the end of its working life.
To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from
other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product or their local authority office, for details
of where and how they can take this item for environmentally safe recycling.
•Photo no contractual
•Worried about the quality of his products the manufacturer reserves the right to make modifications without
advance notice
LIVOO
61071
67452 Mundolsheim-FRANCE
