Livoo DOH124 User manual

Instruction manual
WWW.LIVOO.FR
Reference : DOH124
Version : 1.4
Language : English
Wet an ry vacuum
cleaner

Instruction manual
WWW.LIVOO.FR
You have purchase a pro uct LIVOO bran an we thank you. We take great care in esign,
ergonomics an ease of use of our pro ucts. We hope that this pro uct will give you complete
satisfaction.
This instruction manual is available too on our website www.livoo.fr
SAFETY ADVICES
PLEASE, TAKE TIME TO READ WELL THE INSTRUCTIONS FOR
USE PARTICULARLY BEFORE THE FIRST USE.
A misuse of the appliance can amage it or hurt the user.
Assure that you use the appliance for the use for which it is
esigne ; we refuse any responsibilities as for the amages
by an incorrect use or a ba manipulation.
1. The appliance is inten e for omestic wet an ry
vacuuming use only. Commercial an in ustrial use may
cause amages an will voi warranty
2. Plug in your appliance to an earth socket.
3. Any use not respecting the usual precautions of the evice
removes any responsibility to the retailer of the importer
or the manufacturer.
4. Before use check that the voltage of your wall outlet
correspon to the rate voltage manner.
5. If the supply cor is amage , it must be replace by the
manufacturer, its service agent or similarly qualifie
persons in or er to avoi a hazar . (*)
6. Do not immerse in water for cleaning
7. Close supervision is necessary when your appliance is
being use near chil ren or infirm persons.
8. Do not use the appliance if your han s are wet. Never use

Instruction manual
WWW.LIVOO.FR
the appliance if gets wet an unplug it imme iately.
9. Avoid bending, stamping and dragging the hose. The
hose should be chec ed regularly and must not be used
if damaged.
10. Do not use this evice to suck up incan escent or sharp
objects (cigarette en s of cigarettes,soot, lit (switche on)
matches, hot ashes, nails). Do not vacuum any objects
that are hotter than > 40 °C
11. Do not use this vacuum cleaner to suck up pins, threa s,
cement, plaster, or quite ifferent material of
construction or ecoration.
12. Never suck up liqui pro ucts nor toxic matter, cleaners
or gasoline (essence) or angerous or flammable
pro ucts. You woul risk to amage seriously your evice.
13. While absorbing please do not absorb mud, gypsum
material, wall powder, absorb hair group, large ball of
paper etc. otherwise the vacuum cleaner filter can cause
bloc age and the motor will be burned. If these small
particles were absorbed please disconnect appliance and
clean the dust bag or filter
14. This appliance can be use by chil ren age from 8 years
an above an persons with re uce physical, sensory or
mental capabilities or lack of experience an knowle ge if
they have been given supervision or instruction
concerning use of the appliance in a safe way an
un erstan the hazar s involve . Chil ren shall not play
with the appliance. Cleaning an user maintenance shall
not be ma e by chil ren without supervision.
15. Keep the appliance an its cor out of reach of chil ren

Instruction manual
WWW.LIVOO.FR
less than 8 years.
16. Never use the appliance on somebo y or on animals bo y
17. Make sure to block never the zones of air inlets.
18. Keep the appliance away from heating surface
19. Never use the electric cable to raise, transport or
isconnect the evice.
20. The plug must be remove from the socket-outlet before
cleaning or maintaining the appliance.
21. The appliance is not inten e to be operate by means of
external timer or separate remote control system.
22. Before using the vacuum cleaner, please check if filter,
filter sponge, paper bag or cloth bag are properly
mounte . Please on’t use the vacuum cleaner when
above parts o not exist.
23. Don't remove the plug by pulling the power cor
24. Do not leave the appliance alone when the appliance is in
work.
25. Don't press an roll the power cor by heavy objects.
26. Do not use appliance for other than inten e use
27. Use the accessories an spare parts only supplie by the
manufacturer or its authorize service agent
28. Do not use the appliance if the filter is not installe ! Do
not use other filters except the ones (fire prevention filter)
attache to the appliance by manufacturer.
29. Do not use the appliance to vacuum the ust harmful to
health. ( ust classes L, M, H)
30. Don't touch the live parts in appliance

Instruction manual
WWW.LIVOO.FR
31. This appliance is inten e to be use in househol an
similar applications such as:
•staff kitchen areas in shops, offices an other
working environments
•farm houses
•by clients in hotels, motels an other
resi ential type environments
•be an breakfast type environments
(*)
Competent qualifie electrician: after sales epartment of the pro ucer or importer or any person
who is qualifie , approve an competent to perform this kin of repairs in or er to avoi all anger.
In any case you shoul return the appliance to this electrician .
SPECIFICATIONS
Voltage: 220-240V~ 50-60Hz
Power: 1400W
Capacity 23L
USE
Before using the vacuum cleaner, please check if filter, paper bag are properly mounte .

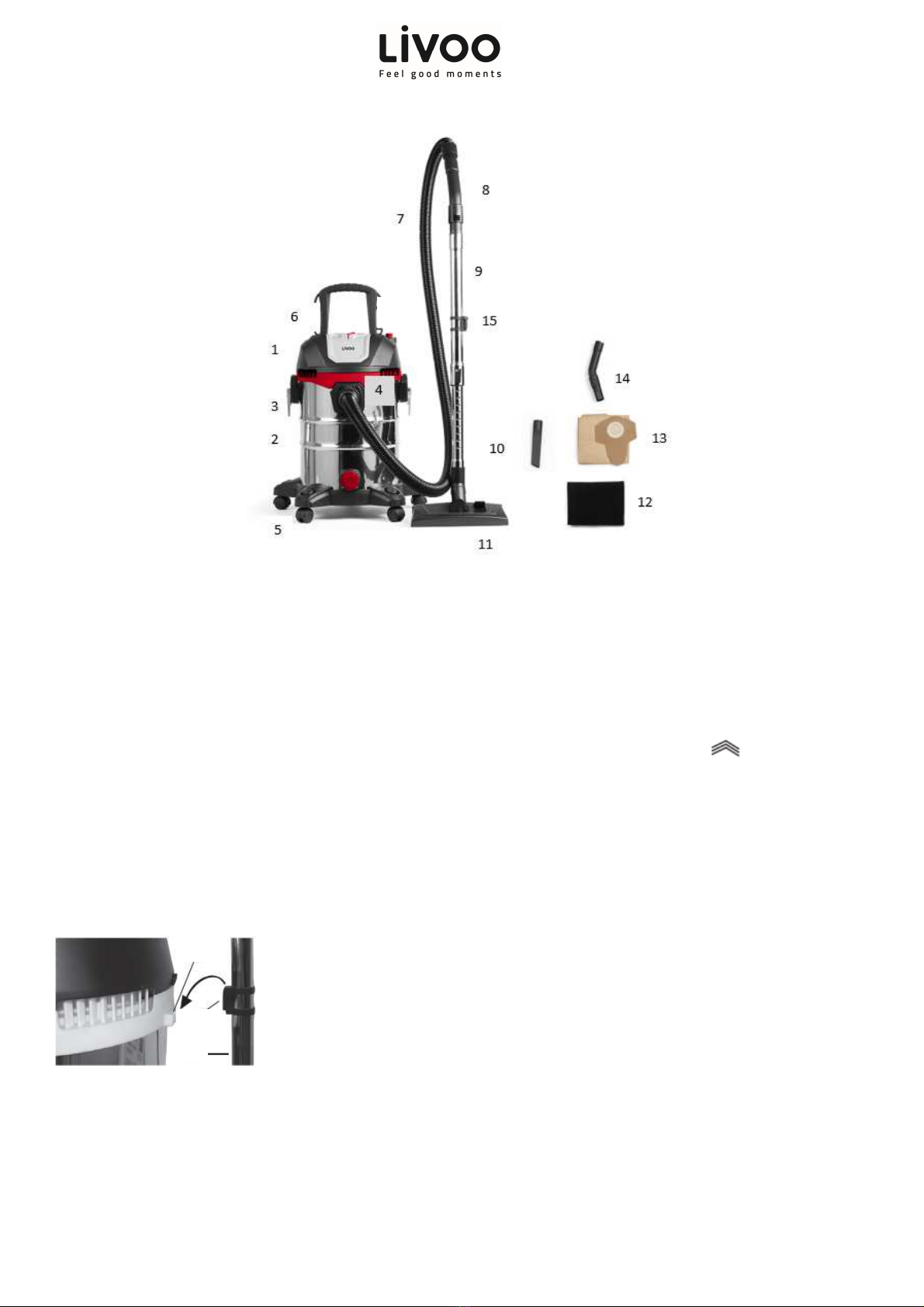

Assembly
1. Place the 5 multi irectional wheels (5) onto the mounts on the stainless steel container (2).
Attach each multi irectional wheel with a crosshea bolt.
2. Loosen the locking lever (3) an remove the motor hea (1).

Instruction manual
WWW.LIVOO.FR
3. Insert the motor hea into the stainless steel container with concave ri ing on the suction
connector.
4. Turn the fastening clip to the right position an lock the locking lever (3). Turn them clockwise
or anti-clockwise to a just the tightness.
5. Fit the accessories:
-Connect the suction hose (7)
-Fit the telescopic tube (9). (Press the knob on the telescopic suction pipe in the irection
an separate to the esire length.
-Fit the esire nozzle (10/11)
Note: never vacuum without a filter
To store the suction set, push together the telescopic suction hose an plug the suction tube hook
(15) into the socket on the motor hea
HEPA filter
1. Remove the motor hea (1) an place it upsi e- own on a flat surface.
2. Turn the filter locking screw (16) anticlockwise an pull out to remove.
3. Pull out to remove the HEPA filter (17) from the HEPA filter basket (18)
4. Put an press in the new HEPA filter on the HEPA filter basket by turning it clockwise to fit it
well.
14
15
9
20

Instruction manual
WWW.LIVOO.FR
5. Insert the filter locking screw an turn clockwise to tighten the new cartri ge filter.
Foam filter
1. Procee same as above an put the foam filter (12) on the cartri ge filter basket till the en -
point to assemble.
2. Pull the en of the foam filter to remove it from the cartri ge filter basket.
Note: To avoi tearing the foam filter, use only ry foam filter
Paper filter bag
1. Always work with HEPA filter for ry ust only.
2. Remove the motor hea . Unfol the paper filter bag (13) an hol the paper filter bag collar to
pull the perforation over the internal connection of suction connection (19).
3. Make sure the sealing ring insi e the paper filter bag collar to close the internal cylin er
connection of suction connection firmly.
Dry vacuuming:
1. Work with a HEPA filter only.
18
17
16
19
13

Instruction manual
WWW.LIVOO.FR
2. A just the switchable floor nozzle (11) between har surface floor an carpete floor by
pushing the lever (11A) forwar or backwar .
3. Use crevice nozzle (10) to clean e ges, joints, heaters etc.
4. Push the air regulation cover back (minimum force) an forth (maximum force) to get the right
suction force for ifferent surface.
5. Push the telescopic tube button (10A) to a just it to the length of your choice.
6. Check the filling volume of stainless steel container after certain usage, o not allow the ust
wrap the cartri ge filter, a a paper filter bag if necessary. (See above)
Wet vacuuming:
Never reach into the water to be suction up. Danger of electric shoc . Never push the
filter cleaning button (20). Danger of electric shoc
Do not use the paper filter bag.
1. Assemble the foam filter. (See above). A just the switchable floor nozzle (11) accor ing to the
surface.
2. Use air regulation han le tube (14) to vacuum the raining water, push the air regulation cover
(14A) forwar an insert air regulation han le into the water pool to suction up the water.
3. Empty the stainless steel container imme iately after wet vacuuming.
4. If the stainless steel container is full, a float will close the suction opening an the machine will
work at a higher spee . Switch off the appliance imme iately an empty the container.
Blowing function
Operate without HEPA filter is recommended.
You can clean har to reach location or ifficult vacuuming area, like leaves from a gravel be .
Connect the suction hose (7) to the blowing connector (4) on the motor hea .
Connect the necessary accessories, excepting for switchable floor nozzle, to the suction hose. Hol
the accessory an switch on the machine to blow
20A
20
11A
11
10A
14A
14

Instruction manual
WWW.LIVOO.FR
HEPA filter self-cleaning
•The HEPA filter self-cleaning system is inten e for vacuuming up large volumes of fine ust
without paper filter bag.
•Only operate the HEPA filter self-cleaning function without a paper filter bag inserte ,
otherwise the filter bag can get amage .
•Do not operate the HEPA filter self-cleaning function with wet cartri ge filter.
•Do not operate the HEPA filter self-cleaning function uring wet vacuuming
1. Connect the suction hose an switch on the machine.
2. Insert the other en of suction hose into the accessory mount of the wheels.
4
7

Instruction manual
WWW.LIVOO.FR
3. Push the filter cleaning button (20) 1-2 secon s x 5 while the machine is switche on, wait 4
secon s between the in ivi ual pushing.
4. Switch off the machine.
Note: After operating the HEPA filter self-cleaning function several times, check the stainless steel
container for its filling volume. Do not allow the ust wrap the filter.
CLEANING AND STORAGE
Unplug appliance
Use amp cloth to clean appliance outsi e, o not use solvent, gasoline otherwise it will lea to
crack or fa e
After use, empty the stainless steel container:
1. For liqui irt, open the rainage outlet (8) to allow the vacuume liqui to rain out.
2. Remove the motor hea .
3. Pour out the liqui resi ue.
4. For ry ust, o same as above.
5. Clean the waste tank with a amp cloth.
6. Wash the foam filter with lukewarm water an soap, an allow to ry.
7. Replace the paper filter bag when full.
8. Keep the appliance in ry environment

Instruction manual
WWW.LIVOO.FR
Correct disposal of the unit
(Electrical and Electronic Equipment)
(Applicable in the European Union an the rest of Europe that have a opte separate collection systems
countries)
The European Directive 2012/19/EU on Waste Electrical an Electronic Equipment (WEEE), requires that ol househol
electrical appliances must not be ispose of in the normal househol waste stream. Ol appliances must be collecte
separately in or er to optimize the recovery an recycling of the materials they contain an re uce the impact on human
health an the environment. The symbol of the crosse out ustbin is marke on all pro ucts to remin the obligations of
separate collection. Consumers shoul contact their local authority or retailer for information concerning the correct
isposal of their pro uct.
•Non contractual illustration
•Pro uct information is subject to change without prior notice.
