Livoo DOH126 User manual

Instruction manual
WWW.LIVOO.FR
Reference : DOH126
Version : 1.4
Language : Englis
Robot vacuum cleaner

Instruction manual
WWW.LIVOO.FR
You ave purc ased a product LIVOO brand and we t ank you. We take great care in design,
ergonomics and ease of use of our products. We ope t at t is product will give you complete
satisfaction.
T is instruction manual is available too on our website www.livoo.fr
SAFETY ADVICES
PLEASE, TAKE TIME TO READ WELL THE INSTRUCTIONS FOR
USE PARTICULARLY BEFORE THE FIRST USE.
A misuse of t e appliance can damage it or urt t e user.
Assure t at you use t e appliance for t e use for w ic it is
designed; we refuse any responsibilities as for t e damages
by an incorrect use or a bad manipulation.
1. T e appliance is intended for domestic wet and dry
vacuuming use only. Commercial and industrial use may
cause damages and will void warranty
2. Plug in your appliance to an eart socket.
3. Any use not respecting t e usual precautions of t e
device removes any responsibility to t e retailer of t e
importer or t e manufacturer.
4. Before use c eck t at t e voltage of your wall outlet
correspond to t e rated voltage manner.
5. If t e adapter supply cord is damaged, it must be
replaced by t e manufacturer, its service agent or
similarly qualified persons in order to avoid a azard. (*)
6. Do not immerse in water for cleaning
7. Close supervision is necessary w en your appliance is
being used near c ildren or infirm persons.
8. Do not use t e appliance if your ands are wet, do not

Instruction manual
WWW.LIVOO.FR
use dock station wit wet and w en c arging, ot erwise
it may cause damage or electric s ock.
9. Do not use t is device to suck up incandescent or s arp
objects (cigarette ends of cigarettes, lit (switc ed on)
matc es, ot as es, nails). Do not vacuum any objects t at
are otter t an > 40 °C
10. Do not use t is vacuum cleaner to suck up pins, t reads,
cement, plaster, or quite different material of
construction or decoration.
11. Never suck up liquid products nor toxic matter, cleaners
or gasoline (essence) or dangerous or flammable
products. You would risk to damage seriously your
device.
12. While absorbing please do not absorb mud gypsum
material wall powder etc. otherwise the vacuum
cleaner filter can cause blockage and the motor will be
burned. If these small particles were absorbed please
clean the dust bag or filter
13. T is appliance can be used by c ildren aged from 8 years
and above and persons wit reduced p ysical, sensory or
mental capabilities or lack of experience and knowledge
if t ey ave been given supervision or instruction
concerning use of t e appliance in a safe way and
understand t e azards involved. C ildren s all not play
wit t e appliance. Cleaning and user maintenance s all
not be made by c ildren wit out supervision.
14. Keep t e appliance and its cord out of reac of c ildren
less t an 8 years.
15. Never use t e appliance on somebody or on animals

Instruction manual
WWW.LIVOO.FR
body
16. Make sure to block never t e zones of air inlets.
17. Keep t e appliance away from eating surface
18. Never use t e adaptor electric cable to raise, transport or
disconnect t e device.
19. T e plug must be removed from t e socket-outlet before
cleaning or maintaining t e appliance.
20. T e appliance is not intended to be operated by means
of external timer or separate remote control system.
21. Warning: t e appliance is only to be used wit t e power
supply unit provided wit t e appliance.
22. Before using t e vacuum cleaner, please c eck if filter is
properly mounted.
23. Do not use appliance for ot er t an intended use
24. Use t e accessories and spare parts only supplied by t e
manufacturer or its aut orized service agent
25. Do not use t e appliance if t e filter is not installed! Do
not use ot er filters except t e ones (fire prevention
filter) attac ed to t e appliance by manufacturer.
26. Do not use t e appliance to vacuum t e dust armful to
ealt . (dust classes L, M, H).
27. Do not touc t e live parts in appliance
28. Don't remove t e adaptor plug by pulling t e power cord.
Don't press and roll t e power cord by eavy objects.
29. Do not let clot es or airs etc get involved in appliance
brus or w eels, it can cause damage and personal
injury.

Instruction manual
WWW.LIVOO.FR
30. Do not stand or seat on t e appliance, do not put eavy
object on it.
31. Do not use appliance in small space
32. WARNING: For t e purposes of rec arging t e battery,
only use t e detac able supply unit provided wit t is
appliance.
33. T is appliance contains batteries (Li-ion) t at are non-
replaceable
34. T is appliance is intended to be used in ouse old and
similar applications suc as:
•staff kitc en areas in s ops, offices and ot er
working environments
•farm ouses
•by clients in otels, motels and ot er
residential type environments
•bed and breakfast type environments
(*)
Competent qualified electrician: after sales department of t e producer or importer or any person
w o is qualified, approved and competent to perform t is kind of repairs in order to avoid all danger.
In any case you s ould return t e appliance to t is electrician .
SPECIFICATIONS
Voltage: 14 8V
Power: li-Ion Batterie: 14 8V 2600mAh
Information publis ed Value and precision Unit
DELTA
BP61071
67452 Mundols eim – France
- -
Model identifier DOH126 -
Input voltage
100
-
240
V

Instruction manual
WWW.LIVOO.FR
Input AC frequency
50
-
60
Hz
Output voltage
19
.0
V
Output current
0,6
A
Output power 11.4 W
Average active efficiency 84.4
Efficiency at low load (10 %) 75,2 W
No-load power consumption 0.10 W
Insulation class logo II.
Logo inside use.
T e logo indicates t e presence of a safety isolation transformer protected against
s ort circuits
Identifies an electronic device incorporating one or more transformers and
electronic
circuits t at converts electrical power into one or more power outputs
Logo indicating t e polarity of t e output.
Energy efficiency logo from t e American DOE.
Signal window
Power button
HEPA filter

Instruction manual
WWW.LIVOO.FR
REMOTE CONTROL
Power switc
C arge return
Stop and start auto clean mode
Stop and start
cleaning
Direction button
Stop and start auto clean mode
for specific area
Stop and start auto clean
mode
for
edges
Wifi
Mode silence
Left brus
Rig t brus

Instruction manual
WWW.LIVOO.FR
USE
To charge the appliance
Plug in adaptor wit power supply, t e button indicator lig t is flas ing, t e
c arging connection is successful.
Time for first c arging: 8
Auto charging
Place t e dock station against t e wall side 1m and front 2m wit out objects.
Connect adaptor wit power supply and dock station.
T e appliance will find dock station automatically w en battery power is low.
Note: users can control appliance to find dock station through the APP and remove control
TIPPS:
•Please remove t read and ot er debris scattered on t e ground before using avoid trip or wind t e
appliance.
•Please remove t e side brus es before using mac ine on t e carpet
•T is product can be use on wood floor, tile floor and cement floor and s ort air carpet(less t an
1cm)
•You can c ange t e left and rig t brus es (use screwdriver to remove and fix t e brus ), t ey cannot
be interc anged.
1. Turn on power switc (on/off), button indicator lig ts up
2. Press power button (or remote control power button), appliance start cleaning
3. Press one time on power button again and it stops cleaning, press power switc on off position,
indicator lig ts off, appliance s ut down.
APP use:

Instruction manual
WWW.LIVOO.FR
1. Searc t e TUYA Smart app on t e Appstore or Google Play or scan t e QR code below:
*Before using the app, make sure you have a working Wifi network
2. Open the TUYA Smart app on your phone once the download is complete.
3. Sign in with your account or create one following your application instructions.
4. Once you are logged in or your account has been created, you will arrive on the home screen of
your application.
5. Add your robot vacuum by clicking on the “+” symbol at the top right of the home screen and
select “Small Appliances” then “Robot Vacuum”
6. Connect to t e Wifi network*: Press t e auto button on t e device for 5 seconds or press t e
wifi button on t e remote control and confirm t e status of t e lig t on your screen. T en select
t e Wifi you want to use and enter t e password.

Instruction manual
WWW.LIVOO.FR
*Your Wifi network must be set to 2.4 Ghz. If your Wifi is set to Ghz, please follow the instructions in
the application «Traditional router tuning method»
7. Once your Wifi as been connected, make sure your device is on so t at you can connect it.
8. Wait until your device as been added and click “Done”.
9. Your robot as been added, you can start using it.
Mode selection
•Auto clean: to clean full ome coverage
•Edge clean: to clean along edges (suc as walls)
•Spot clean: for specific area, one time clean is complete, appliance will stop at t e beginning.
You can chose max or normal suction power and time for cleaning through APP setting
Microfiber wipes use
Appliance can be used wit microfiber, wet t e microfiber for better clean effect, put it on appliance
and adjust t e water flow t roug APP setting button.

Instruction manual
WWW.LIVOO.FR
CLEANING AND STORAGE

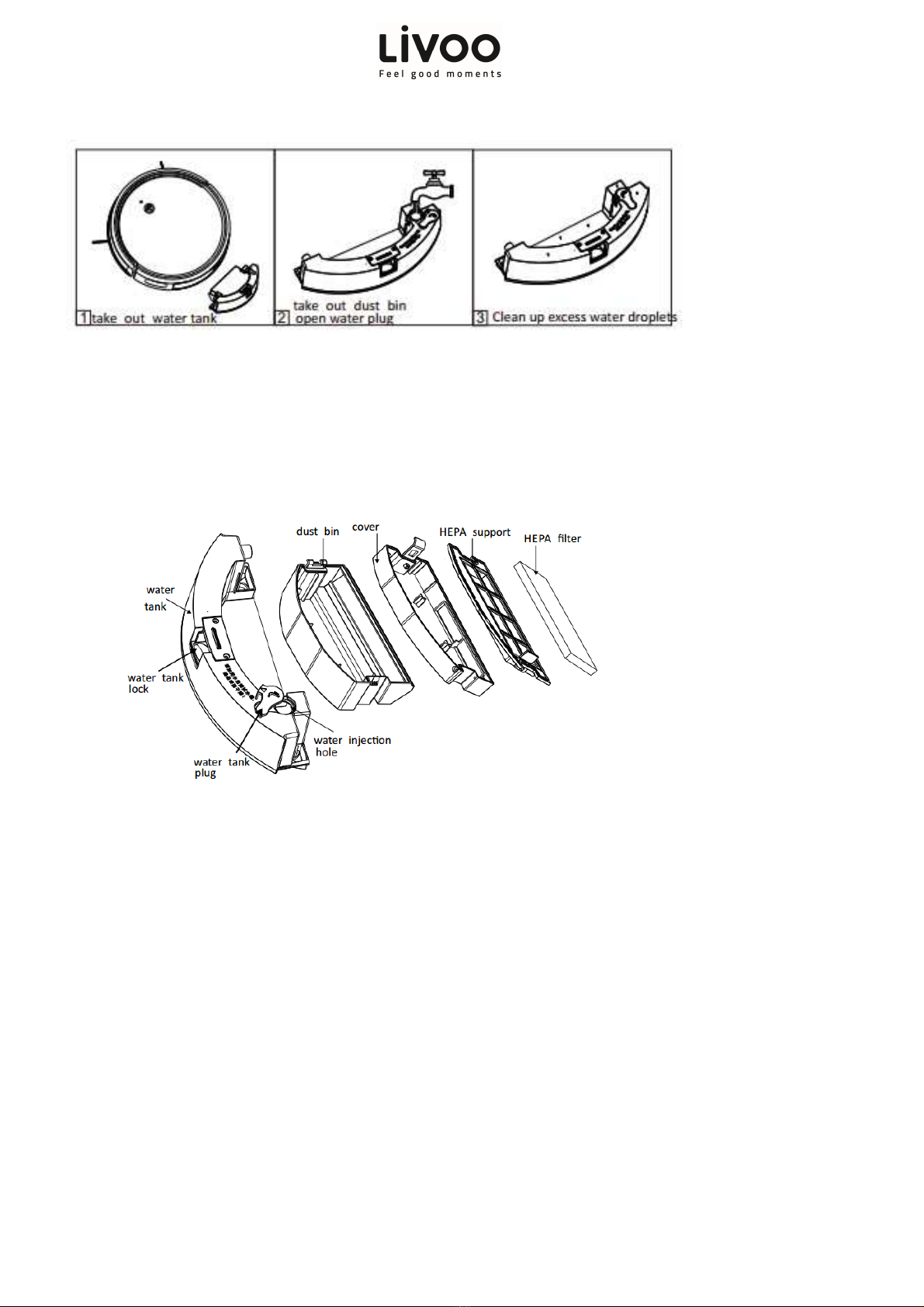

Dust bin and filter cleaning:
•Take out dust bin, clean and dry it, t en remove filter components, HEPA filter cannot be was ,
so slig t clean t e dust.
Roller brush and side brush cleaning
•Clean roller brus by opening pressure plate and using cleaning brus
•Use screwdriver to remove side brus es and clean t em by using cleaning brus
Microfiber cleaning:
•Clean and dry it after use
Other parts cleaning:
•Clean cliff sensor, c arging contact wit soft clean clot
•Ensure you t e signal window is well cleaned too
•Clean universal w eel by taking out t em, t en you can clean t e runner and spindle

Instruction manual
WWW.LIVOO.FR
TROUBLEHOOTING
Problems Reasons Solution
Appliance not works You forgot to turn on Turn on power swtic
Appliance run out of battery C arge wit adapter
Appliance cannot c arge C arging connection are
unreliable
Make sure adapter is reliable
Wipe c arger and c arging contact
Appliance is working in circles Signal window is dirty Use dry mop wipe t e signal
window
Appliance is back away Cliff sensors are dirty Use dry mop wipe t e signal
window
Front bumper stuck Slig t it t e bumper
Left/rig t w eel are abnormal T e w eel is stuck by somet ing Clean it
Left/rig t brus es are abnormal Left/rig t brus installation error Install t e brus properly
Universal w eel is abnormal T e w eel is stuck by somet ing Clean it
Mobile APP can’t use Network connect failed Follow t e manual step to connect
APP
Network as been connected but
user connect it again
After APP network connect
successful, no need connect again
under same wifi
Remote control is insensitive Too far away from t e appliance Align t e appliance to operate
wit in valid range
ot er abnormal Unknown reasons Restart t e mac ine
(turn off power switc
t en turn on again)
Battery Advice and recycling
* Keep t e battery out of eac of c ildren.

Instruction manual
WWW.LIVOO.FR
* Do not mix old and new batteries, wit different compositions or of different
brands in order to prevent possible leakage, explosion.
* Do not eat or deform t e batteries or explore to fire.
* Waste batteries s ould not disposed of wit ouse old waste.
* Please c eck wit your local aut ority for battery recycling advice.
Do not dispose of batteries wit ouse old waste. To preserve t e
environment, dispose of batteries according to regulations. Post t em in t e
nearest battery container or bring t em into your store. Do not rec arge t e
batteries, do not disassemble, do not t row t em into t e fire. Do not expose
to ig temperatures or direct sunlig t. Do not incinerate.
Procedure to observe for battery’s end of life
T e appliance batteries must be removed before discarding t e equipment. Please follow t e
procedure below:
Ensure t at your appliance is disconnected so as to reduce any risk of electrical s ock. Disc arge t e
batteries fully.
Remove t e protection cover situated in a location w ere you connect t e mains voltage adapter and
it is removed so as to access t e batteries compartment. Carry a screwdriver to remove t e screw.
Remove t e batteries from t e equipment. Cut t e cables and tab connecting t e batteries in t e
printed circuit and remove t em.
ATTENTION: THESE NI-MH CELLS MUST BE RECYCLED OR ELIMINATED IN ACCORDANCE WITH THE
EQUIPMENT SCRAPPING.
Do not burn, dismantle, crus or break out t e batteries because t ey can release toxic substances.
Do not expose t em to extreme temperatures.
Drop t em in t e batteries recycling bins designed for t is purpose or return t em to your retailer.

Instruction manual
WWW.LIVOO.FR
Correct disposal of the unit
(Electrical and Electronic Equipment)
(Applicable in t e European Union and t e rest of Europe t at ave adopted separate collection systems
countries)
T e European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires t at old ouse old
electrical appliances must not be disposed of in t e normal ouse old waste stream. Old appliances must be collected
separately in order to optimize t e recovery and recycling of t e materials t ey contain and reduce t e impact on uman
ealt and t e environment. T e symbol of t e crossed out dustbin is marked on all products to remind t e obligations of
separate collection. Consumers s ould contact t eir local aut ority or retailer for information concerning t e correct
disposal of t eir product.
•Non contractual illustration
•Product information is subject to c ange wit out prior notice.
LIVOO
BP 61071
67452 Mundolsheim - FRANCE
