2 in 1 Cordless stick
vacuum cleaner

Instruction manual
WWW.LIVOO.FR
You ave purc ased a product LIVOO brand and we t ank you. We take great care in design,
ergonomics and ease of use of our products. We ope t at t is product will give you complete
satisfaction.
T is instruction manual is available too on our website www.livoo.fr
SAFETY ADVICES
PLEASE, TAKE TIME TO READ WELL THE INSTRUCTIONS FOR
USE PARTICULARLY BEFORE THE FIRST USE.
A misuse of t e appliance can damage it or urt t e user.
Assure t at you use t e appliance for t e use for w ic it is
designed; we refuse any responsibilities as for t e damages
by an incorrect use or a bad manipulation.
1. T e appliance is intended for domestic use only.
Commercial and industrial use may cause damages and
will void warranty
2. Any use not respecting t e usual precautions of t e
device removes any responsibility to t e retailer of t e
importer or t e manufacturer.
3. Before use c eck t at t e voltage of your wall outlet
correspond to t e rated voltage manner.
4. Do not immerse in water for cleaning
5. Close supervision is necessary w en your appliance is
being used near c ildren or infirm persons.
6. Do not use t e appliance if your ands are wet. Never
use t e appliance if gets wet and unplug it immediately.
7. Do not use t e device if appliance fell, if t ere are visible
signs of damage.
8. Do not make roll on its cable

Instruction manual
WWW.LIVOO.FR
9. Do not use t is device to suck up incandescent or s arp
objects (cigarette ends of cigarettes, lit (switc ed on)
matc es, ot as es, nails).
10. Do not use t is vacuum cleaner to suck up pins, t reads,
cement, plaster, or quite different material of
construction or decoration.
11. Never suck up liquid products nor toxic matter, cleaners
or gasoline (essence) or dangerous or flammable
products. You would risk to damage seriously your
device.
12. T is appliance can be used by c ildren aged from 8 years
and above and persons wit reduced p ysical, sensory
or mental capabilities or lack of experience and
knowledge if t ey ave been given supervision or
instruction concerning use of t e appliance in a safe way
and understand t e azards involved. C ildren s all not
play wit t e appliance. Cleaning and user maintenance
s all not be made by c ildren wit out supervision.
13. Keep t e appliance and its cord out of reac of c ildren
less t an 8 years.
14. Never use t e appliance on somebody or on animals
body
15. Make sure to block never t e zones of air inlets.
16. Keep t e appliance away from eating surface
17. T e appliance is not intended to be operated by means
of external timer or separate remote control system.
18. Do not use to suck water
19. T e adaptor must be removed from t e socket-outlet
before cleaning or maintaining t e appliance.

Instruction manual
WWW.LIVOO.FR
20. T is appliance is intended to be used in ouse old and
similar applications suc as:
•staff kitc en areas in s ops, offices and ot er
working environments
•farm ouses
•by clients in otels, motels and ot er
residential type environments
•bed and breakfast type environments
21. T e appliance s ould only be used wit t e power
supply supplied wit t e appliance.
22. WARNING: For t e purposes of rec arging t e
battery, only use t e detac able supply unit <
CS20A320050FGF > provided wit t is appliance.
23. T is appliance contains batteries w ic may only be
replaced by skilled person.
(*)
Competent qualified electrician: after sales department of t e producer or importer or any
person w o is qualified, approved and competent to perform t is kind of repairs in order to avoid
all danger. In any case you s ould return t e appliance to t is electrician .
SPECIFICATIONS
Vacuum cleaner : 25,9Vd.c.
Motorized cleaning ead: 25,9 Vd.c. 30W
Rec argeable lit ium ion battery: 25, 9 Vd.c. 2500mA
Adaptor CS20A320050FGF :
Input 100-240V~50/60Hz 0,5A / Output 32V 0,5A
Information publis ed Value and precision Unit
DELTA
BP61071
67452 Mundols eim – France
- -

Instruction manual
WWW.LIVOO.FR
Model identifier DOH132 -
Input voltage 100-240 V
Input AC frequency 50/60 Hz
Output voltage 32 VDC
Output current 500 mA
Output power 16 W
Average active efficiency 87,53 %
Efficiency at low load (10 %) 76,77 %
No-load power consumption 0.08 W
Removable power supply unit
Insulation class logo II.
Logo inside use.
T e logo indicates t e presence of a safety isolation transformer protected against
s ort circuits
Identifies an electronic device incorporating one or more transformers and electronic
circuits t at converts electrical power into one or more power outputs
Logo indicating t e polarity of t e output.
Energy efficiency logo from t e American DOE.
Read t e instructions in t e user manual.

Instruction manual
WWW.LIVOO.FR
DESCRIPTION

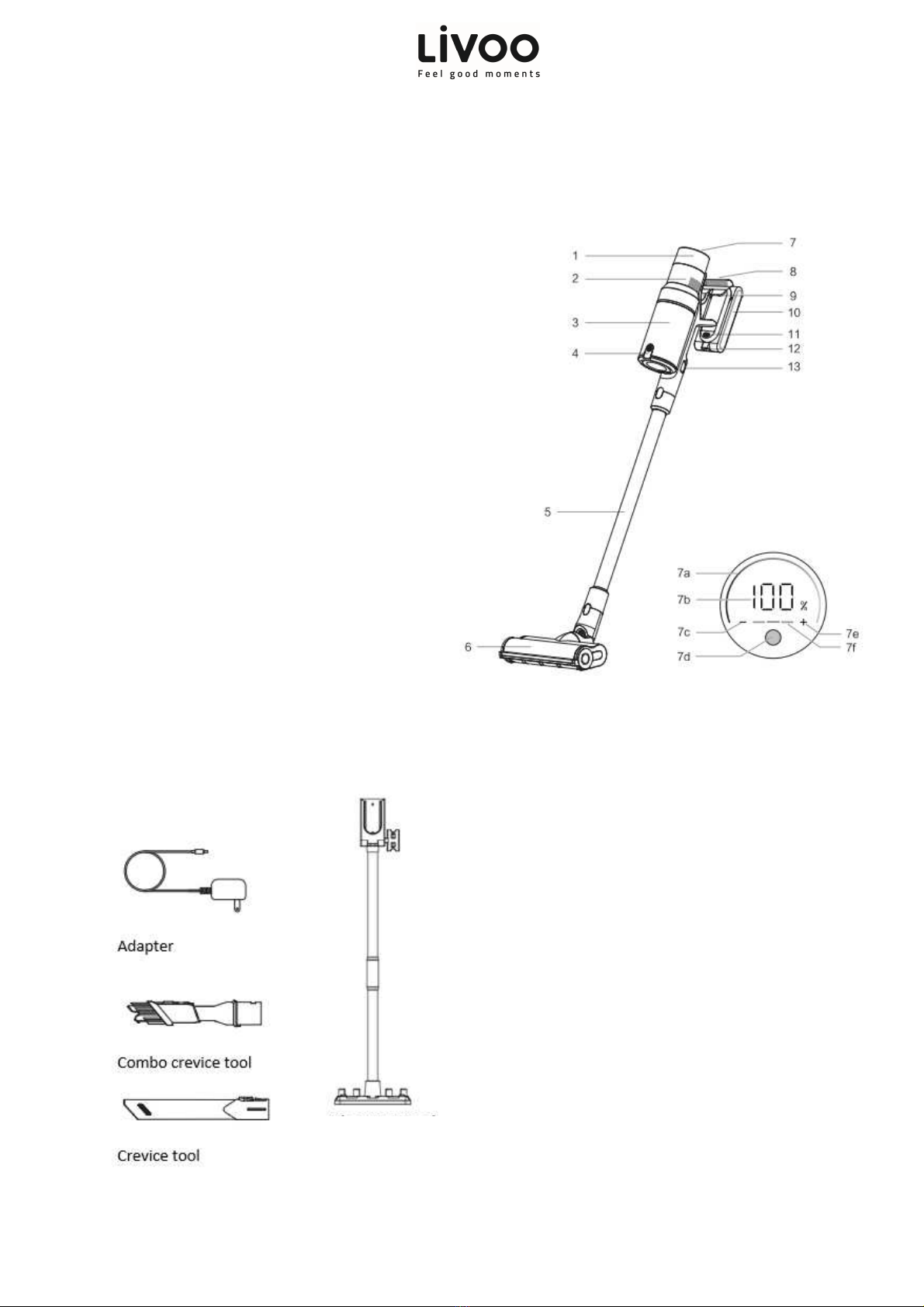

1. Dust indicator
2. Air outlet
3. Dust tank
4. Dust tank empty button
5. Tube
6. Floor brus
7. Led display
8. Handle
9. On/off switc
10. Battery
11. Battery compartment release button
12. C arging port
13. Dust tank release button
7a Lig tning power display
7b Battery remaining capacity
7c Power downs ift touc button
7d Auto/manual button
7e Power ups ift touc button
7f Power indication of power level
C arging stand

Instruction manual
WWW.LIVOO.FR
Charging stand installation

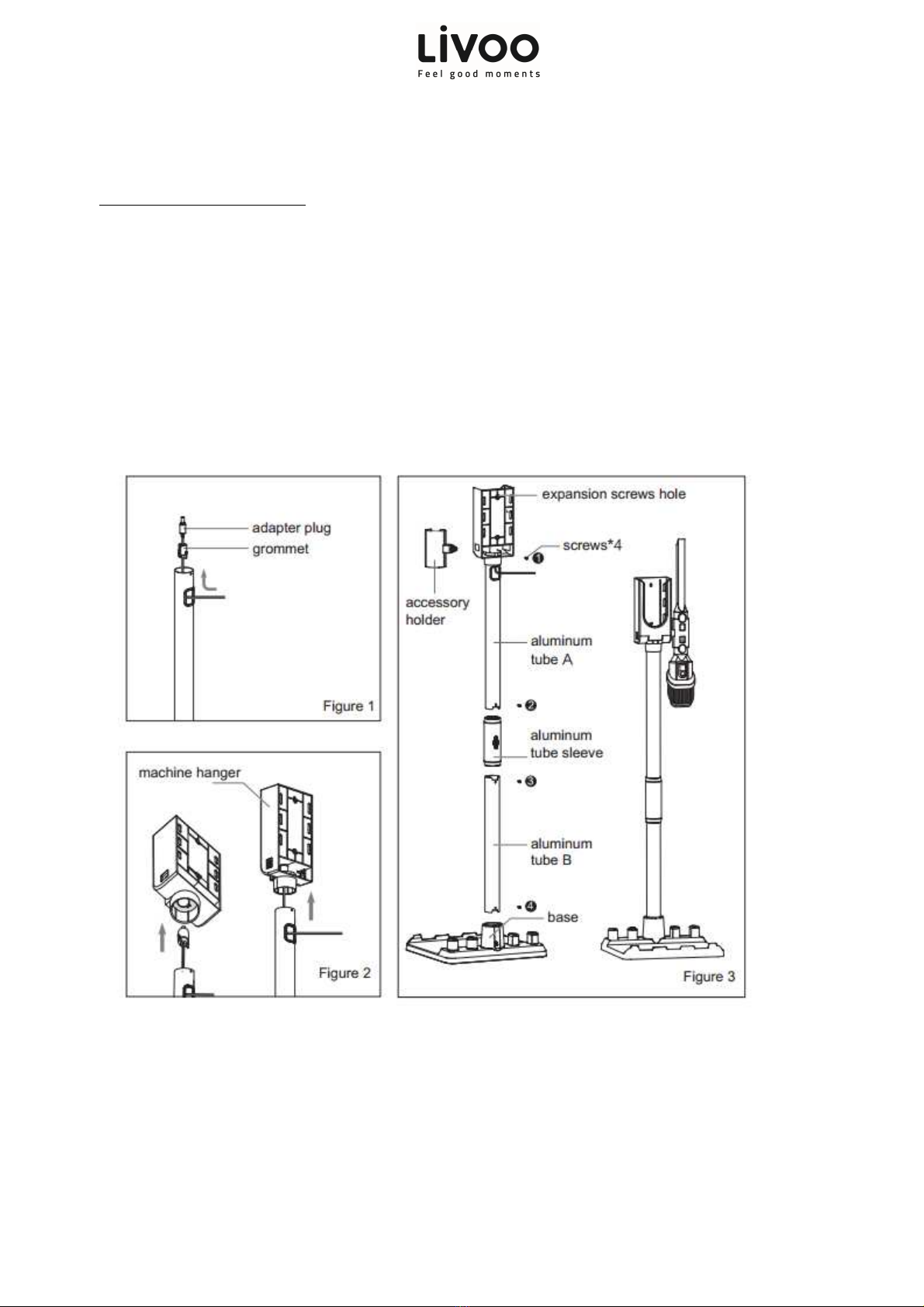

1. As s own in Figure 1, insert t e adapter plug and grommet t roug t e square ole of t e tube A.
2. As s own in Figure 2, insert t e adapter and grommet into t e round ole at t e bottom of t e
anger, and assemble it firmly by rotating t e grommet.
3. As s own in Figure 3, connect t e base, tube B, tube sleeve, tube A, and accessory anger, and
screw 1 screw into eac of t e 4 positions in t e figure.
4. T e combo crevice tool and crevice tool can be placed in t e accessory older.
Note: If c arging stand cannot be placed stably due to t e ground is uneven, you can use t e
expansion screws included wit t e mac ine to fix t e mac ine anger to t e wall to ac ieve better
stability.

Instruction manual
WWW.LIVOO.FR
Ass mbling and disass mbling:
•Align t e electric floor brus connector wit t e inox tube and insert into it, until you
ear "click" sound.
•Insert t e end of t e unit mac ine into t e connector of t e extension pipe, and
buckle it firmly;
•W en disassembling, press t e corresponding release button and pull it outwards to
remove t e floor brus or t e unit mac ine

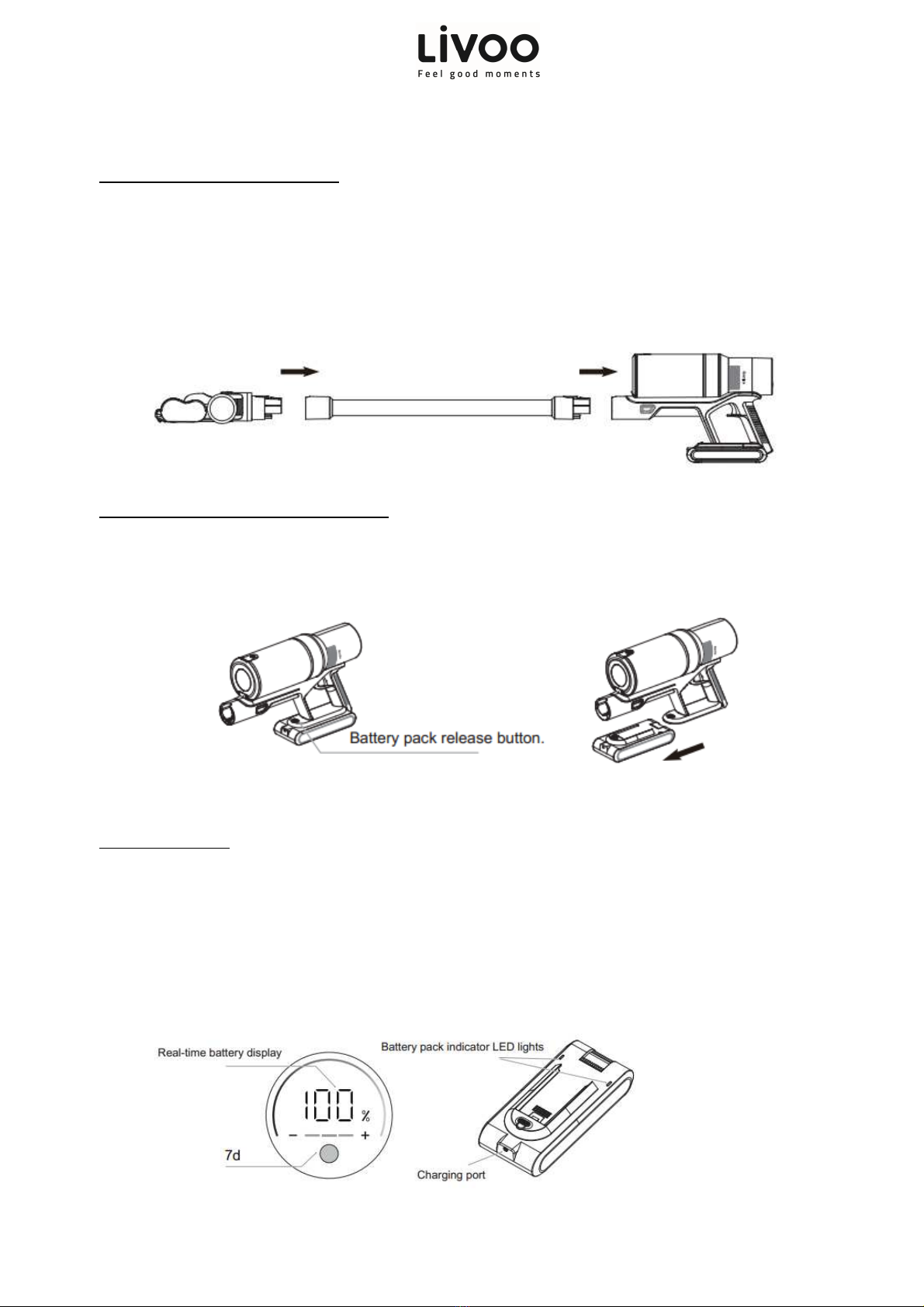

Batt ry pack installation and r moval
Press t e battery pack release button and pull it outward to remove t e battery pack.
W en installing, align t e battery pack at t e back of t e ost and slide it in until a "click" sound.
Charging proc ss
•During t e working process of t e mac ine, w en t e power of t e LED display module s ows
00%, it prompts t at t e power is insufficient and it needs to be c arged.
•Power off t e unit, plug t e adapter into t e c arging port.
•T e LED display module displays t e real-time power, and t e LED lig t on t e battery
compartment flas es, indicating t at t e c arging is normal.
•T e LED display module s ows 100%, and t e LED lig t on t e battery compartment is always
on and stops blinking, it means it is fully c arged.

Instruction manual
WWW.LIVOO.FR
Warning
•Don't turn on t e vacuum cleaner w ile c arging!
•Do not remove t e battery compartment w en c arging!
•T e battery can only be c arged at an ambient temperature between 0°C and +45°C.
•Excessive eat or cold may prolong t e time required for c arging and even damage t e
battery.
•T e normal c arging of t is product takes 5 ours.
•If t e product is not used for a long time, it is recommended to fully c arge and disc arge t e
appliance once every 3 mont s.
USE
After t e mac ine is assembled, c ose t e accessory you need to use: floor brus , brus tip or crevice
nozzle, press t e switc button to start t e mac ine and start working and press it again to s ut down
t e mac ine.
T e default setting is automatic mode w en starting up, as s own in t e figure below.
Press t e 7d button to switc to manual gear. After switc ing, it defaults to low manual gear. Tap 7e
"+" to adjust ups ift, conversely tap 7c "-" to adjust downs ift. Press t e 7d button again to switc to
automatic mode.
Not
•T e battery compartment indicator lig t is always on w en t e vacuum cleaner is working
normally.
•T e electric floor brus end is equipped wit overcurrent protection function. W en t e
electric floor brus is entangled or blocked, t e pre-set protection program will cut off t e
power.
In t is case, t e electric floor brus will stop and t e LED screen will display E3, so turn off t e
power of t e mac ine immediately, c eck and clean t e electric floor brus . After removing
t e blockage and start t e mac ine to use it again.
•T e mac ine is equipped wit an infrared dust sensor. In t e automatic gear, t e power of
t e mac ine can be adjusted in real time according to t e detection result of t e amount of
dust. However, long-term use may cause dust to accumulate and affect t e normal operation
of t e dust sensor. If t e LED screen displays E1, please turn off t e power in time, remove
t e battery pack and dust cup, and clean t e dust sensor. After reinstalling t e battery pack
and dust cup, start t e mac ine and you can use it again.
CLEANING AND STORAGE

Instruction manual
WWW.LIVOO.FR
Turn off t e power and remove t e accessories.
1. Dust tank cl aning:

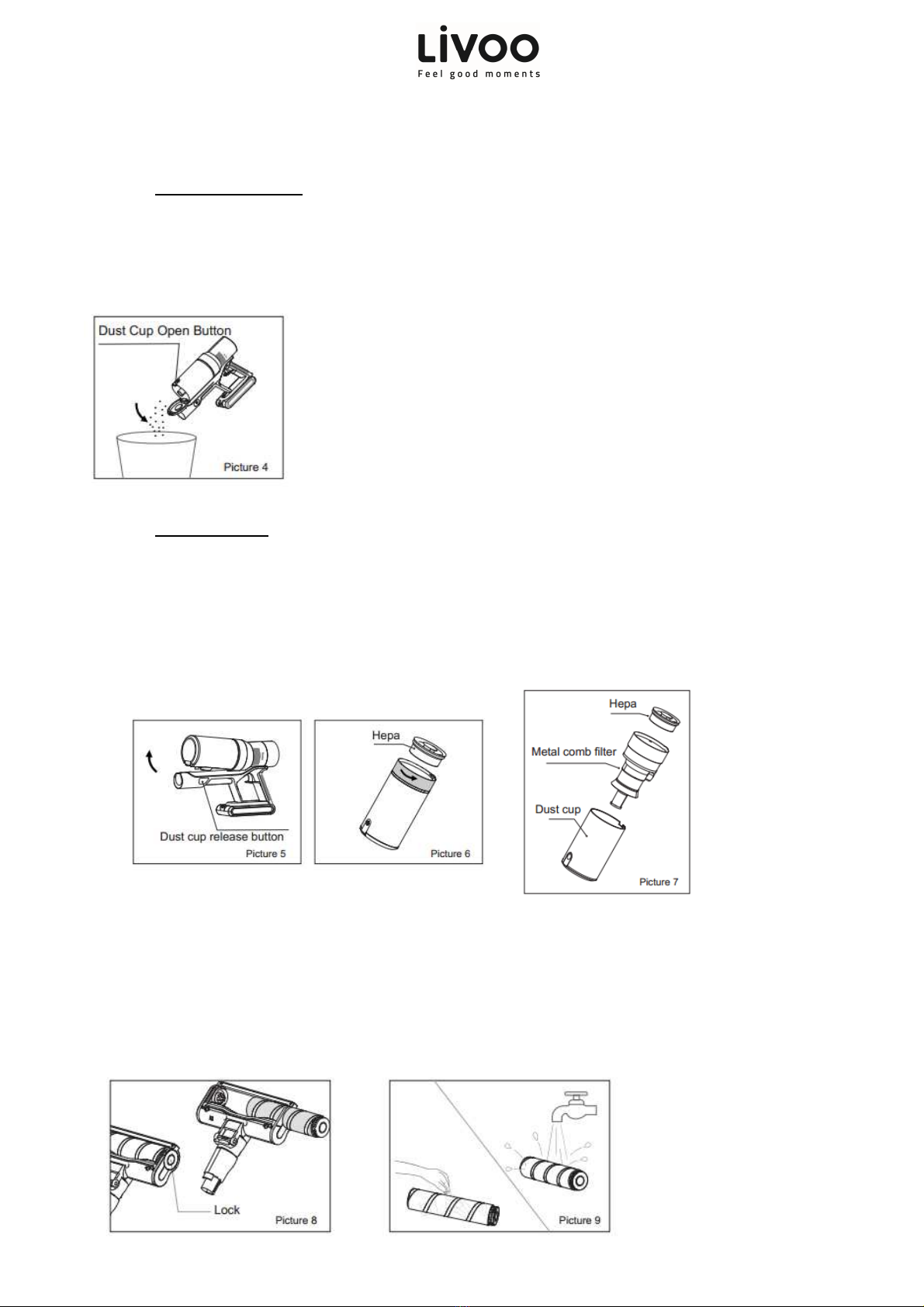

As s own in Figure 4, press t e open button on t e dust cup to empty dust, t en close t e bottom
cover and lock it tig tly.
Note: W en t e dust in t e dust cup reac es t e marked maximum position, please clean t e dust
cup in time.
2. Filt r cl aning:
As s own in Figure 5, press t e dust cup release button and remove t e dust cup.
As s own in Figure 6, remove t e Hepa filter and rotate t e filter assembly counterclockwise.
As s own in Figure 7, take t e filter out of t e dust cup.
Clean t e filter and dust cup wit a soft brus and soapy water and keep it dry before restore.
Incorrect installation will result in reduced suction!
It is recommended to clean it every 4-6 use.
3. Floor brus cleaning
As s own in Figure 8, press t e round lock on t e side of t e electric floor brus to pull out t e
roller brus .
Clean t e tangled air, animal air or debris.
It can be rinsed wit clean water if necessary, and it must be completely dried before using again.

Instruction manual
WWW.LIVOO.FR
Probl ms and solutions
T e vacuum cleaner won't start
t e batteries are empty
Please
rec arge
T e vacuum cleaner as
no or low suction power
T e dust tank
is full
T e tube or floor brus is blocked
Dust tank or filter is not
installed correctly
Please
empty
t e dust tank
Please refer to t e instruction
“note” part of manual
Please reinstall t e
dust tank or filter
correctly
T ere is obvious dust
leakage from t e vacuum
cleaner
T e dust tank
as
reac ed Max position
Dust cup or filter is not
installed correctly
Please empty t e
dust tank
Please reinstall t e dust tank
or filter correctly
T e usable time of t is
vacuum cleaner is s ortened
Low battery
T e battery is aging
Please refer to t e "Battery
C arging" section of t e
manual for proper c arging
Purc ase and use t e
manufacturer’s battery pack
Proc dur to obs rv for batt ry’s nd of lif
T e appliance batteries must be removed before discarding t e equipment. Please follow t e
procedure below:
Ensure t at your appliance is disconnected so as to reduce any risk of electrical s ock. Disc arge t e
batteries fully.
Remove t e protection cover situated in a location w ere you connect t e mains voltage adapter and
it is removed so as to access t e batteries compartment. Carry a screwdriver to remove t e screw.
Remove t e batteries from t e equipment. Cut t e cables and tab connecting t e batteries in t e
printed circuit and remove t em.
ATTENTION: THESE LI-ION CELLS MUST BE RECYCLED OR ELIMINATED IN ACCORDANCE WITH THE
EQUIPMENT SCRAPPING.
Do not burn, dismantle, crus or break out t e batteries because t ey can release toxic substances.
Do not expose t em to extreme temperatures.
Drop t em in t e batteries recycling bins designed for t is purpose or return t em to your retailer.

Instruction manual
WWW.LIVOO.FR
Corr ct disposal of th unit
(El ctrical and El ctronic Equipm nt)
(Applicable in t e European Union and t e rest of Europe t at ave adopted separate collection systems
countries)
T e European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires t at old ouse old
electrical appliances must not be disposed of in t e normal ouse old waste stream. Old appliances must be collected
separately in order to optimize t e recovery and recycling of t e materials t ey contain and reduce t e impact on
uman ealt and t e environment. T e symbol of t e crossed out dustbin is marked on all products to remind t e
obligations of separate collection. Consumers s ould contact t eir local aut ority or retailer for information concerning
t e correct disposal of t eir product.
•Non contractual illustration
•Product information is subject to c ange wit out prior notice.
LIVOO
BP 61071
67452 Mundolsheim - FRANCE
