Lloyd Pascal 260.94.167M User manual

1
Customer Helpline
If you need help or have damaged or missing parts, call our customer
helpline 0121 776 5720
Assembly instructions- Please keep for future reference- 260.94.167M GREY
260.96.167M WHITE
Issue 2- 13/7/20
Hi there,
Meet your new
Lloyd Pascal
Tallboy with
single door

2
Welcome to
the Lloyd
Pascal family
established
in 1919
We would love to see your new
product in its new home. Share
your experience by taking a picture
of your new LP product and post it
on social media tagging
#welovehome #Lloydpascal
#LPfurniture #LPhome
Connect with Us: Using your
mobile camera, scan the QR bar
code below of your favourite social
media channel and follow us!
Are you loving/satisfied with your new purchase?
Yes: That’s perfect. It would make our day if you could leave us a
review on our social media channels. Your feedback will help us
develop even better products to love.
No: If for any reason your enjoyment of our product is on Hold then let
the retailer that you purchased your item from know or contact us
and we will resolve your issue as quickly as possible.
To view our full terms and conditions please visit our website www.lloydpascal.com #welovehome

3
Safety and Care Advice
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY.
Care and maintenance
Additional Guidance
• Keep children and animals away
from the work area, small parts
could choke if swallowed.
• Make sure you have enough
space to layout the parts before
starting.
• This product has been constructed
to be used in the domestic
environment only and not for
commercial purposes.
• Assemble the item as close to its
nal position (in the same room) as
possible.
• Assemble on a soft level surface
to avoid damaging the unit or your
oor.
• We do not
recommend the use
of power drill/drivers
for inserting screws
as this could damage
the unit. Only use
hand screwdrivers.
• Parts of the assembly will be
easier with 2 people.
• Dispose of all packaging carefully
and responsibly.
• Only clean using a damp cloth
and mild detergent. Do not use
abrasive cleaners.
• From time to time check that there
are no loose screws, nuts or bolts. If
there are please re-tighten.
• This product should not be
discarded with household waste.
Take to your local authority waste
disposal centre.
• Assemble all parts and bolts loosely during assembly, only once the product is complete should you fully tighten
the bolts.
• Regularly check and ensure that all bolts and ttings are tightened properly.
Glue safety - Take care when using glue, please follow the advice below
Skin contact: Remove contamination by washing with soap and water. procedure should also be followed prior to
eating and drinking.
Eye contact: Rinse immediately with clean water for 15 minutes and seek medical advice.
If swallowed: Seek medical advice immediately.
To help prevent product toppling over please follow the steps below:
• Must use the anti tip strap or wall xing method provided (whichever applies)
• Do not allow children to climb or hang on the furniture
•Do not open more than one drawer at a time
•Do not place heavy items in the top drawer
•Do not place heavy items on top of the furniture, unless the furniture has been designed for this purpose
Please note that only the anti tip strap is provided. You will need to supply wall plugs and screws applicable for
your wall type.
WARNING
In order to help prevent overturning- please follow these instructions
#welovehome

4
Bag 1
Fittings
Please check that you have all the ttings listed below:
NOTE: The quantities below are the correct amount to complete the assembly. In some cases
more ttings may be supplied than required.
A
8x30mm Dowel x8
B
6x30mm Dowel x4
C
8x50mm Dowel x2
D
Glue x1
E
Male camlock x16
F
Double thread
screw x4
G
Female camlock x24
H
25mm Sticker x24
I
Push catch x1
J
3x16mm Screw x2
K
4mm Hex Key x1
L
Bolt x4
M
Shelf support x4
N
IT Screw x1
O
Hinge x2
P
4.5x15mm Screw x8
Q
Wall plug x1
R
4x32mm Screw x2
S
Wall strap x1
T
Plastic fastener x8
U
1Tx10mm Washer x1
V
1.5Tx18mm Washer x1
Pt. No A Pt. No B
Pt. No C
Pt. No D
Pt. No E
Pt. No F Pt. No G
Pt. No H
Pt. No I
Pt. No J Pt. No K
Pt. No L
Pt. No M Pt. No N Pt. No O
Pt. No P
Pt. No Q Pt. No R
Pt. No S Pt. No T
Pt. No U
Pt. No V
#welovehome

5
Tools required
Eye protection
(when using glue)
Phillips Screwdriver
(small and medium)
Power Drill
Drill Bit
#welovehome

6
Panels
Upper Left side x1 (82.5cm
x24cm)
Fixed Shelf x2 (26.8cm
x22.2cm)
Upper right side x1 (82.5cm
x24cm)
Top x1 (30cm x24cm) Upper Back x1 (83.2cm
x27.5cm)
Middle top x1 (30cm x24cm)
Bottom x1 (30cm x21.9cm) Leg x4 (3cm x6cm) Bottom Left side x1 (77cm
x21.8cm)
Bottom Right side x1 (77cm
x 21.8cm)
Bottom Back x1 (77.7cm
x27.5cm)
Adjustable shelf x1 (26.6cm
x 20cm)
12 3
456
7 8 9
10 11 12
#welovehome

7
Door x1 (78cm x29.7cm)
13
#welovehome

8
Glue x1
Pt. No D
1
2
B
6x30mm Dowel x4
Pt. No B
D
B
1
3
HINT: Keep note of what
panels are top and bottom
for easy assemble.
A
8x30mm Dowel x8
B
6x30mm Dowel x4
C
8x50mm Dowel x2
D
Glue x1
E
Male camlock x16
F
Double thread
screw x4
G
Female camlock x24
H
25mm Sticker x24
I
Push catch x1
J
3x16mm Screw x2
K
4mm Hex Key x1
L
Bolt x4
M
Shelf support x4
N
IT Screw x1
O
Hinge x2
P
4.5x15mm Screw x8
Q
Wall plug x1
R
4x32mm Screw x2
S
Wall strap x1
T
Plastic fastener x8
U
1Tx10mm Washer x1
V
1.5Tx18mm Washer x1
Pt. No A Pt. No B
Pt. No C
Pt. No D
Pt. No E
Pt. No F Pt. No G
Pt. No H
Pt. No I
Pt. No J Pt. No K
Pt. No L
Pt. No M Pt. No N Pt. No O
Pt. No P
Pt. No Q
Pt. No R
Pt. No S Pt. No T
Pt. No U
Pt. No V
B
C
8x50mm Dowel x2
Pt. No C
A
8x30mm Dowel x2
Pt. No A
Upper panels
Top
Bottom
#welovehome
C
Glue x1
Pt. No D
D

9
A
8x30mm Dowel x6
Pt. No A
3
4
4
E
HINT: Runners/ Grooves
are on the back panel of
the unit
9
10
1
3
E
A
E
Male camlock x16
Pt. No E
Top
Bottom
#welovehome
D
Glue x1
Pt. No D

10
G
Female camlock x4
Pt. No G
D
Glue x1
Pt. No D
NOTE: Use a screwdriver
to turn the female camlock
clockwise to lock.
6G
Female camlock x4
Pt. No G
2
1
2
NOTE: Use a screwdriver
to turn the female camlock
clockwise to lock.
5
G
Top
3
#welovehome
D
Glue x1
Pt. No D

11
3
1
D
Glue x1
G
Female camlock x4
Pt. No D
Pt. No G
NOTE: Use a screwdriver
to turn the female camlock
clockwise to lock.
7
8
1
3
1
3
#welovehome

12
9
10
J
10
G
F
Double thread
screw x4
G
Female camlock x4
Pt. No F Pt. No G
3
1
I
Push catch x1
J
3x16mm Screw x2
Pt. No I
Pt. No J
#welovehome

13
11
NOTE: Use a screwdriver
to turn the female camlock
clockwise to lock.
9
10
G
6
3
1
12
G
Female camlock x4
Pt. No G
9
10
#welovehome
D
Glue x1
Pt. No D

14
13 K
4mm Hex Key x1
L
Bolt x4
Pt. No K
Pt. No L
14
G
7
9
10
D
G
Female camlock x4
Pt. No G
D
Glue x1
Pt. No D
TWO PEOPLE
REQUIRED
Turn
Product
#welovehome
D
Glue x1
Pt. No D

15
15 H
25mm Sticker x24
M
Shelf support x4
Pt. No H
Pt. No M
Note: You can
adjust the shelves to
your preference
#welovehome
9
10
12
M
H

16
WARNING: See
back of instructions
for further details on
O
Hinge x2
P
4.5x15mm Screw x4
Pt. No O
Pt. No P
17 P
4.5x15mm Screw x4
Pt. No P
9
13
Rotate
Product
N
IT Screw x1
Pt. No N
16
#welovehome

17
T
Plastic fastener x8
Pt. No T
18
#welovehome

18
R
4x32mm Screw x1
S
Wall strap x1
U
1Tx10mm Washer x1
Pt. No R
Pt. No S
Pt. No U
19
#welovehome

19
NOTE: To hide the wall
strap behind the unit, drill
the hole lower than the top
of the unit.
TWO PEOPLE
REQUIRED
WALL
Q
R
S
V
WARNING!
IN ORDER TO PREVENT OVERTURNING
THIS PRODUCT MUST BE USED WITH THE
WALL ATTACHMENT DEVICE PROVIDED
Q
Wall plug x1
Pt. No Q
R
4x32mm Screw x1
S
Wall strap x1
V
1.5Tx18mm Washer x1
Pt. No R
Pt. No S
Pt. No V
20
#welovehome

20
Important note:
Types of walls
Important: when drilling into walls always check
that there are no hidden wires or pipes etc.
Care & Maintenance
You can use one of the following types of wall plug if your walls are
made of brick, breeze block, concrete, stone or wood.
Safety: Always check the fitting and
location to ensure your safety in and
around the home.
Fitting: From time to time check the
fitting to ensure the wall plugs or
screws do not become loose.

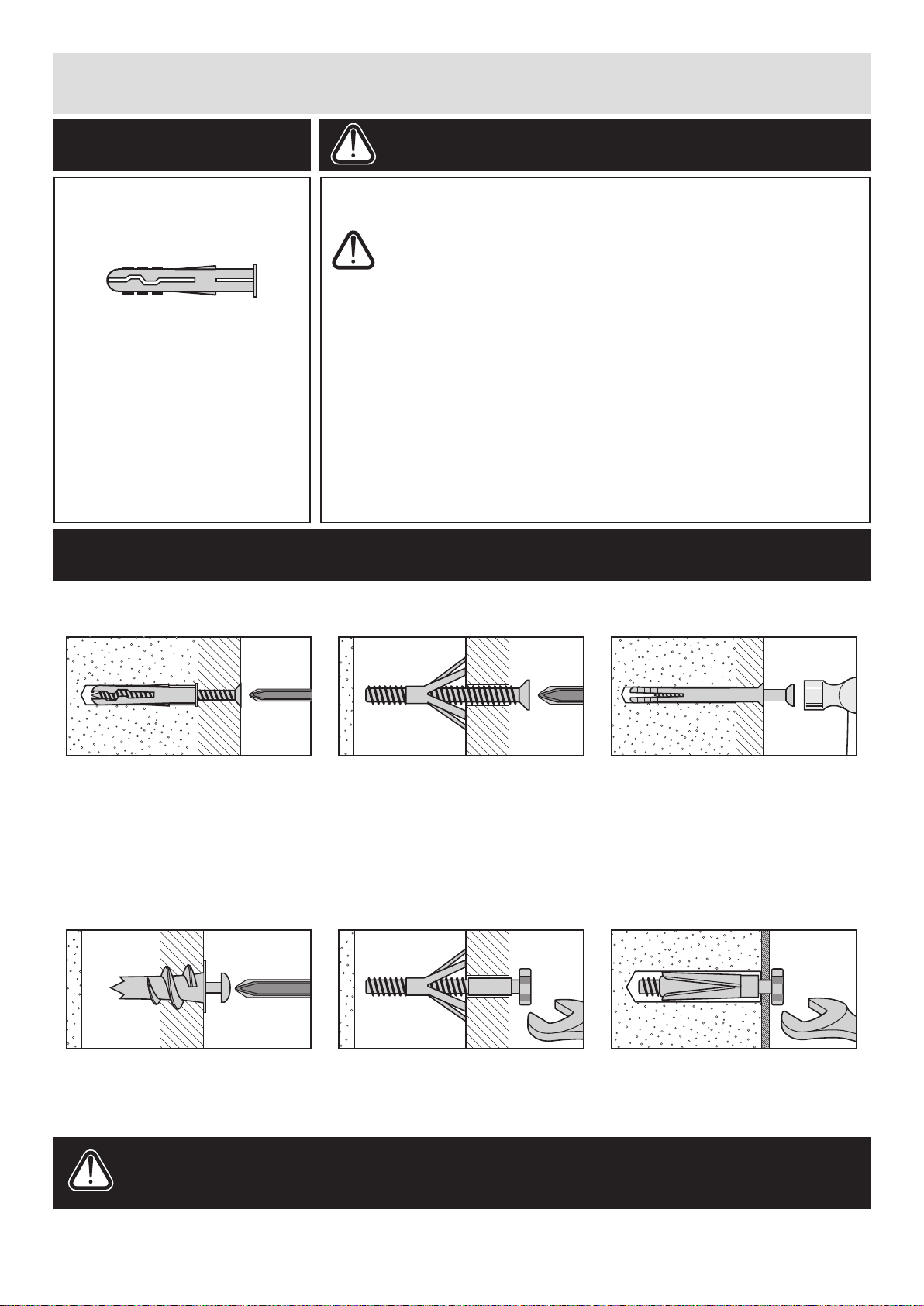

A Guide to Wall Mounting & Fixings
If plastic wall plugs (rawl plugs)
are supplied with your product,
eg:
No. 1 “General Purpose” wall plug
No. 2 “Plasterboard” wall plug
Generally aerated blocks should
not be used to support heavy loads,
use a specialist tting in this case.
For light loads, general purpose
wall plugs can be used.
For use when attaching light loads
onto plasterboard partitions.
For use when tting or supporting
heavy loads such as shelving, wall
cabinets and coat racks.
For use with heavier loads such as
TV and HiFi speakers and satelite
dishes etc.
For use with plasterboard partitions
or hollow wooden doors.
For use with walls stuck with
plasterboard. The hammer xing
allows it to be xed to the wall
rather than the plasterboard.
Always check the xing is secure to
the retaining wall.
No. 3 “Cavity Fixing” wall plug
No. 4 “Cavity Fixing - Heavy Duty”
wall plug
No. 5 “Hammer Fixing” wall plug
No. 6 “Shield Anchor” wall plug -
heavy loads
Make sure that the screws and wall plugs being used are suitable for
supporting your unit. Consult a qualied tradesperson if you are unsure.
Hints:
1. General rule: always use a larger screw and wall plug if you are not sure.
2. Ensure you use the recommended drill bit to match the wall plug and hole
size.
3. Ensure you drill the hole horizontally; do not force the drill or enlarge the
hole.
4. Take extra care when drilling high walls, ceilings and ceramic tiles. Ensure
wall plugs are inserted beyond the thickness of the ceramic tiles to avoid
the tiles splitting or cracking.
5. Ensure wall plugs are well tted and are a tight t in the drilled hole.
• these are suitable for use in
masonry walls
If you are in any doubt about the
correct wall plugs for your wall,
seek professional advice.
Failure of the product due to
using the incorrect xings is the
responsibility of the installer.
