LOCKEY 2230 User manual

Step 5: Verify Correct Spindle Length
1. With latch (#3) installed, hold
the Inside Body (#2) and Rubber Trim
Plate (#4) to the door.
2. Place Spindle (#7/8) through latch, into
the Inside Body, as far as possible.
3. Spindle should extend from exterior of door
3/8” min. – 5/8” max.
4. If the 30-45 mm (#8) is too long, cut it to the correct length.
IMPORTANT: If spindle extends less than 3/8” it may not engage the lock. If spindle
extends more than 5/8”, it will cause the lock to bind.
Step 6: Determine Knob Turn Direction (to unlock)
The lock is preset to unlock when turned clockwise after combination is
entered.
If desired, you can unlock the door with a
counter-clockwise turn. Remove the two
blue screws and move the pin to the
opposite side as shown.
*2230 DC – Inside Body pin must on opposite side from Outside Body.
2230 | 2230 DC | 2435
No.
Part Name
2230
2435
1
Outside Body
1
2
Inside Body
1
3
Deadlatch (2 3/8” - 2 3/4”)
1
4
Rubber Trim Plate
2
5
Strike Plate
1
6
Mortised Striker
1
7
Spindle 40-55mm.
1
8
Spindle 30-45 mm.
1
9
Machine Screw M4 x 50 mm.
2
10
Machine Screw M4 x 35 mm.
2
11
Wood Screws M4
4
12
Extra Code Tumblers (Red)
1
13
Extra Non-Code Tumblers (Blue)
2
14
Brass Support Pin
1
15
Tweezers
1
Door Edge
Step 7: Install the Lockey 2230/2435
1. Place the Rubber Trim Plate (#3) on the
backside of the Outside Body (#1).
2. Place the Outside Body on the door.
The hexagonal bolts should extend into
the top and bottom holes.
3. The Support Pin (#14) on the Outside
Body should fit into and extend through
the hole in the Latch (#3).
INSTRUCTIONS CONTINUED ON REVERSE SIDE
Step 3: Adjust Latch (if necessary) & Install
1. Adjustable latch (#3) is factory preset for a 2 3/8” backset.
2. For 2 3/4” backsets, slide the Cam assembly on the latch to 2 3/4”.
3. Insert latch into door and secure with Wood Screws (#11).

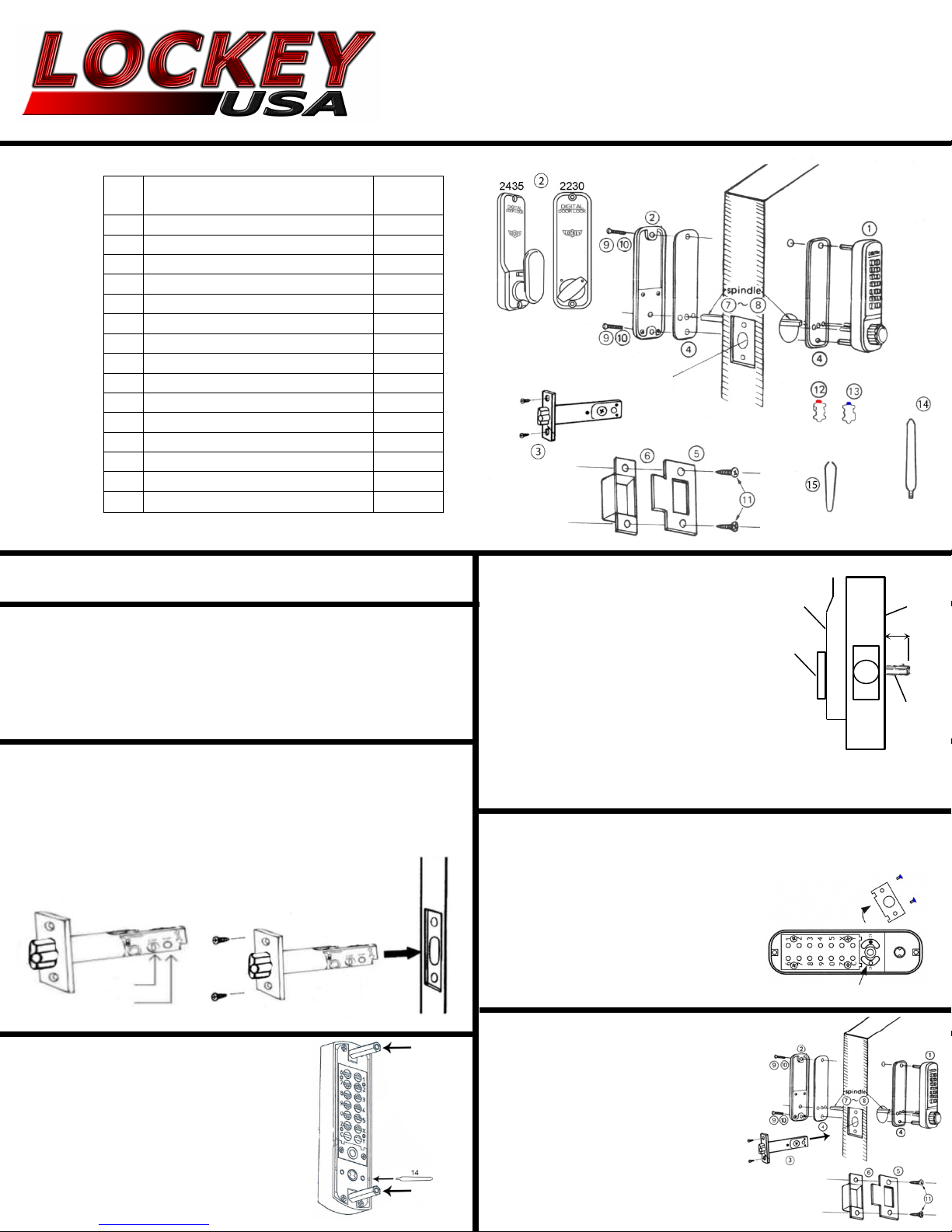

Lockey 2230 | 2435
Installation Instructions
Step 2: Prep Door for Installation with Template
1. Place template (supplied) on door and fold along door’s edge.
2. Mark holes for 2 3/8” or 2 3/4” backset.
3. Drill holes as instructed.
NOTE: For Pre-Prepped 2 1/8” doors, you only need to drill top hole.
Inside Body (#2)
Spindle (#5/6)
3/8” to 5/8”
Step 1: Change User Code (OPTIONAL)
If you wish to change your code, see instructions on reverse side.
Inside Knob or Lever
2 3/8”
2 3/4”
Step 4: Install Support Pin & Hex Bolts
Install Brass Support Pin (#14) into either hole
on Outside Body as shown in the figure to
the Right.
Install/screw Hex Bolts into the top
and bottom of the Outside Body
as shown in the figure.
Step 7 cont: Install the Lockey 2230/2435
1. Insert the Spindle (#7/8) into the Outside Body (#1) ensuring it’s in the proper angled position.
*(SEE FIGURES BELOW)
2. Using a screwdriver, secure the lock to the door with the Screws (#9 or #10).
Screw length is dependent on door thickness.
3. Test the operation of the Latch by turning the inside knob/lever.
4. Locate position where Latch strikes door frame and install Mortised Strike (#5) and Strike Plate (#6).
*IMPORTANT: SPINDLE POSITION/ANGLE
CLOCKWISE TURN TO UNLOCK WITH COMBINATION
The 2230/2435 is factory preset to unlock with a clockwise turn
when the combination is entered. The Spindle MUST be placed
through the latch, at a 10:00 – 4:00 angle as shown.
COUNTER-CLOCKWISE TURN TO UNLOCK WITH COMBINATION
If desired, the 2230/2435 can be unlocked with a counter-clockwise
turn when the combination is entered. To unlock the 2230/2435
with a counter-clockwise turn, please refer to Step 6 to change the
Handing Pin.
After changing the Handing Pin, the Spindle MUST be placed
through the latch at a 2:00 – 8:00 angle as shown.
Template may not print at 100% accuracy.
Please verify measurements before drilling
holes/installing.
Template may not print at 100% accuracy.
Please verify measurements before drilling
holes/installing.
