Operating Instructions

Safety, cleaning, maintenance
For your safety
This equipment has been designed and
manufactured to meet international safety
standards. But, like any electrical equip-
ment, care must be taken especially to
assure electrical safety.
So do ensure that all electrical
connections, including the mains plug,
extension leads and the interconnections
between pieces of equipment are properly
made and in accordance with this operating
manual,
Do consult your dealer if you are ever
in doubt about the connection, the working
or the safety of your equipment.
Do not continue to operate your equip-
ment if you are in doubt about it working
normally, or if it is damaged in any way.
Switch off, withdraw the mains plug and
consult your dealer.
Avoid burning or electric shock, which
is dangerous to life, by keeping your equip-
ment away from moisture and water.
Never remove any fixed cover, as this
may expose parts with dangerous voltages.
Do not leave your set useless
connected to the mains, when not using it -
for a longer period.
64
When disconnecting from mains,
always grip the mains plug, never the lead.
Do not cover the ventilation slots, e.g.
with a curtain. Overheating would happen
and this would shorten the life of the equip-
ment.
Above all, take care that nobody ever,
especially no children, push anything into
holes, slots or other openings in the equip-
ment. This could result in a fatal electric
shock. .
Never guess or take any chances with
electrical equipment of any kind. Leave it to
the specialist. Because: Safety first!
Note: The operate switch © (2) of the video
recorder is secondarily connected and does
not separate the apparatus from the mains
supply in the switched off position.
This product is manufactured to
comply with the radio interference require-
ments of EEC Directive 76/889/EEC,
82/499/EEC and 87/308/EEC.
Cleaning and maintenance
Only ever clean the housing with a cloth
moistened very slightly or using a special
plastic cleaning agent. Never use solvents:
such as spirit, petroleum or thinner,
Now, cleaning the cabinet has the
least influence on long term reliability of
your video recorder. Here, care of the tape
running mechanism inside the recorder is
much more important. The recorder should
be taken to a specialist dealer regularly for
maintenance and cleaning. If the recorder is
put to normal use, we recommend doing
this once annually, but at the latest when
you are no longer satisfied with the picture.
Under no circumstances you should
attempt yourself to clean the heads, if only
for the reason that you would have to open
the housing to do so, thus exposing live
parts.
Improper use of cleaning cassettes
may damage the heads. Consult your dealer
before you decide to use such cassettes.
Video head cleaning
Anytime when you insert a cassette, or
when you switch the video recorder on or
off while a cassette is inserted, the video
head cylinder will be cleaned automatically.
This avoids the concentration of dirt on the
video heads and on the cylinder. The good
picture quality will last a long period of time.

_Introduction
Thank
you
and
congratulations
for
your
deci-
sion
for
a
Loewe
video
recorder,
which
fulfils
your
high
demands
for
design
and
technology.
;
When
developing
this
recorder
we
emphasized
on
reaching
the
perfect
and
sound
quality.
Additionally
we
tried
to
fulfil
all
possible
demands
for
features.
Just
to
name
a
few:
®
perfect
quality
during
S-VHS
and
VHS
operation.
®
the
automatic
tape
adaptation
(Al)
allows
the
perfection
of
your
recordings
and
playbacks.
®
hifi
stereo
for
excellent
sound
quality.
®
four
video
heads
ensure
a
good
still
with
jog
shuttle
control.
©
the
built
in
editing
computer
copies
from
a
corresponding
camcorder
or
to
a
second
video
recorder.
®
the
time
base
correction
(TBC)
allows
stabilized
playback
of
weak
recordings.
®
easy
location
of
tape
positions
with
auto-
matic
and
manual
index
markings,
which
even
can
be
erased.
*
you
can
enter
up
to
eight
ShowView
timer
recordings
into
the
remote
control
and
transmit
them
into
the
video
recorder.
*
covered
installation
is
possible,
because
the
remote
control
can
be
operated
through
the
infrared
receiver
of
a
connected
Loewe
TV
set.
This operating manual
You
should
take
some
time
to
read
this
manual.
This
helps
you
to
learn
all
about
your
new
video
recorder
step
by
step.
The
brief
description
on
page
66/67
will
help
you
to
recall
the
control
of
the
seldom
used
settings.
The
fold-out
pages
3
and
154
contain
a
of
the
remote
control
and
the
video
recorder.
They
should
be
opened
out
during
the
reading
of
this
manual.
All
control
elements
and
connectors
are
numbered.
These
numbers
are
explained
starting
from
page
86.
Throughout
this
manual
they
will
always
be
stated
in
brackets.
A
glossary
on
page
91
wants
to
help
you
to
explain
the
special
terms,
which
could
not
always
be
avoided.
On
page
92
you
will
find
an
index
regi-
ster.
It
should
later
help
you
to
locate
infor-
mations,
as
well
as
it
is
thought
for
the
specialist,
who
is
only
looking
for
details.
We
want
to
wish
you
a
lot
of
joy
and
video
fun
with
your
Loewe.
Register
Picture remote control
Security,
cleaning,
maintenance
Introduction
Brief
descriptions
Connection
Preset of the TV set
Remote control
Setting date and time
Playback, winding
Slow
motion,
standard,
TBC/AI
Index, tape counter
Station preset
Recording, cassette
Decoder, audio, index
Timer recording, ShowView
Guide number, input
Dialog control, language
Copying, connection
Insert, audio dubbing
Manual editing
Programmed editing
Preview, Review
Picture explanation
Trouble shooting
Specifications
Glossary
Index register
Loewe service
Picture video recorder
65

Brief description
This summary shall provide you a fast over-
view as well as a memo after reading this
manual. it contains only the most common
usages. All details can be found on the
pages stated.
Setting the time page 71
® press CLOCK (32) for more than 2 sec.
® enter year with Y+/— (13)
® month with M+/~ (14)
® day with D+/— (15)
© set time with T+/— (16)
© switch on video recorder with © (2)
© transmit time with TRANS (20)
Switching on and off page 72
® press button © (2) on the remote control
or on the video recorder
® inserting the cassette switches on as well
Piayback page 72
® insert video cassette
© start playback with > (5)
® end playback with C] (8)
® remove cassette with CASS (35)
Image search page 72
© press forward D> (7) or backward <ki (6)
shortly during playback
© end it with > (5) or DB (8)
® keep search button depressed: after
releasing it playback continues
Winding page 72
® press forward D> (7) or backward <k1 (6)
during stop
® press button again: search as long as you
keep it depressed
© end winding with stop button C1 (8)
66
Still image, pause page 73
® press button I] (9) on the remote control
or:
® press button fl (9) on the video recorder
and search single images with the jog
disc (55). Shuttle ring (54) in center posi-
tion!
® end it with > (5) or (8)
Slow motion page 73
® press button [> (10) on the remote
control during playback
® back to playback with > (5).
Variable slow motion page 73
© press [i] (9) on the video recorder
® remove trembling with TRACKING —/+
(28)
® turn shuttle ring (54) for slow motion to
image search forward or backward
© end it with > (5) or 0 (8)
Index search page 74
© with VISS (4) forward D>! or with |<kl
backward to the next index marker. Press
it several times to reach further markers.
Tape counter page 74 .
® call the tape counter with COUNT (3). The
video display shows «COUNT»
© use 0000 (48) to reset it to «0:00.00»
Remaining tape time page 74
© press TAPE (31) several times, until your
tape type, e.g. «E240» is shown in the
display
© press COUNT (3) several times until
«REMAIN» is shown in the display
Station preset page 75
© keep TUNER PRESET (50) depressed for
more than 2 seconds (not with A1/A2/A3)
® select programme number with P+/— (12)
© press NEXT (57)
© start station search with P+/— (12)
or
enter channel number with number
buttons (25)
® store station with NEXT (57)
© end it by pressing TUNER PRESET (50)
twice
immediate recording page 76
® insert a cassette ready for recording
© select programme number with P+/— (12)
© start recording with REC (11)
© interrupts can be made with I (9)
® end it with the stop button & (8)
Record index page 77
® automatically during each recording start
and:
® press REC (11) during recording
® press VISS MARK (33) during playback
© minimum distance three (LP five) minutes
Erase index page 77
© search marker with VISS (4)
© when the playback starts press [J (9)
® press VISS ERASE (30) to erase it
Sleep timer page 78
@ press SLEEP (58) several times, until the
desired playing time is shown as «OFF»
time in the video display

’
ShowView
timer
input
page
79
Display/on
screen
displays
Unpacking
®
insert
a
cassette
ready
for
recording
20:15
time
Carefully
lift
your
video
reo
;
®
press
button
SHOWVIEW
(21)
Po.l
programme
number
1
box.
Do
not
forget
to
re
secs
from
its
©
enter
ShowView
number
with
number
2:32:05
tape
counter
h/min/sec
control
as
well
as
the
leaq-V@
the
remote
buttons
(25)
SP
Standardplay
accessories
are
listed
on
=
The
enclosed
®
confirm
it
with
button
OK
(26)
LP
Longplay
Re
mehesetek
age
90.
®
check
the
data
on
the
display
cassette
in
the
recorder
tari
ea
e
b
SOE
LOREGE,
the
packing
*
use
TRANS
(20)
to
send
it
into
the
Al
input
AV1
Hs
fale
2
ore
one
Clay
want
to:
use
recorder
A2
input
AV2
Or
Tanlsporsing
Your
Vide,
recorder.
A3
input
AV3
:
Standard
timer
input
page
79
VTR
recording
from
TV
with
installation
:
;
decoder
i
.
*
insert
a
cassette
ready
for
recording
COUNT
tape
counter
Moeller
alerted
IS
a
high
perfor-
®
select
programme
number
with
REMAIN
remaining
tape
time
consider
the
following
fac
us
you
should
PR+/-
(13)
L
left/main
sound
channel
a
place
to
install
it:
ts
when
selecting
©
date
with
DATE+/—
(14)
;
Y
F :
R
right/secondary
sound
. :
®
the
start
time
with
ON+/-
(15)
©
it
should
be
standin
;
:
channel
8
On
*
the
end
time
with
OFF+/~
(16)
zontal
base
@
stable,
hori-
aw
Oo
stop
mode
:
©
use
TRANS
(20)
to
send
it
into
the
sas
;
>
playback
*
the
ventilation
slots
in
t
recorder
REC
e
recording
always
remain
uncoverc’®
pols
must
<K
rewind/image
search
back-
i
:
.
Ensure
that
On
screen
language
page
80
ward
kes
eres
enough
cooling
air,
*
call
the
OSD
menu
with
MENU
(60)
b>
fast
(oiwari/image
search,
©
“SI
should
a1
be
Dlace
din
ida
ans
®
use
$
(61)
to
select
line
«SETTING»
forward
or
close
to
a
heater.
E
*
call
the
menu
with
ENTER
(62)
Ol
pause/still
*
do
not
place
any
objects
¢
*
use
$
(61)
to
select
line
«LANGUAGE»
ip
slow
motion
forward
on
top
of
the
video
rec
filled
with
water
®
call
the
menu
with
ENTER
(62)
<ll
slow
motion
backward
br
enter
*
use
$
(61)
to
select
the
desired
language
timer
input
entered
®
never
bring
magnetic
op,
°
prs
it
a
ENTER
(62)
ene?
ISS
WRITE
writing
index
marker
video
recorder
or
to
the
tay
to
the
*
switch
off
the
OSD
menu
with
MENU
(60)
VIS
ERASE
erase
index
marker
©
beware
of
condensate!
STEREO stereo reception
BILINGUAL
_
bilingual
sound
reception
if
you
carry
the
recordey
from a cold into
Copying
page
81
Al
tape
adaptation
activated
-
ietieesce
ce
hee
Can
form
inside,
°
ees
the
second
recorder
to
AV2
S-VHS
Super-VHS
operation
Wain
cee
Ele
turn
"ecorder
to
the
or
SU
Sunday
: :
Off
for
®
use
P+/-
(12)
to
switch
to
A2
or
A3
MO
Monday
two
vo
nee
ee
fates
q
mage
a
ee
®
start
playback
on
the
second
recorder
TU
Tuesday
oo
nO
HAD:
©
start
the
recording
with
REC
(11)
WE
Wednesday
©
use
[I
(9)
for
editing
TH
Thursday
©
end
it
with
the
stop
button
[1
(8)
FR
Friday
SA
Saturday
67

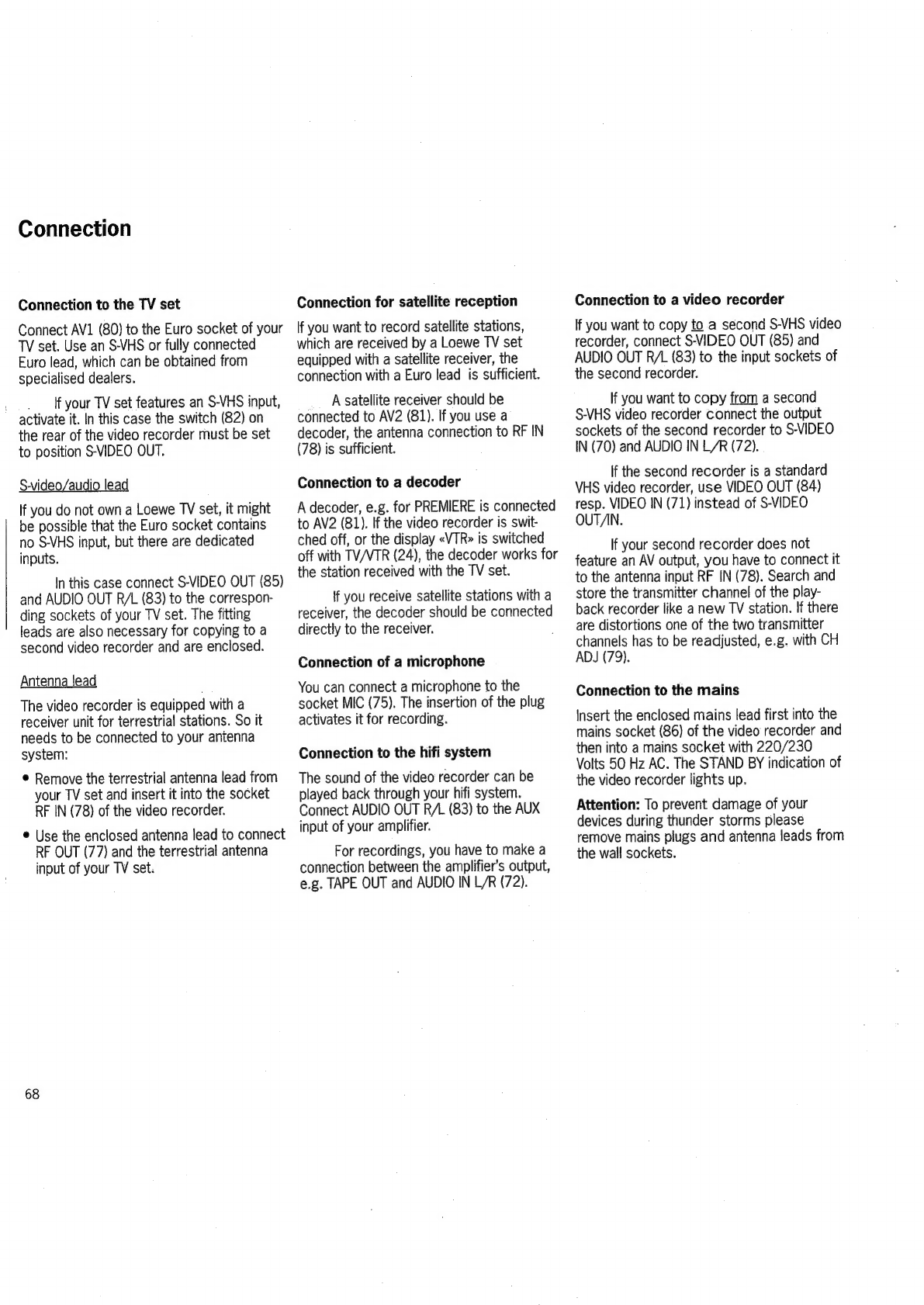

Connection
Connection to the TV set
Connect AV1 (80) to the Euro socket of your
TV set. Use an S-VHS or fully connected
Euro lead, which can be obtained from
specialised dealers.
_ If your TV set features an S-VHS input,
activate it. In this case the switch (82) on
the rear of the video recorder must be set
to position S-VIDEO OUT.
S-video/audio lead
If you do not own a Loewe TV set, it might
be possible that the Euro socket contains
no S-VHS input, but there are dedicated
inputs.
in this case connect S-VIDEO OUT (85)
and AUDIO OUT R/L (83) to the correspon-
ding sockets of your TV set. The fitting
leads are also necessary for copying to a
second video recorder and are enclosed.
Antenna lead
The video recorder is equipped with a
receiver unit for terrestrial stations. So it
needs to be connected to your antenna
system:
© Remove the terrestrial antenna lead from
your TV set and insert it into the socket
RF IN (78) of the video recorder.
® Use the enclosed antenna lead to connect
RF OUT (77) and the terrestrial antenna
input of your TV set.
68
Connection for satellite reception
lf you want to record satellite stations,
which are received by a Loewe TV set
equipped with a satellite receiver, the
connection with a Euro lead is sufficient.
A satellite receiver should be
connected to AV2 (81). If you use a
decoder, the antenna connection to RF IN
(78) is sufficient.
Connection to a decoder
A decoder, e.g. for PREMIERE is connected
to AV2 (81). If the video recorder is swit-
ched off, or the display «<VTR» is switched
off with TV/VTR (24), the decoder works for
the station received with the TV set.
if you receive satellite stations with a
receiver, the decoder should be connected
directly to the receiver.
Connection of a microphone
You can connect a microphone to the
socket MIC (75). The insertion of the plug
activates it for recording.
Connection to the hifi system
The sound of the video recorder can be
played back through your hifi system.
Connect AUDIO OUT R/L (83) to the AUX
input of your amplifier.
For recordings, you have to make a
connection between the amplifier’s output,
e.g. TAPE OUT and AUDIO IN L/R (72).
Connection to a video recorder
If you want to copy to a second S-VHS video
recorder, connect S-VIDEO OUT (85) and
AUDIO OUT R/L (83) to the input sockets of
the second recorder.
If you want to copy from a second
S-VHS video recorder connect the output
sockets of the second recorder to S-VIDEO
IN (70) and AUDIO IN L/R (72).
If the second recorder is a standard
VHS video recorder, use VIDEO OUT (84)
resp. VIDEO IN (71) instead of S-VIDEO
OUT/N.
If your second recorder does not
feature an AV output, you have to connect it
to the antenna input RF IN (78). Search and
store the transmitter channel of the play-
back recorder like a new TV station. If there
are distortions one of the two transmitter
channels has to be readjusted, e.g. with CH
ADJ (79).
Connection to the mains
Insert the enclosed mains lead first into the
mains socket (86) of the video recorder and
then into a mains socket with 220/230
Volts 50 Hz AC. The STAND BY indication of
the video recorder lights up.
Attention: To prevent damage of your
devices during thunder storms please
remove mains plugs and antenna leads from
the wall sockets.

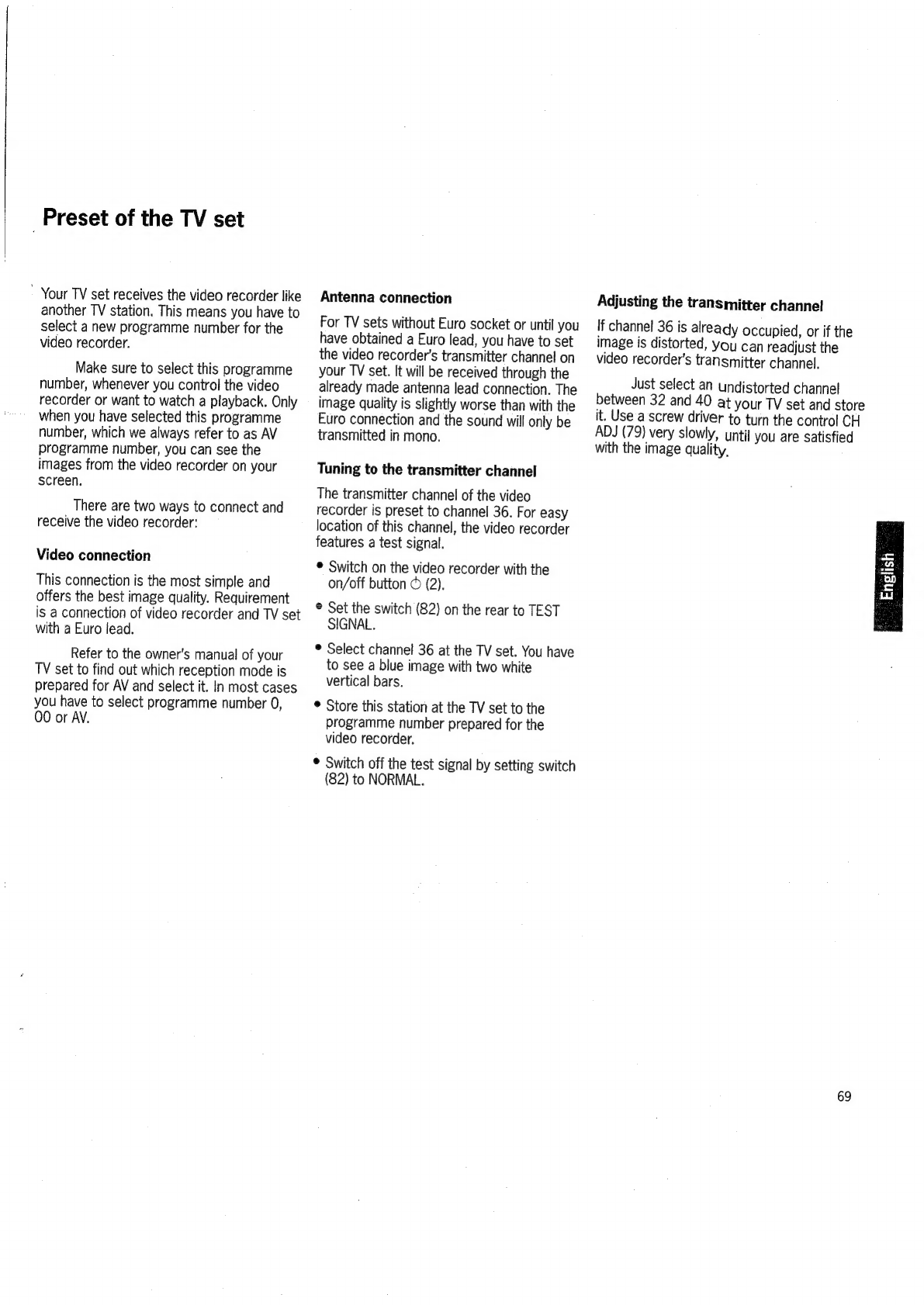

_Preset of the TV set
" Your TV set receives the video recorder like
another TV station. This means you have to
select a new programme number for the
video recorder.
Make sure to select this programme
number, whenever you control the video
recorder or want to watch a playback. Only
when you have selected this programme
number, which we always refer to as AV
programme number, you can see the
images from the video recorder on your
screen.
There are two ways to connect and
receive the video recorder:
Video connection
This connection is the most simple and
offers the best image quality. Requirement
is a connection of video recorder and TV set
with a Euro lead.
Refer to the owner's manual of your
TV set to find out which reception mode is
prepared for AV and select it. In most cases
you have to select programme number 0,
00 or AV.
Antenna connection
For
TV
sets
without
Euro
socket
or
until
you
have
obtained
a
Euro
lead,
you
have
to
set
the
video
recorder’s
transmitter
channel
on
your
TV
set.
It
will
be
received
through
the
already
made
antenna
lead
connection.
The
quality
is
slightly
worse
than
with
the
Euro
connection
and
the
sound
will
only
be
transmitted
in
mono.
Tuning
to
the
transmitter
channel
The transmitter channel of the video
recorder
is
preset
to
channel
36.
For
easy
location
of
this
channel,
the
video
recorder
features a test signal.
©
Switch
on
the
video
recorder
with
the
on/off
button
©
(2).
®
Set
the
switch
(82)
on
the
rear
to
TEST
SIGNAL.
®
Select
channel
36
at
the
TV
set.
You
have
to
see
a
blue
with
two
white
vertical
bars.
®
Store
this
station
at
the
TV
set
to
the
programme
number
prepared
for
the
video
recorder,
©
Switch
off
the
test
signal
by
setting
switch
(82)
to
NORMAL.
Adjusting
the
transmitter
channel
if
channel
36
is
already
occupied,
or
if
the
is
distorted,
you
can
readjust
the
video
recorder's
transmitter
channel.
Just
select
an
undistorted
channel
between
32
and
40
at
your
TV
set
and
store
it.
Use
a
screw
driver
to
turn
the
control
CH
ADJ
(79)
very
slowly,
until
you
are
satisfied
with the image quality,
69

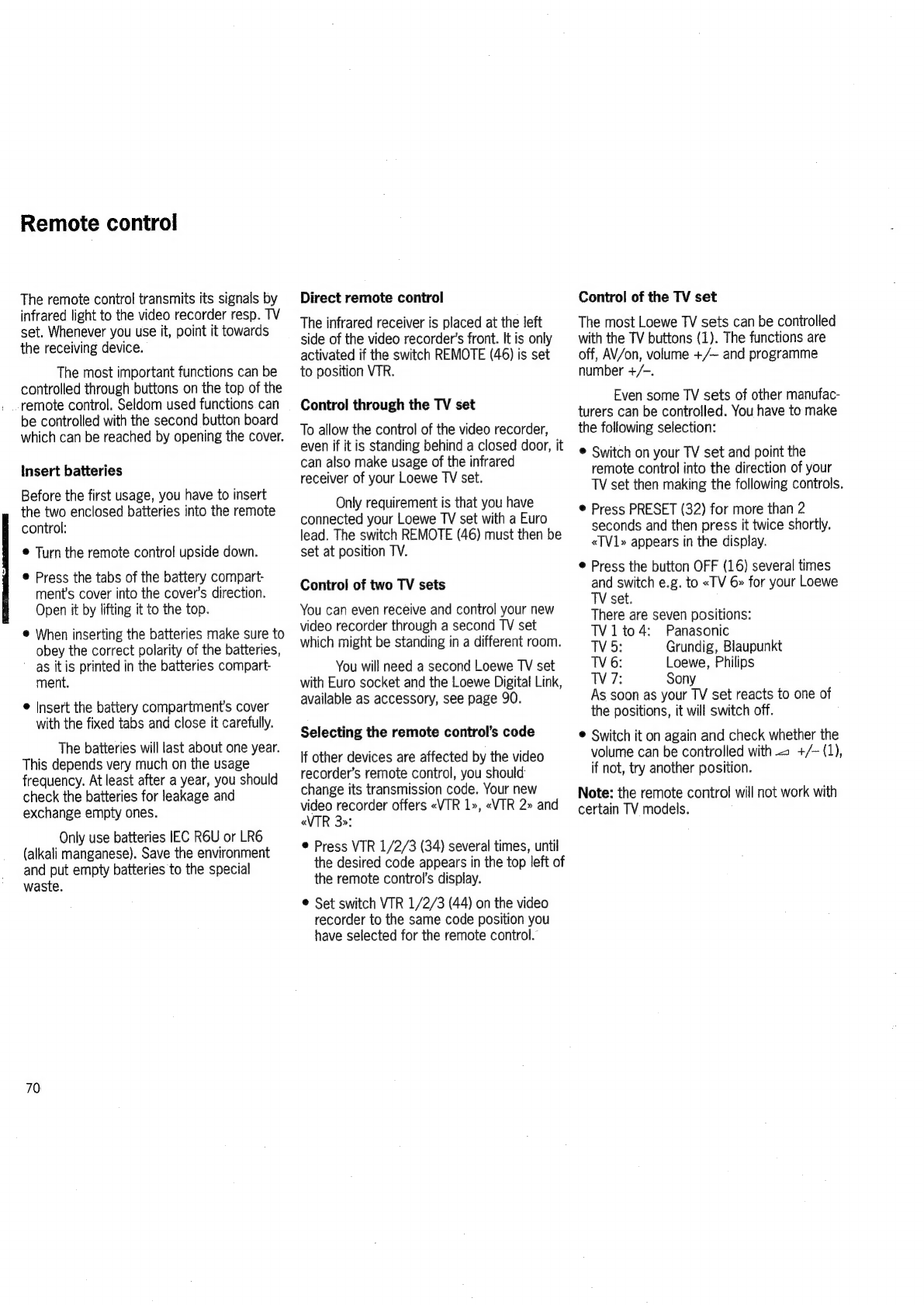

Remote control
The remote control transmits its signals by
infrared light to the video recorder resp. TV
set. Whenever you use it, point it towards
the receiving device.
The most important functions can be
controlled through buttons on the top of the
remote control. Seldom used functions can
be controlled with the second button board
which can be reached by opening the cover.
Insert batteries
Before the first usage, you have to insert
the two enclosed batteries into the remote
control:
© Turn the remote control upside down.
© Press the tabs of the battery compart-
ment’s cover into the cover’s direction.
Open it by lifting it to the top.
® When inserting the batteries make sure to
obey the correct polarity of the batteries,
~ as it is printed in the batteries compart
ment.
® Insert the battery compartment’s cover
with the fixed tabs and close it carefully.
The batteries will last about one year.
This depends very much on the usage
frequency. At least after a year, you should
check the batteries for leakage and
exchange empty ones.
Only use batteries IEC ROU or LR6
(alkali manganese). Save the environment
and put empty batteries to the special
waste.
70
Direct remote control
The infrared receiver is placed at the left
side of the video recorder’s front. It is only
activated if the switch REMOTE (46) is set
to position VIR.
Control through the TV set
To allow the control of the video recorder,
even if it is standing behind a closed door, it
can also make usage of the infrared
receiver of your Loewe TV set.
Only requirement is that you have
connected your Loewe TV set with a Euro
lead. The switch REMOTE (46) must then be
set at position TV.
Control of two TV sets
You can even receive and control your new
video recorder through a second TV set
which might be standing in a different room.
You will need a second Loewe TV set
with Euro socket and the Loewe Digital Link,
available as accessory, see page 90.
Selecting the remote control’s code
If other devices are affected by the video
recorder’s remote control, you should
change its transmission code. Your new
video recorder offers «<VTR 1», «VIR 2» and
«VTR 3>:
© Press VIR 1/273 (34) several times, until
the desired code appears in the top left of
the remote control's display.
® Set switch VTR 1/2/3 (44) on the video
recorder to the same code position you
have selected for the remote control.
Control of the TV set
The most Loewe TV sets can be controlled
with the TV buttons (1). The functions are
off, AV/on, volume +/- and programme
number +/-.
Even some TV sets of other manufac-
turers can be controlled. You have to make
the following selection:
® Switch on your TV set and point the
remote control into the direction of your
TV set then making the following controls.
© Press PRESET (32) for more than 2
seconds and then press it twice shortly.
«TV1» appears in the display.
© Press the button OFF (16) several times
and switch e.g. to «TV 6» for your Loewe
TV set.
There are seven positions:
TV 1to4: Panasonic
TV 5: Grundig, Blaupunkt
TV 6: Loewe, Philips
V7: Sony
As soon as your TV set reacts to one of
the positions, it will switch off.
© Switch it on again and check whether the
volume can be controlled with 2 +/~ (1),
if not, try another position.
Note: the remote control will not work with
certain TV models.

_
Setting
date
and
time
In the remote control
First
set
date
and
time
in
the
remote
control.
Then
your
inputs
will
be
transmitted
to
the
video
recorder:
®
If
«0:00»
is
blinking
in
the
remote
control
display
(first
setting)
open
the
cover
of
the
second
button
board
on
the
remote
control
and
enter
the
time.
©
If
a
time
had
been
set
already
and
«0:00»
is
not
blinking,
keep
the
button
CLOCK
(32)
depressed
for
more
than
two
seconds.
©
enter
the
year
with
button
Y+/—
(13),
e.g.
«99»
for
1999,
©
the
month
with
button
M+/—
(14),
e.g.
«9»
for
September,
®
the
day
with
D+/—
(15),
e.g.
«8»
for
the
eighth,
® the time with T+/— (16), e.g. «9:05» for
five minutes past nine o’clock in the
rhorning. If you keep this button
depressed, the time changes in 30
minutes steps.
®
Switch
on
the
video
recorder
with
button
O
(2).
The
control
light
on
the
front
cover
changes
from
STAND-BY
to
POWER.
©
To
transmit
the
data,
point
the
remote
control
to
the
switched
on
video
recorder
and
press
TRANS
(20).
The
video
recorder's
display
will
show
the
time
and
both
clocks
will
start.
The
successfull
transmission
is
answered
by
the
video
recorder
with
a
4
times
short
and
one
long
sound.
If
the
transmission
fails,
because
for
example
the
video
recorder
was
not
switched
on,
you
will
hear
a
signal
that
sounds
7
times
short.
Time change
Enter
the
time
into
the
remote
control
as
described
above.
Then
transmit
the
new
time
into
the
video
recorder.
In the video recorder
lf
you
are
very
interested
in
technical
details
or
if
you
just
think
that
the
clock
setting
via
remote
control
was
too
easy,
we
will
now
describe
how
date
and
clock could
be
set
on
the
video
recorder
directly:
® Keep the button CLOCK SET (49)
depressed
for
more
than
two
seconds.
®
Enter
the
year
using
P+/—
(12)
on
the
video
recorder,
e.g.
«99»
for
1999.
®
Use
NEXT
(57)
now
and
after
all
the
next
settings
to
switch
to
the
next
input.
¢
Use
P+/-
(12)
again,
so
enter
month,
day,
hours
and
minutes.
*
Press
CLOCK
SET
(49)
to
start
the
clock.
Correction of the time
If
the
clock
of
the
video
recorder
differs
less
than
two
minutes,
it
can
be
set
to
the
exact
time
very
easily,
e.g.
at
8
o’clock
PM.
~
©
Keep
the
button
CLOCK
SET
(49)
between
19:58
and
20:01
depressed
for
at
least
two
seconds.
°
As
soon
as
you
hear
the
time
signal
(e.g.
in
the
radio)
press
CLOCK
SET
again.
Time correction
There
is
a
simplified
possibility
to
change
the
clock
of
the
video
recorder
from
or
to
daylight
savings
time.
®
Keep
the
button
CLOCK
SET
(49)
depressed
for
at
least
two
seconds.
©
Press
SHIFT
(58)
and
the
time
will
be
swit-
ched.
once:
one
hour
forward
twice:
one
hour
backward
© End it with CLOCK SET (49).
Power interruption
If
the
power
supply
of
the
video
recorder
was
interrupted
for
more
than
one
hour,
the
time
display
can
be
extinguished.
Then
you
have
to
set
date
and
time
anew.
71

Playback
If you have a prerecorded cassette, you can
now play it back. Otherwise you have to skip
the following for the moment.
© Switch the TV set to the AV programme
number,
® Open the front cover of the video
recorder.
® Insert your VHS cassette into the cassette
compartment, labelled TOP SPEED
SYSTEM. The recorder switches on.
© {f the cassette was already inserted,
switch on with button VTR © (2).
® Cassettes without recording protection
tab switch to playback automatically.
© You start the playback manually with
button > (5). «>» will be displayed.
® Further features like winding, images
search, pause/still image can be found
below.
® End the playback with the button (1 (8).
® The cassette can be removed at any time
by pressing CASS (35).
Note: An inserted cassette will be indicated
in the display and by the indication CASS on
the front cover, even if the recorder is swit-
ched off.
© If the front cover is closed, POWER lights
up while the recorder is switched on.
® SHS and VHS recordings will be
detected and played back accordingly.
This is also true for Longplay recordings.
«LP» will then light red in the display.
@ At the end of the tape the recorder stops
automatically and rewinds the tape.
72
Tracking
Cassettes recorded with another video
recorder might have slightly different posi-
tions of magnetic tracks on the tape. When
playing back such recordings distortion
stripes result. They will be removed automa-
tically by an automated tracking control.
It might be necessary to help
manually:
® Change the tracking during playback by
pressing one of the buttons TRACKING
—/+ (28) several times, until the distortion
stripes are gone.
© Switch back to automatic tracking by
changing the cassette or by pressing the
both buttons TRACKING —/+ (28) simulta-
neously.
® During recording the tracking control is
not active.
Control the image sharpness
Use the control SOFT-HARD (38) to control
the image sharpness during playback. It is
only active when Al (47) stands in position
OFF.
® Direction SOFT results in softer images.
® Direction HARD results in harder, more
visible contours
© The normal setting is the center position.
Image search
To locate a certain position, the images can
be played back forward or backward with
high speed:
© During playback press the button fast
forward D> (7) or rewind <ki (6) shortly.
The image search starts.
© If you keep the buttons depressed, play-
back resumes as soon as you release it.
® Otherwise the image search will stop after
pressing the playback button > (5) or the
stop button ( (8).
Winding
Winding the tape forward or backward
allows you to reach your recordings fast:
® During stop mode press the button fast
forward D> (7) or rewind <i] (6) shortly.
The winding without image playback
starts.
® If you press the same button again during
winding, you switch to image search as
long as you keep it depressed.
© End the winding by pressing the stop
button C] (8).

Pause/still image
You can watch every single image of your
recordings:
© Press [I (9) during playback. The recorder
switches to pause and displays a still
image.
© If you use button fl (9) on the video
recorder, you can use the jog disc (55) to
locate certain single images. Turn it clock-
wise to select the next images, backward
for the previous ones.
® Back to playback with > (5).
Notes: The shuttle ring (54) must be set to
its center position.
® Vertical trembling of the image is reduced
to a minimum with TRACKING -/+ (28).
* Distortion stripes can only be removed
during slow motion.
Slow motion
Details of movements can perfectly be
studied with the slow motion:
® During playback press the button {> (10)
on the remote control. You see your play-
back in slow motion forward.
® Distortion stripes are removed with the
buttons TRACKING —/+ (28).
® Back to playback with > (5).
Variable slow motion
This enhances the possibilities of the slow
motion:
® Press [ll (9) on the video recorder:
® Vertical trembling of the still image is
reduced to a minimum with TRACKING
~/+ (28),
© Turn the shuttle ring (54) slightly clock-
wise for slow motion forward or anticlock-
wise for slow motion backward.
© The further you turn it, the faster the slow
motion will become. You can even reach
normal playback and the variable image
search speed.
© Back to playback with > (5).
Notes: Still image and slow motion play-
back will be ended automatically after five
minutes, image search after 10 minutes.
© During Longplay playback still image and
slow motion are very likely distorted.
© During image search horizontal bars can
be seen.
Playback standard
Your new video recorder can playback the
following standards:
© PAL, the usual European colour standard.
© MESECAM for Switzerland and Eastern
Europe.
© NTSC, for recordings from the USA and
Japan. The playback is converted to PAL
with 60 images per second. Most TV sets
can display them.
Note: Recordings made with French SECAM
will only be played back in black and white.
TBC and Al
The image quality of weak recordings can
be effectively improved:
© Set the switch Al (47) to ON. It is a good
idea to leave it in this position. The red Al
indication on the front of the recorder
lights up. This activates an automatic
image noise reduction at weak recor-
dings. The control SOFT-HARD (38) is not
active any more.
© The TBC, the Time Base Corrector can
reduce the vertical fluttering during play-
back of weak PAL recordings. If needed,
switch TBC (39) to ON.
Normal setting is OFF.
Audio playback
You can select between different possibili-
ties of sound playback:
® Hifi stereo recordings can be recognized
by the indications «L» and «R» in the
display. This setting will be selected auto-
matically whenever possible.
® If you hear two languages simultaneously,
select the desired sound «L» or «R» with
AUDIO OUT (29).
© The mono standard track can be heard
when the indications «L» and «R» do not
light.
® Many films are recorded with Dolby
Surround Sound. If you own a surround
decoder, you can play back such recor-
dings with full surround sound,
® When playing back audio dubbed recor-
dings, you should set AUDIO MIX (45) to
ON. You will hear the original hifi sound
and the audio dubbed standard track
simultaneously.
Important: Normal setting is OFF.’
73

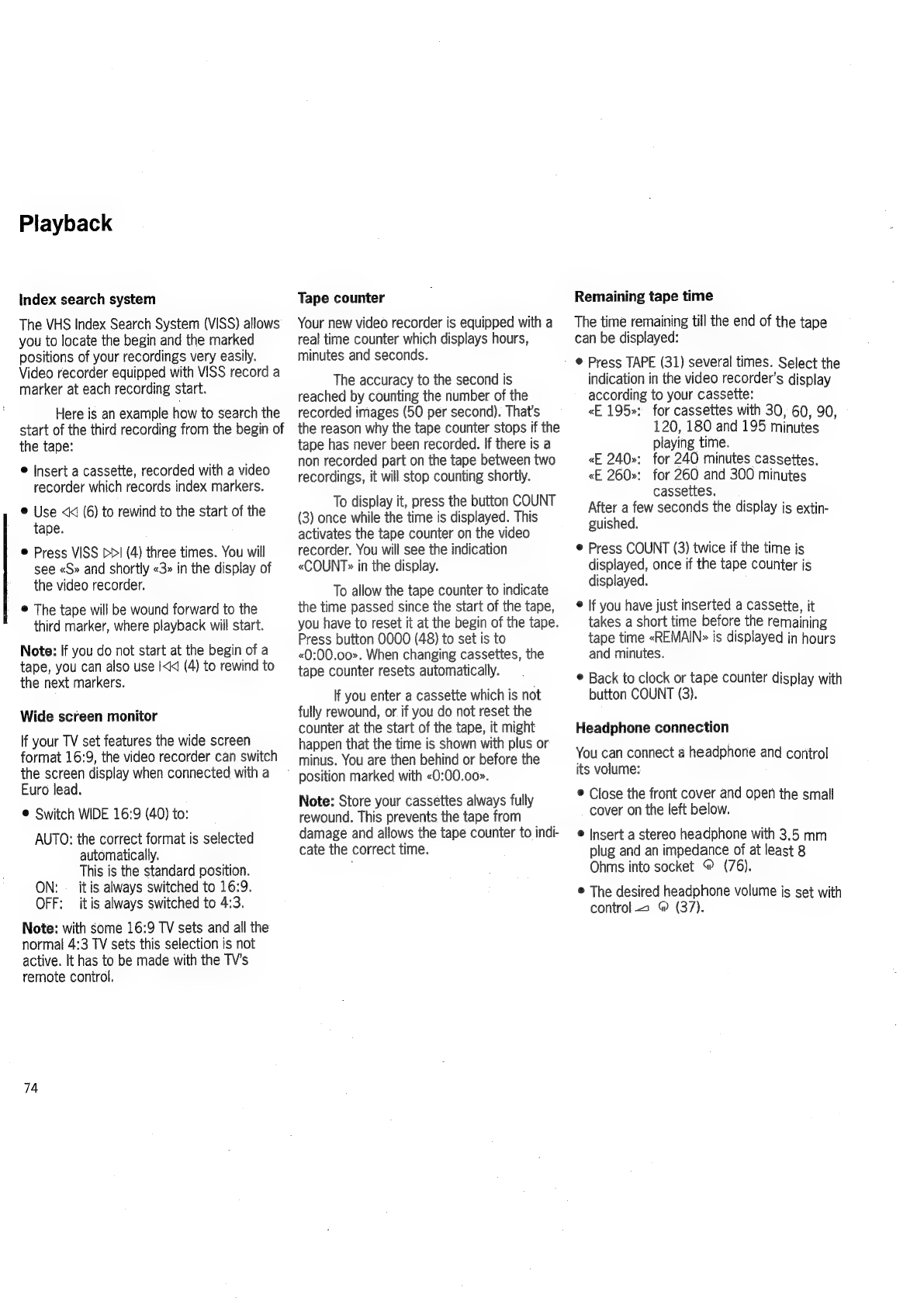

Playback
index search system
The VHS Index Search System (VISS) allows
you to locate the begin and the marked
positions of your recordings very easily.
Video recorder equipped with VISS record a
marker at each recording start.
Here is an example how to search the
start of the third recording from the begin of
the tape:
@ insert a cassette, recorded with a video
recorder which records index markers.
® Use <ki (6) to rewind to the start of the
tape.
© Press VISS D> (4) three times. You will
see «S» and shortly «3» in the display of
the video recorder.
® The tape will be wound forward to the
third marker, where playback will start.
Note: If you do not start at the begin of a
tape, you can also use I<! (4) to rewind to
the next markers.
Wide screen monitor
If your TV set features the wide screen
format 16:9, the video recorder can switch
the screen display when connected with a
Euro lead.
© Switch WIDE 16:9 (40) to:
AUTO: the correct format is selected
automatically.
This is the standard position.
ON: _ itis always switched to 16:9.
OFF: itis always switched to 4:3.
Note: with some 16:9 TV sets and all the
normal 4:3 TV sets this selection is not
active. It has to be made with the TV's
remote control.
74
Tape counter
Your new video recorder is equipped with a
real time counter which displays hours,
minutes and seconds.
The accuracy to the second is
reached by counting the number of the
recorded images (50 per second). That's
the reason why the tape counter stops if the
tape has never been recorded. If there is a
non recorded part on the tape between two
recordings, it will stop counting shortly.
To display it, press the button COUNT
(3) once while the time is displayed. This
activates the tape counter on the video
recorder. You will see the indication
«COUNT? in the display.
To allow the tape counter to indicate
the time passed since the start of the tape,
you have to reset it at the begin of the tape.
Press button 0000 (48) to set is to
«0:00.00». When changing cassettes, the
tape counter resets automatically.
If you enter a cassette which is not
fully rewound, or if you do not reset the
counter at the start of the tape, it might
happen that the time is shown with plus or
minus. You are then behind or before the
’ position marked with «0:00.00».
Note: Store your cassettes always fully
rewound. This prevents the tape from
damage and allows the tape counter to indi-
cate the correct time.
Remaining tape time
The time remaining till the end of the tape
can be displayed:
© Press TAPE (31) several times. Select the
indication in the video recorder’s display
according to your cassette:
«E 195»: for cassettes with 30, 60, 90,
120, 180 and 195 minutes
playing time.
«E 240»: for 240 minutes cassettes.
«E 260»: for 260 and 300 minutes
cassettes.
After a few seconds the display is extin-
guished.
Press COUNT (3) twice if the time is
displayed, once if the tape counter is
displayed.
If you have just inserted a cassette, it
takes a short time before the remaining
tape time «REMAIN» is displayed in hours
and minutes.
© Back to clock or tape counter display with
button COUNT (3).
Headphone connection
You can connect a headphone and control
its volume:
® Close the front cover and open the small
cover on the left below.
® Insert a stereo headphone with 3.5 mm
plug and an impedance of at least 8
Ohms into socket 4 (76).
© The desired headphone volume is set with
control_= @ (37).

_ Station preset
Your
video
recorder
has
a
built
in
reception
unit
for
terrestrial
stations
and
cable
Stations.
it
is
the
best
if
you
ask
your
dealer
to
make
the
necessary
station
preset
which
is
needed
to
be
made
only
once.
Preset mode
To
make
any
of
the
setting
described
on
this
page,
you
first
have
to
reach
the
preset
mode:
*
Switch
your
TV
set
to
the
AV
programme
number
and
switch
on
the
video
recorder
with
©
(2).
*
Select
a
programme
number
with
P
+/—
(12),
which
is
indicated
with
1
to
99
in
the
display.
*
Keep
the
button
TUNER
PRESET
(50)
depressed
for
more
than
two
seconds.
The
preset
mode
is
reached,
the
programme
number
is
flashing.
Station search
If
you
do
not
know
the
transmitter
channels
of
your
stations,
use
the
station
search:
*
Switch
into
the
preset
mode
as
described
above.
®
Select
the
programme
number
you
want
to
set
with
P
+/~
(12).
*
Press
the
button
NEXT
(57),
®
Only
for
decoder
operation,
e.g.
for
PREMIERE
select
«2»
with
SHIFT
(58).
®
Start
the
station
search
upward
with
P+
(12)
or
downward
with
P~
(12)
on
the
video
recorder,
«Po»
starts
flashing.
©
Whenever
the
flashing
stops
start
again,
until
you
have
reached
the
station
you
want
on
the
selected
programme
number.
©
Press
NEXT
(57)
to
store
it.
©
For
further
stations
start
again,
by
selec-
ting
the
programme
number.
©
Pressing
TUNER
PRESET
(50)
twice
ends
the
station
preset.
Channel input
This
is
the
easiest
station
preset
if
you
know
the
channels
of
the
stations:
®
Select
the
preset
mode
as
described
above.
©
Select
the
programme
number
you
want
to
set
with
P
+/~
(12).
©
If
«-»
appears,
press
SHIFT
(58),
©
Press
the
button
NEXT
(57)
.
©
Only
for
decoder
operation,
e.g.
for
PREMIERE
select
«2»
with
SHIFT
(58).
©
Enter
the
channel
of
the
first
station
with
the
number
buttons
(25)
using
two
digits.
©
When
the
station
appears,
press
the
button
NEXT
(57)
to
store
it.
©
For
further
stations
start
again,
by
selec-
ting
the
next
programme
number.
©
Pressing
TUNER
PRESET
(50)
twice
ends
the
station
preset.
Fine tuning
There
are
only
very
few
cases
where
you
might
improve
the
quality
by
manually
fine tuning:
®
Select
the
preset
mode
as
described
above.
®
Press
the
button
TUNER
PRESET
(50)
once
again
or
press
it
orily
once
at
the
end
of
station
preset.
®
Select
the
programme
number
you
want
to
fine
tune
with
P
+/-
(12),
©
Press
NEXT
(57)
to
store
it.
®
By
pressing
P+/—
(12)
on
the
video
recorder
several
times,
you
set
the
sharper
or
less
sharp.
©
Use
SHIFT
(58)
to
switch
back
to
the
auto-
matic
fine
tuning
«AFC».
©
Press
the
button
NEXT
(57).
®
For
further
stations
start
again,
by
selec-
ting
the
next
programme
number.
©
End
it
with
TUNER
PRESET
(50).
Lock programme numbers
Not
occupied
programme
numbers
should
be
locked.
With
P
+/-
(12)
you
will
then
reach
only
the
occupied
programme
numbers:
*
Select
the
preset
mode
as
described
above.
®
Select
the
programme
number
you
want
to
lock
with
P
+/—
(12),
*
Press
SHIFT
(58).
The
programme
number
will
be
replaced
by
bars.
®
Select
the
next
programme
number
and
lock
it
with
SHIFT
(58)
again.
*
To
unlock
stations
proceed
the
same
way,
just
press
SHIFT
(58)
again.
°
Pressing
TUNER
PRESET
(50)
twice
ends
.
the
setting.
Channel assignment
02-12
/
21-69
:
E2-E12
/
21-69
74-76
/
80-82
:
S1-S03
/
M1-M3
83-89
/
90-99
>
M4-M10
/U1-U10
121-141
:
$21-S41
7

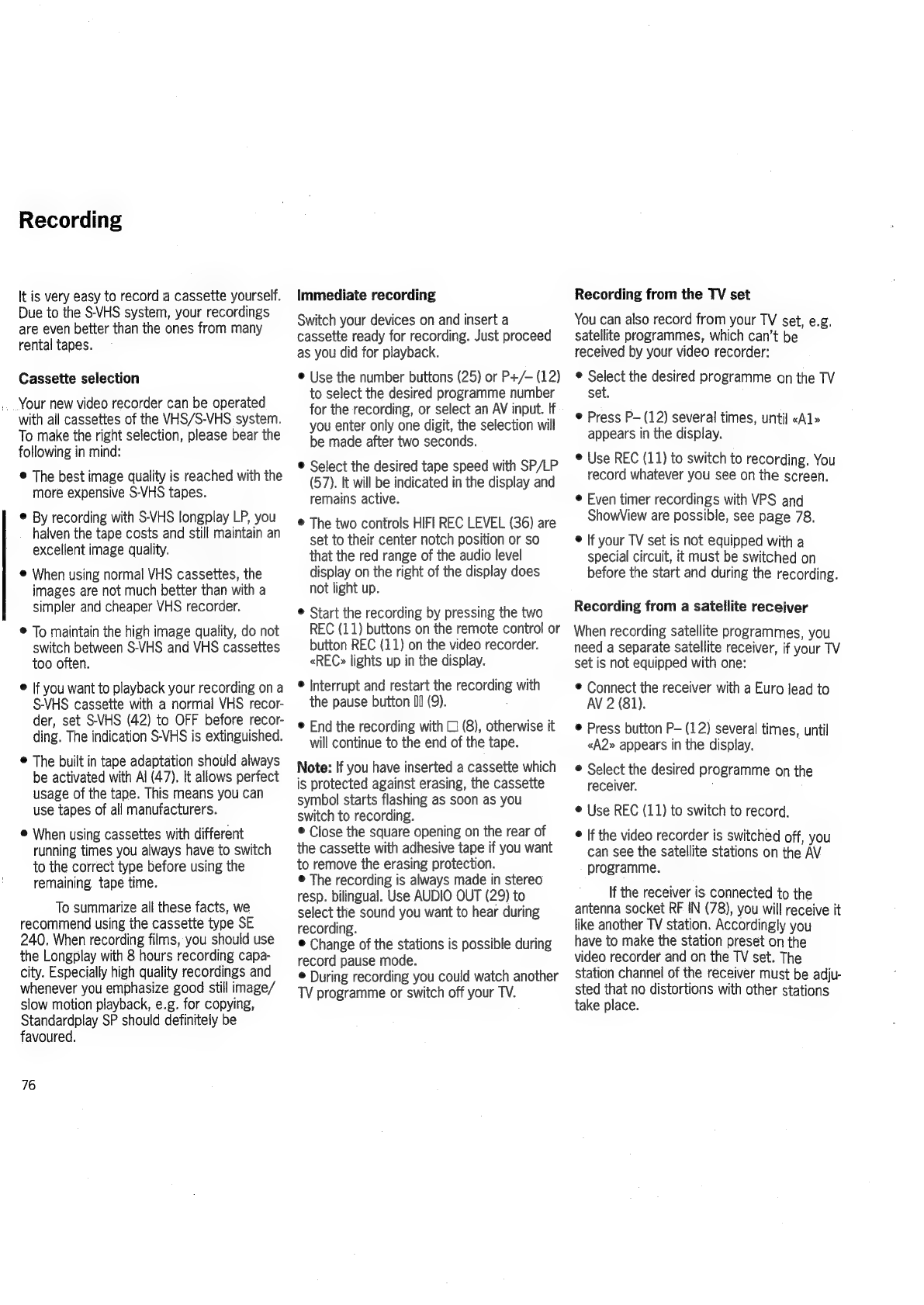

Recording
It is very easy to record a cassette yourself.
Due to the S-VHS system, your recordings
are even better than the ones from many
rental tapes.
Cassette selection
__ Your new video recorder can be operated
with all cassettes of the VHS/S-VHS system.
To make the right selection, please bear the
following in mind:
© The best image quality is reached with the
more expensive S-VHS tapes.
® By recording with S-VHS longplay LP, you
halven the tape costs and still maintain an
excellent image quality.
© When using normal VHS cassettes, the
images are not much better than with a
simpler and cheaper VHS recorder.
® To maintain the high image quality, do not
switch between S-VHS and VHS cassettes
too often.
© If you want to playback your recording ona
S-VHS cassette with a normal VHS recor-
der, set S-VHS (42) to OFF before recor-
ding. The indication S-VHS is extinguished.
© The built in tape adaptation should always
be activated with Al (47). It allows perfect
usage of the tape. This means you can
use tapes of all manufacturers.
© When using cassettes with different
running times you always have to switch
to the correct type before using the
remaining tape time.
To summarize all these facts, we
recommend using the cassette type SE
240. When recording films, you should use
the Longplay with 8 hours recording capa-
city. Especially high quality recordings and
whenever you emphasize good still image/
slow motion playback, e.g. for copying,
Standardplay SP should definitely be
favoured.
76
Immediate recording
Switch your devices on and insert a
cassette ready for recording. Just proceed
as you did for playback.
® Use the number buttons (25) or P+/— (12)
to select the desired programme number
for the recording, or select an AV input. If
you enter only one digit, the selection will
be made after two seconds.
® Select the desired tape speed with SP/LP
(57). It will be indicated in the display and
remains active.
© The two controls HIF REC LEVEL (36) are
set to their center notch position or so
that the red range of the audio level
display on the right of the display does
not light up.
® Start the recording by pressing the two
REC (11) buttons on the remote contro! or
button REC (11) on the video recorder.
«REC» lights up in the display.
® Interrupt and restart the recording with
the pause button [i (9).
® End the recording with Ci (8), otherwise it
will continue to the end of the tape.
Note: If you have inserted a cassette which
is protected against erasing, the cassette
symbol starts flashing as soon as you
switch to recording.
® Close the square opening on the rear of
the cassette with adhesive tape if you want
to remove the erasing protection.
© The recording is always made in stereo
resp. bilingual. Use AUDIO OUT (29) to
select the sound you want to hear during
recording.
® Change of the stations is possible during
record pause mode.
© During recording you could watch another
TV programme or switch off your TV.
Recording from the TV set
You can also record from your TV set, e.g.
satellite programmes, which can’t be
received by your video recorder:
® Select the desired programme on the TV
set.
© Press P— (12) several times, until «Al»
appears in the display.
© Use REC (11) to switch to recording. You
record whatever you see on the screen.
® Even timer recordings with VPS and
ShowView are possible, see page 78.
© If your TV set is not equipped with a
special circuit, it must be switched on
before the start and during the recording.
Recording from a satellite receiver
When recording satellite programmes, you
need a separate satellite receiver, if your TV
set is not equipped with one:
© Connect the receiver with a Euro lead to
AV 2 (81).
® Press button P- (12) several times, until
«A2» appears in the display.
© Select the desired programme on the
receiver.
© Use REC (11) to switch to record.
© |f the video recorder is switched off, you
can see the satellite stations on the AV
programme.
If the receiver is connected to the
antenna socket RF IN (78), you will receive it
like another TV station. Accordingly you
have to make the station preset on the
video recorder and on the TV set. The
station channel of the receiver must be adju-
sted that no distortions with other stations
take place.

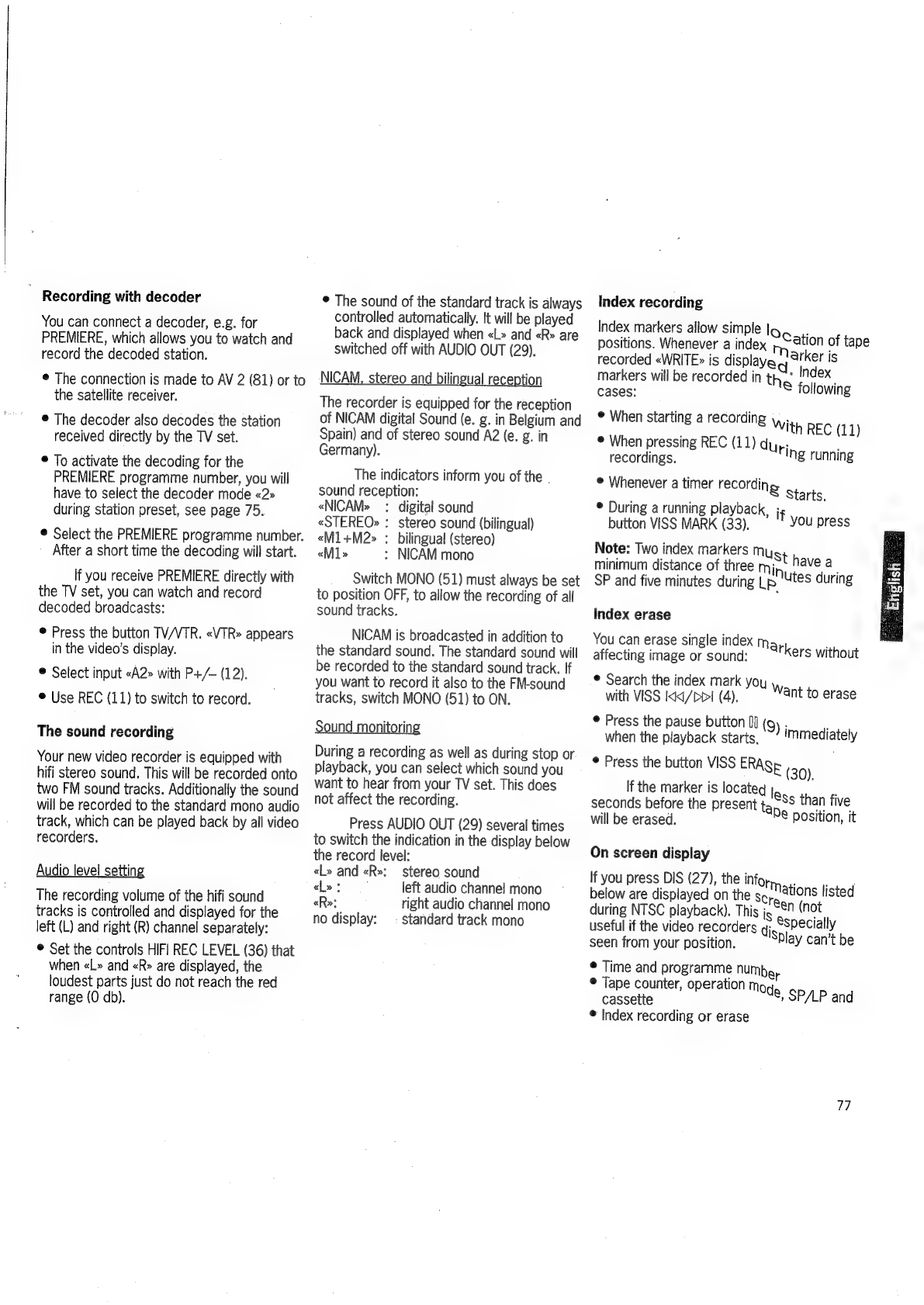

Recording with decoder
You can connect a decoder, e.g. for
PREMIERE, which allows you to watch and
record the decoded station.
© The connection is made to AV 2 (81) or to
the satellite receiver.
© The decoder also decodes the station
received directly by the TV set.
® To activate the decoding for the
PREMIERE programme number, you will
have to select the decoder mode «2»
during station preset, see page 75.
® Select the PREMIERE programme number.
After a short time the decoding will start.
lf you receive PREMIERE directly with
the TV set, you can watch and record
decoded broadcasts:
® Press the button TV/VTR. «VTR» appears
in the video's display.
© Select input «A2> with P-+/— (12).
® Use REC (11) to switch to record.
The sound recording
Your new video recorder is equipped with
hifi stereo sound. This will be recorded onto
two FM sound tracks. Additionally the sound
will be recorded to the standard mono audio
track, which can be played back by all video
recorders,
Audio level setting
The recording volume of the hifi sound
tracks is controlled and displayed for the
left (L) and right (R) channel separately:
© Set the controls HIFl REC LEVEL (36) that
when «L» and «R» are displayed, the
loudest parts just do not reach the red
range (O db).
© The sound of the standard track is always
controlled automatically. It will be played
back and displayed when «L» and «R» are
switched off with AUDIO OUT (29).
NICAM, stereo and bilingual reception
The recorder is equipped for the reception
of NICAM digital Sound (e. g. in Belgium and
Spain) and of stereo sound A2 (e. g. in
Germany).
The indicators inform you of the -
sound reception:
«NICAM» : digital sound
«STEREO» : stereo sound (bilingual)
«M1+M2» : bilingual (stereo)
«M1» : NICAM mono
Switch MONO (51) must always be set
to position OFF, to allow the recording of all
sound tracks.
NICAM is broadcasted in addition to
the standard sound. The standard sound will
be recorded to the standard sound track. If
you want to record it also to the FM-sound
tracks, switch MONO (51) to ON.
und monitorin
During
a
recording
as
well
as
during
stop
or
playback,
you
can
select
which
sound
you
want
to
hear
from
your
TV
set.
This
does
not
affect
the
recording.
Press AUDIO OUT (29) several times
to. switch the indication in the display below
the record level:
«L» and «R»; stereo sound
«Ll»: left audio channel mono
«Ro? right audio channel mono
no display: — standard track mono
Index recording
Index
markers
allow
simple
logan
positions.
Whenever
a
index
,~
ation
of
tape
recorded
«WRITE»
is
displayeg
ker
is
markers will be recorded in t4-: Index
ee
the
following
© When starting a recording With REC
® When pressing REC (
recordings.
11) (11)
Curing running
©
Whenever
a
timer
recording
Starts
® During a running playback
button VISS MARK (33).
Note: Two index markers Must
minimum
distance
of
three
mj,
fave
2
SP and five minutes during Lp. Utes during
’ IF you press
Index erase
You can erase single index
m .
affecting image or sound: “rkers without
® Search the index mark yoy
with VISS Ix<ki/DPI (4).
* Press the pause button [I]
when the playback starts,
*
Press
the
button
VISS
ERASE
(30)
If
the
marker
is
locate
le
.
seconds
before
the
present
tan<S
than
five
will
be
erased.
©
position,
it
Want to erase
(9) immediately
On screen display
If you press DIS (27), the infor. ;
below are displayed on the Scrgations listed
during
NTSC
playback).
This
jg
7
(not
useful if the video recorders gj. SPecially
seen from your position. Play can’t be
© Time and programme numb
® Tape counter, operation mo
pantera
de,
SP/LP
and
®
Index
recording
or
erase
77

Timer recording
The timer will control your recordings even if
you are not at home. Up to eight recordings
within one month can be entered.
To make the operation of the timer as
easy as possible, your new video recorder
is equipped with ShowView*. All you have to
‘do is enter the ShowView number, which is
listed in the TV magazines for each broad-
cast.
The input is made into the remote
control. It can then be controlled in the
remote control's display. Finally it is trans-
mitted to the video recorder by the pressing
' of a button.
To ensure the highest accuracy and
reliability of your timer recordings, the video
can be retrofitted with the Video Programme
System VPS or PDC.
Sleep timer
This is the easiest way to make sure that
the video recorder switches off automati-
cally. Press SLEEP (58) several times, until
the desired running time is displayed in the
video's display as «OFF» time. The time can
be selected in 30 minutes steps up to 9
hours.
* ShowView is a trademark applied for by
Gemstar Development Corp. ShowView
System is manufactured under license from
Gemstar Development Corporation.
78
Important for timer recording
To ensure perfect timer recordings please
bear the following in mind:
© Time and date must be entered in the
remote control and transmitted to the
video recorder.
® A cassette ready for recording and with
enough remaining running time must be
inserted.
® During timer input you can select the
recording speed with SP/LP (22), other-
wise it will be made at the speed shown in
the video recorder’s display.
After entering timer inputs into the video
recorder a clock symbol lights up. From
then on the control is locked.
® Until the timer recording is made, you
have to switch your video recorder on and
off with button TIMER (17).
© Timer inputs are checked with CHECK
(18) on the screen. Press the button
several times to control them on the
video’s display.
® A running timer recording is ended with
button TIMER (17).
If your video has been equipped with
VPS or PDC, please note the following:
® When recording from stations with
VPS/PDC, you have to enter the exact
VPS time, otherwise no recording is made
at all. When receiving such stations «VPS»
lights red in the display.
© During timer input you can use button VPS
(23) to switch off the VPS/PDC function.
This is important when recording several
broadcasts with one timer programme.
® If the broadcast programmed with
VPS/PDC is cancelled or interrupted, it
will be erased from the memory on the
second next day at four o’clock in the
morning.
ShowView
Many
TV
magazines
list
the
ShowView
number
for
each
single
broadcast.
It
contains
the
encoded
station,
start
resp.
VPS
and
end
time
of
the
broadcast
as
well
as
the
date.
This
makes
timer
input
as
easy
as
dialling
a
phone
number,
_ The ShowView system names each
station with a guide number, which can be
found in the TV-magazine as well. It has to
be assigned to the programme number of
the corresponding station:
© Open the cover of the remote conirol.
®
Keep
PRESET
(32)
depressed
for
at
least
two
seconds
then
press
it
once
again.
«SHOWVIEW> appears with the display for
the station assignment,
® Enter the guide number with OFF +/— (16
e.g. «005» for SAT 1, aoe
°
Use
PR+/-
(13)
to
select
the
programme
number
you
use
on
the
video
recorder
for
this
programme,
€.g.
«4»
if
you
use
programme
number
4
for
SAT
1.
¢ Select the other guide numbers and the
corresponding programme numbers.
* You have to assign «- -» to all guide
numbers of stations you do not receive.
®
All
programmes
you
want
to
record
from
your
TV
set,
e.g.
Satellite
stations,
are
assigned
to
«Al»,
this
is
input
AV1
(80).
*
All
programmes
received
from
a
satellite
receiver
connected
to
AV2
(81)
are
assigned
to
«A2>.
If
the
receiver
is
connected
to
RF
IN
(78)
enter
the
receiver's
programme
number.
®
After
all
assignments
have
been
made,
close
the
cover
of
the
remote
control.

, Guide number
Each language region uses different guide
numbers. This was the reason why you had
to find the guide number in your TV-maga-
zine. Nevertheless, if you couldn't find it
there, it can also be found out in the follo-
wing way:
© Select the mode for programme assign-
ment as described above.
© Get the ShowView number of a future
broadcast, which is broadcasted on the
station which guide number you want to
know from your TV-magazine.
¢ Enter these numbers with the number
buttons (25).
® Press the button OK (26).
® The guide number appears in the display.
Timer input with ShowView
After these preparations which had to be
made only once, the timer input is really
easy:
e Insert a cassette ready for recording.
© Open the cover of the remote control.
Time and date must be set.
© Press SHOWVIEW (21).
© Enter the ShowView number with the
number buttons (25).
© Then press the button OK (26).
© Check whether all data-of your desired
recording are displayed, otherwise press
SHOWVIEW (21) and enter the ShowView
number again.
© Point the remote control to the video
recorder and press TRANS (20).
The video recorder receives the data |
of your broadcast you want to record and
. shows them in the display and on the
screen.
Normal timer input
Without ShowView number all you have to
enter are programme number, date, begin
and end of the broadcast:
© Open the cover of the remote control.
© Use PR+/— (13) to select the programme
number or one of the AV inputs.
® Use DATE+ (14) to select the date if you
do not want to record today.
© Use ON+/— (15) to select the start time,
© use OFF+/— (16) for the end time.
® Point the remote control to the video
recorder and press TRANS (20).
The video recorder receives the data
of your broadcast you want to record and
shows them in the display and on the
screen.
Daily/weekly
When entering the date, the weekday of the
recording is displayed. By pressing DATE-
(14) several times, you can select:
© weekly, always the same day of the week
© daily, from Monday to Friday,
® daily from Monday to Saturday,
® daily from Sunday to Saturday.
Cancel timer inputs
The timer inputs in the remote control’s
display are cancelled when closing the
cover.
The timer inputs which have already
been transmitted to the video recorder must
be cancelled as well:
@ Press CHECK (18) several times, until the
timer input you want to cancel is shown in
the video's display and on the screen.
© Press CANCEL (19) to delete it.
Timer input on the video recorder
If necessary, you can even enter timer
recordings on the video recorder itself.
© Switch the TV set to the AV programme
number and switch the video recorder on.
© Press TIMER PROG (56) several times,
until the next free timer memory is
reached.
¢ Use P+/— (12) to select the programme
number or one of the AV inputs.
¢ Use NEXT (57) now and after each of the
following inputs, to switch to the next
input.
e Use P+/- (12) again, to enter date, start
time hour and minute, stop time hour and
minute and finally LP or SP.
® The timer is activated with TIMER (17).
Note: Daily and weekly can be selected with
P- (12) when entering the date. The accor-
ding display can only be seen on the
screen.
neel timer in on video rec t
You can also cancel timer inputs on the
video recorder:
¢ Switch your TV set to the AV programme
number.
© Switch on your video recorder with button
TIMER (17).
® Press TIMER PROG (56) several times,
until the timer input you want to cancel is
displayed.
© Keep P— and P+ (12) on the video
recorder depressed simultaneously for at
least three seconds,
79

On screen dialog control
On screen language
The electronic cut is controlled through an
on screen dialog. You can select between
different languages of the menu display:
© Switch the TV set to the AV programme
number and switch the video recorder on.
© Make sure that EDIT (43) is in position
PLAY or REC.
e@ Use MENU (60) to call the OSD menu (On
Screen Display):
© Select «SETTING» with © (61).
® Use ENTER (62) to call it.
® Select «LANGUAGE> with ¢ (61).
® Use ENTER (62) to call it:
80
® Use button © (61) to select the desired
language.
© Use button ENTER (62) to confirm the
language change.
© Use ESC (64) to reach the previous menu.
© Use MENU (60) to switch off the OSD.
Image search sound
In the OSD you can select whether you want
to hear the sound during image search:
* Call the setting menu as described above.
@ Mark «SEARCH WITH SOUND» and
confirm it with ENTER (62):
* Use © (61) to select the desired setting:
AUTO: sound only during editing search
ON: sound during each search
OFF: no sound during search
© Use button ENTER (62) to store the
selected setting.
® Use ESC (64) to reach the previous menu.
© Use MENU (60) to switch off the OSD.
OSD demonstration
You can cycle the different on screen menus
for demonstration purposes:
® Call the setting menu as described above.
© Mark «DEMONSTRATION» with © (61).
© Use ENTER (62) to start the demonstra-
tion cycle.
Every five seconds a different page of
the on screen menus for setting and cutting
functions will be displayed.
® Use ESC (64) to reach the previous menu.
@ Use MENU (60) to switch off the OSD.
