Logan FAB-2S User manual

LOGAN INSTRUMENTS CORP. 19 C School House Rd., Somerset, N 08873
Tel: [phone] Fax: [phone] E-Mail: [e-mail]
www.loganinstruments.com
FAB-2S FRIABILITY TESTER
(with variable speed setting)
Instru tion Manual
Rev : 0 Date : 5/26/2015

LOGAN FRIABILITY TESTING SYSTEM
FAB-2S FRIABILITY TESTER
Page 2 of 12
TABLE OF CONTENTS
1.0 SPECIFICATIONS
2.0 DESCRIPTION OF FAB-2S FRIABILITY TESTER
3.0 DESCRIPTION OF CONTROLS
4.0 INSTALLATION AND SET UP
5.0 OPERATING PROCECURES
6.0 MAINTENANCE
7.0 TROUBLE SHOTTING
8.0 SPARE PARTS AND SERVICE INFORMATION

LOGAN FRIABILITY TESTING SYSTEM
FAB-2S FRIABILITY TESTER
Page 3 of 12
1.0 SPECIFICATIONS
Drum Position: 2
Drum Speed: Variable Speed 25-70 RPM
Speed Accuracy Per Minute: ±1 RPM
Maximum Testing Time: 9 HR 59 MIN. 59 SEC.
Maximum Count of Revolutions: 99999 Revolutions
Size: 12” x 16” x 14”
Weight: 20LBS.
Voltage: 110V/50-60Hz
220V/50-60Hz

LOGAN FRIABILITY TESTING SYSTEM
FAB-2S FRIABILITY TESTER
Page 4 of 12
2.0 DESCRIPTION OF FAB-2S FRIABILITY TESTER
Logan FAB-2S Friability Tester is a double-drum Tablet Friability Test instruments, manufactured in
compliance to the USP, Europe, and other Pharmacopoeias. One of the testing criteria of mechanical
strength of tablets and cores is Friability and Abrasion testing. During the process of coating,
transportation, packing …etc. the tablet will lose some mass. To measure the mass loss the samples are
counted and weighed. Thereafter the Friability test performed following the individual monographs of
the Pharmacopoeia. When finished the samples have to be dusted and weighed again. Actually the
difference between the weight before and after the test is determined as Friability, which usually should
not exceed 1%.
The standard Friability drum causes the samples to roll and fall during the test while the abrasion drum
continuously stresses the sample by abrasion of lamellas. FAB-2S Friability Tester can be used 1 or 2
drum. A noiseless gear motor rotates the drums with a variable speed of 25-70 RPM that programmed
by users. The actual drum is made from Plexiglas and separated into two parts, the drum body and a
removable cover, opened to fill, discharge and clean the drum inside when required. The instrument
itself is made from high quality metal which meets in full the actual GLP requirements.
FAB-2S FRIABILITY TESTER includes the following:
•Main Drive Unit
•2 Drums (L & R)
•2 Drum Nuts (L & R)

LOGAN FRIABILITY TESTING SYSTEM
FAB-2S FRIABILITY TESTER
Page 5 of 12

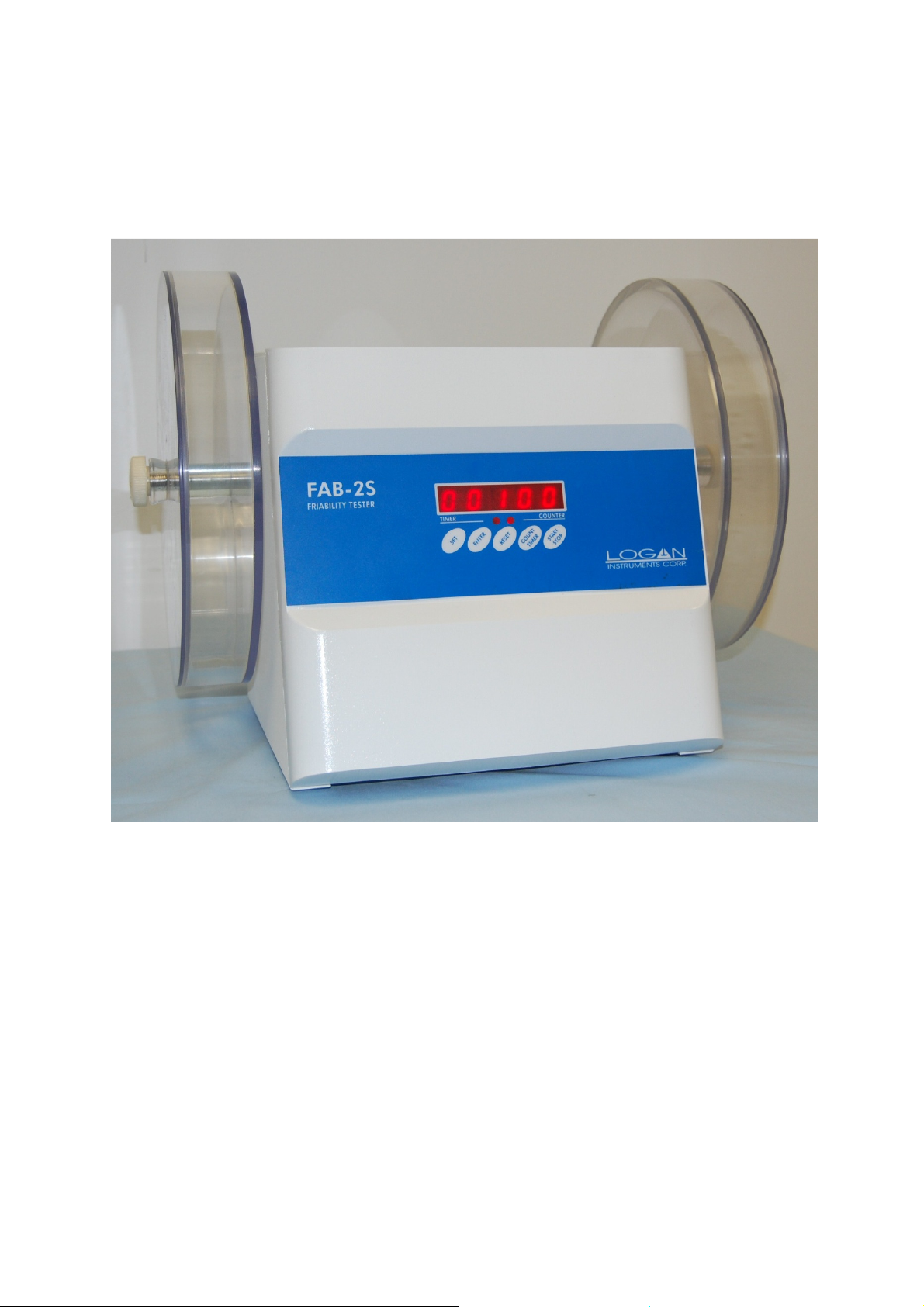

2.1 FAB-2S AUTOMATED DISSOLUTION TESTER
FRONT VIEW

LOGAN FRIABILITY TESTING SYSTEM
FAB-2S FRIABILITY TESTER
Page 6 of 12
3.0 CONTROL LOCATIONS ON FRONT PANEL OF FAB-2S
Power Switch Location: Left side control panel
Purpose: Turns the system on/off
Display Purpose: To display timer or counter
Timer Indicator Light Purpose: To indicate Friability Tester is in timer mode.
Counter Indicator Light Purpose: To indicate Friability Tester is in counter mode.
“Start/Stop” Button Purpose: To start or stop the timing or counting
“Counter/Timer” Button Purpose: To select counter mode or timer mode
“Reset” Button Purpose: To reset Friability Tester to re-start
“Enter” Button Purpose: To enter the digits
“Set” Button Purpose: To set the digits

LOGAN FRIABILITY TESTING SYSTEM
FAB-2S FRIABILITY TESTER
Page 7 of 12
4.0 INSTALLATION AND SET UP
4.1 Remove the unit from packing box.
4.2 Remove both drums from packing box.
4.3 Remove drum nut from Friability Tester
4.4 Install drums inf. Shafts. Both drums are marked.
One marked “L” goes to left side.
One marked “R” goes to right side.
Make sure the drum drive slot engage with drive bar and tighten with drum nut.
4.5 Connect the power cord to the Friability Tester
5.0 Operating Pro edure
5.1 Turn power switch on.
5.2 Select timer mode or counter mode by pressing “Timer/Counter” button.
5.3 Timer Mode:
With Timer indicator light on, display will show a default time of 0:04:00.
This means when “Start/Stop” button has been pressed drum will rotate for 4 minutes
and then stop.
To Set Test Time:
(Make sure timer mode indicator light is on before proceeding.)
Set Seconds:
A. Press “set” button, the last digit will start flashing.
B. Press “Enter” to increase the flashing digit. (Skip step B if no change is required.)
C. Press “Set” button, the second to last digit will start flashing.
D. Press “Enter” to increase the flashing digit. (Skip step D if no change is required.)
0:00:0 0
0:00: 0 0

LOGAN FRIABILITY TESTING SYSTEM
FAB-2S FRIABILITY TESTER
Page 8 of 12
Set Minutes:
A. Press “Set” button, the third to last digit will start flashing.
B. Press “Enter” to increase the flashing digit. (Skip step B if no change is required.)
C. Press “Set” button, the fourth to last digit will start flashing.
D. Press “Enter” to increase the flashing digit. (Skip step D if no change is required.)
Set Hour:
A. Press “Set” button, the first digit will start flashing.
B. Press “Enter” button to increase the flashing digit. (Skip step B if no change is required.)
C. Press “Set” button to end the setting process.
5.4 Counter Mode
With counter indicator light on, display shows a default revolution count of 0:01:00.
This means when “Start/Stop” button has been pressed drum will go 100 rotations and then
stop.
To Set Timer Mode:
(Make sure the counter indicator light is on before proceeding.)
Set Revolution Count:
A. Press “Set” button, last digit will start flashing.
B. Press “Enter” button to increase the flashing digit. (Skip step B if no change is required.)
0:0 0 :00
0: 0 0:00
0 :00:00
0:00:0 0

LOGAN FRIABILITY TESTING SYSTEM
FAB-2S FRIABILITY TESTER
Page 9 of 12
C. Press “Set” button, the second to last digit will start flashing.
D. Press “Enter” button to increase the flashing digit. (Skip step C if no change is required.)
E. To change the remaining digits repeat the above procedure.
5.5 To Reset the Friability Tester
Press “reset” button. FAB-2S will go back to default starting mode. Please note that default
mode for FAB-2S is Timer Mode. To select Counter Mode you must press “Timer/Counter”
button.
5.6 To Start Test
Once you have finished setting your time or count, press “Start/Stop” button. FAB-2S will start
rotation for timer or counter mode.
5.7 To Stop Test
FAB-2S will automatically stop when it reaches the preset time or count. To stop test before it
reaches its preset time or count, press “Start/Stop” button.
Warning:
Below information for the lab manager only, do not show technician how to change the rotation
speed to avoid future problems.
F. To change the rotation speed:
5.8 Turn on the POWER switch while pressing and holding the “Start/Stop” button, the display
shows the last rotation speed.
5.9 Press “Set” and “Enter” button to input the new rotation speed. Proceed as to set the
Revolution Count. The speed setting is from 20-70 RPM.
5.10 Press “Reset” button into test mode for the test.
0:00:0 0

LOGAN FRIABILITY TESTING SYSTEM
FAB-2S FRIABILITY TESTER
Page 10 of 12
To set speed (from 25 RPM to 70 RMP):
A. Press and hold “Start/Stop” button and turn on the main power switch at the same time; this
will put the FAB-2S into speed program mode. In speed program mode, only the last 2 digits can
be programmed (25 RMP – 70 RMP).
B. Press the “Set” button, the last digit will start flashing.
C. Press “Enter” to increase the flashing digit. (from 0 to 9)
D. Press “Set” button, and the fourth digit will start flashing.
E. Press “Enter” to increase the flashing digit. (from 2 to 7.)
F. Press “Reset” to enter the new speed setting into the FAB-2S.
G. Turn off the FAB-2S and power on again to check the new speed setting on the display to start
the test at the new speed.
0:00: 0 0
0:00:0 0

LOGAN FRIABILITY TESTING SYSTEM
FAB-2S FRIABILITY TESTER
Page 11 of 12
6.0 Maintenan e
Keep FAB-2S Friability Tester in a dry and flat surface
6.1 Drum
After test please clean by using a dry cloth. Do not use any solvent. Lay on clean flat surface.
Do not store at vertical position.
6.2 Drive Unit
Keep on a flat and clean surface. Clean the surface by using a dry cloth. Do not use any solvent.
6.3 Drive Shaft
Make sure both shafts are dry at all times. Clean shaft with dry cloth. Do not use any solvent.
Fuse Repla ement Instru tion:
To replace the fuse, turn off the power switch. Gently press the fuse holder knob in and turn counter
clockwise. Take the old fuse out and replace it with a fuse (Part#3AG-5AMP at 250VAC)
Ground Symbol
Do not remove any screws with ground symbol next to it.

LOGAN FRIABILITY TESTING SYSTEM
FAB-2S FRIABILITY TESTER
Page 12 of 12
7.0 Trouble Shooting:
Symptoms Possible Cause
No Power Check Line Cord
Check Fuse
When power is on constantly long beep Check Buttons if join with case
No rotation Check Motor and Belt
If further assistance is needed please contact your local distributor or Logan Instruments:
Address:
19 C School House Rd.
Somerset, N 08873
Tel: [phone]
Fax: [phone]
Email: [e-mail]
