Logic LG-HSW401-4K User manual

www.logicav.in
LG-HSW401-4K
HDMI2.0 4x1 Switcher
All Rights Reserved
Version: LG-HSW401-4K_2020V1.0
User Manual

HDMI2.0 4x1 Switcher
www.logicav.in
Preface
Read this user manual carefully before using the product. Pictures are shown in this
manual for reference only. Different models and specifications are subject to real
product.
This manual is only for operation instruction, please contact the local distributor for
maintenance assistance. The functions described in this version were updated till
March, 2020. In the constant effort to improve the product, we reserve the right to
make functions or parameters changes without notice or obligation. Please refer to the
dealers for the latest details.
FCC Statement
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. It has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a commercial
installation.
Operation of this equipment in a residential area is likely to cause interference, in
which case the user at their own expense will be required to take whatever measures
may be necessary to correct the interference.
Any changes or modifications not expressly approved by the manufacture would void
the user’s authority to operate the equipment.

HDMI2.0 4x1 Switcher
www.logicav.in
SAFETY PRECAUTIONS
To ensure the best performance from the product, please read all instructions carefully
before using the device. Save this manual for further reference.
Unpack the equipment carefully and save the original box and packing material for
possible future shipment.
Follow basic safety precautions to reduce the risk of fire, electrical shock and injury
to persons.
Do not dismantle the housing or modify the module. It may result in electrical shock
or burn.
Using supplies or parts not meeting the products’ specifications may cause damage,
deterioration or malfunction.
Refer all servicing to qualified service personnel.
To prevent fire or shock hazard, do not expose the unit to rain, moisture or install this
product near water.
Do not put any heavy items on the extension cable in case of extrusion.
Do not remove the housing of the device as opening or removing housing may
expose you to dangerous voltage or other hazards.
Install the device in a place with fine ventilation to avoid damage caused by
overheat.
Keep the module away from liquids.
Spillage into the housing may result in fire, electrical shock, or equipment damage. If
an object or liquid falls or spills on to the housing, unplug the module immediately.
Do not twist or pull by force ends of the optical cable. It can cause malfunction.
Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to
the device before cleaning.
Unplug the power cord when left unused for a long period of time.
Information on disposal for scrapped devices: do not burn or mix with general
household waste, please treat them as normal electrical wastes.

HDMI2.0 4x1 Switcher
www.logicav.in
Table of Contents
1. Product Introduction....................................................................................................1
1.1 Features ............................................................................................................1
1.2 Package List ......................................................................................................2
2. Technical Specification................................................................................................3
3. Panel Description........................................................................................................4
3.1 Front Panel ........................................................................................................4
3.2 Rear Panel.........................................................................................................5
4. System Connection.....................................................................................................6
4.1 Usage Precaution ..............................................................................................6
4.2 System Diagram ................................................................................................6
5. Source Button Control.................................................................................................7
5.1 Manual Switching...............................................................................................7
5.2 Automatic Switching...........................................................................................7
6. IR Remote Control ......................................................................................................8
7. RS232 Control ............................................................................................................9
7.1 RS232 Control Software ....................................................................................9
7.2 RS232 Command ............................................................................................11
7.2.1 Signal Switching ....................................................................................11
7.2.2 Source Device Control...........................................................................11
7.2.3 Display Device Control ..........................................................................12
7.2.4 Audio Selection......................................................................................13
7.2.5 System Control ......................................................................................13
8. EDID Management ...................................................................................................14
8.1 Predefined EDID Setting..................................................................................14
8.2 User Defined EDID Setting ..............................................................................15
9. ARC Mode ................................................................................................................16
10. Firmware Upgrade ..................................................................................................17
11. Troubleshooting & Maintenance .............................................................................18
12. Customer Service ...................................................................................................19

HDMI2.0 4x1 Switcher
www.logicav.in 1
1. Product Introduction
The LG-HSW401-4K is an ultrathin auto switcher with four HDMI video inputs and one
HDMI output. This switcher supports HDMI video resolution up to 4Kx2K@60Hz 4:4:4
HDR and multichannel audio. Except passing EDID information from the display, there
are multiple built-in EDID settings to simplify an installation. The switcher will
de-embed digital stereo audio to provide an analog audio source for an existing audio
system. The switcher also supports audio return channel (ARC) for transmitting audio
back to HDMI input port from the connected display.
In auto-switch mode, it switches to an HDMI input as soon as a new source is
connected. When the active input is removed, the switcher will select the first source
on the lowest numbered input. The switcher may also be controlled via RS232, IR with
the included remote, or from the source button on the front of the switcher.
1.1 Features
Switches any one of four HDMI inputs to one HDMI output.
Supports video resolution up to 4Kx2K@60Hz 4:4:4 HDR.
18Gbps high bandwidth.
Fully compliant with the HDMI 2.0 and HDCP2.3 specifications.
Supports audio return channel (ARC).
Advanced EDID management: multiple preset and user defined allowed.
Controllable via RS232 and IR.
Supports CEC.
Provides seven LEDs to indicate the current operating status and to assist
troubleshooting an installation.
Firmware upgrade by Micro-USB port.

HDMI2.0 4x1 Switcher
www.logicav.in 2
1.2 Package List
1x HDMI2.0 4x1 Switcher
2x Mounting Ears
4x Mounting Screws
4x Plastic Cushions
1x RS232 Cable (3.5mm to DB9)
1x IR Remote
1x IR Receiver
1x Power Adapter (5V DC 1A)
1x User Manual
Note: Please contact your distributor immediately if any damage or defect in the
components is found.

HDMI2.0 4x1 Switcher
www.logicav.in 3
2. Technical Specification
Video Input
Input
(4) HDMI
Input Connector
(4) Female type-A HDMI
HDMI Input Resolution
Up to 4Kx2K@60Hz 4:4:4
HDMI Standard
2.0
HDCP Version
2.3
Video Output
Output
(1) HDMI
Output Connector
(1) Female type-A HDMI
HDMI Output Resolution
Up to 4Kx2K@60Hz 4:4:4
HDMI Standard
2.0
HDCP Version
2.3
Audio
Output
(1) AUDIO
Output Connector
(1) 3.5mm mini stereo audio jack
Audio Format
PCM
Audio Output Impedance
70 Ohms
Frequency Response
20Hz to 20kHz, ±3dB
Control
Control
(1) IR IN; (1) RS232
Control Connector
(2) 3.5mm mini jack
General
Bandwidth
18Gbps
Operation Temperature
-10℃~ +55℃
Storage Temperature
-25℃~ +70℃
Relative Humility
10%-90%
Power Supply
Input:100V~240V AC; Output: 5V DC 1A
Power Consumption
5W(Max)
Dimension (W*H*D)
194mm x 15mm x 81mm
Net Weight
324g
Note: Please adopt high-qualified HDMI cable fully compliant with HDMI2.0 for reliable transmission
and connection.

HDMI2.0 4x1 Switcher
www.logicav.in 4
3. Panel Description
3.1 Front Panel

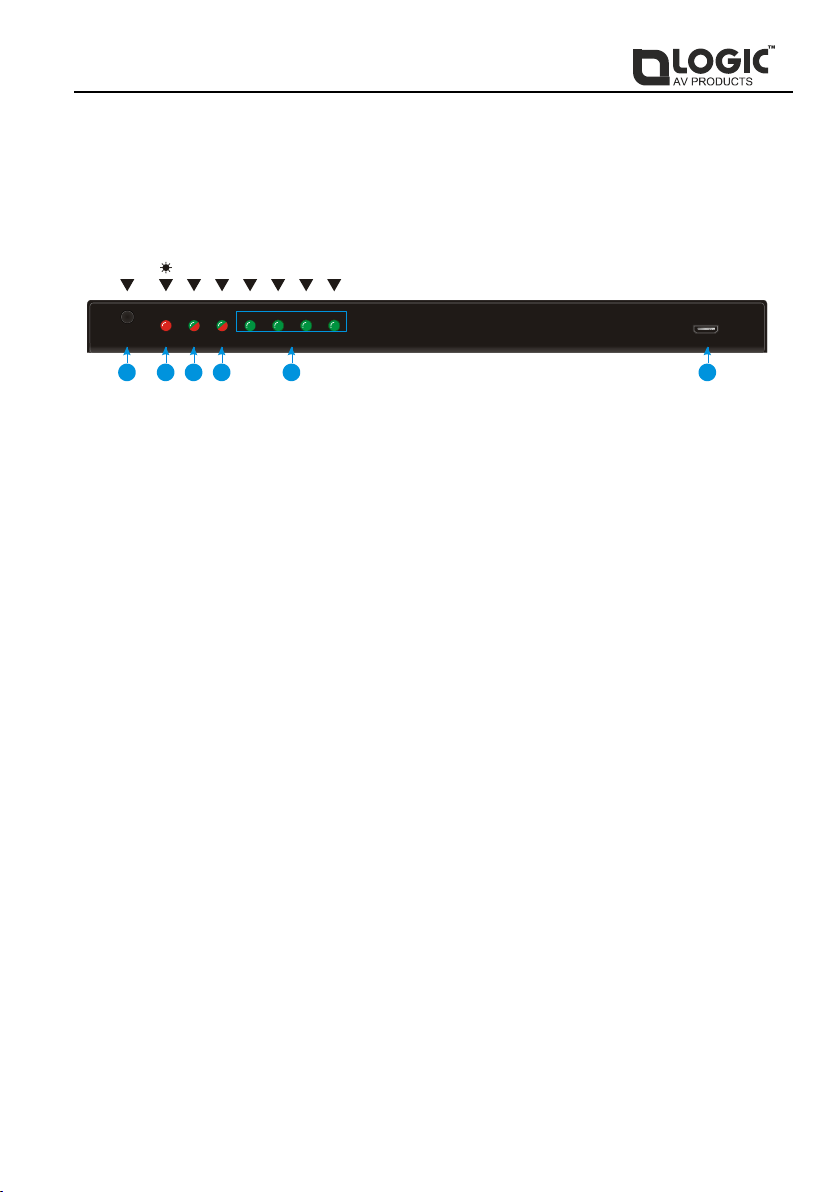

①Auto/Source Button:
Press to switch to next input source.
Press and hold at least three seconds to switch between manual mode and auto
mode.
②Power LED: The LED illuminates red when power is applied.
③Audio Mode LED:
Illuminates green when de-embedding audio.
Illuminates yellow when in ARC mode.
④Switching Mode LED:
Illuminates green in manual switch mode.
Illuminates yellow in auto-switch mode.
⑤Input 1~4 LED: The LED illuminates green when there is HDMI input on the
corresponding channel.
⑥FIRMWARE: Micro-USB port for firmware upgrade.
FIRMWARE
AUTO
SOURCE AUDIO MODE 1 2 3 4
12345 6

HDMI2.0 4x1 Switcher
www.logicav.in 5
3.2 Rear Panel
①IN 1~4: Four type-A female HDMI input ports to connect HDMI sources. The input
4 port supports ARC.
②OUT: Type-A female HDMI output port to connect HDMI display.
③AUDIO: 3.5mm mini jack for analog audio output.
④RS232: 3.5mm mini jack to connect control device (e.g. PC).
⑤IR IN: 3.5mm mini jack to connect the included IR receiver for remote control.
⑥EDID: 4-pin DIP switch for EDID setting.
⑦DC 5V: DC port to connect a 5V DC AC power adapter.
Note: Output HDCP compliant status depends on input signal. When the input signal
is with HDCP, then output signal is with HDCP and vice versa.
DC 5VEDIDIR INRS232AUDIOOUT
IN 1 IN 2 IN 3
1234567

HDMI2.0 4x1 Switcher
www.logicav.in 6
4. System Connection
4.1 Usage Precaution
Make sure all components and accessories included before installation.
System should be installed in a clean environment with proper temperature and
humidity.
All of the power switches, plugs, sockets, and power cords should be insulated and
safe.
All devices should be connected before power on.
4.2 System Diagram
The following diagram illustrates typical input and output connections that can be
utilized with this switcher:
Game Console Laptop
STB
5 6 7
Receiver Remote
Central Control
System
Ray-Blu DVD
TV Speaker
HDMI:
Control:
Audio:
RS232:
