Logik LTOC50W12 Parts list manual

Free-Standing Double Oven
Electric Cooker
Instruction / Installation Manual
LTOC50W12
LTOC50W12_IB_261012_RICH.indd 1 12/11/2012 13:25

Contents
Safety Warnings............................................................................................................................ 3
Unpacking..................................................................................................................................... 5
Installation .................................................................................................................................... 6
Adjusting the Feet ........................................................................................................................ 7
Moving the Cooker ....................................................................................................................... 7
Electrical Connection ................................................................................................................... 8
Product Overview......................................................................................................................... 9
Front View ...................................................................................................................................................................9
Top View.......................................................................................................................................................................9
Control Panel...........................................................................................................................................................10
Before Using Your Cooker .......................................................................................................... 10
First Time Use of the Hob ........................................................................................................... 10
Choosing the Right Cookware................................................................................................... 10
Using Your Hob ........................................................................................................................... 11

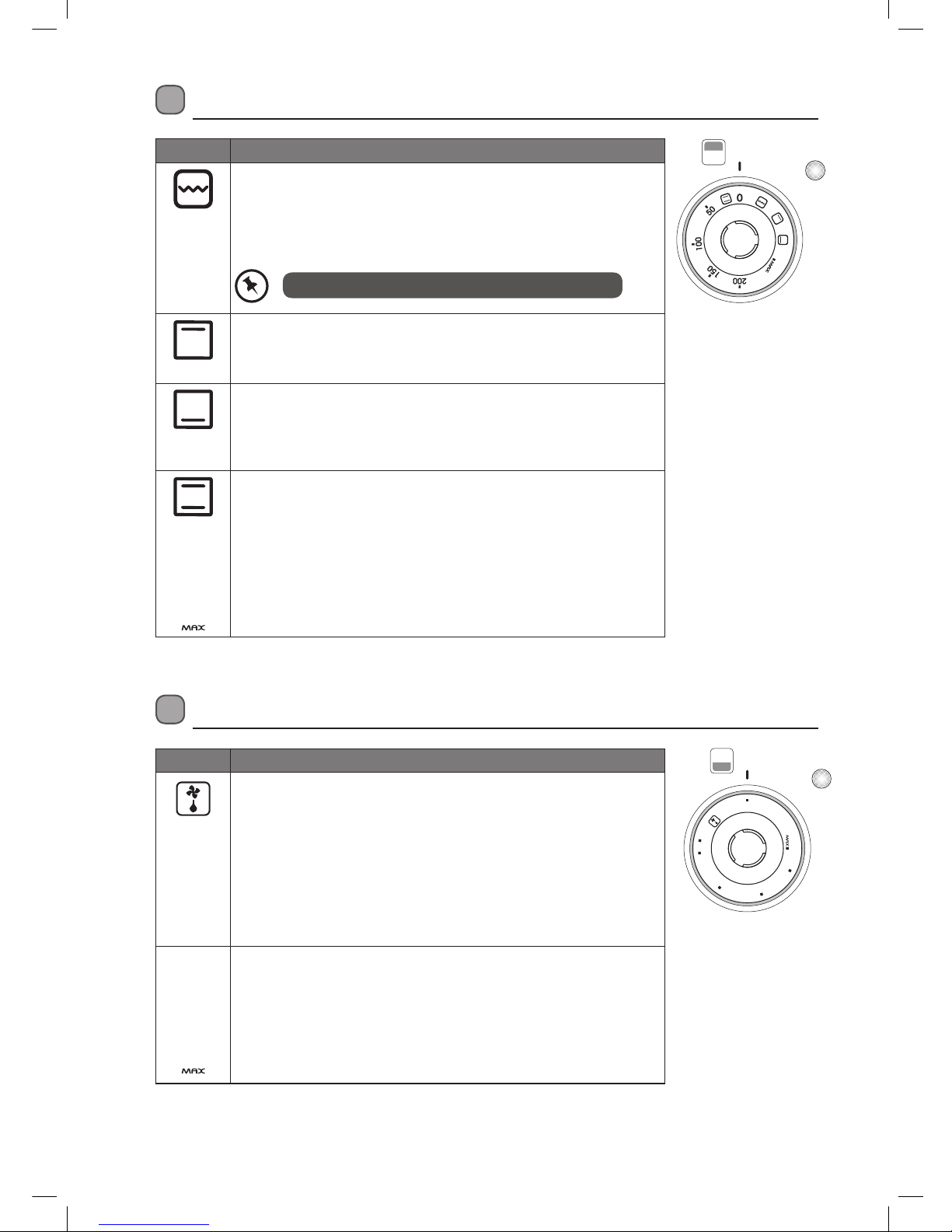

Top Oven Control........................................................................................................................ 12
Main Oven Control...................................................................................................................... 12
Using the Oven ........................................................................................................................... 13
First Time Use of the Oven .................................................................................................................................13
Shelf Positions.........................................................................................................................................................13
Replacing the Anti-tilting Oven Shelf ............................................................................................................13
Preheating................................................................................................................................................................ 14
Cooking.....................................................................................................................................................................14
Baking Tips...............................................................................................................................................................14
Cooking with the Grill ................................................................................................................ 15
Cleaning Instructions ................................................................................................................. 16
Cleaning the Ceramic Hob................................................................................................................................. 16
Cleaning the Outside of the Cooker...............................................................................................................16
Cleaning the Cooker Door Glass ......................................................................................................................16
Cleaning the Inside of Your Cooker.................................................................................................................17
Removing the Oven Door .......................................................................................................... 17
Replacing the Oven Lamp.......................................................................................................... 18
Specications.............................................................................................................................. 18
LTOC50W12_IB_261012_RICH.indd 2 12/11/2012 13:25

3
Safety Warnings
IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
• It is recommended that this appliance is installed by a qualied electrical
engineer. The manufacturer is not responsible for any damage caused by
incorrect installation.
• Check whether there is any damage to the appliance after you have
unpacked it. If any damage is found, do not use the appliance and
contact the store where you purchased it.
• This appliance is for Domestic Use only.
• For disconnection from the mains supply you must have a switch with a
contact separation of at least 3.0 mm in all poles and rated 32 Amp that
provides full disconnection, this must be incorporated in the xed wiring
in accordance with the local wiring rules.
• If your mains cable gets damaged, it should be replaced by an
authorized service agent or qualied electrician in order to avoid danger
or electric shock.
• The oven must be used in a well ventilated location and installed on at /
level ground.
• Only operate your appliance in a dry atmosphere.
• Keep the electrical cables of your other appliances away from hot areas;
do not let them touch the appliance.
• Ensure that the appliance is switched o at the mains supply switch
and allowed it to completely cool down before cleaning, replacing the
oven lamp or performing any maintenance to avoid the possibility of an
electric shock.
• Use of your appliance creates moisture in the room in which it is placed,
make sure that your kitchen is well ventilated. Maintain the natural
ventilation ducts properly.
• This appliance is not intended for use by persons (including children)
with reduced physical, sensory and mental capabilities, or lack of
experience and knowledge, unless they have been given supervision or
instruction concerning the use of the appliance by a person responsible
for their safety.
LTOC50W12_IB_261012_RICH.indd 3 12/11/2012 13:25

4
• Cleaning and user maintenance shall not be made by children without
supervision.
• Children should be supervised to ensure that they do not play with the
appliance.
• During use the appliance becomes hot. Care should be taken to avoid
touching the heating elements inside the oven or the hotplates.
• The appliance and its accessible parts become hot during use. Young
children should be kept away.
• Unattended cooking on a hob with fat or oil can be dangerous and may
result in re. NEVER try to extinguish a re with water, but switch o the
appliance and then cover the ame e.g. with a lid or a re blanket.
• Danger of re: Do not store items on the cooking surfaces.
• When the oven is hot never touch the oven glass or any other parts that
get hot. Allow the oven to cool before touching these parts.
• Do not use harsh abrasives cleaners or sharp metal scrapers to clean the
oven door glass since they can scratch the surface, which may result in
the glass shattering.
• Before starting to use your appliance, keep curtains, tulle, paper
or ammable materials away from your appliance. Do not keep
combustible or ammable things in or on the appliance.
• This appliance is for cooking purposes only. It must not be used for other
purposes, for example room heating.
• Do not use steam cleaners for cleaning the appliance.
• Do not rest any items on or stand on the open door.
• If the hob surface is cracked, switch o the appliance to avoid possibility
of electric shock.
• Take care when handling parts with glass, knocks, chips, heavy handling
and dropping could cause the glass to shatter.
• The glass oven door uses toughened glass and is designed to break into
many‘nugget’ size pieces if it breaks. These pieces will still have sharp
edges, please handle broken glass with care.
• The appliance is not intended to be operated by means of an external
timer or separate remote-control system.
LTOC50W12_IB_261012_RICH.indd 4 12/11/2012 13:25

5
Unpacking
Remove all packaging from the unit. Retain the packaging. If you dispose of it please do so according to local
regulations.
The following items are included:
Grill Pan Handle x 1
Grill Pan x 1
Grill Pan Rack x 1
Oven Shelf x 2
The Main Unit
If items are missing, or damaged please contact Partmaster (UK only).
Tel: [phone] for assistance.
* All images are for indication only; please refer to your individual unit for actual item.
LTOC50W12_IB_261012_RICH.indd 5 12/11/2012 13:25

6
Installation
• The cooker must be installed by a competent person, if in doubt consult a qualified technician, and in
compliance with local electrical, safety and building regulation standards.
• If the cooker is installed adjacent to furniture which is higher than the hob, a gap of at least 100 mm must
be left between the side of the cooker and the furniture unless non-combustible materials (e.g. ceramic tiles,
metal splashback, etc.) are used which then allows this distance to be reduced to 20 mm.
• The furniture walls adjacent to the cooker must be made of heat resistant material (check with your furniture
supplier). The veneered synthetic material and the glue used must be resistant to a temperature of 100°C in
order to avoid ungluing or deformations.
• The cooker may be located in a kitchen, a kitchen/diner or bed-sitting room but not in a room containing a
bath or shower.
• Flammable materials such as curtains, wood, wallpaper, etc. must not be fitted immediately behind the
appliance or within 500 mm of the sides.
• Do not place next to a refrigerator.
• This cooker must NOT be placed on a pedestal or base.
• It is essential that the cooker is positioned as stated or freestanding taking into account the distances of any
combustible materials detailed above.
• Any cooker hoods must be installed according to the requirements of the cooker hood instruction/installation
manual but no less than 650 mm.
• Any cupboards placed directly above the cooker must be no less than 700 mm.
500 mm
X
500 mm
900 mm
420 mm
700 mm
640 mm
Cupboard
500 mm
X
500 mm
900 mm
420 mm
650 mm
640 mm
Cooker HoodCupboard
For all dimensions marked “X”, please
refer to the information below:
X : 100mm for combustible materials
20mm for non-combustible materials.
* All images are for indication only; please refer to your individual unit for actual item.
LTOC50W12_IB_261012_RICH.indd 6 12/11/2012 13:25

7
Adjusting the Feet
Your appliance must be level before use. The cooker has 4 levelling feet which can be adjusted by hand. Turn the
feet anti-clockwise to lower the level or clockwise to raise the level, as shown below. It is possible to raise the
product a maximum of 30 mm via the levelling feet.
The product must NOT be moved by dragging. The cooker must
always be moved by lifting it up.
To lower the cooker To raise the cooker
Moving the Cooker
Using the fitted adjustable feet is MANDATORY. For safety reasons and to ensure adequate ventilation,
the cooker chassis MUST NOT sit directly on the floor, a plinth, or other support surface.
• Two people must always lift the cooker, as shown, to
prevent damaging the adjustable feet.
• Do not lift the cooker by the door handles.
• DO NOT DRAG the cooker. Lift the feet clear of the floor.
* All images are for indication only; please refer to your individual unit for actual item.
LTOC50W12_IB_261012_RICH.indd 7 12/11/2012 13:25

8
For the installation of the supply cable carry out the following operations:
• Release both clips then open the junction box lid.
Colours of the wires in the mains lead should correspond with
the markings identifying the terminals. Proceed as follows:
Green & Yellow wire to terminal marked “E” or .
Brown wire to terminal marked “L” .
Blue wire to terminal marked “N” .
Ensure all screws are adequately tightened. Do not over tighten
as you may risk damaging the screw threads.
• Fix the supply cable in the cable clamp and then close the
cover.
Electrical Connection
The cooker must be connected to the mains supply via a full disconnection switch, with a contact separation of
at least 3mm in all poles, correctly fused with a capacity appropriate to that shown on the cooker Rating Plate
and incorporated in the fixed wiring in accordance with the latest wiring regulations. All electrical wiring from the
consumer unit to the cooker, via the full disconnection switch must be of the correct rating.
Electric cookers come without a power supply cable. If your supply is dierent from this specied value, contact
your authorised service agent. Ensure that the electricity supply voltage on the machine is correct.
Electrical connection of the oven should only be made to connections/sockets with an earth system installed in
compliance with the local regulations. If there are no connections/sockets with an earth system in place where
the oven will be installed, immediately contact a qualied electrician to install one. The manufacturer is not
responsible for damages that will arise because of the appliance not being connected to an earth system. The
cooker can be connected to the mains only after you complete the connection at the junction box.
Live Earth
Neutral
HOTHOT
Junction
Box
The following installation procedure must be carried out by a competent person. If in doubt consult a
qualified electrician. The electrical installation must comply with the IEE Regulations, Building & local
By-Laws.
The power supply cable must have these minimum
requirements:
• Type: H05VV-F (PVC insulated and sheathed
flexible cable)
• Section: 3 core x 4 mm2
This appliance must be earthed.
• The mains cable must be positioned away from any hot parts at
the rear of the cooker. If this cannot be done then another method
of protecting the mains cable from the hot parts must be used i.e.
Heat resistant sleeving or high temperature cables.
* All images are for indication only; please refer to your individual unit for actual item.
LTOC50W12_IB_261012_RICH.indd 8 12/11/2012 13:25

9
Product Overview
Front View
Top View
1
2
3
7
5
6
4
8
1
2
3
2
1
1. Large Ceramic Heater 1700W
2. Small Ceramic Heater 1200W
1. Hob
2. Control Panel
3. Grill Tray
4. Top Oven Door
3. Hot Hob Warming Light
5. Top Oven Door Handle
6. Oven Shelf
7. Main Oven Door
8. Adjustable Feet
* All images are for indication only; please refer to your individual unit for actual item.
LTOC50W12_IB_261012_RICH.indd 9 12/11/2012 13:25

10
Control Panel
1. Top Oven Control
2. Main Oven Control
3. Ceramic Heater Controls
4. Top Oven thermostat Lamp
5. Main Oven thermostat Lamp
6. Hob Indicator Lamp
Before Using Your Cooker
Before using your new cooker, please:
• Make sure all the controls are turned off.
• Read this Instruction/Installation Manual, taking special note of the 'Safety Warnings' section.
• Turn the mains power on.
First Time Use of the Hob
Operate your vitro ceramic hobs at level 6 for 5 minutes. This will remove any manufacturing residues. There may
be a small amount of smoke and a slight odour. This is normal and will stop after a few minutes.
Choosing the Right Cookware
Do not use cookware with jagged edges or a curved base.
1
4 5 6
2 3
Make sure that the base of your pan is smooth, sits flat against the glass, and is the same size as the cooking
zone. Always centre your pan on the cooking zone.
* All images are for indication only; please refer to your individual unit for actual item.
LTOC50W12_IB_261012_RICH.indd 10 12/11/2012 13:25
