Logik L20MR12 User manual

Stainless Steel Microwave
Instruction Manual
L20MR12
L20MB12
L20MR_B12_IB_120531.indd 1 31/05/2012 4:27 PM

L20MR_B12_IB_120531.indd 2 31/05/2012 4:27 PM

Contents
Unpacking.................................................................................................................................... 4
Getting Ready ............................................................................................................................. 5
Introducing Microwave Cooking................................................................................................ 6
Cooking with a Microwave.................................................................................................................................. 6
Checking your cooking utensils........................................................................................................................ 7
Using Aluminium Foil in Your Mirowave ........................................................................................................ 7
Microwave Heating Categories ......................................................................................................................... 8
Steam.......................................................................................................................................................................... 9
Condensation........................................................................................................................................................... 9
Product Overview...................................................................................................................... 10
The Main Unit.........................................................................................................................................................10
The Control Panel .................................................................................................................................................10
Checking Your Microwave......................................................................................................... 11
Clock Setting.............................................................................................................................. 12
Setting the Child Lock ............................................................................................................... 13
Microwave Cooking................................................................................................................... 14
Timer........................................................................................................................................... 15
Grill or Combination Cooking................................................................................................... 16
Convection Combination Cooking ........................................................................................... 18
Convection Cooking (With Preheating)................................................................................... 19
Convection Cooking (Without Preheating) ............................................................................. 20
Multi-Stage Cooking ................................................................................................................. 21
Auto Cooking ............................................................................................................................. 22
Auto Menu ..............................................................................................................................................................22
Auto Menu Table...................................................................................................................................................23
Defrosting .................................................................................................................................. 24
Defrost by Weight.................................................................................................................................................24
Quick Start Cooking .................................................................................................................. 25
Querying the Cooking Function............................................................................................... 26
To nd out the current cooking setting .......................................................................................................26
Cleaning Your Microwave.......................................................................................................... 27
Frequently Asked Questions .................................................................................................... 28
Specications............................................................................................................................. 29
Safety Warnings......................................................................................................................... 30
L20MR_B12_IB_120531.indd 3 31/05/2012 4:27 PM

4
Unpacking
Remove all packaging from the unit. Retain the packaging. If you dispose of it please do so according to
local regulations.
The following items are included:
The Main Unit Glass Turntable Plate x 1
P.N.: 262100500004
Turntable Support x 1
P.N.: 262200200023
Instruction Manual x 1
P.N.: L20MR_B12-001
Thank you for purchasing your new Logik Microwave.
These operating instructions will help you use it properly and safely.
We recommend that you spend some time reading this instruction manual in order
that you fully understand all the operational features it offers.
Read all the safety instructions carefully before use and keep this instruction manual
for future reference.
If items are missing, or damaged please contact Partmaster (UK only).
Tel: [phone] for assistance.

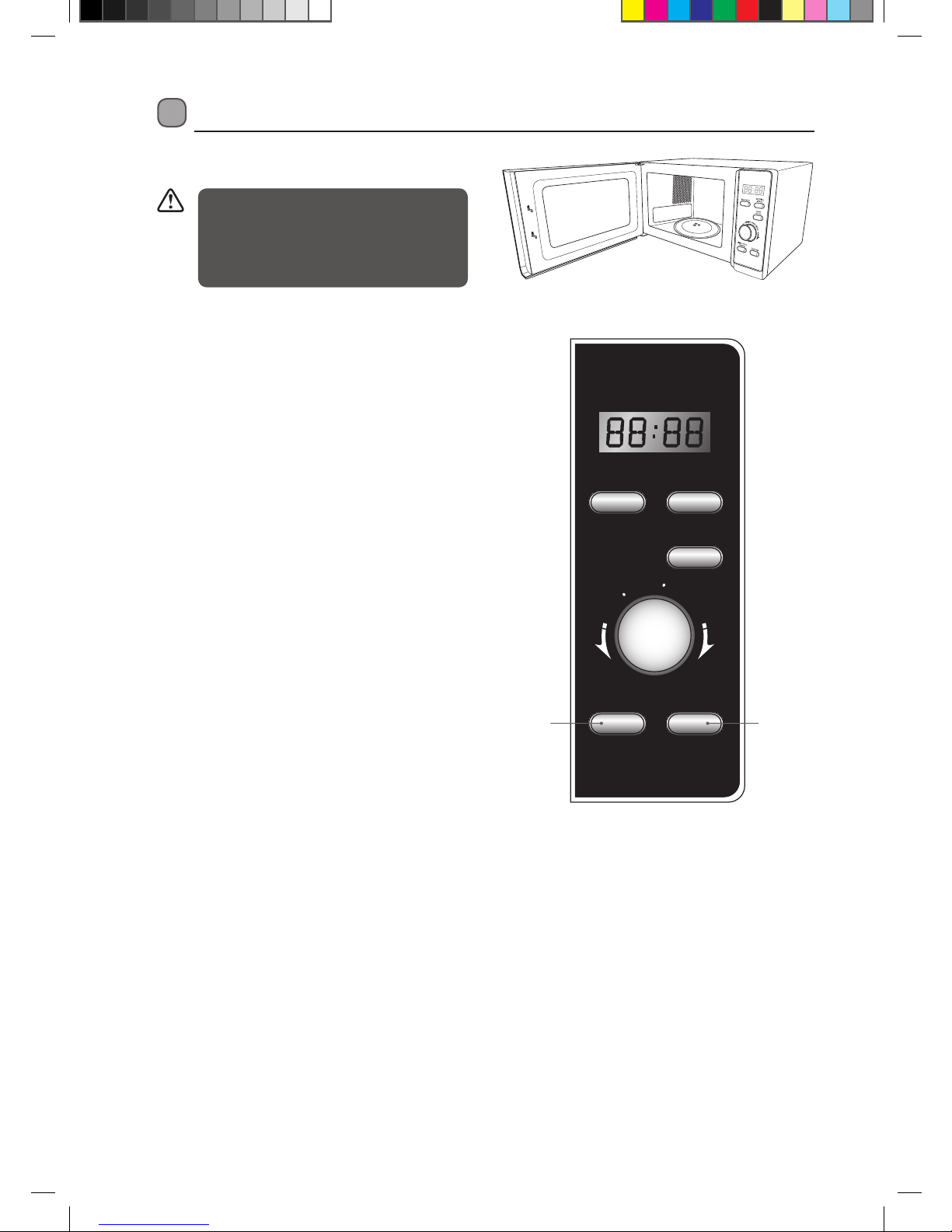

Microwave
W.T./Time
Defrost
Start/+30sec.
/Conrm Stop/Clear
Clock/
Pre-Set
T
i
m
e
r
W
e
i
g
h
t
A
u
t
o
M
e
n
u
L20MR_B12_IB_120531.indd 4 31/05/2012 4:27 PM

5
2. Choose a flat work surface for your microwave
away from heat sources such as radiators or
fires and away from cold areas. You should
allow a 10cm space all around the microwave
and 30cm above so that warm air can
escape from the vents during cooking. This
microwave is not designed to be built in.
Getting Ready
This microwave is designed for home use. It should not be used for commercial catering.
1. After unpacking your microwave, check that it has not been damaged whilst in the box. Make sure
there are no dents, and the door closes properly. A damaged microwave could allow microwave energy
to escape. Make sure that you have taken out all the packaging from inside the microwave. Please
dispose of the plastic wrappings / bags safely and keep out of the reach of babies and young children.
3. Plug your microwave into a standard
household electrical socket (230-240 volt,
13 amp rated). Avoid using a socket that also
has an adaptor and other equipment plugged
in. Do not use a multi-adaptor.
4. Put the turntable support inside the
microwave and place the glass turntable plate
on top of the support. The turntable support
is shaped to sit securely on the spindle. You
must always use the turntable plate and
support whenever you use the microwave.
Underside View
5. To protect your work surface, we recommend
that you fix some non-slip cushion buttons
(not included) to the underside of the
microwave.
Remove the turntable plate and
turntable support before turning the
microwave upside down.
30cm
10cm10cm
Microwave
W.T./Time
Defrost
Start/+30sec.
/Conrm Stop/Clear
Clock/
Pre-Set
T
i
m
e
r
W
e
i
g
h
t
A
u
t
o
M
e
n
u
L20MR_B12_IB_120531.indd 5 31/05/2012 4:27 PM

6
Introducing Microwave Cooking
Always remember the basic safeguards you would follow when using any cooking equipment or handling
hot food.
This page gives some of the basic guidelines for microwave cooking. If you are unfamiliar with using a
microwave, there is more information at the back of this instruction manual.
Cooking with a Microwave
If you are unsure how long the food should cook for, begin cooking at the lowest recommended
time, then add more time if necessary. The moisture content of food can vary. Ensure food is
thoroughly cooked all the way to the centre before serving.
Cooking with a microwave is much faster than conventional cooking and, whilst you should
make sure that food is fully cooked, you should be careful not to overcook it. Food can catch fire if
excessive cooking times are used.
• Microwave energy can heat unevenly so stirring to distribute heat is very important. Always stir from
the outside, inwards.
• If you are cooking a number of individual foods at the same time, such as baked potatoes or small
cakes, arrange them evenly on the turntable plate so that they cook evenly. Never stack food in your
microwave.
• Turn larger foods such as meat roasts and poultry during cooking so that the top and bottom cook
evenly. It is also recommended to turn pieces of meat or poultry, especially if they have not been
deboned.
• Meat and poultry which is cooked for 15 minutes or more will brown lightly in its own fat. Anything
cooked for a shorter time can be brushed with a browning sauce to give an appetising colour.
• Strips of aluminium foil can be used to cover the thinner pieces of food to stop them overcooking
before the thicker parts of the food have had a chance to cook. Use the aluminium foil sparingly and
wrap around the food or container carefully to stop it touching the inside of the microwave which
could cause sparks.
• Microwaves cook food using microwave energy that is similar to naturally occurring radio waves.
Normally, these “waves” would fade as they disappear into the atmosphere but in a microwave they are
concentrated on the food causing it to heat up.
• Microwave energy cannot pass through metal – so it can not escape from inside your microwave –
but it can pass through materials like glass, porcelain, plastic,
and paper. These are the things used to make microwave-safe
cooking equipment.
• Microwave-safe cooking equipment will still get hot as the food it
contains heats up.
• The microwave energy focuses on the moisture in the food
causing lots of tiny vibrations. The vibrations get so great that the
moisture – and the food – heat up.
L20MR_B12_IB_120531.indd 6 31/05/2012 4:27 PM

7
Checking Your Cooking Utensils
Most heat-resistant, non-metallic cooking utensils are safe to use in your microwave. If made of plastic or
glass, utensils will be marked as “microwave safe” or similar.
• Never use equipment made of metal, except aluminium foil in your microwave oven.
• The microwave energy can not pass through the metal so it bounces off and sparks against the
inside of the oven.
• Stop the microwave straight away if any equipment does cause sparks.
• Remember that some crockery has a metal trim around the edge. Even this trim can cause
sparks.
• Never use scratched, cracked or damaged glass in a microwave. Damaged glass can explode.
If you are not sure and/or there is no microwave-safe marking on the utensil, do NOT use it in the
microwave.
Using Aluminium Foil in Your Microwave
It is safe to use aluminium foil in your microwave as long as you follow these safety guidelines.
As with all metals, microwave energy cannot pass through aluminium foil, but provided you keep the
aluminium foil away from the side of the microwave it will not cause sparks and there will not be any
damage to your microwave.
Using aluminium foil is a good way of shielding parts of food that you do not want to cook as quickly as
others – perhaps where the food is narrower and would otherwise overcook.
Place the aluminium foil over the area you want to shield, taking care that the aluminium foil will not touch
the sides of the microwave when the turntable plate rotates. Only use one piece of aluminium foil at a time
so that you do not get sparks between the separate pieces.
Follow these guidelines when using aluminium foil in your microwave:
• Remove aluminium foil lids from containers before using in the microwave. Some lids are made of card
with a aluminium foil covering – these should be removed too. Use a microwave safe transparent lid if
possible.
• Stir food during cooking if the container has a lid or film cover.
• Always use the glass turntable plate.
• Use shallow containers with a large surface area. Do not use containers that are more than 1.25in
(3.5cm) deep.
• Use gloves when handling hot aluminium foil containers.
• Do not completely cover food with aluminium foil. The microwave energy cannot pass through the
aluminium foil so the food will not cook.
• Do not let aluminium foil touch the inside of the microwave.
• Do not use more than one piece of aluminium foil in the microwave at the same time.
For the types of utensils you can use in the microwave, please see the “Materials That Can Be Used” section.
L20MR_B12_IB_120531.indd 7 31/05/2012 4:27 PM

8
Materials That Can Be Used in the Microwave
Utensils Remarks
Aluminum foil
Shielding only. Small smooth pieces can be used to cover thin parts of meat or poultry to
prevent overcooking. Arcing can occur if foil is too close to oven walls. The foil should be
at least 1 inch (2.5cm) away from oven walls.
Browning dish Follow manufacturer’s instructions. The bottom of browning dish must be at least 3/16
inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware Microwave-safe only. Follow manufacturer’s instructions. Do not use cracked or chipped
dishes.
Glassware Heat-resistant oven glassware only. Make sure there is no metallic trim.
Do not use cracked or chipped dishes.
Oven cooking bags Follow manufacturer’s instructions. Do not close with metal tie. Make slits to allow steam
to escape.
Paper plates and cups Use for short–term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels Use to cover food for reheating and absorbing fat. Use with supervision for a short-term
cooking only.
Greaseproof paper Use as a cover to prevent splattering or a wrap for steaming.
Plastic containers
Microwave-safe only. Follow the manufacturer’s instructions. Should be labelled
“Microwave Safe”. Some plastic containers soften, as the food inside gets hot. “Boiling
bags”and tightly closed plastic bags should be slit, pierced or vented as directed by the
instructions on their packaging.
Plastic wrap Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow
plastic wrap to touch food.
L20MR_B12_IB_120531.indd 8 31/05/2012 4:27 PM

9
800W
E
800W is the output power of the microwave. (IEC60705)
E is the heating category for your microwave.
Check the cooking times for category E on the food’s
packaging to see how long it should be cooked for.
Microwave Heating Categories
Your microwave has been tested and labelled to meet the UK government’s voluntary agreement on the
reheating of pre-cooked food.
The heating characteristics and output power levels of microwaves are usually calculated using a relatively
large portion of food (a 1000 gram load, IEC 60705) but many packs of pre-cooked food are sold in smaller
packs, often about 350 grams.
The UK government, in partnership with food companies and microwave manufacturers, has set up a
system of heating categories to help you choose the reheating time for pre-cooked food.
Start cooking at the lowest recommended time, and add more time if necessary. The moisture
content of food can vary, ensure food is cooked thoroughly all the way to the centre before
serving.
The category (a letter from A to E), is designed to help you reheat small quantities of food such as
microwave ready meals.
The label given above and also on the oven door gives the heating category and output power of the
oven.
Microwave ready meals weighing up to 500g (1lb 2oz) should have cooking instructions for heating
categories A to E. Follow the instructions for the letter that corresponds to the heating category of the
oven.
The higher the output power and heating category of the oven the less heating time is required. This is
shown in the diagrams below:
Oven Output Power
Less heating time required
600 700 800 900 1000 Watts
More heating time required
Oven Output Category
Less heating time required
A B C D E
More heating time required
L20MR_B12_IB_120531.indd 9 31/05/2012 4:27 PM

10
Steam
When you microwave food, steam is created as water in the food heats up and evaporates.
The steam formed during microwave cooking is entirely safe. It has to escape from the microwave to
prevent pressure from building up inside the microwave. It does this through the vents on the back of the
microwave and from around the door.
Condensation
As the steam cools, you may find that condensation
gathers in small pools inside your microwave and on
the work surface beneath the door and vents. Always
dry the microwave after cooking foods with a high
moisture content.
Your microwave is designed to let steam escape from
the vents and around the door without microwave
energy escaping. There is no danger of microwave
energy escaping with the steam.
Microwave
W.T./Time
Defrost
Start/+30sec.
/Conrm Stop/Clear
Clock/
Pre-Set
T
i
m
e
r
W
e
i
g
h
t
A
u
t
o
M
e
n
u
L20MR_B12_IB_120531.indd 10 31/05/2012 4:27 PM
