Logik L03CTEL10 User manual

Instruction Manual
Corded Desk Telephone
with Speakerphone
L03CTEL10

Contents
Safety First .................................................................................................. 4
Unpacking................................................................................................... 6
Getting Started ........................................................................................... 7
Locating the Battery Compartment .....................................................................7
Battery Installation and Replacement .................................................................7
Connecting the telephone line cable ..................................................................8
Connecting the handset cable...............................................................................8
Mounting Stand (Optional)........................................................................ 9
For Wall Mounting.......................................................................................................9
For Desk Mounting.................................................................................................. 10
Control Overview...................................................................................... 11
Preparation ...............................................................................................13
Setting up your phone .......................................................................................... 13
Setting up Time and Date ..................................................................................... 13
Setting up LCD Contrast ........................................................................................ 13
Setting up Flash Time ............................................................................................. 14
Operation ..................................................................................................15
To Make a call............................................................................................................. 15
To Receive a call ........................................................................................................ 15
Switch between Handset and Speakerphone............................................... 15
To Adjust the Speakerphone volume ............................................................... 15
To Mute a call............................................................................................................. 15
To End a call................................................................................................................ 15
To Redial a call ........................................................................................................... 15
Use in a PBX (Private Branch Exchange) system............................................ 16
Storing a number in One-touch Memory (M1, M2, M3)............................. 16
Make a call using One-touch Memory (M1, M2, M3)................................... 16
Storing a number in Two-touch Memory (MEM).......................................... 16
Make a call using Two-touch Memory.............................................................. 16
Hints and Tips............................................................................................17
Specications............................................................................................18

4
Safety First
For your continued safety and to reduce the risk of injury or electric shock, please
follow all the safety precautions listed below.
• Read all instructions carefully before using the telephone and keep them for future
reference.
• Retain the manual. If you pass the telephone onto a third party, make sure to
include this manual.
• Follow all warnings and instructions marked on the telephone.
• Do not use the product near water for example near a bathtub, kitchen sink, etc.
• Place the product securely on a stable surface. Serious damage and/or injury may
result if the product falls.
• Do not cover slots and openings on the telephone. They are provided for ventilation
and protection against overheating. Never place the telephone near radiators, or in
places with poor ventilation.
• Do not place objects on the telephone cable. Install the phone where no one can
step or trip on the telephone cable.
• To reduce the risk of injury or electric shock, do not disassemble the telephone.
Incorrect reassembly can cause electric shock when the product is subsequently
used.
• During thunderstorms, avoid using telephones except cordless types. There may be
risk of an electric shock from lightning.
• Do not use the telephone to report a gas leak, when in the vicinity of the leak.
• Young children should be supervised to ensure that they do not play with the
telephone.
• The telephone is not intended for use by persons (including children) with reduced
sensory or mental capabilities, or lack of experience and knowledge unless they
have been given supervision or instructions concerning the use of the phone by a
person responsible for their safety.

5
CAUTION:
Installation
• Never install telephone wiring during a lightning storm.
• Never install a telephone wall socket in wet locations unless it is specically
designed for wet locations.
• Never touch uninsulated telephone wires or terminals unless the telephone line has
been disconnected at the network interface.
• Use caution when installing or modifying telephone lines.
• The telephone is designed for use on vertical walls constructed of solid brick, solid
concrete, solid wood and solid wood columns. It is the installers’responsibility to
verify that the wall structure/surface will safely support the total load (combined
weight of telephone base and handset). If the installers have any uncertainties
about the wall structure/surface, they must contact a qualied installer.
• Do not use this product for any applications other than its intended purpose.
• Do not over tighten the screws.

6
Thank youfor purchasing your new Logik
Corded Desk Telephone with Speakerphone.
We recommend that you spend some time to read this Instruction
Manual in order to fully understand how to install and operate it.
Read all the safety instructions carefully before use and keep this
instruction manual for future reference.

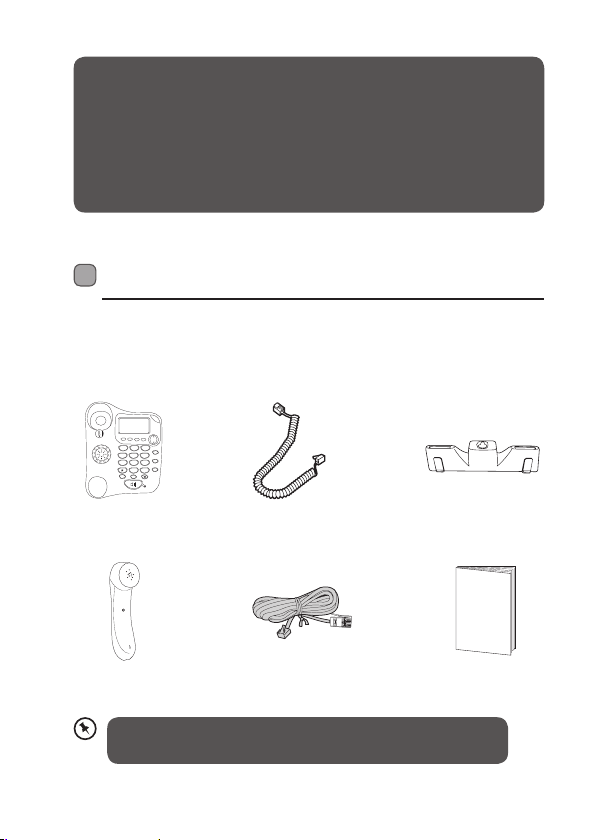

Unpacking
Remove all packaging from the unit. Retain the packaging. If you dispose
of it please do so according to local regulations.
Handset Cord
Telephone Line CordHandset
Mounting Stand
Instruction Manual
Main Unit
P R
0
7 8 9
4 5 6
1 2 3
#
ABC
M1 M2 M3
DEL
CDS
DEF
SET/
STO
GHI
PQRS TUV
WXYZ
JKL MNO
MEM
LNR
If items are missing, or damaged please contact Partmaster (UK only).
Tel: [phone] for assistance.
Instruction
Manual

7
Getting Started

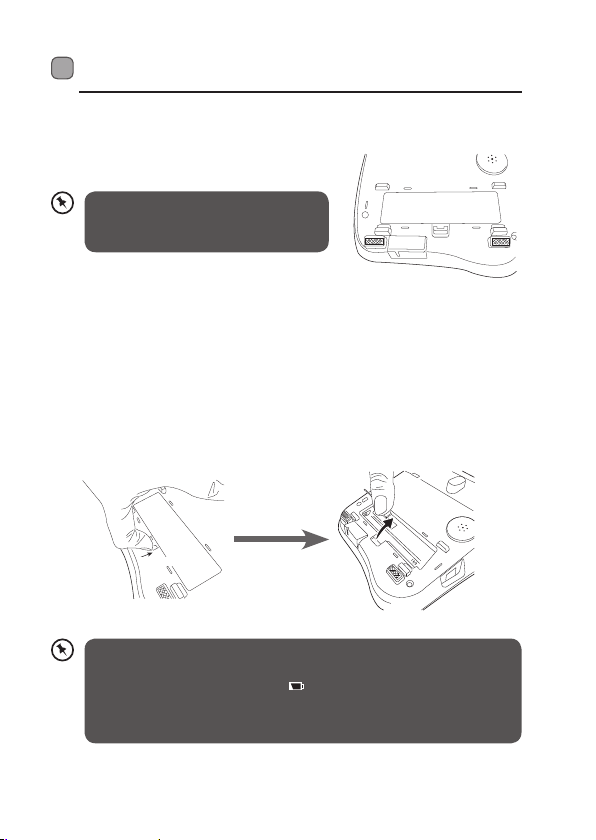

Locating the Battery Compartment
The battery compartment is located at the
bottom of the unit.
Battery Installation and Replacement
• Press and hold the battery compartment cover.
• Lift the cover up.
• Insert 2 AAA alkaline batteries into the compartment. Make sure to
match the polarities as per indicated in the battery compartment.
• Flip down the cover and push it down until it clicks shut.
Press and hold
Lift
Before removing the battery compartment
cover, always make sure the telephone is
disconnected from the telephone line.
• Please do not use rechargeable batteries in this unit.
• Batteries are not included with this unit.
• When the battery power is low, the icon will show on the LCD display screen.
Replace the batteries before they are completely discharged, and the display
screen is gone, otherwise all previous memories and settings will be lost.

8

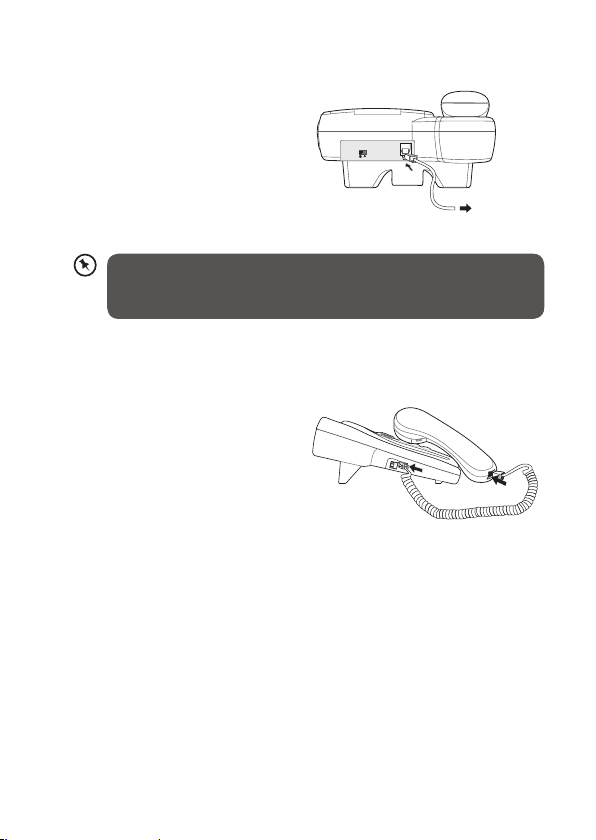

Connecting the telephone line cable
Plug the telephone line cable into
the socket on the base. Plug the
other end into the telephone wall
socket.
Connecting the handset cable
Plug one end of the handset cable
into the handset socket and the
other end into the socket at the
side of the base.
To single-line
telephone
socket
• If you want to use the phone on a desk or flat surface, press the telephone line
cable into the groove on the underside of the base so that the phone sits flat.
• If you want to wall mount the phone, please refer to the Wall Mounting section.

9

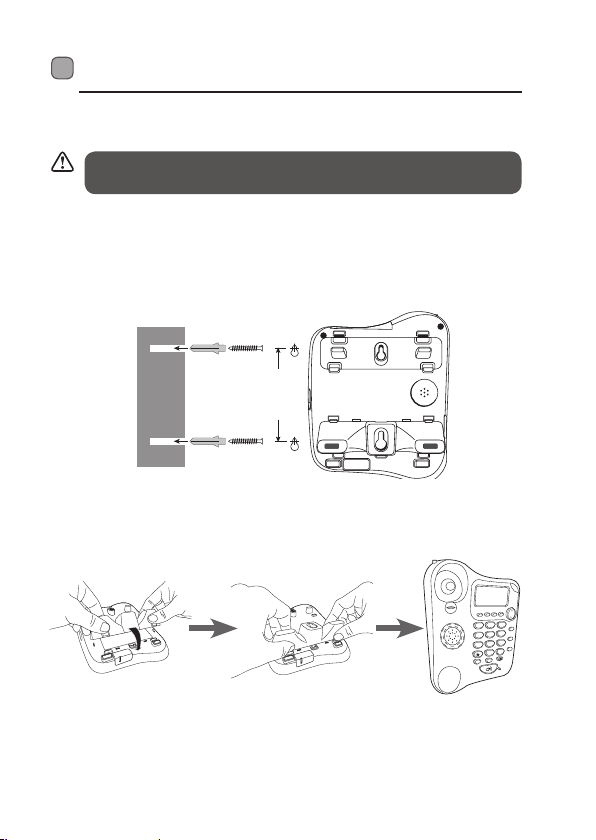

Mounting Stand (Optional)
For Wall Mounting
1. Drill 2 holes in the wall.
2. Insert the wall plugs into the holes.
3. Drive in the screws and make sure to leave approximately 5mm of the
screw head from the wall to hold the base securely.
Wall
Wall plug Screw
Wall plug Screw
92 mm
M1
ABC
GHI
1
M2 M3
DEL
CDS
4
PQRS
P
7
2DEF
SET/
STO
3
MNO
6
WXYZ
9
#
JKL
5
TUV
8
0
R
MEM
LNR
Insert the mounting stand onto the bottom of the telephone. This stand
will balance the telephone position when it is mounted onto the wall.
Before you drill any holes, make sure there is no electrical wiring or pipes hidden
in the wall.

10
For Desk Mounting
Follow the diagrams below to remove the mounting stand from the
bottom of the telephone.
Insert the mounting stand onto the top of the telephone.
M1
1
M2 M3
DEL
CDS
2
ABC
4
GHI
7
PQRS
5
JKL
8
TUV
0
P
R
LNR
#
3
DEF
6
MNO
9
WXYZ
MEM
SET/
STO

11

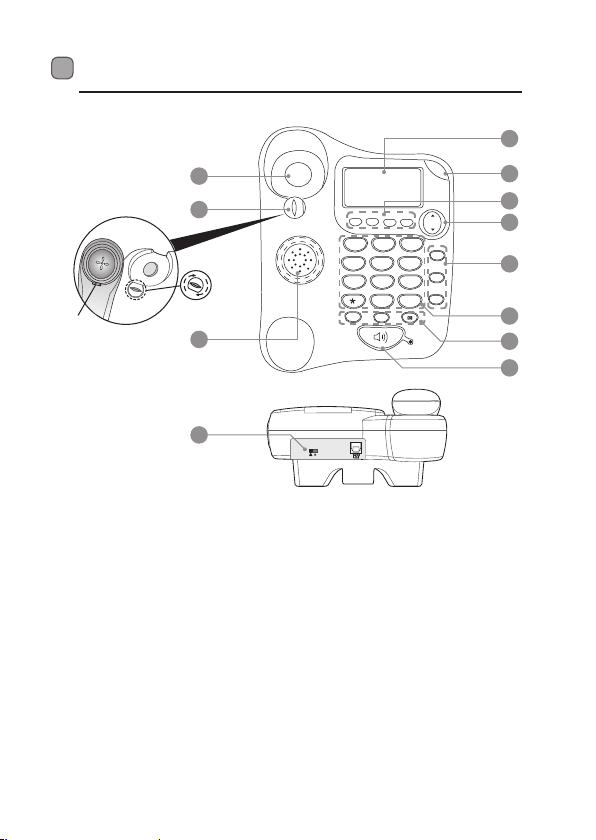

Control Overview
P R
0
7 8 9
4 5 6
1 2 3
#
ABC
M1 M2 M3
DEL
CDS
DEF
SET/
STO
GHI
PQRS TUV
WXYZ
JKL MNO
MEM
LNR
1
4
2
5
7
8
9
10
11
3
12
6
rotate
Hook
Recess
1. Switch
Allows you to make a follow-on call without replacing the handset.
2. Wallmount hook
If wall mounted, turn it 180° allow your handset to rest securely on the base.
3. Speaker
This is where you will use it as speaker for the speakerphone function.
4. LCD display
To display your incoming caller information and voicemail (only available
if you have applied for this service from your telephone company).
5. Call light
Red light flashes to indicate an incoming call.

12
6. M1, M2, M3 (Three One-Touch Memory) buttons
Use them to store and automatically dial up to three numbers at the
touch of one button.
DEL (Delete) button
Press it to return to stand by mode during Time/Date setting, LCD
Contrast setting and Flash Time setting.
7. (UP/DOWN) Navigation button
Use it to navigate and select the preferred settings.
8. SET/
STO (Store) button
Use it to confirm the preferred settings in Time/Date setting, LCD
Contrast setting and Flash Time setting.
Press it to store one-touch memory and two-touch memories.
MEM (Memory) button
Use it to dial out a stored number in two-touch memories.
LNR (Last Number Dial) button
To redial the last number called.
9. Dialpad
Use it for entering the number you will be calling.
10. P (Pause) button
For use with some switchboard systems.
R (Recall) button
For use with some switchboards and some BT Calling Features (e.g. Call
Waiting).
(Mute) button
Allows you to speak to someone nearby without your caller hearing you.
11. (Speakerphone) button
Press it for speakerphone function.
12. Ringer volume switch
To set the ringer volume.

13
Preparation
Setting up your phone
Press the SET/
STO button to access the telephone setup menu. Then, press the
button to cycle through the options.
Setting up Time and Date
To display the correct time and date, you will need to follow the steps
below. If you have subscribe to a Caller Display service, the time and date
will be set automatically on receipt of your first incoming call.
1. In standby mode, press the SET/
STO button to display “SET 1 DATE”. Press the
SET/
STO button again to confirm.
2. The year icon will flash. Press the button to set the year. Press the
SET/
STO button to confirm.
3. The month icon will flash. Press the button to set the month.
Press the SET/
STO button to confirm.
4. The date icon will flash. Press the button to set the date. Press the
SET/
STO button to confirm.
5. The hour icon will flash. Press the button to set the hour. Press
the SET/
STO button to confirm.
6. The minute icon will flash. Press the button to set the minute.
Press the SET/
STO button to confirm.
7. Now, the LCD display screen will show “SET 2 LCD”. You may continue
setting up the phone or press the DEL button to exit the setup menu.
Setting up LCD Contrast
1. When the”SET 2 LCD” is displayed on the LCD display screen, press the
SET/
STO button to confirm.
2. Press the button to select the best viewing contrast level (1-8).
The default setting is 3.
The telephone will time out if you leave more than 8 seconds between key presses.

14
3. Press the SET/
STO button to confirm your selection. The LCD display screen
will show “SET 2 LCD”. You may continue setting up the phone or press
the DEL button to exit the setup menu.
Setting up Flash Time
This telephone allows you to use the special services which you have
subscibed with your network provider. When you press the Rbutton, the
telephone will generate a line interruption and the length of this line
depends on your Flash Time setting.
1. In setup menu, press the button to select “SET 3 Flash”. Then,
press the SET/
STO button to confirm.
2. Press the button to select 100 (default), 300, 600, or 1000. Press
the SET/
STO button to confirm.
3. The LCD display screen will show “SET 1 DATE”. You may continue
setting up the phone or press the DEL button to exit the setup menu.

15
Operation
To Make a call
1. Lift the handset and wait for the dial tone.
2. Dial the telephone number.
To Receive a call
The telephone rings when you receive a call. Pick up the handset to answer
the call. Alternatively, you can press the button to receive a call hands-
free. The speakerphone light will illuminate.
Switch between Handset and Speakerphone
1. Press the button and replace the handset to the handset cradle.
2. To switch from speakerphone to handset, simply lift the handset to
enable the private conversation.
To Adjust the Speakerphone volume
Use the volume switch, which is located at the right side of the unit.
To Mute a call
1. During a call, press the button.
2. Release the button to resume the call.
To End a call
Press the Switch or hang up the handset to end the call.
To Redial a call
1. Lift the handset or press the button and wait for the dial tone.
2. Press the LNR button. The last number called is dialled.

16
Use in a PBX (Private Branch Exchange) system
Press the Pbutton for pausing and press the Rbutton for recalling while
you are using some switchboard systems and some BT Calling Features (e.g.
Call Waiting).
Storing a number in One-touch Memory (M1, M2, M3)
1. Key in the telephone number you wish to store.
2. Press the SET/
STO button.
3. Press the M1, M2, or M3 button to store the number in the selected
memory.
Make a call using One-touch Memory (M1, M2, M3)
1. Lift the handset or press the button and wait for the dial tone.
2. Press M1, M2, or M3 button.
Storing a number in Two-touch Memory (MEM)
1. Key in the telephone number you wish to stored.
2. Press the SET/
STO button.
3. Press the dialpad (0-9) buttons to input the memory location number.
Make a call using Two-touch Memory
1. Lift the handset or press the button and wait for the dial tone.
2. Press the MEM button.
3. Key in the memory location number (0-9).
The telephone number must be within 16 digits.
The telephone number must be within 16 digits.

17
Hints and Tips
• Battery - To reduce the disk of fire or injury to persons, read and follow
these instructions.
Use only the battery(ies) specified.
Do not dispose the battery(ies) in a fire. They may explode. Check with
local council office for special disposal instructions.
Do not open or mutilate the battery(ies). Released electrolyte is
corrosive and may cause burns or injury to the eyes or skin. The
electrolyte may be toxic if swallowed.
Exercise care when handling the battery(ies). Do not allow conductive
materials such as rings, bracelets or keys to touch the battery(ies).
Otherwise a short circuit may cause the battery(ies) and/or the
conductive material to overheat and cause burns.
• Environment - Place the unit in a room where the temperature is
between 0°C and 40°C. Allow 5cm clearance around the unit for proper
ventilation. Avoid excessive smoke, dust, mechanical vibration, shock,
or direct sunlight.
• Cleaning - Wipe the unit with a soft cloth. Do not use benzine, thinner,
or any abrasive cleaners.
• If there is no sound - Disconnect the unit from the telephone line
and connect a known working phone. If the known phone does not
operates or have sound, then it could be a phone line problem. Please
contact your telephone company for assistance.
• Moving your phone - Carefully pack your unit, preferably in the
original packaging.
• Disposal - Old units still have some residual value. An environmentally
friendly method of disposal will ensure that valuable raw materials
can be recovered and used again. Up to date information concerning
options of the disposal of your old unit and packaging from the new
one can be obtained from your local council office.

18
Specications
Product Dimension: (L20cm x W16cm x H11cm)
Weight: 0.5kg
Dialing Mode: Tone (DTMF)
Operating Environment: 0 - 40°C
Features and specifications are subject to change without prior notice.

The symbol on the product or its packaging indicates that this
product must not be disposed of with your other household
waste. Instead, it is your responsibility to dispose of your waste
equipment by handing it over to a designated collection point for
the recycling of waste electrical and electronic equipment. The
separate collection and recycling of your waste equipment at the
time of disposal will help conserve natural resources and ensure
that it is recycled in a manner that protects human health and the
environment.
For more information about where you can drop o your waste
for recycling, please contact your local authority, or where you
purchased your product.
Visit Partmaster.co.uk today for the easiest way to
buy electrical spares and accessories. With over 1
million spares and accessories available we can
deliver direct to your door the very next day. Visit www.partmaster.co.uk or call
0344 800 3456 (UK customers only) Calls charged at National Rate.
For general information about this appliance
and handy hints and tips, please visit
www.knowhow.com/knowledgebank or call 0344 5611234.
All trademarks are the property of their respective owners and all rights are
acknowledged.
IB-L03CTEL10-160602V7
DSG Retail Ltd. (co. no. 504877)
1 Portal Way, London, W3 6RS, UK
