INSTALLATION & USER GUIDE
Dri-Stor
INSTALLATION GUIDE
CAUTION Read and understand all of the instructions and safety
information in this document before operating this product.
SAVE THESE INSTRUCTIONS

[phone]
2|
TABLE OF CONTENTS
INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
SAFETY PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6
Symbol Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Malfunction Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
PRODUCT SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Product Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Side-Load Cabinet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
To-Load Cabinet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
OPTIONAL FEATURES & ACCESSORIES. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-9
Keypad Security Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
EndoTrack System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Door Alarm Buzzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Small Diameter Scope Hangers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
EUS Scope Hangers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Ultrasound Probe Holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Enteroscope Scope Holders. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Olympus Small Diameter Videoscope Holders . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Tee Probe Holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
PRE-INSTALLATION INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-11
Site Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Indications For Install . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Tools Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Before Getting Started. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
UNCRATING INSTRUCTIONS & TRANSPORTATION . . . . . . . . . . . . . . . . . . . . . . . . . 12-14
Uncrating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Transporting Dri-Stor Cabinets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Confirm Receipt Of Order Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
INITIAL SET-UP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-16
Placing & Preparing Side-Load Cabinets . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Placing & Preparing Top-Load Cabinets. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Leveling the Cabinets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

www.logiquip.com |3
TABLE OF CONTENTS
INSTALLATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17-26
HEPA Fans & Flow Sensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Control System Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18-21
HEPA Control Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Channel Purge Pumps. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

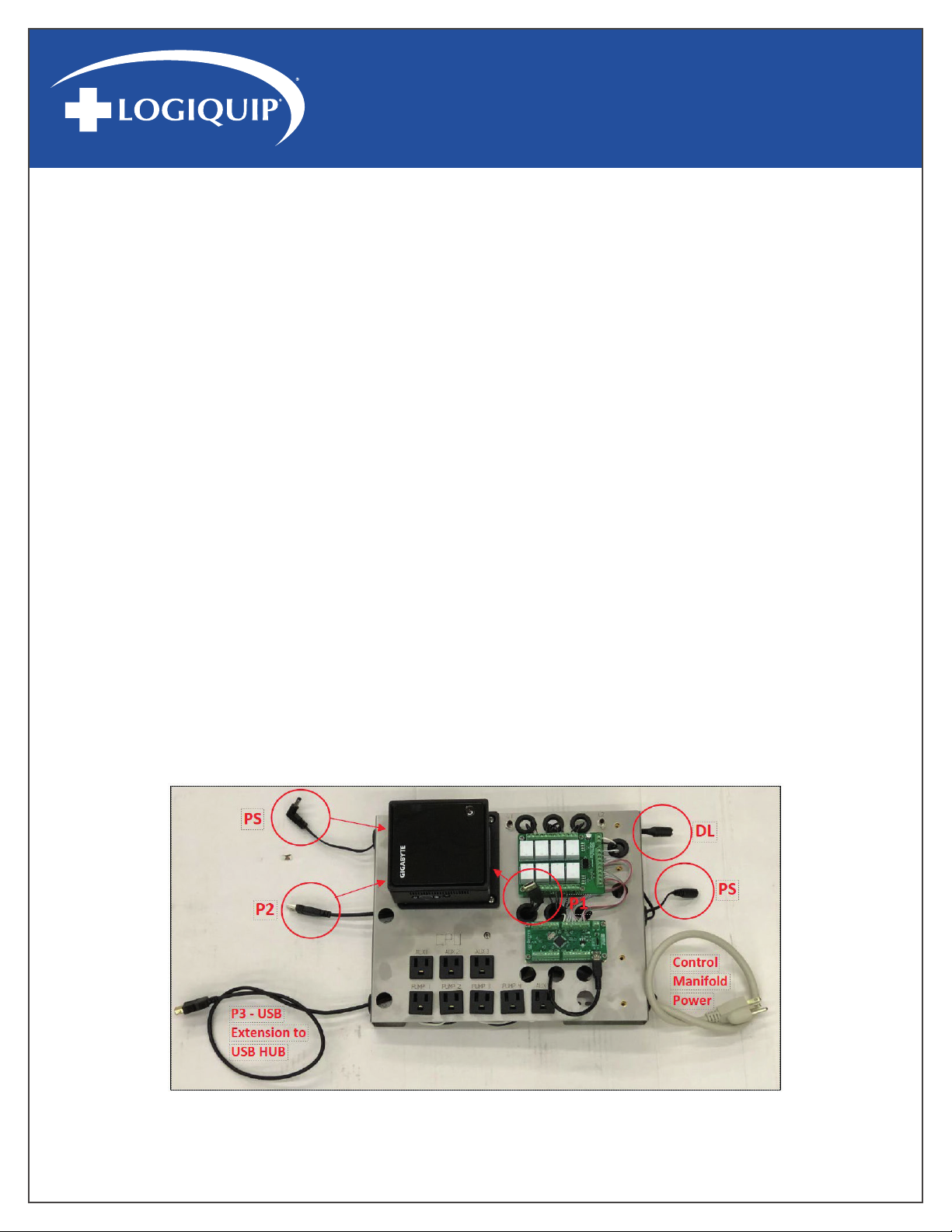

Electrical Plate & CPU. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Connecting Channel Purge & EndoTrack . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
APC Battery Back-Up Set-Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Major Control Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23-24
Back & Front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Connecting Channel Purge, CPU & Touchscreen . . . . . . . . . . . . . . . . . . . . . . . . 24
HEPA Channel Purge Control Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Final Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Test Component Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Component & Leveling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
HEPA & HEPA Channel Purge V1 and V2 . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Tracking HEPA & HEPA Channel Purge System Tests . . . . . . . . . . . . . . . . . . . . . . . 26
ENDOTRACK SET-UP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27-34
Set Date& Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Cabinet Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Set/Reset HEPA & Pre-Filter Timers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Manually Add a New User . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Manually Add a New Scope . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Export User & Scope List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Import User & Scope List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Create Scope List File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Create User File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Format a USB Flash Drive To FAT32 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Remove All Users & Scopes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33-34
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35-38
WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

[phone]
4|
INTRODUCTION
It is recommended that this document be read carefully by any individual who will be involved in installing, operating, or
maintaining LogiQuip Endoscope Storage and Drying Cabinets, or their components as outlined in this document.
Information, instructions, and safety precautions must be followed as indicated to ensure that product referred to in this
guide is used under the best conditions, is properly maintained, adheres to local guidelines and that safety can be prioritized.
There are many different guidelines and industry standards for Endoscope Storage and Drying Cabinets. It is recommended
to conduct a facility assessment to determine which guidelines and standards are best to follow and include in your
department’s policies and procedures.
Where used hereafter, Cabinet, Product, or Unit may be considered to refer to any specific Endoscope Storage and Drying
Cabinet, components, and/or applicable installed features described in the applicable portion of the document it is used
within.
INTENDED USE
LogiQuip Dri-Stor Cabinets are designed to ensure a clean storage location for disinfected Endoscopes and Probes while
protecting them from damage while in storage.
Configurations within the product family may also provide added functionality such as moisture control, scope tracking, and
other security features. Specific configurations include:
• Negative pressure providing HEPA-Filtered airflow
• Channel Purge mechanisms for removing moisture from internal channels
• Digital tracking and control of scope storage through the addition of EndoTrack with either Barcode Scanner
or RFID Reader.
All reprocessing steps provided in the Endoscope’s instructions for use, including drying steps, need to be completed before
placing any device in the Cabinet.
Prior to first use, hospital-grade disinfectant must be used to perform cleaning of the Cabinet, and any tube set accessory
product flushed – following the manufacturer’s instruction for reprocessing before storing Endoscopes in the Cabinet.
ELECTRICAL SUPPLY
• North America 120 Vac, 60 Hz, 15 Amp Standard Deluxe Receptacle
• Typical Full Load Amperage ~1 Amps
• It is recommended to plug any Cabinet into a dedicated circuit
• Units with EndoTrack should be plugged into an outlet connected to the emergency backup circuit
• Disconnect power whenever servicing the Cabinet, by unplugging the power cord
ENVIRONMENT CONDITIONS
The Cabinets have been designed for use within medical facilities. They are designed to be safe within the following conditions:
• Indoor Use ONLY
• Temperature Range: 15-35°C
• Maximum Relative Humidity: 80% up to 25°C and decreasing linearly to 50% relative humidity at 35°C
INTRODUCTION

www.logiquip.com |5
SAFETY PRECAUTIONS
SYMBOL DEFINITIONS
The following symbols appear within this manual or on the product to increase visibility of necessary safety precautions,
instructions and key information as described below.
Indicates key detail or reference for instruction, maintenance, compliance, or unique configuration of the product.
WARNING/CAUTION: Indicates risk of potential personal injury and/or potential damage to device.
WARNING/CAUTION: Indicates risk of electric shock or burn hazard causing potential personal injury and/or potential damage to device.
MALFUNCTION INSTRUCTIONS
The following symbols appear within this manual or on the product to increase visibility of necessary safety precautions,
instructions and key information as described below.
IN THE CASE OF HAZARDOUS MALFUNCTION:
1. Immediately stop using the device.
2. Use the troubleshooting information on pages 35-38 to determine what is causing the issue.
3. If it is not possible to identify or eliminate the cause using this document, switch the device off and call
LogiQuip Customer Support at [phone].
WARNING: PERSONAL INJURY
Please follow all instructions alongside any/all applicable health & safety practices. Please follow all instructions alongside any/all safety
protocols and regulations applicable to the location, organization, and workplace environment.
SAFETY PRECAUTIONS

[phone]
6|
SAFETY PRECAUTIONS (CONTINUED)
It is the duty of installers, operators, or maintenance persons to ensure that noted information, safety precaution, and
instruction is observed alongside applicable regulations when installing, operating, or performing maintenance tasks on any
LogiQuip Dri-Stor Drying Cabinets.
• WARNING indicates the potential for personal injury
• CAUTION indicates the potential for damage to equipment
For emphasis, certain Safety Precautions and informational notes are repeated throughout the manual. It is important to
review these before installing, operating, or servicing the unit.
WARNING: PERSONAL INJURY
Product may weigh in excess of 750 lbs. Ensure adequate personnel and equipment is available to perform uncrating
procedures. Uncrate on a level floor.
WARNING: PERSONAL INJURY
Do not modify this equipment without authorization from the manufacturer. If this equipment is modified, appropriate
inspection and testing must be conducted to ensure continued safe use of the equipment.
WARNING: PERSONAL INJURY
Avoid tipping hazard, ensure product is leveled, and secure when positioning.
WARNING: PERSONAL INJURY
Repairs and adjustments to this equipment should be made only by fully qualified service personnel or verified persons. Maintenance
performed by inexperienced, unqualified personnel or installation of unauthorized parts could cause personal injury, invalidate the warranty
or result in costly damage.
WARNING: PERSONAL INJURY
This product may only be used with the accessories delivered by or approved by LogiQuip.
The use of any other accessories is not verified for safety.
WARNING: PERSONAL INJURY
Please follow all instruction alongside any/all applicable health & safety practices. Please follow all instruction alongside any/all safety
protocols and regulations applicable to the location, organization and workplace environment.
WARNING: LACERATION
Always wear safety goggles, safety gloves, and safety shoes when loading, unloading, positioning, or
otherwise handling product to avoid injuries.
WARNING: TRIPPING HAZARD
Route the power cord to the receptacle in a position so that it will not be tripped over by personnel in the area.
WARNING: POSSIBLE EQUIPMENT, PROPERTY DAMAGE, OR HAZARD
A step stool must be kept within the immediate area which is sufficient to reach over the Cabinet to access the mains
power receptacle on the back at the top to disconnect the power at the source in an emergency situation.
CAUTION: DAMAGE TO EQUIPMENT
Use recommended cleaners only to clean stainless steel and product surfaces. Never use a wire brush, abrasives, or steel wool on
the equipment. Do not use chloride on stainless steel surfaces. Chloride based cleaners will deteriorate stainless steel.
WARNING: ELECTRIC SHOCK
Do not access serviceable or live current areas, nor clean near electrical connection points unless until all utilities have been
properly disconnected.
WARNING: ELECTRIC SHOCK
Do not replace or use Mains cords with inadequately rated supply. Use only cables labeled for applicable voltage or voltage range, frequency
or frequency range, and/or power or current RATING when stated on the label by LogiQuip, and install in the order of the instructions shown.
Only cables verified and provided by LogiQuip for a specific Cabinet may be used.
SAFETY PRECAUTIONS

www.logiquip.com |7
PRODUCT SPECIFICATIONS
PRODUCT CONFIGURATIONS
Two primary physical configurations of Endoscope Storage Cabinet are manufactured and produced which each support
multiple functional configurations of components.
These are differentiated by the physical location of compartment used to hold the systems and components needed for
Cabinet functions – either – in a dedicated side Cabinet adjacent to the scope storage area, or, in a separated compartment
at the top, above the scope storage area.
SIDE-LOAD CABINET
The physical housing of a standard Side Component Compartment Endoscope Storage Cabinet model – also referred to as a
‘Side-Load Cabinet’ - includes the following:
• Main Cabinet: A glass door Cabinet provided as the storage compartment for flexible Endoscopes and containing
large diameter scope hangers. This may be outfitted to include other types of small diameter or specialty scope
hanger if required.
• Component Cabinet: A dedicated 13” wide Cabinet that houses the components (i.e. HEPA Fan, Channel Purge Pumps
etc.), that are necessary for the Cabinet to function.
An optional additional scope storage unit, functionally identical to the main Cabinet, may be added during ordering for
installation alongside the main and component Cabinet. This is referred to as a:
• Add-On Cabinet: An additional glass door Cabinet for added storage space for flexible Endoscopes. This contains
large diameter scope hangers and may be outfitted to include other types of small diameter or specialty scope
hanger if required.
TOP-LOAD CABINET
The physical housing of a standard Top Component Compartment Endoscope Storage Cabinet model – also referred to as a
‘Top-Load Cabinet’ - includes the following:
• Main Cabinet: A glass door Cabinet provided as the storage compartment for flexible Endoscopes and containing large
diameter scope hangers, with components (i.e. HEPA Fan, Channel Purge Pumps, etc. required for Cabinet functions)
located at a separate compartment at the top of the Main Cabinet above the storage area. This may be outfitted to
include various other types of scope hanger if required.
• Select models may have upgrade options such as EndoTrack, and additional scope capacity are available. Contact
LogiQuip Customer Support at [phone] for more information.
Where configuration and installed features may have been tailored alongside customer input, contact LogiQuip Customer
Service with questions unique to a specific unit.
Models of product may be able to be functionally upgraded to a different standard of configuration.
(Ex. to add tracking functionality or scope capacity. ) Contact LogiQuip for information on applicability.
PRODUCT SPECIFICATIONS

[phone]
8|
OPTIONAL FEATURES & ACCESSORIES
KEYPAD SECURITY LOCK
This security feature allows restricted access to personnel that have a unique 4-digit code,
for up to a maximum of 50 unique codes. The Keypad is configurable to add/remove codes
as required by the user.
Compatible Models include: HEPA Endoscope Cabinets and HEPA Channel Purge Endoscope Cabinets
ENDOTRACK SYSTEM
EndoTrack allows you to easily manage and track Endoscope equipment from an
intuitive interface. Utilizing Barcode or RFID Technology, the EndoTrack System
provides controlled access and security to your Cabinet as well as the ability to
track the hang time of each Scope.
DOOR ALARM BUZZER
This optional feature notifies a user if the door has been left open for longer than five (5) minutes.
Compatible Models include: HEPA Endoscope Cabinets and HEPA Channel Purge Endoscope Cabinets
SMALL DIAMETER SCOPE HANGERS
Small diameter scopes may be accommodated for
storage with optional mall diameter scope hangers.
These hangers are located on the back wall or side
walls of the Cabinet. These types of scopes include
sidewalls and are not limited to Cystoscopes,
Intubation Scopes, ENT Scopes.
EUS SCOPE HANGERS
The EUS scope hanger setup consists of two hangers. The scope head
hangs from the large diameter hanger on the ceiling of the Cabinet and
the Ultrasound connector will sit on the EUS scope hanger that is
mounted on the back of the Cabinet.
OPTIONAL FEATURES & ACCESSORIES

www.logiquip.com |9
OPTIONAL FEATURES & ACCESSORIES (CONTINUED)

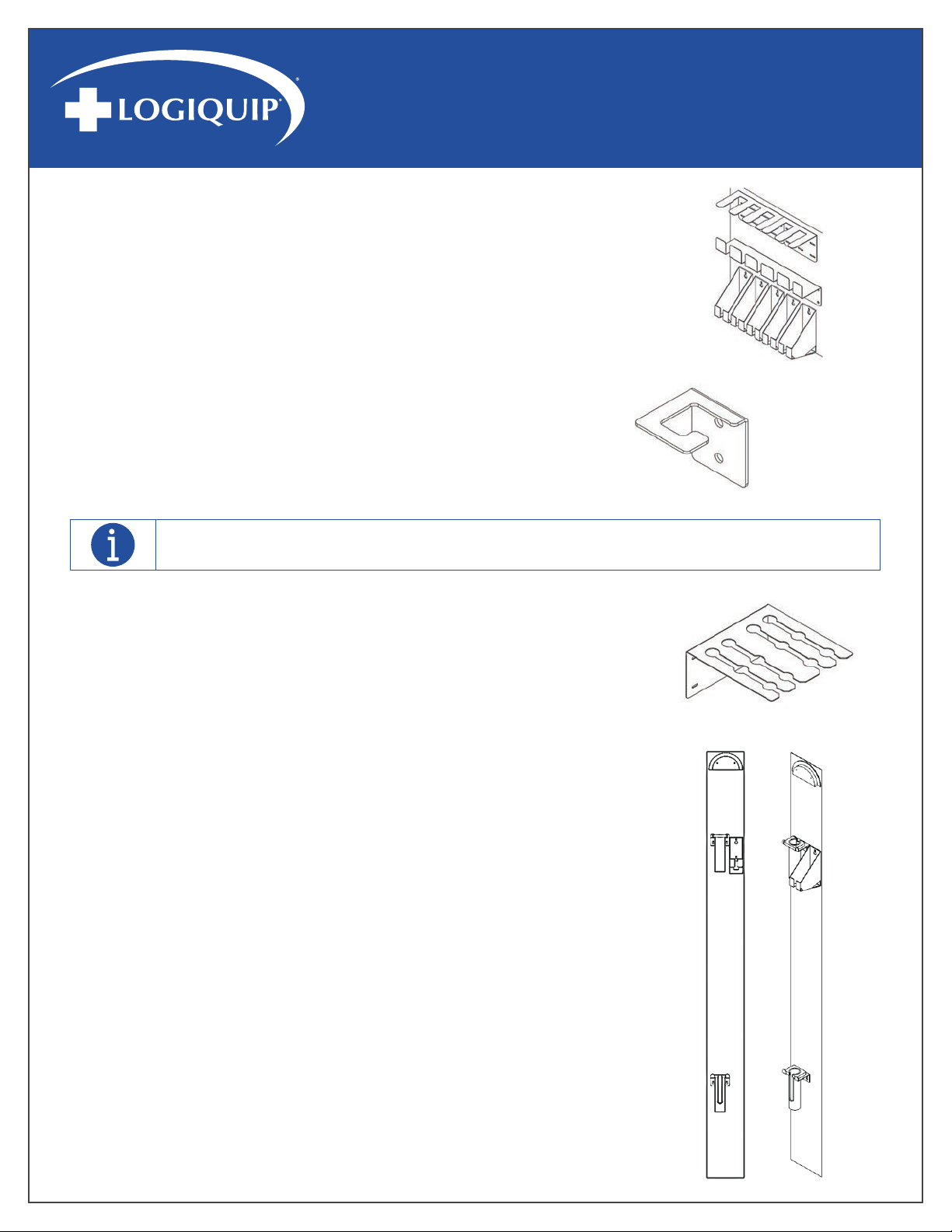

ULTRASOUND PROBE HOLDERS
The Ultrasound Probe Holders are designed to hold both abdominal or inter-cavity ultrasound
probes. They come in two (2), three (3), or five (5) holders.
ENTEROSCOPE SCOPE HOLDERS
The Enteroscope hanger consists of 2 small guides that are attached to the sides
of the Cabinet. The Enteroscope hangs on a large diameter scope holder and the
insertion tube that hangs, is guided through the two hooks to keep the distal tip
of the scope off the bottom of the Cabinet.
OLYMPUS SMALL DIAMETER VIDEOSCOPE HOLDERS
The Ultrasound Probe Holders are designed to hold both abdominal or inter-cavity
ultrasound probes. They come in two (2), three (3), or five (5) holders.
TEE PROBE HOLDERS
TEE (Transesophageal Echocardiography) Probes require a specialized hanger setup.
The setup consists of four (4) parts.
The transducer connector fits into the custom holder, while the transducer cable wraps
around the strain relief hanger.
The probe hangs from the top hook, through the slotted acrylic cylinder, and through
the bottom hook with an acrylic cylinder to protect the distal end of the probe.
A maximum of two (2) Enteroscope scope holders can be installed in one (1) Glass Door Storage Cabinet.
OPTIONAL FEATURES & ACCESSORIES

[phone]
10 |
Follow Local Guidelines & Codes. The height of the GFCI outlet should follow any local code requirements as well as facility guidelines.
Ensure adequate clearance along passageways from the unloading dock to the site of install.
WARNING: PERSONAL INJURY
Product may weigh in excess of 750 lbs. Ensure adequate personnel and equipment is available to perform uncrating procedures.
Uncrate on a level floor.
PRE-INSTALLATION INSTRUCTIONS
SITE PREPARATION
Prior to order confirmation, please discuss requirements for installation with your LogiQuip Sales Representative.
Discuss all pre-installation information with your Sales Representative.
INDICATIONS FOR INSTALL
WARNING: PERSONAL INJURY
Product may weigh in excess of 750 lbs. Ensure adequate personnel and equipment is available to perform uncrating procedures.
Uncrate on a level floor.
WARNING: LACERATION
Always wear safety goggles, safety gloves, and safety shoes when loading, unloading, positioning, or otherwise handling
product to avoid injuries.
WARNING: PERSONAL INJURY
Avoid tipping hazard, ensure product is leveled and secure when positioning.
WARNING: TRIPPING HAZARD
Route the power cord to the receptacle in a position so that it will not be tripped over by personnel in the area.
PRE-INSTALLATION INSTRUCTIONS

www.logiquip.com |11
PRE-INSTALLATION INSTRUCTIONS (CONTINUED)
TOOLS REQUIRED
• Electric Drill
• No. 2/3 Robertson (Square Head) Bit
• Utility Knife
• Furniture Dolly
• 2mm Phillips Screwdriver
• 8mm Allen Key (Supplied for Side-Load ONLY)
• Flathead Screw Driver
• 5/
16” Nut Driver
• Step Ladder/Stool
• Level
• Pallet Jack/Forklift
• Furniture Dolly (2)
• Tape Measure
• Cable Ties
• Rubber Mallet
• Pry Bar
• Composite Shims
• Stainless Steel Cleaner
• Glass Cleaner
• Rags for Cleaning
BEFORE GETTING STARTED
Ensure electrical outlets are installed and can be reached by 8’ cords. If both outlets in a duplex are to be used, the
outlets must be facing opposite directions in order to accept the plugs. If the Cabinet has the EndoTrack feature, it should
be plugged into an outlet on the emergency backup circuit. For facilities covered by OSHPD, the wall must be prepared
prior to installation. Record the serial number before standing the unit up.
WARNING: PERSONAL INJURY
Avoid injury from falling crate panel when removing screws. Two people are required for uncrating the unit. One person must secure the crate
panel while the second person is removing the screws.
WARNING: POSSIBLE EQUIPMENT DAMAGE
Avoid damage to the unit. Secure the center support. Do not allow the center support to fall on the unit.
PRE-INSTALLATION INSTRUCTIONS

[phone]
12 |
UNCRATING INSTRUCTIONS
The Endoscope Cabinet will typically be shipped in a wooden crate. If so, follow all instructions below to remove the wooden
crating material, otherwise skip to Step 6: Remove Packaging.
1. Using a fork lift or pallet jack, transport the unit to a level floor near the installation site (Fig.1).
2. To uncrate, remove the screws from both end panels using an electric drill and No. 2 Robertson (square head) bit and
place the end panels aside (Fig. 2).
3. Remove top panel screws (Fig. 3). There are three screws on each side and three screws in the center.
Set top panel aside.
4. Unscrew and remove the three top support braces and place them aside. Ensuring supports do not fall on product.
5. Once the top braces have been set aside, remove the remaining side panels and also set them aside (Fig. 4).
6. Remove packaging. Once all the wooden panels and supports have been removed and set aside, remove the shrink
wrap and tie straps (x3) with a utility knife.
7. Remove the tape from the door handles and remove all boxes, including the drip pan, from inside the Cabinet.
8. Secure the doors shut with cable ties to keep them from opening and potentially breaking the glass.
Fig. 1: Level Floor Fig. 2: Remove Screws
and End Panels
Fig. 3: Remove Top Panel Fig. 4: Remove Remaining
Side Panels
UNCRATING INSTRUCTIONS

www.logiquip.com |13
TRANSPORTING DRI-STOR CABINET(S)
1. Once the doors are secured, place both dollies next to the crate, one (1) dolly on each end of the cabinet. Slide the
Cabinet over to the Dollies from the crate. (Fig. 5).
2. Transport the Cabinet and the received packages of components and accessories to the site location where Cabinet
units will be installed one at a time.
3. Once all Cabinets are at their destination, stand up the Cabinet(s) upright. Unscrew and remove the three top support
braces and place them aside. Ensuring supports do not fall on product.
4. Cut Straps securing Cabinet doors.
5. Remove the protective film covering the stainless steel.
6. Check inside of the Cabinet and remove all contents (drip pan and boxes).
WARNING: PERSONAL INJURY
It is recommended to use a furniture dolly (or similar) to easily transport the Cabinet(s) to their destination.
Fig. 5: Place Cabinet on a four-wheel dolly
UNCRATING INSTRUCTIONS

[phone]
14 |

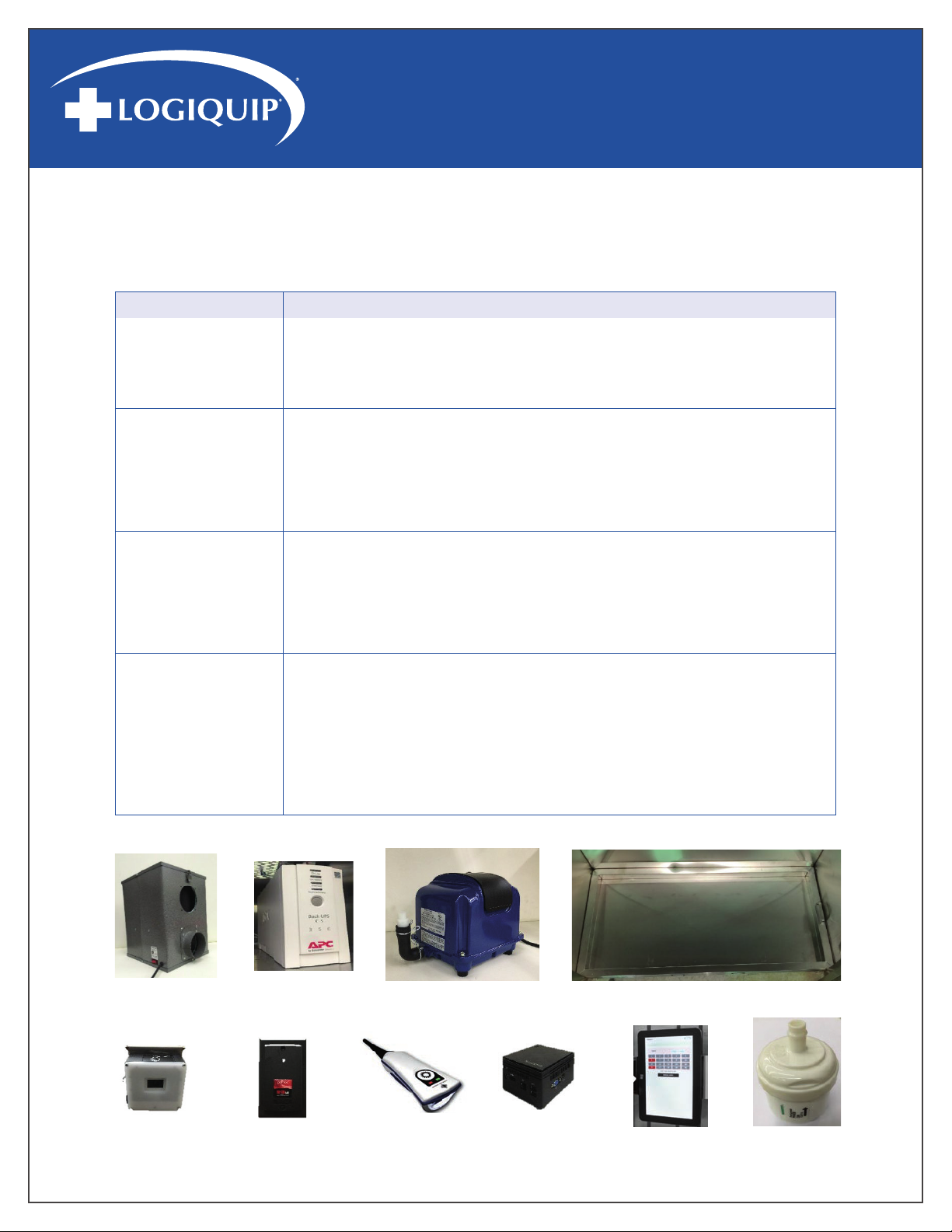

CONFIRM RECEIPT OF ORDER CONTENTS
Prior to installation, ensure that you have the following standard packaging contents for your model, in addition to any acces-
sories or expected options which are indicated by your ordering details.
MODEL CONTENTS
HEPA
• Primary Package (Labeled Box of Components)
• Removable Drip Tray (1/Cabinet)
• HEPA Fan (1/Cabinet)
• HEPA Control Box (V2 Control Configuration Only)
HEPA with
Channel Purge
• Primary Package (Labeled Box of Components)
• Removable Drip Tray (1/Cabinet)
• HEPA Fan (1/Cabinet)
• Channel Purge Pump (1/10 Scope Hangers)
• In-Line HEPA Filter (1/Pump)
• HEPA Channel Purge Control Box
HEPA with
EndoTrack
• Primary Package (Labeled Box of Components)
• Removable Drip Tray (1/Cabinet)
• HEPA Fan (1/Cabinet)
• APC Battery Backup
• CPU + Power Supply
• Major Control Box (V2 Control Configuration Only)
HEPA with Channel
Purge & EndoTrack
• Primary Package (Labeled Box of Components)
• Removable Drip Tray (1/Cabinet)
• HEPA Fan (1/Cabinet)
• Channel Purge Pump (1/10 Scope Hangers)
• In-Line HEPA Filter (1/Pump)
• APC Battery Backup
• CPU + Power Supply
• Major Control Box (V2 Control Configuration Only)
UNCRATING INSTRUCTIONS
HEPA Filter APC Battery
Back-Up
Channel Purge Pump
(blue or green)
Removable Drip Tray
Barcode
Scanner RFID
Scanner
Dual Scanner
Barcode/RFID CPU Touchscreen In-Line Filter

www.logiquip.com |15
INITIAL SET-UP
Install Cabinet products one unit at a time.
PLACING & PREPARING SIDE-LOAD CABINET(S)
This section applies to all Side Load models.
1. Using the 8mm Allen Key supplied with the shipment, remove the locking front panel of the component Cabinet for
access to the serviceable area. Set aside panel in a location which does not create a hazard.
2. Place the Cabinets side by side in the final location for installation.
3. Insert power cord extending from glass Cabinet light bar through corresponding hole in component Cabinet, plugging
into the power strip in back of component Cabinet. Route any other component Cabinet cables and Tubing through the
matching holes.
4. Bring the Cabinets together and then insert an 8 /
32 x ¾ screw, lock washer, and washer into the six (6) side panel holes
loosely, these will be secured firmly in a following step (Fig. 6).
5. Connect the power cord to the upper rear of the component Cabinet.
The ‘Main’ Cabinet refers to the Glass Cabinet to the Left of the Component Cabinet.
The ‘Add-On’ Cabinet refers to the Glass Cabinet to the Right of the Component Cabinet.
Fig. 6
INITIAL SET-UP

[phone]
16 |
INITIAL SET-UP (CONTINUED)
PLACING & PREPARING TOP-LOAD CABINET(S)
This section applies to all Top Load models.
1. Using a Phillips head screwdriver, remove the locking top panel of the component compartment for access to the
serviceable area. Set aside panel in a location which does not create a hazard.
2. Connect the power cord to the upper rear of the component Cabinet.
LEVELING THE CABINET(S)
This section applies to all models.
WARNING: POSSIBLE EQUIPMENT DAMAGE
Ensure sure the Cabinet is level front to back as well, so the scopes will hang straight and not touch the rear interior panel of the Cabinet.
If the leveling foot is difficult to move, use a pry bar or applicable device to gently lift up on the Cabinet frame to move pressure off the foot.
Adjusting the leveling feet will have the opposite effect on the Cabinet.
(i.e. Bringing the Back-Right leveling downward, will tilt the Cabinet Forward and Left)
1. With the glass doors closed on the Cabinet, look at the top of the doors to check which way the Cabinet needs
to move to be leveled.
2. Use a flat head screwdriver to adjust the leveling feet of the Cabinet when top access is available in the interior (Fig.7 ),
alternately use a wrench to adjust the nut from the exterior (Fig. 8). Composite Shims can also be used to help with this.
3. Periodically check leveling, by ensuring that the top of the doors and handles are aligned (Fig. 9), use level as
necessary to confirm front-to-back leveling.
4. SIDE LOAD ONLY: Once the Cabinet is leveled, secure the Cabinets more firmly together by tightening the 8 /
32 x ¾ screw
into the six (6) side panel holes.
Fig. 7 Fig. 8
Fig. 9
WARNING: POSSIBLE EQUIPMENT, PROPERTY DAMAGE, OR HAZARD
A step stool must be kept within the immediate area which is sufficient to reach over the Cabinet to access the mains power
receptacle on the back at the top to disconnect the power at the source in an emergency situation.
INITIAL SET-UP

www.logiquip.com |17
INSTALLING HEPA FAN(S) & FLOW SENSOR(S)
This section applies to all models.
1. Insert the grill duct (Fig. 10) from inside the glass Cabinet and secure using four (4) 8 /
32 x ¾ screws. Ensure the flow
sensor, as applicable, is facing towards the front of the Cabinet.
2. Install the duct over the grill duct (Fig. 11). Secure the connection with the hose clamp and a flat head screwdriver.
3. Cover any unused, vacant grill duct cut-out locations with blank cover (Fig. 12).
4. Remove the HEPA Fan from its packaging, Turn the HEPA Fan switch to the ON position (marked by an ‘I’ symbol) and
then take the other end of the duct and place it over the HEPA Fans’ duct collar. Secure the duct by tightening the hose
clamp using a flat head screwdriver.
5. SIDE LOAD: Place the HEPA Fan on the bottom shelf of the component Cabinet with the ON/OFF switch facing
towards the left (Fig. 13).
SIDE LOAD ADD-ON CABINET: The second HEPA Fan can be placed on the second shelf from the bottom, and steps
repeated for the second grill duct.
TOP LOAD: Place the HEPA Fan in the top compartment shelf with the ON/OFF switch facing towards the left.
6. Connect the HEPA Fan power cord(s) into the power bar in the serviceable component area.
7. HEPA & HEPA CHANNEL PURGE ONLY: Connect the Cabinet Light Bar(s) into the power bar in the serviceable
component area.
8. Verify that the power bar is switched to the ON position.

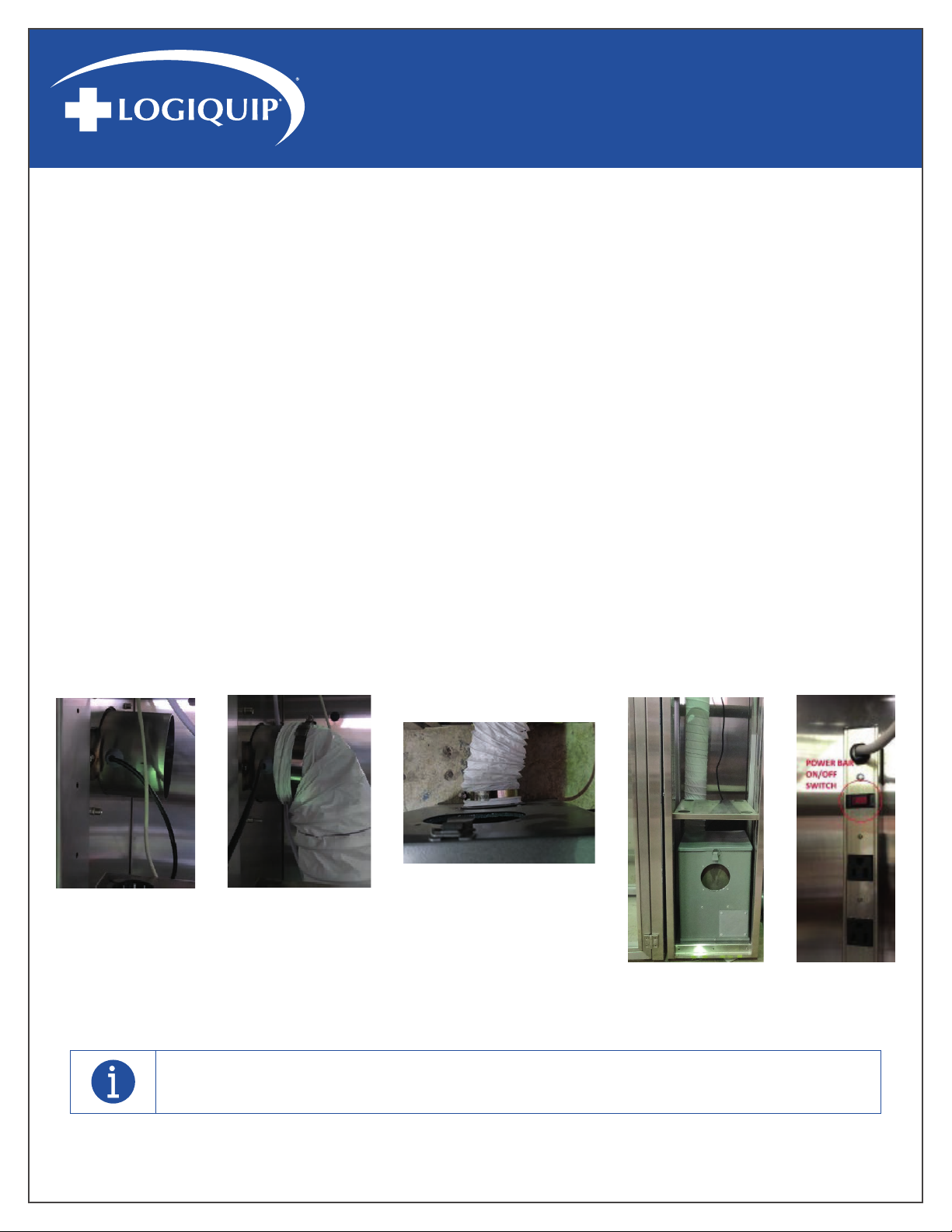

Fig. 10 Fig. 11
Fig. 12
Fig. 13 Fig. 14
Light Bar installation for Tracking (V1) Cabinets is completed within instruction for Electrical Plate and CPU Installation.
Light Bar installation for Tracking (V2) Cabinets is completed within instruction for Major Control Box Installation.
INSTALLATION

[phone]
18 |
INSTALLATION OF CONTROL SYSTEM COMPONENTS
Per product configuration continues with the following install steps (page 18-21):
WARNING: ELECTRIC SHOCK
Do not replace or use Mains cords with inadequately rated supply. Use only cables labeled for applicable voltage or voltage range, frequency
or frequency range, and/or power or current RATING when stated on the label by LogiQuip, and install in the order of the instructions shown.
Only cables verified and provided by LogiQuip, LLC for a specific Cabinet may be used.
MODEL STEP INSTALL SEQUENCE
HEPA V1 • NONE
V2 • Install HEPA Control Box
HEPA with
Channel Purge V1 • Install Channel Purge Pumps Without Sensor Kit
• Install HEPA Channel Purge Control Box
HEPA with
EndoTrack
V1 • Electrical Plate and CPU Installation
• APC Battery Back-up Set Up
V2 • APC Battery Back-up Set Up
• Major Control Box Installation
HEPA with
Channel Purge
& EndoTrack
V1
• Install Channel Purge Pumps Without Sensor Kit
• Electrical Plate and CPU Installation
• APC Battery Back-up Set Up
V2
• Install Channel Purge Pumps for Sensor Kit
• APC Battery Back-up Set Up
• Major Control Box Installation
INSTALL HEPA CONTROL BOX
1. Remove the HEPA Control Box and the power supply from the packaging
2. Connect the Flow sensor (labeled F1) from the Main Cabinet to the F1 port on the HEPA Control box (Fig.15).
3. Connect the Door Sensor (labeled D1) and connect the LED Light M8 Cable to the control box (Fig. 15).
4. Finally, connect the power supply to the control box and then plug it into the component compartment's
power bar (Fig. 16).
Fig. 15 Fig. 16
INSTALLATION

www.logiquip.com |19

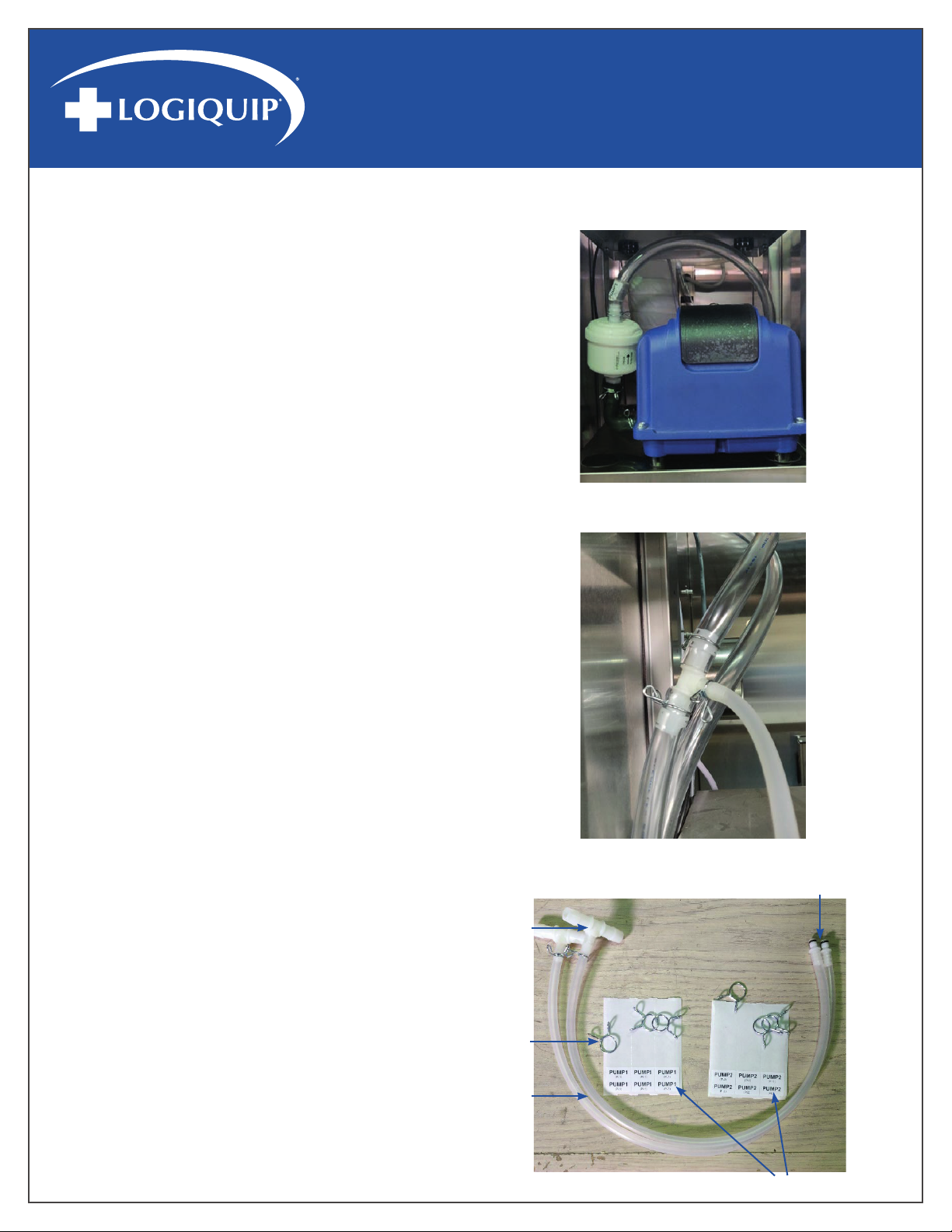

INSTALL CHANNEL PURGE PUMPS WITHOUT SENSOR KIT
1. Connect the in-Line HEPA Filters to the Channel Purge Pumps
(Fig. 17), and then connect the Tubing to the in-Line HEPA filter.
Secure the connection using a butterfly clip (Fig. 18).
2. Repeat Steps for each Channel Purge Pump included in your
ordered configuration.
Fig. 18
INSTALL CHANNEL PURGE PUMPS FOR SENSOR KIT
1. Obtain the packaging with the barb tee connectors,
Tubing, labeling, and butterfly clips (Fig. 19).
2. Labeling: PUMP1 and PUMP2 packaged labels are
provided for Main Cabinets, whereas PUMP3 and
PUMP4 labels are provided for Add-On Cabinets.
3. Identify the Channel Purge Tubing for Pump 1, and
cut it just above the top shelf using tube cutters or a
side-cut pliers.
4. Slide the butterfly clip onto each end of the Tubing, and
then insert the tee connector onto the end of each hose.
5. Secure the connection using the butterfly clips, and then
label the ¼” Tubing using the provided PUMP1 label.
6. Repeat Steps 1-4 for each Tubing.
7. Remove the Channel Purge Pumps and In-Line HEPA
Filters from the packaging
8. Connect the in-Line HEPA Filters to the Channel Purge
Pumps (Fig. 17), and then connect the Tubing to the
in-Line HEPA filter. Secure the connection using a
butterfly clip (Fig. 18).
9. Repeat Steps for each Channel Purge Pump included
in your ordered configuration.
Fig. 19
Barb Tee
Connector
Butterfly
Clips
¼”
Tubing
Male Quick
Connect
Labels
INSTALLATION
Fig. 17 - Blue or Green
INSTALLATION OF CONTROL SYSTEM COMPONENTS (CONTINUED)

[phone]
20 |
INSTALL ELECTRICAL PLATE & CPU
1. Plug three-prong 120V power supply from control manifold into power strip (Fig. 20) located in
component compartment.
2. Connect door lock cable (L1) to control manifold (L1). If Add-On storage Cabinet is present, connect door lock
cable (L2) to control manifold (L2).
3. Attach CPU to control manifold mounting plate, typically by sliding standoffs onto the black metal mounting
plate to attach.
4. Connect VIDEO cable to CPU.
5. Connect USB cable P1 from control manifold to CPU port on the backside of CPU.
6. Connect CPU power supply (PS) to CPU. This cable is
located on the top left-hand side of control manifold.
7. Plug other end of power cable for CPU (PS) into power adapter (PA1). Power cable for CPU is located in the
middle of right-hand side of control manifold.
8. Plug RJ45 Ethernet cable located in back of component compartment into Ethernet port located on front of CPU.
9. Plug USB cable (P2) located on left side of control
manifold into front of CPU.
10. Connect the Glass Cabinets light power cord (labeled as AUX1) into the AUX1 outlet.
11. If present, Connect the Add-On Cabinets light power cord (labeled as AUX2) into the AUX2 outlet.
12. Obtain power adapter (PA3) and connect the adapter to door lock connector (DL) coming from the top right of the
control manifold. Plug power adapter (PA3) into power strip mounted to the back of component compartment.
Fig. 20
INSTALLATION
INSTALLATION OF CONTROL SYSTEM COMPONENTS (CONTINUED)
