G502 X PLUS | G502 X LIGHTSPEED Gaming Mouse
INDEX
GETTING STARTED
●User guide
○Package contents
○Setup instructions
○Mouse features
○Onboard profiles by default
○Profile, DPI selection and DPI shift
○Battery life
SPECIFICATIONS
●Product information
●Product dimensions
●Mouse specifications
●Receiver specifications
FAQs
●Scrolling on my G502 X is erratic
●My mouse does not hold a charge
●My G502 X Plus and LIGHTSPEED mouse shows incorrect LED status while the system is
in sleep mode

G502 X PLUS | G502 X LIGHTSPEED Gaming Mouse FAQs 2
●I have paired my G502 X Plus/LIGHTSPEED mouse to my keyboard but it reconnects to
the original receiver while charging
●My G502 X does not show up on G HUB automatically when connected via USB
●G HUB indicates my G502 X Plus or LIGHTSPEED is fully charged, but the LED is breathing
green
●How do I know when to charge my G502 X Plus and LIGHTSPEED?
●What does the G502 X wheel mode toggle button do?
●Why are the button clicks loud on my G502 X?
●Onboard Memory Mode DPI profiles on G502 X
●Change the DPI button position on G502 X
●G-Keys in Logitech G HUB
●Using the Device Pairing Tool in G HUB
●G HUB freezes while loading and logo animation loops
●G502 - Troubleshooting - Connection Issue: Intermittently working
●G502 - Troubleshooting - Connection Issue: Mouse not detected/recognized by
computer
●G502 - Troubleshooting - Connection Issue: Mouse auto disconnects from computer
●Logitech G HUB - FAQs
○About Logitech G Hub
WARRANTY
●Hardware warranty
CONTACT US
●Logitech Support
DOWNLOAD
●G Hub

G502 X PLUS | G502 X LIGHTSPEED Gaming Mouse FAQs 3
GETTING STARTED
USER GUIDE

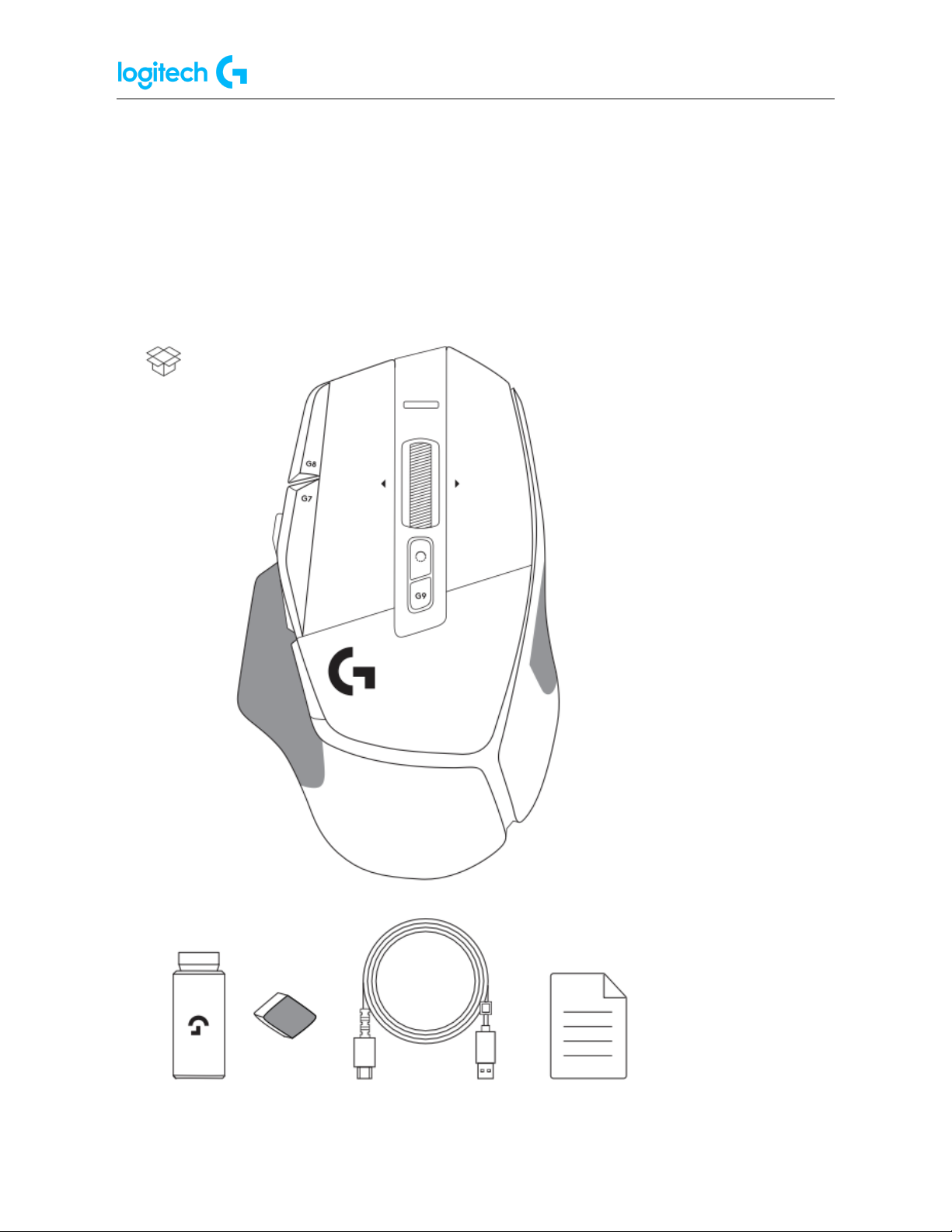

Package contents

G502 X PLUS | G502 X LIGHTSPEED Gaming Mouse FAQs 4
Setup instructions
1. Orientate the DPI Shift to fit your
preference or replace it by the
button cover to extend the grip
surface.
2. The receiver can be stored in
the mouse behind the door
when on the go.
3. The LIGHTSPEED Wireless USB-A
receiver is below the mouse in
the product tray.
Plug the USB-A cable connector
into your PC and the USB-C
connector into the receiver
extension adapter. Plug the
USB-A receiver into the adapter.
●The LIGHTSPEED Wireless receiver can also be plugged directly into your PC, but
using the cable and extension adapter will ensure a better connection and
easy access to the cable when you need to charge your mouse.

G502 X PLUS | G502 X LIGHTSPEED Gaming Mouse FAQs 5

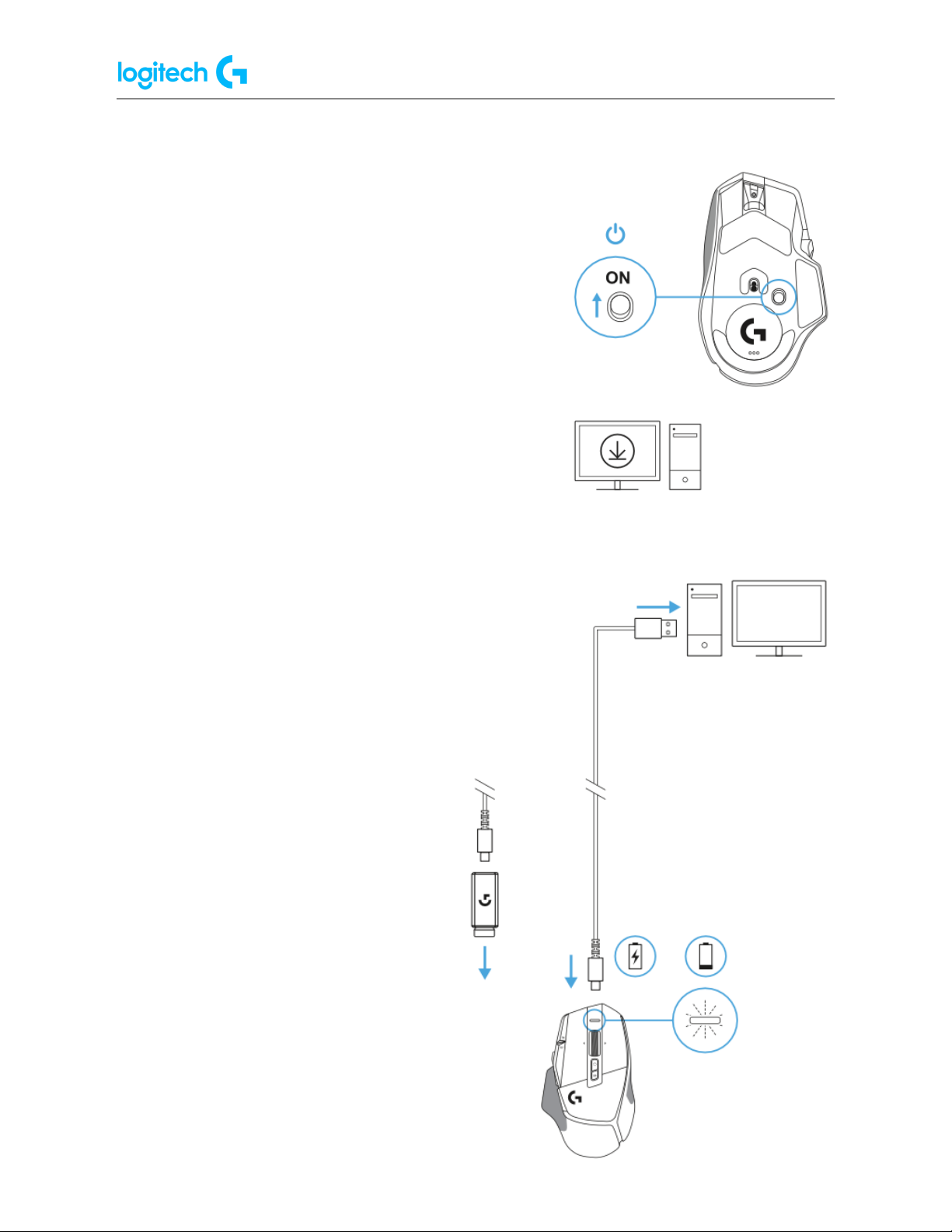

4. Slide the power button up to turn on your
mouse.
5. Download Logitech G HUB gaming software
to personalize your G502 X mouse. Fine tune
to suit your playstyle, personality and each of
your games, assign commands to any of the
13 controls, and more.
6. To charge your mouse,
disconnect the cable from the
adapter and plug it into the
USB-C port located at the front of
the mouse. Your mouse will
operate in data‑over-cable
mode whenever it is plugged in
directly to a PC. Charging from
0% to 100% takes around 2 hours
when plugged into a USB port.
Compatible with Powerplay
wireless charging system.

G502 X PLUS | G502 X LIGHTSPEED Gaming Mouse FAQs 6
Tips:
●Keep the mouse and receiver at least 2 meters away from wireless routers or other 2.4
GHz wireless devices to minimize environmental noise.
●G502 X PLUS and G502 X LIGHTSPEED have a wireless range of up to 10 meters. To
ensure optimal performance in noisy wireless environments, and to keep the charging
cable easily accessible, it is recommended to keep the receiver within 20 cm of the
mouse.

G502 X PLUS | G502 X LIGHTSPEED Gaming Mouse FAQs 7
Mouse features
1. Left click (Button G1)
2. Right click (Button G2)
3. DPI up (Button G8)
4. Scroll up
5. Scroll left (Wheel tilt left)
6. Scroll right (Wheel tilt
right)
7. Middle click (Button G3)
8. Scroll down
9. DPI Shift (Button G6)
10. Wheel mode toggle
button
(not programmable)
11. DPI down (Button G7)
12. Profile cycling (Button G9)
13. Forward (Button G5)
14. Back (Button G4)
15. On / Off switch
(bottom of mouse, not
programmable)
16. POWERPLAY™ Aperture
door
wireless receiver storage

G502 X PLUS | G502 X LIGHTSPEED Gaming Mouse FAQs 8
Onboard profiles by default
Up to 5 Onboard memory profiles can be unlocked and customized in G HUB.
SETTINGS
MAIN PROFILE
GAMING
SECONDARY PROFILE
PRODUCTIVITY
SECONDARY PROFILE
G-SHIFTED
(G-SHIFT on DPI Shift
button)
Report Rate
1 ms
2 ms
No changes
DPI
800, 1200, 1600, 2400,
3200
800, 1200, 1600, 2400,
3200
No changes
DPI steps colors
1: White 2: Orange 3:
Teal 4: Yellow 5:
Magenta
1: White 2: Orange 3:
Teal 4: Yellow 5:
Magenta
Default DPI
1600
1600
No changes
G6 button
DPI Shift to 800
G-Shift
(see right column)
No changes
PROGRAMMABLE CONTROLS
Left Main Button
Left click -
system/application
Left click -
system/application
No changes
Right Main Button
Right click -
system/application
Right click -
system/application
No changes
Middle Wheel Button
Wheel click/press -
system/application
Wheel click/press -
system/application
Ctrl-T - opening a
new tab in browser
G4 Button
Side button -
system/application
(commonly used
backwards)
Side button -
system/application
(commonly used
backwards)
No changes
G5 Button
Side button -
system/application
(commonly used
backwards)
Side button -
system/application
(commonly used
backwards)
No changes

G502 X PLUS | G502 X LIGHTSPEED Gaming Mouse FAQs 9
PROGRAMMABLE BUTTONS
G7 Button
DPI Down
DPI Down
Ctrl-X
G8 Button
DPI Up
DPI Up
Ctrl-Z
G9 Button
Profile cycle
Profile cycle
Ctrl-0
Scroll right (wheel tilt
right)
Tilt Right -
system/application
Tilt Right -
system/application
Ctrl-Tab
Scroll left (wheel tilt
left)
Tilt Left -
system/application
Tilt Left -
system/application
Ctrl-Shift-Tab
Wheel Scroll Up
Scroll Up -
system/application
Scroll Up -
system/application
Volume Up
Wheel Scroll Down
Scroll Down -
system/application
Scroll Down -
system/application
Volume Down
Profile, DPI selection and DPI shift
When the DPI Shift button is pressed: the mouse displays the color associated with the DPI
shift speed, when released the mouse displays the DPI setting color that was used prior to this
action.
DPI and profile selection are communicated using lighting on the top and the rear of the
mouse. DPI change is expressed by different steady colors, while profile change is displayed
by different blinking colors.

G502 X PLUS | G502 X LIGHTSPEED Gaming Mouse FAQs 10
Battery life
G502 X PLUS and G502 X LIGHTSPEED have a rechargeable 500 mAh LiPol battery which
provides up to 140 h of continuous motion for G502 X and up to 120 h for G502 X PLUS.1
Charging Status:
When the charging cable is plugged in the device:
●Steady green = charge completed (100%) when device is ON or OFF
●Breathing green = charging (0 - 99%)
Battery level:
When turning the device ON:
●Steady green = good (31% - 100%)
●Steady red = low (16 – 30%)
●Slow blink red = critical (< 16%)
Tips:
●Charge level, power draw, and estimated remaining battery life can be checked in
Logitech G HUB.
1Battery life and capacity may vary with age and use.
Rechargeable batteries have a limited number of charge cycles.

G502 X PLUS | G502 X LIGHTSPEED Gaming Mouse FAQs 11
SPECIFICATIONS
Product Information
Component
Model Number (M/N)
Location
Mouse
MR0089
Label inside the receiver compartment
Receiver
CU0021
On receiver
Product Dimensions
Component
Height
Width
Depth
Weight
Mouse
131.4 mm
41.1 mm
79.2 mm
102 g
Mouse Specifications
Connection Type
USB
USB VID_PID
VID_046D&PID_C095
USB Protocol
2.0
USB Speed
Full-speed
USB Report Rate
1,000 MHz (Min 1ms)
DPI (Min/Max)
Min: 100 - Max: 25,600
Sensor
HERO™
Sensor Type
Optical, Visible light: No
Max acceleration
> 40G 2

G502 X PLUS | G502 X LIGHTSPEED Gaming Mouse FAQs 12
Mouse Specifications
Max tracking speed
> 400 IPS
Onboard Memory
Yes (5)
Scroll Wheel
Vertical scroll type: Hyper-fast
Left/Right tilt: Yes
Indicator Lights (LED)
Functional LED at the front of the product
RGB
Evolved LIGHTSYNC, 8 Zone
Number of Buttons
11 buttons, 13 Programmable controls
Connect/Power
On/Off Switch (under mouse)
Battery Details
Type: Rechargeable
Quantity: 1
Accessible: No
Size: Proprietary
Technology: Li-polymer
Battery Life
Up to 500 hours - HI mode (performance); Up to 18
months - LO mode (endurance)
Materials used
Rubber, ABS, PC, PCR
Other Features
Thumb button orientable 180° and removable
(replacement by keycap - extending the grip area)
Scroll Wheel Vertical scroll type: Hyper-fast / Left/Right
tilt: Yes
Powerplay compatible gaming mouse

G502 X PLUS | G502 X LIGHTSPEED Gaming Mouse FAQs 13
Receiver Specifications
Connection Type
USB 2.0
USB VID_PID
VID_046D&PID_C547 (Wireless)
USB Protocol
HID
USB Speed
Full-speed
Wireless Protocols
Lightspeed 2
(including 2:1 pairing with a compatible Keyboard receiver)

G502 X PLUS | G502 X LIGHTSPEED Gaming Mouse FAQs 14
FAQs
●Scrolling on my G502 X is erratic
If you are experiencing issues with the scroll function on your G502 (X, LIGHTSPEED, or PLUS), do
the following:
●Clean off dust or dirt on your mouse using a Q-tip or a compressed can of air.
●Test your mouse on a different surface or mouse pad.
●Update the device's firmware:
1. Download and install Logitech G HUB: logitechg.com/innovation/g-hub.html
2. Open G HUB, select the mouse from the home screen, and then go Settings.
3. If a firmware update is available, a blue Update button appears under the firmware
version on the top right corner of the window. Click Update and follow the onscreen
instructions.
●In G HUB, try adjusting the DPI settings.
●Make sure the wheel itself moves and isn’t physically stuck.
●Unpair and repair the mouse, or disconnect and reconnect hardware.
●Windows only — try a different USB port or on a different computer. If it works on a
different computer, then the issue might be related to a USB chipset driver. Updating
the motherboard USB chipset driver may make a difference.
●My mouse does not hold a charge
If you’re experiencing a charging issue on your G502 (X, LIGHTSPEED, or PLUS) try the following:
1. Verify that your device is connected directly to the computer and not to a hub,
extender, switch, or something similar.
2. Recharge using a different USB cable.
3. Use an alternative power source to charge.
4. Check the G Hub application for any firmware updates for your G502 (X, LIGHTSPEED, or
PLUS).

G502 X PLUS | G502 X LIGHTSPEED Gaming Mouse FAQs 15
●My G502 X Plus and LIGHTSPEED mouse shows incorrect LED status while the
system is in sleep mode
This is expected behavior as the device will try to send a remote wake up signal to the
computer. However, it can't wake up the system since it’s in hibernation. Because of this, it’s
possible that the LED notification lags or shows an inconsistent status.
●I have paired my G502 X Plus/LIGHTSPEED mouse to my keyboard but it
reconnects to the original receiver while charging
This happens because the primary function of the mouse is to establish a connection with the
original receiver. We recommend unplugging the mouse receiver when you initiate the 2:1
pairing and keep it unplugged while keyboard and mouse are paired with a single receiver.
●My G502 X does not show up on G HUB automatically when connected via USB
This is expected if the mouse is in sleep mode. To make it recognised in the G HUB product list
you may need to move or click the mouse.
●G HUB indicates my G502 X Plus or LIGHTSPEED is fully charged, but the LED is
breathing green
In some cases, the LED indicator on the G502 X Plus or G 502 X LIGHTSPEED may start
breathing green even though G HUB indicates your mouse is fully charged.
If this happens, unplug the mouse from the USB-C charging cable. The LED indicator will stop
breathing.
●How do I know when to charge my G502 X Plus and LIGHTSPEED?
Your G502 X Plus and LIGHTSPEED comes with a built-in rechargeable battery which can be
charged with the provided USB cable. The mouse has a multi-color LED indicator, which
displays the battery level and charging behavior.

G502 X PLUS | G502 X LIGHTSPEED Gaming Mouse FAQs 16
A steady green light while the device is plugged in means it’s fully charged. A breathing green
light indicates that it’s charging.
When you first turn on your mouse, the approximate battery level is indicated by the LED:
Steady green = good (31% - 100%)
Steady red = low (16 – 30%)
Slow blinking red = critical (< 16%)
●What does the G502 X wheel mode toggle button do?
The G502 X has a wheel mode toggle button below the newly designed scroll wheel. This
button toggles the scroll wheel between Free Spin and Ratchet modes.
●In Free Spin mode, the wheel will spin effortlessly, but not endlessly.
●In Ratchet mode, the wheel will click as it spins to help stop its movement.

G502 X PLUS | G502 X LIGHTSPEED Gaming Mouse FAQs 17
●Why are the button clicks loud on my G502 X?
The feel and sound of the LIGHTFORCE Hybrid Switch is by design.
The G502 X’s LIGHTFORCE Hybrid Switch combines both the speed and durability of an optical
switch with the tactile feel of a mechanical switch.
●Onboard Memory Mode DPI profiles on G502 X
Onboard memory mode keeps your settings on the device and accessible without G HUB.
Your G502 X comes with two profiles: Primary (Gaming) and secondary (Productivity). When
you install G HUB, you can have up to five profiles. Each profile can have different DPI settings
and you can associate each setting with a different color, which makes it easy to know which
profile is active. You can find more information in the Setup Guide PDF, available on the
Getting Started page.
NOTE: Installing G HUB will override the two default profiles.
●Change the DPI button position on G502 X
The DPI Shift button on your gaming mouse is useful for FPS games. You can also change the
position in three ways:
a. Backward
b. Forward
c. Extended grip

G502 X PLUS | G502 X LIGHTSPEED Gaming Mouse FAQs 18
●G-Keys in Logitech G HUB
●What are G-Keys?
●Assigning commands to my G-Keys
●Removing commands from my G-Keys
What are G-Keys?
G-Keys are keys or buttons on Logitech devices that allow you to perform specific commands
or functions when you press them. These commands can be a single keystroke all the way to
complex commands that perform multiple in-game actions.
Assigning commands to my G-Keys
1. Launch Logitech G HUB.
2. Click on your Logitech device.
3. Click on the Assignments icon.
NOTE: If your product doesn’t have the Assignments tab then it doesn’t have a G-Key.
4. Find and select a command from within the Assignments tab. Commands are located
in the following sections:

G502 X PLUS | G502 X LIGHTSPEED Gaming Mouse FAQs 19
●Commands: Preconfigured system or Game profile commands based on your
selected G HUB Profile.
●Keys: Individual keyboard commands.
●Actions: Actions for application-specific integrations that work with Logitech G
HUB.
●Macros: Custom programmable commands that perform a specific task or
action.
●System: System and device control commands.
●Presets: Blue VO!CE Preset for your Blue VO!CE compatible products.
●Effects: Blue VO!CE Effects for your Blue VO!CE compatible products.
●Samples: Audio Samples for your Blue VO!CE compatible products.
●Audio: Audio commands for your Logitech speakers.
NOTE: If you are missing some of these sections it means that you don’t have a G HUB
compatible device connected with those features.
5. To assign a command to a G-key, do one of the following:
●Click on the G-key you want to give a new assignment to so it’s highlighted in
Blue then double-click on the command you want to assign to it.
●Drag and drop an existing command from the list on the left of the G HUB
window onto a G-key. When you drag a command over a G-key, the G-key
area will become highlighted.

G502 X PLUS | G502 X LIGHTSPEED Gaming Mouse FAQs 20

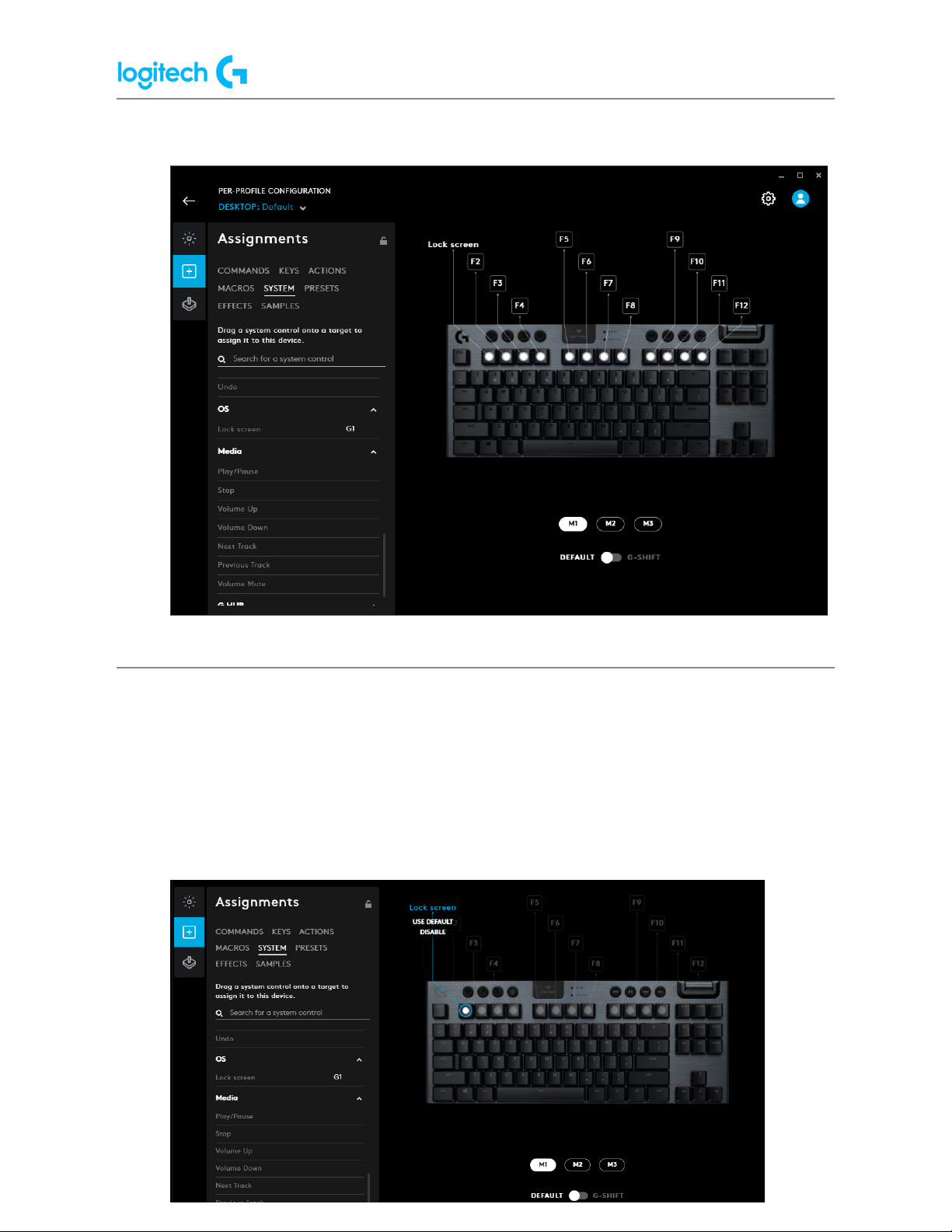

6. G-Keys that have assignments will show what their current command is.
Removing commands from my G-Keys
1. Launch Logitech G HUB.
2. Click on your Logitech device that has the G-Key you want to edit.
3. Click on the Assignments icon.
4. Click on the G-Key so it’s highlighted.
5. Click on USE DEFAULT to remove the assigned command.
