Loma LM311 User manual

INSTRUCTION FOR USE
Congratulations on your purchase of the child seat.Please read this instruction
manual carefully before use.If you have any questions concerning the use of this
child seat,please do not hesitate to contact us.
NINGBO LONGMA VEHICLE INDUSTRY CO.,LTD.
Add:#25-29 Kandun east Road, Cixi Avenue, Cixi City,
Ningbo, China.
Tel:[phone] 23670083
Fax:[phone]
Http://www.loma-cardle.com
E-mall:[e-mail]
P.C:315303
SUITABLE FOR CHILDREN
GROUP I,II,III
9 months to 12 years old
9~36KGS
CHILD RESTRAINT LM311
WITH ISOFIX

1.Vital information-READ NOW................................................................3-4
2. Safety instruction................................................................................. 5
3. Using safety seat in this way...................................................................5
4. Parts and interior equipment.................................................................6
6. Assembling the seat............................................................................... 8 - 9
7. Setting the shoulder belt height(group I).................................... 10-11
8. Height adjustment of headrest..................................................... 12
15. Maintenance and cleaning...................................................................29
15.1 Daily maintenance........................................................................29
15.2 Washing instruction......................................................................29
16.List of approved cars
5. Scope of application for children............................................................7
..............
..........
9. Using the buckle...................................................................................12
10. Installing the safety group I................................................................. 13-18
10.1 Instalation: isofix+top tether.......................................................13-16
10.2 Instalation: 3-point safety belt.....................................................17-18
11. Installing the safety group II,III............................................................ 1 9 -22
11.1 Remove the buckle and belt.......................................................... 1 9 -20
11.2 Install the baby car seat................................................................21-20
11.3 Securing the child........................................................................22-23
12. Unlock ISOFIX.....................................................................................24
13. Folding way........................................................................................25-26
14. Take off the fabric cover.................................................................... . .27-28
............................................................................30-33
Contents
1
1. This is a universal”and semi-uni versal child restraint,it is app roved to
Reg ulation NO.4 4,04 series of amendments,for general use in vehicles and
it will fit most,but not all,car seats.
2. A correct fit is likely if the vehicle manufacturer has declared in the vehicle
handbook that the vehicle is capable of accepting a “Universal”child restraint
for this age group.
3. This child restraint has been classified as“Universal”under more stringent
conditions than those which applied to earlier designs which do not carry this
notice.
4. If in doubt,consult either the child restraint manufacturer or the retailer.
“ “ ”
Notice
!
On l y s u i ta b le i f t h e v eh i c l e i s f i t t ed wi t h 3- p o i nt s a f e ty be l t s , Ap p ro v ed to
UN / EC E Re g u l at i o n N o .1 6 o r o th er eq u i v a l e nt sta n da rds .
GROUP METHOD OF INSTALLATION TYPE
I ISOFIX+TOP TETHER UNIVERSAL
I, , II III 3-point safety belt UNIVERSAL
, +ISOFIT SEMI-II III 3-point safety belt UNIVERSAL
PRODUCT DESCRIPTION
ISOFIT :FIX attachment for the connection between CRS and vehicle seats which
has two rigid anchorages according to UN ECE 14, but use only for Group II, III.

1. Vital information-READ NOW
For your child’s safety,please read these instructions carefully before use and keep
them for future reference.Failure to follow the instructions contained in this manual
could result in serious injury to your child.
This child safety seat can only be used with the harness for children 9kg to 18kg
in weight(group I:9 - 18 kg ; group I, 15-36 kg).
This instruction manual can be retained in the special space of the child seat for its
life period.
1.
2.
I III:
Do not use this child safety seat at the home. It has not been designed for home use
and should only be used in your car.
The child safety seat should be changed when it has been subject to violent stresses
in an accident.
Always make sure that any straps holding the seat restraint to the vehicle shall
be tight,any straps restraining the child should be adjusted to the child’s body,and
check that the straps shall not be twisted.
IMPORTANT!Ensuring that any lap straps is worn low down,so that the pelvis is
firmly engaged.
Do not use any load bearing contact points other than those described in the
instructions and marked in the child restraint ,when in doubt ,please contact the
child restraint manufacturer..
Any luggage or other objects liable to cause injuries in the event of a collision
shall be properly secured.
The rigid items and plastic parts of a child restraint must be so located and installed
that they are not liable,during everyday use of the vehicle to become trapped by a
moveable seat or in a door of the vehicle.
3.
4.
5.
6.
7.
8.
9.
10.
11.
Never leave your child unattended in the child restraint system even for a short time.
This child restraint should be securely belted in the vehicle even when not in use.
In a crash or sudden stop,an unsecured child safety seat may injure other occupants.
2
This child restraint is classified for”(Semi-universal) for group II, III
with ISOFIT, ”use and is suitable for fixing into the seat positions of
the following cars:
CAR FRONT REAR
Outer Outer Centre
Yes NO NO
Seat positions in other cars may also be suitable to accept this child restraint.If
in doubt,consult either the child restraint manufacturer or the retailer.
*
“*” Please see the list of approved cars
3
This is an ISOFIX CHILD RESTRAINT SYSTEM for group I with ISOFIX and
top tether.It is approved to Regulation NO.44,04 series of amendments
for general use in vehicles fitted with ISOFIX anchorages systems.
It will fit vehicles with positions approved as ISOFIX positions(as detailed
in the vehilce handbook),depending on the category of the child seat and
of the fixture.
The mass group and the ISOFIX size ciass for which this device is intended
is:9-18kg,class B1
NOTICE

2. Safety instruction
Only suitable if the approved vehicles are
fitted with 3 point safety-belts,approved
to UN /EC E Reg ula tio n No .1 6 or oth er
equivalent standards.

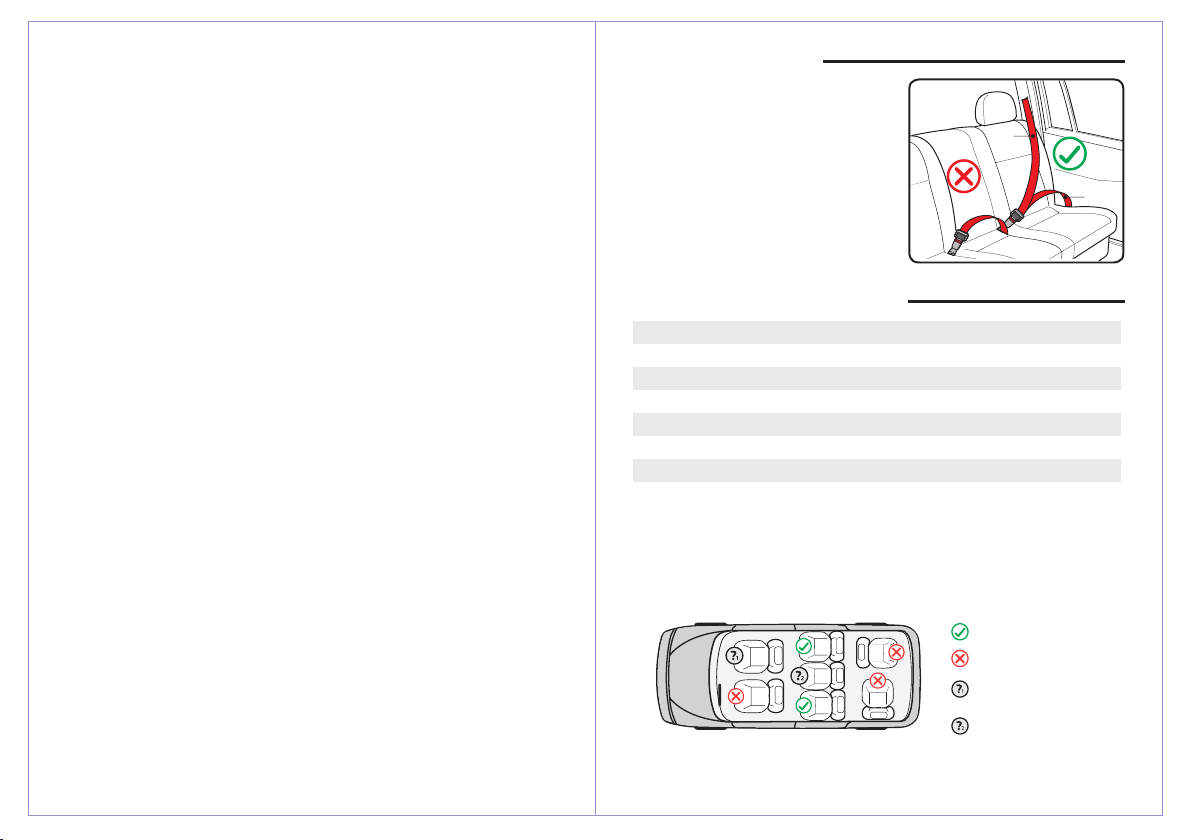

3. Using safety seat in this way
Forward facing traffic direction
Back facing traffic direction Error
Vehicle is only fitted with 2-point safety belt Error
Vehicle is fitted with 3-point safety belt Correct
Seat beside the driver
Rear seat Correct
Rear middle seats Three-point Belt Correct
Correct
Error
3.1 Please carefully implement the Country Traffic Safety Regulations
●Do not install the child safety seat at the front seat with airbag.
● Please read the instruction manual carefully that how to use the airbag.
NOTICE
You can install this position
Unable to install the position
Do not install the child safaty seat
at the front seat with air bag.
Only with the three point
safety belt,can this location.
DIAGONAL BELT DIAGONAL BELT
LAP BELT LAP BELT
4
To prevent from the risk of fall,your child should always be fastened.12.
13.
14.
15.
16.
17.
18.
19.
20.Notice:
21.
22.
It is dangerous to make any alteration or additions to the device without the
approval of the competent authority,and a danger of not following closely the
installation instructions provided by the child restraint manufacturer.
This child safety seat is designed for children from 9 to 36 kg.Never overload
the child safety seat more than one child or with other loads.
The child restraint must not be used without the cover.
The seat cover should not be replaced with any other than the one recommended
by the manufacturer,because the cover constitutes an integral part of the restraint
performance.
Before you adjust any movable or adjustable parts of your child safety seat,you
must remove your baby from the child safety seat.
The child safety seat should be kept away from sunlight if the seat is not provided
with a textile,otherwise it may be too hot for the child’s skin.
Never use a second-hand product,as you can never be certain what was happened
to it.
Do not use in any configuration not shown in the instructions.
Please identify unsatisfactory position of the adult safety belt buckle relative to
the correct point of the child safety seat, if in doubt, please contact the child seat
manufacturer.
Please also read the car manufacturer's handbook before use.
5

5. Scope of application for children
PRESS
ISOFIX Unlock button
Backrest
Headrest
Base
Isofix guide
ISOFIX connector
4. Parts and interior equipment
Chest pad
Comfortable cushion
Harness connector
Buckle
Head belt guide
group II,III
Adjuster
(Under the cover)
Harness adjuster strap
Safety belt route slot
Height adjuster
Belt slot group I
Harness
Headrest folding
switch
Head belt guide
group II,III
Harness
End bracket
Backrest folding switch
Headrest fix button
Headrest folding switch
Isofix unlock button
Look-off clip
6 7
Belt slot
Top tether
GROUP I
It is suitable for
the weight 9-18 kgs,
given to children about
9 months-4 years old.
Instalation:
isofix+top tether
Securing the child:
5-point harness
Instalation:
3-point safety belt
Securing the child:
5-point harness
CLICK
CLICK
GROUP II,III
It is suitable for the
weight 15-36 kgs,
given to children
about 4-12 years old.
Instalation:
3-point safety belt+isofit
Securing the child:
3-point safety belt
Instalation:
3-point safety belt
Securing the child:
3-point safety belt
top tether
Top tether
CLICK
CLICK
Harness connector

A4
A5
9
A6
Step 4: Open two side pieces of
headrest when here “click”.
Step 5: Fix the headrest onto the
backrest.
Step 6:Pull strap to tighten belts,baby
car seat it ready for use.
CLICK
8
A3
A2
CLICK
Step 2: Turn the backrest to vertical
to the base(A1、A2).
Step 3: Push the backrest down
and press, when hear “click” it
means well assembled.
Notice: check and move the
backrest to make sure it is firmly
assembled.
!
6. Assembly of safety seats
Step 1: Take the top tether from the
backrest
A1
P
R
E
S
S
CLICK

B3
11
B4
B5
Step 3:Pull out the shoulder belt
forward.
Step 4: Insert the harness into the
suitable belt slot.
Step 5:Then re-thread the shoulder
straps and chest straps into the
appropriate strap slots from the front
of the child seat and slide them in the
harness connectors.
Ensure that the belt is positioned
correctly in the belt solt and not twisted.
Notice:
10
Too low
B1
B2
Check whether the shoulder belts are set at the right height for your child.
The shoulder belts should be fed into the belt slots that lie at shoulder height
or just above.
Step 2:Slide both of the harness
straps off the harness connector.

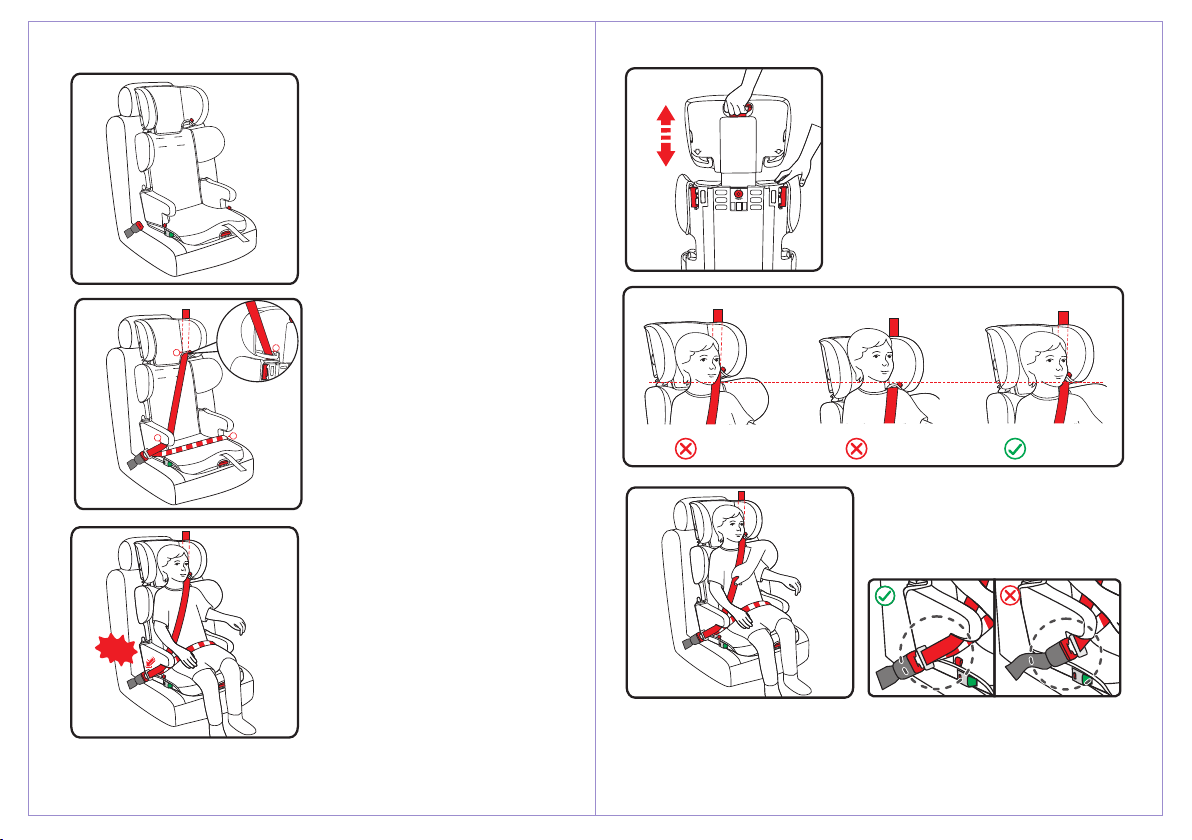

7.Setting the shoulder belt height(group I)
If the height of your shoulder belts in
child car seat is not fit for your child,
Adjust the height of the shoulder belts,
please proceed as follows:
Too high Right
Step 1. Loosen the harness

12
C2
C1
C3
Step 1:Find out isofix connections
in the car.
Step 2: Insert isofix guide into
isofix connection
It is suitable for the weight 9-18kgs,given to children
about 9 months-4 years old.
10. Installing the safety group I
Step 3: Press both button and
push out the isofix connector
①②③
①
②
Locking Method
Pull the height adjuster to adjust
the height of the headrest according
to the child’s height.
8.Height adjustment of headrest
Locking Method：
Align the left and right buckle tongues to one tongue
and insert into the buckle until you hear a“Click”.
Unlocking Method：
9. Using the buckle
You can press the red button of the buckle
downwards,the two metal sections will be
pop up.
Unlocking Method
CLICK
13
B1
10.1 Instalation: isofix+top tether
Securing the child: 5-point harness

PRESS
Fixed point 1
C7
C8
C9
Step 6: Press the adjusting button
and adjust the belt of top tether to the
longest.
Step 7: Connect top techer with the
fixing point on the car.
Step 8: String the belt of top techer
until the adjuster shows green.
Notice: Top techer is only for group I
!
Fixed point 2
Fixed point 3
14
C4
C5
C6

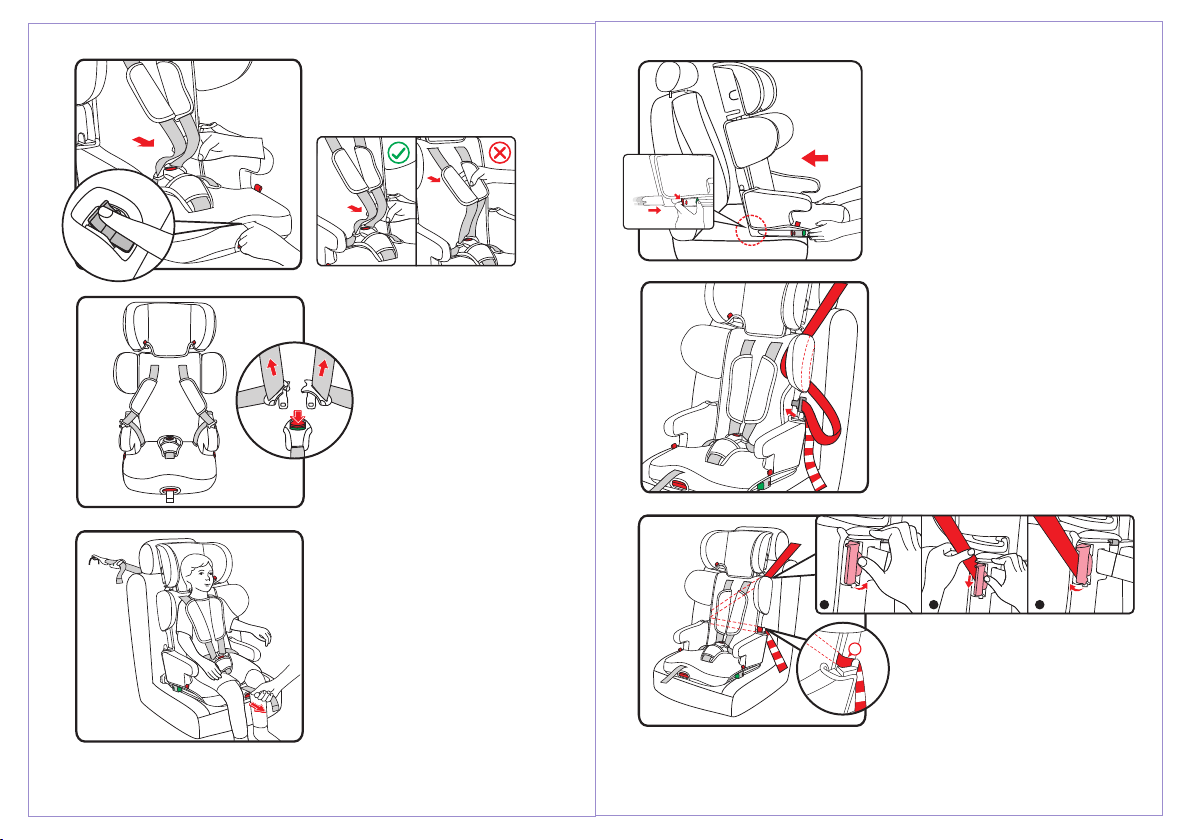

Step 4: Push child seat follow the
direction and insert isofit connector
into isofix guide(C4、C5）.
Step 5: Check if isofit locking system
turns to green and make sure child
seat is firmly connected.
CLICK
CLICK
15

17
C11
16
1 2 3
2
D3
D2
D1
Step 9. Loosen the harness
Step 11:Put the child into the seat
and fasten the harness.Check that
the harness does not twisted.
Step 10:Release the buckle
Step 3: Clip the diagonal belt
into the locking clip.
10.2 3-point safety belt
Securing the child: 5-point harness
Instalation:
Step 1:Hide isofit in the booster.
Step 2:Put the seat against the
car seat and use 3-point car seat
belt to install.
C12
C10

E1
E3

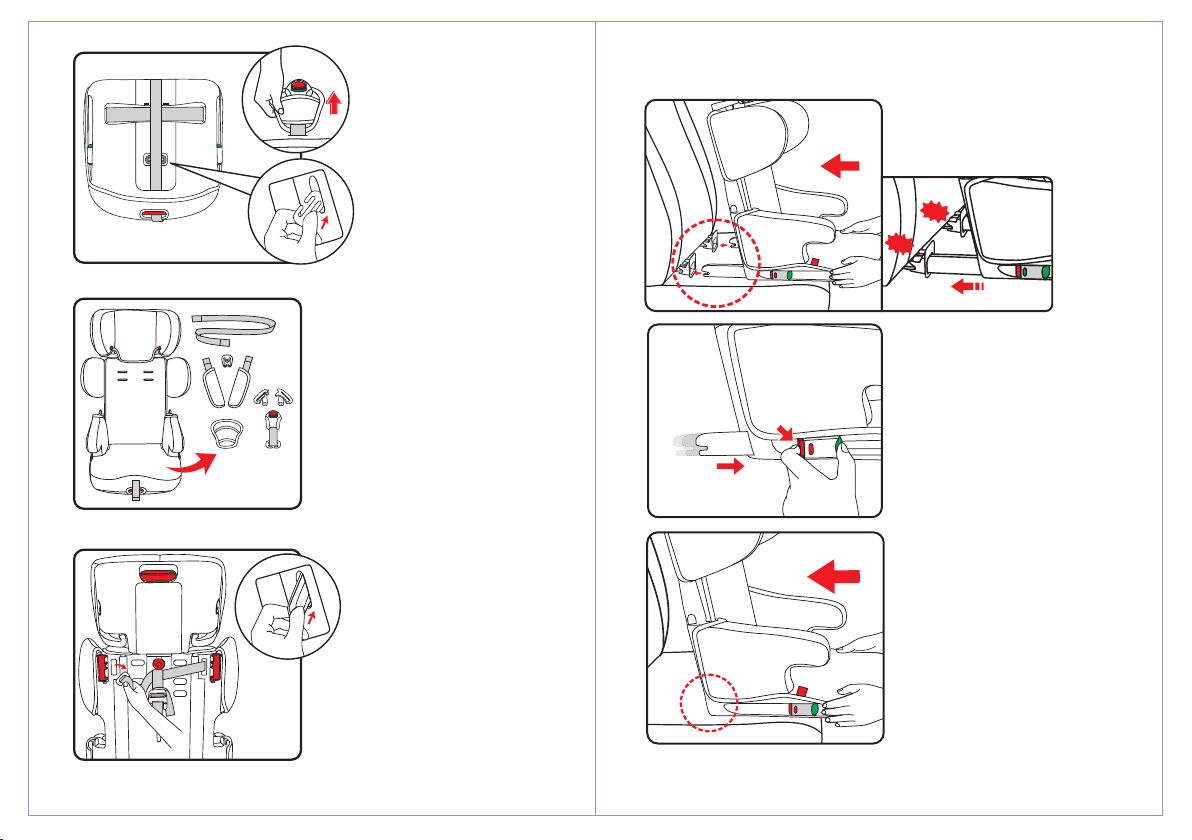

Step 1. Loosen the harness
Step 2: Slide both of the harness
straps off the harness connector.
Step 3:Pull out the shoulder belt
forward.

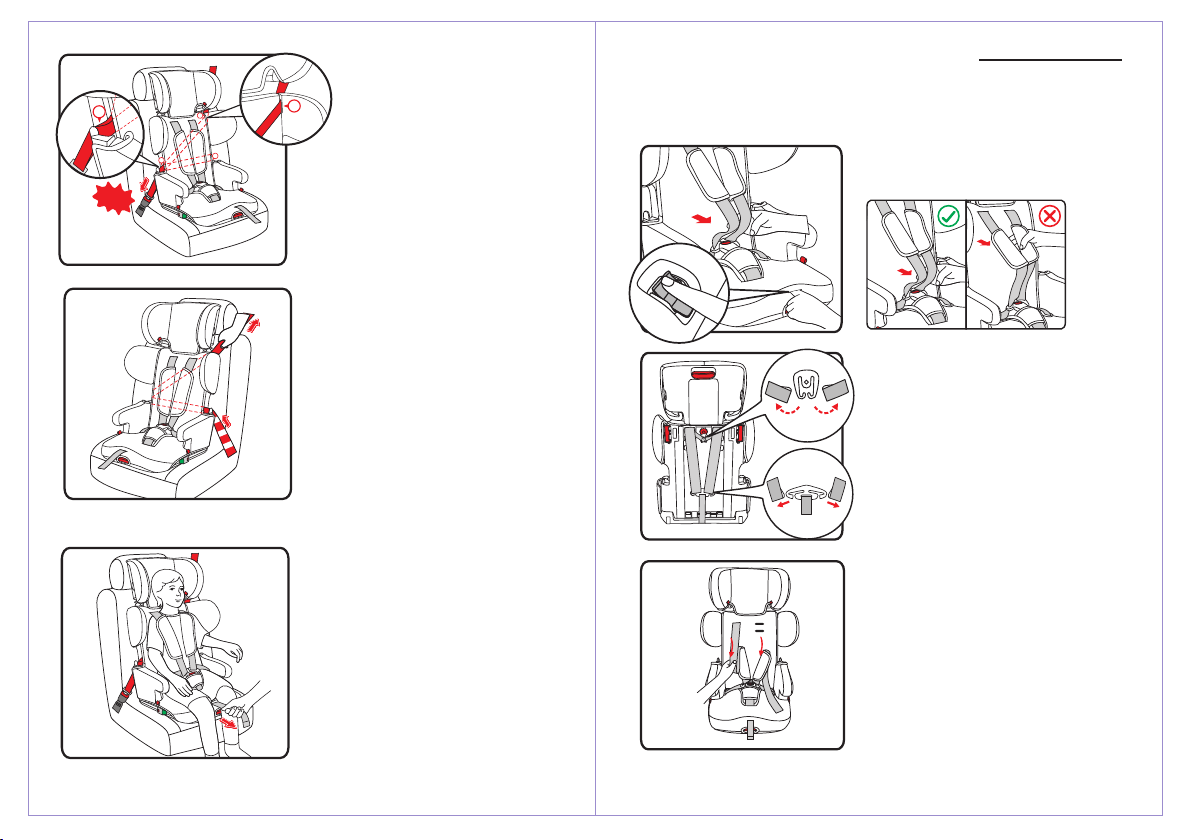

11. Installing the safety group II，III
It is suitable for the weight 15-36kgs,given to children about 4 years-12 years old.
11.1 Remove the buckle and belt
19
Instalation: isofit installation as option
Securing the child: car seat belt
Step 6:Put the child into the seat
and fasten the harness.Check that
the harness does not twisted.
18
1
2
3
31
D4
D5
D6
Step 5：Fasten car seat belt and make
sure,it is tight enough(D5).
Step 4: Make car belt go through
the front of seat and follow the
routine ①②③(D3、D4).
CLICK
E2

21
2.Not using ISOFIT:
Hide ISOFIT in the booster. Put the
seat against the car seat and use
3-point car seat belt to install.（E8,
E9,E10,E11)。
E7
E8
E9
11.2 Install the baby car seat
Group2,3 installation can choose to use ISOFIT or not.
1.Using ISOFIT:
Connect ISOFIT with anchorage
point on the car seat
CLICK
CLICK
E4
E5
E6
Step 4:
the slot which under the safety
car seat.
Pull out the harness from
Step 5:
and accessories well.
Keep the removed cushion
Step 6: Take out the bracket from the
slot to take off top tether
20

E13
E14
E15
Step 4:Fasten car seat belt and make
sure, it is tight enough.
Important:Ensuring that any lap straps is
worn low down,so that the pelvis is firmly
engaged,shall be stressed.
Too high Right
Too low
Step 3:Use the height adjuster to adjust
the height of the headrest according to
the child's height.The gap between head
belt guide and baby is 2 finger width.The
harness straps should be level with or just
above the child's shoulders(E13、E14).
23
Step 1:Follow the E11 routine to install
the baby car seat.
Stock the baby car seat in a
safe place or ensure the baby car seat
is firmly installed when not using it.
Notice:
Step 2: Put the child in the seat and
follow E11 routine.
22
A
B
C
A
E10
E11
E12
11.3 Securing the child
CLICK

G1

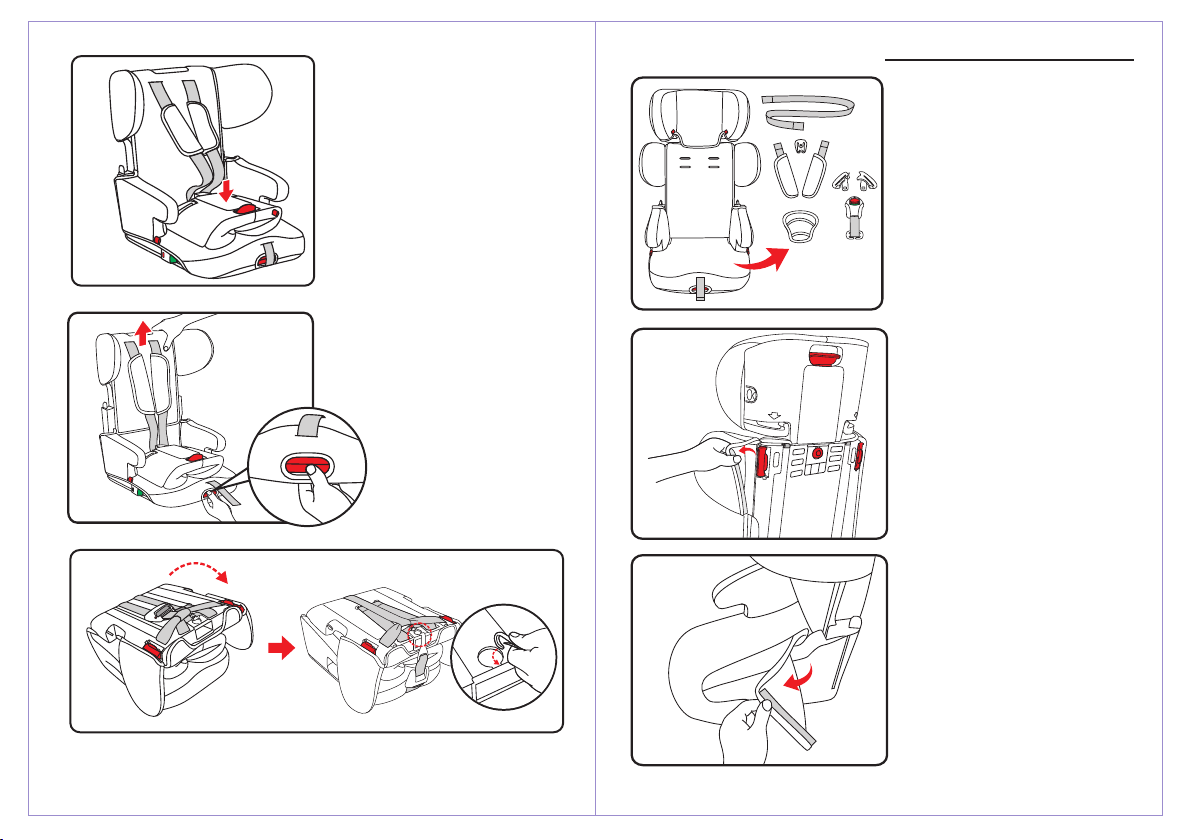

13. Folding way
G2
G3
Step 3: Press the button on both outside of
headrest and fold the headrest.
Step 2: Press the button on the back of
headrest and take it off the backrest(G2)
Step 1. Loosen the harness
25

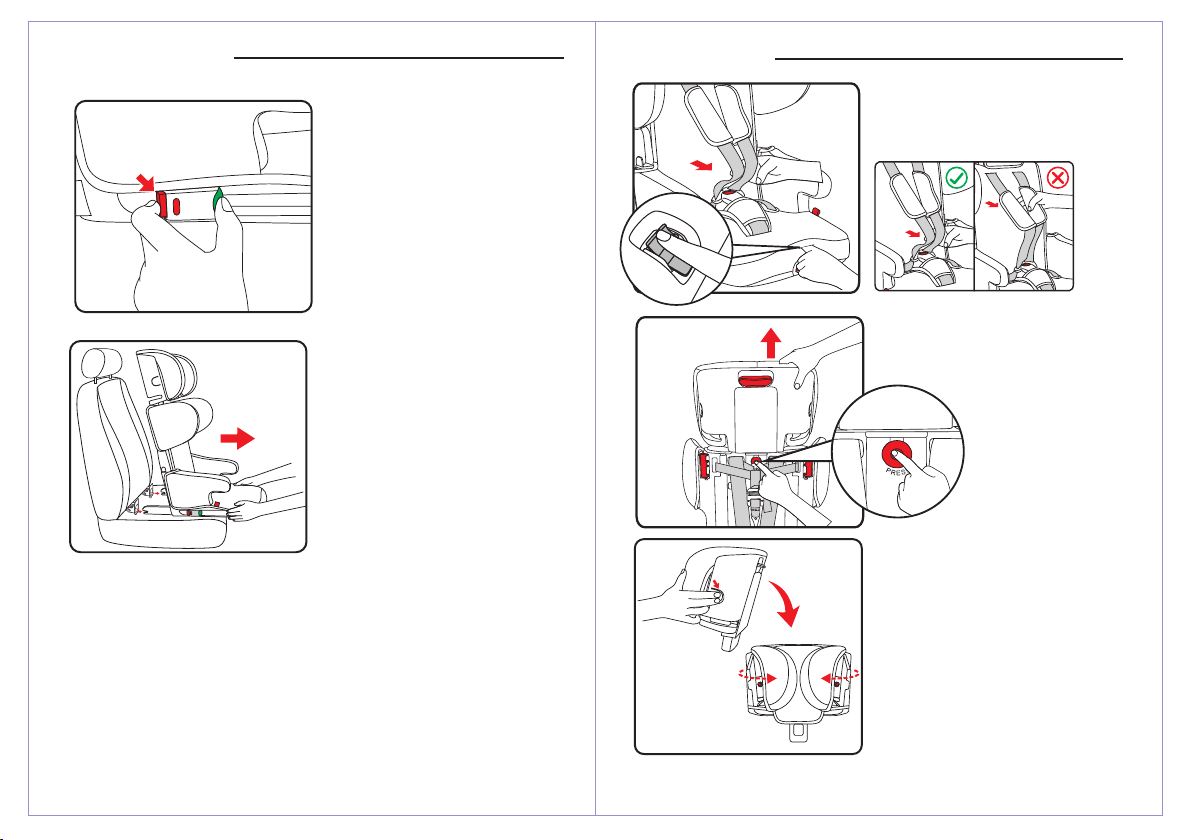

12. Unlock ISOFIX
F1
F2
Press the red button to release the
isofix connector and take away the
seat
24

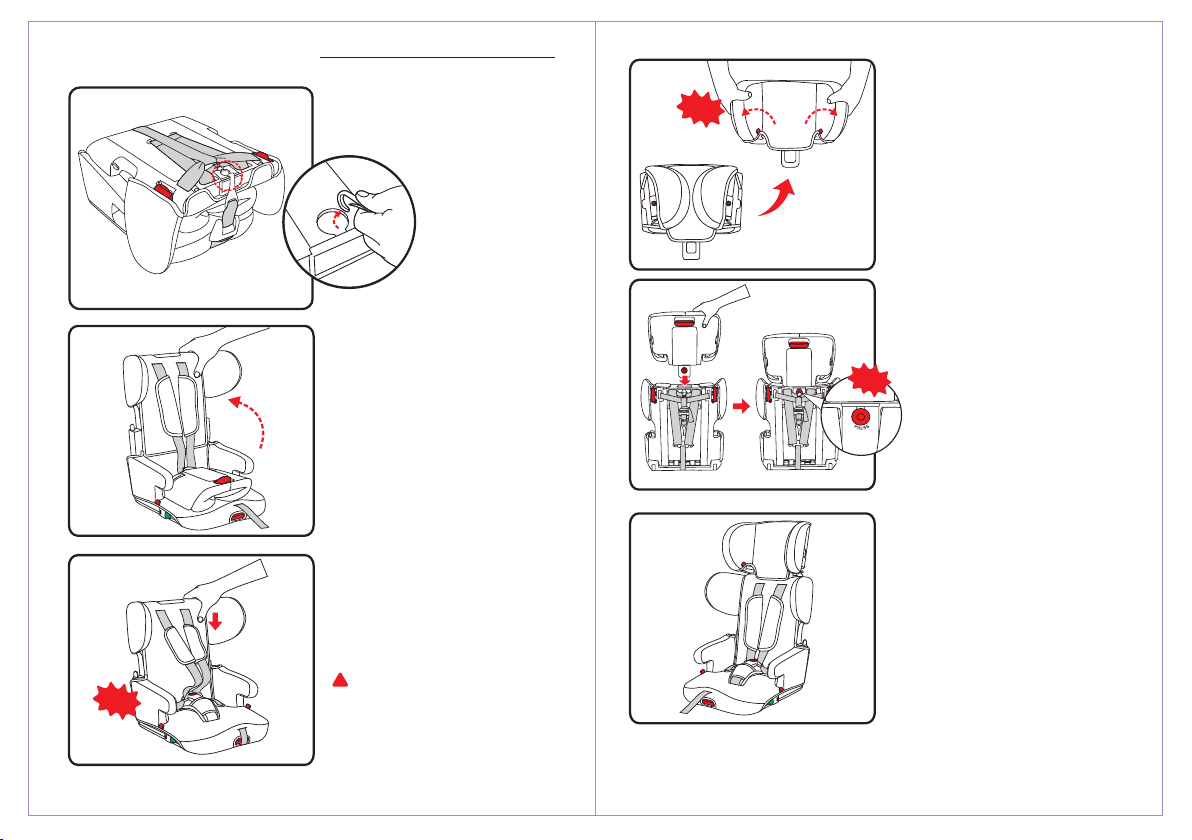

14. Take off the fabric cover
H3
Step 1: Follow the steps on page 19 and 20
to take off the accessories.
Step 3: take out the booster cover from
the slot and take off
27
G4
G5
G6
Step 4: Put headrest on the booster
Step 5: Press the red button in the front
of booster to separate the backrest from
base. Use one hand to press the button
and another hand pull upward the backrest
and fold forward.
26
PRESS
H2
Step 2: take out the backrest cover from
the slot and take off
H1
P
R
E
S
S

15. Maintenance and cleaning
15.1 Daily maintenance
1. In daily use,check periodically the child seat.The child seat should be replaced
after an accident.
2. Please keep this child seat in dry and ventilated place to avoid damp moldy.
3. If the child seat becomes dusty,clean the seat belt and the plastic pieces by
swiping them with a damp sponge and let it dry naturally.
4. If food or drink drop accidently on the buckle,disassemble the seat belt from
the child seat and rinse it gently by warm water.Leave it dry naturally.
5. For cleaning the entire child seat fabric cover,please refer to the 15.2 washing
instructions.
15.2 Washing instruction
Never use any solvant,chemical detergent or lubricant on any part of your
child seat.
Hand wash,
water
temperature
below 30℃
Do not bleach Dryclean,any
solvent except
trichloroethylene
Do not tumble dry Do not iron
15.3 Remove and assemble the fabric cover
1. Firstly,remove the crotch pad and buckle of the child seat(see part 14),and
then remove the shoulder straps and comfortable cushion.
2.Remove the fabric cover of the child seat.To install the fabric cover,please
operate follow the above instructions in reverse order.
29
PRESS
H4
H5
H6
Step 4: Take out the clips and take off
the central piece of backrest cover
Follow the steps in turn to put on
the fabric cover.
28

31
Saloon No.of doors
Before you purchase the vehicle,
check that it is equipped with the
appropriate anchorages
* Year of manufacture
②④ Approved seats
Estate
Convertible
Hatchback
MPV
Coupe
No.of seat
Maximum body height
16. List of approved cars
The following vehicle list is only for reference. If your vehicle
does not in the list, before using, please consult with the retailer
or manufacturer.
30

33
32
