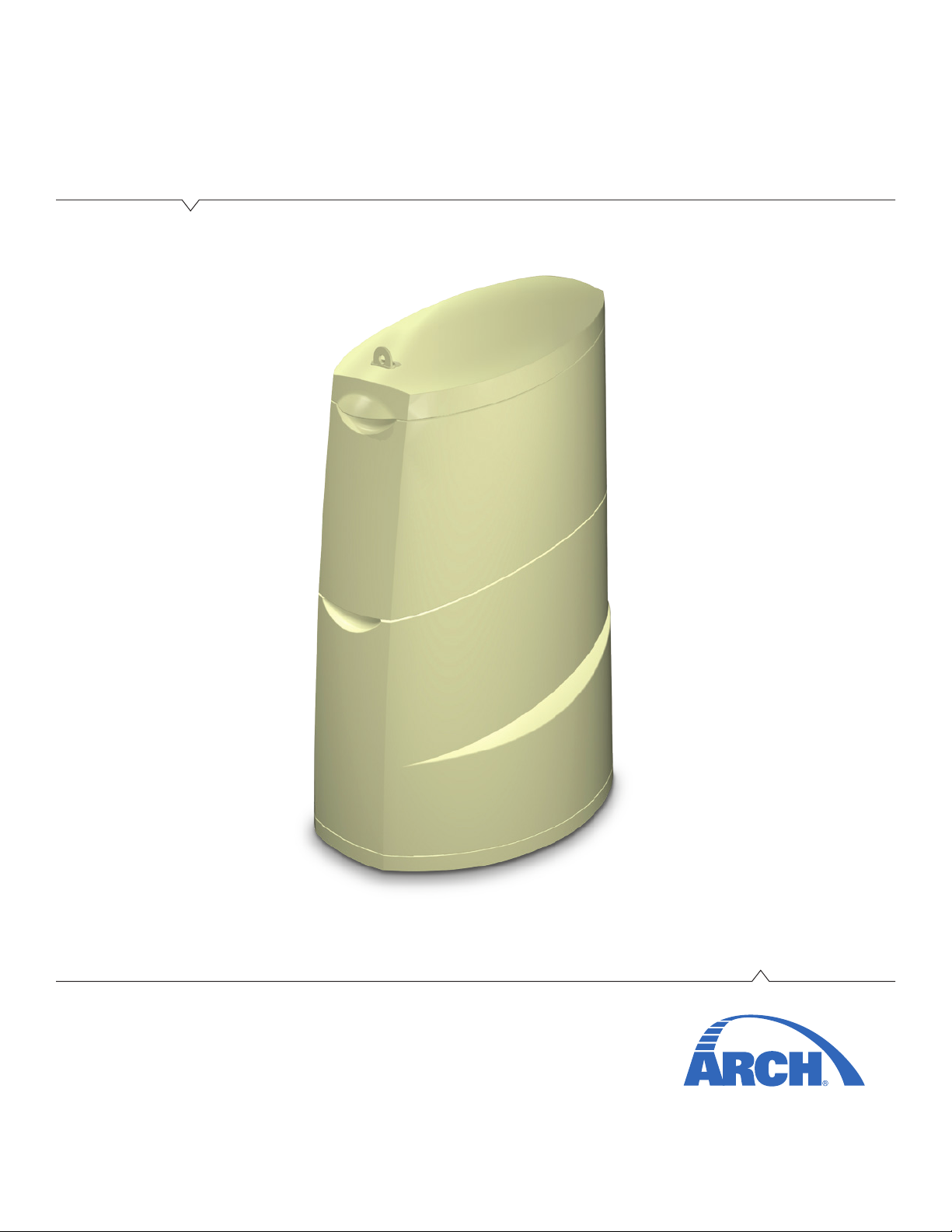

Lonza ARCH CCH A300N User manual

rev.7 (3/23/16)
Arch Chemicals, Inc.
1200 Lower River Road, P.O. Box 800
Charleston, TN 37310-0800
CCH Feeder:
Operator’s Manual
Model #A300N

Product Stewardship
MAKING THE WORLD A BETTER PLACE
Lonza is committed to maintaining and improving our leadership in the stewardship of our products. One
of our initiatives is to make health, safety, and environmental protection an integral part of a product’s life
cycle – from manufacture, marketing, and distribution to use, recycling, and disposal.
Everyone involved with the product has responsibilities to address society’s interest in a healthy environment
and in products that can be used safely. We are each responsible for providing a safe workplace. All who use
and handle products must follow safe and environmentally sound practices.
For more information about the stewardship of our products, contact your Lonza Representative.
is now a part of
www.lonza.com

Arch Chemicals, Inc. • 1200 Lower River Road • P.O. Box 800 • Charleston, TN 37310-0800 3
rev.6 (3/23/16)
The Major Components - How They Work
General Principles of Operation
The three main components of the CCH Feeder are
(from top to bottom) the Tablet Hopper, the Dissolving
Cup section and the discharge tank.The water from the
pool enters the CCH Feeder via the emergency shutoff
valve.The water then enters the Dissolving Cup where it
is distributed to the nozzles for generating the wave to
dissolve the Tablets and the solids removal system.The
chlorinated solution is directed by a single outlet spout
to a channel that directs the solids and chlorinated
solution into the discharge tank where it is discharged
into the pool recirculation system.The amount of
chlorine discharged is determined by three factors:
1.The Grid Type (Normal or High)
2.The # of Cartridges filled with Tablets.
3.The Inlet water flow rate
An ORP controller can be used to regulate Feeder
output by installing a solenoid on the inlet flow line.
Inlet water pressure of 10 to 30 psi will provide
sufficient flow into the CCH Feeder.These pressures will
result in an inlet flow of 0.1-2.0 gallons/minute.
Flow out of the CCH Feeder requires vacuum to
properly evacuate the discharge tank. A minimum
outlet flowrate of 2.1 gpm ensures that the outlet flow
of the CCH Feeder exceeds the inlet flow. Once the CCH
Feeder has been installed, the outlet flow is measured
by watching the level in the Discharge tank. If the
water level is rising as the feeder is running, there is
insufficient outlet flow.
Inlet:
Emergency
Shut-off
Valve
Dissolving
Cup and
Nozzles
Outlet:
Discharge
Valve
Discharge Tank
Outlet Spout and Channel
Tablet Hopper and
4 Cartridges

Arch Chemicals, Inc. • 1200 Lower River Road • P.O. Box 800 • Charleston, TN 37310-0800
4rev.7 (3/23/16)
Specifications
CCH Feeder
Operational Requirements
Inlet Pressure Range 10 to 30 psi
Ideal 18 psi
Outlet vacuum 5-29” Hg.
Operating Temperature 40° to 130º F
Operational Characteristics
Inlet flow (gpm) 0.1-2.0
Outlet flow (Min) 2.1 gpm
Note: To Maintain NSF approval a flow indicator must be installed.
Dimensions
Tubing 1/2” O.D. Polyethylene
Feeder dimensions W15” x D19” x H29”
Feeder weight (full) 34 lbs
Feeder weight (empty) 18 lbs
Hopper Capacity 13 lbs. CCH Feeder Tablets
Feed Rate
CCH Feeder Tablets 0.5-18 lbs. of Available Chlorine per day
Recommended Spa/Pool Size1
Unstabilized Pool 1,250-45,000 gal
Stabilized Pool 2,500-90,000 gal
Indoor Pool 5,000-180,000 gal
Comm. Spa 500-18,000 gal
1Subject to local health codes
NOTE: We reserve the right to modify and improve our specifications at any time without notice

Arch Chemicals, Inc. • 1200 Lower River Road • P.O. Box 800 • Charleston, TN 37310-0800 5
rev.6 (3/23/16)
Pre-Startup Checklist
Following the procedure outlined below will ensure a smooth startup of the CCH Feeder. For seasonal operation,
perform this procedure each spring.
IMPORTANT!!
Do NOT put tablets in the Feeder during the start-up operation.
INLET WATER FLOW
The inlet water flow system is designed to provide a
steady sidestream of clean filtered pool water to the
Feeder.
1. Switch on the pool recirculation system and open
all valves to the Feeder. Leave lid closed.
2. Adjust Inlet flow on flow indicator to 0.3 gpm.
Wait 10 seconds or until nozzles are under water .
3. Remove the cartridges. Increase flow to 1.3 gpm
and check to see that all four wave nozzles are
making a wave that rises into the dissolving cup.
4. Check all lines leading to the Feeder for leaks.
Hand tighten all fittings if any leaks are found.
OUTLET WATER FLOW
The float on the Discharge Valve rises with the water
level and allows the pool pump/venturi suction to draw
the chlorinated water into the pool’s recirculation
system as the Discharge Tank fills with water. When the
water level drops, the float falls, shutting off the valve.
The Discharge Valve also contains a check valve to
prevent pool water from backing up into the Discharge
Tank. Use the following procedure to ensure that the
outlet water flow system is operating properly.
1. With the tablet hopper and dissolving cup of
the Feeder temporarily out of the way, fill the
Discharge Tank with sufficient water to open the
Discharge Valve – use a hose or pail.
2. The float should rise, opening the Discharge Valve,
allowing water to be drawn out by the pool pump
suction or venturi system.
3. Check the system for leaks. If small air bubbles are
visibly moving, there may be an air leak.Tighten
the connectors and make sure that the tubing
was properly installed in the fittings. (NOTE: Air
bubbles near the CCH Feeder body that do not
move are normal and do not indicate leaks.)
4. Check for air leaks after the Discharge Valve
closes.
Emergency
Shut-off
Valve
Tablet Cartridge
Tablet Grid
Wave
Nozzles
Dissolving
Cup
Discharge
Valve
Tablet Hopper
Discharge Float
Outlet Spout and Channel
