Lonza CCH Endurance CCH-1SD User manual

Water Treatment
CCH® Endurance
Installation and Operation Manual
Model #CCH-1SD

2 Water Treatment – CCH® Endurance Operation and Installation Manual : rev 1
Product Stewardship
MAKING THE WORLD A BETTER PLACE
Lonza is committed to maintaining and improving our leadership in the
stewardship of our products. One of our initiatives is to make health,
safety, and environmental protection an integral part of a product’s life
cycle – from manufacture, marketing, and distribution to use, recy-
cling, and disposal.
Everyone involved with the product has responsibilities to address so-
ciety’s interest in a healthy environment and in products that can be
used safely. We are each responsible for providing a safe workplace. All
who use and handle products must follow safe and environmentally
sound practices.
For more information about our Product Stewardship Program, contact
your Lonza Representative. For product inquiries, contact
1-800-478-5727 or [e-mail].
Dealer Contact:
WARRANTY REGISTRATION

1
2
3
4
5
6
7
CCH® Endurance Operation and Installation Manual : rev 1 – Water Treatment 3
Registration
Register your CCH® Endurance Feeder (the “Equipment”) within 30
days of your purchase date and your equipment will qualify for a two
(2) year warranty! Scan the QR code on the feeder, manual or feeder
carton and you will be directed to the feeder registration website. You
can also go to www.cchendurance.com to register your equipment
for this warranty. Please note you will need to provide proof of pur-
chase with purchase date when registering your feeder.
Limited Extended Warranty
If your CCH® Endurance Feeder is registered within 30 days of pur-
chase, your equipment is warranted against defects in material and
workmanship for a period of 24 months after shipment by Lonza. If
you do not register your CCH® Endurance Feeder before the registra-
tion deadline, your equipment is warranted against defects in mate-
rial and workmanship for a period of 6 months after purchase. This
warranty applies only to the original end-user and this warranty is
not transferrable.
CCH® Endurance Replacement Parts
Lonza warrants any equipment replacement parts to be free of de-
fects in material and workmanship for a period of ninety (90) days
from the date of installation. This warranty is restricted to CCH® En-
durance Feeder parts purchased on a replacement basis.
Exclusions
This warranty does not cover service, damage or failure due to ac-
cidents; fire, flood or other acts of God; abuse; misuse; abnormal or
improper use; neglect; improper maintenance; alterations or modi-
fications by anyone other than Lonza or a Lonza authorized dealer
representative; repairs by anyone other than Lonza or a Lonza au-
thorized dealer representative; or ordinary wear and tear. Use of any
tablets or chemicals other than the CCH® Endurance Tablets with the
equipment voids any warranty. Lonza makes no expressed or im-
plied warranties other than those stated above. No Lonza represen-
tative or authorized dealer representative has authority to change or
modify this warranty in any respect. Lonza shall not be responsible
or liable for any indirect, special, or consequential damages or any
damages with respect to loss of property or loss of revenues or profit
that arise out of or in connection with the use or performance of the
equipment.
CCH® Endurance Feeder Warranty Policy
Lonza
1200 Bluegrass Lakes Parkway
Alpharetta, GA 30004

4 Water Treatment – CCH® Endurance Operation and Installation Manual : rev 1
Table of Contents
1 Introduction
1.1 CCH® Endurance Tablets 5
1.2 CCH® Endurance Feeder 5
2 Overview
2.1 Theory of Operation 6
2.2 Major Components 7 - 9
2.3 Specifications 10
3 Installation
3.1 CCH® Endurance System Installation Schematics 11 - 13
3.2 Tools & Equipment Required for Feeder Installation 13
3.3 Installation Parts and Assemblies 14
3.4 Installation Procedure 15 - 16
4 Feeder Start Up
4.1 Pre-Startup Procedure 17 - 20
4.2 Startup Procedures 20 - 21
5 Feeder Inspection and Maintenance 21
6 Troubleshooting Guide 22
7 Feeder Views
7.1 Feeder Assembly View 23
7.2 Installation Kit View 24 - 25

CCH® Endurance Operation and Installation Manual : rev 1 – Water Treatment 5
1.1 CCH® Endurance Tablets
The patent-pending, slow dissolving CCH® Endurance Tablets are a
3-in-1 product that chlorinates consistently, increases calcium to
protect plaster, and increases alkalinity to stabilize pH. The benefits
of the CCH® Endurance Tablets include but is not limited to:
• DOES NOT add cyanuric acid to your pool reducing wasteful
drainage
• DOES NOT reduce ORP effectiveness
• Dissolves slowly to give long lasting chlorination
• Eliminates the formation of nitrogen trichloride (strong chlo-
rine odor) associated with trichlor use
• Highly concentrated to reduce shipping and handling costs
• More concentrated than liquid bleach
• Longer shelf life when compared to liquid bleach
• Adds less total dissolved solids (TDS) than liquid bleach
• Class 2 Oxidizer
1.2 CCH® Endurance Feeder
The CCH® Endurance Feeder is an easy to use, automatic solution
that is exclusively designed to feed CCH® Endurance Tablets. Other
Calcium Hypochlorite or Trichlor tablets will not fit into the feeder nor
will they dissolve properly and provide the appropriate feed rate. With
the simplicity of an erosion feeder, the CCH® Endurance Feeder’s
streamlined design is easy to install, service and requires minimal
operator maintenance.
1 Introduction 1

6 Water Treatment – CCH® Endurance Operation and Installation Manual : rev 1
2.1 Theory of Operation
The patent-pending CCH® Endurance System is a pressurized feeder
system designed for pools and spas ranging from 500 to 60,000
gallons [ 1,892.7 to 227,124.7 liters] . A pre-filter to post filter loop will
be added to the main pool recirculation system as part of the CCH®
Endurance System. This recirculation loop will create the pressure
differential to provide the proper flow of water through the feeder.
The CCH® Endurance System incorporates the principles of High
Capacity Erosion (HCE) technology. Water rises in a “column” from
a submerged nozzle below the tablet grid making contact with the
CCH® Endurance Tablets. The tablets are then submerged in a column
of water with the water flow from the nozzle creating a chlorinated
solution that is discharged to the pool return line. The feeder oper-
ates in a pressurized condition with a pressure range between 5 to
20 psig [0.35 to 1.38 bar] .
The chlorine output is controlled by the cartridge height setting (dis-
tance of the tablet from the nozzle) and the inlet flow rate which has
an operating range of 1 to 4.5 gpm [3.7 to 17.03 lpm] . In addition, an
ORP controller may be used for more precise control. The inlet flow
rate will allow a minimum available chlorine (AvCl) output of 0.1 lb/
day [0.05 kg/day] and will allow a maximum AvCl output of 8.5 lbs./
day [3.86 kg/day].
2 Overview

CCH® Endurance Operation and Installation Manual : rev 1 – Water Treatment 7
2.2 Major Components
Pressure Cap creates pressure tight seal
with minimal operator eort
Integrated Flow Meter
2

8 Water Treatment – CCH® Endurance Operation and Installation Manual : rev 1
2.2 Major Components (continued)
Cartridge Assembly
stacks tablets for extended use
Spiked Grid
allows for even tablet dissolution Spray Nozzle
recirculates ow and concentrates
the cal-hypo solution

CCH® Endurance Operation and Installation Manual : rev 1 – Water Treatment 9
2.2 Major Components (continued)
2
Locking mechanism allows for an
easier controlled reload
Adjustable grid height and
ow rate to control output rate

10 Water Treatment – CCH® Endurance Operation and Installation Manual : rev 1
2.3 Specifications
Operational Characteristics
Operating Pressure range 5 to 20 psig [0.35 to 1.38 bar]
Nominal Pressure 15 psig [1.03 bar]
Operating Temperature range 40º to 130º F [4.4º to 54.4º C]
Flow Rate range 1 to 4.5 gpm [3.7 to 17.03 lpm]
Dimensions
Tubing 5/8” [15.9 mm] O.D. (LLDPE)
Feeder W12” x D13” x H31”
[304.8 mm x 330.2 mm x 787.4 mm]
Weight
Feeder Weight full 29.4 lbs [13.3 kg]
Feeder Weight empty 23 lbs [13.3 kg]
Cartridge Capacity
Tablet Quantity 11
Weight 6.4 lbs [2.9 kg]
Feed Rate
Available Chlorine (per day) 0.1 to 8.5 lbs [0.05 kg to 3.86 kg]
Recommended Pool Size
Indoor 1,000 to 60,000 gallons
[3,785.4 to 227,124.7 liters]
Outdoor Stabalized 1,000 to 40,000 gallons
[3,785.4 to 151,416.5 liters]
Outdoor Un-Stabalized 1,000 to 25,000 gallons
[3,785.4 to 94,635.30 liters]
Commercial Spa 500 to 5,000 gallons
[1,892.7 to 18,927.1 liters]

CCH® Endurance Operation and Installation Manual : rev 1 – Water Treatment 11
3 Installation
Choose a location in the pump room that will allow easy access for replenishing the feeder cartridge with CCH® Endurance Tablets. The CCH® En-
durance Feeder will be positioned in a location such that the pre to post filter recirculation loop is feasible.
3.1 CCH® Endurance System: Standard Installation
3
2

12 Water Treatment – CCH® Endurance Operation and Installation Manual : rev 1

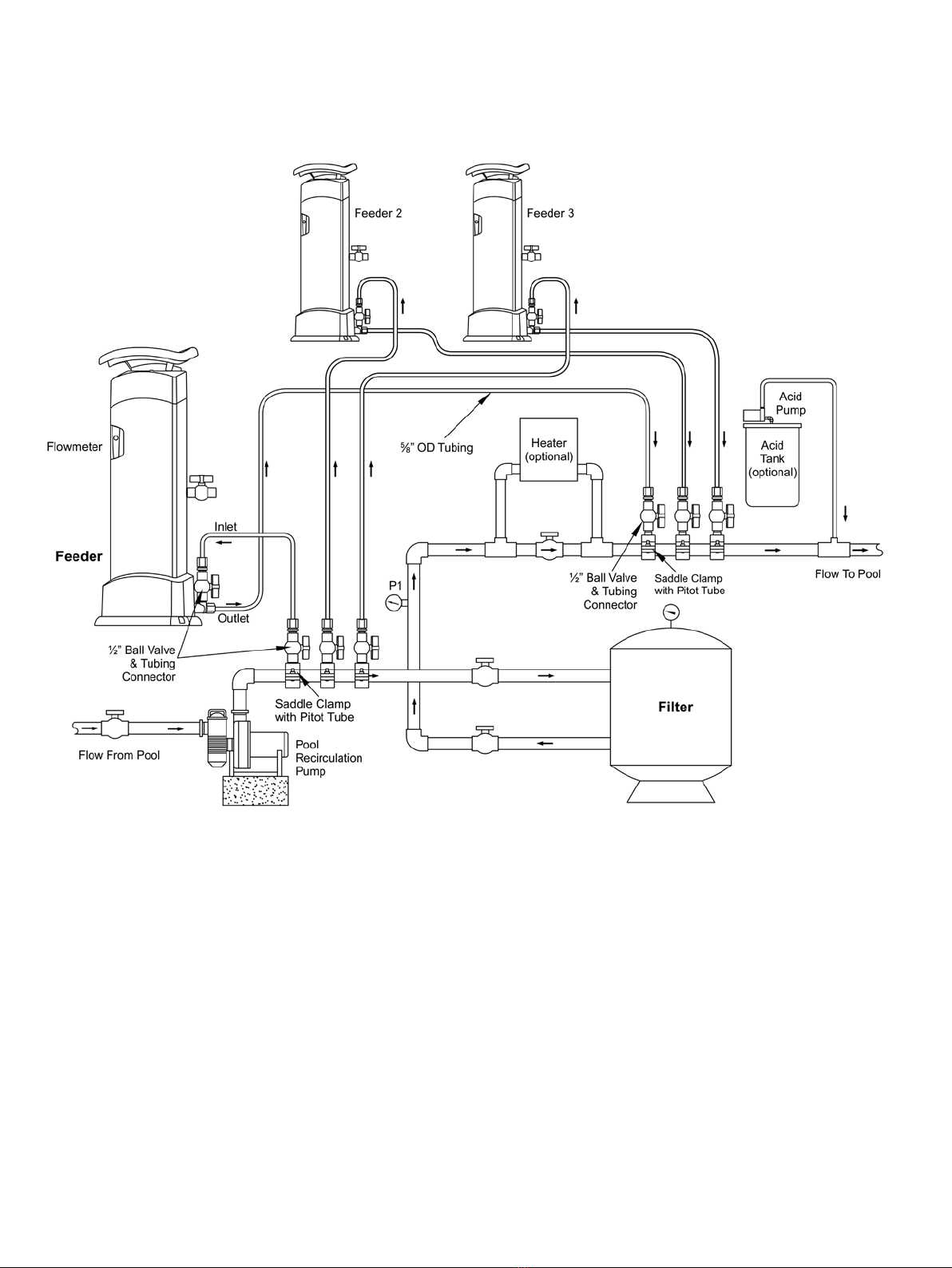

3.1.1 CCH® Endurance System: Increased Feed Rate Installation
NOTE: A maximum of three feeders can be used in parallel to provide increased chlorine output. Above this will reduce the flow rate
going through the filter below health code recommended values. Refer to the feed rate table in section 4.2.2 (page 21) for feeder
output rates.

CCH® Endurance Operation and Installation Manual : rev 1 – Water Treatment 13

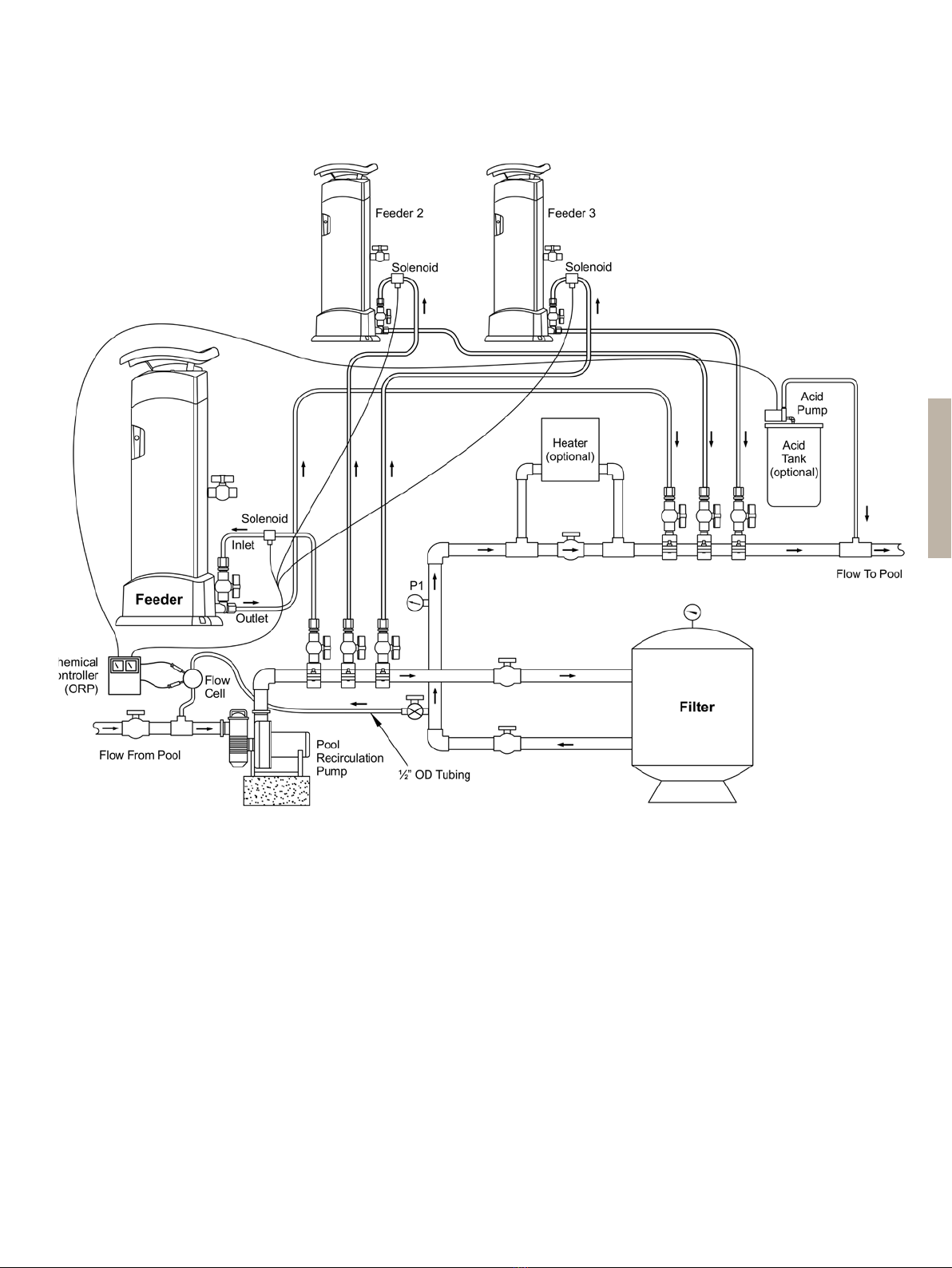

3.1.2 CCH® Endurance System: Increased Feed Rate Installation with Optional Solenoid Kit
(for use with a chemical controller)
3
• Drill – Cordless Recommended
• 7/8” [22.2 mm] Drill Bit
• Plumbers Tape or Pipe Sealant
• Tube Cutters or Utility Knife
• Gas Pliers (Channel Locks)
• 3/8” [9.53 mm] Nut Driver, Socket or Box wrench
3.2 Tools & Equipment Required for Feeder Installation
NOTE: A maximum of three feeders can be used in parallel to provide increased chlorine output. Above this will reduce the flow rate
going through the filter below health code recommended values. Refer to the feed rate table in section 4.2.2 (page 21) for feeder
output rates.

14 Water Treatment – CCH® Endurance Operation and Installation Manual : rev 1
3.3 Installation Parts and Assemblies
Part Description Part Number
A - (2) Adjustable Saddle Clamp Assembly for 2” [50.8 mm] pipe 73096
B - (2) Adjustable Saddle Clamp Assembly for 1-1/2” [38.1 mm] pipe 73096
C - (2) 5” x 1/2” [127 mm x 12.7 mm] MNPT Pitot tube 73086
D - (3) 1/2” [12.7 mm] FNPT x 1/2” [12.7 mm] FNPT PVC Ball Valves 74 0 61
E - (4) 1/2” [12.7 mm] MNPT x 5/8” [15.9 mm] O.D. Tubing Connector
- W10MC8
71918
F - 12’ X 5/8” [365.76 cm X 15.9 mm] O.D. LLDPE Tubing 73095
G - (2) 1/2” [12.7 mm] PVC Closed Nipples 71611

CCH® Endurance Operation and Installation Manual : rev 1 – Water Treatment 15
3.4 Installation Procedure
Background: The next steps involve installing a loop around the pool
filter where the CCH® Endurance Feeder will be located. The pool filter
will create a pressure differential to provide flow through the CCH®
Endurance Feeder. This loop is created using the saddle clamps, pitot
tubes, ball valves, tube fittings, and tubing provided with your sys-
tem.
NOTE: Refer to the schematics on pages 11-13 for a pool system
installation and follow the steps below.
NOTE: Before starting installation, determine if the pipes to be
drilled are above or below the pool water level. If they are below
the pool water level, isolation valves must be shut to prevent
backflow through the holes that are being drilled. If isolation
valves are shut properly, some water may drain out of the
drilled holes but will stop once piping is empty.
NOTE: Apply plumbers tape to all male threads to ensure a leak
free connection.
3.4.1 Making the inlet connection from the pool to the feeder
(Pre-Filter)
Choose a location on the main pool recirculation piping on the dis-
charge side of the pool pump but upstream of the pool filter(s). Make
sure the pool pump is off and shut isolation valves from the pool pip-
ing so that it is dry.
1. Drill 7/8” (22.2 mm)hole anywhere on the top half of the pipe
(figure 1). Caution: Do not drill on the bottom half of the pipe.
Excess debris may enter your feeder.
2. For 2” [50.8 mm] pool pipe, use Assembly A (figure 2a). Do
not yet fully tighten nuts (figure 2b). For 1-1/2” [38.1 mm]
pool pipe, use Assembly B (figure 2c).
3. Insert part C (figure 3a). Make sure Pitot tube is fully inserted
prior to tightening saddle clamp (figure 3b).
4. Connect part D, Ball Valve (figure 4).
5. Connect part E, Tubing Connector (figure 5).
Figure 2a
Figure 2c
Figure 1
Figure 3a
Notch facing
upstream
Notch facing
upstream
Flow from
pool
Flow from
pool
Figure 3b
Figure 4
Figure 5
Figure 2b
3

16 Water Treatment – CCH® Endurance Operation and Installation Manual : rev 1
3.4 Installation Procedure (continued)
3.4.2 Making the chlorine injection connection from the
feeder to the pool (post-filter and heater)
Choose a location on the main pool recirculation piping downstream
of the pool filter(s), and heater (if available), but before the acid or
CO2injection point.
1. To make the outlet connection from the feeder to the pool, re-
peat all steps from section 3.4.1 except for step #3. Step #3 is
modified as follows:
3.4.3 Completing the feeder circulation loop
1. Complete feeder assembly with parts part D, ball valve, and
part E, tubing connector (figure 6).
2. Connect part D, ball valve, and part G, closed nipple to the
drain port to complete the feeder assembly (figure 7a & 7b).
3. Choose a location for the CCH® Endurance Feeder that allows
easy access for filling and maintenance.
4. Using the 5/8” [15.9 mm] O.D. tubing, part F (see figure 8),
cut the tubing to size and connect the feeder inlet to the pre-
filter tubing connector installed in step #5 of section 3.4.1, and
connect the feeder outlet to the post-filter tubing connector in-
stalled in step # 1 of section 3.4.2.
This completes your feeder recirculation loop.
E
E
D
Figure 6
Figure 7b
Notch facing
downstream
(opposite side of
above view)
Flow from
pool
Figure 8
Figure 7a

CCH® Endurance Operation and Installation Manual : rev 1 – Water Treatment 17
4 Feeder Start Up
4.1 Pre-Startup Procedure
Following the steps outlined below will ensure a smooth start-up of
the CCH® Endurance Feeder. For seasonal operation, perform this
procedure each Spring.
IMPORTANT!! Do NOT put CCH® Endurance Tablets in the feeder
during the start-up operation.
4.1.1 Verify water flow through feeder
1. With the CCH® Endurance Feeder fully installed per the instal-
lation procedure, section 3.4, turn on the pool recirculation
system, and open all valves to the feeder.
Note: Before starting the flow test, ensure the pressure cap at
the top of the feeder is on and shut. Turn cap clockwise a quar-
ter turn until the triangle of the cap lines up with the body of
the feeder. This indicates the pressure tight seal on the feeder.
2. Increase the flow rate going through the feeder until it reaches
the maximum flow rate as read on the flow meter on the front
of the feeder.
3. With maximum flow going through the feeder, check the sys-
tem for leaks. Tighten all fittings as necessary if leakage is ob-
served.
4. When all leaks have been corrected, shut the inlet valve first,
then shut the outlet valve to fully isolate the feeder from the
pool filter system.
4.1.2 Adjusting the cartridge feed rate setting
Note: Adjust cartridge feed rate setting prior to loading with
CCH® Endurance Tablets. The feed rate setting of the cartridge
may not be able to be reduced if already full of tablets.
1. With pressure cap and seal cap removed, remove the cartridge
assembly from the feeder, turn counter clockwise so that load
lines up with arrow on the feeder (figure 9). This locks the car-
tridge assembly for easy loading or feed rate setting adjust-
ment. Follow steps #2 - #5 to complete the feed rate setting
adjustment.
2. See figure 10.
3. Twist counterclockwise (figure 11).
4. Slide up or down (figure 12).
5. Twist clockwise (figure 13).
Figure 9
Figure 10
Figure 12
Figure 11
Figure 13
4
3

18 Water Treatment – CCH® Endurance Operation and Installation Manual : rev 1
4.1.3 Loading the cartridge assembly with CCH® Endurance
Tablets
WARNING - Use ONLY CCH® Endurance Tablets in the feeder. The
use of any other treatment chemicals will void the warranty and
NSF listing. DANGER: Under no circumstances should you mix
calcium hypochlorite with other forms of concentrated chlorine
or other chemicals. Fire and/or explosion may result. Caution
must be used when refilling the cartridge with more tablets.
WARNING - Wear protective gloves when handling CCH® Endur-
ance Tablets.
1. See figure 14a & 14b.
2. Open the Ball Valve at the drain and drain the solution into a
bucket or down to a drain (figure 15). Caution: Failure to per-
form this step may result in a chlorine spill and possible in-
jury.
3. See figure 16a & 16b (page 19).
4. See figure 17 (page 19).
5. Verify that O-ring is still in place and there is no debris in the
O-ring groove before replacing seal cap (figure 18, page 19).
6. See figure 19 (page 20).
7. Turn pressure cap clockwise a quarter turn until the triangle
of the cap lines up with the body of the feeder (figure 20, page
20).
Figure 14a
Figure 14b
Figure 15
1
2
Drain

CCH® Endurance Operation and Installation Manual : rev 1 – Water Treatment 19
4.1.3 Loading the cartridge assembly with CCH® Endurance
Tablets (continued)
Figure 16a
Figure 17
Figure 16b
Figure 18
4
1
2

20 Water Treatment – CCH® Endurance Operation and Installation Manual : rev 1
4.2 Startup Procedures
WARNING - KEEP OUT OF REACH OF CHILDREN
4.2.1 Feeder Startup
After completing the PRE-START-UP PROCEDURE, and establishing that
all components of the feeder are operating properly, your CCH® Endur-
ance Feeder is ready for start-up.
1. Establish the proper cartridge feed rate setting for your pool us-
ing the chart in section 4.2.2
2. Load the cartridge assembly with CCH® Endurance Tablets by
following section 4.1.3.
3. Open the inlet and outlet ball valves at the pool piping.
4. Open the ball valve at the feeder inlet and set the flow meter to
the recommended feed rate setting determined in step 1 using
the ball valve at the feeder inlet.
Note: If using the optional ORP kit, fully open the ball valve at
the feeder inlet to allow maximum flow into the feeder and set
the cartridge feed rate setting to the highest setting. The ORP or
chemical controller will then control chlorine dosing based on
your established set points.
5. Monitor the flow rate through the feeder daily to ensure that the
proper flow rate is being maintained.
6. During the first few days of operation, check the chlorine level in
the pool frequently to establish the best Inlet flow rate and car-
tridge feed rate setting for your pool. Adjust the chlorine output
either up or down according to the table, or adjust the ORP set-
point if using the ORP kit.
4.1.3 Loading the cartridge assembly with CCH® Endurance
Tablets (continued)
Figure 19
Figure 20
1
2
