LORENZ MESSTECHNIK SI-USB3 User manual

Lorenz Messtechnik GmbH Obere Schlossstrasse 127/129/131
73553 Alfdorf Phone [phone], Fax [phone]
[email protected], www.lorenz-messtechnik.de
Technical changes, errors and misprints excepted. 090370h_SI-USB3
1/14
Operating Instructions
Ampliers
4 Channel USB-Sensor-Interface SI-USB3

Lorenz Messtechnik GmbH Obere Schlossstrasse 127/129/131
73553 Alfdorf Phone [phone], Fax [phone]
[email protected], www.lorenz-messtechnik.de
Technical changes, errors and misprints excepted. 090370h_SI-USB3
2/14
Table of Content
1 Imprint / Copyright 3
2 Important Notes / Keeping 3
2.1 General Informations 3
2.2 Intended Use 5
2.3 General Hazards in the Event of non-compliance with the Safety Instructions 5
2.4 Residual Hazards 5
3 Safety and Warning Notices 5
3.1 Symbols 5
3.2 Health Protection and Safety 6
3.3 Conversions and Changes 6
3.4 CE Marking 6
4 Preamble 6
4.1 Product Description 6
4.2 Safe and correct Use 7
5 Housing Connection 8
5.1 Front 8
5.2 Back 8
6 Pin Assignment SI-USB3 9
6.1 Low-pass Filter second Order 9
7 Application Example 10
7.1 Displacement Sensor Potentiometric (supplied by SI-USB3) 10
7.2 PT100 with Four-Wire Measuring 10
8 Debugging 11
9 Technical Data 12
9.1 Options 13

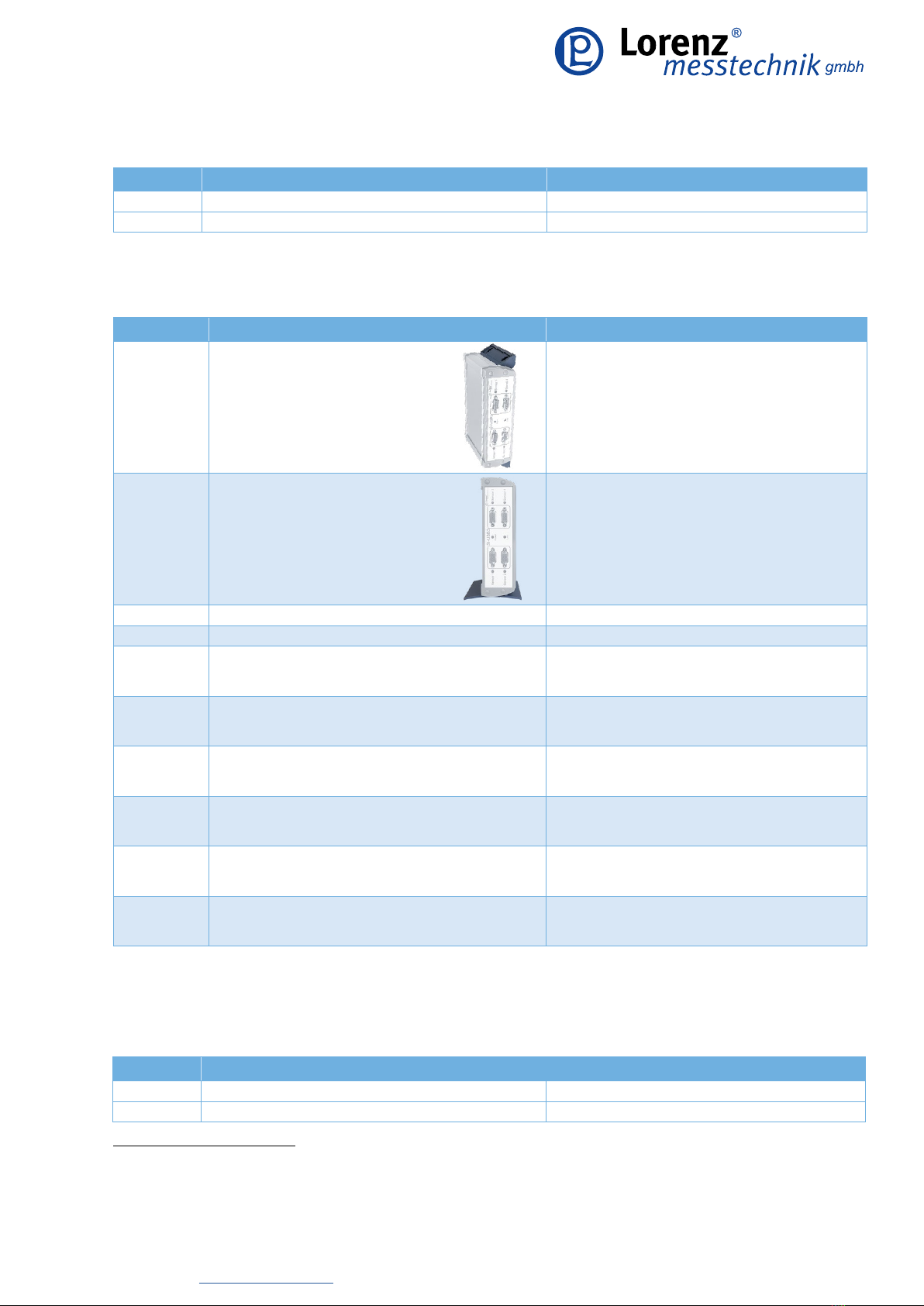

9.2 Accessories 13
9.3 Option Calibration mV/V 13
10 Equipment disposal 14
11 Reference Information 14

Lorenz Messtechnik GmbH Obere Schlossstrasse 127/129/131
73553 Alfdorf Phone [phone], Fax [phone]
[email protected], www.lorenz-messtechnik.de
Technical changes, errors and misprints excepted. 090370h_SI-USB3
3/14
1 Imprint / Copyright
© 2019 Lorenz Messtechnik GmbH, D-73553 Alfdorf
These operating instructions do not constitute an agreed quality agreement or durability guarantee
within the meaning of § 443 BGB (German Civil Code).
Technical changes, errors and misprints excepted.
No part of this publication may be reprinted without the written permission of Lorenz Messtechnik
GmbH, Alfdorf.
2 Important Notes / Keeping
Before installing and commissioning the device, these operating instructions, and in particular the
corresponding safety instructions, must be read. The device may only be used as described in this
manual to prevent injury or damage.
The operating instructions have been drawn up in accordance with EN 82079-1 and must be kept in
a safe place.
2.1 General Informations
 Theseoperatinginstructionsareintendedfortechnicallyqualiedpersonnelwhohaveappropriate
 knowledgeintheeldofmeasurementandcontroltechnology.Qualiedpersonnelarepersonswho
are familiar with the installation, operation, maintenance and repair of the device and have the appro-
 priatequalications.Thepersonnelmusthaveknowledgeofthelegalandsafetyregulationsandbe
able to apply them.
 Thedevicemayonlybeusedbyqualiedpersonnelinaccordancewiththetechnicaldatainconnec-
tion with the safety regulations and rules set out below. During operation, the legal and safety regula-
tions required for the respective application must also be observed. This also applies analogously to
the use of accessories.
The exact information about all safety instructions and warnings contained in these operating in-
structions as well as their correct technical implementation are prerequisites for the safe installation,
commissioning, safe operation and maintenance of Lorenz Messtechnik GmbH devices. All measures
 mustonlybecarriedoutbyqualiedpersonnel.Allpersonsinvolvedintheprojectplanning,instal-
lation and operation of Lorenz Messtechnik GmbH devices must be familiar with the safety concepts
 intheautomationtechnologyandbequaliedintheabove-mentionedsense.
For reasons of clarity, these operating instructions cannot cover all details and information and not all
applications for the handling of devices from Lorenz Messtechnik GmbH. Nor can all conceivable
types of installation, operation and maintenance must be taken into account.

Lorenz Messtechnik GmbH Obere Schlossstrasse 127/129/131
73553 Alfdorf Phone [phone], Fax [phone]
[email protected], www.lorenz-messtechnik.de
Technical changes, errors and misprints excepted. 090370h_SI-USB3
4/14
If further information is desired or required, or if special problems occur which are not described in
detail in these operating instructions, please contact Lorenz Messtechnik GmbH.
The devices of Lorenz Messtechnik GmbH may only be operated in accordance with the applications
described in these operating instructions. Built-in devices may only be operated if they are properly
installed.
By connecting and commissioning the device, the purchaser accepts the General Terms and Con-
ditions of Sale and Delivery of Lorenz Messtechnik GmbH. Furthermore, the buyer accepts the possi-
ble incompleteness of this operating manual and that the information contained therein may not be
complete and informations are without guarantee. Errors, misprints and changes excepted.
Intended Use, not intended Use
A device from Lorenz Messtechnik GmbH is used for display, processing and control of processes. It
must not be used as the sole means of averting dangerous conditions on machines and systems.
Machines and systems must be designed in such a way that faulty states cannot lead to a dangerous
situation for the operating personnel (e. g. through independent limit value-switches or mechanical
interlocks). In particular, it must be ensured that a the device, its malfunction or its failure does not
lead to damage to property or a loss of that can lead to danger to people. It is also important to prevent
the precautions that are taken from being cannot be circumvented for the safety of a plant. Emergen-
 cystopdevicesmustremaine󰀨ectiveatalltimes.
Installation Instructions
Devices from Lorenz Messtechnik GmbH must be installed and connected in compliance with the
relevant DIN and VDE standards. They must be installed in such a way that unintentional operation
 issu󰀩cientlyexcluded.Topreventaninterruptionofthesupplyandsignallinesfromleadingtoan
 undenedor dangerousstate, appropriatehardware andsoftware safetyprecautions mustbe ob-
served.Supply and signallines mustbeinstalled insuch a waythat theydonot interferewith the functionof
the Lorenz Messtechnik GmbH by interfering signals (such as inductive or capacitive interferences).
Notes on Malfunctions, Maintenance and Repair
The devices do not contain any parts that require or can be serviced by the user. Repairs may only
be carried out by Lorenz Messtechnik GmbH. If it can be assumed that safe operation of the device is
no longer possible, it must be put out of operation immediately and secured against unintentional
operation. This applies in particular if:
• The device is visibly damaged
• The device is no longer functional
• Parts of the appliance are loose
• The connecting lines are visibly damaged
In addition, we would like to point out that all obligations of Lorenz Messtechnik GmbH arise exclusi-
vely from the respective purchase contract in which the warranty is conclusively stated.

Lorenz Messtechnik GmbH Obere Schlossstrasse 127/129/131
73553 Alfdorf Phone [phone], Fax [phone]
[email protected], www.lorenz-messtechnik.de
Technical changes, errors and misprints excepted. 090370h_SI-USB3
5/14
2.2 Intended Use
Devices from Lorenz Messtechnik GmbH are to be used exclusively for measuring tasks and the di-
rectly associated control tasks. Any use beyond thisis considered to be improper.
The valid legal and safety regulations must be observed during measurement. The instrument is not
a safety component in the sense of its intended use and it is transported and stored properly. The
installation and commissioning, the operation and the disassembly must be carried out professionally.
2.3 General Hazards in the Event of non-compliance with the Safety
Instructions
The device complies with the current safety requirements. Residual dangers can emanate from the
device if it is improperly used and operated by untrained personnel. Any person entrusted with the
installation, operation, maintenance and repair of the device must read and understand the operating
instructions and, in particular, the safety instructions.
Incorrect use (e. g. by untrained personnel) may result in residual hazards. The operating instructions
must be read and understood by all persons involved in the installation, commissioning, maintenance,
repair, operation and dismantling of the device is trusted. The device must not be used if visible da-
mage is visible.
2.4 Residual Hazards
The system planner, equipment supplier and operator must plan, implement and be responsible for
the safety of the equipment. Other hazards must be minimized. The residual dangers of the measure-
ment technology must be pointed out and human error must be taken into account. The design of the
system must be suitable for avoiding hazards - a hazard analysis must be carried out for the system.
The applicable regulations and laws are as follows to note.
3 Safety and Warning Notices
3.1 Symbols
Warning: There is a risk of injury to persons. Damage to the machine is possible. The
accident prevention regulations of the employer‘s liability insurance association must
be observed.
Note: Important points to be observed. A note that indicates a possible danger of da-
mage to the product, process, person or the environment.
Additional information or reference to other important detailed information.

Lorenz Messtechnik GmbH Obere Schlossstrasse 127/129/131
73553 Alfdorf Phone [phone], Fax [phone]
[email protected], www.lorenz-messtechnik.de
Technical changes, errors and misprints excepted. 090370h_SI-USB3
6/14
3.2 Health Protection and Safety
To ensure that our products are safe and do not pose a health hazard, the following points must be
observed:
1. Read all relevant sections of this manual carefully before starting work.
2. All warning signs on containers and packaging must be observed.
3. Installation, operation, maintenance and repair work may only be carried out by suitably trai-
ned personnel and in accordance with the instructions given. If one of these instructions is not
followed, the user of the product bears full responsibility for any consequences that may occur.
4. Disconnect the appliance from any power supply before opening it.
5. The safety instructions must be strictly observed in order to avoid damage to property and
bodily injury - possibly even fatal ones.
3.3 Conversions and Changes
 ThedevicemaynotbemodiedintermsofdesignorsafetywithouttheexpressconsentofLorenz
 MesstechnikGmbH.Anymodicationexcludesanyliabilityonourpartfordamagesresultingthere-
 from.Repairsandmodicationsareprohibited.
3.4 CE Marking
With the CE marking, Lorenz Messtechnik GmbH guarantees that its product meets the requirements
of the relevant EC directives.
4 Preamble
4.1 Product Description
 TheSI-USB3isameasuringamplierwithuptofourindependentinputchannels.Eachinputchannel
is displayed as a separate device on a PC (virtual serial interface). Each measuring channel can be
individually set in the factory for a physical quantity or a sensor.
The following sensor signals are currently available:
Strain gauge signals: ±3 mV/V (corresponds ±30000 digits)
Active signals with voltage input: ±5V (corresponds ±25000 digits)
Active signals with voltage input: ±10V (corresponds ±25000 digits)
Active signals with current input: 0 ... 20 mA (corresponds 0 ... 20000 digits)
Active signals with current input: 4 ... 20 mA (corresponds 0 ... 20000 digits)
Active signals with current input: 10 ±10 mA (corresponds 0 ... 20000 digits)
Active signals with current input: 12 ±8 mA (corresponds 0 ... 20000 digits)
Linear potentiometer: 0 ... 5V (corresponds 0 ... 25000 digits)
Temperature measurement: - 200 ... 860 °C (corresponds - 6400 ... 27520 digits)
 Quadratureencoder:   5VTTL  (corresponds±32511digits)
 Theampliervariantisindicatedonthetypelabelandinthedocumentation.

Lorenz Messtechnik GmbH Obere Schlossstrasse 127/129/131
73553 Alfdorf Phone [phone], Fax [phone]
[email protected], www.lorenz-messtechnik.de
Technical changes, errors and misprints excepted. 090370h_SI-USB3
7/14
Warning: Please pay attention to the signal type of the sensor when connecting the sensor.
  Connectingthesensorwiththewrongsignaltypecandamagetheamplierandthesensor.
The Lorenz USB drivers are required for the operation on a PC. They are available for download on
our website. Guidance is available in document no. 090235.
For the operation of the SI-USB3 we recommend the software VS3. It is available for download on our
website. Guidance is available in document no 090367.
Among others, this software provides following functions:
• CongurationpossibilitiesfortheVS3
• Storage of sensor-related scaling and adjustment data
• Display for the presentation of measured data
(actual value, tare value, minimum value and maximum value)
• Presentation of the measured data in a diagram
• StorageofmeasureddatainCSV-format(outputcongurable)
• Storage of the diagram in BMP-format (output size adjustable)
• Print-outofthediagramwithdateanddenablesuperscription
• Presentation of the sensor information
The communication protocol is available for the development of your own applications. The English
protocol description is available in document no. 90110 on our website.
4.2 Safe and correct Use
Warning: Observe the correct sensor adjustment.
ConsiderthecorrectVS3conguration.
Chooseasignicantleidentication/prexwhenstoringmeasureddata.
Fasten housing, ground, connect power supply, protect from splash water and do not pull
the cable.

Lorenz Messtechnik GmbH Obere Schlossstrasse 127/129/131
73553 Alfdorf Phone [phone], Fax [phone]
[email protected], www.lorenz-messtechnik.de
Technical changes, errors and misprints excepted. 090370h_SI-USB3
8/14
5 Housing Connection
5.1 Front
5.2 Back
 Inadditiontotheserial numberinthersteld,the sensorsandtheirassociatedconnectionsare
 listedhereinthesecondeld.
It is important to ensure that there is no interchanging of the sensors, e. g. if a measuring
chain exists.
The power is supplied either via the black power supply socket with a separately delivered power sup-
ply unit or via the green socket. Again, the polarity is independent for both power supply sockets. The
middle PIN is the shield for the green socket.
Or
+ - - +
The four sensors are signed with Sensor 1 - 4. First the power supply must be connected. When a
sensor is connected, the corresponding power LED is activated. Only when a PC/Laptop connection
via the USB socket on the back exists, the Link-LED is activated. If the Link-LED is dark, check again
the connection SI-USB3 to the PC/Laptop. Temperature measurements are possible at sensor con-
nection 1 and/or sensor connection 4.

Lorenz Messtechnik GmbH Obere Schlossstrasse 127/129/131
73553 Alfdorf Phone [phone], Fax [phone]
[email protected], www.lorenz-messtechnik.de
Technical changes, errors and misprints excepted. 090370h_SI-USB3
9/14
6 Pin Assignment SI-USB3
6.1 Low-pass Filter second Order
 Thesettingsofthecut-o󰀨frequenciesofthelow-passltercanbefoundinthedocumentnumber
090367 (German 090366) of the VS3 software.
15-pin DMS, U5, U10, I0, I4, I10, I12, LP, PT100, TTL
Pin 1 Ground (supply 4V and 12V) 0V; 1-Wire GND
Top view
Pin 2 +12V (active supply) 12VDC
Pin 3 NC -
Pin 4 Signal angle A 5V TTL
Pin 5 Signal angle B 5V TTL
Pin 6 Ground 0V
Pin 7 NC -
Pin 8 Supply 4VDC
Pin 9 NC -
Pin 10 Control signal or
TEDS
L <2.0V; H >3.5V or
1-Wire DATA
Pin 11 Signal (+) (active or passive) mV/V; ±5V; ±10V; 0/4 ... 20 mA
Pin 12 Signal (-) (when active connect to ground) 0V
Pin 13 Ground 0V
Pin 14 NC -
Pin 15 +5V Reference voltage 5VDC

Lorenz Messtechnik GmbH Obere Schlossstrasse 127/129/131
73553 Alfdorf Phone [phone], Fax [phone]
[email protected], www.lorenz-messtechnik.de
Technical changes, errors and misprints excepted. 090370h_SI-USB3
10/14
7 Application Example
7.1 Displacement Sensor Potentiometric (supplied by SI-USB3)
Output 0 ... 25000 Digits
7.2 PT100 with Four-Wire Measuring
Connect the Signal (+) and Signal (-) wires as close as possible to the PT100.
30 R 5000
1 m ILoad ~170 mA
1
ILoad
0V (Ground -)
Front View
Front View
Signal+ 11
15
5V Reference

Lorenz Messtechnik GmbH Obere Schlossstrasse 127/129/131
73553 Alfdorf Phone [phone], Fax [phone]
[email protected], www.lorenz-messtechnik.de
Technical changes, errors and misprints excepted. 090370h_SI-USB3
11/14
8 Debugging
 Thischarthelpstondfrequenterrorsandthemeasuresfordebugging.
Error Possible Cause Debugging
A connection to the SI-USB3
is not possible
Driver incorrectly or not
installed
• Install driver package
• Therststart-upoftheSI-USB3
must be carried out with adminis-
trator rights
Supply voltage is overloaded • Check whether the connected
sensor corresponds to the speci-
cations of the SI-USB3. If the
sensor requires higher current
than available for the SI-USB3,
this sensor cannot be used to-
gether with the SI-USB3
Power supply not connected • Connect power supply
Supply voltage is shortened • Fix the short circuit
Output signal is at the upper
or lower modulation limit
Active sensor is connected
to the strain gauge input
• Check on type label for which in-
puttypehasbeenconguredfor
the applied sensor connection
Supply voltage connected to
sensor input
• Check/correct the pin assign-
ment
Outputsignaluctuates
(strain gauge)
Open sensor input • Connect sensor
Cut-o󰀨frequencyadjust-
ment not correctly set
• Settherightcut-o󰀨frequency

Lorenz Messtechnik GmbH Obere Schlossstrasse 127/129/131
73553 Alfdorf Phone [phone], Fax [phone]
[email protected], www.lorenz-messtechnik.de
Technical changes, errors and misprints excepted. 090370h_SI-USB3
12/14
9 Technical Data
1Mainsadapterincludedinscopeofdeliveryatrstorder
2InterfacecableSI-USB3forevaluation,cablelength3m,includedinscopeofdeliveryatrstorder
USB-Sensor-Interface SI-USB3
Type of basic unit SI-USB3
Article-No. 116610
Type of board
SI-USB3/... DMS U5 U10 I0 I4 I10 I12 LP PT100 TTL
Article-No. 116611 116612 116613 116614 116615 116616 116617 116618 116619 117840
Input range ±3 mV/V ±5V ±10V 0 ... 20
mA
4 ... 20
mA
10 ±10
mA 12 ±8 mA 0 ... 5V -200 ... 860 °C 5V TTL
Measured values ±30000
digits ±25000 digits 0 ... 20000 digits 0 ... 25000 digits
-6400 ...
27520
digits
±32511
digits
Resolution
1 mV/V
≙10000
digits
1V ≙
5000
digits
1V ≙
2500
digits
1 mA ≙1000 digits 1V ≙5000
digits 32 digits/K 0.25
degree
Connection
technology 4-wire - - 2- or 3-wire 3-wire 4-wire -
Evaluation Side
Zero point 0 digits
Output format 16 Bit Signed Int.
Input resistance >1MΩ(onlyforDMS/U5/U10/LP)
Rated burden 62Ω(onlyforI0/I4/I10/I12)
Low-passlter2nd
order 30/300/1000/3000 Hz
Measuring rate max. 5000 meas./s
Temperature drift 4 Bit/10 K
Linearity error ±32 digits
Accuracy ±32 digits
Supply voltage of
mains adapter1100 ... 240VAC
Output of mains
adapter 24VDC, 1.25 A
Supply voltage SI-
USB3 10...30VDC≤880mA
Sensor Side
Sensor supply 4V≤20
mA 12V≤80mA 5V ≤170mA
4V≤20
mA
5V≤85
mA
Cable length
SI-USB3 - sensor 3 m (max. 5 m)
Miscellaneous
Electrical
connection2
Strain gauges (DMS)/U5/U10/I0/I4/I10/I12/LP/PT100/TTL: D-SUB-Socket, 15-pin
USB: USB-B-Socket
Cable length
SI-USB3 - PC 3 m
Rated temperature
range 10 ... 40 °C
Operating tempera-
ture range 0 ... 50 °C
Storage tempera-
ture range -10 ... 70 °C
Dimension (LxWxH)
SI-USB3 130 x 190 x 60 mm
Level of
protection IP20
Material SI-USB3 Aluminum
Weight SI-USB3 1.2 kg

Lorenz Messtechnik GmbH Obere Schlossstrasse 127/129/131
73553 Alfdorf Phone [phone], Fax [phone]
[email protected], www.lorenz-messtechnik.de
Technical changes, errors and misprints excepted. 090370h_SI-USB3
13/14
9.1 Options
9.2 Accessories
9.3 Option Calibration mV/V3
3 Lorenz-Standard:
- Supply voltage 5V, calibration range ±1 mV/V in 10 steps, calibration range ±2 mV/V in 10 or 20 steps
 -LanguageoftheCerticate:GermanandEnglish
 -CalibrationatDC:NormalK3608,ifsodisplayaboveKeithley2000orLorenzVS2(LorenzamplierwithUSBinterface)
- Calibration at 225 Hz: Normal K3608, if so display above HBM MGCplus + ML38
- Calibration at 225 Hz: Normal BN100A, if so display above HBM DMP40
Article-No. Description Type
115134 Adjustmentamplierwithsimulator mV/V / ±10V / 0/4 ... 20 mA
113591 Input range ±4.5 mV/V per channel LCV-USB3/SI-USB/-RS485/-ETH/SI-USB3/4.5 mV/V
Article-No. Description Type
116620 Wall mounting SI-USB3/WB
116621 Tower foot SI-USB3/TF
113273 USB interface cable USB-A-Connector/USB-B-Connector, 3 m/PVC
10293 D-SUB-Connector, 15-pin KSSH15
10477 Connection cable for passive sensors, 3 m, with 5-pin
female cable connector and 15-pin D-SUB male cable
connector
KDM5/A-KSSH15/A-3 m/PVC
10365 Connection cable for passive sensors, 3 m, with 7-pin
female cable connector and 15-pin D-SUB male cable
connector
KDM7/A-KSSH15/A-3 m/PVC
10269 Connection cable for passive sensors, 3 m, with 6-pin
female cable connector and 15-pin D-SUB male cable
connector
KD6/A-KSSH15/A-3 m/PVC
10621 Connection cable for passive sensors, 3 m, with 12-pin
female cable connector and 15-pin D-SUB male cable
connector
KD12/A-KSSH15/A-3 m/PVC
118093 Connection cable for active sensors, 3 m, with 8-pin
female cable connector and 15-pin D-SUB male cable
connector
KDM8/A-KSSH15/A-3 m/PVC
10622 Connection cable for active sensors, 3 m, with 12-pin
female cable connector and 15-pin D-SUB male cable
connector
KD12/B-KSSH15/A-3 m/PVC
Article-No. Description
401010 Proprietary calibration acc. to ISO 10012 10 steps
401011 Proprietary calibration acc. to ISO 10012 20 steps

Lorenz Messtechnik GmbH Obere Schlossstrasse 127/129/131
73553 Alfdorf Phone [phone], Fax [phone]
[email protected], www.lorenz-messtechnik.de
Technical changes, errors and misprints excepted. 090370h_SI-USB3
14/14
10 Equipment disposal
The device must be disposed of in accordance with the applicable legal regulations - see also our
„General Terms and Conditions of Delivery and Sale“ at www.lorenz-messtechnik.de
11 Reference Information
• Document number 090369 (German), “4 Kanal USB-Sensor-Interface SI-USB3”
Document number 081001, data sheet (German 081000)
• Documentnumber090367“OperationManualforCongurationanEvaluationSoftwareVS3”
(German 090366)
• Document number 090235, “Driver Installation Description for Sensor-Interfaces
SI-USB3, LCV-USB3, LCV-USB2, LCV-USB, SI-USB and Sensors with USB Interface
(USB Driver.exe)“ (German 090198)
• Documentnumber090110Lorenzprotocol“Aexiblecommandsetfordigitalsensorsand
interfaces“
