Loshine KG9010 User manual

Quick Guide
Shenzhen Loyal Electronics Co., Ltd
2.4G wireless combo
Wireless Keyboard and Mouse ,wireless receiver
Model:
Keyboard :KG9010
Mouse:G1023E, G1018E, M610
Dongle: G1023E, G1018E, M610
version: V1.0
Specification of Keyboard
1. Features
-- 13 separate media keys, 12 shortcuts
-- 3 LED indicators: NumLock, Caps, Scroll
-- 13 Separate media hot keys
-- 2x AA-battery
2. OS Support
Windows XP, 7/8/10, Mac OS
3. Appearance drawing
According to attached drawing.
KR LAYOUT

Quick Guide
Shenzhen Loyal Electronics Co., Ltd
Figure 1
Figure 2
Figure 3
4. Mechanical Specification (Keyboard)
1. Material﹕ABS
2. Key stroke life﹕8 million times
3. Key travel: 3 ±0.3 mm
4. Drawing force: 65 ±5 g

Quick Guide
Shenzhen Loyal Electronics Co., Ltd
5. Size: 448.0x 191.0 x 28.0 mm
6. Weight: 622.6 g
7. Environment Temperature
1. Working temperature ﹕-5℃~50℃
2. Storage temperature: -10℃~50℃
8. Humidity Temperature
1. Working: 10%~85% RH 25℃
2. Storage: 10%~95% RH 25℃
9. Drawing of Resiliency
5. Electric Specification (Keyboard)
5.1 RF Specification
1. Working voltage: 3.0V;Working Current: ≤15mA (2x AA battery)
2. Working distance:up to 10m.
The wireless range may vary slightly based on the computing conditions and environment.
3. 6-month battery life.
The battery life experience may vary slightly based on the computing conditions
5.2 Sleeping mode
The keyboard enters sleeping after inactivity. The 3 LED indicators go out.
Click any keys to resume the normal operation.

Quick Guide
Shenzhen Loyal Electronics Co., Ltd
5.3 Low power indication
The 3 LED indicators blink simultaneously 6~8 seconds when the battery is low power.
5.4 Pairing method
1. Insert the USB Receiver into USB interface on computer.
2. Install 1x AA battery.
3. Press and holding "Esc + K", then the 3 LED indicators blink in red.
4. The 3 LED indicators stop blink when the keyboard pairs successfully to the receiver.
5. Release the keys. You can use the keyboard now!
5.4 USB Receiver (same as mouse)
Interface : USB 2.0
Working voltage :5V±5%
Working current :100mA
6. Functionality Support
1. Separate Hot Keys
Hot Key
Function
Hot Key
Function
Open Music Player
Volume Down
Previous Track
Volume Up
Next Track
Mute
Play/Pause
2. Shortcuts
Combinations
Function
Combinations
Function
Fn+F1
Open Internet Browser
Fn+F7
Open the Share Charm
(Windows 10)
Fn+F2
Open Task view
(Windows 10)
Fn+F8
Back
Fn+F3
Open Settings
(Windows 10)
Fn+F9
Forward
Fn+F4
Open Search
(Windows 10)
Fn+F10
Open My Computer
Fn+F5
Open Action Center
(Windows 10)
Fn+F11
Open Calculator
Fn+F6
Lock Your PC
Fn+F12
Open Email

Quick Guide
Shenzhen Loyal Electronics Co., Ltd
Fn+
PrtSc SysRq
Fn+
Scroll Lock
Fn+
Pause Break
Specification of Mouse
1. Features
-- Forward/back keys
-- 800/1200/1600 dpi
-- 1x AA-battery
2. OS Support
Windows XP, 7/8/10, Mac OS
3. Appearance drawing
According to attached drawing.
Fig. 1: Top/Bottom Sides

Quick Guide
Shenzhen Loyal Electronics Co., Ltd

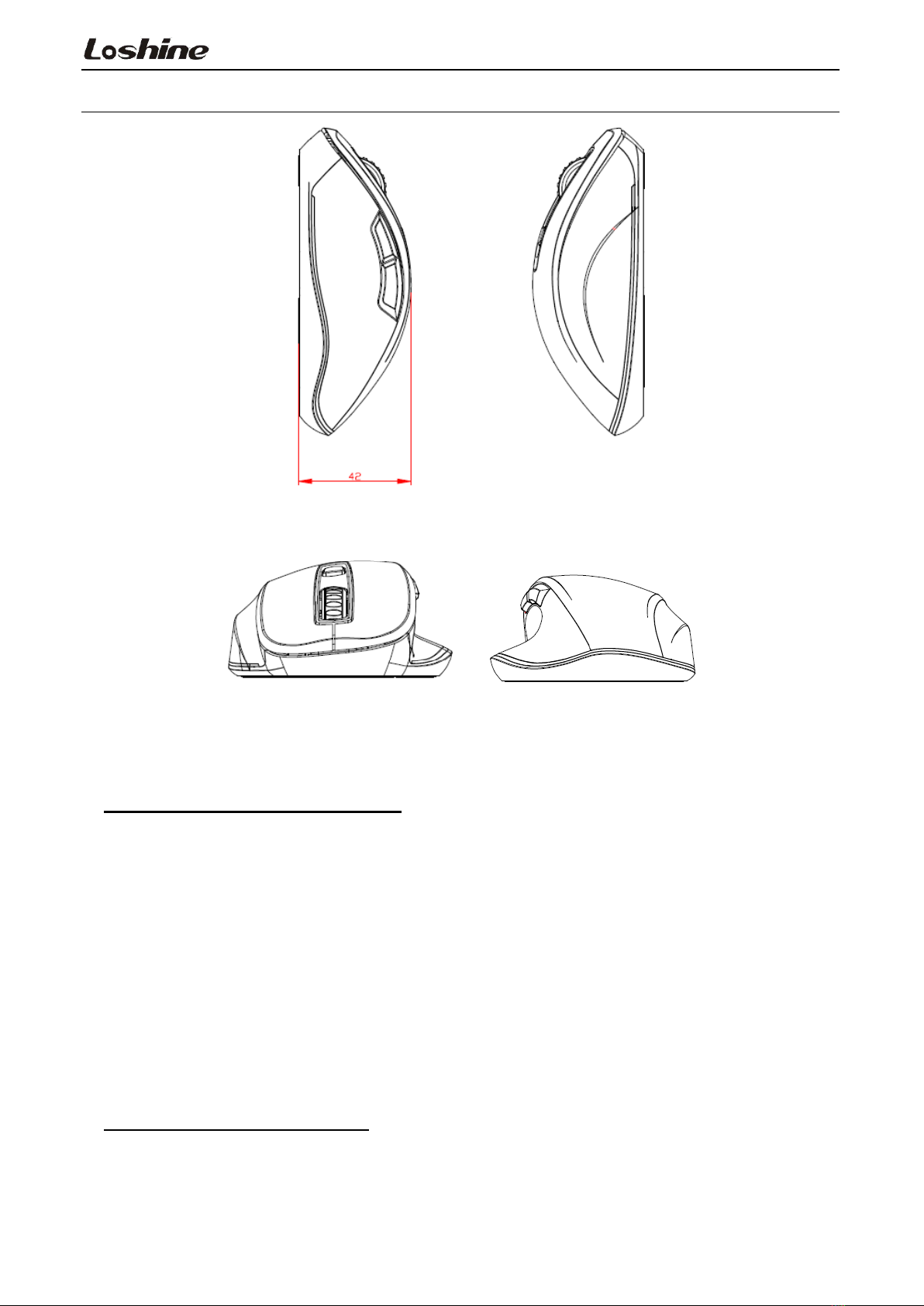

Fig. 2: Left/right sides
Fig. 3
4. Mechanical Specification (Mouse)
1. Material﹕ABS
2. Key stroke life﹕3 million times
3. ON/OFF switch
4. Keys: 6
5. Size: 116.0 x 81.0 x 42.0 mm
6. Environment Temperature
1. Working temperature ﹕-5℃~50℃
2. Storage temperature: -10℃~50℃
7. Humidity Temperature
1. Working: 10%~85% RH 25℃
2. Storage: 10%~95% RH 25℃
5. Electric Specification (Mouse)
5.1 RF Specification
1. DPI: 800/1200/1600
2. Working voltage: 1.5V;Working Current: ≤100mA

Quick Guide
Shenzhen Loyal Electronics Co., Ltd
3. 1x AA battery
4. Working distance:up to 10m.
The wireless range may vary slightly based on the computing conditions and environment.
5.2 Sleeping mode
5.2.1 The mouse enter sleeping mode when there is inactivity.
Click any keys to resume the normal operation.

Quick Guide
Shenzhen Loyal Electronics Co., Ltd
FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
MODIFICATION: Any changes or modifications not expressly approved by the grantee of this device
could void the user’s authority to operate the device.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
IC Statements:
-English:
This device complies with Industry Canada RSS standard(s). Operation is subject to the following two
conditions: (1) this device
may not cause interference, and (2) this device must accept any interference, including interference
that may cause undesired
operation of the device.
2. Changes or modifications not expressly approved by the party responsible for compliance could void
the user's authority to
operate the equipment.
-French:
Leprésent appareil est conforme aux CNR d'Industrie Canada applicable aux appareils radio
Exempts de licence. L'exploitation est autorisée aux deux conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout
brouillage radioélectrique subi,
meme si le brouillage est susceptible d'en compromettre le fonctionnement."
This equipment should be installed and operated with minimum distance 20cm between the radiator
and your body.
Cet équipement doit être installéet utiliséavec une distance minimale de 20cm entre le radiateur et
votre corps.
