Lovibond 3000 Series Assembly instructions

Comparator 3000 Series
OPERATORS INSTRUCTION MANUAL
CODE: 303399 ISSUE NO: V1.1

Contents
Introduction 1
Information
Permanent Colour Glass Standards 2
Special Disc Service 2
Colorimetric Chemical Analytical Methods 3
Technical Specifications 3
Parts Diagram 4
Operating Instructions Comparator 3000 Series 5
Operating Instructions for measuring ASTM Color
scale on the Comparator 3000 Series 7
Reading the ASTM Discs 9
Maintenance
Replacing the Lamp 10
Cleaning the Glass Standards 10
Cleaning the Optical Cells 10
Accessories / Spare Parts
High Quality Optical Cells 11
Optional Extras 12
Sales Offices 13

Comparator 3000 Series
Introduction
The Lovibond®Comparator 3000 Series instruments are single scale
3-field instruments used for visual grading to determine the colour of a
sample, achieved by direct comparison of Lovibond®Glass Standards and
the liquid sample.
To achieve rapid colour grading within pre-determined colour limits, the
glass standards are mounted in two discs so that it is easy to check that
the sample is within tolerance.
The two discs containing the relevant colour scale are brought together
by a prism and viewed simultaneously alongside the sample making it
easier to achieve an optimum match.

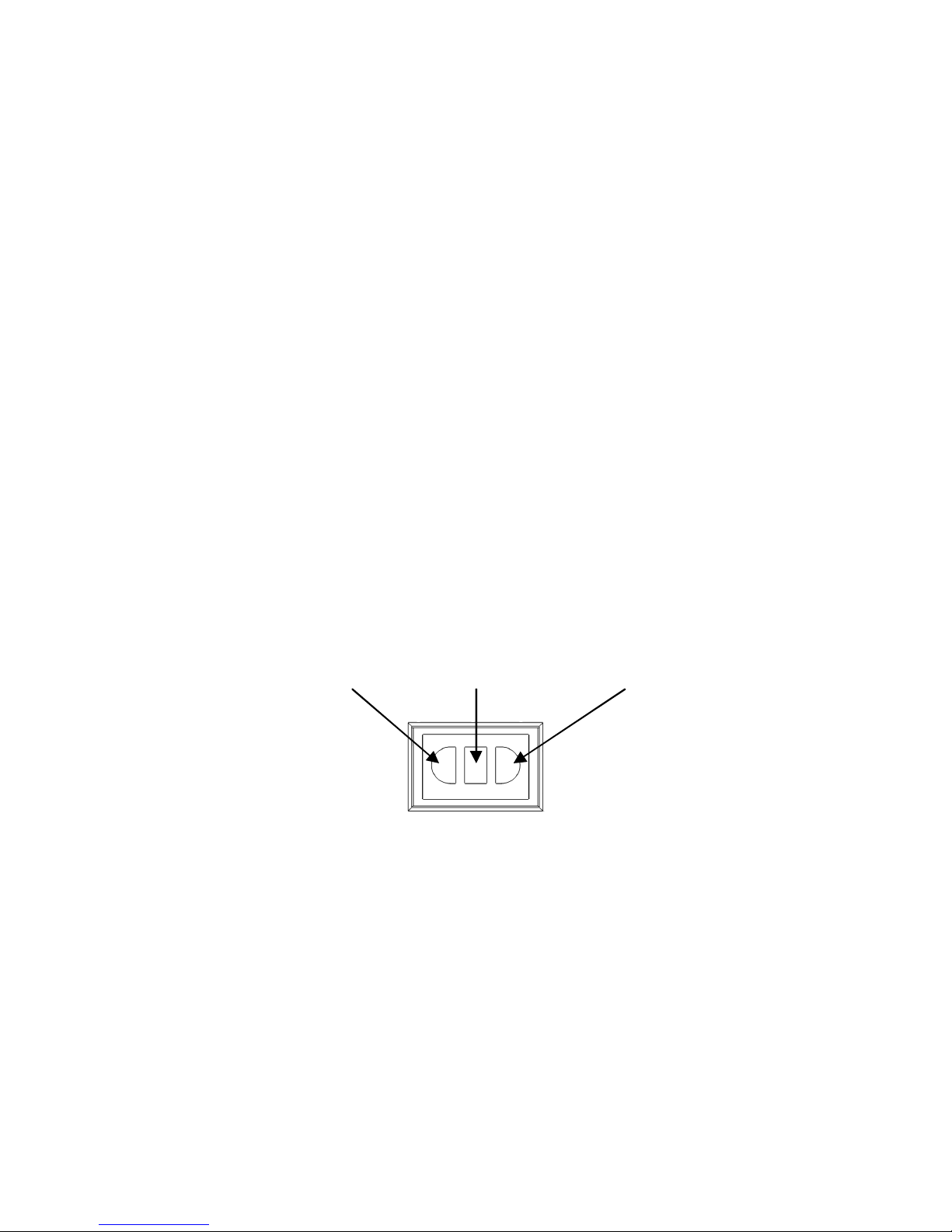

When seen through the prism, the sample is viewed in the centre. The
colour standards are viewed either side of the sample, as in the following
diagram:
The human eye perceives colour differently according to the lighting
conditions, so constant lighting conditions are essential for consistent
colour comparison. The Comparator 3000 Series uses a tungsten halogen
lamp which is colour corrected to CIE standard Illuminant C to produce a
consistent light source.
1
Colour
Standard
Sample
Colour
Standard

The Comparator 3000 Series are available to measure the following
colour scales.:
Comparator 3000 Series Order
Code
ASTM Color 34 50 30
EBC Colour 34 50 00
FAC Colour 34 50 20
Gardner Color 34 50 10
Information
Permanent Colour Glass Standards
The colour standards for use with the Comparator 3000 Series consist of
flat chemically produced glass. Unlike plastics, Lovibond®permanently
coloured glass standards are guaranteed not to fade with continuous
exposure to daylight and will give reliable accurate results every time.
The standards are mounted into a disc which is easily positioned in the
Comparator 3000 Series.
Special Disc Service
The Tintometer Ltd. is able to produced customised glass standards to
suit your requirements, for special chemical and colorimetric analysis.
The Company has great experience in the development of such standards,
and they are manufactured in accordance with the procedures required
by The Tintometer Ltd’s ISO 9001 certification.
The standards are mounted in a disc for use with the Lovibond®
Comparator 3000 Series.
2

“Colorimetric Chemical Analytical Methods” – CCAM
This CD, now in its 9th edition, is a comprehensive reference for the
chemical methods used for the range of Lovibond®discs.
The Individual methods and techniques are clearly laid out, enabling the
reader to see the principles of the various chemical methods as well as the
actual techniques for carrying out the tests.
The order code for this CD is 17 02 00.
Technical Specifications
Specification Description
Light Source 12V 20 Watt Tungsten Halogen
Optical System Fully Prismatic
Sample Requirements Sample, Glass Cells and Lovibond®
Glass Colour Standards
Instrument Housing Moulded Fire Retardant ABS
Power Pack:
Input Voltage
Output voltage
100-240V
12V DC
Power Consumption 2 amps 20 Watts (Max).
Operating Temperature Range -10°C to +70°C
Dimensions: 231w x 273l x 142h
Weight: 1.5 Kg
Technical Assistance Technical Services Department
The Tintometer Ltd
Lovibond House
Solar Way
Solstice Park
Amesbury. SP4 7SZ
Tel: [phone]
Fax: [phone]
E-mail: [e-mail]
3

Parts Diagram
4
Lid
Top
Sample
chamber
Disc
Knobs
Disc
On/Off
switch
Halogen
Lamp

Operating Instructions for the Comparator 3000 Series
All scales except ASTM color
5
Min
50 mm
Height
See test method or
sample preparation for
instructions on sample
liquid.

Note: The best colour match is obtained by viewing with one eye closed
Rotate the discs by turning the knobs on the front of the instrument until
the oil sample matches or falls between two Colour Standards. A reading
can then be taken from the disc.
FAC / EBC:- To change the disc pair: open the lid, pull the knobs and lift
out the discs. To insert the discs: pull the knobs, insert the discs and
rotate the knobs until they engage in the discs.
6
Press Once = 1 minute
illumination
Press twice = 2 minutes
illumination
Press three times = 3 minutes
illumination
Press and Hold = Off
Colour
Standard
Sample
Colour
Standard

Operating Instructions for measuring ASTM colour scale on the
Comparator 3000 Series
1/2
1/2
