Lowrance Elite-5x HDI User manual

Installation & Operation
manual
Elite-5x HDI
Operation manual

Copyright © 2013 Navico
All rights reserved.
Lowrance® and Navico® are registered trademarks of Navico.
Navico may nd it necessary to change or end our policies, regulations and special oers at any time.
We reserve the right to do so without notice. All features and specications subject to change without
notice.
For technical specications,
certicates and declarations,
refer to the product web site:
www.lowrance.com

PB 1
Table of Contents | Elite-5x HDI Table of Contents | Elite-5x HDI
Introduction...................................... 3
Unit Controls............................................ 3
Conventional sonar and DownScan ........3
Basic Operation............................... 4
Setup wizard............................................ 4
Pages ......................................................4
Selecting Pages.......................................4
Page menus ............................................4
Accessing the Settings menu ..................5
Accessing menu items.............................5
Working with menus ................................6
Dialogs.....................................................6
Entering text ............................................6
Fishing Modes .........................................7
Cursor...................................................... 8
Advanced Mode ......................................8
Restore defaults ......................................9
Pages.............................................. 10
Sonar Page............................................10
DownScan page ...................................10
Combo pages ........................................ 11
Overlay Data.......................................... 11
DownScan Operation .................... 13
DownScan menu ...................................13
Ping Speed............................................15
DownScan options.................................16
Table of contents

2PB
Table of Contents | Elite-5x HDI Table of Contents | Elite-5x HDI
Sonar Operation ............................ 18
Sensitivity ..............................................19
Colorline ................................................19
Range....................................................20
Frequency .............................................20
Ping Speed............................................21
Fish ID ..................................................22
DownScan options.................................23
Sonar Settings.......................................24
Installation .............................................25
Settings .......................................... 27
Settings menu........................................27
System...................................................27
About .....................................................28
Alarms ..................................................28
Specications ................................ 30
Index ............................................... 31

PB 3
Introduction | Elite-5x HDI Introduction | Elite-5x HDI
Getting Started
Turn unit
on/o
To turn on/o the unit, press and
hold the LIGHT/POWER key for
three seconds.
Adjusting
the
backlight
This unit has 11 backlight levels.
Press the LIGHT/POWER key to
switch backlight levels.
Muting
Audio
Select Mute Audio from the System
menu and press ENTER.

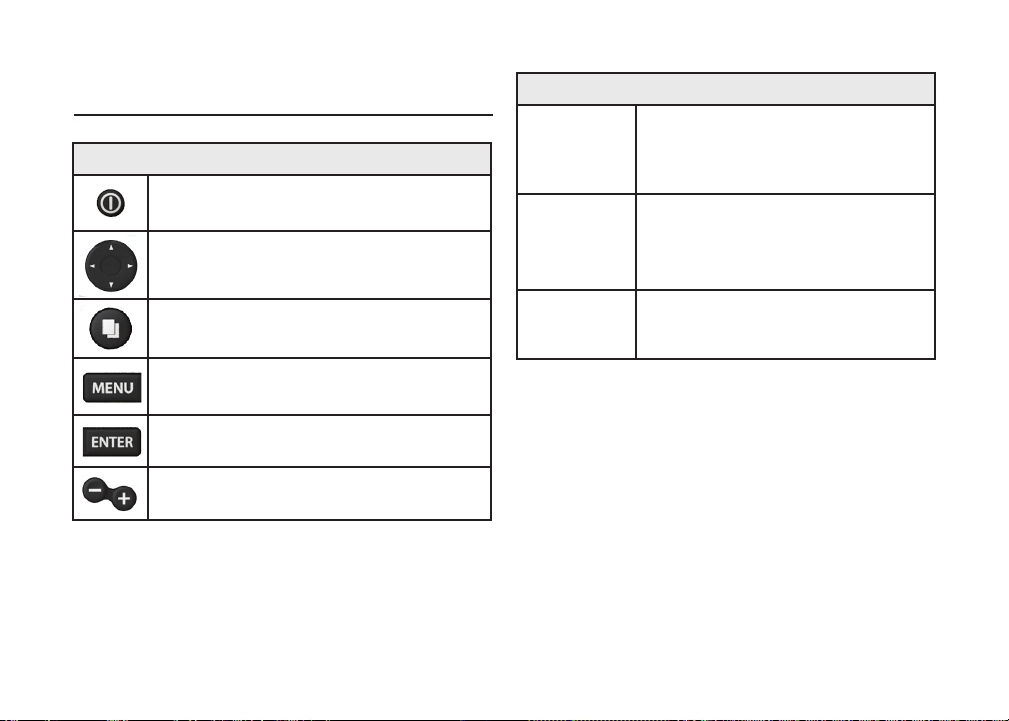

Unit Controls
LIGHT/POWER: controls backlight level
and turns unit on/o
KEYPAD:controls cursor & selects items
on menus
PAGES: allows you to select a page to
view
MENU: opens settings, context and page
menus
ENTER:nalizes menu selections
ZOOM KEYS:(+) used to zoom in; (-)
used to zoom out
Conventional sonar and DownScan
This unit supports two types of sonar: Conventional
and DownScan.
Refer to the “Sonar Operation” section for
information about conventional sonar features and
settings.
DownScan features and settings are covered in the
“DownScan Operation” section.
Introduction

45
Basic Operation | Elite-5x HDI Basic Operation | Elite-5x HDI
Selecting Pages
To select a page, press the keypad in the direction
of the desired page and press ENTER.
Page menus
The DownScan and Sonar pages have menus
that can only be accessed when those pages are
displayed.
Setup wizard
The Setup wizard will appear when the unit is
turned on for the rst time. To choose your own
settings, do not run the setup wizard. To restart the
Setup wizard, restore defaults.
Pages dialog
Pages
This unit has four pages: DownScan, Sonar,
Sonar/Downscan (vertical) and Sonar/Downscan
(horizontal).
Basic Operation
DownScan page DownScan menu

45
Basic Operation | Elite-5x HDI Basic Operation | Elite-5x HDI
Combo pages
Press the PAGES key twice to switch active
panels. The page menu for the active page will be
displayed when the MENU key is pressed.
Accessing the Settings menu
Accessing menu items
The keypad and ENTER key are used to select
menu items and open submenus. Use the keypad
to highlight the desired item and press ENTER.
Sonar page Sonar menu
Two-panel page Horizontal panels

67
Basic Operation | Elite-5x HDI Basic Operation | Elite-5x HDI
Dialogs
Dialogs are used for user input or
for presenting information to the
user. Depending on the type of
entry, dierent methods are used
to conrm, cancel or close the
dialog.
Working with menus
There are several menu types used to make
adjustments to options and settings, including
scrollbars, on/o features and dropdown menus.
Scrollbars
Select the scrollbar and press the
keypad left (decrease) or right
(increase).
On/Off features
Select an on/o menu item and
press ENTER to turn it on/o.
Dropdown menus
Access the dropdown
menu, press the keypad up/
down to select the desired
item and press ENTER.
NOTE: Press the MENU key to exit
menus.

67
Basic Operation | Elite-5x HDI Basic Operation | Elite-5x HDI
Fishing Modes
(Conventional sonar only)
Fishing modes enhance the performance of your
unit by providing preset packages of sonar settings
geared to specic shing conditions.
Switches keyboard
between ALPHA and
QWERTY layout
Switches letters
to uppercase/
lowercase
Entering text
To input text:
1. Use the keypad to select the desired
character and press ENTER.
2. Repeat Step 1 for each character.
3. When entry is completed, highlight OK
and press ENTER.

89
Basic Operation | Elite-5x HDI Basic Operation | Elite-5x HDI
Cursor
The keypad moves the cursor around the display
and allows you to review sonar history.
Advanced Mode
Enables advanced features and settings.
The following features are enabled when Advanced
mode is turned on:
• NMEA 0183 conguration options
• Units (Enables depth and temperature
conguration options)

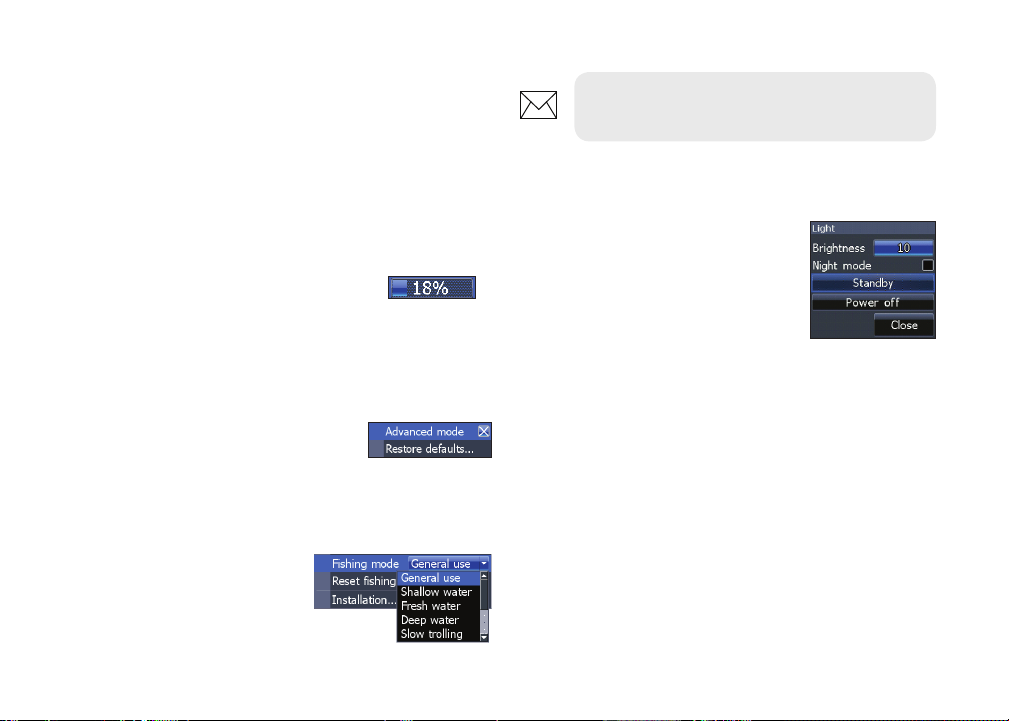

Fishing Mode Options
General Use 1000ft or less Coastal
Shallow
Water 60ft or less Shallow weedy bottoms
Fresh Water 400ft or less Inland/Near coastal
Deep Water 1000ft or more Offshore
Slow
Trolling 400ft or less Inland/Coastal
Fast
Trolling 400ft or less Inland/Coastal
Clear Water 400ft or less Inland/Coastal
Brackish
Water 400ft or less Fresh-Saltwater mix
Ice 400ft or less Ice shing

89
Basic Operation | Elite-5x HDI Basic Operation | Elite-5x HDI
Standby mode
Lowers power consumption by turning o sonar
and the display.

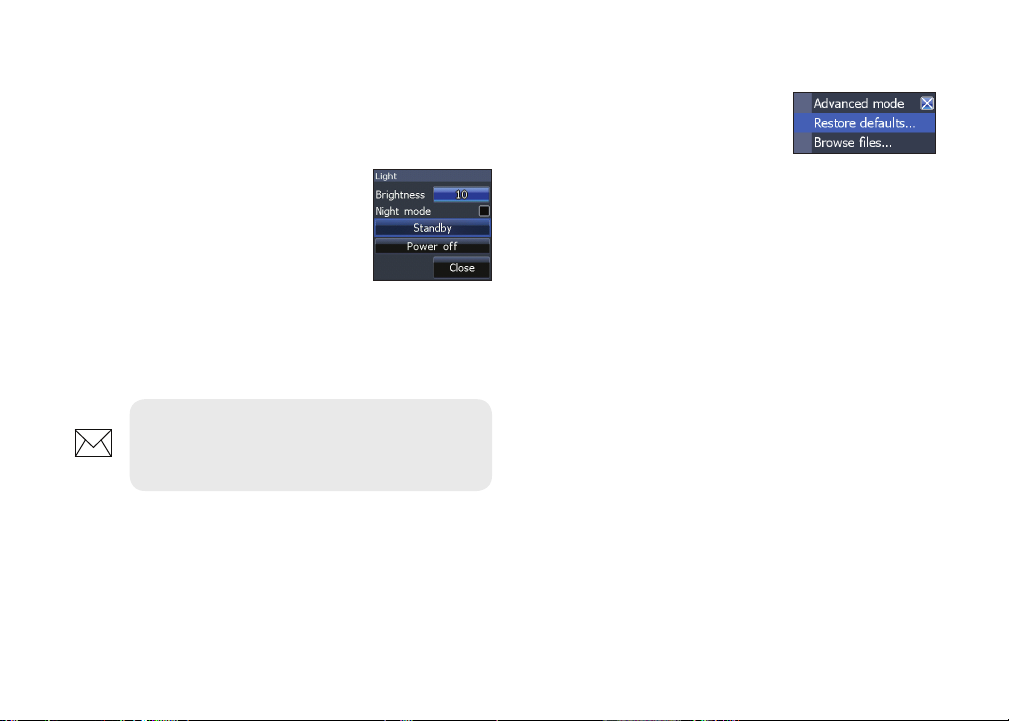

1. Press the PWR/LIGHT
key to access the
Backlight dialog.
2. Select Standby and
press ENTER.
3. Press any key to resume normal
operation.
NOTE: Leaving your unit in Standby
mode when your boat is not in use will run
down your battery.
Restore defaults
Sets unit options and settings
to default values.

10 11
Pages | Elite-5x HDI Pages | Elite-5x HDI

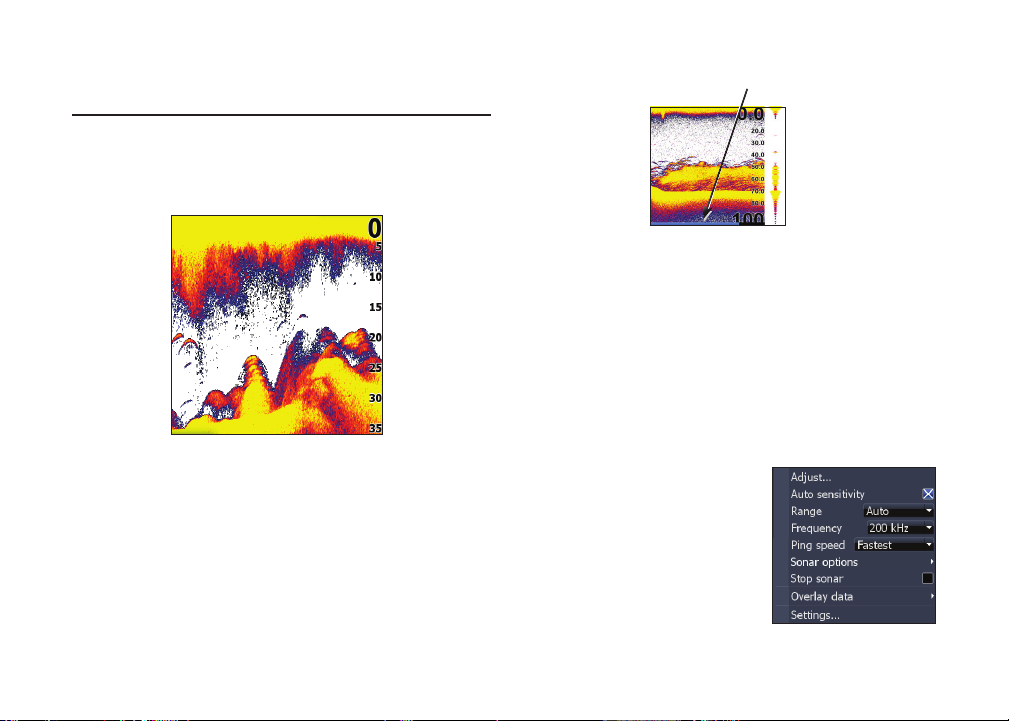

Sonar Page
Displays the water column moving from right to
left on your unit’s screen.
DownScan page
The DownScan page shows the water column
moving from right to left. You can overlay
DownScan sonar on the conventional sonar page
by selecting DownScan Overlay on the Sonar
settings menu.
Fish arches
Surface Clutter
Range
Scale
Colorline
Structure
Baitsh Surface clutter
Range scale
Pages

10 11
Pages | Elite-5x HDI Pages | Elite-5x HDI
Combo pages
This unit has two pre-congured combo pages.
Customizing combo pages
You can adjust the panel size of combo pages and
control how the pages will
be arranged on the screen:
vertically (side) or horizontally
(over).
Highlight a combo page on the Page dialog and
press MENU. Select the desired conguration and
press ENTER.

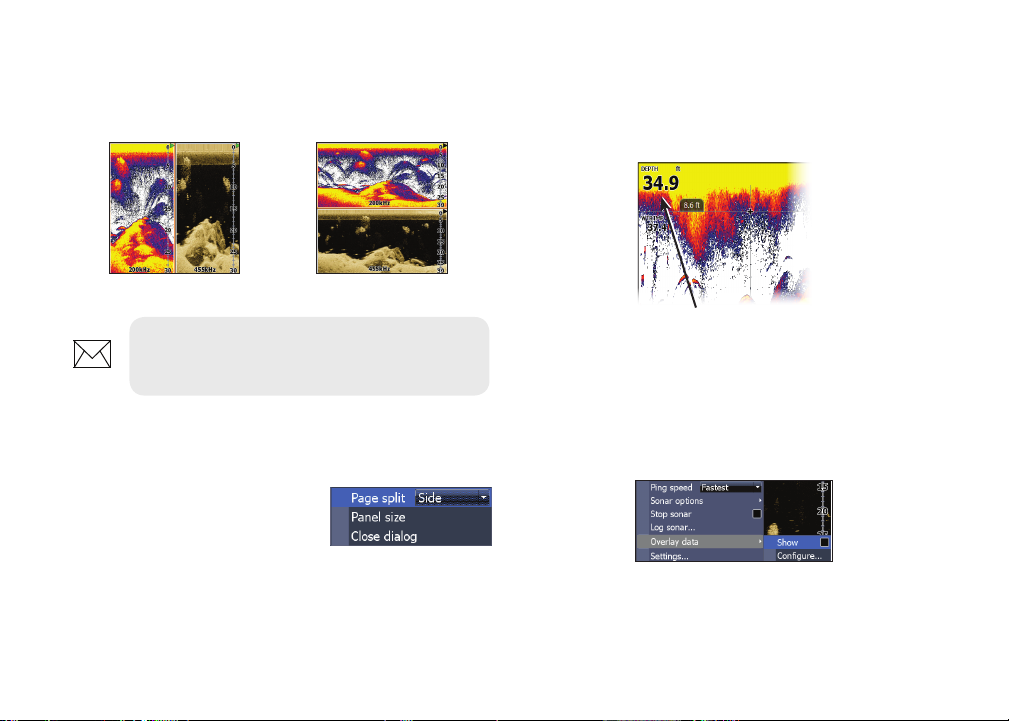

Sonar/DownScan Sonar/DownScan horizontal
NOTE: Press the PAGES key twice to
switch active panels.
Overlay Data
Used to select data shown on the Sonar and
DownScan pages.
Show
Enables/disables the display of overlay data,
allowing you to remove overlay data from the
screen without deleting the current overlay data
conguration.
Congure
Allows you to select/customize overlay data.
Overlay data

12 PB
Pages | Elite-5x HDI Pages | Elite-5x HDI
To add overlay data:
1. From the Sonar or DownScan page,
press MENU.
2. Select Overlay data and press ENTER.
3. Select Congure and press ENTER.
4. Press Menu and select Add. Press
ENTER.
5. Select a data category and press
ENTER.
6. Select the desired data and press
ENTER.
7. Repeat Steps 5 and 6 to add more data.
8. Press MENU and select Return to
Overlays. Press ENTER.
9. Press MENU, select Done Conguring
and press ENTER.
Customizing Overlay Data
You can select a data source, add/remove data and
adjust the size and position of overlay data on the
screen.
Select the desired overlay
data from the “Congure
Item Locations and Sizes
dialog” and press MENU.
The conguration menu will
appear.

PB 13
DownScan Operation | Elite-5x HDI DownScan Operation | Elite-5x HDI
This unit supports two types of sonar: Conventional
and DownScan.
The features described in this section are for
DownScan sonar. Refer to the “Sonar operation”
section for information on conventional sonar
features.
Trackback
You can review your sonar history by pressing the
keypad to the left until the screen starts to move
in reverse and the sonar history bar appears at the
bottom of the screen.

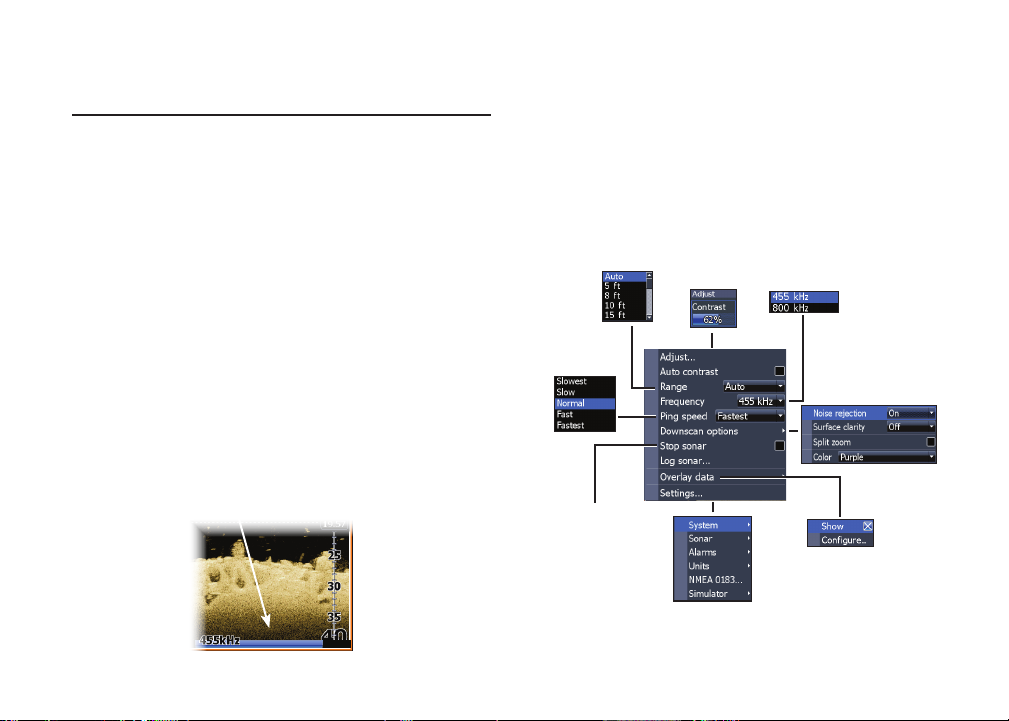

DownScan menu
Press MENU from the DownScan page to view the
DownScan menu.
DownScan Operation
Stops sonar
transmission;
pauses sonar
scroll
Move the sonar history bar all the way to the right
to resume normal sonar scrolling, or press MENU
and select Exit cursor mode.
DownScan history bar

14 15
DownScan Operation | Elite-5x HDI DownScan Operation | Elite-5x HDI

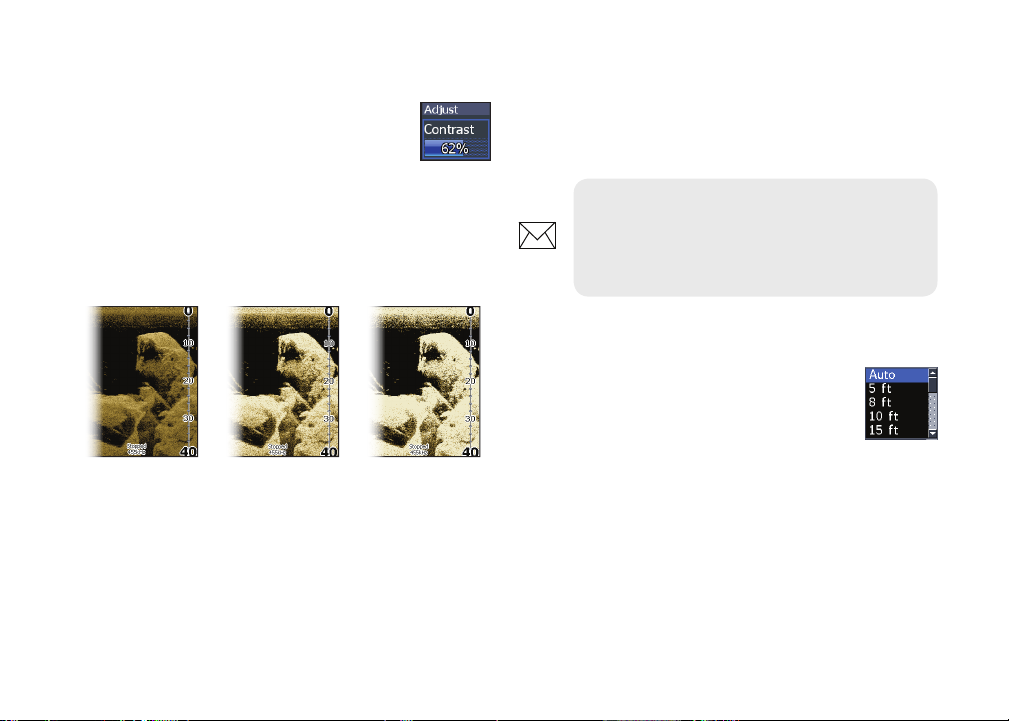

Contrast
Adjusts the brightness ratio between light and dark
areas on the screen, making it easier to distinguish
suspended objects from the background.
DownScan units do not have a Sensitivity setting
like traditional sonar units. Contrast functions as
the sensitivity setting for DownScan units.
Adjust
Access the Adjust menu to make
adjustments to the contrast level.

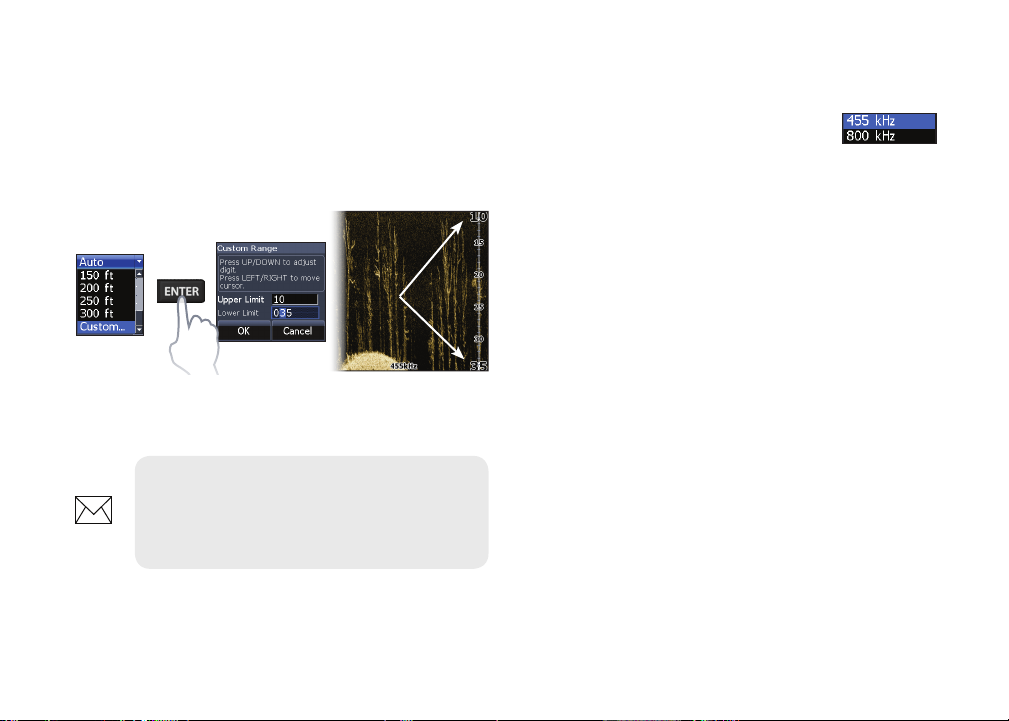

Range
Range settings display the section of the
water column from the water surface to
the selected depth range.
Contrast set
to 40%
Contrast set
to 60%
Contrast set
to 80%
Auto Contrast
Automatically adjusts contrast settings to a level
that works best with current water conditions.
NOTE: You can make limited adjustments
to the contrast level with Auto Contrast
turned on. You will have to turn it o to
have access to all contrast levels.

14 15
DownScan Operation | Elite-5x HDI DownScan Operation | Elite-5x HDI
Frequency
Controls the transducer frequency
used by the unit. 800 kHz oers the
best resolution, while 455 kHz has greater depth
coverage.
NOTE: When using a custom range,
you may not receive any digital depth
readings, or you may receive incorrect
depth information.
Ping Speed
Controls the rate the transducer uses to send sonar
waves into the water. Ping speed adjustments can
help reduce interference from other transducers.
Custom Range — Upper and Lower Limits
Used to select the upper limit and lower limit of
a section of the water column. That allows you to
view a section of the water column that does not
include the water surface.
Upper and lower limits must be at least 5 ft (2m)
apart.

16 17
DownScan Operation | Elite-5x HDI DownScan Operation | Elite-5x HDI
DownScan options
Noise Rejection
Uses advanced signal processing to monitor the ef-
fects noise (boat pumps, water conditions, engine
ignition systems, etc.) has on your display, and then
lters out undesired signals.
DownScan options
Split Zoom
Changes the display to a split zoom view. You can
select a 2X or 4X zoom level. Press the +/- keys to
zoom in/zoom out.

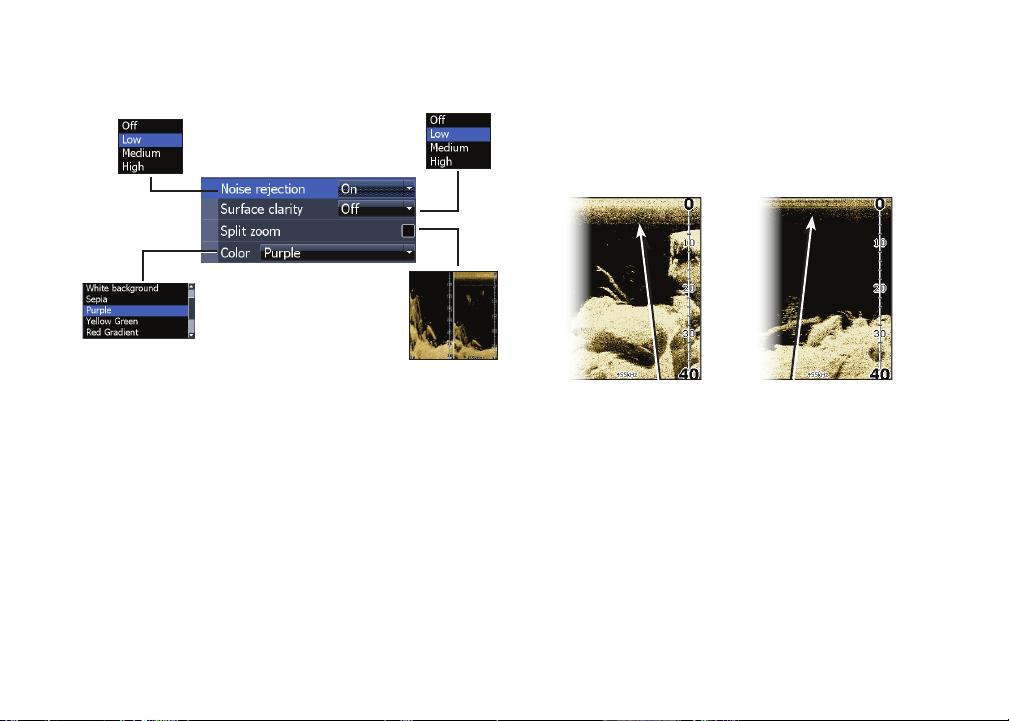

Surface Clarity
Surface Clarity reduces surface clutter by
decreasing the sensitivity of the receiver near the
surface.
Surface Clarity
set to Low
Surface Clarity
set to High

16 17
DownScan Operation | Elite-5x HDI DownScan Operation | Elite-5x HDI
Overlay Data
Allows you to select data to
be displayed on top of the
DownScan page.
Overlay data setup is covered
in the “Pages” section.
Settings
Accesses the Settings menu. Refer to “Sonar
Settings”on page 24.
Overlay data
Stop Sonar
Stops sonar transmission and pauses the sonar
chart, allowing you to get a better look at
suspended targets and structure.
NOTE: Sonar history (Trackback) will
not be recorded when sonar is stopped.

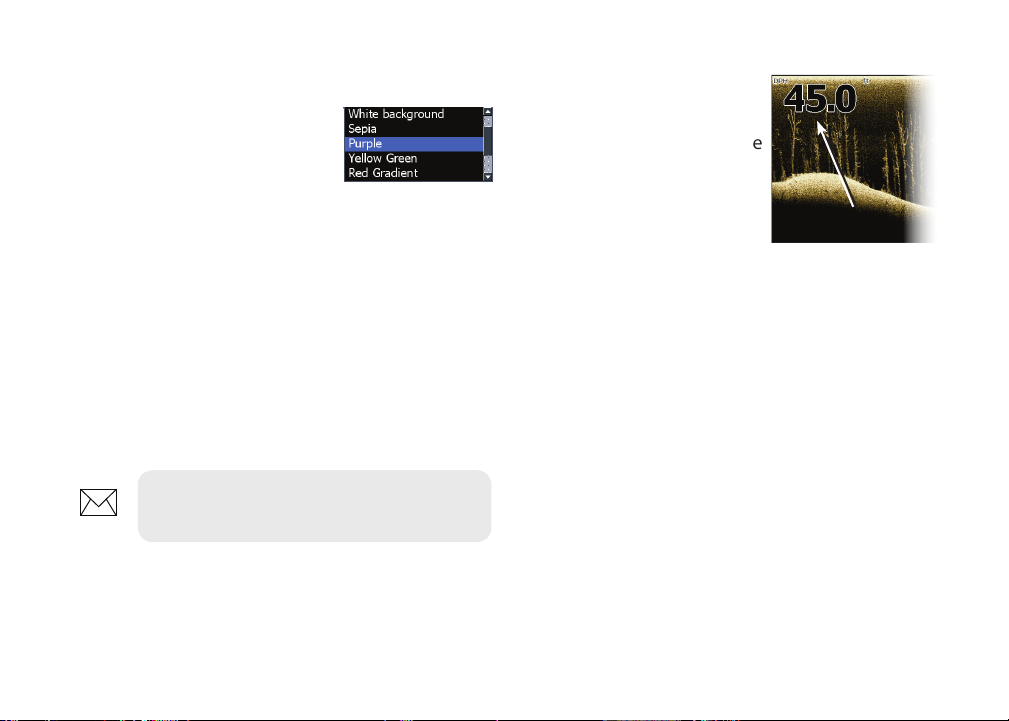

Color
Allows you to select a color
palette best suited to your
shing conditions.
The white background palette works well for
suspended targets. Purple is useful for viewing
structure detail and determining bottom hardness.
Sepia is best for looking at bottom detail.

18 19
Sonar Operation | Elite-5x HDI Sonar Operation | Elite-5x HDI
Trackback
You can review your recent sonar history by mov-
ing the cursor to the left until the screen starts to
move in reverse.
Move the sonar history bar all the way to the right
to resume normal sonar scrolling, or press MENU
and select Exit cursor mode.
Sonar Menu
Press MENU from any sonar
page to access the Sonar
menu.
This unit supports two types of sonar: Conventional
and DownScan.
The features described in this section are for
conventional sonar.
Refer to the “DownScan operation” section for
information on DownScan features.
Sonar Operation Blue sonar history bar
