Lowrance X-45 User manual

1
X-45X-45
X-45X-45
X-45
INSTALLATION AND OPERATION
INSTRUCTIONS

2
TABLE OF CONTENTS
INTRODUCTION ..............................................................................................................3
SPECIFICATIONS ...........................................................................................................3
INSTALLATION ...................................................................................4
INSTALLATION - Bracket ................................................................................................4
POWER CONNECTIONS ................................................................................................5
KEYBOARD BASICS .......................................................................................................6
DISPLAY...........................................................................................................................6
MENUS .............................................................................................................................7
OPERATION .......................................................................................7
AUTOMATIC.....................................................................................................................7
RANGE .............................................................................................................................8
RANGE - UPPER AND LOWER LIMITS .........................................................................8
ZOOM ...............................................................................................................................9
SENSITIVITY...................................................................................................................11
GRAYLINE®...................................................................................................................................................................................................... 12
FISH ID ............................................................................................................................12
TARGETTRACK™ ..........................................................................................................14
CHART SPEED ...............................................................................................................15
DISPLAY MODE .............................................................................................................15
ALARMS ..........................................................................................................................17
LIGHT ..............................................................................................................................18
FEET/METERS ...............................................................................................................19
DISPLAY CONTRAST ....................................................................................................19
ASP (Advanced Signal Processing) ...............................................................................19
SIMULATOR....................................................................................................................20
FISH ARCHES ................................................................................................................21
WATER TEMPERATURE AND THERMOCLINES ........................................................22
TROUBLESHOOTING ....................................................................................................23
WARRANTY ....................................................................................................................27
MISSING PARTS ............................................................................................................28
Copyright © 1995 Lowrance Electronics, Inc.
All rights reserved.
All features and specifications in this manual are subject
to change without notice.
All screens in this manual are simulated.

3
NOTICE!
The storage temperature for your unit is from -4 degrees to +167 degrees
Fahrenheit (-20 degrees to +75 degrees Celcius). Extended storage in tempera-
tures higher or lower than specified will damage the liquid crystal display in your
unit. This type of damage is not covered by the warranty. For more information,
contact the factory customer service department or your local service center.
SPECIFICATIONS
Dimensions ...................... 5.9" W x 5.35" H x 3.4" D
Input Voltage.................... 10 - 15 vDC
Current Drain ................... 350 ma (lights off)
........................... 500 ma (lights on)
Transmitter
Frequency.......... 192 kHz
Output Power..... 600 watts (peak-to-peak)
........................... 75 watts (RMS)
Display ........................... 100 pixels (H) x 65 pixels (W)
........................... Supertwist Liquid Crystal Display
5.9"
5.35"
3.4"
INTRODUCTION
Thank you for purchasing a Lowrance sonar. Your X-45 is a high quality
sonar designed for both professional and novice fishermen. These units
have an automatic feature that finds and displays the bottom, fish,
structure, and more! All you have to do is press the on key. However, if
you wish to fine tune the unit, simply press the menu key. The X-45 has
powerful features available through easy-to-use menus.
Installinganoptionalspeed/temperaturesensorletsyouviewthesurface
water temperature, boat speed, and distance log. The X-45 also takes
advantage of the optional BroadView™ transducer. See page 12 for
information on the FishView™ feature that uses this transducer.

4
AttachtheX-45tothegimbalbracketusingthesuppliedgimbalknobsand
washers as shown above.
Drill a hole in the dash for the power and transducer cables. The best
locationforthisholeisimmediatelyunderthegimbalbracket.Thisway,the
bracketcovers thehole.The smallesthole the poweror transducer cable
connector can pass through is 3/4". However, you can’t pass a power or
transducer connector and another cable through a 3/4" hole. Therefore,
after drilling the hole, pass the transducer connector up through the hole
fromunderthedash. Thendropthepowercabledownfromthefrontside
of the dash. After installing the transducer and power cables, slide the
bracketoverthehole,thenroutethetransducerandpowercablesoutthe
slot in the back of the bracket. Finally, fasten the bracket to the dash.
GIMBAL KNOB
WASHER
GIMBAL BRACKET
X-45
INSTALLATION - Bracket
Youcan install theX-45 on thetop of adash or froman overhead withthe
suppliedbracket. Itcan also be installed inthe dashwith anoptional IDA-
3 or IDA-4 mounting kit. If you use the supplied bracket, you may be
interested in the optional GBSA-1 swivel bracket kit. This converts the X-
45's gimbal bracket to a swivel mount which can be used on the dash or
overheadmounting positions.Installation instructionsfor thein-dash and
swivel mounting kits are supplied with the adapter kits.
Mount the X-45 in any convenient location, provided there is clearance
whenit’stiltedforthebestviewingangle.Holesinthebracket’sbaseallow
woodscreworthroughboltmounting.Itmaybenecessarytoplaceapiece
of plywood on the back side of thin panels to reinforce the panel. Make
certain there is enough room behind the unit to attach the power and
transducer cables.

5
POWER CONNECTIONS
The X-45 works from a 12 volt DC system only. For the best results, run
thepowercabledirectlytotheboat’sbattery. Keepthepowercableaway
fromotherboatwiring,especiallytheengine’swires. Thiswillgivethebest
isolation from electrical noise. If the supplied cable is not long enough to
reachthebattery,splice#18gaugeinsulatedwiretoit.Ifyoudoextendthe
powercable,makecertaintoattachthein-linefuseholdersuppliedwiththe
X-45to thebatteryor powersource.This willprotect boththeunit andthe
power cable in the event of a short. Use only a 3-amp fuse.
IMPORTANT!
Do not use this product without a 3-amp fuse wired into the power cable!
Failure to use a 3-amp fuse will void your warranty!
You can also attach the power cable to an accessory or power buss,
however, you may have problems with electrical interference.
This units has reverse polarity protection. No damage will occur if the
power wires are reversed. However, the unit will not work until the wires
are attached correctly.
Ifyou'vepurchasedaspeed/temperaturesensor,installitaccordingtothe
instructionsenclosedwithit.Routeitscabletothe connectorontheX-45's
power cable. The X-45 is now ready for use.
RED
WIRE
3 amp
FUSE
TO
OPTIONAL
SPEED/
TEMP
SENSOR
BLACK
WIRE
TO POWER
CONNECTORR
ON X-45
12 VOLT
BATTERY

6
KEYBOARD BASICS
The unit sounds a tone when you
press any key. This tells you the
unit has accepted a command.
ON/CLEAR
Use this key to turn the unit on. It
also clears menu selections and
the menus from the screen.
OFF
This key turns the unit off.
MENU
The X-45 has many features that are accessed with this key. To see the
firstmenu,presstheMENUkey.Toseetheothermenus,presstheMENU
key repeatedly.
UP and DOWN ARROWS
Use these keys to adjust virtually every feature and function on the unit.
NOTE: The up arrow key also stops the chart when no menus are
displayed. In other words, anytime you wish to stop the chart, first make
certainnomenuisonthescreen. Nowpresstheuparrow key. The chart
freezesandtheword“STOP”appearsatthetopofthescreen. Tostartthe
chart, press the up arrow key again.
DISPLAY - General
The lights flash for about ten seconds when the X-45 is turned on. Three
menusappear,oneaftertheother. Themenusarethelights(LAMP),feet-
meterselection(FEET/METER),andcontrastadjustment(DARK/LIGHT).
Toturnthelightson,presstheuparrowkey. Toswitchfromfeettometers,
press the down arrow key when the proper menu appears. To adjust the
contrast, wait for the DARK/LIGHT menu to
appear. Now press the up arrow key to
darkenthe screen, thedown arrow tolighten
it. Themenusdisappearafterafewseconds.
If you don’t want to wait, press the ON/
CLEAR key to clear the menus from the
screen.
When the X-45 is first turned on, the display
appearssimilartotheoneatright. Theunitis
in the automatic mode. The depth range
displays on the upper left side of the screen.

7
Intheexampleshownatthebottomofthepreviouspage,therangeisfrom
0 to 60 feet and the bottom depth is 37.3 feet.
NOTE: Turning the X-45 off erases all user settings and it returns to the
systemdefaults.Forexample,ifyouturnthelightson,thenturntheunitoff,
the next time you turn the unit on, the lights will be off, since the default
setting for the lights is off.
MENUS
The X-45 uses menus to guide you through the unit’s functions and
features.Themenukeyaccessesthesefeatures,allowingyoutocustom-
ize the unit to your particular needs and water conditions. All you have to
dotoleaveonemenuandenteranotherispressthemenukeyrepeatedly.
If you ever get lost in the menus, simply press the ON/CLEAR key. This
clears the menus from the screen.
Menus change depending on the mode the unit is in. For example, if the
automatic mode is turned off, the sensitivity menu changes from “AUTO
SENS” to “MAN SENS.” Other messages may appear in menu boxes or
new menus can appear, again depending on previous selections.
On the screen shown on the previous page, the lamp menu is showing.
Pressingtheuparrowkeywhilethis menu isonthescreenturnstheback
lights on.
OPERATION
AUTOMATIC
When the X-45 is first turned on, the automatic feature is enabled. This
feature automatically adjusts the unit’s range and sensitivity according to
waterconditions. Italwayskeepsthebottomdepthdisplayedinthelower
portion of the screen.
To turn the automatic feature off, press the
menu key until the AUTO/MAN menu ap-
pears. Now press the down arrow key. This
highlights the letters “MAN.” The unit is now
inthemanualmode. Waitafewsecondsand
the menu will scroll off the screen’s left side.
Pressing the ON/CLEAR key also clears it.
Toturntheautomaticfeatureonagain,repeat
theabovesteps,exceptthistimepresstheup
arrow key.

8
RANGE
Youcan’tadjusttherangewhentheX-45isin
theautomaticmode. Itisadjustablewhenthe
unit is in the manual mode, however. To do
so,firstputtheunitinthemanualmode. Now
presstheON/CLEARkeytoclearthescreen.
Then press the menu key until the “RANGE
SEL” menu appears as shown below. The
current range shows at the bottom of the
menu. Inthiscase,therangeis60feet. Now
presstheuparrowkeytodecreasetherange,
the down arrow key increases the range.
After you select the desired range, press the
ON/CLEAR key to clear the display. If you wait a few seconds, it
automatically clears.
The X-45 has the following ranges:
10, 20, 40, 60, 120, 240, 480, and 900 feet.
and
5, 10, 20, 40, 60, 100, 200, and 300 meters.
NOTE: The depth capability of the X-45 depends on the transducer
installation, water and bottom conditions, and other factors.
RANGE - Upper and Lower Limits
TheX-45letsyouchangetheupperandlowerrangelimitswhenit'sinthe
manual mode. This lets you "zoom" in on segments of the water as small
as 10 feet. In other words, you can set the upper limit to 25 feet and the
lowerlimitto35feet,regardlessofthebottom
depth. This in essence, gives you a 10 foot
zoom. You can choose any segment of the
water, as long as the distance between the
upper limit and lower limit is 10 feet (10
meters) or more.
To change the upper limit, first make certain
theunitisinthemanualmode.Next,pressthe
MENU key until the "UPPER LIMIT" menu
appears. Now press the down arrow key to
increasetheupperlimitortheuparrowkeyto
increase it. After you've finished, wait a few

9
21 FOOT UPPER LIMIT
secondsandthemenuwillscrolloffthescreen’sleftside. PressingtheON/
CLR key also clears it.
To change the lower limit, again make certain the unit is in the manual
mode.PresstheMENUkeyuntilthe"LOWERLIMIT"menuappears.Now
press the down arrow key to increase the lower limit or the up arrow key
to increase it. When you have the limit set, wait a few seconds and the
menu will scroll off the screen’s left side. Pressing the ON/CLR key also
clears it.
ZOOM
The zoom feature enlarges all echoes on the screen. If the unit is in the
automatic mode, it tracks the bottom signal, always keeping it near the
bottom of the screen. This lets you see small detail, at the same time
enlargingallechoesthatappearonthescreen.
Theunitdoesn’ttrackthebottominthemanual
mode,andtheadjustmentsareslightlydiffer-
ent.
Zoom - Automatic Operation
To zoom the display, first press the MENU
key until the RANGE/ZOOM menu appears
asshownatright. Nowpressthedownarrow
key. This switches the unit into the zoom
mode. Anew menuimmediatelyappears as
shown at the top of the next page.

10
Thisisthezoomsizemenu. Zoomsizeisthe
distance between the upper limit and the
lower limit. The upper limit shows at the top
left corner of the screen. The lower limit is in
the bottom left corner. For example, if the
upper limit is 40 feet and the lower limit is 70
feet, the zoom window size is 30 feet. The
word “TRACK” appears in this menu when
you first activate the zoom as shown below.
ThismeanstheX-45istrackingthebottomin
a zoom window, always keeping it on the
display.
Press the up arrow key to decrease the zoom size, press the down arrow
key to increase the zoom size.
When the unit is switched into the zoom
mode,theletters“ZM”appearatthetopofthe
screen. Thezoomwindowsizedisplaysinthe
top right corner of the screen.

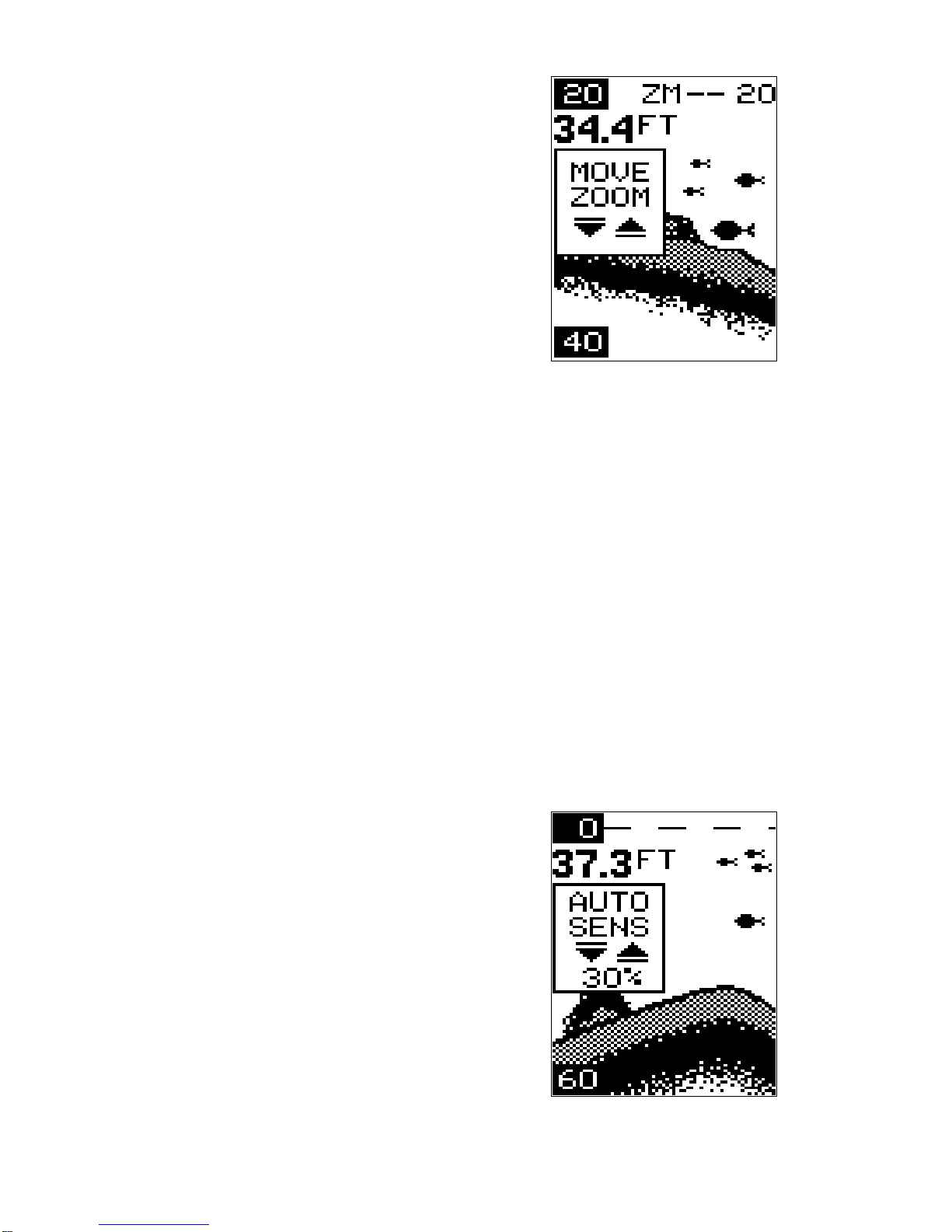

On the screen shown at right, the zoom size
has been changed to 20 feet.
To turn the zoom feature off, press the menu
key until the RANGE/ZOOM menu appears.
Now press the up arrow key.
This switches the unit into the range mode,
which turns the zoom feature off.
The X-45 has the following zoom ranges:
10, 20, 30, 60, 120, 240, and 480 feet
and
5, 10, 20, 30, 50, 100, and 150 meters.
Zoom - Manual Operation
To operate the zoom feature when the X-45 is in the manual mode, first
pressthemenukey. ThenpressthedownarrowkeyintheRANGE/ZOOM
menu to place the X-45 in the zoom mode. The zoom size menu
automatically appears next. You can change the zoom size by pressing
the up or down arrows. After you select the desired zoom size, press the
