Lowry LDH1001 User manual

10L Dehumidifier
For Customer Services & Spare Parts please call0345 2097461
Opening times: Monday -Friday 8am –8pm & Saturday 9am –1pm
Or visit us at www.productcare.co.uk
PLEASE RETAIN
FOR FUTURE REFERENCE
Model Number: LDH1001
220-240V AC 50/60Hz 290W

Page(s)
Safety
Instructions and Electrical Safety 3 - 4
Feature
Diagram 5
Control Panel
Diagram 6
Positioning your Dehumidifier
7
Using your
Dehumidifier 8 -12
Emptying
your Dehumidifier 13
Cleaning and Care
14 -15
Troubleshooting
16
Guarantee and Customer
Services 17
Spare
Parts 18
Connection to the Mains Supply
19
Notes
20
Specification
21
CONTENTS
For Customer Services & Spare Parts please call 0345 209 7461
Opening times: Monday - Friday 8am –8pm & Saturday 9am –1pm
Or visit us at www.productcare.co.uk
Page 2

Safety Instructions
Important note: Please read this booklet before installing and switching on this
appliance. The manufacturer assumes no responsibility for incorrect installation and
usage as described in this booklet.
•This model uses natural refrigerant gas as part of its cooling system. This gas
is known as R134a (tetrafluoroethane) and is environmentally friendly but can
be combustible. Care should therefore be taken when handling or transporting
the product to ensure that none of the refrigeration circuit components are
damaged,
•Do not obstruct ventilation openings in the appliance.
•Do not cover the appliance or place any object on the control panel
•The appliance must not be placed or rested on its power cord.
•Do not use adaptors or extension leads when connecting the appliance to the
electrical power supply
•Do not plug in if the plug is damaged.
•Do not pull, twist or damage the power cable.
•Do not plug-in or un-plug the appliance with wet hands to prevent electrical
shock.
•Always store the unit in an upright position in order to maintain the compressor
working in a proper condition.
•Never insert your finger or any other object into the air outlet
•This appliance can be used by childrenaged from 8 years and above and
persons with reduced physical, sensoryor mental capabilitiesor lack of
experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards
involved. Children should not play with the appliance.
•This appliance is designed to be used by adults, do not allow childrento play
with the appliance.
•The appliance is intended for residential use only.
Page 3

Safety Instructions
•Do not use in the following locations:-
Next to a source of fire.
An area where oil is likely to splash.
An area exposed to direct sunlight.
An area where water is likely to splash.
Near a bath, shower or a swimming pool.
In a greenhouse.
An area where flammable gasses or liquids are present.
Electrical Safety
THIS APPLIANCE MUST BE PLUGGED INTO AN EARTHED SOCKET
•Before switching on, make sure that the voltage of your electricity supply is the
same as that indicated on the rating plate. This product is designed to operate
on 220 –240V AC; 50Hz. Connection to any other power source may damage the
unit.
•This product may be fitted with a non re-wireable plug. If it is necessary to
change the fuse in the plug, the fuse cover must be refitted. If the fuse cover
becomes lost or damaged, the plug must not be used until a suitable
replacement is obtained.
•If the plug has to be changed because it is not suitable for your socket, or
becomes damaged in any way, it should be cut off and an appropriate plug fitted
following the wiring instructions below. This should be carried out by a qualified
electrician. The plug removed must be disposed of safely, as insertion into a 13
Amp socket is likely to cause an electrical hazard.
Page 4

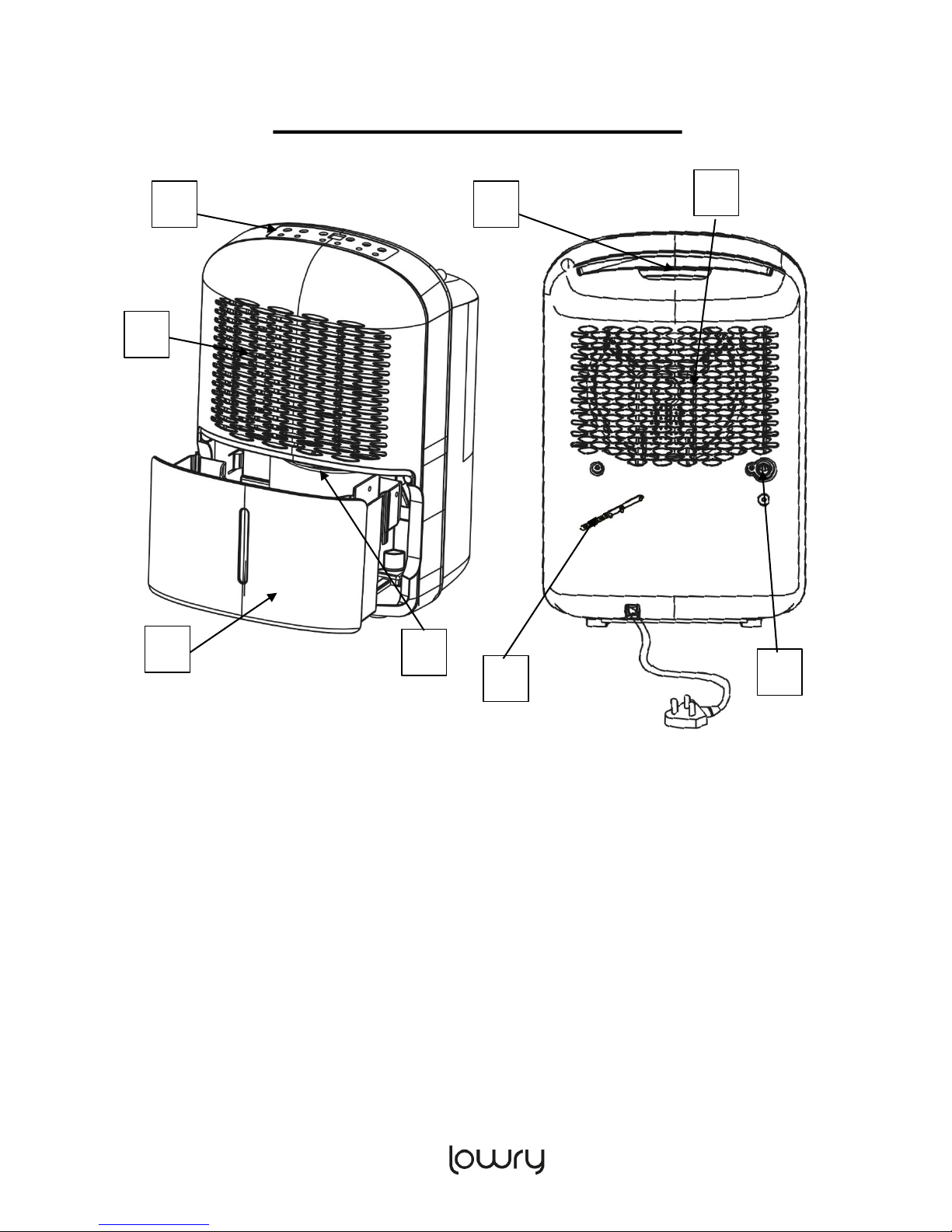

FEATURE DIAGRAM
For Customer Services & Spare Parts please call 0345 209 7461
Opening times: Monday - Friday 8am –8pm & Saturday 9am –1pm
Or visit us at www.productcare.co.uk
x
1. Control panel
2. Air intake grille
3. Water drawer
4. Air filter (behind the
air intake grille)
1.
2.
3. 4.
5. 6.
7. 8.
5. Handle
6. Air Outlet grille
7 Power cord storage band
8. Drain hose outlet
Page 5

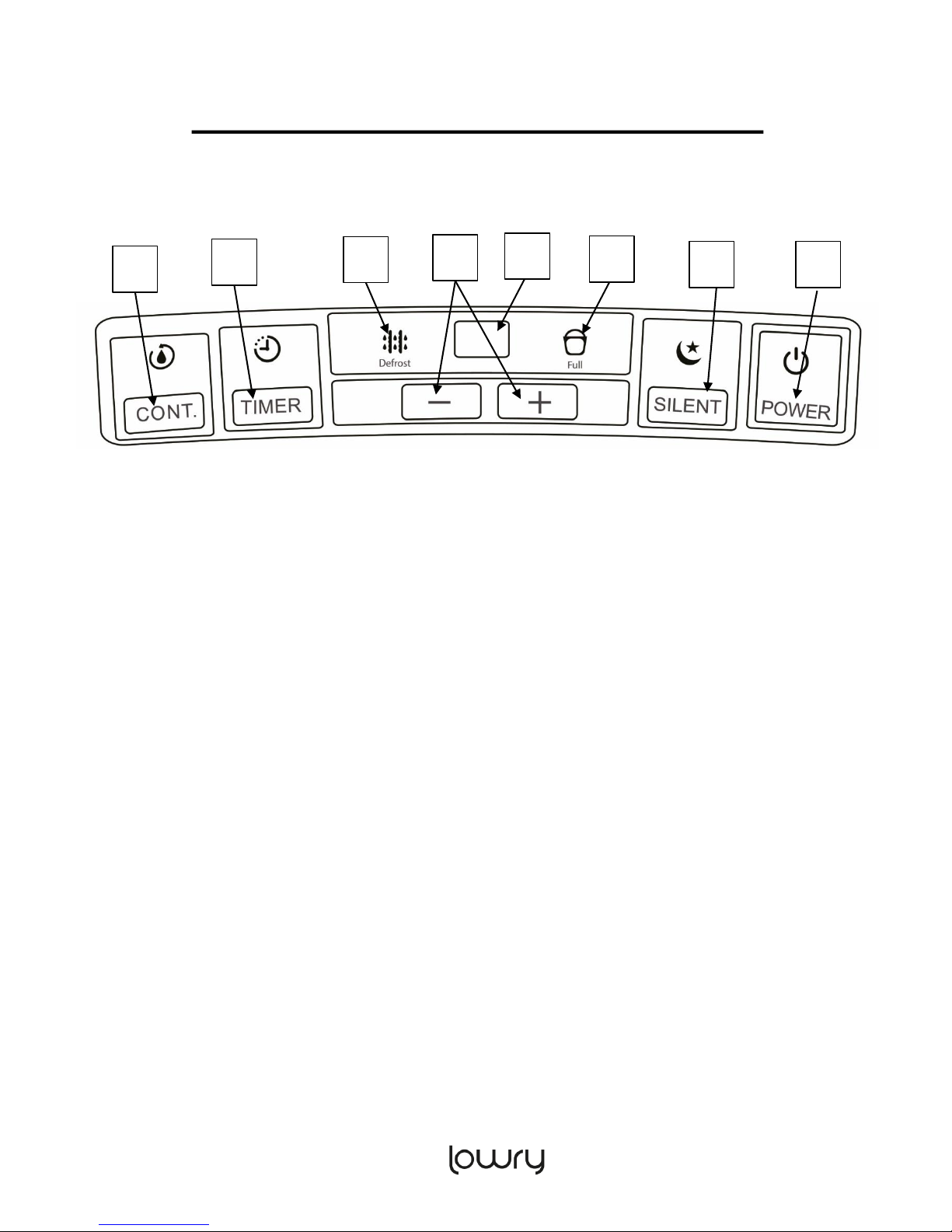

CONTROL PANEL DIAGRAM
For Customer Services & Spare Parts please call 0345 209 7461
Opening times: Monday - Friday 8am –8pm & Saturday 9am –1pm
Or visit us at www.productcare.co.uk
1. Power
2. Silent Mode
3. Water Drawer Full Indicator
4. Display
5. Up/Down Control Pads
6. Auto Defrost Indicator
7. Timer
8. Continuous Extraction
1.
2.
3.
4.
5.
6.
7.
8.
Page 6

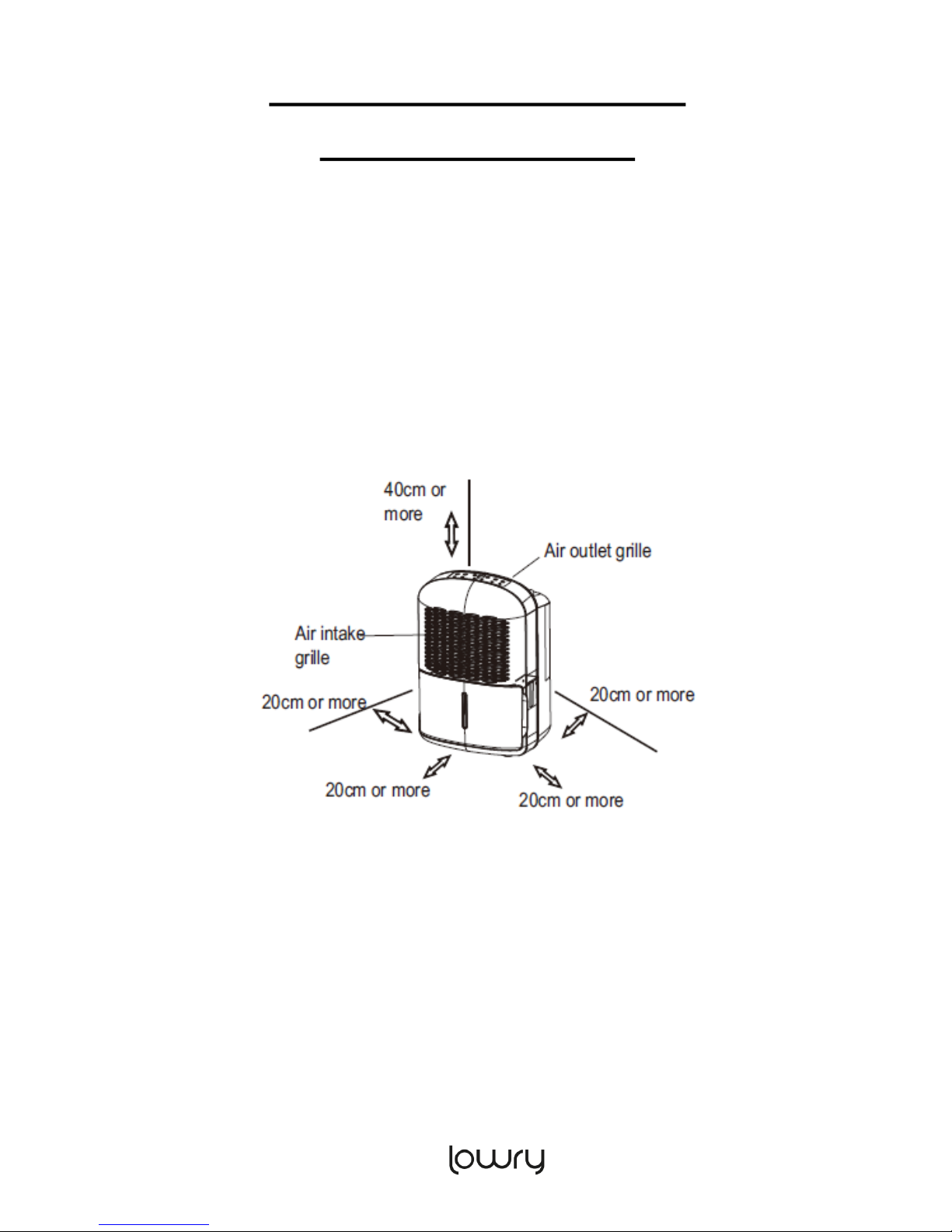

•This dehumidifier is intended for indoor residential applications
only. This dehumidifier should not be used for commercial or
industrial applications.
•Place the dehumidifier on a smooth, level floor strong enough to
support the unit with a full drawer of water.
•Allow at least 20cm of air space on all sides of the unit for good air
circulation.
•Allow at least 40cm of air space above the unit for good air
circulation.
•Place the unit in an area where the temperature will not fall below
5⁰C (41 ⁰ F). The coils can become covered with frost at
temperatures below 5⁰C (41 ⁰ F), which may reduce performance.
•Place the unit away from clothes dryers, heaters or radiators.
•The dehumidifier must be operated in an enclosed area to be most
effective.
•Close all doors, windows and other outside openings
•Do not use outdoors.
POSITIONING YOUR
DEHUMIDIFIER
Page 7

When using the dehumidifier for the first time, run the unit in
continuous mode for 24 hours
Turning the Unit On
Remove all packaging and plug the unit into a socket.
Ensure the water drawer is correctly positioned, the drain plug is in
place in the back of the unit if you are using the drawer to collect the
water.
Press the Power button to turn the dehumidifier on and off. The light
next to the Power button will display green when the unit is turned on.
When the unit is first switched on, the display shows the actual room
% humidity level (within 5% accuracy).
The humidity level can be set using the instructions for “Setting the
Humidity”.
Continuous Extraction Mode
For maximum extraction rate, the Continuous Extraction mode should
be used.
Press the Continuous Extraction button on the control panel. The light
next to the Continuous Extraction button will illuminate green when
this mode is selected.
The unit will continue to run at the maximum extraction rate until the
water drawer reaches the max fill level.
Press the Continuous Extraction button again to cancel the continuous
extraction.
Note: The humidity cannot be set when the unit is operating in
Continuous Mode
USING YOUR DEHUMIDIFIER
Page 8

Silent Mode
To reduce the noise output, for example, when being used at night,
the silent mode can be activated. In this mode, the fan speed is slower
and the unit will be running at a lower extraction rate.
Press the Silent button. When the silent mode is selected the light will
display green.
Press the Silent button again to cancel the Silent mode. The unit will
return to the standard fan speed.
The humidity level can be set when the unit is running in Silent mode
using the instructions for “Setting the Humidity”, however the fan
speed and extraction rate will be lower.
Setting the Humidity
The desired humidity level can be set within a range of 35% to 85%
Relative Humidity in 5% increments by pressing the + and –keys.
To select the desired humidity level ensure the unit is not on the
continuous mode. This can be done by checking the CONT button is
not illuminated green. If it is then simply press the CONT button to
de-activate the continuous mode and the green light on the CONT
button will switch off.
Use the Up and Down control pads to select the desired humidity. The
display will flash while the humidity is being set.
For drier air, press the pad and set to a lower percent value(%).
For damper air, press the pad and set a higher percent value(%).
Note: The humidity cannot be set when the unit is operating in
Continuous Mode.
USING YOUR DEHUMIDIFIER
Page 9

Setting the Timer
The Timer can be set for both Delayed Start and Auto Stop functions.
Note: Turning the unit On or Off at any time will cancel the Delayed
Start or Auto Stop functions and the unit can take 2 minutes to restart.
If the water drawer is full or “P2” is displayed, the Delayed Start and
Auto Stop functions will be cancelled.
Delayed Start
The unit must be switched OFF for the Auto Start function to work.
Press the Timer button and the display will flash “0.0”. Use the up and
down controls to select the desired delayed start.
The delayed start time can be adjusted in 0.5 hour increments up to
10 hours, and then in 1 hour increments up to 25 hours.
The display will flash for 5 seconds
Auto Stop
The unit must be switched ON for the Auto Stop function to work.
Turn the unit On using the Power button.
Press the Timer button and the display will flash “0.0”. Use the up and
down controls to select the desired run time.
The run time can be adjusted in 0.5 hour increments up to 10 hours,
and then in 1 hour increments up to 25 hours.
USING YOUR DEHUMIDIFIER
Page 10

Other features
Auto Shut Off
The dehumidifier will shut off automatically under the following
conditions:
•When the water drawer is full
•When the water drawer is removed
•When the water drawer is not replaced in the proper position
•When the selected humidity level is reached
Water Drawer Full Indicator light
•The indicator light will illuminate red under the following conditions:
•When the water drawer is full
•When the water drawer is removed
•When the water drawer is not replaced in the proper position
3 Minute Restart
After the unit has stopped, it cannot be restarted for 3 minutes. This is
to protect the unit. Operation will automatically start after 3 minutes.
Auto Defrost
When frost builds up on the evaporator coils, the compressor will cycle
off and the fan will continue to run until the frost disappears.
When this function is enabled, the Defrost light will illuminate green.
Auto-Restart
If the unit turns off unexpectedly due to a power cut, it will restart with
the previous function setting automatically when the power resumes.
USING YOUR DEHUMIDIFIER
Page 11

Error Codes
P2 –Water drawer is full or drawer is not in the right position. Empty
the drawer and replace in the correct position.
AS - Humidity module sensor error. Unplug the unit and plug it back in. If
error repeats, call customer service.
ES - Tube Temperature sensor error. Unplug the unit and plug it back in.
If error repeats, call customer service.
EC -Refrigerant leakage detection. With this new technology, the display
area will appear EC when the unit detects refrigerant leakage, call
customer service
USING YOUR DEHUMIDIFIER
Page 12

There are two ways to remove collected water:
Collection in the Water Drawer
When the water drawer is full, the unit will automatically stop running,
and the Full indicator light will flash red.
Slowly pull out the drawer. Grip the left and right handles securely,
and carefully pull out straight so water does not spill. Do not put the
drawer down because the bottom of the drawer is uneven.
Empty the water and replace the drawer. The drawer must be
correctly inserted for the dehumidifier to restart operation.
The machine will restart operation after 3 minutes
Continuous Draining
Water can be automatically emptied into a floor drain by attaching the
unit with a 12mm hose .
Remove the rubber bung from the Drain Hose Outlet on the back of
the unit.
Insert the hose into the Drain Hose Outlet in the back of the unit as
shown below.
EMPTYING YOUR DEHUMIDIFIER
Lead the water hose to a suitable drainage
facility. The drainage facility should be lower
than the drain outlet of the unit.
Be sure to run the water hose sloping
downward and let the water to flow out
smoothly.
NOTE: When the continuous drain feature is
not being used, remove the drain hose from
the outlet and attach the rubber plug back to
the drain outlet.
Page 13

Cleaning the Air Filter
The air filter is located behind the front grille should be checked and
cleaned at least every 30 days or more often if necessary.
NOTE: DO NOT PUT THE FILTER IN AN AUTOMATIC DISHWASHER
To Remove the Air Filter:
Pull the water drawer out.
Grip the tab on the filter and pull the filter downwards.
Clean the filter with warm, soapy water. Rinse and let the filter dry
before replacing it. Do not clean the filter in a dishwasher.
To Replace the Air Filter
Insert the filter into the unit, then push the filter upward.
CAUTION:
DO NOT operate the dehumidifier without a filter. This will cause dirt
and lint to build up and clog the unit and will reduce performance.
CLEANING AND CARE

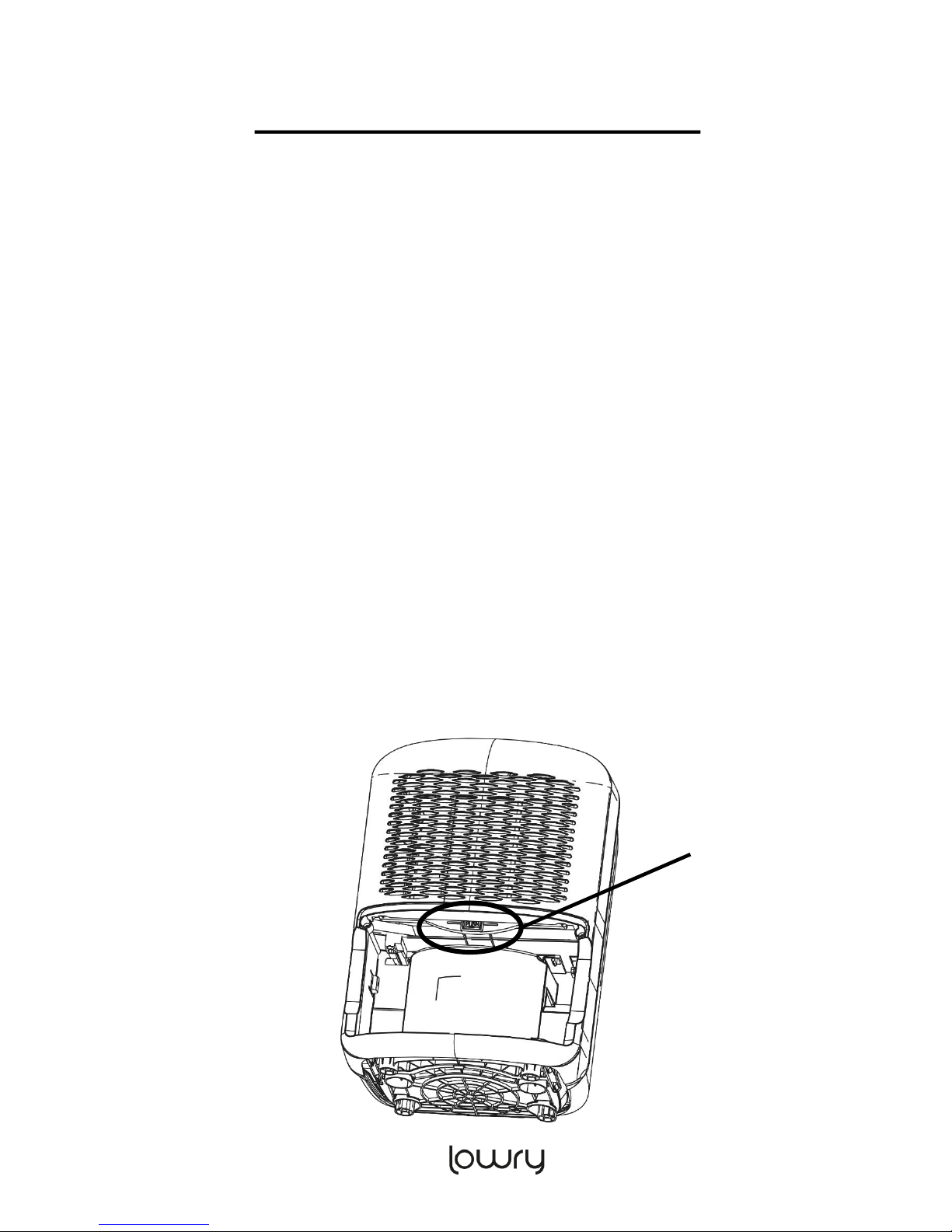

Air Filter Tab
Page 14

Turn the dehumidifier off and remove the plug from the wall outlet
before cleaning.
Cleaning the Grille and Case
Use water and a mild detergent. Do not use bleach or abrasives.
Do not splash water directly onto the main unit. Doing so may cause
an electrical shock, cause the insulation to deteriorate, or cause the
unit to rust.
The air intake and outlet grilles get soiled easily, so use a vacuum
attachment or brush to clean.
Cleaning the Water Drawer
Every few weeks, clean the drawer to prevent growth of mould,
mildew and bacteria. Partially fill the drawer with clean water and
add a little mild detergent. Swish it around in the drawer, empty and
rinse.
NOTE: Do not use a dishwasher to clean the drawer. After clean, the
drawer must be in place and securely seated for the dehumidifier to
operate.
When not using the unit for long time periods
After turning off the unit, wait 24 hours before emptying the drawer.
Clean the main unit, drawer and air filter.
Wrap the cord and bundle it with the band and cover the unit with a
plastic bag.
Store the unit upright in a dry, well-ventilated place.
CLEANING AND CARE
Page 15

TROUBLE SHOOTING
Problem
What to check
Unit does
not start
•
Make sure the dehumidifier’s plug is pushed
completely into the socket outlet.
•
Check the house fuse/circuit breaker box.
•
Dehumidifier has reached its preset level or
drawer is full.
•
Drawer is not in the proper position.
Dehumidifier does not dry
the air as it should
•
Did not allow enough time to remove the
moisture.
•
Make sure there are no curtains, blinds or
furniture blocking the front or back of the
dehumidifier.
•
The humidity selector may not be set low
enough.
•
Check that all doors, windows and other
openings are securely closed.
•
Room temperature is too low, below 5 C(41 F).
•There is a kerosene heater or something giving
off water vapour in the room.
The unit makes a loud
sound when operating
•
The air filter is clogged.
•The unit is tilted instead of upright as it should
be.
•
The floor surface is not level.
Frost
appears on the coils
•
This is normal. The unit has Auto defrost
feature.
Water on the floor
•
Hose to connector or hose connection may be
loose.
•
Intend to use the drawer to collect water, but
the back drain plug is removed.
Power indicator light flashes
5 times per second
•
Temperature sensor or humidity sensor error.
Unplug the unit and plug it back in.
Page 16

GUARANTEE AND CUSTOMER SERVICES
At Lowry, we take all our customer feedback seriously.
Feel free to contact our Product Care Team, on 0345 209 7461
Monday –Friday: 8am-8pm & Saturday: 9am –1pm,
who will be more than happy to assist you.
This product is guaranteed for 12 months from the date of the
original purchase. If any defect arises due to faulty materials or
workmanship, the faulty product must be returned to the place of
purchase.
Refund or replacement is at the discretion of the retailer.
The following conditions apply:
•The product must be returned to the retailer with the original
proof of purchase.
•The product must be installed and used in accordance with the
instructions contained in this instruction guide and any other
instructions for use which are supplied.
•It must be used for domestic purposes only and for its intended
use.
•This warranty does not cover wear and tear, damage, misuse
or consumable parts.
This does not affect your statutory rights.
For Customer Services & Spare Parts please call 0345 209 7461
Opening times: Monday - Friday 8am –8pm & Saturday 9am –1pm
Or visit us at www.productcare.co.uk
Page 17

SPARE PARTS
For Customer Services & Spare Parts please call 0345 209 7461
Opening times: Monday - Friday 8am –8pm & Saturday 9am –1pm
Or visit us at www.productcare.co.uk
To check the availability of the following spare parts, simply contact
our friendly Customer Services team using the details provided at the
bottom of this page.
Air Filter
Drain Hose Bung
Page 18

CONNECTION TOTHEMAINS SUPPLY
This appliance is designed to operate from a mains supply of
220-240V~50/60Hz.
Check that the voltage marked on the product corresponds
with your supply voltage.
How to change the fuse
1. Slot the end of a screwdriver into the
recess in the fuse holder of the plug.
2. Pull the fuse holder upwards until free
of the plug and slide the fuse out.
3. Replace the fuse and replace fuse
holder, pushing down until locked into
place.
Important: Only ever use a 13 amp fuse.
For Customer Services & Spare Parts please call 0345 209 7461
Opening times: Monday - Friday 8am –8pm & Saturday 9am –1pm
Or visit us at www.productcare.co.uk
Page 19

NOTES
Page 20
