LS LL3301 User manual

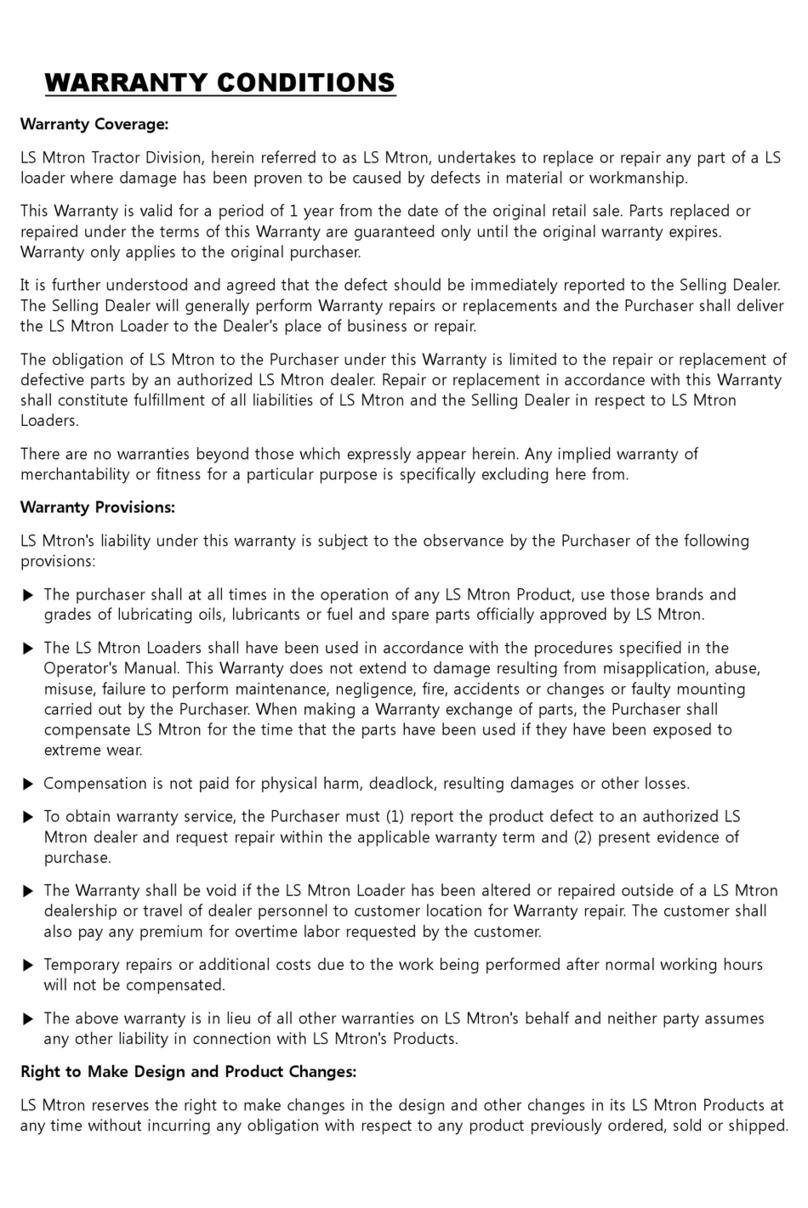

WARRANTY CONDITIONS
Warranty Coverage:
LS Mtron Tractor Division, herein referred to as LS Mtron, undertakes to replace or repair any part of a LS
loader where damage has been proven to be caused by defects in material or workmanship.
This Warranty is valid for a period of 1 year from the date of the original retail sale. Parts replaced or
repaired under the terms of this Warranty are guaranteed only until the original warranty expires.
Warranty only applies to the original purchaser.
It is further understood and agreed that the defect should be immediately reported to the Selling Dealer.
The Selling Dealer will generally perform Warranty repairs or replacements and the Purchaser shall deliver
the LS Mtron Loader to the Dealer's place of business or repair.
The obligation of LS Mtron to the Purchaser under this Warranty is limited to the repair or replacement of
defective parts by an authorized LS Mtron dealer. Repair or replacement in accordance with this Warranty
shall constitute fulfillment of all liabilities of LS Mtron and the Selling Dealer in respect to LS Mtron
Loaders.
There are no warranties beyond those which expressly appear herein. Any implied warranty of
merchantability or fitness for a particular purpose is specifically excluding here from.
Warranty Provisions:
LS Mtron's liability under this warranty is subject to the observance by the Purchaser of the following
provisions:
▶The purchaser shall at all times in the operation of any LS Mtron Product, use those brands and
grades of lubricating oils, lubricants or fuel and spare parts officially approved by LS Mtron.
▶The LS Mtron Loaders shall have been used in accordance with the procedures specified in the
Operator's Manual. This Warranty does not extend to damage resulting from misapplication, abuse,
misuse, failure to perform maintenance, negligence, fire, accidents or changes or faulty mounting
carried out by the Purchaser. When making a Warranty exchange of parts, the Purchaser shall
compensate LS Mtron for the time that the parts have been used if they have been exposed to
extreme wear.
▶Compensation is not paid for physical harm, deadlock, resulting damages or other losses.
▶To obtain warranty service, the Purchaser must (1) report the product defect to an authorized LS
Mtron dealer and request repair within the applicable warranty term and (2) present evidence of
purchase.
▶The Warranty shall be void if the LS Mtron Loader has been altered or repaired outside of a LS Mtron
dealership or travel of dealer personnel to customer location for Warranty repair. The customer shall
also pay any premium for overtime labor requested by the customer.
▶Temporary repairs or additional costs due to the work being performed after normal working hours
will not be compensated.
▶The above warranty is in lieu of all other warranties on LS Mtron's behalf and neither party assumes
any other liability in connection with LS Mtron's Products.
Right to Make Design and Product Changes:
LS Mtron reserves the right to make changes in the design and other changes in its LS Mtron Products at
any time without incurring any obligation with respect to any product previously ordered, sold or shipped.

PLEASE NOTE:
Make sure all potential operators of the this equipment review this manual and all safety
messages contained within
This safety symbol indicates important safety messages in this manual. When you see
this symbol, carefully read the message that follows and be alert to the possibility of
personal injury or death.

Table of Contents
▣Safety Precautions
▣Safety Decals
▣Loader Specifications
▣Introduction
▣Tractor Preparation
▣Loader Operation
▣Loader Removal
▣Loader Mounting
▣Lubrication and Maintenance
▣Trouble Shooting
▣Hydraulic System Schematic
▣Torque Tightening Chart
▣Parts Illustrations
General Information
Mounting Frame Assembly
Boom Assembly
Hydraulic components
Bucket Assembly
Coupler Assembly
Boom Cylinder
Bucket Cylinder
Decals
▣Loader Installation
▣Service Manual
4
8
9
10
11
12
14
15
16
18
22
23
24
24
25
26
32
34
35
36
38
39
41
44

SAFETY PRECAUTIONS
Most tractor and/or loader equipment accidents can be avoided by following simple safety precautions.
The safety information given in this manual does not replace safety codes, insurance requirements, federal,
state, and local laws. Make sure your machine has the correct equipment required by your local laws and
regulations. Understand that your safety and the safety of other persons are measured by how you
service and operate this loader.
Know the position and operations of all controls before you try to operate. Make sure you check all
controls in a safe area before starting.
Read this manual completely and thoroughly and make sure you understand all controls. All equipment
has a limit. Make sure you are aware of the stability and load characteristics of this loader before you
begin operation.
This safety alert symbol indicates important safety messages in this manual. When you see
this symbol, carefully read the message that follows and be alert to the possibility of personal
injury or death.
SAFETY PRECAUTIONS
READ MANUALS AND DECALS
▶Read and understand both the tractor and the loader Operator Manuals and all decals before using
the loader.
▶Lack of knowledge can lead to accidents.
▶It is the loader owner's responsibility to make sure anyone operating the loader reads and understands
this manual first before operating the machine.
▶Follow all safety, operating, and service instructions.
▶Replace damaged or illegible safety labels. See following pages for required labels.
ROPS AND SEAT BELT
▶Equip your tractor with an approved rollover-protective structure (ROPS) or ROPS Cab and seat belt for
your protection.
▶ROPS (Roll-Over Protective Structures) and seat belt equipped tractors are recommended for operator
use in all loader operations.
▶Operator should wear safety hard hat, safety glasses, safety shoes, and other PPE. Avoid wearing loose
clothing or jewelry that may catch in moving parts.
▶Use seat belt as specified by tractor/ROPS manufacturer.
YOURSELF
▶Do not stand, walk, or work under a raised loader bucket or attachment unless it is securely blocked
and held in position.
▶Operate controls only when properly seated in the operator's seat.
▶Only one person, the operator, should be on the machine when it is in operation.
▶Accidental movement of valve handle/handles or leak in the hydraulic system could cause the loader
to drop, or attachment to dump, causing severe injury.
OTHERS
▶Do not allow anyone in loader work area, under raised loader, or to reach through the loader boom
when the bucket or attachment is raised.
▶A frequent cause of personal injury or death is persons falling off and being run over. Inadvertent
movement of the loader or attachment could result in serious injury or death.
▶Do not permit others to ride on your tractor. Loader, bucket, or any attachment.
▶Do not lift or carry anyone on buckets, forks, probes, or any other portion of the loader or loader
attachments.
▶Do not allow children or unqualified persons to operate equipment.

SAFETY PRECAUTIONS
SAFETY PRECAUTIONS
PREPERATION
▶Move the wheels to the tractor manufacturer's widest recommended settings to increase stability.
▶For better stability, always use a tractor equipped with a wide front axle, never use a tractor equipped
with a tricycle type front axle.
▶Add rear ballast or rear weight to the tractor to compensate for the load and increase stability.
▶Add recommended rear tire liquid weight or rear wheel weights for increased stability.
▶Do not modify, alter, or permit anyone else to modify or alter the loader, any of its components, or
any loader function without first consulting a LS Mtron dealer.
▶Assemble, remove, and reinstall the loader only as directed in this manual. Failure to do this could
result in serious personal injury or death.
▶The loader may shift during shipping and handling, making it unstable on the pallet. Support loader
with an overhead hoist or other suitable means prior to removing bands or attaching straps securing
loader to pallet. Failure do so could result in accidental tip-over of the loader that could cause serious
injury to you and/or bystanders.
BEFORE OPERATION
▶Before starting the engine of your tractor, make sure all operating controls are in park lock or neutral
position.
▶Be certain lights and safety markings, as provided by the tractor manufacturer, are clean and operating
when transporting the tractor/loader on public roads. Be certain that the Slow Moving Vehicle (SMV)
emblem is visible. Check with local law enforcement for specific requirements.
OPERATION
▶Add wheel ballast and/or rear weight to counterbalance tractor/loader for stability at maximum loader
capacity.
▶Additional counterweight requirements will vary with loader attachments and equipment application.
▶Move and turn the tractor at low speeds.
▶Carry loader boom at a low position during normal operation.
▶Never travel at high speeds with bucket loaded.
▶Use caution when operating the loader with a raised bucket or attachment.
▶Avoid driving over loose fill, rocks, holes, or anything that may be dangerous for loader operation or
movement.
▶Allow for the loader length when making turns.
▶Use caution when handing loose or unstable loads.
▶Gradually stop the loader boom when lowering or lifting loads.
▶When using remote hydraulic tractor valves on some tractors, the loader lift and dump cylinders will
continue moving unless the valve handle/handles are manually returned to neutral, or until relief
pressure is reached at the ends of piston strokes. Observe the bucket movement and maintain control
with valve handle/handles.
▶Travel speed should be such that complete control and machine stability is maintained at all times.
Where possible, avoid operating near ditches, embankments, and holes. Reduce speed when turning,
crossing slopes, and on rough, slick or muddy surfaces.
▶A loader attachment should be transported in a low position at slow ground speeds. Make turns
slowly and use the tractor brakes cautiously. A loaded attachment in the raised position alters the
center of gravity location of the machine and increases the possibility of mishaps.
▶Be careful during loading, transporting, and stacking to minimize rolling bales and tractor tip over.
▶Do not use buckets, forks, or other attachments without bale retaining devices.
▶Operate the tractor and loader such that complete control and machine stability is maintained at all
times.
▶When using a loader, be alert of bucket or attachment position at all times. Loader in raised position
with bucket or attachment rolled back can dump material onto tractor causing damage or injury to
tractor and/or operator.

SAFETY PRECAUTIONS
SAFETY PRECAUTIONS
LARGE HEAVY OBJECTS
▶Never use loader for handling large heavy objects, such as large round or rectangular bales, logs, and
oil drums unless loader is equipped with attachment that is designed to handle such objects.
▶Handling large heavy objects can be extremely dangerous due to danger of rolling the tractor over.
▶Handling large heavy objects can be extremely dangerous due to danger of upending the tractor.
▶Handling large heavy objects can be extremely dangerous due to danger of the object rolling or
sliding down the loader boom onto the operator.
▶If you must handle large heavy objects, protect yourself by using caution, moving slowly, and avoiding
bumps and rough ground.
▶If you must handle large heavy objects, protect yourself by never lifting load higher than necessary to
clear the ground.
▶If you must handle large heavy objects, protect yourself by adding rear ballast to the tractor to
compensate for weight of load.
▶If you must handle large heavy objects, protect yourself by never lifting large heavy objects that may
roll or fall on the operator.
▶Never lift any load from any point of the loader with a chain, rope or cable unless loader is equipped
with a Factory approved attachment that was designed and built for this type of lifting. Always follow
lifting instructions included with these attachments.
▶Use only Factory bale probe or bale retaining devise handler attachment when handling round bales.
▶Do not handle large square bales without a retaining device handler attachment.
▶Do not use buckets, forks, or other attachments without bale retaining devices.
▶Do not use loader for handling large, heavy objects such as logs, tanks, etc.
SLOPES
▶Stay off of slopes too steep for safe operation.
▶Shift down before you start up or down a hill with a heavy load. Avoid "freewheeling".
▶Use extreme caution when operating on a slope.
▶Always operate up and down the slope, never across the slope.
ELECTRICAL
▶Avoid contact with overhead wires, power lines, and obstacles when loader bucket or attachment is
raised.
▶Electrocution from power lines can occur with or without contact.
▶Check for underground utilities before digging below grade level.
▶Contact with overhead power lines can cause severe electrical burns or death from electrocution. Make
sure there is enough clearance between raised equipment and overhead power lines.
HYDRAULIC
▶Do not tamper with the relief valve setting. This will void warranty and could cause damage to loader
and/or tractor.
▶Pouring hydraulic fluid under pressure can have sufficient force to penetrate the skin, causing serious
personal injury. Do not use HANDS to search for suspected leaks. If injured by escaping fluid, obtain
medical treatment immediately.
▶Visually check for hydraulic leaks and broken, missing or malfunctioning parts. Never use your hand to
check for suspected leaks under pressure. Use a piece of cardboard or wood for this purpose. Escaping
hydraulic fluid or diesel fuel leaking under pressure can have sufficient force to penetrate the skin and
cause serious infection or other personal injury. If injured by leaking fluid, seek medical attention
immediately.
▶To prevent personal injury, relieve all pressure before disconnecting fluid lines.
▶Before applying hydraulic pressure, make sure all hydraulic connections are tight and components are
in good condition.
▶Be sure to purge all the air from the hydraulic system before attempting to raise or lower this machine.

SAFETY PRECAUTIONS
SAFETY PRECAUTIONS
▶When using remote hydraulic tractor valves on some tractors, the loader lift and dump cylinders will
continue moving unless the valve handle/handles are manually returned to neutral, or until relief
pressure is reached at the ends of piston strokes. Observe the bucket or attachment movement and
maintain control with valve handle/handles.
▶Raised loader or boom can fall due to hydraulic system failure.
▶To avoid serious injury or death: Block up or securely support loader and boom before working
underneath.
▶To avoid serious injury or death: Purge all air from hydraulic system before attempting to raise or
lower loader or boom.
▶To avoid serious injury or death: Stand clear if lowering or raising loader or boom.
▶Do not use hand or skin to check for hydraulic leaks. Use cardboard or wood. Wear eye protection.
▶ High pressure oil leaks can penetrate skin causing serious injury and gangrene. Consult a physician
immediately.
▶Lower the loader or boom and release hydraulic pressure before loosening fittings.
AFTER OPERATION
▶ Before leaving the tractor seat, lower attachment or loader boom to ground, stop engine, lock parking
brakes, put all controls in neutral, relieve hydraulic pressure, and remove key before leaving operator's
seat.
▶ Before disconnecting hydraulic lines, relieve all hydraulic pressure.
▶ Make sure all parked loaders on stands are on a hard level surface with all safety devices engaged to
prevent loader from falling and being damaged or injuring someone.
▶ Always park loader with bucket attached to loader.
▶ When a front loader is mounted on the tractor, enter and exit the operator's seat only from left side of
the tractor.
▶ Always park loader with a Factory attachment attached to the loader.
▶ Special care should be taken to park or store attachments with points or sharp edges in a safe manner.
▶ Make sure all parked loaders are on a hard level surface. Engage all safety devices to prevent loader
from falling and being damaged or injuring someone. Do not repair loader if it is not mounted on the
tractor. Loss of hydraulic fluid or removal of parts could cause loader to collapse resulting in injury.
REPAIR
▶ Visually check for hydraulic leaks and broken, missing, or malfunctioning parts. Make necessary repairs
before operation.
▶ To keep mounting kit hardware from loosening during loader operation, hardware must be torqued to
specifications notes in operator manual.
▶ Always wear safety goggles when servicing or repairing the machine.
▶ When servicing or replacing pins in cylinder ends, bucket, etc., always use a brass drift and hammer.
Failure to do so could result in injury from flying metal fragments.
▶ Never tow from any point of the loader with a chain, rope, or cable. Doing so could cause a roll over
or serious damage to the loader.

SAFETY DECALS
Safety Decal Locations
Important:
Decal 03L01, 03L06, AL1105, AL1107 located on the right hand Mid-mount and Decal 03L02, 03L03, 03L04
located on the loader left hand Mid-Mount are visible when getting on tractor.
Care of Safety Decals.
▶Keep safety decals clean and free of obstructing material.
▶Clean safety decals with soap and water and dry with a soft cloth.
▶If a component with a safety decal(s) affixed is replaced with a new
part, make sure new safety decal(s) are attached in the same location(s)
as the replaced components.
▶Mount new safety decals by applying on a clean dry surface and pressing
air bubbles to outside edges.
40381557 (03L01) 40381563 (03L02) 40381564 (03L03)
40381565 (03L04) 40381558 (03L06) 40383693 (AL1105) 40383694 (AL1107)
40381560 (17L02) 40381559 (17L01)
40381561 (17L03) 40381835 (17L00)

LOADER SPECIFICATION
* Specifications shown are based on ASAE Standards.
* Specifications and design are subject to change without prior notice.
Loader Model :
Tractor Model :
Bucket Leveling :
Loader Ratio
0.96:1
LL3301
LL3302
A.
Maximum lift height to pivot pin
2,388 mm
94.0 "
2,388 mm
94.0 "
B.
Maximum lift height under level bucket
2,157 mm
84.9 "
2,157 mm
84.9 "
C.
Clearance with bucket dumped
1,665 mm
65.6 "
1,665 mm
65.6 "
D.
Reach at maximum lift height
292 mm
11.5 "
292 mm
11.5 "
E.
Maximum dump angle
57 °
57 °
57 °
57 °
F.
Reach with bucket on ground
1,664 mm
65.5 "
1,664 mm
65.5 "
G.
Maximum rollback angle
40 °
40 "
40 °
40 "
H.
Digging depth
139 mm
5.5 “
139 mm
5.5 “
J.
Overall height in carry position
1,343 mm
52.9 “
1,343 mm
52.9 “
L.
Bucket depth
541 mm
21.3 "
541 mm
21.3 "
M.
Bucket height
563 mm
22.2 "
563 mm
22.2 "
N.
Bucket length
713 mm
28.1 "
713 mm
28.1 "
Loader Total Weight
402 kg
886 lb
403 kg
888 lb
Weight of Boom Assembly
297 kg
655 lb
298 kg
657 lb
Weight of Mounting Frame
105 kg
231.5 lb
105 kg
231.5 lb
Approx. Weight(Loader w/o Bucket)
295 kg
650 lb
296 kg
653 lb
1.
Rated operating load
-
-
-
-
2.
Lift capacity to maximum height-at pivot pin
719 kgf
1,585 lbf
956 kgf
2,108 lbf
3.
Breakout force-at pivot pin
1,223 kgf
2,696 lbf
1,542 kgf
3,400 lbf
4.
Bucket rollback force at ground line
1,414 Kgf
3,111 lbf
1,444 Kgf
3,177 lbf
5
Bucket width
1,720 mm
67.7 "
1,720 mm
67.7 "
6.
Bucket capacity
0.28 ㎥
9.9 cu.ft
0.28 ㎥
9.9 cu.ft
7.
Boom cylinder
Ø30Xø50x417
1.2x2.0x16.4
Ø30Xø55x417
1.2x2.17x16.4
8.
Bucket cylinder
Ø30xØ50x420
1.2x2.0x16.5
Ø30xØ50x420
1.2x2.0x16.5
9.
Boom raising time
3.1 sec
3.8 sec
10.
Boom lowering time
2.0 sec
2.7 sec
11
Bucket rollback time
3.2 sec
3.2 sec
12.
Bucket dumping time
2.0 sec
2.0 sec
13.
Maximum pressure (Governing loader operation)
175 bar
2,538 psi
175 bar
2,538 psi
14.
Rated flow
31.2 ℓ/min.
8.24 ℓ/min.
31.2 ℓ/min.
8.24 ℓ/min.
LL3301/LL3302
XG3135/XG3140
Non-Self level type

INTRODUCTION
The purpose of this manual is to assist you in
maintaining and operating your loader. Read it
carefully, it furnishes information and instructions
that will help you achieve years of dependable
performance.
Some information may be general in nature due
to unknown and varying conditions.
However, through experience and these
instructions, you should be able to develop
operating procedures suitable to your particular
situation.
"Right" and "Left" as used throughout this manual
are determined by facing the direction the
machine will travel when in use.
The photos, illustrations and data used in this
manual are current at the time of printing, but
due to possible in-line production changes, your
machine may vary slightly in detail. The
manufacturer reserves the right to redesign the
machine as may be necessary without notification.
▶Important:
Illustrations used in this manual may not show all
safety equipment that is recommended to ensure
safe operation of tractor and loader. Refer to the
Safety Precautions section of this manual for
information concerning safety. Consult your dealer
for further information.
▶Warranty Registration
The Delivery and Warranty Registration forms
must be filled out and signed to validate your
warranty protection. The items on the form under
"I hereby Acknowledge" should be read and
understood. The terms and conditions of the
warranty on this machine are specified in the front
of this manual.
▶Serial Number and Location
The serial number is important information about
the machine and it may be necessary to know it
before obtaining the correct replacement part. The
serial number plate is located on the LH(left hand)
inside of front area of boom. The serial number
should be recorded on the Delivery and
Registration form and also below for your
reference.
LS Mtron LL3301/LL3302 Loader Serial Number Information
LOADER SERIAL NUMBER
DATE PURCHASED
DEALER NAME
AND TELEPHONE NUMBER

TRACTOR PREPARATION
Rear Counterweight
CAUTION:
Add recommended rear tire liquid
weight, rear wheel or rear ballast for
increased stability.
CAUTION:
Do not exceed the manufacturer's
rating for maximum gross vehicle weight.
Refer to Operator's Manual or ROPS serial
plate provided with tractor.
CAUTION:
Certain specific conditions may not
permit safe use of loader at loader rating or
may require more careful restricted operation
at the rated load.
Refer to Tractor Operator's Manual for specific
recommendations on counterweight tractor.
▶ROPS System
The tractor must be equipped with an approved
ROPS System to ensure adequate operator's
protection
The use of adequate counterweight to counter
balance for maximum loader capacity is required for
safe loader operation.
Weight added to rear of the tractor provides better
traction and easier, more efficient loader operation.
The tractor can be counter weighted by filling rear
tires with liquid calcium solution and/or by the
installation of rear wheel weights.
Additional counterweight requirements will vary with
loader attachments and equipment applications.
Additional weight can be added by installation of
Three Point Hitch mounted ballast.
▶Tractor Hydraulic System
Tractor operation in a loader application significantly
increase demands on the tractor Hydraulic System.
Check the tractor Hydraulic system fluid level daily.
Refer to your tractor Operator's Manual maintenance
section for instructions regarding tractor hydraulic
system maintenance.
Adhere to recommendation in your Tractor
Operator's Manual concerning hydraulic fluid and
filter specifications, and change intervals.
CAUTION:
The tractor/loader must only be operated with all safety equipment properly installed.
▶TRACTOR TIRES
Selection of tires(size, profile, tread type) should be
restricted to tire recommendations as specified by LS
Mtron
▶Tire Inflation
Front tires must be maintained at the maximum
recommended inflation to maintain normal tire
profile with the added weight of loader/material.
Rear tires must be maintained at equal pressure
within the recommended tire inflation range.
Unequal rear tire inflation can prevent loader
attachment from contacting the ground across its
full width.
▶Wheel Tread Settings
Tractor front wheel tread setting must be restricted
to wheel tread spacing recommended in the tractor
Operator's Manual.
▶Front Counterweight
Use of front counterweight is not recommended
when tractor is being used in a loader application.
Front counterweight adds unnecessary front axle
load in loader applications.

LOADER OPERATION
CAUTION:
The tractor/loader should only be operated
with all safety equipment properly installed.
▶Precautionary Notes
Do not lower the edge of the bucket too low for
loading. Keep the bottom of the bucket level with
the ground when loading.
▶Important:
Do not use the bucket for pushing down material
with bucket cylinders partially extended. Damage to
the cylinders may result.
▶Important:
Do not operate bucket cylinders without bucket, it
may damage to the bucket cylinders.
▶Important:
Do not tip bucket cutting edge down(fully extended
bucket cylinders) during backfilling/backgrading
operations.
▶Important:
Operation with front tractor wheels off the ground is
not recommended.
Position vehicle to be loaded as near the pile as
possible and in such a direction as to minimize the
amount of tractor turning required dumping.
Do not lower the loader with the tractor engine shut
off.
Keep the unit clean and perform regular service.
Observe safety messages whenever cleaning,
servicing, or lubricating.
We urge you to follow this advice:
1. Read and understand this manual as well as the
Tractor Operator's Manual.
2. Remember and observe the Safety Precautions
brought to your attention in this manual, the tractor
manual and on the machinery itself.
3. Use good common sense in the everyday
operation of this unit.
Safety recommendations can never be all-inclusive
and you are responsible for watching out for and
avoiding unsafe conditions.
4. Never exceed the limits of a piece of machinery. If
its ability to do a job or to do so safely is in
question, don't try it.
5. Don't hurry the learning process or take the unit
for granted. Ease into it and become familiar with
your new loader and tractor.
CAUTION: When lowering a heavy load, ease
it downward slowly. Never drop a loaded
attachment and "catch it hydraulically".
Stopping a load after it has gained downward
momentum places undue strain on the unit and may
cause unnecessary damage to the loader or tractor
or even worse, personal injury.
CAUTION: Before disconnecting hydraulic
lines, relieve all hydraulic pressure. Escaping
hydraulic oil under pressure can have
sufficient force to penetrate the skin causing serious
personal injury. If injured by escaping hydraulic oil
seek medical attention immediately.
CAUTION: Do not operate the loader if the
fittings are leaking or if the hoses are
damaged. A sudden line burst would cause
the mainframe to drop suddenly, causing damage to
the tractor or loader or injury to personnel.
▶Initial Loader Operation
Before operating the loader, fully raise and lower the
boom two or three times. Then raise the bucket
approximately four(4) feet above the ground and
cycle the bucket cylinders three times. Lower the
bucket to the ground. Check the tractor hydraulic oil
and the correct oil level.
CAUTION:
Before leaving the machine, stop the engine, remove
the key, place all controls in neutral, and either set
the parking brake or place tractor in park as
equipped.
Always keep cylinders in a retracted position when
the loader is not in use to guard against rust and
contamination which may cause damage to the
cylinder rods or hydraulic system.
▶Cold Weather Operation
For smooth operation in cold weather, let the tractor
warm up. Slowly cycle the lift and bucket cylinders
several times to warm the oil in the hydraulic system.
The loader may operate erratically until the hydraulic
oil has warmed to operating temperatures.

LOADER OPERATION
CAUTION:
Operate controls only when seated in the
operator's seat.
▶Loading Bucket
For the most efficient loading, slowly drive the
tractor straight into the material to be loaded and
increase speed only after contact has been made.
Roll the attachment back a small amount and slowly
lift to break away the material. As the load increase,
continue rolling the attachment back so as to get
the maximum load. Remove the top levels first when
loading from large piles of material. When bucket is
full, raise loader so the bucket is clear of material
and slowly back out of the pile.
▶Dumping Bucket
When in the dump area slowly drive the tractor
forward and raise the loader at the same time. Raise
the loader to the height needed to dump the bucket.
Make sure to keep a level bucket position to prevent
spilling from the bucket. Dump the bucket, and keep
all movements smooth.
▶Transporting a Loaded Bucket
Transport material with the bucket as low as possible
to prevent spilling and keep maximum stability. The
loader must be in a position that will not block the
operators' vision. A loaded bucket must not be
transported in the upright position or at excessive
speed.
Observe the following safety warning when
transporting a loaded bucket.
CAUTION:
When using a loader, be aware of bucket location at
all times. When raising a loader with bucket rolled
back, material can dump onto tractor causing
damage to tractor or injury to operator.
WARNING:
Contact with overhead power lines can cause severe
electrical burns or death from electrocution. Make
sure there is clearance between raised equipment
and overhead power lines.
CAUTION:
Stop the loader arms gradually when
lowering or lifting.
WARNING:
A loaded Bucket should be transported in a low
position at low ground speeds. Make turns slowly
and use the tractor brakes cautiously. A full bucket in
the raised position alters the center of gravity
location of the machine and increases the possibility
of accidents.
CAUTION:
Do not stand, walk or work under a raised loader
unless it is securely blocked or held in position.
Accidental movement of a control lever or leak in th
hydraulic system could cause the loader to drop, or
attachment to dump, resulting in serious injury or
death.
▶Scraping
When scraping, the Boom lever must be used to
keep the bucket on the ground horizontally. The
bucket must be kept level to the ground during
scraping operations.
▶Backfilling/Backgrading
When "Backfilling" or "Backgrading", position the
bucket so it is level on the ground. Do not dump
material from bucket following each pass, as
additional weight of material in bucket will assist in
"Backgrading" and increases loader efficiency during
"Backfilling".
▶Controlled Rate of Loader Functions
By "feathering" the control lever, reduced operational
speeds can be controlled. This action controls the
position of the valve spool in the valve body and
regulates flow of oil to/from cylinders. It is important
utilize this operational practice when lowering loader
boom when the bucket is loaded with material.

LOADER REMOVAL
CAUTION:
Never park loader without bucket attached
to the loader.
CAUTION:
Never allow weight of tractor to be put on
parking leg when removing loader.
▶Park the tractor and loader on hard level surface.
▶Raise the boom until the bucket is about 2 feet
off the ground.
▶Remove the Pin and R-pin from „K‟.
Open the Stand „X‟ by the Bracket „Y‟.
Assembly the Pin and R-pin at the „L‟
▶Lower the boom until the Parking legs make
contact on the ground.
Tip the bucket until the bucket cutting edge touch
the ground.
▶Remove the latch pin while move the control lever
back and forth slightly to make the latch pin easy.
▶Pull the control lever to raise the loader until the
post lift off mounting frame.
Adjust the bucket until the bottom surface of bucket
touch the ground.
▶Move the tractor backward slowly and stop to
avoid the hydraulic hoses being tighten.
▶Stop the engine and move the control lever back
and forth, left and right several times to reduce the
hydraulic pressure in the hoses.
▶Disconnect the quick couplers on the hydraulic
hoses.

LOADER MOUNTING
CAUTION:
Never allow weight of tractor to be put on parking
leg when mounting loader.
▶Carefully drive the tractor into the loader to a
position where the hydraulic hoses(Quick coupler)
can be connected to the control valve block.
▶Stop the engine and move the control lever back
and forth, Left and right several times to reduce the
pressure in the hydraulic hoses. Connect the
hydraulic couplers match the color code rings.
▶Start the engine and move the boom and bucket
to adjust the height of post.
Be sure to check the pin welded of post is slightly
higher than the hook on mounting frame.
▶Move the tractor forward to put the post into the
mounting frame. Stop the tractor
When the hook is right over the pin.
Lower the mounting frame with moving the boom
and bucket until it hooked securely each other.
▶Align the latch pin holes with moving the bucket
and boom.
Insert the latch pins.
Rubber hammer can be used to put the pin in if
needed.
▶Remove pin and keeper holding the parking legs
and return to storage position. Make secure by using
pin and keeper.

LUBRICATION AND MAINTERNANCE
CAUTION:
Do not perform and service or maintenance
Operations with loader raised off the ground. For
additional access to tractor components remove
loader.
▶Important:
Lower the loader to the ground and relieve pressure
in loader hydraulic lines prior to performing any
service or maintenance operations on the tractor or
loader.
CAUTION:
Escaping fluid under pressure can have sufficient
force to penetrate the skin, causing serious injury.
Before disconnecting lines, be sure to relieve all
pressure. Before applying pressure to the system, be
sure all connections are tight and that lines, pipes
and hoses are not damaged. Fluid escaping from a
very small hole can be almost invisible. Use a piece
of cardboard or wood rather than your hands to
search for suspected leaks. If injured by escaping
fluid, seek medical attention immediately. Serious
infection or reaction can develop if correct medical
treatment is not administered immediately.
Refer to "Lubrication and Maintenance Chart" for
quick reference to Maintenance Operations.
CAUTION:
Do not operate the loader if the fittings are leaking
or if the hoses are damaged. A sudden line burst
could cause the mainframe to drop suddenly,
causing damage to the tractor or loader or injury to
personnel.
CAUTION:
Operate the loader from the tractor seat only.
CAUTION:
Do not stand or walk under a raised loader.
Accidental movement of control lever or leak in
hydraulic system could cause mainframe to drop,
causing severe injury.
Check the tractor hydraulic system as outlined in the
Tractor Operator's Manual.
Note:
When checking hydraulic system oil level, the loader
should be on the ground and bucket fully
retracted(all cylinders in retracted position).
Grease all loader pivot points daily(10 hours). Refer
to Tractor Operator's Manual for lubricant
recommendations.
Inspect hydraulic hoses, connections, control valve
and cylinders for evidence of leakage.
Tractor tires should be maintained at maximum
recommended inflation to maintain normal tire
profile with added weight of loader/material.
Unequal rear tire inflation can result in bucket not
being level to the ground.

LUBRICATION AND MAINTERNANCE
ITEM
SERVICE
SERVICE INTERVAL
Hydraulic System Oil Level
Check
Daily/10 hours
Hydraulic System Oil/Filter
Replace
As specified in Tractor
Operator's Manual
Tire Inflation
Check
Weekly/50 hours
Loader Pivot Points
Lubricate
Daily/10 hours
Loader Hydraulic Lines, Hoses,
Connections
Check for leaks, wear
Daily/10 hours
Lift and Bucket cylinder rod
packing‟s
Check for seepage, service as
needed
Daily/10 hours
Pivot pin bolts and dust covers
Check, replace if missing
Daily/10 hours
Mid-Mount latch and link pins
Check, replace if necessary
Daily/10 hours
Loader mount hardware
Check visually
Daily/10 hours
Loader mount hardware
Re-torque
Every 25 hours

TROUBLE SHOOTING
This Trouble Shooting Chart is provided for reference to possible loader operational problems.
Determine the problem that best describes the operational problem being experienced and eliminate the
possible causes as listed by following the correction procedures.
PROBLEM
POSSIBLE CAUSE
CORRECTION
Lift and Bucket Cylinders
Low hydraulic fluid level.
Check and replenish hydraulic fluid.
Hydraulic hoses
connected improperly.
Check and correct hydraulic hose connections.
Hydraulic hoses to/from
control valve blocked
Check for damage(kinked) hoses, etc.
Loader control valve or
tractor main relief valve
stuck open.
Check system pressure. Repair or replace relief
valve.
Low system pressure
supplied from hydraulic
pump.
Check system pressure.
Repair or replace pump.
Control valve linkage
broken.
Inspect. Repair as required.
Quick disconnect
coupler(s) are not fully
connected or "Flow
Check"
Check coupler connections.
Replace coupler(s) if necessary.
Hydraulic hose or tube
line blockage.
Check for evidence of damage to hoses or tube
lines that would block flow of oil between
cylinders and control valve.
Cylinder piston assembly
defective(not sealing)
Check cylinders for internal leakage as
described in service section under cylinder
leakage tests.
Control valve blockage.
Inspect for blockage. Disassemble valve if
necessary.
Lift and/or Bucket
Cylinders operate in wrong
Direction relative to control
valve lever position.
Hydraulic hoses
connected incorrectly.
Correct hydraulic hose connections.
Aeration of Hydraulic
Fluid(Generally indicated by
foamy appearance of fluid).
Low hydraulic fluid level.
Check and refill hydraulic system to proper
level.
Air leaking into suction
side of hydraulic pump.
Check for loose or defective connections
between reservoir and hydraulic pump.
Hydraulic fluid foaming
due to improper hydraulic
oil usage.
Refer to Tractor Operator's Manual and replace
hydraulic oil using recommended hydraulic oil.

TROUBLE SHOOTING
PROBLEM
POSSIBLE CAUSE
CORRECTION
Slow or erratic lift
Low hydraulic fluid level.
Check and replenish hydraulic fluid.
Cold hydraulic fluid.
Allow hydraulic system to warm up to
operating temperature.
Engine R.P.M. too slow
(hydraulic pump R.P.M. too
slow).
Increase engine speed to obtain
satisfactory loader operation.
Excessive weight in bucket.
Material weight exceeds
maximum specified loader
capacity.
Reduce material load.
Control valve linkage
binding/defective.
Check control valve linkage and repair if
worn/defective.
Aeration of hydraulic fluid
Refer to "Aeration of Hydraulic Fluid".
Quick disconnect coupler
restriction or coupler "Flow
checks"
Check coupler connections. Repair or
replace.
Hydraulic hose or tube line
restriction(hoses/tube line)
kinked or pinched.
Check hoses and tube lines for evidence
of restriction.
Lift cylinder piston assembly
leakage.
Check cylinders for leakage. Repair as
needed.
Relief valve erratic or set below
specifications.
Check and reset relief valve. Setting as
needed.
Control valve leaking
internally.(bypassing fluid within
valve).
Replace control valve and recheck
operation.
Inadequate hydraulic pump
capacity.
Refer to "Hydraulic Pump Capacity
Inadequate"
Inadequate lifting capacity
Engine R.P.M. too slow.
Increase engine R.P.M.
Excessive load –material weight
exceeds specified loader
capacity.
Reduce Load.
Relief valve setting below
specifications.
Check and reset relief valve setting as
needed.
Lift cylinder piston assembly
leakage.
Check cylinders for leakage. Repair as
needed.
Control valve leaking internally
Replace control valve and recheck
operation.
Hydraulic pump defective.
Refer to "Hydraulic Pump Capacity
Inadequate".

TROUBLE SHOOTING
PROBLEM
POSSIBLE CAUSE
CORRECTION
System relief valve squeals.
Cold Hydraulic Fluid.
A low hydraulic fluid to warm up to
operating temperature.
Excessive load in bucket.
Weight exceeds specified
loader capacity.
Reduce load.
Relief valve setting below
specifications.
Check and reset valve setting as needed
Hydraulic hose, tube line or
quick disconnect coupler
restriction.
Check for evidence of restriction in
hydraulic oil flow.
Repair or replace defective components.
Loader drops with control
valve spool in "centered"
position (no external oil
leakage evident.)
Cylinder piston assembly
leakage.
Check cylinders for leakage.
Note: A gradual drop over
an extended period of time
is a normal condition.
Control valve internal leakage.
Replace control valve and recheck.
Control valve spool(s) will
not return to centered
position.
Control lever linkage binding.
Determine origin of binding and repair.
Control valve spool centering
is broken.
Replace centering spring.
Control valve spool binding in
valve body spool bore.
Disassemble valve for inspection and
repair.
External hydraulic fluid
leakage.
Loose hydraulic connection.
Tighten loose connections.
Defective hydraulic hose, tube
line, adapter fitting or adapter
fitting o-ring.
Check for origin of oil leak and replace
defective part.
Control valve o-rings defective.
Replace defective o-rings.
Control valve spool or body
damaged or worn.
Replace control valve.
Cylinder rod packing set
leakage.
Check cylinders for leakage.
Repair as needed.
