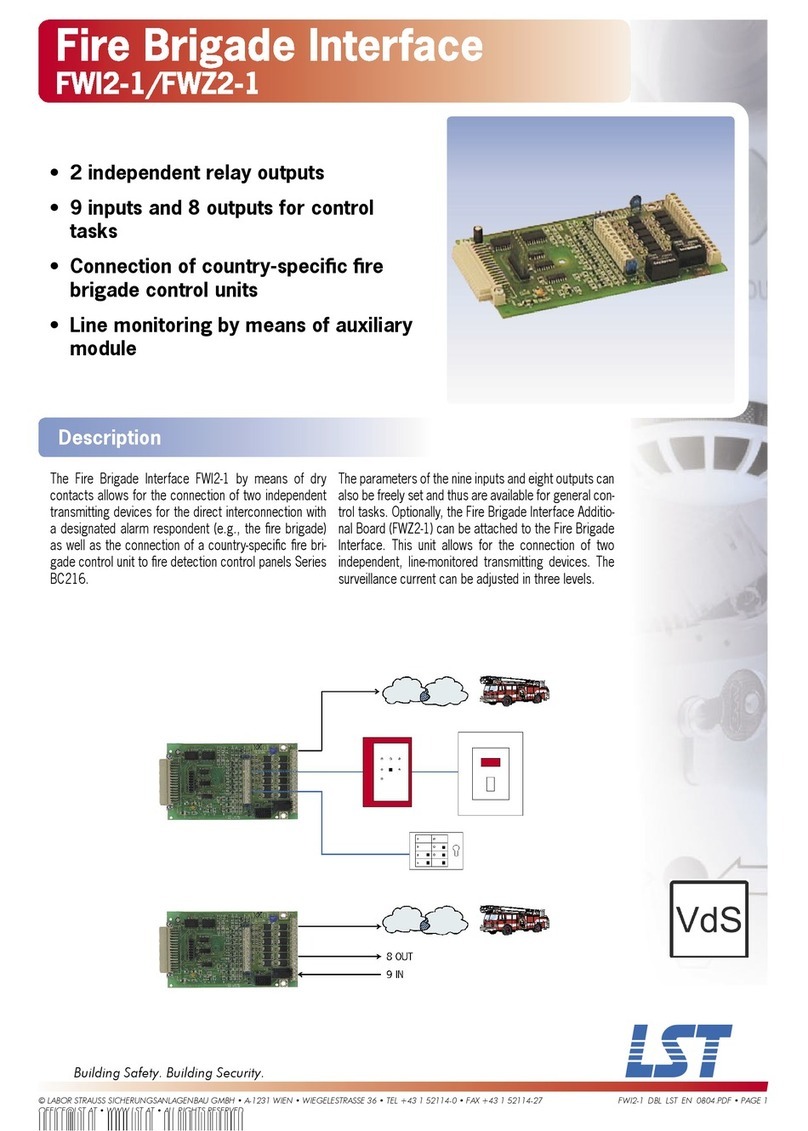

LST FWI2-1 User manual

LST

LST FWI2-1 User manual

LST LIF128-1 User manual

LST

LST LIF128-1 User manual

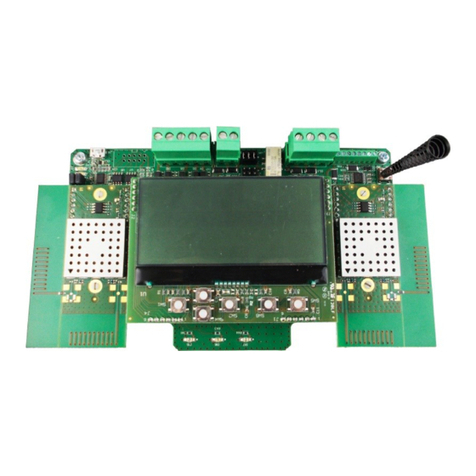

LST TAURUS Series User manual

LST

LST TAURUS Series User manual

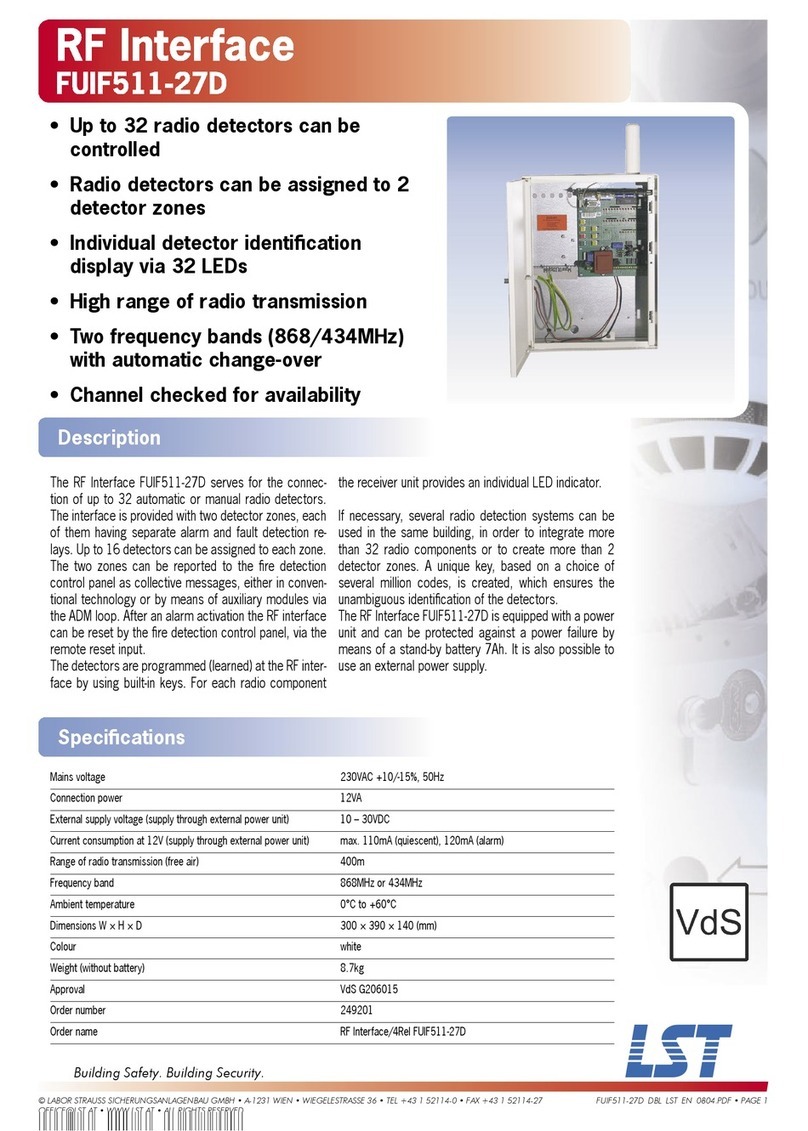

LST FUIF511-27D User manual

LST

LST FUIF511-27D User manual

LST GIF8-1 User manual

LST

LST GIF8-1 User manual

LST FWI016-1 User manual

LST

LST FWI016-1 User manual

LST M400RFE-AS User manual

LST

LST M400RFE-AS User manual

Popular Recording Equipment manuals by other brands

ThermoFisher Scientific Dionex DRS 600 Installation checklist

ThermoFisher Scientific

ThermoFisher Scientific Dionex DRS 600 Installation checklist

Shure ANIUSB-Matrix user guide

Shure

Shure ANIUSB-Matrix user guide

Nady Audio HE-1 user guide

Nady Audio

Nady Audio HE-1 user guide

AUDAC APM 01 User manual & installation guide

AUDAC

AUDAC APM 01 User manual & installation guide

Teac GF-350 owner's manual

Teac

Teac GF-350 owner's manual

Fractal Audio MFC-101 MARK III owner's manual

Fractal Audio

Fractal Audio MFC-101 MARK III owner's manual

bmcm USB-OI16 manual

bmcm

bmcm USB-OI16 manual

HHB BurnIT CDR-830 Service manual

HHB

HHB BurnIT CDR-830 Service manual

GE VersaMax IC200CPUE05 manual

GE

GE VersaMax IC200CPUE05 manual

IntesisBox MH-RC-MBS-1 user manual

IntesisBox

IntesisBox MH-RC-MBS-1 user manual

Attero Tech unD4l user manual

Attero Tech

Attero Tech unD4l user manual

Sennheiser UI 765 instruction manual

Sennheiser

Sennheiser UI 765 instruction manual

Sony RCD-W1 Operating Instructions  (primary... Service manual

Sony

Sony RCD-W1 Operating Instructions (primary... Service manual

Roland Planet-P  MKS-10 owner's manual

Roland

Roland Planet-P MKS-10 owner's manual

Roland BOSS GT-PRO Turbostart

Roland

Roland BOSS GT-PRO Turbostart

8x8 Inc Valcom V-2001A manual

8x8 Inc

8x8 Inc Valcom V-2001A manual

Waves SUB Align user guide

Waves

Waves SUB Align user guide

Mitsubishi Electric MAC-334IF-E installation manual

Mitsubishi Electric

Mitsubishi Electric MAC-334IF-E installation manual

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.

© LABOR STRAUSS SICHERUNGSANLAGENBAU GMBH • A-1231 WIEN • WIEGELESTRASSE 36 • TEL +43 1 52114-0 • FAX +43 1 52114-27
[email protected] • WWW.LST.AT • ALL RIGHTS RESERVED
LIF64-1_DBL_LST_EN_0804.PDF • PAGE 1
ABuilding Safety. Building Security.
Loop Interface
LIF64-1
Description
The Loop Interface LIF64-1 allows for the connection of
one ADM loop with bi-directional data exchange and up
to 128 detector zones to fi re detection control panels
Series BC216. The ADM loop supports 198 elements
(99 detectors and 99 modules) with System Sen-
sor/200 protocol or 126 elements (detectors and/or
modules) with Apollo/Discovery protocol.
Each ADM loop can be subdivided into a maximum of
128 detector zones. The function of the detector zone
(automatic fi re detector zone, technical message, fault
detection zone, etc.) as well as the element type (e.g.,
automatic detector, manual call point, monitor module,
control module or conventional zone module) can be
parameterised on the fi re detection control panel.
A two-sided isolator is integrated on the Loop Interface
(at the beginning and the end of the loop). The loop
wiring can be realized as ring, branch or any given com-
bination of sectional rings and branches.
Thanks to the ring-shaped cabling, all elements on the
loop remain functional in the event of a single wire brea-
kage. In addition, the wire breakage is displayed on the
control panel. What is more, the operational reliability of
those parts of the loop that are not affected is secured
in the event of a short circuit. Unshielded wires can be
used for the fi re detector cabling and, therefore, exis-
ting installations can be assumed smoothly and existing
cabling can be reused.
On the control panel, you can perform a maintenance
prognosis for each connected smoke detector. The
continuous monitoring of the detector function allows
for cost-optimized operation and optimum planning of
the maintenance works.
The Loop Interface provides a processor of its own. At
a possible central processing board failure, the diver-
sifi ed redundancy concept thus ensures reliable alarm
recognition.
• Intelligent analogue ringbus
technology
• Up to 99 detectors and 99 modules
with System Sensor/200 protocol
• Up to 126 detectors or modules with
Apollo/Discovery protocol
• Easy setup of loop elements thanks
to AUTO confi guration
• Maintenance prognosis for smoke
detectors
© LABOR STRAUSS SICHERUNGSANLAGENBAU GMBH • A-1231 WIEN • WIEGELESTRASSE 36 • TEL +43 1 52114-0 • FAX +43 1 52114-27
[email protected] • WWW.LST.AT • ALL RIGHTS RESERVED
LIF64-1_DBL_LST_EN_0804.PDF • PAGE 2
ABuilding Safety. Building Security.
Specifi cations
Current consumption at 24V (without detectors/modules) typ. 25mA
Idle loop current typ. 300µA per detector/module
Total loop current max. 300mA (at reduced line resistance)
Idle loop voltage typ. 26V (Apollo/Discovery) or
typ. 29V (System Sensor/200), respectively
Loop line resistance max. 50Ω per core
Ambient temperature -5°C to +50°C
Dimensions L × W × H 132 × 74 × 10 (mm)
Weight 80g
Part No. 214021
Order name Loop Interface LIF64-1
