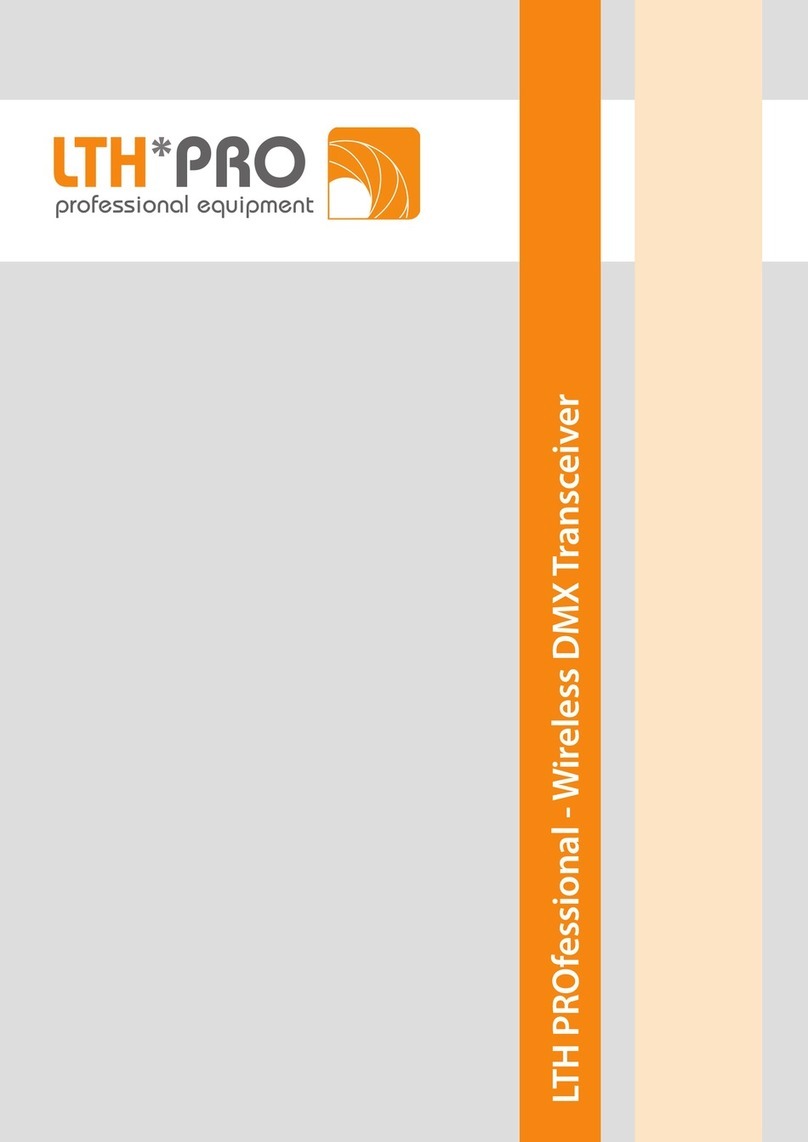

Wireless DMX Transceiver
LC-512 Series User Manual - Version 2.0
Thank you for choosing LTH PROFESSIONAL LC-512 Series Wireless
DMX Transceiver. LTH PROFESSIONAL LC-512 Series is unique in its
use of advance radio technologies that are also used in military
communication and mobile phones. Its user-friendly operation that
simplifies all the complex communication protocols makes it possible for
the users to plug and play.
LTH PROFESSIONAL LC-512 Series uses 2.4GHz global open ISM band
with license-free use. The Gaussian Frequency Shift Keying (GFSK)
modulation, Frequency Hopping Spread Spectrum (FHSS) with 79
channels interference-free operation.
LTH PROFESSIONAL LC-512 Series is continually considered as a
reliable wireless DMX product for lighting installations over large distances
and in any environment.
There are no upgrading troubles. Because ours is now compatible with the
world's leading wireless communication protocols like the Sweden’s
protocol or the GZ protocols.
For complete instructions and product features, please read this manual
or visit our website at www.lth-gmbh.de
Content
SAFETY INFORMATION
STATEMENT
1 INTRODUCTION
oFEATURES
oSPECIFICATIONS
oPACKING LIST
oINTERFACE
OPERATING GUIDE
oOPERATING MODE
oDESCRIPTION OF STATUS INDICATOR
oSELECT WIRELESS GROUP
oRESTORE FACTORY SETTINGS
oCONNECTION AND DELETE CONNECTION
APPLICATIONS
oONE TRANSMITTER TO ONE RECEIVER
oONE TRANSMITTER TO MANY RECEIVERS
oPARALLEL TRANSMISSION
oREPEATER OR AMPLIFIER
MAINTENANCE

Geschäftsführer
Daniela Bordan
Handelsregister
AG Memmingen HRB 13410
Steuer-Nr. 54001/09616
UID-Nr. DE811 702 179
Bankverbindungen
Volksbank Laupheim eG
Konto Nr.: 760 570 03
BLZ: 654 913 20
BIC: GENO DE S1 VBL
IBAN: DE04 6549132000076057003
VR-Bank Donau-Mindel eG
Konto Nr.: 632 558 0
BLZ: 720 690 43
BIC: GENODEF1GZ2
IBAN: DE76 7206 9043 0006 3255 80
Sparkasse Ulm
Konto Nr. 58784
BLZ: 630 500 00
BIC: SOLADES1ULM
IBAN: DE79 6305 0000 0000 0587 84
Safety Information
Please keep the product far away from the heat. It should be away from
the heater, radiator or any other heat source. Heat will damage and break
the product, even worse it may start a fire.
Please shutdown the product where there are slogans like “Explosion
Zone”, “May Burst Area” and “Turn off the wireless transceiver” or
somewhere such as Hospital, Gas Station and Airport.
It may bring trouble for some medical electronic equipment like hearing-
aid and cardiac pacemaker and so on. Please follow the warning notes
and safety instructions.
Please use the attached power adapter. It might damage the device if
using unapproved power adapter.
1 Introduction
1.1 Features
LTH PROFESSIONAL LC-512 Series is unique in its use of advance radio
technologies that are also used in military communication and mobile
phones. Its user-friendly operation that simplifies all the complex
communication protocols makes it possible for the users to plug and play.
2.4GHz ISM Band, license-free worldwide
FHSS with 79 Channels, interference-free operation
32-bit ARM processor, DMA transfer without delay
Standard DMX512 3-pin XLR, 5-pin XLR, transceiver
Built-in Wireless Solution compatibility mode
Group Mode, easy plug-and-play operation; Pairing Mode,
supports more transmitter universes
1.2 Specifications
Band: 2.402GHz –2.480GHz, ISM, 79 channels
Spread spectrum: FHSS, 1100 hops / sec
Modulation: GFSK
Maximum Transmit Power: 23dBm
Receiver Sensitivity: -94dBm
Power: DC 5V ± 10%
Size：212 x 18 x 18 mm
