GeneralInformation
2
GENERALINFORMATION
1.1 Introduction
The Ltl Acorn M Series (Model Ltl5210MC and Ltl5210MM) are the second generation of
ourLtl5210scoutingcamera.BundledwiththeMMSmodule(MultimediaMessagingService)
batterybox(Part#LTLMM),thestandardscoutingcamera(Part#Ltl5210M)canbeupgraded
to work as a remote cellular camera. With its highly sensitive Passive InfraRed (PIR) sensor,
the camera detects the sudden change of ambient temperature caused by moving game in a
regionofinterest(ROI),triggerstotakepictures/videos,andsendstheimagesviaGSMnetwork
to theusers cellphone oremail account.
Features:
· Programmable5or12Megapixelhighqualityresolution.
· InfrarednightvisionLEDsforflashrangeasfaras65feet
· InCam+Videomode,cameratakesbothpicturesandvideoateverytriggerevent
· Ultralowstandbypowerconsumption.Extremelylonginfieldlife(instandbymode,up
to6monthswith8xAAbatteries)
· Unique side Prep Sensor design provides wider sensing angle and enhances cameras
responsespeed
· Performinthemostextremetemperaturesfrom22°Fto158°F
· Compactsize(5½x3½x2½inches).Welldesignedtodeploycovertly
· Impressivelyquicktriggertime(1.2second)
· UnderTimeLapsesetting,worksasTimelapsecameratakingpictures/videosatspecified
interval
· WhenTimersettingon,programmabletoonlyworkinspecifiedperiodeveryday.This
featurecanbeusedtogetherwithTimeLapsefeaturetomeetyourtimetable
· Backpacklookingtreegrabbermakesmountingandaimingasnap
· SerialNumbersettingenablesyoutocodelocationsinthephotos,helpingmulticamera
usersidentifythelocationwhenreviewingthephotosonhomecomputer
· Builtin2¼TFTcolordisplaytoreviewimagesandvideos
· Date,time,temperatureandmoonphasecanbestampedinthepictures
· Lockableandpasswordprotected
· TwoMMSimagesizeoptions:640x480or320x240
· CameraandMMSfunctioncanbeconvenientlyconfiguredbyrunningtheenclosedCD
onthecomputer
· SeparationoftheCameraandtheMMSmoduleprovidesusersflexibility:startingwith
thestandardscoutingcamera,andupgradingtotheCellularmodelwithMMSfunction.
· AdvancedRemoteCellularTechnologytransmitsimagesto yourcellphoneandemail
accountconstantlyatlowerbatteryconsumptionandshortertransmissiontime,compared
toproductsofitskindonthemarket.

GeneralInformation
3
· Automaticallysendtextalertwhenbatterypowerlevelgoeslow
· CheckcellularsignalinformationonthebuiltinTFTdisplayinthefield
· AllMMSpictures,aswellastheoriginalones,savedonSDcard
· Internalantennadesignmakesthecameraportablewhilestillemittingstrongsignal
· OperatesgloballyviaGSM/GPRSnetwork.Supportsfourbands:850/900/1800/
1900MHz.
1.2 Application
· Trailcameraforhunting
· Animaloreventobservation
· Motiontriggeredsecuritycamera,forhome,officeandcommunity
· Allotherindoor/outdoorsurveillancewhereinvasionevidenceneeded
1.3 Illustration

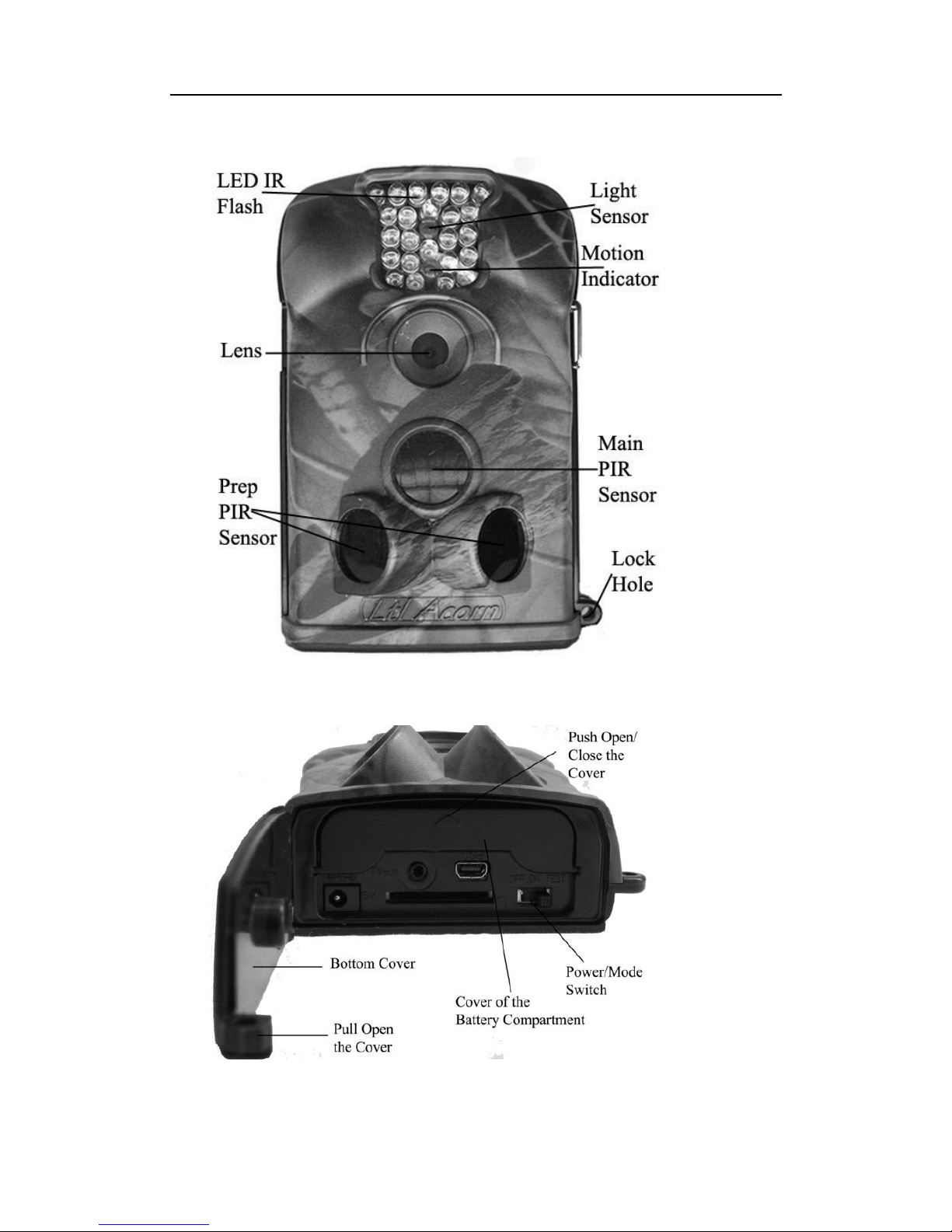

· Figure1.1showsthefrontviewofthecamera(Part#Ltl5210M)
· Figure1.2showsthebottomviewofthecamera(Part#Ltl5210M)
· Figure1.3showsthebackviewofthecamera(Part#Ltl5210M)andfrontviewofthe
batterybox(Part#LTLBM1orLTLMM1)

GeneralInformation
4

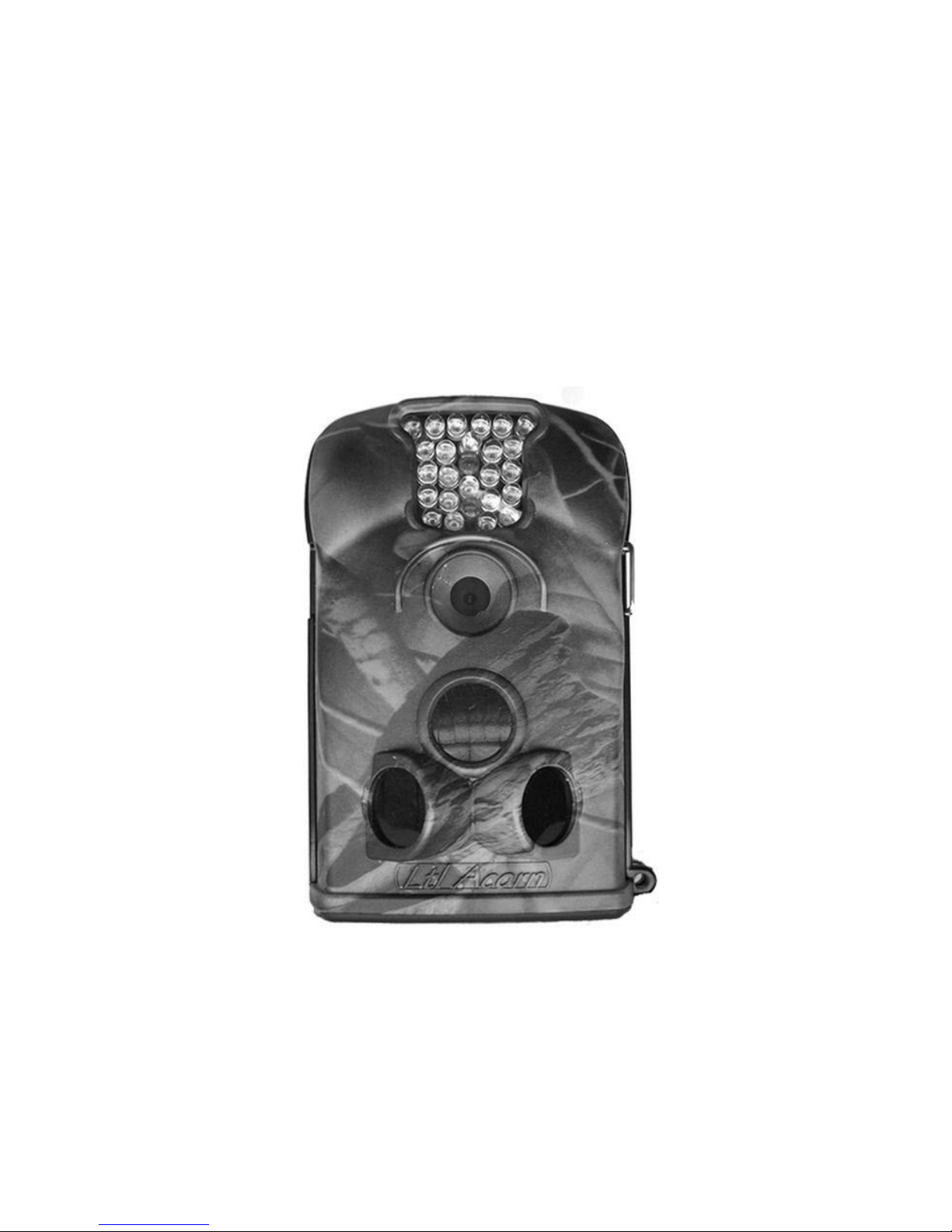

Figure1.1:FrontViewofLtl5210M
Figure1.2:BottomViewofLtl5210M

GeneralInformation
5
Thecameraprovidesthefollowingconnectionsforexternaldevices:USB2.0port,SDcardslot,
TVoutjack,andexternalDCpowerinjack.The3wayPower/ModeSwitchisusedtoselectthe
mainoperationmodes: OFF,ON and TEST.
Topowerupthecamera,installfour NEW highperformancealkalineorlithiumAAbatteriesin
thecamera.FORBETTERPERFORMANCE,WERECOMMENDUSING ENERGIZER
LITHIUMAABATTERIES. Toachievelongerinfieldlife,alwaysinstalltheadditionalbattery
boxwhichcontainsfourmoreAAbatteries.(PleasereferenceAppendixIII:Instructionon
InstallingBatteryBox)
Figure1.3:BackViewofLtl5210MandFrontViewofBatteryBox
CAUTION:Ifyouarenotusingthecameraforanextendedperiodoftime,itishighly
recommendedthatyouremovethebatteriesfromthecameratoavoidpossibleacidleak
thatmaydamagethecamerawhichwouldvoidthewarranty.

QuickStart
6
QUICKSTART
2.1InsertSIMCard(OnlyforModelLtl5210MM)
YouneedtopurchasetheSIMcardfromyour
local Mobile Phone Network Operators
(MPNO), making sure they provide
MultimediaMessagingService(MMS).Ask
them for the relevant information to
configuretheMMSsettingsonyourcamera.
(Pleasereference3.4SetupMMSFunction
onPCintheAdvancedOperationsection.)
Open the battery compartment cover, slide
theSIMcardintheslotandlockit.
Figure21MMSmoduleBatteryBox
2.2LoadBatteries
Toinstallbatteriesonthecamera(Part#Ltl5210M),pleasefollowtheinstructionsbelow.
· Openthebottomcoverbypullingdownthelockhole.
· Pushthecoverofthebatterycompartmentandrelease.Itwillpopout.
· Install4AAbatteries.Makesurethepolaritymatchesthesignonthecover.
· Replacethecover.
To install the battery box (Part # LTLBM1 or LTLMM1), please reference Appendix III:
InstructionsonInstallingBatteryBox.
Alternativelythecameracanrunonanexternal6V~12VDCpowersource(optional).Whenboth
external power and batteries are connected, the camera will be powered by the external one
preferentially.Hooked upwithour externalsolarpanel(purchased separately), thecameracan
workinthefieldoveroneyearwithoutchangingbatteries.
Whenbatterylevelgetslow,the MotionIndicatorintheLEDarraywillflashblue.TheMMS
Wirelesscamerawill automaticallysend aBattery Lowtextalertto theusers cellphone or
emailaccount.
2.3InsertSDCard
Thecameradoesnotcomewithinternalmemory.SoitwillnotworkwithoutaSD(SecureDigital)
memorycardorSDHC(HighCapacity)card.BeforeinsertingtheSDcardintothecard

QuickStart
7
slot,pleasemakesurethewriteprotectswitchonthesideoftheSDcardisoff(NOTinthe
Lockposition).Thesupportedmemorycapacityisupto32GB.Ifyouuseacardcapableof
above32GB,makesureyoutestitbeforeputtingthecamerainuse.
Figure22
CAUTION:ALWAYSSWITCHTHECAMERATOOFFMODEBEFOREYOUINSTALLOR
REMOVETHEBATTERIESORTHESDCARD.
2.4EnterTestMode
Switchtothe TEST positiontoentertheTestmode.Inthismodeyoucantakepicturesorvideo
clipslikearegulardigitalcamera,orentertheMenutosetupparameters.Onthekeypadthere
arefourshortcutfunctionalkeys(seeFigure23)workingasbelow:
Figure23
· Pressthe keytosetthecameratoshootvideoclips.
· Pressthe keytosetthecameratotakestillpictures.
· Pressthe SHOTkeyto manuallytriggertheshutter.Aphotoorvideo(depending
onthecamerasetting)willbetakenandsavedtotheSDcard.Ifthedisplayshows
CARDPROTECTEDwhenyoupressthe SHOT key,switchthepowerOFF,remove
theSDcardandslideitswriteprotectswitchtooff.
· Pressthe REPLAY keytoreview/playbackphotos/videosontheLCDscreen,ora
connectedTVmonitor.Use and keytonavigate.
The MENU onthekeypadallowsyoutoprogramthecameratoworkthewayyouwant.Please
makereferenceto3.1ParameterSettingsintheAdvancedOperationsection.

QuickStart
8
Under the test mode, one useful function you would like is testing the work area of the PIR
(PassiveInfrared)sensor,specificallythesensingangleanddistance.Toperformthetest:
· Firststrapthecameraonatreeaimingtheregionofinterest(ROI).
· WalkslowlyfromonesideoftheROItotheotherparalleltothecamera.Trydifferent
distancesandanglesfromthecamera.
· IftheMotionIndicatorflashesblue,itindicatesthepositionfromwhereyouaredetected
byoneofthesidePrepPIRsensors.IftheMotionIndicatorflashesred,itindicatesthe
positionfromwhereyouarecapturedbythemainPIRsensor.
By doing this test, you can find the best placement when mounting and aiming the Ltl Acorn
camera.Ingeneral,youarerecommendedtoplacethecamera3to6feet(1to2meters)abovethe
ground.
Toavoidpotentialfalsetriggersduetotemperatureandmotiondisturbances,pleasedonotaimthe
cameraataheatsource(i.e.thesun)ornearbytreebranchesandlimbs.Theidealdirectiontoaim
atisNorthorSouth.Also,removeanylimbsclosetothefrontofthecamera.
2.5EnterLiveMode
SwitchtotheONpositiontoenterthelivemode.TheMotionIndicatorwillflashredforabout10
secondsandthecamerastartsworkingbyitselfwithoutanymanualhandling.Itwillatonceshoot
picturesorrecordvideoswhengameorotherobjectsenterthePIRareaofthemainsensordirectly.
If the game enters the PIR area of the prep sensors from the side, the prep sensors detectthe
movementandactivatethecamera.WhilethegamekeepsmovingintothePIRareaofthemain
sensor,thecameratakesphotos/videosimmediately.IfthegameroamsawayafterenteringthePIR
areaoftheprepsensors,thecamerawillpoweroffandenterstandbymode.
2.6AdvantagesofPrepSensors
Ingeneral,tosavebatterypower,anInferRedcameraisinsleepmode,withonlythePIRsensor
working.WhengameisdetectedbythePIRsensor,thecameraispoweredonandstartsshooting
pictures.Thetimeperiodfrombeingactivatedtostartingfiringiscalledtriggertime.Thetrigger
time varies among different scouting camera brands in the market, generally from 1 to 5 plus
seconds. Our Ltl Acorn scouting camera has an impressive 1.2 second trigger time. However,
whengamepassesacrossveryquickly,thepicturemayonlycapturetherearpartofthebody,and
possiblynothingatall.
WiththeuniquesideprepPIRsensorsdesign,ourLtlAcornsolvesthisissue.Thecombinationof
thetwosideprepsensorsandthemainsensorcomesupwitha100to120°angleofinduction,a
verywidescopefaroutweighingthe50°angleofthecameralens.Whengamefirstcrossesthe
PIRareaoftheprepsensor,thecameraisactivatedandreadytoshootafter1second.Ifthegame
continuallyentersinto thePIRareaofthemainsensor,the camera takespicturesimmediately,
thereforecatchingthewholebodyofthegame.Thissplitsecondprocesscouldbeasshortas0.2
second.

QuickStart
9
InthecasethegamebrowsesonlyinthePIRareaoftheprepsensors,toavoidthecamerabeing
poweredonconstantly,thesystemisdesignedtoworkinthefollowingway:Ifthegamedoesnot
enterthePIRareaofthemainsensorandthereforenottriggerthemainsensor,thecamerawill
poweroffafter3seconds.IfthetriggereventsconsecutivelyhappenedtwiceonlyinthePIRarea
oftheprepsensors,thecamerawillnotbeactivatedbythesideprepsensors,butonlybythemain
sensor.SolateronwhenthegameentersthePIRareaofthemainsensoreventually,sinceitisnot
infastmovement,thepicturewillbyallmeanscapturethewholebodyofthegamebasedonour
standard1.2secondresponsetime.

AdvancedSettings
10
ADVANCEDSETTINGS
TheLtlAcorntrailcameracomeswithpresetmanufacturersettings.Youcanchangethesettings
tomeetyourrequirements.Pleasemakesurethecameraisinthetestmode.
3.1ParameterSettings
PressMENUkeytoenter/exitthemenu.Press , tomovethemarker, , to
changethesetting,and toconfirmthechange.Alwaysremembertopress tosave
thechange.Otherwiseyouwillloseyournewsetting.
Parameter Settings
(Bold =default)
Description
Mode Camera,
Video,
Cam+Video
Selectwhetherstillphotosorvideoclips
aretaken.In Camera+Video mode,
camerafirsttakesphotosandthenshoots
videosimmediately.
Format Enter Allfileswillbedeletedafterformatting
theSDcard.Highlyrecommendyou
formattheSDcardifithasbeenused
previouslyonotherdevices. Caution:
makesurewantedfilesontheSDcard
havebeenbackedupfirst!
PhotoSize (affectsstill
photosonly)
5MP,12MP,1.3MP Selectdesiredresolutionforstillphotos
from1.3to12megapixels.Higher
resolutionproducesbetterqualityphotos,
butcreateslargerfilesthattakemoreof
theSDcardcapacity.Besides,larger
filesrequirelongertimetowritetothe
SDcard,whichwillslightlyslowthe
shutterspeed. 5MP isrecommended.
VideoSize (affects
videoclipsonly)
640×480,
320×240
Selectvideoresolution(pixelsperframe).
Higherresolutionproducesbetterquality
videos, but creates larger files that take
moreoftheSDcardcapacity. 640× 480
isVGAmodeinstandard4:3format.
SetClock Enter Press Enter to set up date and time.
Internal capacitor will retain the clock
timeforupto7minuteswhenchanging
batteries.
PictureNo. (affects 01Photo,02Photos, Select the number of photos taken in

AdvancedSettings
11
stillphotosonly) 03Photos sequence per burst in Camera mode.
Please also refer to the Interval
parameter.
VideoLength (affects
videoclipsonly)
Avi10s,optionalfrom
1sto60s
VideosareinAVIformatthatcanbe
playedbackonmostmediaplayers.
Interval 1Min,optionalfrom
1Sto60M
Selectthelengthoftimethatthecamera
willwaitfromwhenthelastpicturewas
takenandwrittenintheSDcard,untilit
respondstoanynewtriggersfromthe
PIRsensor.Duringtheselectedinterval,
thecamerawillnottakepictures/videos.
ThispreventstheSDcardfromfillingup
withtoomanyredundantimages.
SenseLevel Normal,High,Low SelectthesensitivityofthePIRsensor.
TheHighsettingsuitsindoorsand
environmentswithlittleinterference,
whiletheNormal/Lowsuitsoutdoorsand
environmentswithmoreinterference.
Temperaturealsoaffectsthesensitivity.
TheHighsettingissuitablewhenthe
ambienttemperatureiswarm,andthe
Lowsettingishelpfulincoldweather.
TimeStamp (affects
stillphotosonly) On,Off Select On ifyouwantthedate&time
imprintedineveryphoto.
Timer Off,On Select On ifyouonlywantthecamerato
workwithinaspecifiedtimeperiodevery
day.Forinstance,ifthestartingtimeisset
at18:35andtheendingtimeat8:25,the
camerawillfunctionfrom18:35the
currentdayto8:25thenextday.Outside
thetimeperiodthecamerawillnotbe
triggeredortakephotos/videos.This
featurecanbeusedtogetherwith Time
Lapse feature.
PasswordSet Off,On Setupapasswordtoprotectyourcamera
fromunauthorizedusers.
SerialNo. Off,On Select On toassignaserialnumberto
eachcamerayouhave.Youcanusethe
combinationof4digitsand/oralphabets
torecordthelocationinthephotos(e.g.
YSP1forYellowStonePark).Thishelps
multicamerausersidentifythelocation
whenreviewingthephotos.

AdvancedSettings
12
TimeLapse Off,On Ifset On,thecamerawillautomatically
takephotos/videosatthesetinterval
(Note:inthismode,thePIRsensoris
disabled).Thisishelpfulwhenobserving
coldbloodedanimalslikesnakes,orthe
processofflowering,etc.Thisfeaturecan
worktogetherwith Timer feature.
SidePIR On,Off Thedefaultsettingis On.Thetwoside
prepPIRsensorsprovidewidersensing
angleandenhanceresponsetime.
(Reference 2.5AdvantagesofPrep
Sensors.)However,insomesituations
youhavedifficultyremovingthe
interferingbranches,oravoidingthe
sunlight.Ifso,youhavetheoptionto
turnoffthesidesensors.
MMSPhoneNo. Enter Press Enter toinputthephonenumber
youwanttosendMMSto.Toinputmore
phonenumbers,ortosetupemail
accounts,reference 3.4SetupMMS
FunctiononPC.
Inthesubmenu,youcansetthedaily
numberofpicturessentviaMMS. 0
standsfor Unlimited.199/Day gives
youflexibilitysendingupto99pictures
perday
MMSStatus Off,VGA,QVGA Thedefaultsettingis Off,whichturnsthe
MMSfunctionoff.Toturniton,choose
eitherVGA=640x480or
QVGA=320x240,whichdefinesthe
resolutionsizeoftheMMSpicture.If
theoriginalpicturessizetoolarge,its
MMSpicturewillbeconvertedtoQVGA
formattosavetransmissiontimeand
powerconsumption.
DefaultSet Press OKEnter toreturnallyourcamera
settingsbacktothemanufacturerdefault.
However,alltheMMSfunctionsettings
willremainexceptfor MMSPhoneNo.
and MMSStatus.

AdvancedSettings
13
3.2 FileFormat
TheSDcardstoresalloriginalpicturesandvideosinthefolder\DCIM\100IMAGE,andallMMS
pictures in the folder \MMS\ with the same filename. Pictures are saved with filenames like
IMAG0001.JPGandvideoslikeIMAG0001.AVI.
Inthe OFF mode,youcanusetheprovidedUSBcabletodownloadthefilestoacomputer.Or
youcan putthe SDcardtoa SDcardreader, plugina computer,and browsethefilesonthe
computerwithoutdownloading.
TheAVIvideofilescanbeplayedbackonmostpopularmediaplayers,suchasWindowsMedia
Player,QuickTime,etc.
3.3 SetupCameraonPC
Youcansetupyourcameraand/orMMSfunctiononyourhomePC.RuntheSetup.exefileon
theenclosed
CD.Youcanalsovisitthenationaldistributorswebsitetodownloadtheprogram,oraskyour
retailerfordirection.
Clickon CameraSetup,andyouwillseethefollowinginterface:

AdvancedSettings
14
Setupthecamerabasedonyourneed.Clickon toretrievethecomputertime.
Clickon tochoosethedirectorytosaveyoursettings,usuallyundertheroot
directoryoftheSDcard(YouneedtoinserttheSDcardintheSDcardreaderandplugitinyour
computer.)Then,clickon .Afilenamed menu.dat willbecreatedandsavedin
thedirectoryyoujustselected.IfyouselectedadirectoryotherthantheSDcard,youneedto
movethe menu.dat filetotherootdirectoryoftheSDcardbeforeinsertingthecardinthecamera
lateron.
Ifyoulike,youcanusethemanufacturerdefaultsettingsbyclickingon .
Atthispoint,ifyourcameraisModelLtl5210MM,oryouvejustupgradedyourstandard
scoutingcamera,ModelLtl5210MC,toModelLtl5210MMbypurchasingtheMMSmodule
batterybox(Part#LTLMM1),skipto 3.4SetupMMSFunctiononPC. Ifyourcamerais
ModelLtl5210MC,thestandardscoutingcamera,youredonewiththecamerasetting.Clickon
Exit toexittheinterface.
RetrievetheSDcardfromthecomputerandinsertitinthecamera.Switchtothe TEST position
toentertheTESTmode.AmessagewillshowupontheTFTdisplay,indicatingtheCamerahas
beensuccessfullysetup.Youaresetwiththecamera.

AdvancedSettings
15
ATTENTION:THEPASSWORDCANONLYBESETUPONTHECAMERA,NOTON
THEPC.
3.4 SetupMMSFunctiononPC
Afteryouclickon Exit ontheCameraSetupinterface,thefollowingwindowpromptsagain:
ClickonMMSSetup,andyouwillseethefollowinginterface:

AdvancedSettings
16
First,youneedtochoosehowyouliketosetuptheMMSMode Auto
or Manual.Ifyouchoose Auto,thenyouneedtochoosethecountry
andtheMobilePhoneNetworkOperator(MPNO).Inputthe
phonenumberand/oremailaddressyoudliketheMMSpicturestobesentto.Youcanenterupto
threedifferentphonenumbersand/oremailaccounts.
Ifyouchoose Manual tomanuallyinputalltheparameters,youneedtocontactyourMobile
PhoneNetworkOperator(MPNO)tohavethemprovideyoualltherequiredinformationsuchas
URL,APN,Gateway,andPort.
Note:TheMMSparametersofthemajorMPNOsineachcountryhavebeenprestoredinthe
programontheenclosedCD.Youresuggestedtochoose Auto toletthesystemtosetupthe
MMS.However,becauseeachlocalMPNOhastheirownsettingsfortheirMMSservice,andthose
settingscanchangeovertime,youmayneedtoacquirethesettingsfromyourMPNOifthe Auto
selectedsettingsfailtowork.Ifyoufindoutthosesettingshavechangedaccordingtothe
informationprovidedbyyourMPNO,oryouhavesettingsfromyourMPNOthatisnotonour
Operatorslist,pleasenotifyussowecanupdateourprogram.
Clickon tochoosethedirectorytosavethesettings,usuallyundertheroot
directoryoftheSDcard(YouneedtoinserttheSDcardintheSDcardreaderandplugitinyour
computer.)Then,clickon .Afilenamed menu.dat willbecreatedandsavedin
thedirectoryyoujustselected.IfyouselectedadirectoryotherthantheSDcard,youneedto
movethe menu.dat filetotherootdirectoryoftheSDcardbeforeinsertingtheSDcardinthe
cameralateron.
Clickon Exit toexittheMMSSetupinterface.RetrievetheSDcardandinsertitinthecamera.
Switchtothe TEST positiontoentertheTESTmode.AmessagewillshowupontheTFTdisplay,
indicatingtheMMSfunctionhasbeensuccessfullysetup.Congratulations!Youcamera(Model
Ltl5210MM)isallsettosendcolorpicturestoyourcellphoneand/oremailaccounteverytimeit
istriggered.
3.5 CameraWorkingwithMMS
WhenyouhavetheModelLtl5210MM,oryouhaveupgradedyourModelLtl5210MCby
purchasingtheMMSmodulebatterybox(Part#LTLMM1),notonlywillyourcameraworkasa
standardtrailcamera,butalsosendpicturestoyourcellphoneand/oremailaccount,whenit

AdvancedSettings
17
meetsthefollowingrequirements.
· ThecameraisONandfunctions.TheSDcardhasenoughspace.8AAbatterieswith
enoughpowercapacity.ThecameraisinCammodeorCam+Videomode,notVideo
mode.
· SIMcardisinstalled.TheMMSserviceisactivated(someMMSservicesneedprepaid
balanceintheaccount.)TheSIMcardisnotpasswordprotected.
· Onlywhentheswitchisin OFF position,youinstalltheMMSmodulebatterybox.
· Thesignalisstronginthefield.Therecipientsphonenumberand/oremailaccountis
enteredcorrectly.Youaresuggestedtotakethereceivingphonewithyouanddothe
sendandreceivetestonsite.
· MMSparametersaresetcorrectly.
· TheTimerfunctionisOFF.IfyouhavetheTimerON,makesureyouareinthespecified
timeperiodwhenexpectingincomingMMSpictures.
· MakesureMMSStatusisnotsetOFF.
· Thesettingis0,orthe
dailylimithasnotbeenreached.Ifthedailylimithasbeenreached,youcanresetthat
numberonyourcomputerorontheTFTdisplay.Thenthedailylimitstartstocountfrom
No.One.
· ThecameraisstationarywhilesendingMMSpictures.
3.6 ViewLocalMNPOnameandSignalStrengthonTFTDisplay
YoucanfindyourlocalMobilePhoneNetworkOperatorsnameandthesignalstrengthon
theTFTdisplayonthecamera,justlikeyoucanseetheinformationonaregularcellphone.
InstalltheSIMcardand8AAbatteries.MakesurethecameraisswitchedinOFFposition.
AttachtheMMSmodulebatteryboxtothecamera.SwitchtotheTESTposition.Ifyoulike,
youcanconnectthecameratoaTV,usingprovidedTVAVINcable.Waitforoneminuteand
thenyouwillbeabletoviewtheMPNOnameandthesignalstrengthontheTV.Ifyoudont
haveanaccesstoaTV,waitforoneminuteanddetachthebatterybox.Thenyoucanviewthe
informationontheTFTdisplay.

AdvancedSettings
18
Therearethreebarsindicatingthesignalstrength.TomaketheMMSmoduletowork,atleast
onebarisrequired.
Ifacode,insteadoftheMPNOinformation,showsonthescreen,itindicatessomethingis
wrong,missing,orgoingon.Specifically,
·SIM:NoSIMcardorinstalledincorrectly.
·CSQ:Nosignals.
·CREG:SIMcardispasswordprotected,ordeactivatedduetozerobalanceinthe
account,ornotabletoregisterwiththeGSMsystem.
·CGREG:NotabletoregisterwithGPRSnetwork.
·COPS:SearchingfortheMNPOoftheSIMcard.Oncefound,theoperatorsname
andthesignalstrengthwillshowonthescreen.
If NoMM1 showsonthescreen,itmeanstheMMSmoduleisnotfound(installed).Ifyour
cameraisastandardModelLtl5210MC,thenitisOKbecauseyourcameraisnotequipped
withMMSmodulebatterybox.IfitisaMMSModelLtl5210MM,youcantakeoutfrom
thebatteryboxoneofthebatteriesandreplaceit.Thenattachthebatteryboxandrecheck
theMNPOsignalbyfollowingtheaforementionedsteps.
Attention：Thecamera MUST besetin OFF positionwhenattachingtheMMSmodule
batteryboxtoit.Securethebatteryboxbylockingupthebuckle.Otherwise,theMMS

AdvancedSettings
19
functionmaynotperformnormally.Whentryingtoviewtheoperatorsnameandthesignal
strength,ifyouwaitlessthanoneminutebeforedetachingthebatterybox,youwillmore
thanlikelyseeoneofthecodesaforementioned.YouneedtoswitchthecameratoOFF
position,installthebatteryboxsecurely,waitforoneminute,andthentryitagain.
