INSTRUCTION MANUAL
30locg-rev-1-2018
Lubemate®is a practical, cost-effective range of
equipment brought to you by the trusted team at Macnaught.
All Lubemate products are specially selected by our
experienced technical team at Macnaught®, ensuring they meet our
strict quality standards.
Macnaught Pty Ltd
41-49 Henderson St, Turrella NSW 2205. Australia
Ph: 1800 185 102 Fax: [phone]
Email: [e-mail] Website: macnaught.com

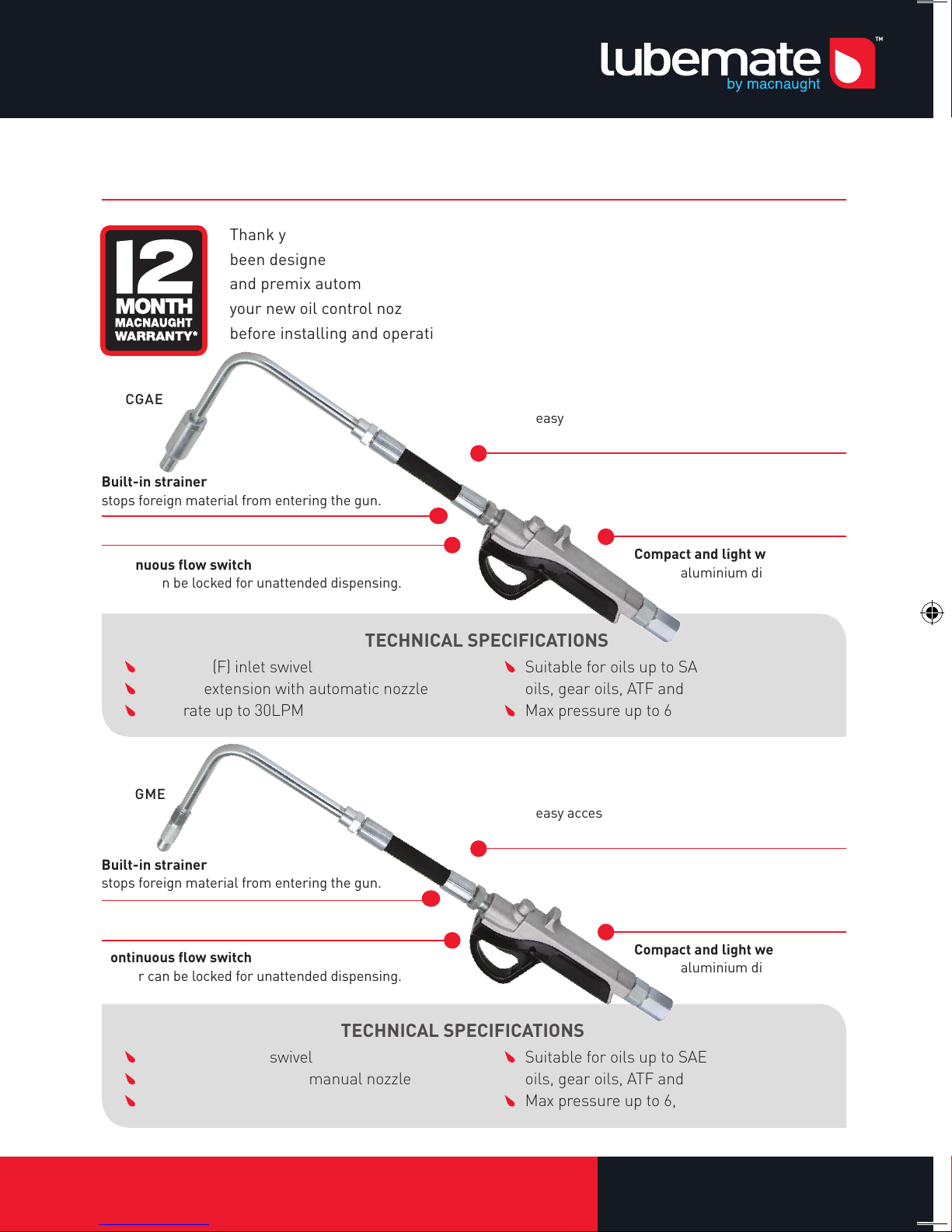

OIL CONTROL GUN LOCGAE, LOCGME
Thank you for purchasing a Lubemate oil control nozzle. Your oil control nozzle has
been designed to reliably dispense engine oil, gear oil, automatic transmission fluid
and premix automotive coolants. This manual assists in operating and maintaining
your new oil control nozzle. Please take a few minutes to read through this manual
before installing and operating your new oil control nozzle.
For Macnaught warranty, terms and conditions see macnaught.com/warranty ©Macnaught Pty Ltd, 2017
1/2" BSP (F) inlet swivel
Flexible extension with automatic nozzle
Flow rate up to 30LPM
TECHNICAL SPECIFICATIONS
Suitable for oils up to SAE 140, engine
oils, gear oils, ATF and hydraulic oils
Max pressure up to 6,900kPa (1,000psi)
1/2" BSP (F) inlet swivel
Flexible extension with manual nozzle
Flow rate up to 30LPM
TECHNICAL SPECIFICATIONS
Suitable for oils up to SAE 140, engine
oils, gear oils, ATF and hydraulic oils
Max pressure up to 6,900kPa (1,000psi)
Flexible extension with auto nozzle
easy access in tight spaces and auto nozzle avoids
cross-contamination and fluid wastage.
Flexible extension with auto nozzle
easy access in tight spaces and auto nozzle avoids
cross-contamination and fluid wastage.
Compact and light weight design
aluminium die cast handle.
Compact and light weight design
aluminium die cast handle.
Continuous flow switch
trigger can be locked for unattended dispensing.
Continuous flow switch
trigger can be locked for unattended dispensing.
Built-in strainer
stops foreign material from entering the gun.
L-OCGAE
L-OCGME
Built-in strainer
stops foreign material from entering the gun.
NOTE: This product should be disposed of according to all applicable
local and national government environment regulations and guidelines!
Wearing parts:
Part No. Description Q'ty
1* O-ring 1
9* O-ring 1
13* Battery 1
19* Waterproof protector 2
20* Seal washer 4
Part No. Description Q'ty
1* O-ring 1
2 Meter Holder 1
3 Meter Cover 1
4 Rubber Protector 1
5 Main Circuit Board 1
6 Front Label 1
7 Screw 4
8 Screw 4
9* O-ring 1
10 Seat 1
11 Battery cover 1
12 Spring 1
13* Battery 1
14 Screw 2
15 Shaft 2
16 Oval Gear 2
17 Magnetic Rod 2
18 Bolt 8
19* Waterproof protector 2
20* Seal washer 4
21 Washer 4
No Spare Parts Available
MAC0619_Lubemate_InstructionManual_L-OCGAE-L-OCGME_D2.indd 1-2 7/8/18 4:46 pm

macnaught.com
3 Lubemate | Oil Control Gun
INSTRUCTION MANUAL
GENERAL SAFETY REGULATIONS
1. Keep the work area clean and dry. Damp or
wet work areas can result in injury.
2. Keep children away from work area. Do not
allow children to handle this product.
3. Use the right tool for the job. Do not attempt
to force small equipment to do the work of larger
industrial equipment. There are certain applications
for which this equipment was designed. It will
do the job better and more safely at the capacity
for which it was intended. Do not modify this
equipment, and do not use this equipment for
a purpose for which it Was not intended.
4. Check for damaged parts. Before using this
product, carefully check that it will operate
properly and perform its intended function.
Check for damaged parts and any other conditions
that may affect the operation of this product.
Replace damaged or worn parts immediately.
5. Do not overreach. Keep proper footing and
balance at all times to prevent tripping, falling,
back injury, etc.
6. DO NOT use the equipment when tired or under
the influence of drugs, alcohol, or medication.
A moment of inattention while operating this
equipment may result in serious personal injury.
SAFETY PRECAUTIONS
WARNING
Read carefully and understand all INSTRUCTIONS
before operating. Failure to follow the safety
rules and other basic safety precautions may
result in serious personal injury. Save these
instructions in a safe place and on hand so that
they can be read when required. Keep these
instructions to assist in future servicing.
WARNING!
The warnings, cautions, and instructions
discussed in this instruction manual cannot cover
all possible conditions or situations that could
occur. It must be understood by the operator
that common sense and caution are factors that
cannot be built into this product, but must be
supplied by the operator.
INSTALLATION
1. This oil control valve has a 1/2" BSP threaded oil inlet, use Teflon tape or an equivalent oil resistant
thread sealant on all threaded connections.
TROUBLESHOOTING GUIDE
Always turn off and relieve line pressure before carrying out any maintenance or repairs.
Ensure that all equipment in the system are operating properly.
AREA 4:
FOR BATTERY CAPACITY
AREA 2: FOR MEASUREMENT UNITS
Value
ER14250 3.6V
1-35L/min
0.5-100bar
Data
Flow rate
Operating Pressure Range
60°C
±0.5%
Accuracy
Battery
Max operation temperature
12
34
5
6
Fig. 2
1. Air supply
2. Shut off air valve
3. Oil Pump
4. Shut off oil valve
5. Hose reel
6. Oil control valve
Display and button usage
Notes: It will flashing when
battery voltage less than 3.3V;
AREA 1: FOR LAST DISPENSE CYCLE
AREA 3:
FOR ACCUMULATED TOTAL
Menu:
MOVING THE NUMBERS FOR
ADJUSTING THE CALIBRATION
AND CHOOSING THE UNITS
Reset:
CHOOSING THE UNITS AND
SETTING CORRECTION FACTOR
AREA 4:
FOR BATTERY CAPACITY
AREA 2: FOR MEASUREMENT UNITS
Value
ER14250 3.6V
1-35L/min
0.5-100bar
Data
Flow rate
Operating Pressure Range
60°C
±0.5%
Accuracy
Battery
Max operation temperature
12
34
5
6
Fig. 2
1. Air supply
2. Shut off air valve
3. Oil Pump
4. Shut off oil valve
5. Hose reel
6. Oil control valve
Display and button usage
Notes: It will flashing when
battery voltage less than 3.3V;
AREA 1: FOR LAST DISPENSE CYCLE
AREA 3:
FOR ACCUMULATED TOTAL
Menu:
MOVING THE NUMBERS FOR
ADJUSTING THE CALIBRATION
AND CHOOSING THE UNITS
Reset:
CHOOSING THE UNITS AND
SETTING CORRECTION FACTOR
Problem Cause Solution
Slow or no
fluid flow
Filter is clogged, or pump pressure is
low, or shut-off valve is not fully open,
or foreign materialis jammed in the
metering element.
1. Relief the pressure.
2. Loose swivel fitting, clean or
replace the filter.
3. If the problem remains,
contact your distributor for
repair or replacement.
Oil leaks
from swivel
Swivel is loose
O-ring is worn or damaged
Torque the swivel.
If the problem remains, contact your
distributor for repair or replacement.
Replace the o-ring.
If the problem remains, contact your
distributor for repair or replacement.
Oil drips
from nozzle Nozzle is damaged or obstructed
Inspect the nozzle for damage or
obstructions, and replace if damaged
If the problem remains, contact your
distributor for repair or replacement.
Valve leaks O-rings or valve seat are worn or
damaged
Replace the o-rings and/or the
valve seat. If the problem remains,
contact your distributor for repair
or replacement.
No spare parts available.
