lubluelu A901 User manual

Model:A901+C710
Robot Vacuum Cleaner
Make Your Daily Cleaning Easy
It’s herewith comfirmed to comply with the
requirements of FCC Part 15 Rules.
Operation is subject to the following twoconditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received,
including interference that may cause undesired
operation.

Safety Warnings
Introduction
Installation and APP Connection
Use Instructions
Maintenance
Malfunctions and Troubleshooting
DE
FR
IT
ES
01
03
07
15
19
25
29
57
85
113
....................................................................................................................................................
.............................................................................................................................................................
.................................................................................................................
....................................................................................................................................................
Function Module 17
..................................................................................................................................................
...........................................................................................................................................................
.............................................................................................................
................................................................................................................................................................................
................................................................................................................................................................................
................................................................................................................................................................................
................................................................................................................................................................................
Table of Contents

Do not use the bumper as the handle.
Safety Warnings
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Application Restrictions
This machine is used for indoor cleaning only. Do not use the machine outdoors (such as open balcony), on non-floors (such as sofa) or in
commercial or industrial places.
Do not use the machine in the place of cliff without protective rails (such as duplex floors, open balcony, furniture top).
Do not use the machine in the place more than 40°C or less than 0°C or on the ground with any liquids and viscous substances.
Please hang up the wires on the ground indoors before use, to avoid the wires being entangled during cleaning.
Please remove the fragile items and debris (such as vases, plastic bags, etc.) on the ground to avoid valuables being damaged due to obstacles
or minor collisions.
Those with physical, mental or perceptual impairments, including children, are prohibited to use or operate the machine.
This machine should not be used as a toy by the children. Please keep children and pets away when the machine is working.
Place the cleaning brush beyond the reach of the children.
Do not place any objects (including children or pets) on the stationary or moving machine.
Do not keep any parts of human body or pets such as hair and finger close to the suction port during the cleaning.
Do not use the machine to clean the burning objects (such as unquenched cigarette butts)
Do not use the machine to clean the plush carpet (some dark carpets may not be cleaned properly)
Do not use the machine to clean the hard or sharp objects (such as decoration wastes, glass, iron nails, etc.)
Please cut off the power before cleaning or maintaining the machine or the charging base.
Do not wipe any parts of the machine with a damp cloth or any liquid.
Please strictly abide by the operation instructions. Any losses or injuries caused by improper operation shall be borne by the user.
Do not activate the mop function on carpets or on top of furniture.
Please remove the water tank during charging.
• To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider than the other). This plug will fit in a polarized
outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install
the proper outlet.Do not change the plug in any way.
01

Safety Warnings
•
•
•
•
•
•
•
•
Battery and Charging
Do not use the battery, charging base or charger produced by any third parties.
Do not disassemble, repair or modify the battery or charging base without authorization.
Do not keep the charging base close to heat sources (such as radiator).
Do not wipe or clean the spring contacts of the charging base with a damp cloth or wet hands.
Do not discard the used battery arbitrarily. The used battery should be handed over to professional recycling agency for proper disposal.
Do not use the machine if the power cord is broken or wrecked, please buy new power cord through official channels.
Please power off the machine during transportation. It’s recommended to transport the machine with original package.
If the machine will not be used for a long time, please power it off after being fully charged, then store in a cool and dry place. Charge the
battery at least every three months to avoid the battery failure due to excessive discharging.
02

Introduction
Packing List
Robot Dustbin & Charging Base 2-in-1 Dustbin & Water Tank
Side Brush
Mop Bracket
Seepage MopHEPA Filter + Filter Sponge
Dustbin Bag Cleaning Brush
03

Robot
Introduction
Child Lock
Long press Child Lock for 3 seconds to activate or long
press for 3 seconds again to inactivate the function.
Buttons will be locked to prevent unintended touch if
Child Lock is activated.
Child lock can also be activated or inactivated through
APP (open APP to select More and click Settings to
select Child Lock).
Functional only when the power switch is turned on.
Short Press to Recharge
Light OFF: Offline
Light Flash: Connecting
Light ON: Online
Short press to start Clean/Pause
04

Sensor and Structure
Charging Contacts
Omni Wheel
Side Brush
Driving Wheel
Rolling Brush
Edge Sensor
2-in-1 Dustbin &
Water Tank
Introduction
Power Switch
Wall TOF Sensor
Infrared Bumper Sensor
Laser Radar
OFF ON
O I
05

2-in-1 Dustbin & Water Tank Dust collection charging base station
Introduction
Primary Filter
Tank Cover
Filter Sponge
Dustbin Button
HEPA Filter
Mop Bracket
Seepage Mop
Charging Electrode
Charging Electrode
Status Indicator
Vacuum Inlet
Base Cover
Signal Transmission Area
Aromatherapy
Dustbin Clip
Visible Duct
Dustbin
Outlet Mesh Cover
Outlet Sponge
Outlet Filter
Lower Shell
Screw Hole
06

Notices
Installation and APP Connection
Please sort out the wires, debris and fragile,
unstable, valuable and potentially dangerous
Do not try to clean plenty of water with the robot . When used in a suspended circumstance, it shall be
protected by rails to avoid accidental falling or
pushing other articles from falling; otherwise,
personal or property damage may be caused.
objects on the ground before starting the device.
Avoid personal injury or property damage caused
by entanglement, jamming, dragging, or bumping
of equipment.
07

08
1. Remove the protective strips.
4. Roll the power cable into the winding bracket to prevent it
being dragged or displaced by the robot.
3. Place the dustbin & charging base on a flat ground against the
wall away from the steps, then power on the charging base.
Note: Keep the base more than 1 meter away from both sides and more than 2 meters
away from the front.
The status indicator will light up when the base is powered on.
2. Align the side brush with the hole and tighten the screw.
Installation and APP Connection
R
Winding bracket
Cable outlet
（on left or right）
＞2M
＞1M
＞1M

5. Do not move the charging base arbitrarily and keep it away
from direct sunlight
Installation and APP Connection
•
•
•

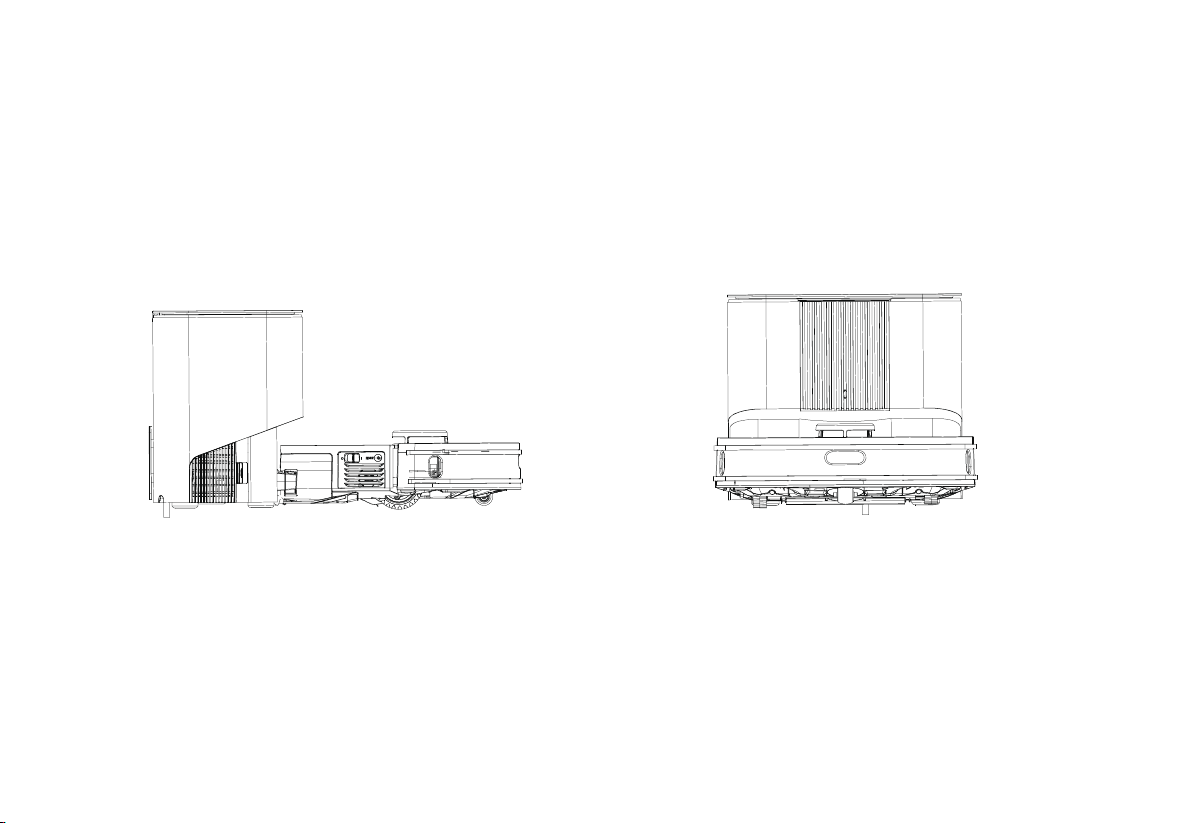

6. Turn on the power supply and align the electrodes
with the pins to start charging.
The Robot cannot be charged when it is powered off.
Charging time is about 4~5H.
Don’t place any articles within the charging base so as not to affect
the robot returning for charging.
Note:
OFF ON
O I
09

10
1. Add water into water tank: Open the tank cover, add
an appropriate amount of water and then screw it tight.
Do not add any cleaning agent.
Install Mopping Module
Installation and APP Connection
3. Install the bracket and the mop.
4. Install the combination till the sound of ‘click’ is heard to
ensure correct installation.
Do not use the mopping function on the carpet, otherwise the carpet will get wet.
Install mopping bracket and the mopping-sweeping mode is selected by default
both vacuum and mopping), quite mode is also selected by default.
Without mopping bracket, the sweeping instead of mopping is selected by default
(sweeping only).
Note:
•
•
•
2. Tighten the water filling lip and press it flat to ensure
good sealing effect.

1. Power on the robot according to the figure and align the electrodes
with the pins to start charging.
2. Activate the WiFi in phone to connect to 2.4Ghz network.
3. Download App: Search “Smart Life” in Appstore or scan
the QR code.
4.Registration: Open the APP and complete the registration.
11
Installation and APP Connection
OFF ON

5..Log in the APP and click "Add Device"/+ Button.
6.Choose “Small Home Appliances – Robot Vacuum (Wi-Fi”).
7.Enter the password and click “Next”.
Installation and APP Connection
12

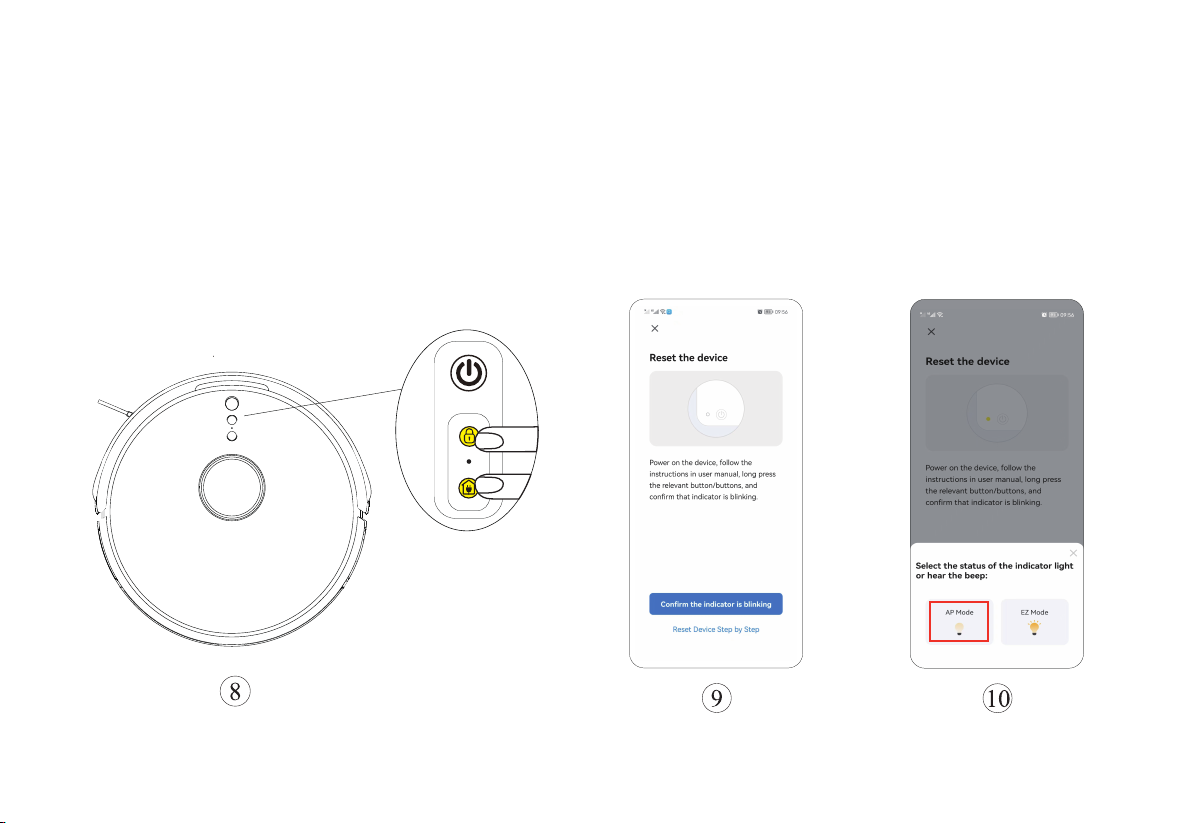

8.Press “Child Lock + Charging” for 3 seconds till it flashes and the robot will start network configuration.
9.Click “Confirm the Indicator is Blinking” button.
10.Select the AP mode.
13
Installation and APP Connection

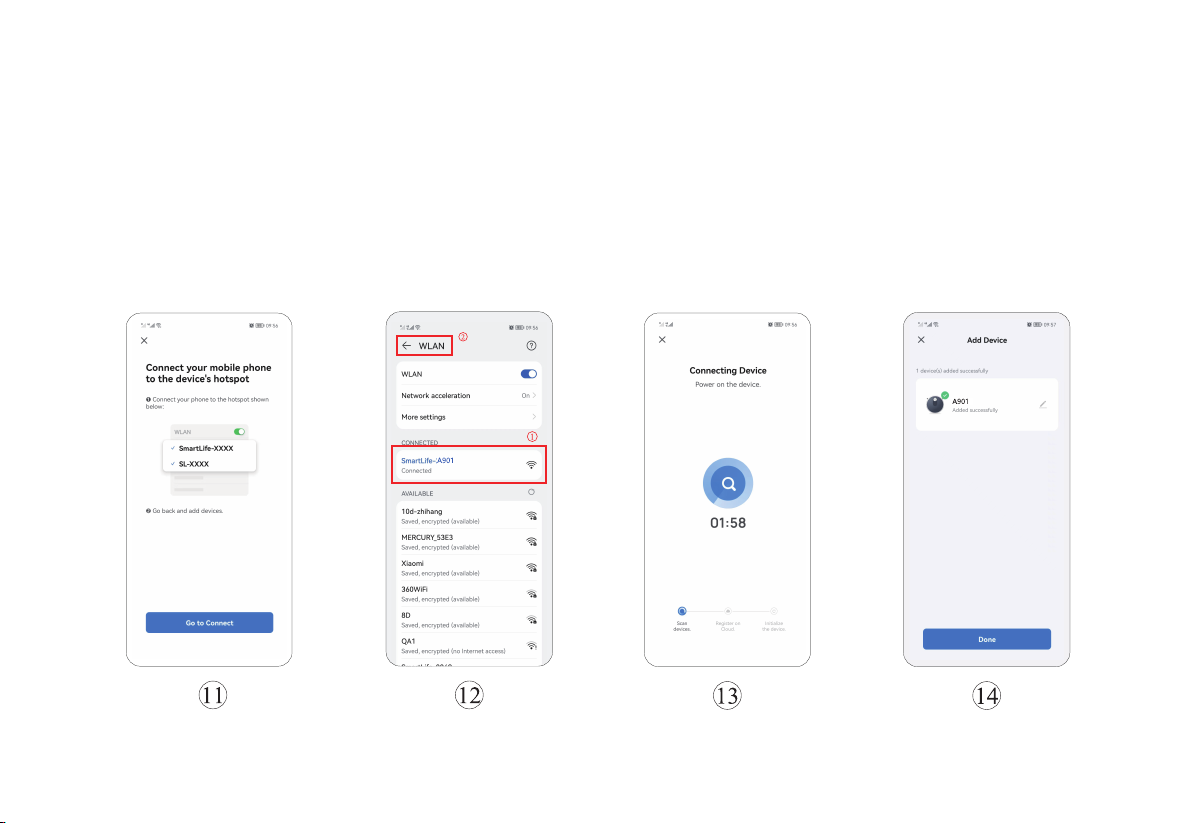

11.Click “Next”.
12.Then select SMATR LIFE SMATR LIFE -A901 and return.
13.Wait for the connection.
14.Click “Done” to log in APP.
Installation and APP Connection
14
-XXX

•
•
•
15
Use Instructions

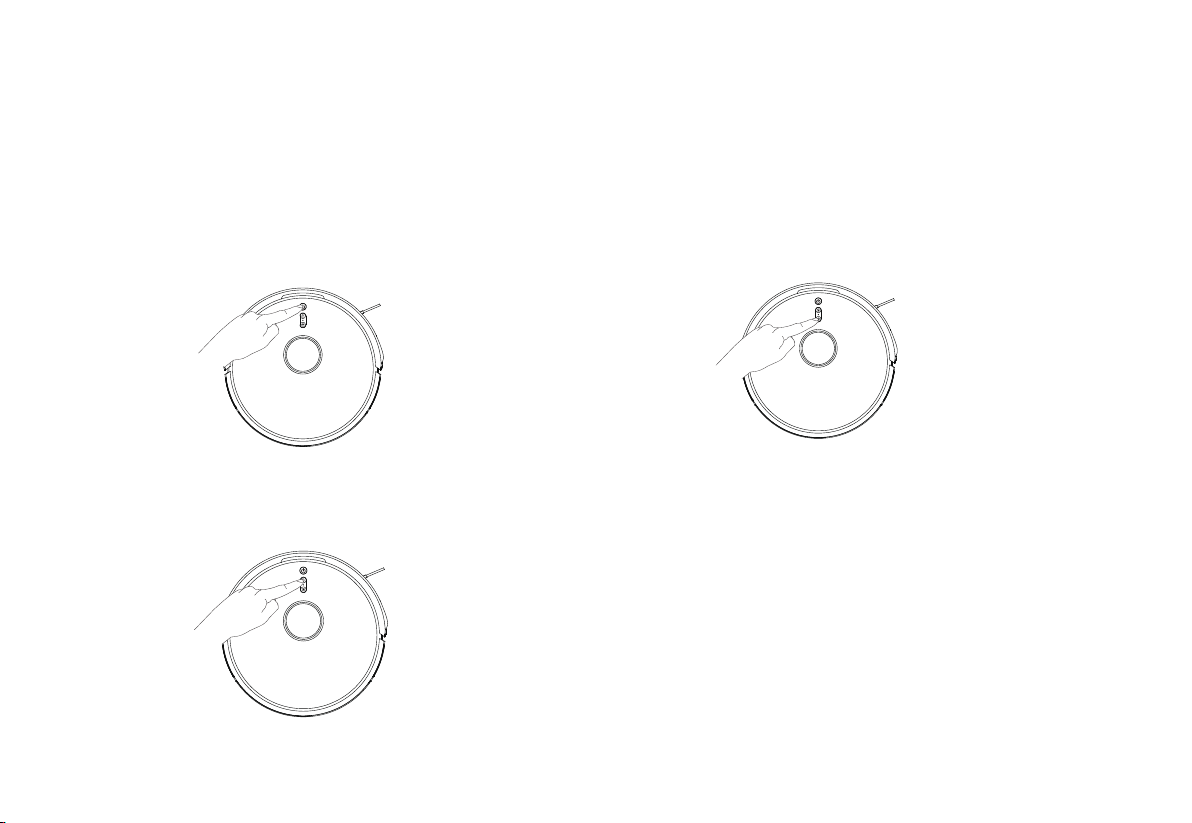

Start/Pause
Operations
Child Lock
Charging
Short press ‘ON/OFF’ button to start robot, press it again to pause.
When the robot is on, it will scan the surroundings to generate the
map and dynamic cleaning route, and clean the whole room along
the edge first then the Zigzag route.
Short press the “Charging button” and the robot will return to the base for charging.
(The robot can’t work when it is powered off.)
Note:
If the battery is less than 15%, the robot will return the charge base for charging
automatically.
If the battery is more than 80%, then robot automatically returns to the spot it was cleaning
before continuing by default (it can be canceled through APP).
Before the robot is powered on, please clean the cables (including power cord) to avoid the
robot being disturbed.
Note: The Child Lock can be controlled through APP.
Long press child lock for 3 seconds to activate or inactivate it.

Use Instructions
Dustbin Function
•
•
When the sweeping is done, the robot will return to charge
base for charging and dust collection automatically.
When the robot is being charged, the status indicator will flash.
When it’s fully charged, the indicator will be always on.
Prior to the dust collection at the base, please confirm the cover
has been fully tightened; otherwise, the status indicator will turn red
and the APP will report error, then the dust collection will stop.
Note:
16

17
1.Click “Start Cleaning” to power on the robot.
2.Before the first use, the robot will scan the surroundings at home
and generate the map with smart area division.
2.Select the area to be cleaned on the map and click "Start Cleaning"
3.The robot will clean the designated area.
3.According to the existing area division, the robot will start cleaning
along the edges to form the sealing zones, then fill in the zones along
the Zigzag route and complete the remaining zones.
4.After the cleaning, the robot will return to the charge base for charging.
Note：
To generate the map better, it’s recommended to start from the charge base for the first use.
Do not move the robot arbitrarily when it’s working; otherwise, it may enter the repositioning state;
if the positioning fails, the robot will give up the previous task and may fail to return for charging.)
Function Module
House Cleaning (default)
1.Select “ Up Arrow” and switch to Room Clean in the APP.
Room Clean
•
•
•
•
Note：
Please clear the obstacles around the designated area to ensure the robot can access.
The map needs to be generated in the APP before use.
1
2
Cleaned area Cleaned area
Area to be cleaned
Area being cleaned

18
Function Module
1.Select “Zone Clean” in the APP and click "+ Zone Clean" in the right.
Select an area to be cleaned on the map and click "Start”, the robot
will start the cleaning within the customized area.
1.Select "Point Clean” in the APP.
2.Select a point to be cleaned on the map, then click "Start Cleaning" to start cleaning.
3.The robot will move to the designated location and clean an area of 1.5m×1.5m square
with itself as the center, then return to the base for charging.
Note:
Please clear the obstacles around the designated area to ensure the robot can access.
The map needs to be generated in the APP before use.
Zone Clean Point Clean
Select “Forbidden Area” in the APP and set the forbidden area, then save the settings
and the robot will not access to the set area for cleaning.
Forbidden Area
Note:
The map needs to be generated in the APP before use.
Zone Clean Forbidden Area
Note:
The map needs to be generated in the APP before use.
The selected forbidden area should not be too close to the charging base; otherwise,
the robot and the APP will report error.
When robot Vacuum is moved or the domestic environment has significantly changed,
the map may become invalid and the restricted area may get lost.
1.5 m
1.5 m
