lubluelu TPH06 User manual

Instruction Manual
Handy Cordless Vacuum
Cleaner Manual
Make Your Daily Cleaning Easy
Model Number: TPH06

Contents
Important Safety Instructions---------------------------( 01 )
Product Instructions-------------------------------------( 05 )
Accessory Instructions----------------------------------( 06 )
Assembly-----------------------------------------------( 07 )
Product Operation--------------------------------------( 09 )
Maintenance--------------------------------------------( 13 )
DE------------------------------------------------------( 23 )
FR-------------------------------------------------------( 41 )
IT-------------------------------------------------------( 59 )
ES------------------------------------------------------( 77 )

Important Safety Instructions
IMPORTANT: READ ALL INSTRUCTIONS BEFORE USE.
RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.
Personal Safety:
1. Store indoors in a dry place out reach of children;
2. Always use responsibly. This appliance can be used by children aged
from 15 years and above and persons with reduced physical, sensory
or mental capabilities or lack of experience and knowledge if they
have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved;
3. Don’t let children play with the appliance; supervise children using
or maintaining the appliance;
4. Use only manufacturer’s recommended attachments as described in
this manual; misuse or use of any accessory or attachment other
than those recommended, may present a risk of personal injury;
5. Take extra care when cleaning stairs;
6. Keep the appliance and accessories away from hot surface;
7. Do not block the appliances openings or hinder air flow, keep
openings free of any objects including dust, lint, clothing,
fingers (and all parts of the body);
8. Particularly keep hair away from openings and moving parts;
Do not use in rain or leave outdoors while raining.
Important Safety Instructions---------------------------( 01 )
Product Instructions-------------------------------------( 05 )
Accessory Instructions----------------------------------( 06 )
Assembly-----------------------------------------------( 07 )
Product Operation--------------------------------------( 09 )
Maintenance--------------------------------------------( 13 )
DE------------------------------------------------------( 23 )
FR-------------------------------------------------------( 41 )
IT-------------------------------------------------------( 59 )
ES------------------------------------------------------( 77 )
Basic safety precautions should always be observed when
using an electrical appliance, including the following to reduce the risk
of fire, electrical shock, or injury.

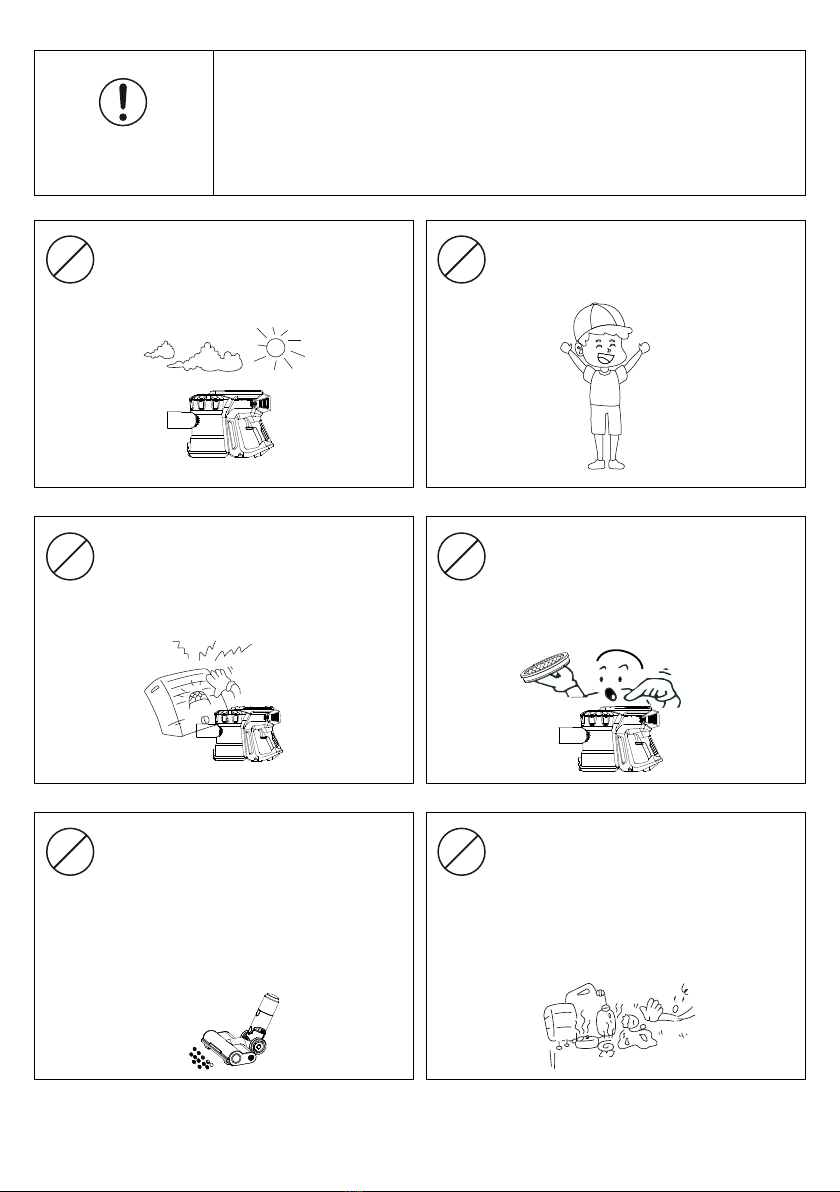

WARNING:
1

Electrical Safety:
1. Only use batteries and chargers supplied by the manufacturer;
2. Never modify the charger in any way;
3. The charger has been designed for a specific voltage. Always check
that the mains voltage is the same as that stated on the rating plate;
4. A charger that is suitable for one type of battery may create a
risk of fire when used with another battery;
5. Before use, check the charger cord for signs of damage or ageing.
A damaged or entangled charger cord increases the risk of fire
and electric shock;
6. Do not abuse the charger cord;
7. Never carry the charger by the cord;
8. Do not pull the cord to disconnect from a socket, grasp the plug
and pull to disconnect;
9. Don’t wrap the cord around the charger when storing;
10. Keep the charger cord away from hot surfaces and sharp edges;
11. The supply cord can not be replaced. If the cord is damaged, the
charger should be discarded and replaced;
12. Do not handle the charger or the appliance with wet hands;
13. Do not store or charge the appliance outdoors;
14. The charger must be removed from the socket before removing
the battery, cleaning or maintaining the appliance.
Battery safety:
1. This appliance includes Li-ion batteries, do not incinerate batteries or
expose to high temperatures as they may explode;
2. Liquid ejected from the battery may cause irritation or burns;
2

3. In an emergency situation contact professional help immediately;
4. Leaks from the battery can occur under extreme conditions.
Do not touch any liquid that leaks from the battery. If the liquid
that gets on skin, wash immediately with soap and water. If the
liquid gets into the eyes, flush them immediately with clean
water for a minimum of 10 minutes and seek medical attention.
Wear gloves to handle the battery and dispose of them
immediately in accordance with local regulations;
5. A short-circuit may cause a fire.
6. When the battery is not in use, keep it away from paper clips,
coins, keys, nails, screws or other small metal objects that could
make a connection from one terminal to another;
7. When you dispose of the appliance, remove the battery and dispose
of the battery safely in accordance with local regulations.
Attention:
1. Before using the appliance and after any impact, check for signs of
wear of damage and repair if necessary;
2. Do not use the appliance if any part is damaged or defective;
3. Repairs should be carried out by a service agent or a suitably
qualified person in accordance with relevant safety regulations;
Repairs by unqualified persons could be dangerous;
4. Never modify the appliance in any way as this may increase the
risk of personal injury;
5. Only use replacement parts or accessories provided or
recommended by manufacturer.
3

Intended use:
1. This appliance has been designed for domestic dry
vacuum cleaning only;
2. Do not pick up liquids or use on wet surfaces;
3. Do not pick up anything that is flammable, burning or smoking;
4. Use only as described in this manual;
5. Don’t use on concrete, tarmacadam or other rough surfaces.
WARNING:
1. Do not use water, solvents, or polishes to clean the outside of the
appliance; wipe clean with a dry cloth;
2. Never immerse the unit in water and do not clean in a dish washer.
4

5
PRODUCT INSTRUCTIONS

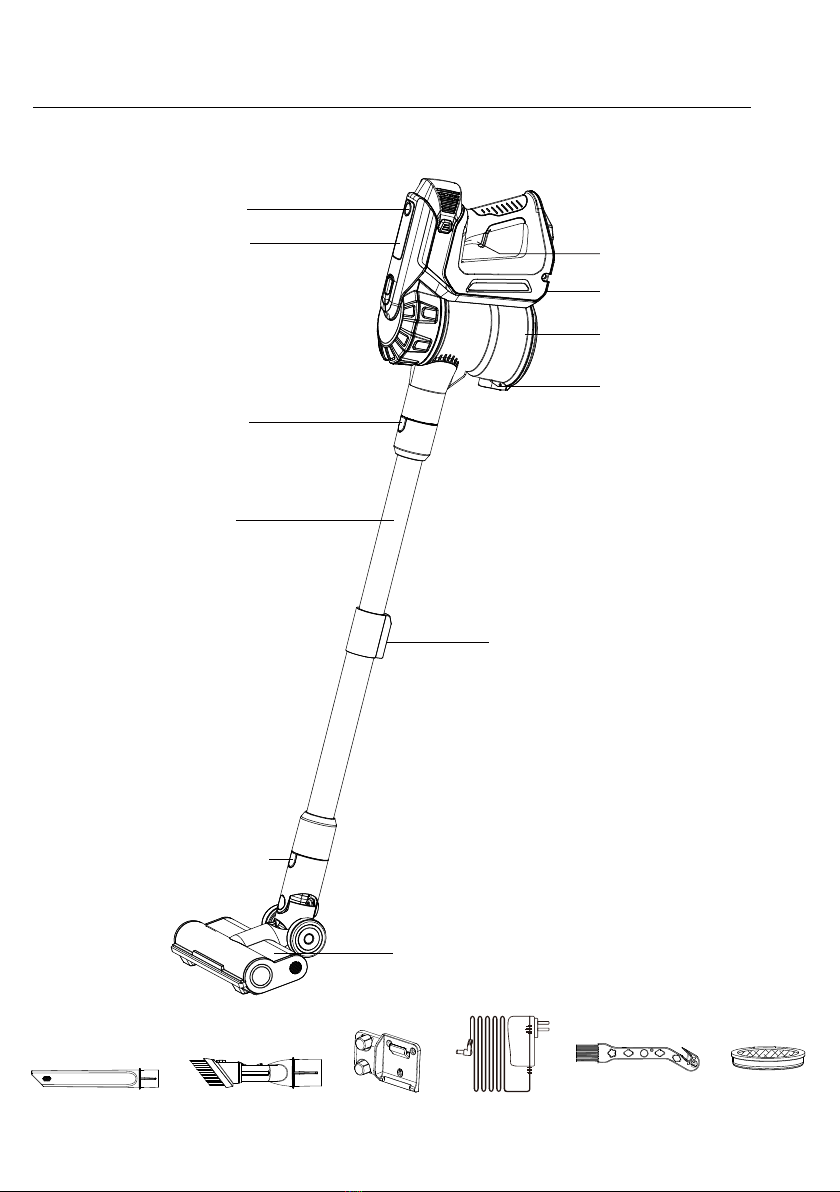

Product Parts introduction:
Speed button
Retractable metal tube
Metal tube
release button
Motorized brush
release button
Motorized floor brush
Dustbin
Switch button(On/Off)
Battery pack
Battery indicator light
Dustbin release button
Extend-retract tube button
Soft dusting brush Power adapterWall mount Filter HEPAHair cleaning toolLong suction nozzle

6
Direct-drive LED multi-tasker power brush
Direct-drive technology increases the cleaning efficiency and creates a
highly dynamic operation, very effective for agitating dirt embedded
in the carpet, easy to clean fine dust and debris. Ideal for both hard
floors and carpets.
Long suction nozzle
For corners, niches and other hard-to-reach places, such as car seat
and mat, picture frame, etc.
Soft dusting brush
Angled bristles on slender, oval shape provide anti-static cushioned
contact. Suitable for dusting sofa, curtain or other fabric furniture,
or delicate surfaces, electronics, and more.
Hair cleaning tool
Use the end with small blade to remove the hair and debris wrapped
around the roller brush.Use the end with little brush to clean the brush
window,also can be used to clean the Dustbin and HEPA.
Wall Mount
Store the vacuum cleaner and brush on the wall by wall mount
as needed.
Power Adapter
Charge the battery of vaccum cleaner by Power adapter.
Filter Sponge
Top Filter Sponge to increase the cleaning efficiency and remove up to
99.8% of microscopic dust particles as small as 0.3 microns.
Accessory Instructions

7

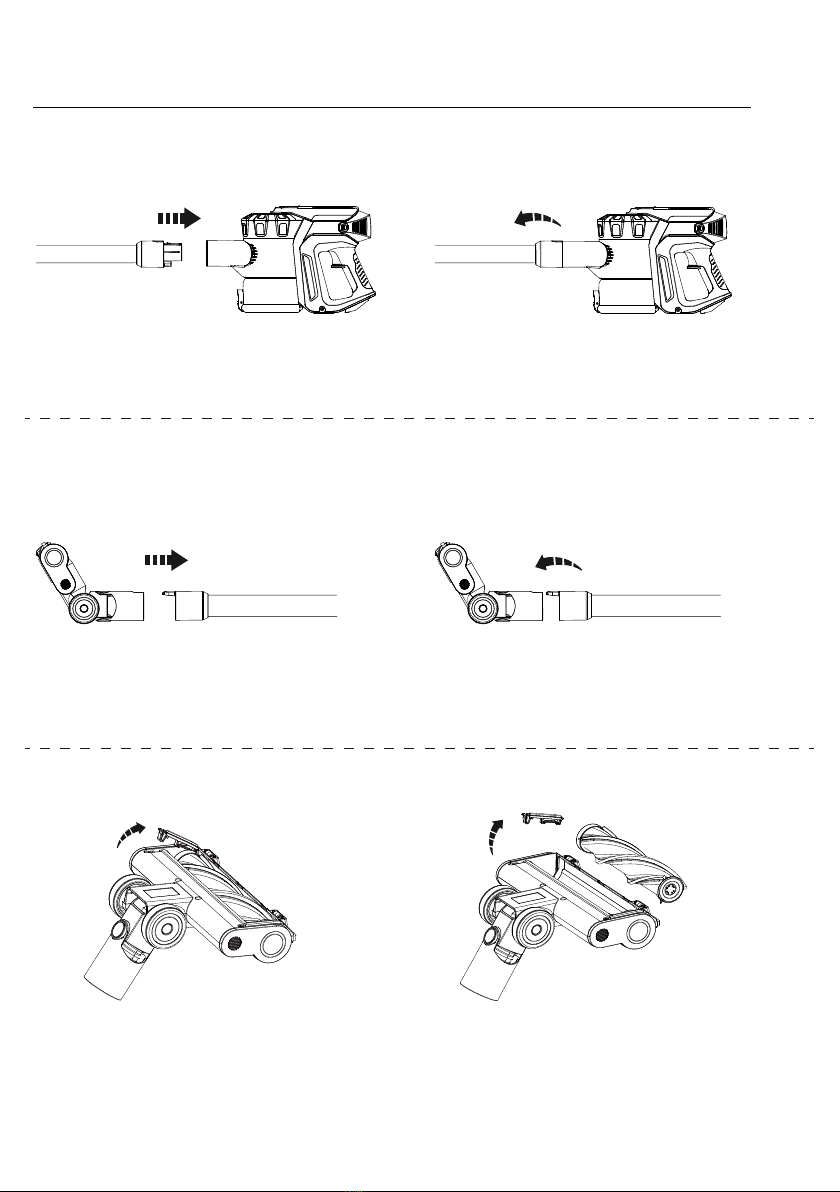

Install the Retractable metal tube
Insert the Retractable
metal tube. Press the Release button and remove tube.
Assembly
Install the Motorized floor brush
Insert the Motorized
floor brush. Press the Release button and remove Motorized floor brush.
Install the Roller Brush
Pull out the Slot by pressing the
Brush release button. Take out the Slot, then take out the Roller Brush.

8
Install Filter components
In shutdown status, press the Dustbin release button to dump out the garbage.
Press the Dustbin release button to take out the Dustbin. Counterclockwise
rotate the Cover of Dustbin to take out HEPA and the pull up the Filter
components.
In shutdown status, montage the Filter compnents into Dustbin and HEPA.
Aim the Cover at Dustbin slot. Clockwise rotate the Cover and put the
Dustbin hook into groove of main body. At last install the Dustbin on
main body.
Install the Battery
Press the Battery release button
and pull the battery out.
Slide the Battery into the main body.
The battery will click into position
when correctly fitted.

9
PRODUCT INSTRUCTIONS
Start to Work
Press the Swith button, the vacuum
machine will start to work; Press the Switch button again and the vacuum machine will stop to work;
Choose the MIN/MAX Mode of Vacuum
cleaner by Speed button for different
floor condition.
(Note: Choose the MAX Mode for the carpet, or
big size garbage like candy; choose the MIN
Mode for the floor or for lower noise).
2
1
Press the Extend-retract tube button with one hand, extending or retracting to
choose the suitable vacuum cleaner height for more comfortable cleaning
with the other hand;
3

10

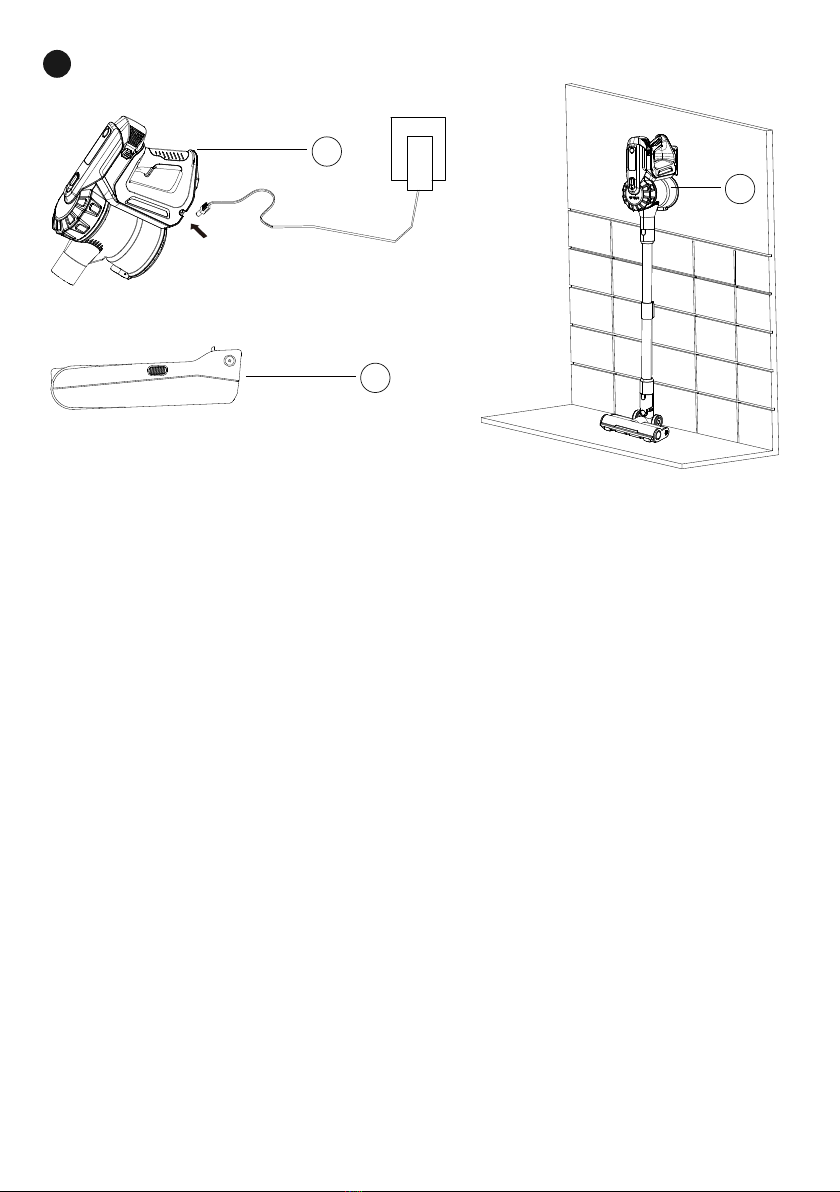

Three Ways to charge the Vacuum cleaner:
1.Charge the vacuum cleaner head by Power adapter;
2.Remove the Battery from the vacuum cleaner and charge it separately by
Power adapter;
3.Charge the whole vacuum cleaner by Power adapter.
Charging mode : directly insert into the charging socket of the battery to charge.
Battery charging:
1. When the Battery indicator flashes for seconds and turns off, indicating that
the power has been used up. Please plug the charger adaptor into
household socket for charging;
2. When the Battery indicator is always on and no longer flashing, it means
that the machine is fully charged.
Battery indicator light:
4
1
2
3

11
Press the Dustbin release button
1. Please clean the Dustbin when the dust reaches its MAX level;
2. We suggest to clean the Dustbin every 3-5 days even the
dust doesn't reach its MAX level.
Note:
Note:

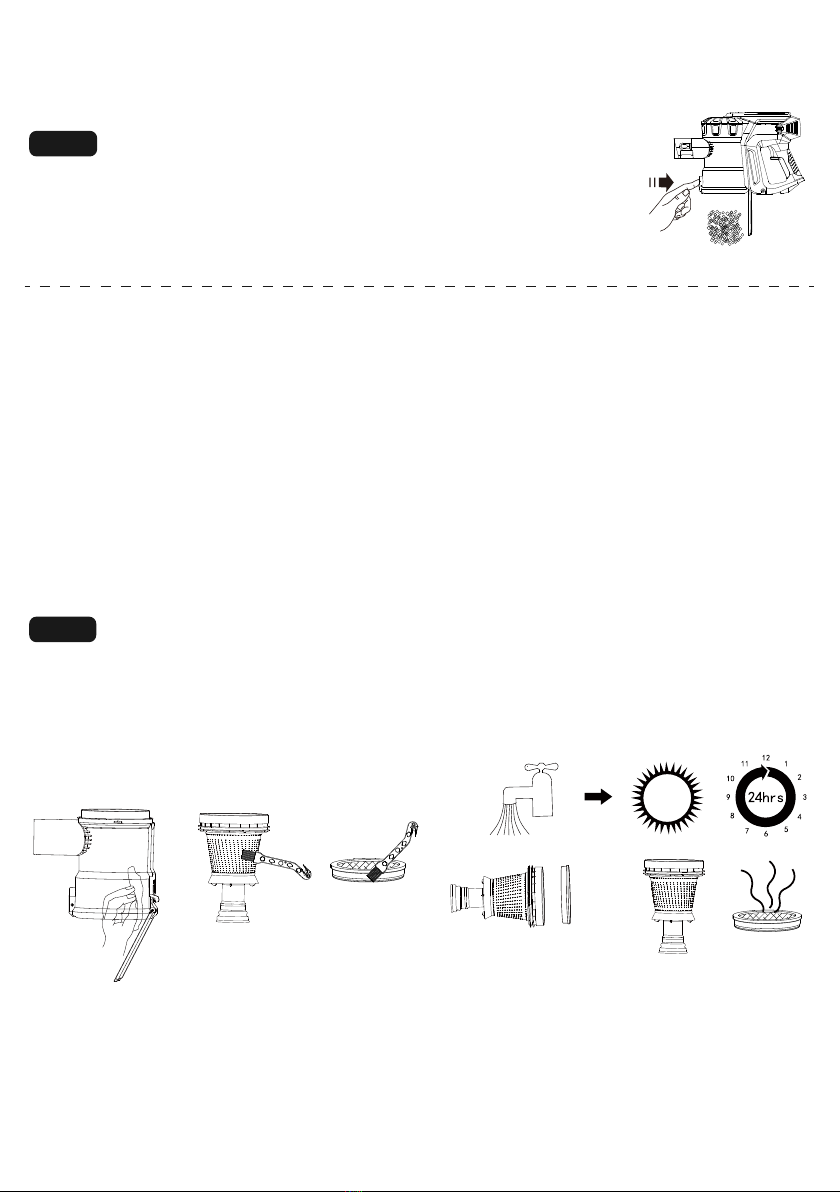

How to empty the Dustbin
Disassemble the filter system as above, then clean it.
1. Clean the Dustbin: Wipe it with brush or dry cloth.
2. Cleaning the Stainless steel mesh cover: Wipe it with brush or dry cloth.
If it was too dirty, please wash and wipe dry it by cloth. And leave to dry it
completely in a well-ventilated place under the sun in time;
3. Sponge cleaning: normally tap it lightly to clean it;
Ultra Sponge cleaning: normally tap it lightly to clean it;
4. If it was too dirty, you can wash it and leave to dry it completely in a
well-ventilated place under the sun in time.
We suggest to clean the Filter Components each 2-3 weeks for better cleaning;
Please make sure to dry the Filter Components completely bofore use them, or the
water and moisture would effect the working and lifespan of machine’s electric parts.
Clean the Filter components

12

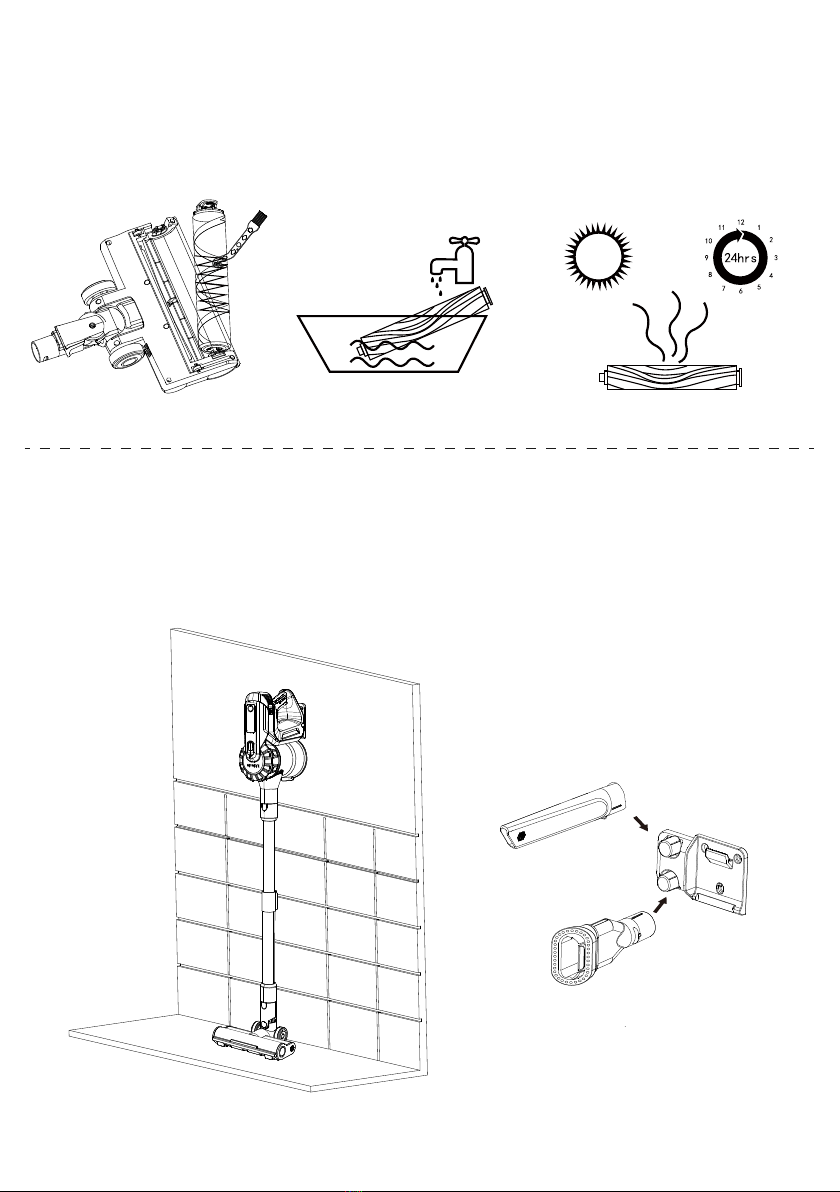

Take out the Roller brush and clean the hair and other foreign matters on the
Roller brush by the Hair cleaning tool and dry it by cloth; if it was too dirty,
please wash it and leave to dry it in a well-ventilated place under the sun.
Clean the Roller brush
Fix the Wall mount to the wall with nails;
Lock the floor brush and fix the machine to the wall mount;
Attach cleaning accessories to wall mount.
Product storage

13
• Do not carry out any maintenance or repair work other than that shown and
described in this Operating Manual.
• Store the machine indoors. Do not use or store it below 37.4°F (3°C).
Ensure the machine is at room temperature before operating.
• Clean the machine only with a dry cloth. Do not use any lubricants, cleaning
agents, polishes or air fresheners on any part of the machine.
Maintenance
When using the Lubluelu vacuum cleaner, basic precautions should always
be followed. Failure to follow the warnings and instructions may result in
electric shock, fire and/or serious injury.
1. Please use the original parts for the machine, do not use other branded or
no branded parts without the permission of the manufacturer. If using non-
original parts causes the machine to malfunction, the warranty service will
be automatically ended. The manufacturer is not responsible for any loss
of life or property.
2. Please check if the product is damaged or the accessories are not
completely received after unpack.
3. Do not use with damaged cord or plug. If appliance has been dropped,
damaged, left outdoors, dropped into water, or is not working as it
should, return it to the manufaturer.
4. Children below 15 years and incapacitated persons should use this machine
under the supervision of their guardians.
5. When a fault occurs, the Power adapter should be pulled out immediately
and the defective product should not be placed in working status.
6. Please do not disassemble and repair all the electric parts including but not
limited motors, battery and Power adapter, which is easy to damage the
machine and cause other insecurity.
Any content with the logo means being prohibited,
otherwise it may cause damage to the product or
endanger the personal safety of the user.
Prohibited sign
WARNING：

14
All contents with the logo means it must be handled
in strict accordance with the requirements, otherwise
it may cause damage to the product or endanger
the personal safety of the user.
This product is for household use
only. Do not use this product
outdoors.
Children below 15 years are not
allowed to use it alone to avoid
dangers like electric shock.
Please do not let the vacuum cleaner
too close to the heat source and other
high temperature objects, lest plastic
deformation, It will affect the use of
the cacuum cleaner.
When using the vacuum cleaner,
please pay attention to the installation
of various filter parts, do not use the
vacuum cleaner when there is no
filter accessories.
Please do not use vacuum cleaner to
suck cement, gypsum powder, wall
powder, starch and other small
particles, otherwise it will cause
vacuum cleaner filter parts blockage,
motor burn out and other faults, if
suction of the above small particles,
please timely processing filter parts.
Please don't use the vacuum cleaner
to suck burning cigarette butts, so
as to avoid danger. Please do not
suck detergent, kerosene, gasoline,
paint, sewage and other liquids, in
case the liquid enters the motor and
causes motor failure.
Warning sign

15
Troubleshooting
Problem Possible cause
No power
Battery not installed
The suction mouth
is blocked
The vacuum cleaner
doesn’t work
Charge the battery for 3-4h
Reinstall the battery to the
correct postion
Check and remove blockages
Solution
Please do not suck hair group,
paper group and other easy to block
the suction mouth and air duct
objects, such as suck in the air
duct, should be promptly cleaned to
avoid damage to the machine.
Please do not press heavy weights
on the machine or tread on the
machine.
After 5-6 hours of charging time,
please unplug the charger from
the socket and keep it properly.
Avoid children taking it away
When cleaning the vacuum cleaner,
please use the wet cloth with water
or neutral detergent, do not use
gasoline, banana oil, etc., or it will
cause shell crack and fade

16
Problem Possible cause
Dustbin and Filters are
full of dust
Not properly assembled
Speed mode is
not suitable
Weak suction power
Working time
is too short
Battery won't charge
Clean the Dustbin and Filters
Check each interface and
Dustbin button to ensure
normal assembly
Change the Speed mode for
bigger suction power
Battery is not
fully charged Charge the battery for 3-4 hours and then use it
The Roller brush is
wrapped by hairs
or fibers
Battery is not
fully charged
Speed mode is too big
The adapter is not
correctly inserted
Poor contact of the
main body or battery
Clean the Roller brush
Charge the battery for 3-4
hours and then use it
Choose suitable Speed mode
for different ground condition
Reinsert the adapter correctly
Check if the main body and
battery are correctly placed
The adapter is not
designed for Lubluelu
TPH06 vacuum cleaner
The socket is
not working
Use the original power adapter
Check the socket and make
sure it is working or change
a new socket to try again
Solution

17
The 2-Year Limited Warranty
Applies to purchases made from authorized retailers of Lubluelu. According
to the requirements outlined in this instruction manual, subject to the
following conditions and exclusions.
WHAT IS COVERED?
Your Lubluelu machine has a 2-year warranty against original defects in
material and workmanship.
when used for private household purposes in accordance with the
Lubluelu Instruction Manual.
This warranty provides, at no extra cost to you, all labor and parts necessary
to ensure your machine is in proper operating condition during
the warranty period.
This warranty will only be valid if the machine is used in the country in which
it was sold.
Warranty
Problem Possible cause
Out of power
The Roller brush is
wrapped by hairs
or fibers
The Roller brush is
not well installed
The Roller brush
is not working
Charge the battery for 3-4
hours and then use it
Clean the Roller brush
Install the Roller brush again
to the correct position
Solution
Note:
In any other cases or if the solutions explained above can not solve the problem,
please contact us via suppor[email protected] or visit our website
lubluelu.com for further support.
