LucidPort Chameleon Pro User manual

U.S. Patent Pending
Chameleon Pro
Master Device Manual

Chameleon Pro - Master Device Manual Doc# 100-03-100
Copyright © LucidPort Technology, Inc.
485 E. Evelyn Ave., Sunnyvale, CA 94086
Tel: [phone] Fax: [phone]
www.lucidport.com
Contents
1 Introduction............................................................................................................................. 1
2 Chameleon Pro Master Installation......................................................................................... 1
2.1 Uninstalling..................................................................................................................... 4
3 Chameleon Encrypted Drives: Protecting Your Data............................................................ 4
4 Managing Users ...................................................................................................................... 7
4.1 Creating User Devices .................................................................................................... 7
4.1.1 User ID.................................................................................................................... 9
4.1.2 Passwords................................................................................................................ 9
4.1.3 PC Lock ................................................................................................................ 10
4.1.4 AutoLogin............................................................................................................. 10
4.1.5 Pagefile Encryption............................................................................................... 10
4.2 User Logs...................................................................................................................... 10
4.3 Using the Chameleon device with Multiple Computers............................................... 11
4.4 Retiring Users .............................................................................................................. 12
4.4.1 Deleting User Drives............................................................................................. 12
4.4.2 Changing users with a Master............................................................................... 13
4.4.3 Changing users with a Migration User Device..................................................... 15
5 Duplicating a Master Device ................................................................................................ 17
6 Replacing a Master ............................................................................................................... 18
6.1 Updating User Devices................................................................................................. 21
7 Encrypting Individual Files and Folders............................................................................... 24
7.1 Encrypting Files............................................................................................................ 24
7.2 Decrypting Files............................................................................................................ 27
7.3 Migrating Encrypted Files ............................................................................................ 30
8 Changing Passwords............................................................................................................. 32
9 Adding, Deleting, and Resizing Encrypted Drives............................................................... 34
10 PC Lock ................................................................................................................................ 36
11 AutoLogin............................................................................................................................. 37
12 Additional Functions and Limitations .................................................................................. 39
12.1 Display User Device Programming.............................................................................. 39
12.2 Windows Paging File.................................................................................................... 41
12.3 Safe Removal................................................................................................................ 42
12.4 Backing up Data............................................................................................................ 43
12.5 Using Multiple Chameleon devices with the Same Computer..................................... 43
13 Limited Warranty and Legal Notices.................................................................................... 44

Chameleon Pro - Master Device Manual
Copyright © LucidPort Technology, Inc.
485 E. Evelyn Ave., Sunnyvale, CA 94086
Tel: [phone] Fax: [phone]
www.lucidport.com
Page 1
1 Introduction
Chameleon Pro protects the files on your PC with AES-256 encryption. Chamelon Pro differs
from other USB encryption devices by protecting the files on your hard disk rather than
transferring them to a USB device. Chameleon Pro creates an encrypted drive using the free
space in your hard disk. Files and applications stored in this encrypted drive are protected and
can only be accessed when the Chameleon device is plugged in. Like the key for your car, the
device acts like a physical key for your hard disk.
Chameleon Pro includes two types of devices: Masters and Users. User devices provide all of
the core Chameleon security features (encrypted drives, individual file encryption, etc.). Master
devices offer the same features in addition to being able to manage Users.
A Master can access, create, duplicate, set policies for, and lock out Users. While Users cannot
access data protected by other Users, the Master can access data protected by any User
associated with it. A Master can also manage its own independent, encrypted data.
The Chameleon Pro works with Windows XP, Vista, and Win7 based PCs.
2 Chameleon Pro Master Installation
1. Before installing the Chameleon software, make sure any previous versions of the

Chameleon Pro - Master Device Manual
Copyright © LucidPort Technology, Inc.
485 E. Evelyn Ave., Sunnyvale, CA 94086
Tel: [phone] Fax: [phone]
www.lucidport.com
Page 2
Chameleon are uninstalled. Uninstalling does not delete existing encrypted drives.
2. Insert the installation CD and run the Setup program.1(You can also download the setup
program from http://www.marathon6.com/chameleon.)
3. Click on the "Install" button to load the
software.
4. Insert your new Master device then press
"Start" to launch the installation wizard to
begin Master configuration. (User devices
are configured later)
5. Choose between A), B), or C)
A) Choose a Recovery Passphrase. This passphrase is used only for making duplicate copies
of your Master device (in case you lose it) and not used in normal operation. You can think of
the Recovery Passphrase as a password stored on the device itself.
Select a unique passphrase. Another Master with the same passphrase may be able to access
1On some Windows7 computers, you may get a User Account Control warning that a program is trying to make
changes to the computer. Select “Yes” or “Install” if this occurs.

Chameleon Pro - Master Device Manual
Copyright © LucidPort Technology, Inc.
485 E. Evelyn Ave., Sunnyvale, CA 94086
Tel: [phone] Fax: [phone]
www.lucidport.com
Page 3
your data. Once programmed, the Recovery Passphrase can never be changed.
A good passphrase is at least 16 characters long (the longer the better) and includes random
letters (upper and lower case), numbers, and special symbols. Protect your passphrase as you
would protect a password. An attacker who learns your passphrase can use it to make a duplicate
Master device. There is no way to duplicate a Master device without your Recovery Passphrase.
B) For the best balance of security and redundancy, use a random sequence of at least 64
numbers and letters as the passphrase. After completing the installation, make several Master
devices with this sequence as backups. (See “5 Duplicating a Master”). In order to create
additional Master duplicates in the future, save the random sequence in a secure location. Delete
the sequence, otherwise.
C) Disable the Recovery Passphrase. For the
strongest security, disable the Recovery
Passphrase. This instructs the device to
generate its own random encryption key.
However, this means that you will not be able
to duplicate or replace the device it if it is lost
or broken.
6. Choose a Password. Master devices are
always password protected. Passwords are
not optional for masters (Passwords are
optional on User devices.) The password
must be entered every time you plug in the
device. It should be different from the
Recovery Passphrase. A password protects
your Master device from unauthorized use.
7. Create an encrypted drive. This drive
will only be accessible by your Master
device. An encrypted drive owned by the
Master is required for duplicating or
replacing Master devices.
Specify the size and location of the drive. The installer creates the encrypted drive using free
space at that location. The encrypted drive does not need to be large. It can reside on your local

Chameleon Pro - Master Device Manual
Copyright © LucidPort Technology, Inc.
485 E. Evelyn Ave., Sunnyvale, CA 94086
Tel: [phone] Fax: [phone]
www.lucidport.com
Page 4
hard disk or on external USB drives. It can be resized later using the Chameleon Manager
software (Start > All Programs > Chameleon > Chameleon Manager).
All content copied to the encrypted drive is automatically protected. It is accessible when the
device is inserted, and disappears when the device is removed.
2.1 Uninstalling
You can uninstall the Chameleon software by locating “Chameleon”from the Windows start
menu and selecting “Uninstall”(Start > All Programs > Chameleon > Uninstall). Uninstalling
does not remove your encrypted drives. To remove the encrypted drives, delete the directory
ChameleonDrives from your hard disk’s top level directory (ex. C:\ ChameleonDrives\). The
ChameleonDrives directory can only be deleted when the Chameleon device is unconnected.
3 Chameleon Encrypted Drives: Protecting Your Data

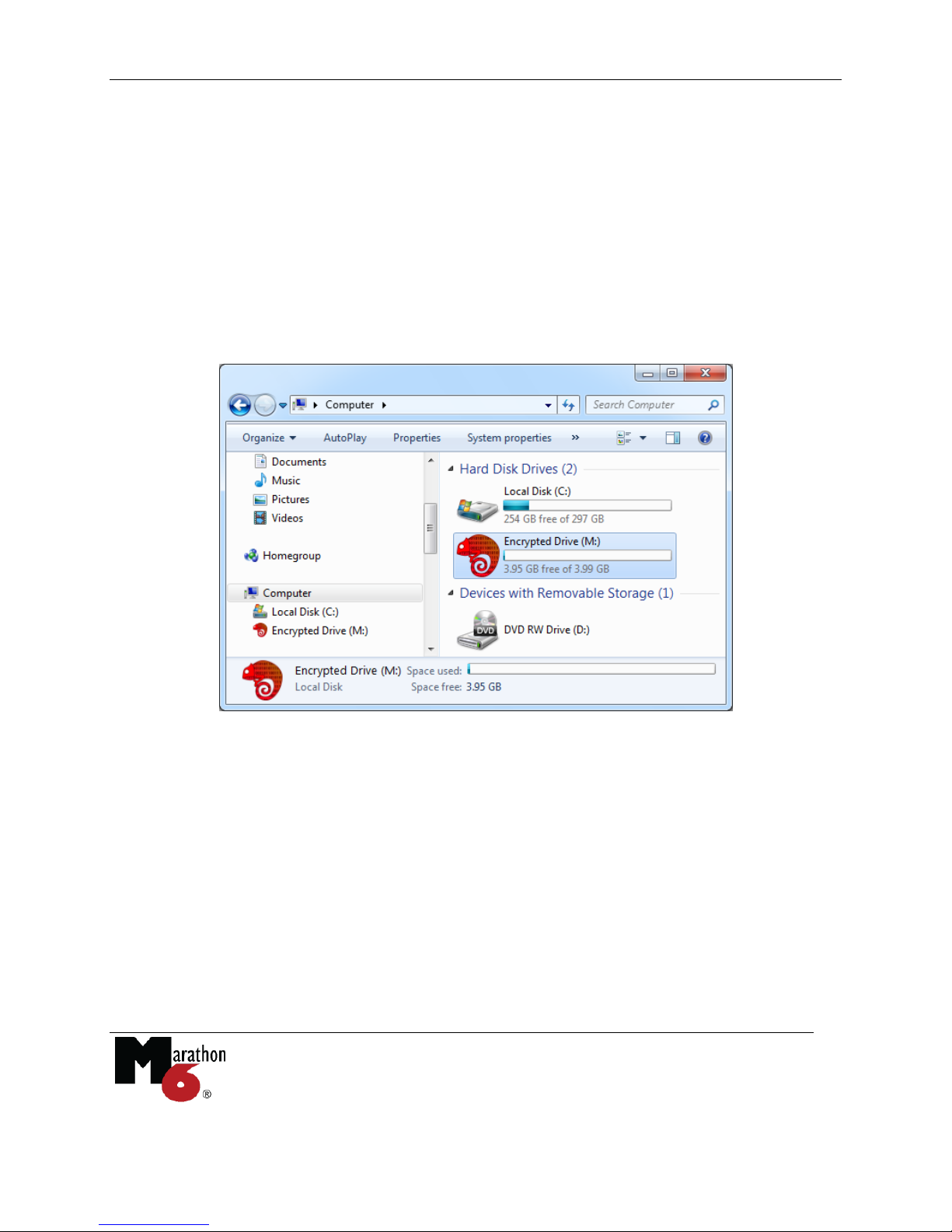

Plug in your Chameleon device to access the encrypted drive. The encrypted drive appears like
any other hard disk in your system. You can store files in it, open files from it, install and run
programs from it, move files from one directory to another, and direct applications to use the
encrypted drive. Once the Chameleon device is removed, the encrypted drive disappears from
Windows. A forensic examination of your hard disk will reveal only encrypted, apparently
random, data.
Only files that are stored on the Chameleon drive are encrypted. Any files copied or read from
the encrypted drive are automatically decrypted. For instance, if a user were to attach a file from
an encrypted drive to an email, that file would be attached decrypted. For securing email
attachments and cloud storage, see section “7 Encrypting Individual Files and Folders”.
You can copy files to the encrypted drive simply by dragging and dropping them there.
However, this retains the original unencrypted file at its original location. A more secure method
is to right-click drag and drop. Hold down the right mouse button, then drag the selected file to
the encrypted drive. A dialog appears showing “Copy”, “Move”, and “Secure move”. The
secure move option moves the file into the encrypted drive, then scrubs away any traces of that
file from its original location.2If a significant amount of data is involved, this may take some
time.
2The standard Windows move command copies the file, then marks the original file as deleted. The deleted file
may be recoverable with specialized tools. The secure move option prevents recovery by overwriting the deleted
file.

Chameleon Pro - Master Device Manual
Copyright © LucidPort Technology, Inc.
485 E. Evelyn Ave., Sunnyvale, CA 94086
Tel: [phone] Fax: [phone]
www.lucidport.com
Page 5
You can also securely move a file to the encrypted drive by using the secure paste option. Right
click on the file or folder you want to move, then select “Cut”. Next, right click on a encrypted
drive or sub-directory, then select “Secure Paste”. Like the secure move option, the secure paste
command cleans away all traces of the unencrypted files from the hard disk.
Secure commands are only available when the Chameleon device is plugged in.

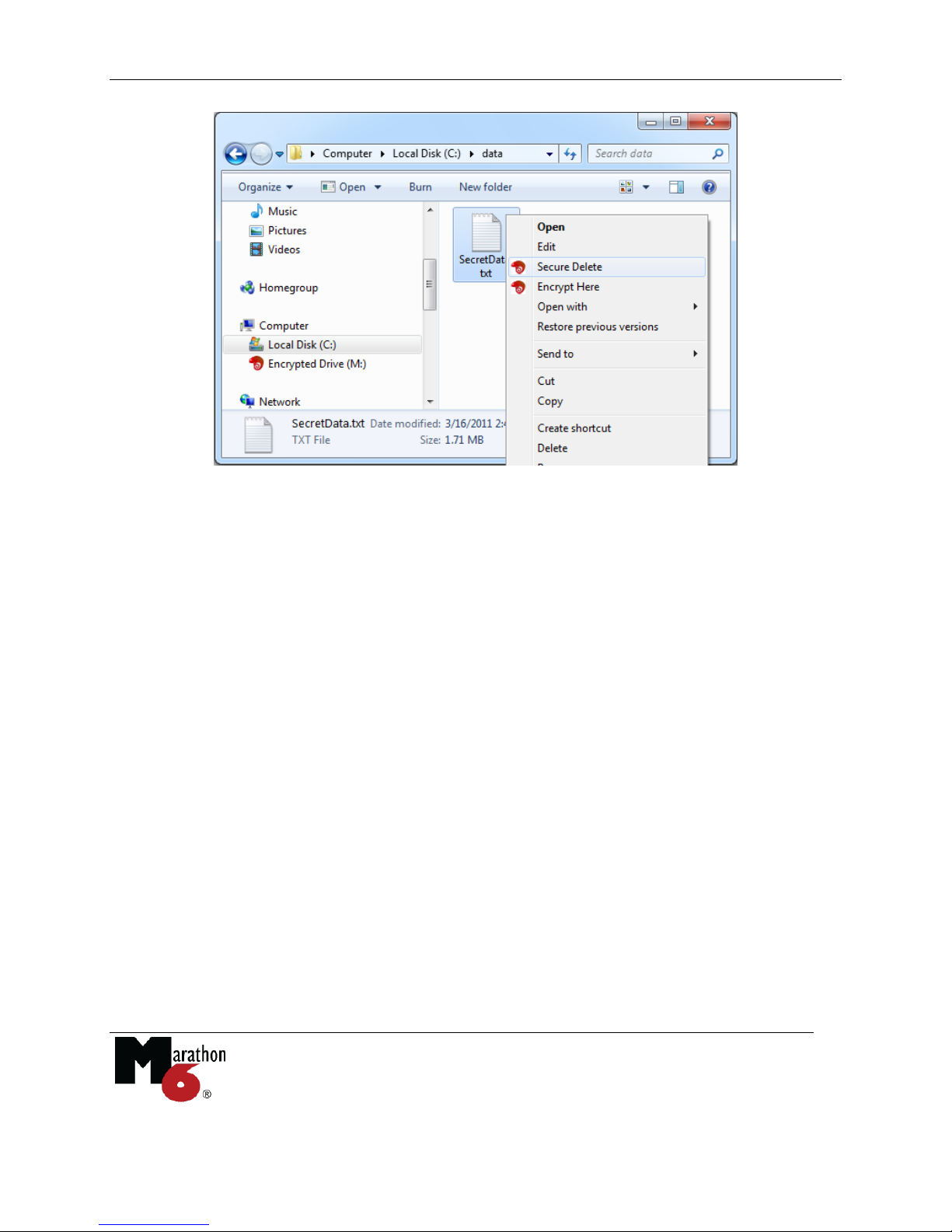

The Chameleon software also adds a secure delete command. Right click on any file or folder
then select “Secure Delete”. This is more secure than deleting the file then deleting it again from
the Windows’ Recycle Bin. Since secure delete overwrites every bit of the file from the hard
disk, this may take some time if a significant amount of data is involved. The normal Windows
cut, paste, and delete commands are still available.

Chameleon Pro - Master Device Manual
Copyright © LucidPort Technology, Inc.
485 E. Evelyn Ave., Sunnyvale, CA 94086
Tel: [phone] Fax: [phone]
www.lucidport.com
Page 6
Deleting a file stored in an encrypted drive places it in the Windows’ Recycle Bin. You can
recover the file from the Recycle Bin as long as the Chameleon device is still inserted. Deleted
files disappear from the Recycle Bin when the device is removed. They reappear in the Recycle
Bin when the device is reinserted. There is no need to secure delete any files located in the
encrypted drive.
Any files you create directly on the encrypted drive are automatically protected. However, some
applications store temporary information to your unencrypted drive. This information may be
recoverable with specialized tools. You should direct your applications to store their temporary
files in the encrypted drive. This can usually be accomplished by installing your applications
directly in the encrypted drive.
You can plug or unplug the Chameleon device at any time. Your computer is still fully
functional without the Chameleon device. Only the encrypted drive (and any programs and data
in it) will be unavailable. Be aware that unplugging the device while writing data to the
encrypted drive may result in data corruption. This is similar to removing an external hard disk
in the middle of a write to it. To be absolutely sure that no writes are occurring, use the
Windows Safe Remove function before unplugging the device.

Chameleon Pro - Master Device Manual
Copyright © LucidPort Technology, Inc.
485 E. Evelyn Ave., Sunnyvale, CA 94086
Tel: [phone] Fax: [phone]
www.lucidport.com
Page 7
If an application is open with an encrypted file, that application and file may still be accessible
even after you unplug the Chameleon device. For example, let’s say you are editing a protected
file in Microsoft Word. If you unplug the device, a copy of this file is still open in Word. You
cannot save this file to the encrypted drive until you re-insert the device. However, you are still
able to view and edit the parts of the file cached in working memory.
4 Managing Users
In addition to the core Chameleon functions, a Master can access, create, duplicate, set policies
for, and lock out User devices. While User devices cannot access data protected by other User
devices, the Master can access data protected by any User (even with passwords enabled)
associated with it.
A Master may only program brand new User devices or Users that were originally programmed
by the same Master. Masters cannot program a User device that was programmed by a different
Master.
4.1 Creating User Devices
1. Plug in the Master device
2. Enter your password
3. Start the Chameleon Manager
Click on Windows “Start” >
All Programs >
Chameleon >
Chameleon Manager

Chameleon Pro - Master Device Manual
Copyright © LucidPort Technology, Inc.
485 E. Evelyn Ave., Sunnyvale, CA 94086
Tel: [phone] Fax: [phone]
www.lucidport.com
Page 8

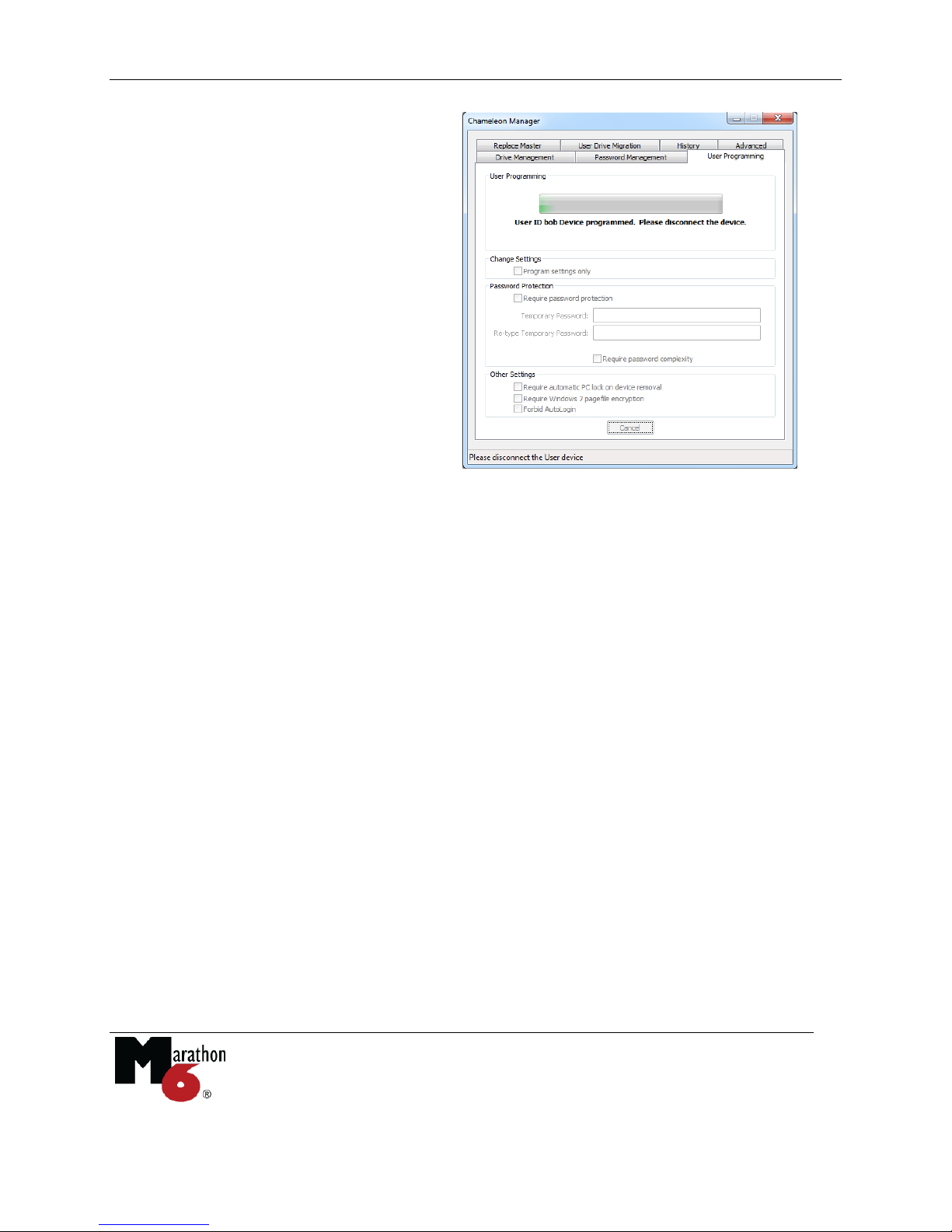

4. Select the “User Programming”
tab.
Define the User ID and other
settings, then press “Program”.
The sections that follow describe the
available settings.
Note: In order to change the settings
on a User device without changing
the User ID and Description, select
the “Program settings only”
checkbox. Do not use this checkbox
on a User device that has not been
previously programmed.
5. Plug in the User device to be
programmed.
