Fitting Instructions
LuMac Fitting Instructions!
2
Copyright LuMac ltd 2012
• = Actions.
Red = Notes you must read before continuing.
Grey = Only applies to canopies over 4m widths.
Overview
1. Tools you will need.
2. What you will need to provide.
3. Description of the parts supplied with your canopy.
4. Fitting steps overview.
5. Detailed fitting steps.
1. Tools you will need
Item
Tool Description
1
Metal drill bits - dia. 3.8mm (for pilot)
2
Driver Bit, Phillips Head, PH2 (for driving the self-tapping screws) NOT Pozidriv
3
51mm Hole saw.
4
10mm Socket
5
Ratchet Driver for 10mm socket (item 04).
6
Spirit Level.
7
Power Drill/Driver, Hammer Drill.
8
13 Amp Extension cable.
9
Marker Pen.
10
Soft Lead pencil.
11
Robust Step Ladder(s).
12
Digging Equipment for Supporting Post foundation holes.
13
Hacksaw
2. What you will need to provide
Item
Item Description
1
Fixings to secure Wall Plate – usually masonry fixings
2
Drill bits for fixings in Item 1
3
Fixings for securing Supporting Post Feet
4
Drill bits for fixings in Item 3
5
Sand and cement/ post mix and water if you are cementing the post instead of bolts
Notes:
• Self-tapping screws are easier to fix if they are greased or wax before use.
• Cleaning and maintenance information can be found at the back of these instructions.
• Clear As Glass (6mm) roof panel assembly information on the back page.
LuMac Fitting Instructions!
3
Copyright LuMac ltd 2012
3. Description-of-the-parts-supplied-with-your-canopy-
Supporting Leg
Post/Foot “L” Bracket
Wall Plate
Gutter
Edge Glazing Bar
Middle Glazing Bar
Sheet Closure
Roof Panel (Sheet closure red)
Edge Glazing End Cap
Main Glazing bar end cap
Gutter End Plate
Wall Plate end cap
4. Fitting steps Overview:
1. Dig your post/foot holes.
2. Fix wall plate.
3. Fit “L” brackets to the gutter.
4. Fit the gutter to the legs & check levels.
5. Makes holes where the rain will drain through to the legs.
6. Fit the end glazing bars (from gutter to wall plate) & check levels.
7. Fit the roof panels and inner glazing bars.
8. Re-position glazing bars to achieve the correct spacing.
9. Fit the sheet closure bars to the roof panels (at the gutter end).
10. Secure the glazing bars in place at both the wall plate and the gutter.
11. Secure post feet in foundations & Make rain drainage holes in the legs.
LuMac Fitting Instructions!
4
Copyright LuMac ltd 2012
5. Detailed*Fitting*steps*
1. Digging your post/foot holes
Width (m)
Projection
(m)
Poly
Projection wall to inside face
of supporting post (mm)
Roof Pitch = 10 degrees
N/A
1.5
16mm
1491
N/A
2.0
16mm
1981
N/A
2.5
16mm
2471
N/A
3.0
16mm
2961
N/A
3.5
16mm
3461
N/A
4.0
16mm
3951
• Mark position of each Supporting
Post (Use the graph above).
• Dig holes for each Supporting Post.
• These holes should be a minimum of
300mm square & 500mm deep.
Depending on grounds conditions you may
need to dig deeper untill secure ground is
reached.
• Pour concrete mix into each hole to a
depth of 100mm to provide footing
for Supporting Post Feet.
Do not overwater as the mix needs to start
‘skinning over’ as soon as possible so the
legs to not sink when you stand them on the
concrete.
Note: Concrete mix should ideally be:
• 1 part cement: 3.5 parts sand : 2.5 parts
course aggregate.
If using combined aggregate the mix should be:
• 1 part cement: 5 parts combined aggregate.
LuMac Fitting Instructions!
5
Copyright LuMac ltd 2012
Fit the Supporting Posts with the Supporting
Post Feet.
• Insert 2 Post feet per leg.
• The Post Foot will slide into the
channels on the inside of the Post.
Secure the feet to the post
• Drill 2 x 3.5mm holes.
• Then use 2 x self-tapping screws.
• Repeat this process for all supporting
posts.
Each post should have 2 foot brackets
attached.
2. Fix Wall Plate
• Drill the holes in the wall plate before
it is “shown up” to the wall.
• Keep the holes centered along the
wall plate.
Holes should be no more than 450 mm apart.
Wall fixings are not supplied as your wall
plate could be fixed to wide variety of
materials. Please use appropriate fixings
for your application
LuMac Fitting Instructions!
6
Copyright LuMac ltd 2012
• Remove protective film from the wall
plate end caps.
• Use self-tapping screws to secure the
wall plate end caps.
Make sure the holes in the end cap align with
the screw ports in the wall plate.
The Following step is only required if your wall plate was supplied in 2 sections
• Insert Joining Plate into joining plate
slots on one of the wall-plates.
The Joining Plate is 350mm in length and is
designed to be a tight fit. You may file this or cut
it shorter to make fitting it easier.
Use a Rubber Mallet to tap in the Joining
Plate into the joining plate slots to half its
length.
• Join the other wall plate to the first
section that has the joining bar now
fitted.
If there are more than 2 sections repeat until
all wall plates are connected together.
The wall plate can now be fixed to the wall
Use the chart below to find the height of your wall plate
Projection
(m)
Underside of
Eaves/Gutter beam
height
Ground level to
underside of wall plate
height. (metres)
Ground level to underside
of wall plate height.
(millimetres)
1.5
2.1
2.377
2377
2.0
2.1
2.464
2464
2.5
2.1
2.561
2561
3.0
2.1
2.645
2645
3.5
2.1
2.724
2724
4.0
2.1
2.811
2811
LuMac Fitting Instructions!
7
Copyright LuMac ltd 2012
• Present the Wall-plate to its fixing
location.
• Mark the fixing locations of an outer
most hole through one of the holes
drilled in the wall-plate.
• Remove the wall plate & drill the
outermost hole.
• Run 2 beads of silicon along the back
of the wall plate.
• Re-present the wall plate and secure
the first fixing through the wall-plate
into the hole you have just drilled.
Make sure the wall-plate is level using a
spirit level before drilling the next holes
• Drill into the fixing surface through
the remaining holes in the wall plate.
• Apply the remaining fixings to finish
securing the wall-plate.
Once wall-plate is secure apply a large bead
of silicone along the top edge, sealing the
wall and the wall-plate.
3. Fitting “L” brackets to the Eaves/Gutter
Each “L” bracket needs 4 set screws.
End leg/posts only have one “L” bracket
fitted.
• Slot the required number of set
screws into the set screw channels.
Make sure there is an even number of set
screws in each channel
LuMac Fitting Instructions!
8
Copyright LuMac ltd 2012
• Fit the “L” brackets to the screws.
• Tighten the M6 nuts, but leave them
loose enough to slide the “L”
brackets along the channels.
Remember the End leg/posts only need 1
bracket but supporting posts (middle
posts) need 2 brackets
The Following step is only required if your Eaves/Gutter was supplied in 2 sections
• Insert Joining Plate into joining plate
slots on one of the Eaves/gutter
sections.
The Joining Plate is 350mm in length and is
designed to be a tight fit. You may file this or cut
it shorter to make fitting it easier.
Use a Rubber Mallet to tap in the Joining
Plate into the joining plate slots to half its
length.
If there are more than 2 sections repeat until
all Eaves/Gutters sections contain a joining
bar.
Do not connect them all together yet.
LuMac Fitting Instructions!
9
Copyright LuMac ltd 2012
• Apply silicone sealant to the ends of
the Eaves/Gutter.
• Make sure the screw holes of the end
cap line up with the screw ports in the
gutter.
• Secure the Gutter end plate with 4
self-tapping screws.
Smooth the silicone sealant that will have
compressed out from the edges. This will
help seal the join between the End cap and
the gutter
4. Fit the gutter to the legs & check levels
This will take a minimum of 2 people.
• Put the posts in position.
• Whilst the posts are being held, lift
the gutter onto the top of the posts.
• Slide the “L” Brackets along so they
are in position on the outside of the
supporting posts
Remember the end posts only have 1 “L”
bracket. Middle posts have 2 “L” brackets
You must make sure the levels are correct.
LuMac Fitting Instructions!
10
Copyright LuMac ltd 2012
The Following step is only required if your Eaves/Gutter was supplied in 2 sections
• Join the Gutter sections together as
shown
• Smooth sealant over the join on both
the inside and outside of the joint.
• Secure the outside supporting post by
drilling 2 holes and using 2 self-
tapping screws..
This is completed on just the inside of the
gutter.
Each outer post will have 2 screws used, 2
on inside only as shown
LuMac Fitting Instructions!
11
Copyright LuMac ltd 2012
• Secure the brackets in position by
tightening the M6 Nuts
Secure the brackets to the posts
• Hold the “L” bracket, post and Gutter
tightly in position.
• Drill 4 holes through the “L” bracket
into the posts.
• Screw the “L” bracket to the posts
with 4 self-tapping screws.
LuMac Fitting Instructions!
12
Copyright LuMac ltd 2012
5. Makes a hole where the rain will drain through to the leg.
• Decide on which leg will be the
downpipe.
• Drill a 51mm hole above centre of
leg.
This hole is to allow rainwater to drain
down the support leg so take extra care
ensuring the holes are drilled above the
leg.
• Silicone seal around the rainwater
adapter.
• Slot in position.
6. Fit the end glazing bars (from gutter to wall plate) & check levels.
• Place the End-Glazing bar in positing
and check the levels.
(In this image the gutter end cap has been
removed to demonstrate how much gap
should be left, your end cap will have been
fitted already)
MAKE A NOTE OF THE DISTANCE
BETWEEN YELLOW ARROWS
Or make a block to use as a spacer for the
remaining glazing bars (Blue arrow)
• Secure either end of the end-glazing
bar by drilling a single hole and by
using a self-tapping screw.
• There should be 1 screw at the Gutter
end and one at the wall-plate end.
LuMac Fitting Instructions!
13
Copyright LuMac ltd 2012
• Fit the end glazing bar to the other
end of the gutter to complete the
frame.
Check the levels at this point.
Also check the canopy is square i.e. the
glazing bars are perpendicular to the wall
plate.

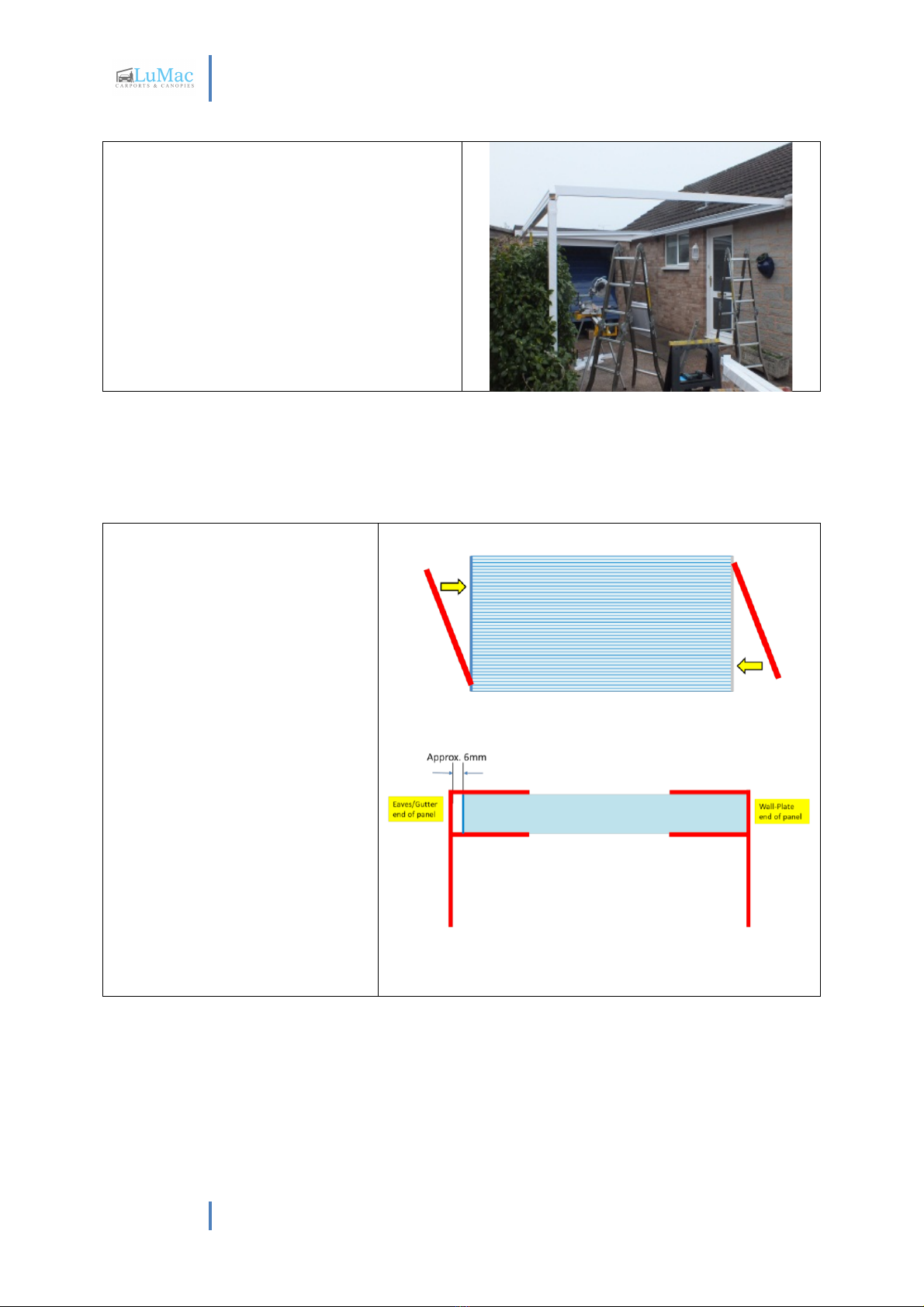

7. Fit the roof panels and inner glazing bars – IF YOU HAVE CLEAR AS GLASS ROOF
PANELS PLEASE REFER TO THE LAST PAGE.
• Fit ‘F’ Sections onto the
Panels.
Before fitting any of the Glazing
Panel assemblies Check Gap
between F Section and at the
Eaves/Gutter end of the Glazing.
It must be 6mm
LuMac Fitting Instructions!
14
Copyright LuMac ltd 2012
• Remove the protective film from the
Roof Panels
The protective film with the writing on is the
top of the panel
The edge with the silver tape on it goes at the
Wall end, the grey breather tape at the Gutter
end.
• Slide in position all the roof panels and
inner glazing bars
DO NOT FIX THEM IN POSITION YET
• Repeat the process until all roof
panels and glazing bars are in position
• To fit the last roof sheet you will need
to remove the end glazing bar
temporarily
BEFORE REMOVING THE END
GLAZING BAR YOU WILL NEED TO
SECURE THE LAST INNER GLAZING
BAR AT THE WALL AND GUTTER
END.
This will make sure the canopy frame
holds its shape.
• Fit the last roof panel into position.
• Re-Fit the end glazing bar
8. Re-position the glazing bars to achieve the correct spacing
Use the following chart to give you the spacing for the main (inner) glazing bars
If your width has been cut to a nonstandard size please refer to the spacing sheet
delivered with your canopy.
!!FOR CLEAR AS GLASS 6MM – PLEASE SEE PAGE 18!!
LuMac Fitting Instructions!
15
Copyright LuMac ltd 2012
Glazing Bars and Glazing Bar Spacing
LuMac Fitting Instructions!
16
Copyright LuMac ltd 2012
LuMac Fitting Instructions!
17
Copyright LuMac ltd 2012
• Position the main inner glazing bars
so they are evenly spaced.
• Mark their correct position with a
pencil (you will need this mark in the
next steps).
Use the spacing in the table above.
DO NOT SECURE THE MAIN
GLAZING BARS YET
9. Fit the sheet closure bars to the roof panels (at the gutter end)
• Make sure there is a breather gap
between the end of the roof sheet and
the ‘end sheet closure’ of roughly
8mm (purple arrow).
• Run silicone along the top edge of the
sheet closure where it meets the top
of the roof panel to stop water ingress
(Yellow arrow).
o CLEAR AS GLASS DOES
NOT USE THESE
• Fit the end cap on the glazing bars
(Green Arrow).
You will need to lift the glazing bars up so
you can get the screw driver over the gutter
top to reach the end cap screw head.
10. Secure the glazing bars in place at both the wall plate and the gutter.
LuMac Fitting Instructions!
18
Copyright LuMac ltd 2012
• Check the positions of the main
glazing bars
If you cut a measuring block earlier for the
edge glazing bars use this to get the correct
distance from the gutter. If not use a tape
measure.
• Secure the main glazing bars in
position by drilling the first of 2 holes
and inserting that screw then repeat
for the second hole and screw.
If you do not follow the above and try to
drill both holes first you could snap the
screw.
11. Secure post feet in the foundations & Make rain drainage holes in the legs.
• Pour Concrete mix into Supporting
Post Holes covering the Supporting
Post Feet with recommended 300mm
cube of concrete.
• Make the surface good.
• Once installation is complete and the
ground has been made good around
support posts.
• Cut the rainwater drainage holes in
Supporting Post(s).
Make sure that the hole is on the correct face
of the Supporting Post(s) so that the
rainwater flows out of the hole in the correct
direction.
This hole(s) should be drilled as close as
possible to the ground level
This Final Step only applies if you have more than one gutter section
LuMac Fitting Instructions!
19
Copyright LuMac ltd 2012
• Apply Flash-band to the internal join
of the (2) Eaves/Gutters.
• This is to seal the join in the gutter.
Congratulations!!
You have completed the installation of your LuMac Canopy.
Drop us an email, or call, to let us know how it went and if there is anything we could
have done differently to make your installation easier.
01462 888073
[email protected]
Clear as Glass Roof Panel Assembly
So that the roof sheets can secure into the glazing bars (rafters) they must have an edge strip
fitted along their length. (Marked by Orange arrows). Glazing bar (Blue Arrow).
Make sure the end of the strips line up with the end of the roof panel
LuMac Fitting Instructions!
20
Copyright LuMac ltd 2012
The top of the roof panel is the side with the writing on it.
Once these Have been fitted to the roof sheet they will then secure into the glazing bars
(rafters) like this:
Clear as glass panels do not have sheet end closures fitted.

This manual suits for next models

1

Popular Tent manuals by other brands

BLIKIR RCP-2 G4 installation manual

BLIKIR

BLIKIR RCP-2 G4 installation manual

Eureka! Tents Titan Assembly instructions

Eureka! Tents

Eureka! Tents Titan Assembly instructions

Awntech Dallas Retro RR22 Assembly and installation instructions

Awntech

Awntech Dallas Retro RR22 Assembly and installation instructions

Black Diamond Equipment Bibler Series manual

Black Diamond Equipment

Black Diamond Equipment Bibler Series manual

Ohenry Productions 20x20 quick start guide

Ohenry Productions

Ohenry Productions 20x20 quick start guide

ShelterLogic Pop-Up quick start guide

ShelterLogic

ShelterLogic Pop-Up quick start guide

MONTANA CANVAS Wall Tent Fly instructions

MONTANA CANVAS

MONTANA CANVAS Wall Tent Fly instructions

Apex Digital BASE-CAMP User handbook

Apex Digital

Apex Digital BASE-CAMP User handbook

Outer Limits OLT-BAC-07 owner's manual

Outer Limits

Outer Limits OLT-BAC-07 owner's manual

Outsunny 84C-223 Assembly & instruction manual

Outsunny

Outsunny 84C-223 Assembly & instruction manual

Magellan 159109 Assembly instructions

Magellan

Magellan 159109 Assembly instructions

Magellan Outdoors FSMGCT2009 Owner's instruction manual

Magellan Outdoors

Magellan Outdoors FSMGCT2009 Owner's instruction manual

Skandika Canopy Gotland 4 Setup & maintenance

Skandika

Skandika Canopy Gotland 4 Setup & maintenance

Harlequin AF330 Setup instructions

Harlequin

Harlequin AF330 Setup instructions

kdgarden Carport Assembly manual

kdgarden

kdgarden Carport Assembly manual

Sunjoy D-GZ849PST-A Assembly instructions

Sunjoy

Sunjoy D-GZ849PST-A Assembly instructions

skandika outdoor Aarhus Travel Setup Instruction

skandika outdoor

skandika outdoor Aarhus Travel Setup Instruction

Quest Leisure Products Screen Shelter instructions

Quest Leisure Products

Quest Leisure Products Screen Shelter instructions

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.
