LumaSense technologies IMPAC IGA315-K USB User manual

Handpyrometer - Handpyrometer
IMPAC IGA315-K USB
Operation Manual - Betriebsanleitung
Proven Quality
上海麦兴仪器设备有限公司 www.imaxsun.com

16
Content
1. Technical Data 17
2. Scope of delivery 17
3. Additional equipment 17
4. Special equipment 17
5. Operation 18
5.1. User interface 18
5.2. Operation 19
5.3. Internal battery charge 19
5.4. Changing rechargeable batteries / external recharging 20
5.5. Choice of a measuring row or a measuring point 20
5.6. Rewriting of one or some measuring points 20
5.7. Clearing of storage 21
5.8. Data transmission to PC 21
5.9. Battery test 22
6. Conguration 23
6.1. Selection of values 23
6.2. Parameters 23
6.3. Emissivity 23
6.4. Minimum temperature 24
6.5. Energy saving mode 24
6.6. Automatic shutdown 24
6.7. Temperature unit 24
6.8. Measuring mode 25
6.9. Date and time 25
6.10. Factory settings 25
7. Software 26
7.1. Installation and how to use 26
8. Maintenance 26
8.1. Rechargeable batteries 26
8.2. Cleaning 26
9. lMPAC portable pyrometer Art.-No. 27
10. Spare parts 27
11. Installation USB Driver 28
LumaSense Technologies
Kleyerstr. 90
D - 60326 Frankfurt
GERMANY
www.Lumasenseinc.com
[email protected]
IMPAC Handpyrometer IGA315-K USB

17
1. Technical Data
Type IMPAC IGA315-K USB
Measuring range 600 ... 1600 °C
Spektral range 1.58 ... 1.8 µm
Accuracy   1%ofmeasuredvalue(ε=1)
Repeatability < 0,3 % of measured value
Emissivity adjustable 0,1 ... 0,99
Measuring distance 1 ... 12 m
Measuring spot diameter 4.5 ... 41.5 mm
Sighting looking trough lens with integrated measuring value display
Power supply 6 x rechargable batteries 1.2 V ; 2100 mAh ; NiMH
Housing Powdercoated, black RAL 9005
Wight ca. 1.3 kg incl. 6 rechargable batteries
Storage 2000 measuring values in 20 rows at 100 measuring values
Data interface Infrared Interface
Attention: Never use not rechargable batteries !!
Measuring distance and measuring spot diameter
Distance 1m 2m 3m 4m 5m 6m 7m 8m 8m 10m 11m 12m
Meas. spot
Ø [mm] 4.5 7 9.5 12 14.5 18 21.5 25.5 29.5 33.5 37.5 41.5
2. Scope of delivery
IMPAC IGA315-K USB Art.-No.: 4 327 130
1 Set of rechargeable batteries, 6 pcs 1.2 V ; 2100 mAh ; NiMH
Heat protection cover
Greylter
MountingkeyforGreylter
High temperature protective plate
Hand strap
Recharger Typ ASC 410 for internal recharging
Software for IMPAC IGA315-K USB
3. Additional equipment
Carrying case Art.-No.: 4 344 010
Infrared interface IRS-315 USB
Battery charger type Voltcraft for external recharging
6 rechargable batteries 1.2 V ; 2100 mAh ; NiMH
Strap with carabiner
4. Special equipment
Heat protection shield Art.-No.: 4 344 070
IMPAC Handpyrometer IGA315-K USB

18
5. Operation
5.1. User interface
Pict. 1: User-interface of IMPAC IGA315-K USB back side
Pict. 2: User-interface of IMPAC IGA315-K USB right side view
Grey filter
Ocular
Rubber eye-pice
Strap connection Two step
measuring button
Battery
compartment
Recharging joint, 3.5 mm
Tubering
Tightening ring
2x M6-thread for
heat protection shield
Protective glass
Fixing for
Handstrap
Off
Ok
-
Conf.
Init.
Com
+
989
R 1 2 P O 3 5
Two step measuring
button
Beeper Ocular
Measuring value display
Alphanumerical displayPositioning aid for
infrared Interface
Off key
Conf. key
Init key
Com key
+key
- key
OK key
Select key
Circle shaped
Measuring field mark
IMPAC Handpyrometer IGA315-K USB

19
5.2. Operation
Before operating the Pyrometer IGA315-K USB the looking though lense is to be adjusted at
abright,whitebackground(e.g.asheetofpaper)byturningtheocularuntilthecircle-shaped
measuringeldisvisiblesharplyattherelaxedeye.
Werecommendtheusingofthegreylterbyscrewinginthethreadoftheocularathigh
measuring temperatures.
Focusizing is done by the looking through lens. To adjust the distance loosen the tighting
ring and move the tube by turning until the measured object is focusized sharply. Tighten the
tightening ring after focusizing.
Themeasuringkeyisatwostepkey.Bypressingandholdingthekeyintherstpositionthe
infrared thermometer will be activated and switched to the measuring mode.
The point to be measured can be searched by moving the instrument. Depending on the
choosencongurationthemeasuredvalue,theaveragevalueorthepeakvaluearedisplay-
ed in the looking through the lens and the larger display.
By pressing the measuring key to the second step the value will be stored to the next storage
position. The success of the writing procedure is shown by a long beep. If there are any pro-
blemswritingthevalue(e.g.exceedinglimits)tenshortbeepsaretobeheared.
Themeasuredvaluesarestoredoneafteranother,thatmeansonerowwillbelledupuntil
onehundredmeasuringvalues.Aftertherowislledtheinstrumentstartstollthenextrow
from point 001.
5.3. Internal battery charge
Insert the rechargeable 1.2 V batteries come with the instrument into the Battery compart-
ment of the infrared thermometer.
Attention: Pay attention to polarity!
Connect the recharger type ACS 410 with the recharging joint on the front side of the instru-
ment.Rechargingstartsaftereshorttestingphase(app.10sec.).Afterrechargingthered
LEDswitchesoffandthethestorage-chargewillstartautomatically(greenLEDglows).
Ifadefectiverechargeablebatteryisinsertet,theredLEDwillicker.Adefectiverechargeab-
le battery is easy to locate by using the optional recharger Voltcraft and must be replaced.
Attention: Never connect the recharger to the instrument
with no rechargeable batteries inserted!
IMPAC Handpyrometer IGA315-K USB

20
5.4. Changing rechargeable batteries / external recharging
To charge the rechargeable batteries the ribbed screw of the battery compartment must be
loosened and the compartment cover must be removed.
Now you can remove the rechargeable batteries. The batteries must inserted in the battery
charger correctly as shown in the battery chargers manual.
Therechargedbatterieshavetobeinsertedasshownontheidenticationplateorthedra-
wingndbelow.
Afterclosingthebatterycompartmenttheribbedscrewmustbetightendrmly.
Pict. 3: Correct insertion of rechargeable batteries.
These drawing shows the infrared thermometer from the top side!
The identication plate is on the bottom side!
Therechargedbatteriesmustnecessarilybeledwiththecorrectpolarity.
The recharged batteries must inserted like shown in in pict. 3!
Finally, the battery cover is closed again and tightened the thumbscrew.
5.5. Choice of a measuring row or a measuring point
By pressing the Select key in measuring mode it is possible to switch between the display-
ed storage points. The switching order is measuring row – measuring point. By pressing
+or -the row / point can be selected. The Select key switches to the next free storage
place in the chosen row.
5.6. Rewriting of one or some measuring points
By pressing of the Select key followed by +or -the row will be selected. The point to
be rewritten will be selected by Select followed by -.
Thenumberofthemeasuringpointwillickerindisplay.
A measuring value can be taken as described above.
The instrument will suggest the following storage point in row.
Toresumeatthenextfreestoragepointandnishrewritingpleasepress Select .
1.2 V
1.2 V; 2100 mA; NiMH
Rechargable batteries
1.2 V 1.2 V
1.2 V1.2 V1.2 V
IMPAC Handpyrometer IGA315-K USB

21
5.7. Clearing of storage
To initiate clearing press Init. and Select simultaneously.
Display:
Conrmationofclearingisdonebypressing OK .
Display : after a few seconds
Abortion of clearing is done by pressing Select beforeconrmation.
5.8. Data transmission to PC
With the included software, it is easily possible to read out the measured data. This leads to
the positioning pins of the included infrared interface in the positioning of support is an on
pyrometer.
Pict. 4: Position of the infrared interface for data transfer
It is important to ensure that the chamfered side
of the interface shows up.
The USB connector is connected to a free USB
port on the PC.
The transfer of data, see the manual of the
software.
IMPAC Handpyrometer IGA315-K USB

22
5.9. Battery test
Thebatterytestwillbeconrmedbypressingandholdingthe Conf. key.
Displayatsufcientbatterypower::
If the battery power is beneeth 5.5 V it will be displayed as follows:
The batteries should be recharged or changed.
Attention: Never use not rechargable batteries !!
IMPAC Handpyrometer IGA315-K USB

23
6. Conguration
6.1. Selection of values
The selection of values can be done by pressing the +or -key. The displayed value will
be enlarged or reduced by one step.
If one of the two keys is pressed longer than two seconds a quick-count mode wil be setted
to allow the change of values more quickly.
By pressing the Select key the value will be stored in the correct limits.
6.2. Parameters
Thecongurationmenuisdisplayedfrommeasuringmodebypressing Conf. and Select
simultaneously.
In this menu the Select keyswitchestothenextmenupoint.Toconrmadisplayedvalue
the Select key has to be pressed.
Konguration options:
1. Emissivity
The emissivity can be choosen between 0.1 and 0.99.
2. Minimum temperature
The minimum temperature can be set.
3. Energy saving mode
The time until energy saving mode is reached
4. Automatic shutdown
The time until the instrument swiches off automatically
5. Temperaturunit
Toggle between deg. Celsius and deg. Fahrenheit
6. Measuring mode
To toggle between Continous measuring, peak picker mode and average
mode.
7. Date and time
To maintain date and time while saving data to storage it is possible to set it
here to your requirements.
6.3. Emissivity
Display:
The Emissivity can be chosen by pressing +or -between 0.1 und 0.99.
IMPAC Handpyrometer IGA315-K USB

24

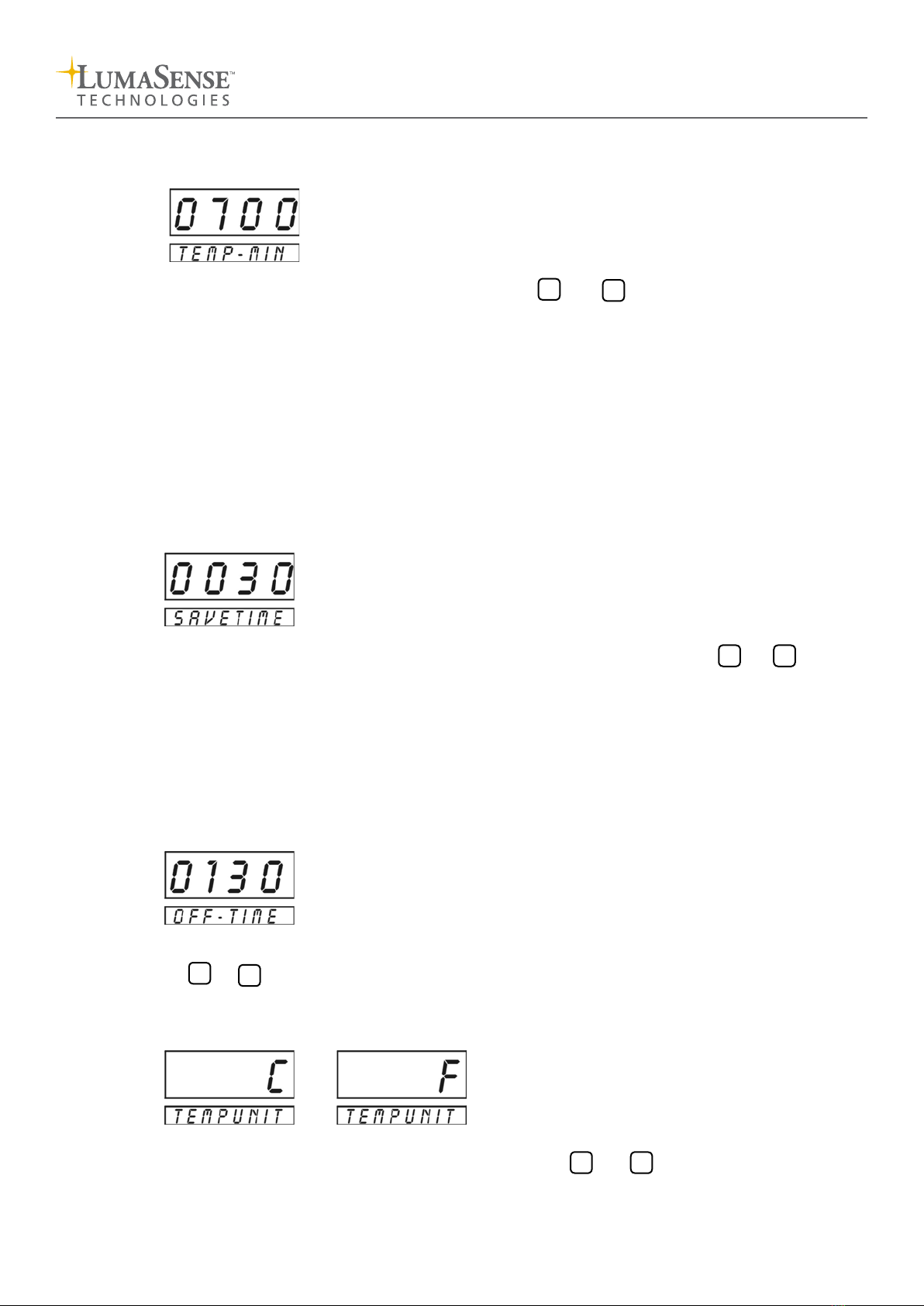

6.4. Minimum temperature
Display :
The minimum temperature can be chosen by pressing +and -between
600°C(1112°F)and1600°C(2912°F).
Notice: If the measured value is beneath this minimum temperature
will not be stored!
6.5. Energy saving mode
Theenergysavingmodewillshutdownenergyintensiveprocesses(e.g.LEDdispays).
These status will be reached after not using the instrument for the presetted time (in se-
conds).Theinstrumentwillnotshutdowncompletelyandwillbeinmeasuringmodeimmi-
deatly after pressing the measuring button. The tome presetted must be less then the time
presetted in automatic shutdown.
Display:
You can set the time until the instrument switches to energy saving mode by +or -in
seconds.
6.6. Automatic shutdown
The instruiment will shut down completely after not using it for the presettet time
(inseconds).
After pressing the measuring button the instrument will maintain a short self-test which will
take a few seconds before reaching measuring mode.
Display:
You can set the time until the instrument shut down automatically in seconds
by pressing +or -.
6.7. Temperature unit
Display: or
To toggle between Deg Celsius and Deg Fahrenheit press +or -.
.
IMPAC Handpyrometer IGA315-K USB

25
6.8. Measuring mode
Display: or or
The measuring mode can be selected by pressing +or -. Possible modes are:
 (C): Continousmeasuring:Themeasuredvalueswillbedisplayedcontinouslyin
  thedisplayaslongasthemeasuringkeyispressedattherststep.The
actually measuring value will be written to the storage if the measuring key is
pressed at the second step.
 (P): Peakpickermode:Themeasuredvaluesarecomputedcontinouslytoan
actual maximum value. The maximum value will be written to the storage by
pressing the measuring key to the second step.
 (A): Averagemode:Themeasuredvaluesarecomputedcontinouslytoanactual
average value. The average value will be written in the storage by pressing
the measuring key at the second step.
Notice: Neither the peak picker nor the average mode compute over all values and
rows in storage but only over the measuring values got during the time the
  measuringkeyispressedattherststep.
6.9. Date and time
Date and time can be selected in six steps. The input is restricted to possible values.
6.10. Factory settings
Factory settings are as follows:
Emissivity: 0.99
Minimum temperatur: 700 °C
Energy saver mode: 180 s
Automatic shutdown: 3600 s
Temperatur unit: Deg C
Measuring mode: C
IMPAC Handpyrometer IGA315-K USB

26
7. Software
This software has been designed to pick out the pyrometer readings comfortably. Readings
can be shown easily and clear either in a table or further to analyze the data you get the
opportunitytotransferitintoaMS-Excelle.
7.1. Installation and how to use
System requirements: Standard PC with Win 98 or higher
Hard disc drive with at least 5 MB free space
The enclosed CD-ROM included under „Software“ means any installation
routine, which will install the software in the chosen language.
Thele„Kleiber315K.exe“isalsoontheCDandcan,shouldautomaticinstallationisfaulty,
will be copied into any directory and on the Explorer or Start-Run called directly.
Afterinstallingtheprogram,pleaserefertosoftwaremanualorusehelp(F1)formore
information.
8. Maintenance
8.1. Rechargeable batteries
Therechareablebatteries(1.2V,2100mAh,NiMH)havetoberechargedlikeinthe
manufactueres instructions described. Please note the batteries have to be disposed cor-
responding to local law.
When recharging rechargeable batteries make sure the batteries are in the pyrometer be-
fore connecting the recharger!
Shut down the pyrometer during the recharging process.
8.2. Cleaning
Thehousingofthethermometermaybecleanedbyusinganonufngclothwithwater
andlittledetergent.Tocleantheprotectiveglass,thelensesandthegreylteryoumayuse
anonufngclothwithethylalcoholoranopticcleaningcloth.
IMPAC Handpyrometer IGA315-K USB

27
9. lMPAC portable pyrometer Art.-No.
Item: Art. - No.:
IMPAC IGA315-K USB, portable pyr.f. coking plants,
 600…1600°C,focus.optics,Basiccong.*)    4327130
IMPAC IGA315-K USB, portable pyr.f. coking plants,
 600…1600°C,focus.optics,Fullcong.**)    4327140
*)ScopeofdeliveryBasicconguration:Accumulatorset(6pcs,1.2V,2100mAh,NiMH),
 HeatProtectionJacket,NeutralGrayFilterinHolder,TubularKeyforGrayFilter,High
 TemperatureProtectionGlass,WristStrap,ChargingUnitASC410(internalcharging),
 OperationManual
 **)ScopeofdeliveryFullconguration:seeBasiccongurationplus:
 CasewithFoamInlay,InfraredInterfaceIRS315USBwithSoftware,PowerSupply, 
 ChargingUnitVoltcraft(externalcharging),StrapwithCarabiner
10. Spare parts
Item: Art. - No.:
Case with foam inlay, infrared interface and software, 4 344 010
charging unit Voltcraft,
6 accus 1.2V, 2100mAh, NiMH, strap w. carabiner
Case with foam inlay
Accumulatorset(6pcs),1.2V,2100mAh,NiMH
Charging unit ASC 410 for internal charging
Charging unit Voltcraft for external charging
Infrared interface IRS-315 USB with software
Neutralgraylterinholder
ProtectionglassBorooat,D37.8x2mm
Tubularkeyforneutralgraylter
Heat protection jacket for Series 315
Heat protection vizor for Series 315
Wrist strap for Series 315
Strap with carabiner, for Series 315
4 344 040
4 344 140
4 342 110
4 342 100
4 344 130
4 344 090
4 343 200
4 344 100
4 344 050
4 344 060
4 344 020
4 344 030
IMPAC Handpyrometer IGA315-K USB

28
11. Installation USB Driver
The installation consists of two steps.
1. First of all is the installation as USB serial converter.
2. The please install the USB serial port.
Please insert the CD in your CD-ROM drive. As soon as the device is connected the
hardware assistant will detect it automatically.
Pleasechoose–“Installfromalistorspeciclocation(Advanced)”
IMPAC Handpyrometer IGA315-K USB

29
Installation of USB serial port will be done analogue to USB serial converter
(pleaseseepreviousgures).
The installation will start automatically. If you have completed both installations
the USB interface is ready for use.
Please choose in the following window
the appropriate source (your CD-ROM
drive)withthedriver.
The software will be searched under
the given source path and than will be
installed.
Youhavenownishedtheinstallation
of USB serial converter.
IMPAC Handpyrometer IGA315-K USB
