inci SAFETY AND OPERATING MANUAL JACK Belt and Disc Sander
BD370
ORIGINAL INSTRUCTIONS
(i BD370 sa
raat te

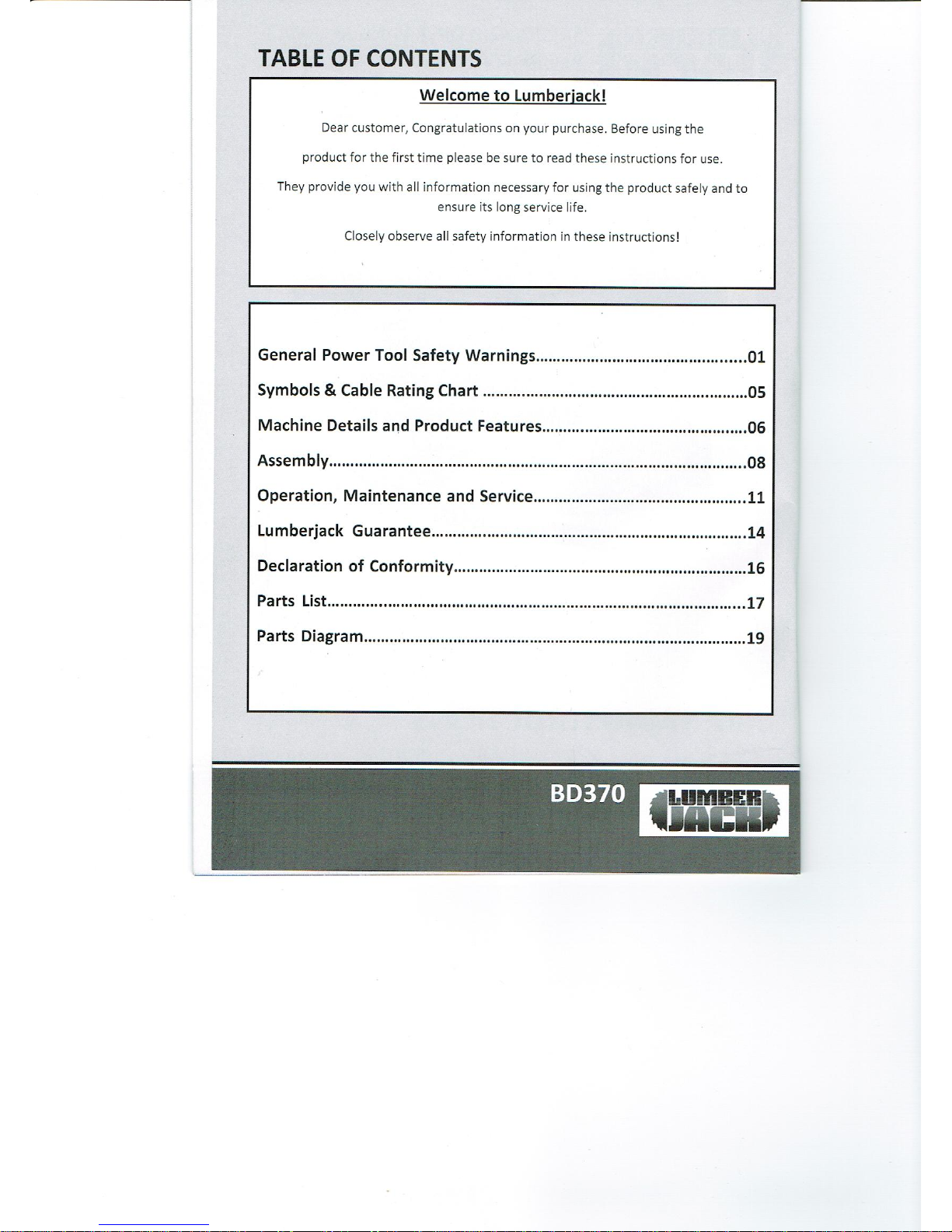

TABLE OF CONTENTS
Welcome to Lumberjack!
Dear customer, Congratulations on your purchase. Before using the
productfor the first time please be sure to read these instructions for use.
They provide you withall information necessary for using the productsafely and to
ensure its long service life.
Closely observe all safety information in these instructions!
General Power Tool Safety WarningS........sscscssesessssesseee
sessssseeeeee OL
Symbols & Cable Rating Chart .............. sesaveodoel de4siadvanecsesscdesesaccenseessesess OD
Machine Details and Product Features......csessesessessesseseesees srseseeneeensO6

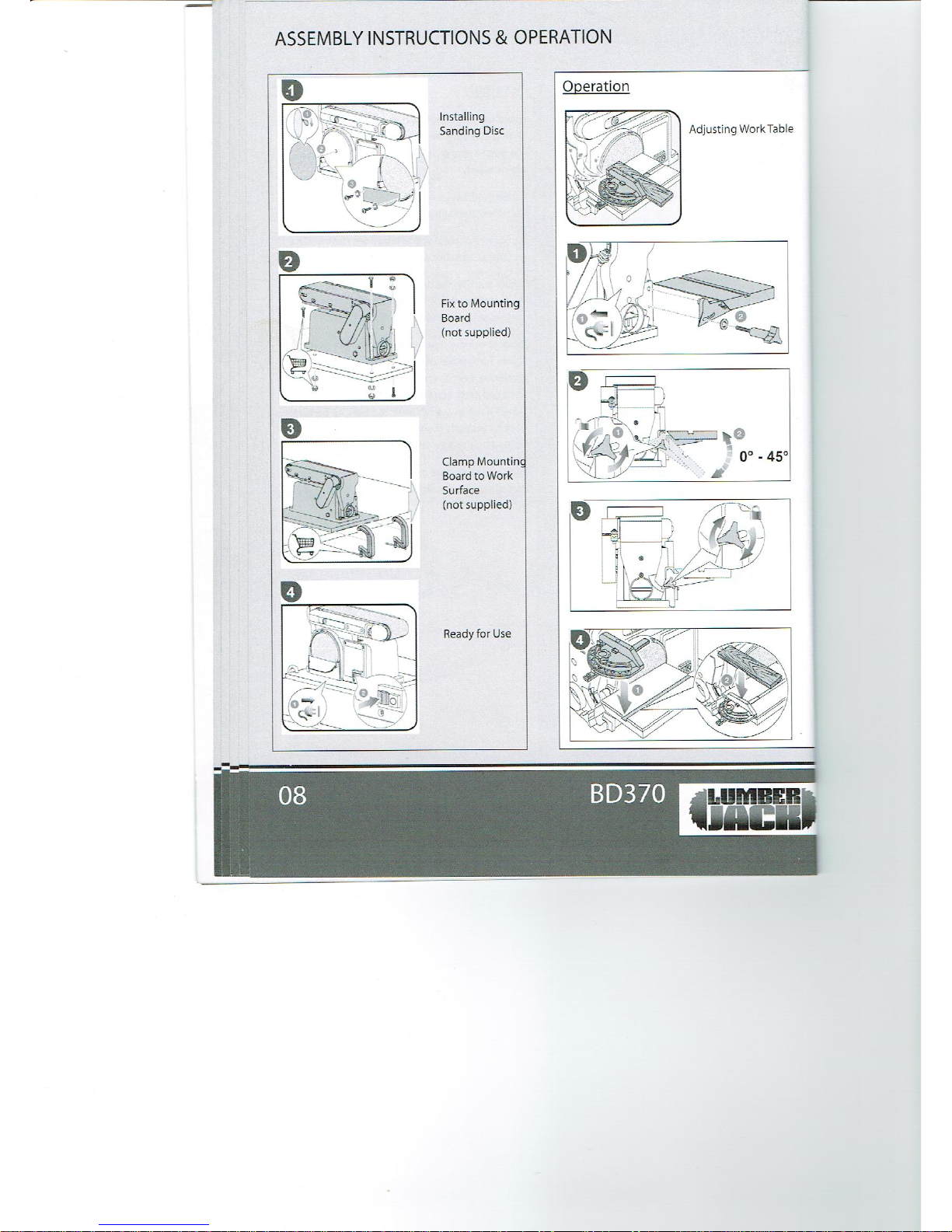

ASSOMDIY......scecsssecceeseeeeeserseecesatesees
snes eeuasesineacoas senccscesetesesnctatt +08

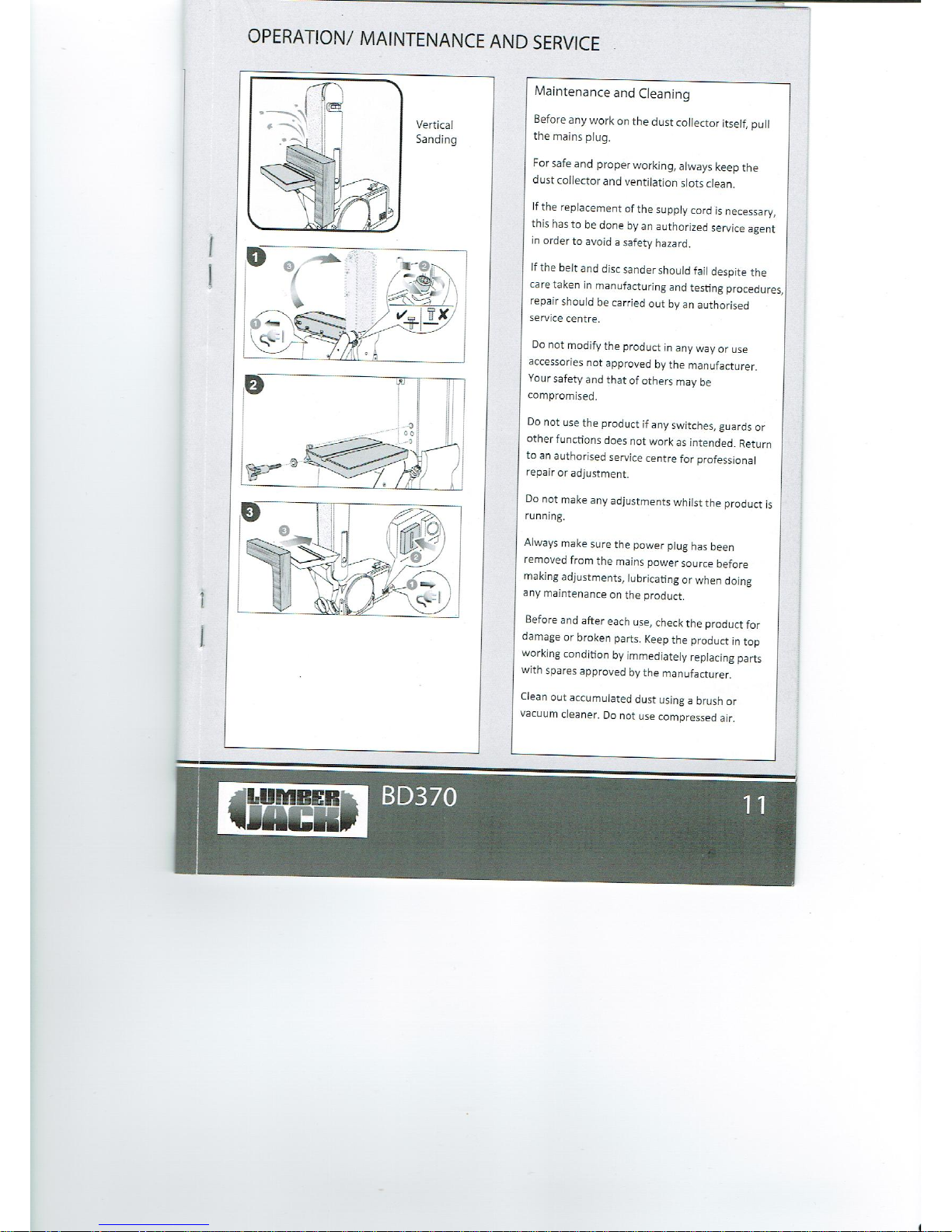

Operation, Maintenance and Service.......ccsccsssssssscsseeeceeeees piciesvavscea bly

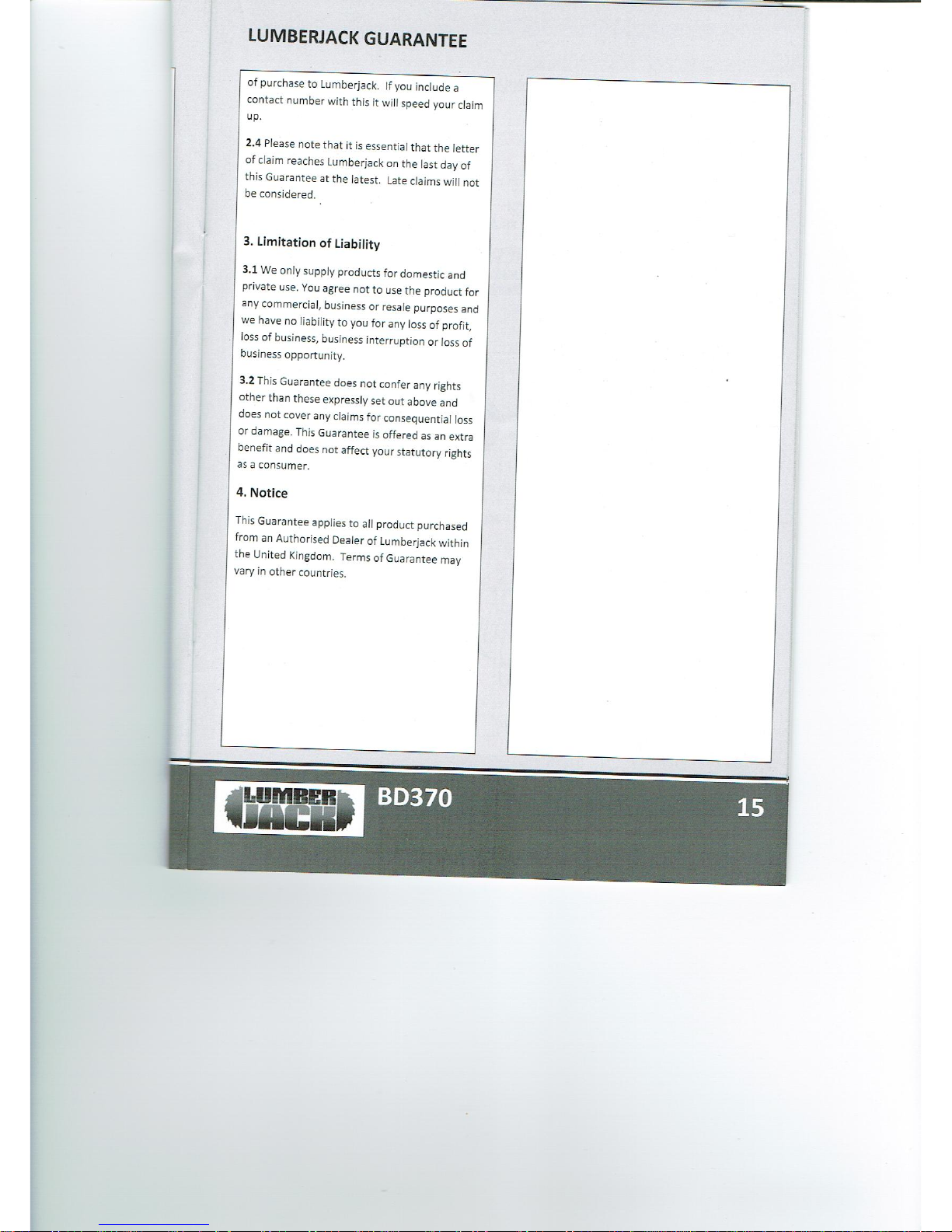

Lumberjack Guarantee......... svvosev ess csaibedsenuasseisecesotstesees ove eosesesesusnsesss essa lal
Declaration of Conformity.. enecersens desasaiss soatnceniene 16

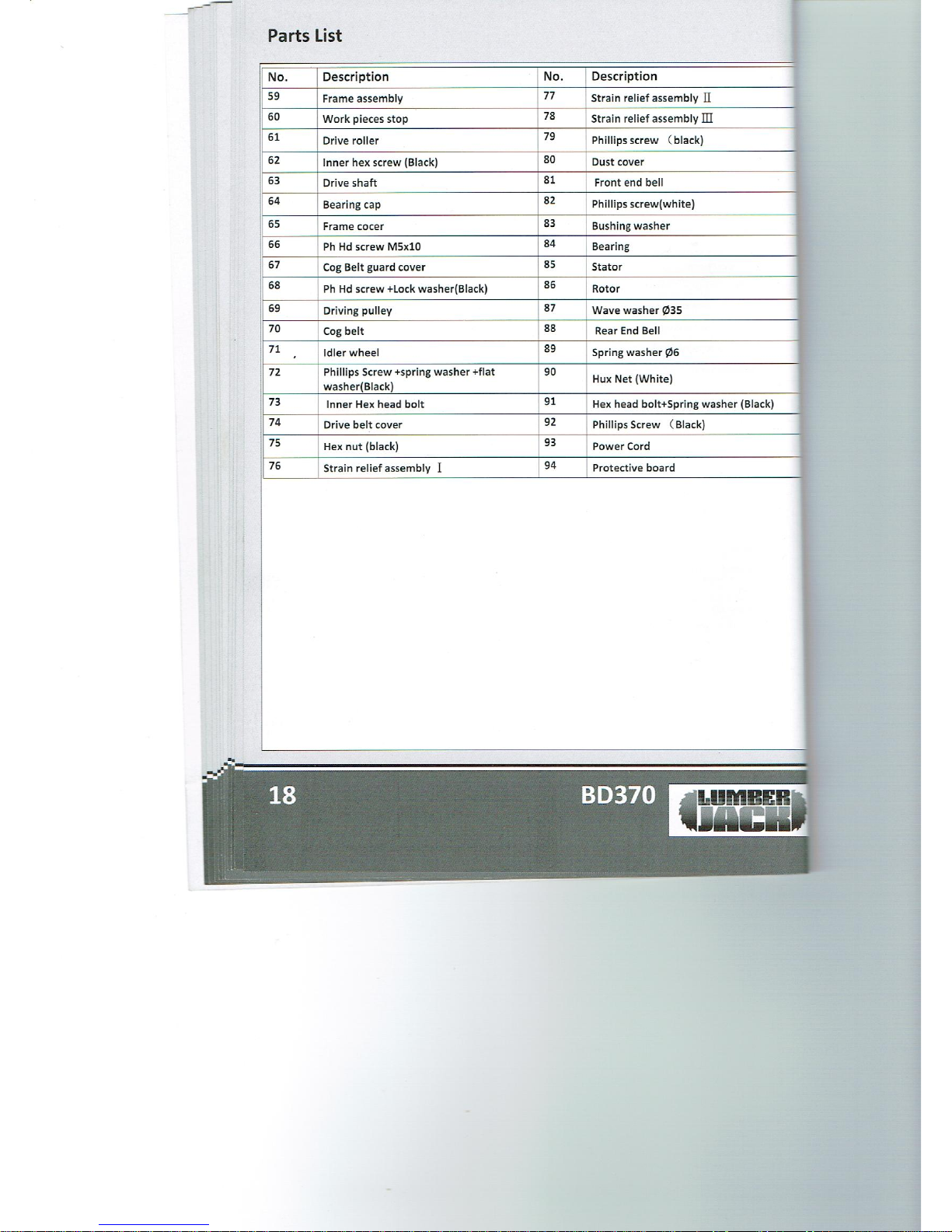

Parts List... cesses eveneenseneerescesessscoscescascoscensonsosees «17
Parts Diagrarm.....ssscssssssssssessscssseecsescseecseseecsees
avosesessiged tsbattiesestest saonsases 19
eee Cicae

GENERAL POWER TOOL SAFETY WARNINGS
WARNING Read all safety warnings and
all instructions. Failure to follow the warnings
and instructions may result in electric shock, fire
and/or serious injury.
Save all warnings and instructions for
future reference. The term "powertool" in
the warnings refers to your electric (corded)
power tool or battery-operated (cordless) power
tool.
1. Work area safety
a) Keep work area clean and well lit. Cluttered
or dark areas invite accidents.
b) Do not operate power tools in explosive
atmospheres, such asin the presence of
flammable liquids, gases or dust. Power tools
create sparks which may ignite the dust or
fumes.
c) Keep children and bystanders away while
operating apower tool. Distractions can cause
you to lose control.
2. Electrical safety
a) Power tool plugs must match the outlet.
Never modify theplug in any way. Do not use
any adapter plugs with grounded power tools.
Unmodified plugs and matching outlets will
reduce risk of electric shock.
b) Avoid body contact with grounded surfaces,
such as pipes, radiators, ranges and
refrigerators. There is an increased risk of
electric shock if your body is grounded.
c) Do not expose power tools to rain or wet
conditions. Water entering apower tool will
increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords
increase the risk of electric shock.
e) When operating apower tool outdoors, use an
extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces therisk of
electric shock.
f) If operating apower tool in adamp location is
unavoidable, use aresidual current device (RCD)
protected supply. Use of an RCD reduces the risk
of electric shock.
3. Personal safety
a) Stay alert, watch what you are doing and use
common sense when operating a power tool. Do
not use a power tool while you are tired or under
the influence of drugs, alcohol or medication. A
moment of inattention while operating power
tools may result in serious personal injury.
b) Use personal protective equipment. Always
wear eye protection. Protective equipment such
as dust mask, non-skid safety shoes, hard hat, or
hearing protection used for appropriate conditions
will reduce personal injuries.
c) Prevent unintentional starting. Ensure the
switch is in the off position before connecting to
power source and/or battery pack, picking up or
carrying thetool. Carrying power tools with your
finger on the switch or energising power tools that
have the switch oninvites accidents.
d) Remove any adjusting key or wrench before
turning the power tool on. Awrench or akey
left
attached to arotating part of the power tool may
result in personal injury.

GENERAL POWER TOOL SAFETY WARNINGS
e) Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing and gloves
away from moving parts. Loose clothes,
jewellery or long hair can be caught in moving
parts.
g) If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used. Use of
dust collection can reduce dust-related hazards.
4, Power tool use and care
a) Do not force the power tool. Use the correct
power tool for your application. The correct
power tool will do the job better and safer at the
rate for which it was designed.
b) Do not use the power tool if the switch does
not turn it on and off. Any power tool that
cannot be controlled with the switch is
dangerous and must be
repaired.
c) Disconnect the plug from the power source
and/or the battery pack from the power tool
before making any adjustments, changing
accessories, or storing power tools. Such
preventive safety measures reduce the risk of
starting the power tool accidentally.
d) Store idle power tools out of the reach of
children and do
not allow persons unfamiliar
with the power tool or these instructions to
operate the power tool. Power tools are
dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment
or binding of moving parts, breakageof parts and
any other condition that may affect the power
tool’s operation. If damaged, have the power tool
repaired before use. Many accidents are caused
by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits
etc. in accordance with these instructions, taking
into account the working conditions and the work
to be performed. Use of the power tool for
operations different from those intended could
result in ahazardous situation.
5. Service
a) Have your power tool serviced by aqualified
repair person using only identical replacement
parts. This will ensure that the safety of the power
tool is maintained.
b) If the replacement of the supply cord is
necessary, this has to be done by the
manufacturer or its agent in order to avoid a
safety hazard.
6. Additional Safety and Working
Instructions
a) Dusts from materials such as lead-containing
coatings, some wood types, minerals and metals
can be harmful to one’s health and cause allergic
reactions, leading to respiratory infections and/or
cancer. Materials containing asbestos may only be
worked by specialists. Observe the relevant
regulations in your country for the materials to be
worked.
BD370 LUMBER
oii

TETeBap Tm, —
GENERAL POWERTOOL SAFETY WARNINGS
b) Prevent dust accumulation at the workplace, j) Use clampsor a vice to hold work when |
Dusts can easily ignite. practical,
k) To minimize risk of tipping machine, always
7Additional Warnings for BELT /DISC
.
support long workpiece,
SANDER
!) Never sand more than one workpiece at atime.
Do
not stack more than one workpiece on the
machine base at atime.
a) Do not operate the tool until it is completely
assembled and installed according to the
instructions.
m) Do
not sand with the workpiece unsupported.
Do
not sand pieces of material that are too small
to be safely supported.
b) Provide adequate general or localized
lighting.
¢) Before work, check that the machine is
placed on an even surface with sufficient
stability. For your own safety, always mount
the machine to awork bench using bolts.
n) Avoid awkward operations and handpositions
where asudden slip could cause your hand to
move into the sanding belt or disc.
©)Avoid kickback by sanding in accordance with
d) Keep the surrounding area of the machine directional arrows.
well maintained and free of loose materials, :
such as chipsand cut-offs. p) Always maintain aclearance of 1.6 mm
between the work table and the machine.
e) Make sure the sanding belt is installed in the
correct direction. See directional arrow on back q) Never stand or have any part of your body in
ofbelt. line with the path of the workpiece,
f) Always havethe tracking adjusted properly ') Machine should never be connected to power
So the belt does not run off the pulleys. supply when you are assembling parts, making
adjustments, or when not in use.
8) Do not use sanding belts or padsthat are
damaged, torn, or loose. Use only correct si..e s)Neverleave tool running unattended. Do not
sanding belt and pad. leave tool until it comes to acomplete stop.
h) Always sand on the downward side of the t) If the power supply cord is damaged or
sanding disc when using the disc sander. otherwise defective, it must only be replaced by
|Sanding on the upward side of the disc can the manufacturer or by an authorized repair
cause the workpieceto fly out of Position, agent.
u) We recommend the use of aresidual current
i) Never perform layout, assembly or set-up device with aresidual current rating of 30mA or
work onthe table while the sander is operating. less,
|resulting in injury.
LUMBER |1:]2.¥/0)
iti

GENERAL POWER TOOLSAFETY WARNINGS
8. RESIDUAL RISKS
Even when the product is used as prescribed, it
is still impossible to completely eliminate
certain residual risk factors. The following
hazards may arise and the operator should pay
special attention to avoid the following:
a) Risk of contact with sanding belt or disc.
b) Burn hazard from contact with hot belt or
disc or work piece.
c) Damage torespiratory system if effective
dust mask is not worn.
d) Damageto hearing if effective hearing
protection is not worn.
9. Using an Extension Cable.
a) If an extension cable is required, use an
approved triple core extension cable suitable
for the power input of the tool.
b) Grounded tools always require athree wire
extension cable.
c) As the distance from the supply outlet
increases you must use aheavier gauge
extension cable. Using extension cables with
inadequately sized wire causes a serious drop in
voltage, resulting in loss of power and possible
tool damage.
d) The smaller the gauge number of the wire
the greater the capacity of the cord.
f) When using acable reel, always unwind the
cable completely.
BD370 (nnee

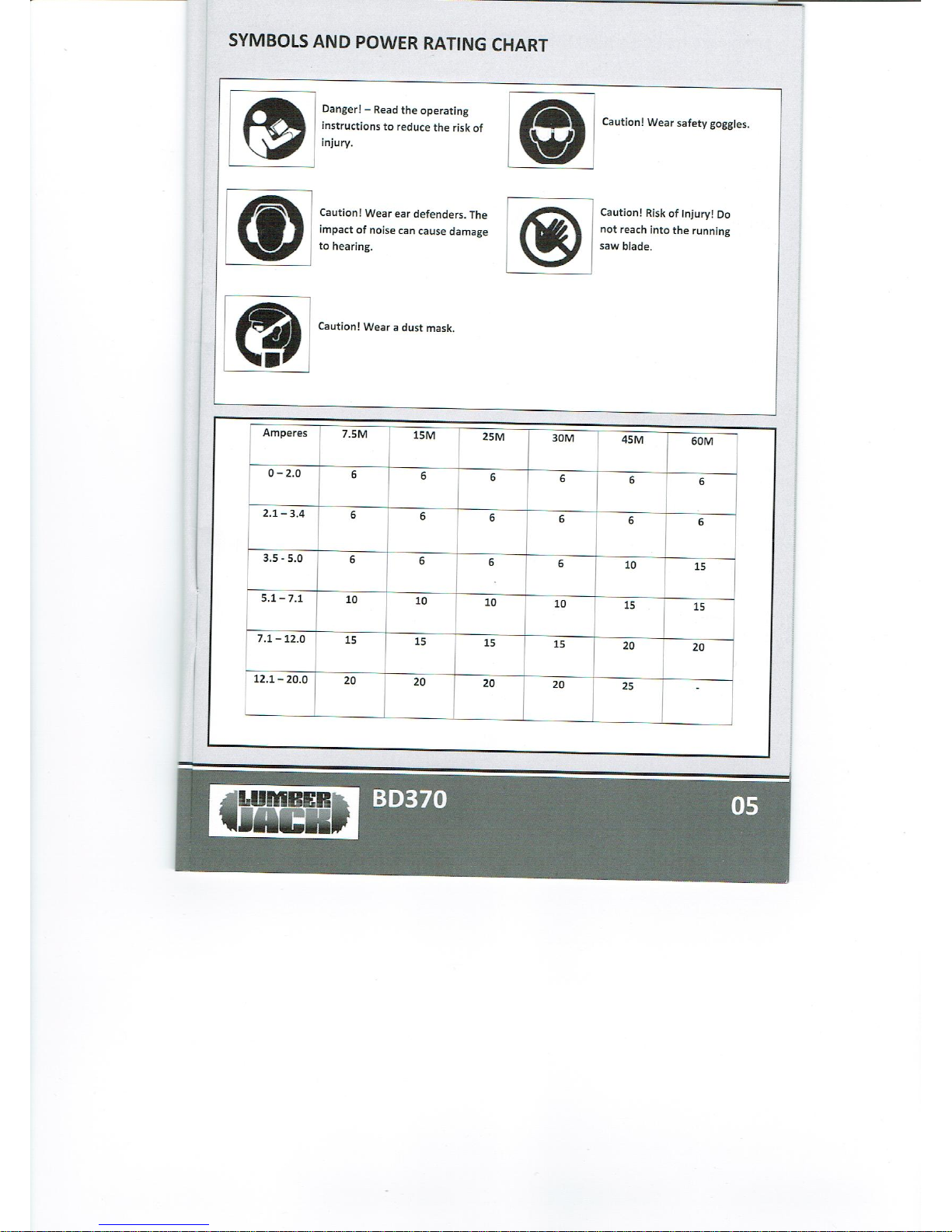

SYMBOLS AND POWER RATING CHART
-Ri i
Danger!ead the operating Caution! Wear safety goggles.|instructions to reduce therisk of
||injury. |
nate |
|Caution! Wear ear defenders. The Caution! Risk
Of Injury! Do
impact of noise can cause damage |
not reach into the running
to hearing. saw blade.
a" ee
|@|Caution! Wear adust mask.
|
||Amperes |7.5M 15M 25M 30M 45M |60M |
||||
|0-2.0 666666
}|
|
4
2.1-3.4 6666|6|6|
||
Ie ||||||
3.5-5.0 6666|10 15 |
|51-71 |10 10 qo |10 Ce
||
_|
7.1-12.0 |15 15 15 |15 20 |20 |
12.1-20.0 |20 20, 720 |200050 35 -
||
||||
isch (ea

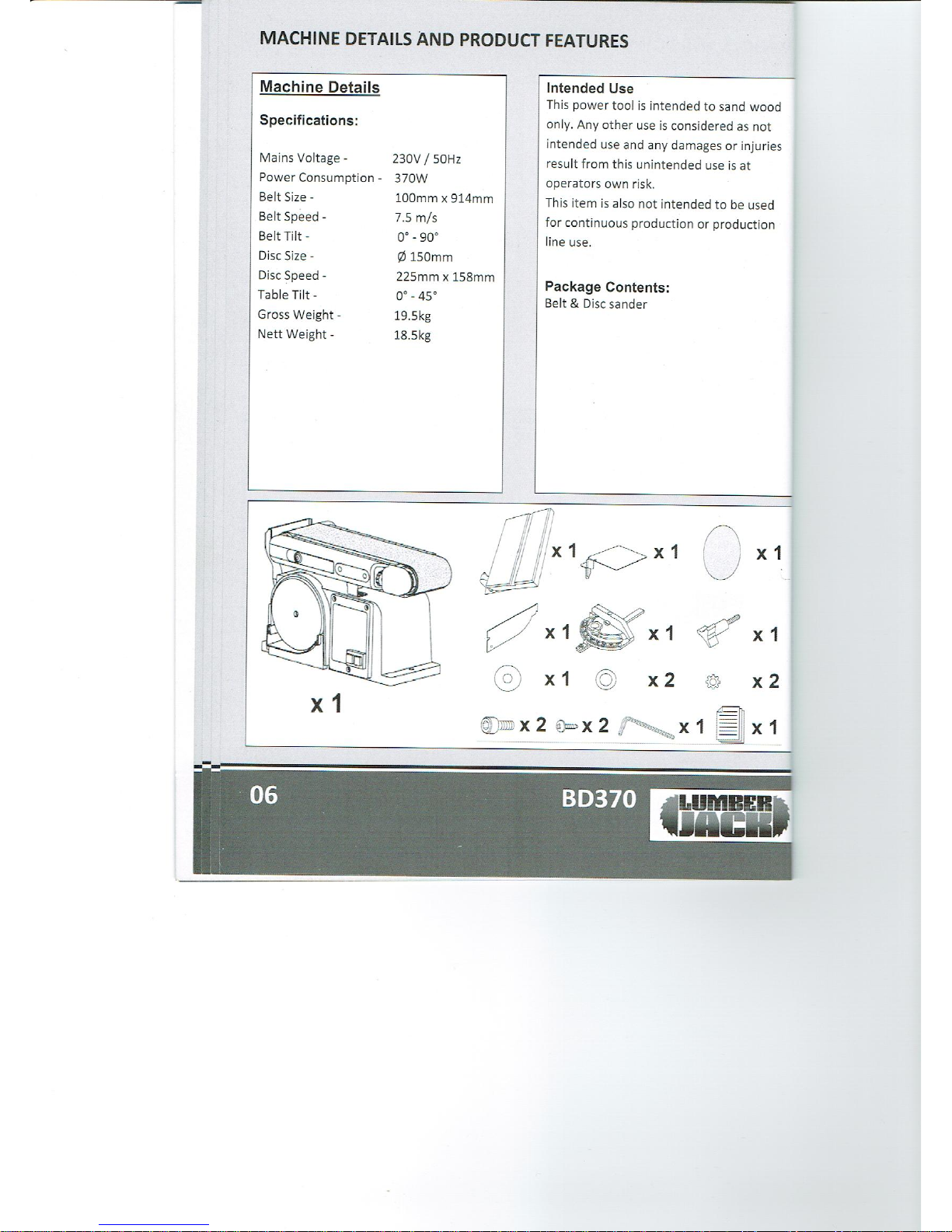

MACHINE DETAILS AND PRODUCT FEATURES
Machine
Details
Specifications:
Mains Voltage -230V /50Hz
Power Consumption- 370W
Belt Size -100mm x914mm
Belt Speed -7.5 m/s
Belt Tilt -0° -90°
Disc Size -0150mm
Disc Speed -225mm x158mm
Table Tilt -0° -45°
Gross Weight-19.5kg
Nett Weight-18.5kg
Intended Use
This power tool is intended to sand wood
only. Any other use is considered as not
intended use and any damagesor injuries
result from this unintended use is at
operators own risk.
This item is also not intended to be used
for continuous production or production
line use.
Package Contents:
Belt &Disc sander

PRODUCTFEATURES &ASSEMBLY INSTRUCTIONS
Product Features
1. Sanding stopper
Sanding belt
Tracking control knob
Belt tension lever
Sanding pad
ON/OFF Switch
Bevel scale
Dust port
Table bevel angle adjustment knob
.Mitre angle adjustment knob
.Mitre scale
.Mitre guide
.Work table
SMP
NAAR
WN
BREE
WnNneEOo
Assembly
Avoid unintentional starting of the machine.
During assembly and for all work on the machine,
the power plug must not be connected to the
mains supply.
Carefully remove all parts included in the delivery
from their packaging.
Remove all packaging material from the machine
and the accessories provided.
Before starting the operation of the machine for
thefirst time, check if all Parts listed in the box
content section have been supplied
Note: Check the power tool for possible damage.
Before further use of the machine, check that all
protective devices are fully functional. Anylightly
damaged parts must be carefully checked to
ensure flawless operation of the tool. All parts
must be properly mounted and all conditions
fulfilled that ensure faultless operation.
Damaged protective devices and parts must be
immediately replaced by an authorised service
centre,
qeee BD3

ASSEMBLY INSTRUCTIONS &OPERATION
Installing
Sanding Disc
Fix to Mounting
Board
(not supplied)
Clamp Mounting
Board to Work
Surface
(not supplied)
Readyfor Use
Operation

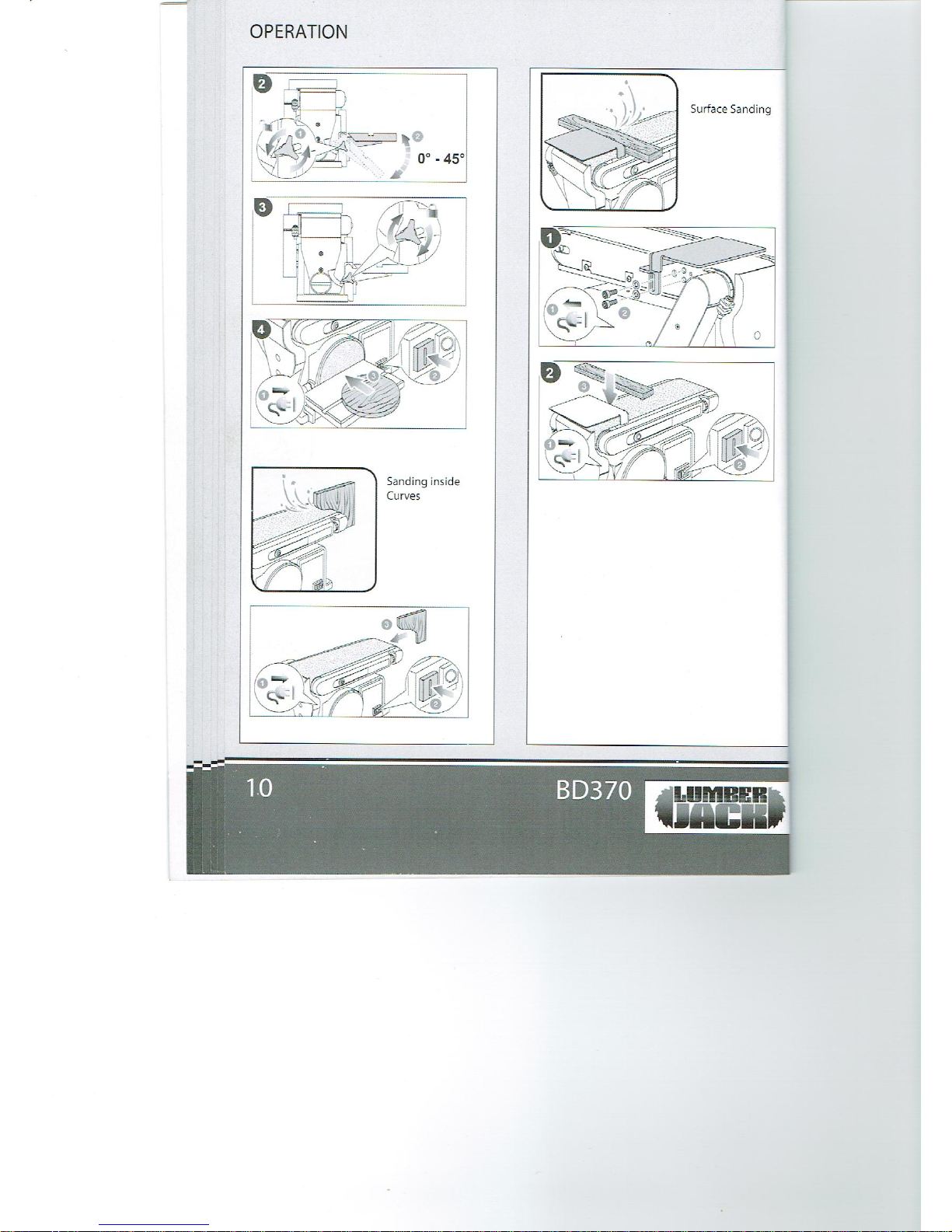

Adjusting Work Table
