Lumens DC166 User manual

DC166 Visual Presenter

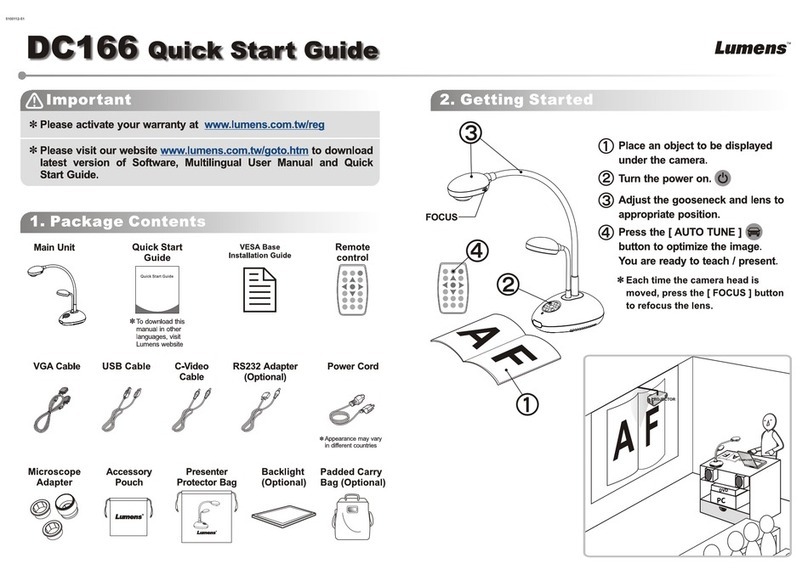

Quick Start Guide
[Important]
To download quick start guide, multilingual
manuals, software, and drivers, please visit
Lumens website at
http://www.lumens.com.tw/goto.htm
English -0

1. Package Content
DC166 Quick Start Guide User Manual
(To download this manual in
the other languages, visit
Lumens website)
Download Card Remote Control VGA Cable

USB Cable C-Video Cable Power Cord
Appearance may vary
depending on country/region
Microscope Adapter Accessory Pouch Presenter Protector
Bag
Backlight (Optional) RS-232 Adapter
(Optional)
Padded Carry Bag
(Optional)
English -1

2. System Diagram
Television
Projector PCMonitor
PC SD Card
English -2

3. Product Overview
1. Gooseneck
2 Lamp
3. Control Panel
4. LED indicator
5. Remote sensor
6. Lens
7. DIP switch
(Bottom)
English -3

4. Connecting Devices
4.1 Step 1: Plugging in the Power Outlet
AC Outlet
English -4
<Note> Appearance of power cord may vary depending on
country/region.
4.2 Step 2: Connection projector with other hardware devices
4.2.1 Connecting to a Projector or Monitor
zConnect the VAG cable to the VGA OUT port on the DC166 and to the
VGA IN port on the projector or monitor.
4.2.2 Connecting to a TV
1.Connect the C-VIDEO cable to the VIDEO port on the DC166 and the
C-VIDEO port on the TV.
2.Adjust DIP Switch Setting

NTSC: America, Taiwan, Panama, Philippine, Canada, Chile, Japan and Mexico.
234
1

PAL: Country/region not listed above.
1
234
<Note>: OSD is not available in C-VIDEO. Some functions are not
available on the control panel and the remote control in this mode.
<Note>: VGA OUT is not supported once C-VIDEO is enabled.
3.DIP switch settings will not availabe until the DC166 has been restarted.
4.2.3 Connecting to a Computer
zConnecting to a computer through USB
Connect the USB cable to the USB port on the DC166 and the USB port
on the computer. Next, download the queue™program at
http://www.lumens.com.tw/goto.htm. Please refer to the queue™ user
manual for more detailed instructions.
zConnecting to a computer through VGA IN
Connect the VGA cable to the VGA IN port on the DC166 and the VGA
OUT port on the computer.
English -5

zConnecting to a computer through RS-232
Connect the RS-232 adapter (Optional) to the RS-232 port on the DC166
and the RS-232 port on the computer.
English -6
5. Start Using the DC166
5.1 Powering on the DC166
Control Panel Remote Control
zWhen using the remote control, aim at the remote sensor at the
DC166 and press the power button.
zOnce the visual presenter is turned on, the LED on the projector will
flash a few times and then stay lit. Please contact your distributor if
LED is not on.
*For a detailed introduction to menu functions and additional operating
instructions, please refer to the user manual.
