Lumex 6490A User manual
6490A-INS-LAB-RevC14 1
6490A / 6492A / 6497A: RAISED TOILET SEAT
INSTALLATION AND OPERATION INSTRUCTIONS
PLEASE SAVE THESE INSTRUCTIONS FOR FUTURE USE
The raised toilet seat is intended for use by those who have difculty sitting down on or standing
up from the toilet.
Remove raised toilet seat, hardware, and protective packaging from carton. Remove the hardware
bag from inside the seat and shield assembly.
If the splashguard is not attached to the
raised toilet seat, perform the following steps
to attach it (tools required: Phillips or blade
screwdriver).
1. Remove hardware containing three screws
from bag.
2. Align the three splashguard holes with
the three holes on the bottom of the toilet
seat, as shown at right.
3. Use a Phillips or blade screwdriver to
screw the splashguard to the toilet seat
with the provided screws. Start on one
side and work your way around to align
the holes and install the screws.
6497A: underside with splashguard
splashguard
screws
screw
locations
6490A-INS-LAB-RevC14 2
6492A 6497A 6490A
front rim clamps
front rim clamps front rim clamps (locking)
rear rim clamp (locking)
wing nut
splashguard
rear rim clamp (locking)
wing nut
rear rim clamp
front seat brackets
front seat bracket
rear seat bracket
front seat brackets
rear seat bracket
See picture above of each model with components labeled. Each toilet seat has four rim clamps
(two front and two rear) that attach the toilet seat to the toilet rim, and four seat brackets (two
front and two rear), into which the clamps screw, that adjust seat height.
1. Align front rim clamps to toilet seat rim and snap them on. If clamps are too loose, squeeze
them closed slightly to ensure a tight t.
2. Screw the two front rim clamps into the front seat brackets and adjust seat front to desired
height.
3. Align back rim clamps to toilet seat rim and snap them on.
4. Screw the two back rim clamps into the back seat brackets and adjust seat back to desired
height.
Info: For certain situations such as postoperative, hip conditions or arthritis, seat back can
be adjusted slightly higher than seat front.
Tighten the wing nuts until the sides of the clamps are secure against the sides of the toilet bowl
rim.

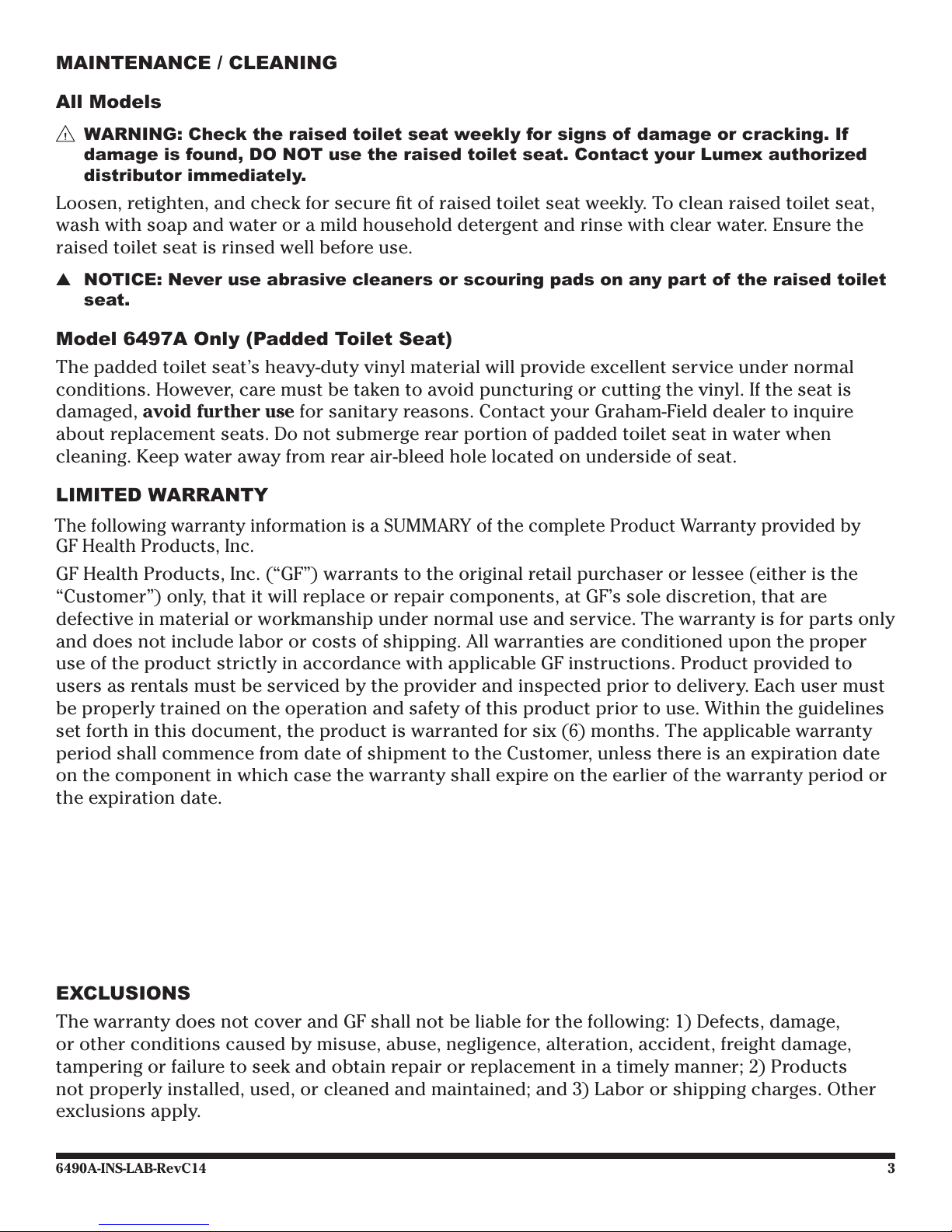

6490A-INS-LAB-RevC14 3
Loosen, retighten, and check for secure t of raised toilet seat weekly. To clean raised toilet seat,
wash with soap and water or a mild household detergent and rinse with clear water. Ensure the
raised toilet seat is rinsed well before use.
s
The padded toilet seat’s heavy-duty vinyl material will provide excellent service under normal
conditions. However, care must be taken to avoid puncturing or cutting the vinyl. If the seat is
damaged, avoid further use for sanitary reasons. Contact your Graham-Field dealer to inquire
about replacement seats. Do not submerge rear portion of padded toilet seat in water when
cleaning. Keep water away from rear air-bleed hole located on underside of seat.
The following warranty information is a SUMMARY of the complete Product Warranty provided by
GF Health Products, Inc.
GF Health Products, Inc. (“GF”) warrants to the original retail purchaser or lessee (either is the
“Customer”) only, that it will replace or repair components, at GF’s sole discretion, that are
defective in material or workmanship under normal use and service. The warranty is for parts only
and does not include labor or costs of shipping. All warranties are conditioned upon the proper
use of the product strictly in accordance with applicable GF instructions. Product provided to
users as rentals must be serviced by the provider and inspected prior to delivery. Each user must
be properly trained on the operation and safety of this product prior to use. Within the guidelines
set forth in this document, the product is warranted for six (6) months. The applicable warranty
period shall commence from date of shipment to the Customer, unless there is an expiration date
on the component in which case the warranty shall expire on the earlier of the warranty period or
the expiration date.
The warranty does not cover and GF shall not be liable for the following: 1) Defects, damage,
or other conditions caused by misuse, abuse, negligence, alteration, accident, freight damage,
tampering or failure to seek and obtain repair or replacement in a timely manner; 2) Products
not properly installed, used, or cleaned and maintained; and 3) Labor or shipping charges. Other
exclusions apply.
6490A-INS-LAB-RevC14 4
GF Health Products, Inc. is not responsible for typographical errors.
Graham-Field and Lumex are registered trademarks of GF Health Products, Inc.
© 2011 GF Health Products, Inc.
THIS WARRANTY IS GF’S ONLY WARRANTY AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS
OR IMPLIED.
