1KVA/ 2KVA/ 3KVA
INVERTER / CHARGER
User Manual

CONTENTS
ABOUT THIS MANUAL .....................................................................................................................................1
Purpose............................................................................................................................................................1
Scope...............................................................................................................................................................1
SAFETY INSTRUCTIONS..................................................................................................................................1
INTRODUCTION ...............................................................................................................................................2
Features...........................................................................................................................................................2
Basic System Architecture...............................................................................................................................2
Product Overview.............................................................................................................................................3
INSTALLATION .................................................................................................................................................8
Unpacking and Inspection................................................................................................................................8
Preparation ......................................................................................................................................................8
Mounting the Unit.............................................................................................................................................8

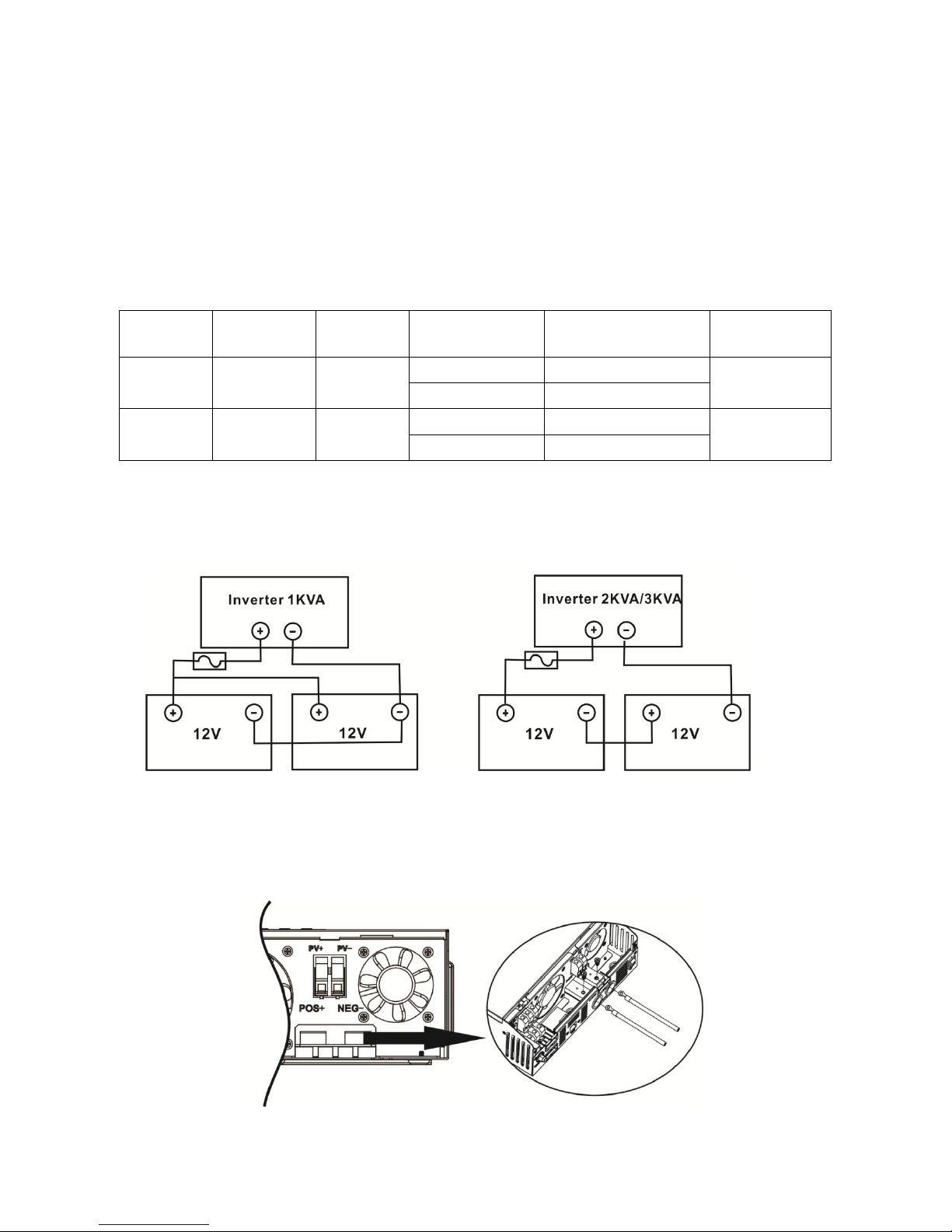

Battery Connection ..........................................................................................................................................9
AC Input/Output Connection..........................................................................................................................10
PV Connection (Only apply for the model with solar charger).......................................................................11
Final Assembly...............................................................................................................................................12
OPERATION .....................................................................................................................................................13
Power ON/OFF ..............................................................................................................................................13
Operation and Display Panel.........................................................................................................................13
LCD Display Icons .........................................................................................................................................14

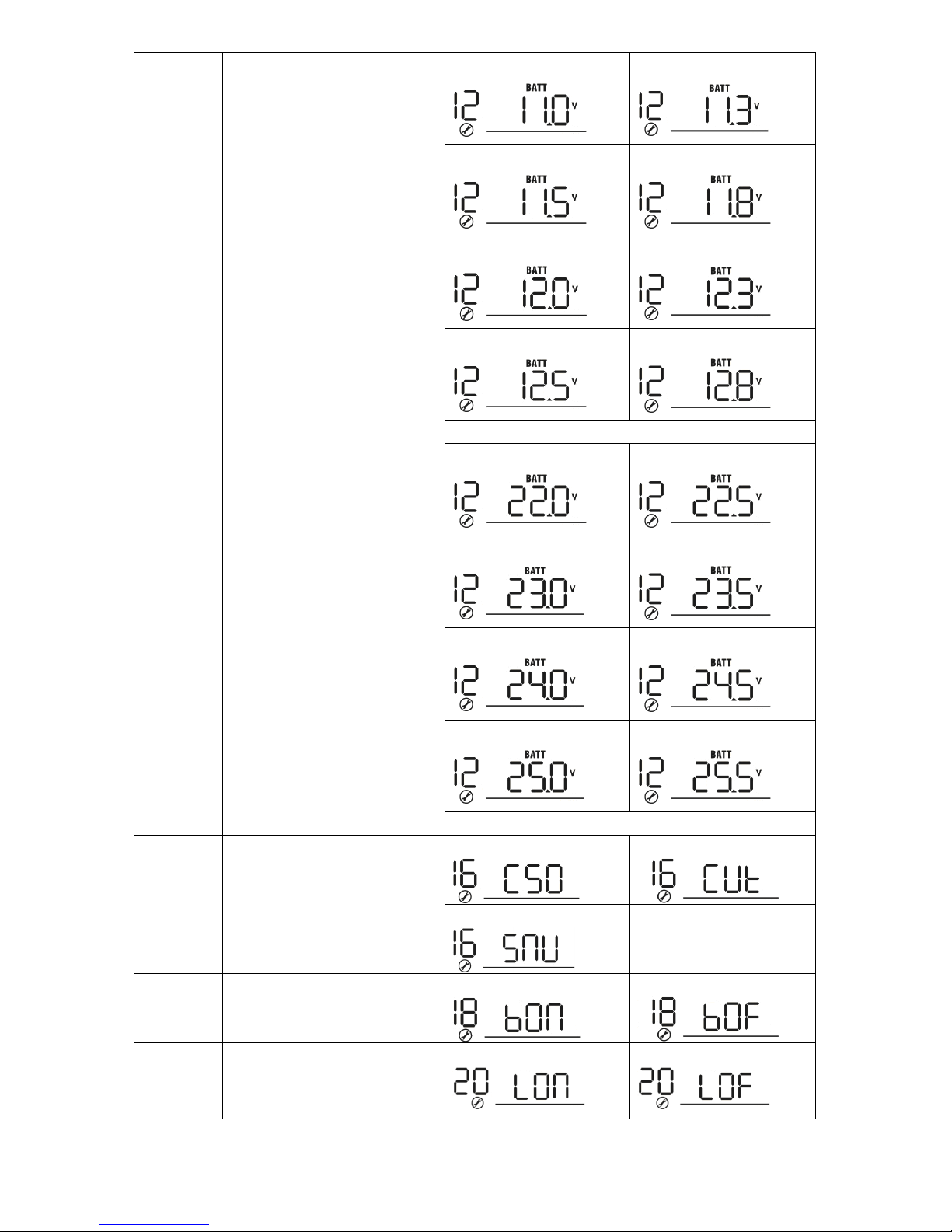

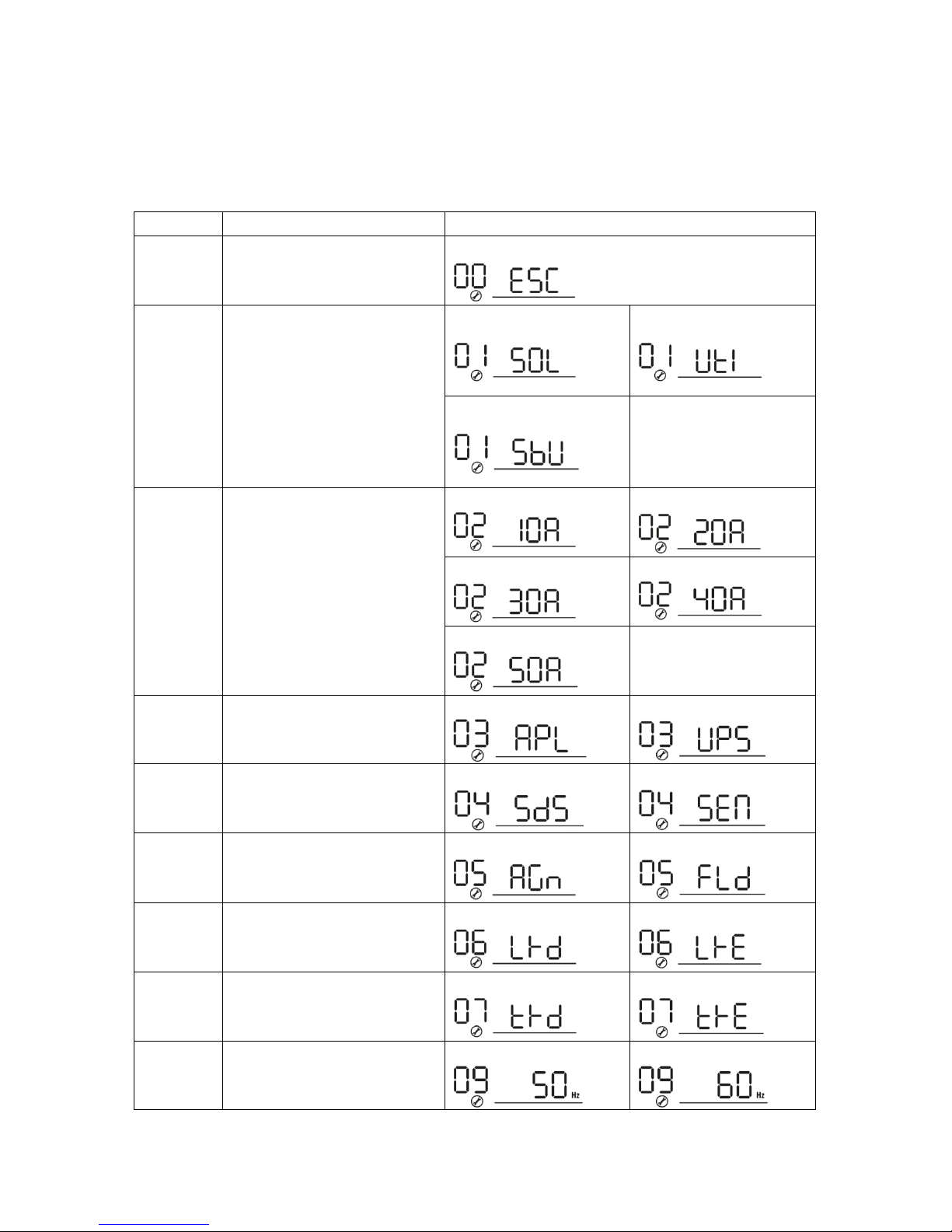

LCD Setting....................................................................................................................................................16
Display Setting...............................................................................................................................................18
Operating Mode Description..........................................................................................................................20
Fault Reference Code....................................................................................................................................21
Warning Indicator...........................................................................................................................................21
SPECIFICATIONS ...........................................................................................................................................22
Table 1 Line Mode Specifications ...................................................................................................................22
Table 2 Invert Mode Specifications ................................................................................................................23
Table 3 Charge Mode Specifications ..............................................................................................................24
Table 4 General Specifications .......................................................................................................................24
Charging Controls...........................................................................................................................................24
TROUBLE SHOOTING.....................................................................................................................................25
Appendix: Approximate Back-up Time Table ...........................................................................................26

1
ABOUT THIS MANUAL
Purpose
This manual describes the assembly, installation, operation and troubleshooting of this unit. Please read
this manual carefully before installations and operations. Keep this manual for future reference.
Scope
This manual provides safety and installation guidelines as well as information on tools and wiring.
SAFETY INSTRUCTIONS
WARNING: This chapter contains important safety and operating instructions. Read and
keep this manual for future reference.
1. Before using the unit, read all instructions and cautionary markings on the unit, the batteries and all
appropriate sections of this manual.
2. CAUTION --To reduce risk of injury, charge only deep-cycle lead acid type rechargeable batteries.
Other types of batteries may burst, causing personal injury and damage.
3. Do not disassemble the unit. Take it to a qualified service center when service or repair is required.
Incorrect re-assembly may result in a risk of electric shock or fire.
4. To reduce risk of electric shock, disconnect all wirings before attempting any maintenance or cleaning.
Turning off the unit will not reduce this risk.
5. CAUTION –Only qualified personnel can install this device with battery.
6. NEVER charge a frozen battery.
7. For optimum operation of this inverter/charger, please follow required spec to select appropriate cable
size. It’s very important to correctly operate this inverter/charger.
8. Be very cautious when working with metal tools on or around batteries. A potential risk exists to drop
a tool to spark or short circuit batteries or other electrical parts and could cause an explosion.
9. Please strictly follow installation procedure when you want to disconnect AC or DC terminals. Please
refer to INSTALLATION section of this manual for the details.
10. Fuses (40A, 32VDC *4pcs for 1KVA/2KVA and *6pcs for 3KVA) are provided as over-current protection
for the battery supply.
11. GROUNDING INSTRUCTIONS -This inverter/charger should be connected to a permanent grounded
wiring system. Be sure to comply with local requirements and regulation to install this inverter.
12. NEVER cause AC output and DC input short circuited. Do NOT connect to the mains when DC input
short circuits.
13. Warning!! Only qualified service persons are able to service this device. If errors still persist after
following troubleshooting table, please send this inverter/charger back to local dealer or service center
for maintenance.

2
INTRODUCTION
This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to
offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable
and easy-accessible button operation such as battery charging current, AC/solar charger priority, and
acceptable input voltage based on different applications.
Features
Pure sine wave inverter
Configurable input voltage range for home appliances and personal computers via LCD setting
Configurable battery charging current based on applications via LCD setting
Configurable AC/Solar Charger priority via LCD setting
Compatible to mains voltage or generator power
Auto restart while AC is recovering
Overload/ Over temperature/ short circuit protection
Smart battery charger design for optimized battery performance
Cold start function

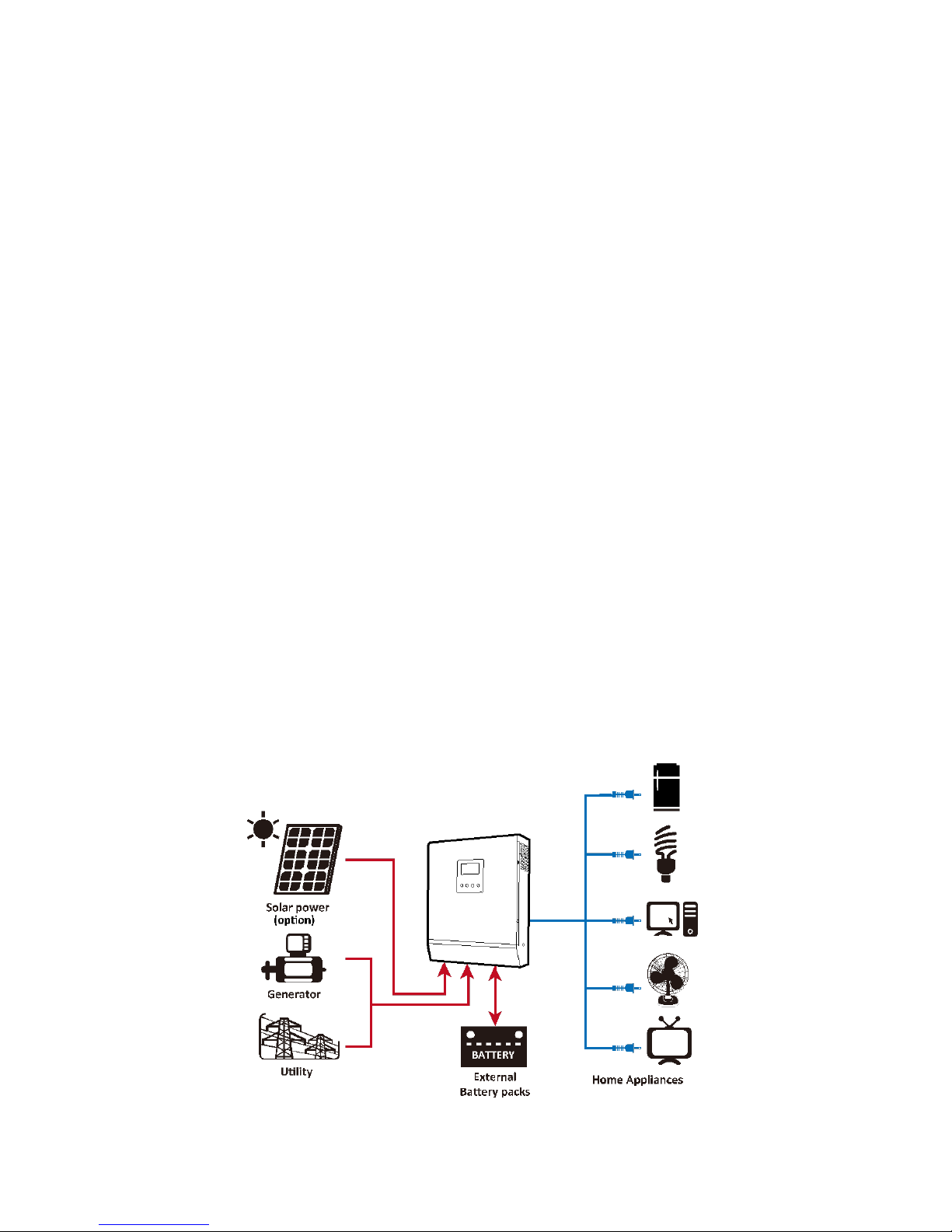

Basic System Architecture
The following illustration shows basic application for this inverter/charger. It also includes following devices to
have a complete running system:
Generator or Utility.
PV modules (option)
Consult with your system integrator for other possible system architectures depending on your requirements.
This inverter can power all kinds of appliances in home or office environment, including motor-type appliances
such as tube light, fan, refrigerator and air conditioner.
Figure 1 Hybrid Power System

3
Note: Appliances like air conditioner need at least 2~3 minutes to restart because it’s required to have
enough time to balance refrigerant gas inside of circuits. If a power shortage occurs and recovers
in a short time, it will cause damage to your connected appliances. To prevent this kind of damage,
please check manufacturer of air conditioner if it’s equipped with time-delay function before
installation. Otherwise, this inverter/charger will trig overload fault and cut off output to protect your
appliance but sometimes it still causes internal damage to the air conditioner.

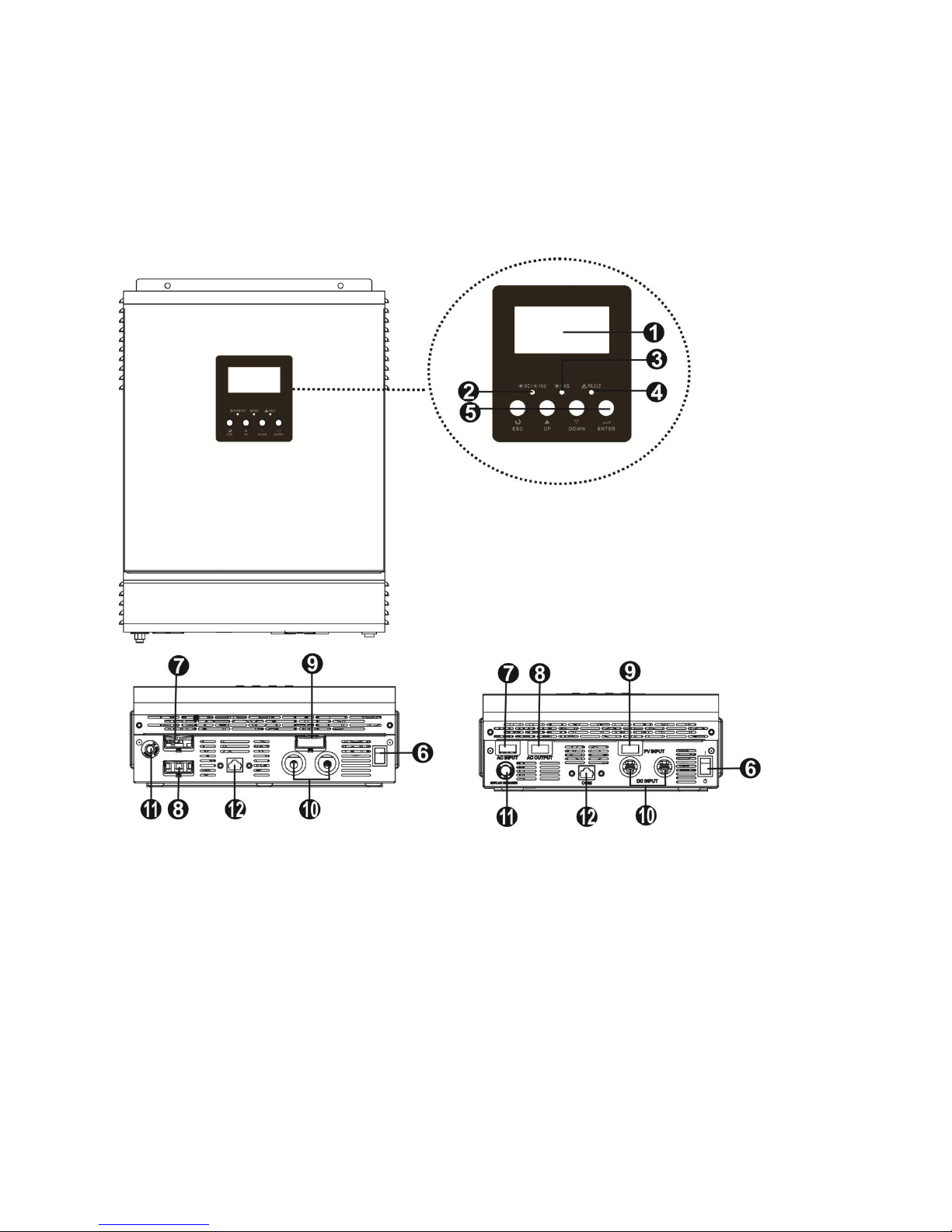

Product Overview
2KVA/3KVA Model 1KVA Model
1. LCD display
2. Status indicator
3. Charging indicator
4. Fault indicator
5. Function buttons
6. Power on/off switch
7. AC input
8. AC output
9. PV input
10. Battery input
11. Circuit breaker
12. Communication port

4

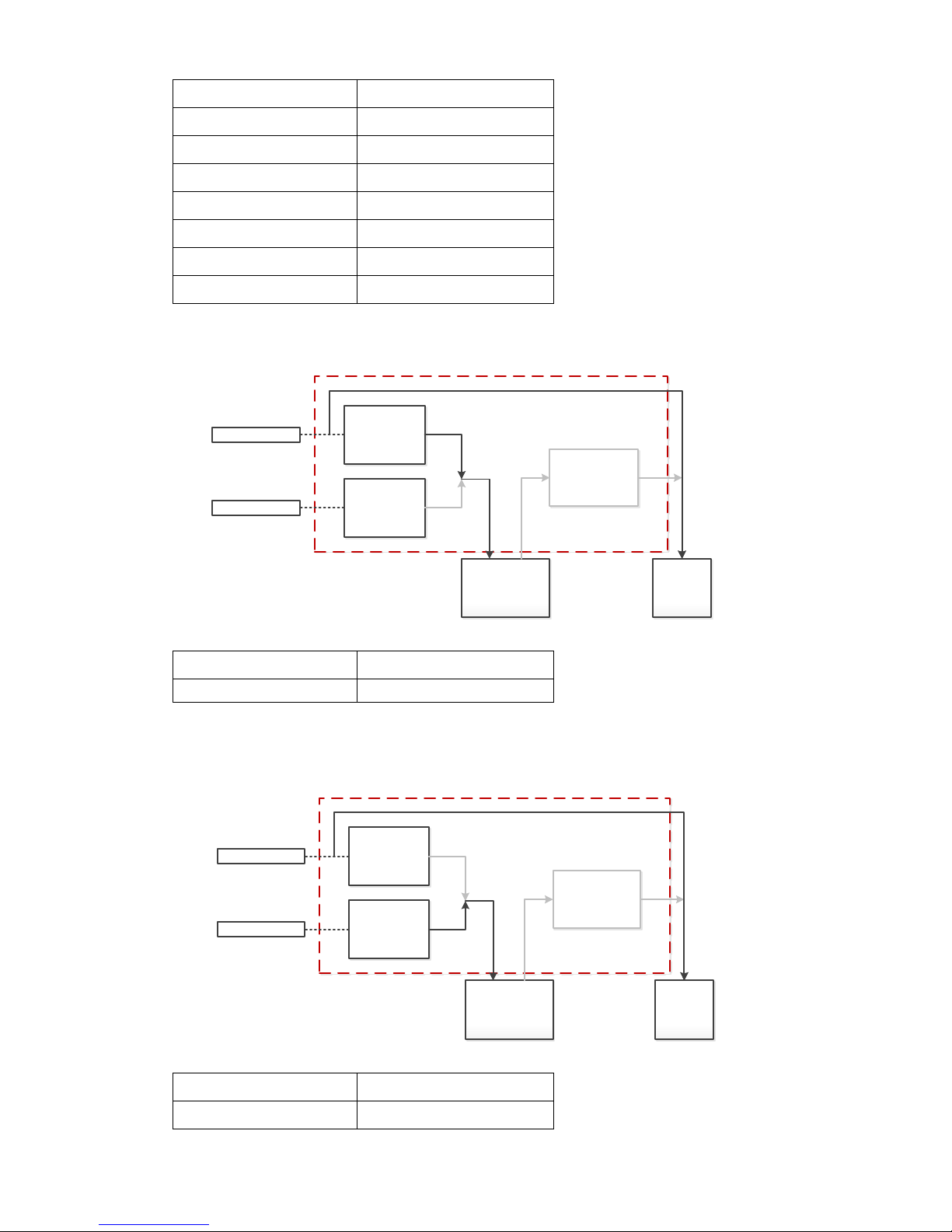

Operation Diagrams and Working Conditions
Abbreviation:
IUC, charging current from AC charger
ISC, charger current from solar charger
ICHG, total charging current of battery
IDISC, discharging current from battery
ILOAD, output current of AC load
sbu, output priority is solar >battery >utility
1) When utility source is not present, IUC=0, battery charged from solar source, ICHG=ISC, load powered from
solar and battery power, the Max. ISC goes up to 50Amp if solar panel with enough energy.
Utility Charger
Solar Charger
Utility Source
Solar Source
Battery Bank
DC/AC Inverter
AC Load
IDISC
ILOAD
ISC
IUC
ICHG
Priority Setting Combinations:
Charger Priority
Output Source Priority
solar
solar
utility
utility
solar
utility
solar and utility
utility
solar and utility
solar
solar
sbu
solar and utility
sbu
2) When solar source is not present, ISC=0, battery charged from utility source, ICHG=IUC, load powered from
utility, the Max. IUC limited at 20Amp for 1KVA, and 30Amp for 2KVA/3KVA.
Utility Charger
Solar Charger
Utility Source
Solar Source
Battery Bank
DC/AC Inverter
AC Load
IDISC
ISC
IUC
ICHG ILOAD

5
Priority Setting Combinations:
Charger Priority
Output Source Priority
solar
solar
utility
utility
solar
utility
solar and utility
utility
solar and utility
solar
solar
sbu
solar and utility
sbu
3) When utility and solar are presented, battery charged from solar source, ICHG=ISC, load powered from solar
and battery, the Max. ISC goes up to 50Amp if solar panel with enough energy. If solar priority, output source
turn to utility side in case solar panel without energy or battery voltage down to pre-alarm level. If sbu priority,
output source turn to utility side in case of battery voltage down to pre setting level
Utility Charger
Solar Charger
Utility Source
Solar Source
Battery Bank
DC/AC Inverter
AC Load
IDISC
ILOAD
ISC
IUC
ICHG
Priority Setting Combinations:
Charger Priority
Output Source Priority
solar
solar
solar
sbu
4) When utility and solar are not present, IUC=ISC=0, connected load will be powered from battery.
Utility Charger
Solar Charger
Utility Source
Solar Source
Battery Bank
DC/AC Inverter
AC Load
IDISC
ILOAD
ISC
IUC
ICHG

6
Priority Setting Combinations:
Charger Priority
Output Source Priority
solar
solar
utility
utility
solar
utility
solar and utility
solar
solar and utility
utility
solar
sbu
solar and utility
sbu
5) When utility and solar are presented, battery charged from utility, ICHG=IUC, load powered from utility, the
Max. IUC limited at 20Amp for 1KVA, 30Amp 2KVA and 3KVA.
Utility Charger
Solar Charger
Utility Source
Solar Source
Battery Bank
DC/AC Inverter
AC Load
IDISC
ISC
IUC
ICHG ILOAD
Priority Setting Combinations:
Charger Priority
Output Source Priority
utility
utility
6) When utility and solar are presented, battery charged from solar, ICHG=ISC, load powered from utility, Max. ISC
goes up to 50Amp if solar panel with enough energy. Charger source will be turned to utility side in case solar
panel without enough energy.
Utility Charger
Solar Charger
Utility Source
Solar Source
Battery Bank
DC/AC Inverter
AC Load
IDISC
ISC
IUC
ICHG ILOAD
Priority Setting Combinations:
Charger Priority
Output Source Priority
solar
utility

7

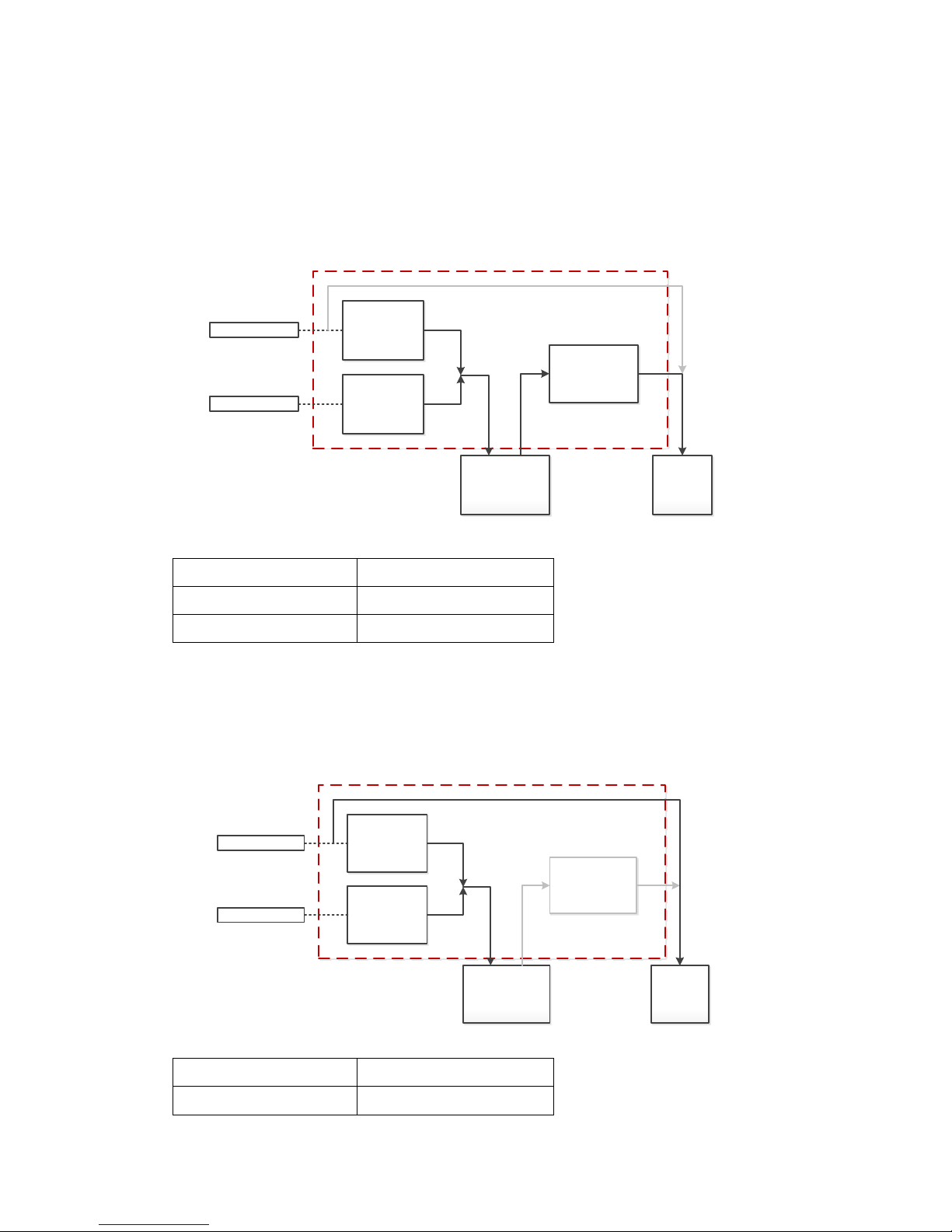

7) When utility and solar are presented, battery charged from both solar and utility, ICHG=ISC+IUC, load powered
from solar and battery. If solar priority, output source turn to utility side in case solar panel without energy or
battery voltage down to pre-alarm level. If sbu priority, output source turn to utility side in case of battery
voltage down to pre setting level
Ex. 3KVA Model, AC Load = 2000W
i.e. ILOAD ≈ 8.7Amp and IDISC ≈ 92Amp
Max. ICHG = 50Amp, it means battery always stay in discharge situation since the required power of AC load is
larger than charging. Once battery down to pre-alarm level, AC load will be powered from utility then IDISC
become zero.
Utility Charger
Solar Charger
Utility Source
Solar Source
Battery Bank
DC/AC Inverter
AC Load
IDISC
ILOAD
ISC
IUC
ICHG
Priority Setting Combinations:
Charger Priority
Output Source Priority
solar and utility
solar
solar and utility
sbu
8) When utility and solar are presented, battery charged from both solar and utility, ICHG=ISC+IUC, load powered
from utility.
Ex. 3KVA Model, AC Load = 2000W
i.e. ILOAD ≈ 8.7Amp, IDISC = 0
Battery always charged by the max. power from both utility and solar source.
Utility Charger
Solar Charger
Utility Source
Solar Source
Battery Bank
DC/AC Inverter
AC Load
IDISC
ISC
IUC
ICHG ILOAD
Priority Setting Combinations:
Charger Priority
Output Source Priority
solar and utility
utility

8
INSTALLATION
Unpacking and Inspection
Before installation, please inspect the unit. Be sure that nothing inside the package is damaged. You should
have received the following items inside of package:
The unit x 1
User’s manual x 1
Communication cable x 1
Preparation

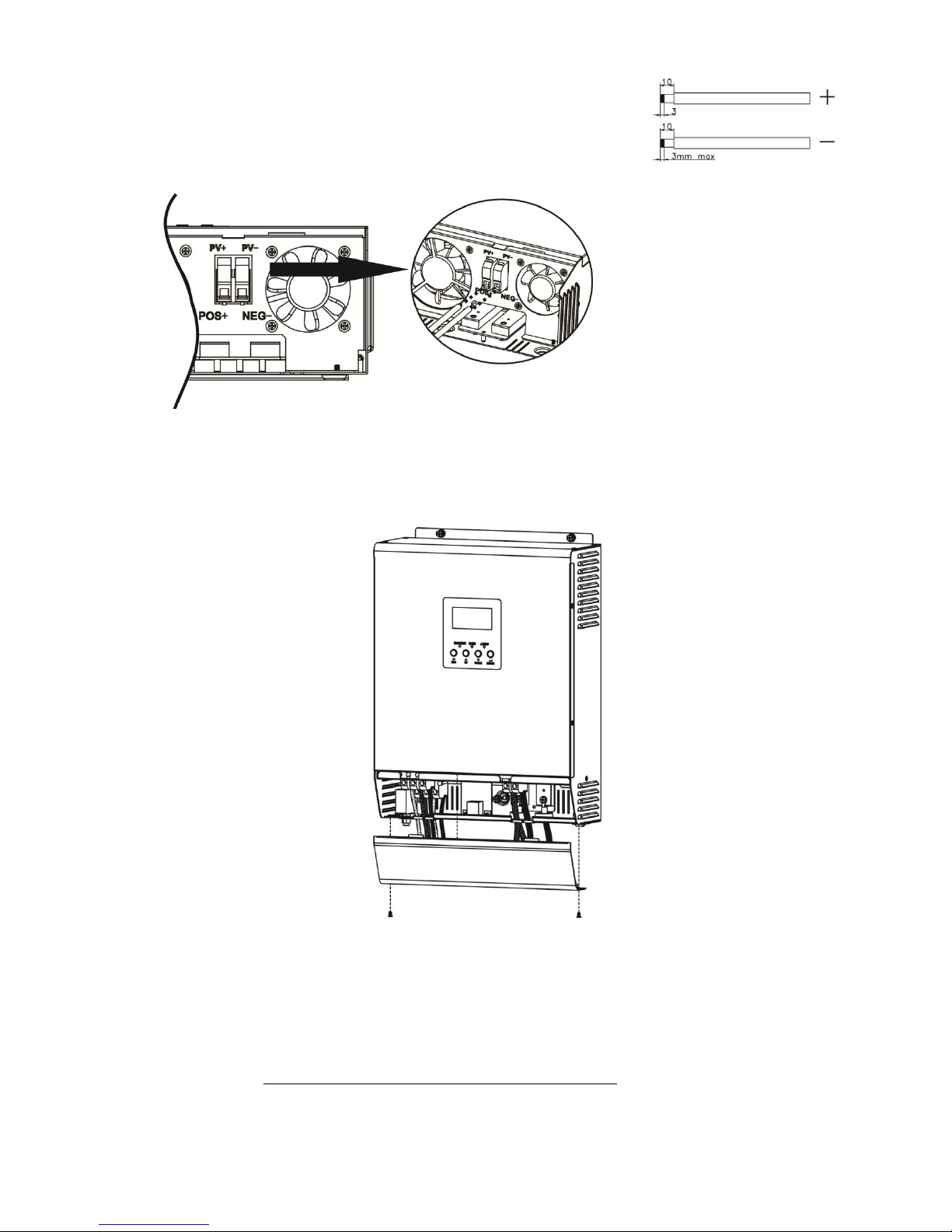

Before connecting all wirings, please take off bottom cover by
removing two screws as shown below.
Mounting the Unit
Consider the following points before selecting where to install:
Do not mount the inverter on flammable construction materials.
Mount on a solid surface
Install this inverter at eye level in order to allow the LCD display to
be read at all times.
For proper air circulation to dissipate heat, allow a clearance of
approx. 10 cm to the side and approx. 50 cm above and below the
unit.
The ambient temperature should be between 0°C and 55°C to
ensure optimal operation.
The recommended installation position is to be adhered to the wall
vertically.
Be sure keep other objects and surfaces as shown in the below
diagram to guarantee sufficient heat dissipation and to have
enough space for removing wires.
Install the unit by screwing three screws.
