lumishore SY300 SUPRA User manual

www.Lumishore.com
Lumishore UK Unit 3, Technium 1, Kings Road, Swansea, SA1 8PH, UK | [phone] | [e-mail]
Lumishore USA 7137 24TH Court East Sarasota, Florida 34234 |[phone] | [e-mail]
1
SY300 SUPRA DC Driver Installation Manual
Please read the following pages before attempting installation to ensure
complete understanding of the LUMISHORE SY300 SUPRA.
Before you start...
• High Intensity LED light – Do not stare into the LED module at close proximity.
• Always ensure that the vessel’s power source is disconnected or isolated prior to installation.
• A qualied professional should carry out both the electrical and mechanical installation.
If in doubt please contact LUMISHORE. refer to product support section.
• The Driver supplies voltage and current to the Underwater lights. Under no circumstances
should the light cable be cut and connected directly to voltage.
• Always use a suitable fuse or circuit breaker to protect the complete system. Each light to be
individually fused.
• Never try to install or remove light with the vessel in the water - Contact Lumishore for advice.
• Lights should not be exposed to any temperatures in excess of 150°F (65°C). For example,
next to hot engine components or where exhaust emissions could be expelled onto the light
while underwater.
SY300 Light must be installed according to instructions 45-0082
45-0182-RevB
SY300 SUPRA DC Driver Installation Manual

www.Lumishore.com
Lumishore UK Unit 3, Technium 1, Kings Road, Swansea, SA1 8PH, UK | [phone] | [e-mail]
Lumishore USA 7137 24TH Court East Sarasota, Florida 34234 |[phone] | [e-mail]
2
The SY300 SUPRA lighting system will typically consist of several Lumishore SY300 lights a SUPRA
i-Connect Hub and a SUPRA i-Connect switch. These can be powered from a DC power source (e.g.
battery), or an AC/DC power supply via a suitable fuse or circuit breaker.
• Plan the cable routing and work out the Power cable lengths. Check the cable AWG required
in the tables on Pg. 5.
• Mount The SUPRA i-Connect Hub and External Driver Modules in a dry, well ventilated
location.
• Each light is supplied with 3m (10ft) length cable with pre installed connector. Do Not Cut
or Extend. Extension cables available - Contact Lumishore.
• Each External Driver module has 1m (3ft) power cable - Power Extension cables are available,
see Pg. 5. for further details.
• Install the correct fuse for the model of light and vessel voltage - see fuse table Pg. 5.
• Ensure the fuse cover is reinstalled correctly.
• All Power connections need to be made waterproof using a suitable junction box or
waterproof connectors.
• Ensure any unused ports on the i-Connect hub have the waterproof caps installed.
• All pre installed connectors are keyed - do not force and ensure they are aligned correctly.
ENSURE CORRECT ELECTRICAL POLARITY. INCORRECT INSTALLATION WILL INVALIDATE WARRANTY
MAX 3 LIGHTS PER HUB

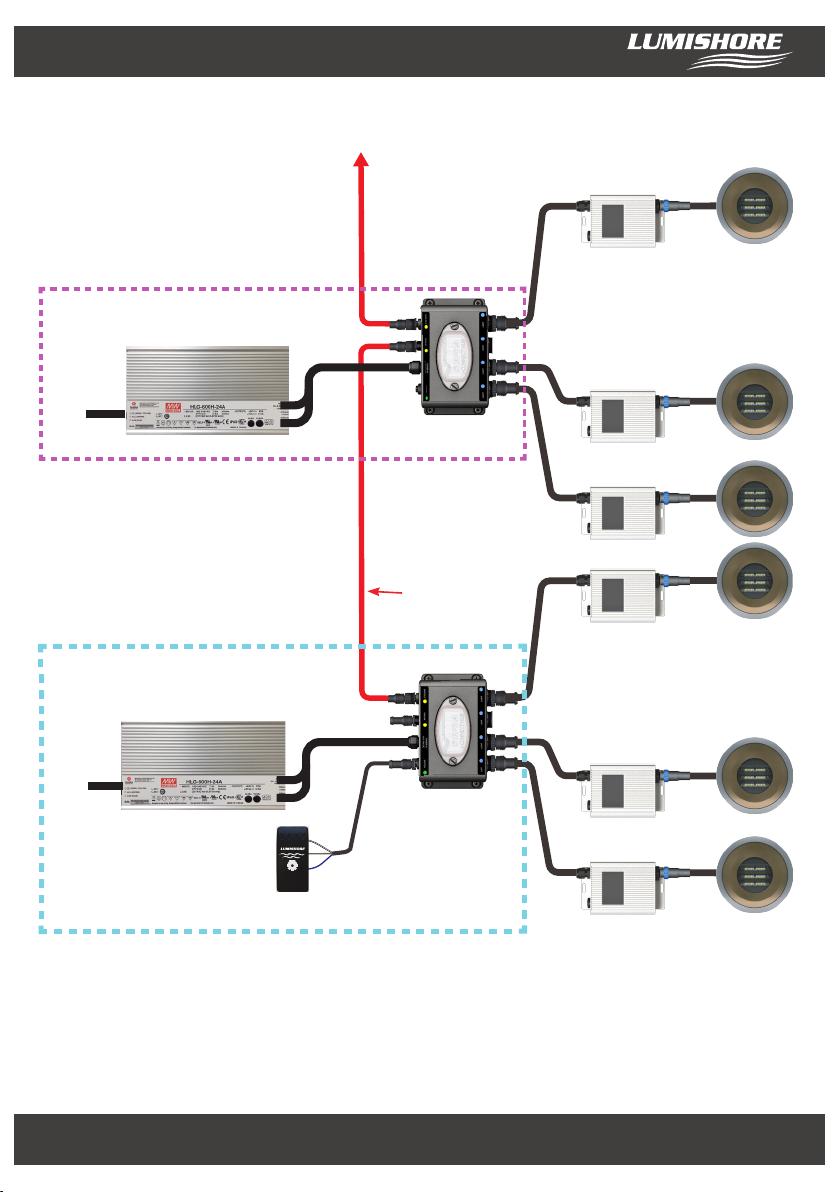

On/Off
Scene
SUPRA i-Connect
Hub Switch
Battery /
PSU
12 or 24 V
Fuse or
Circuit
Breaker
External Driver
Module
SY300 Light Module
Note: Any unused ports
should be tted with
dust caps
2 Core Power cable keep as short as
possible If extended consult cable
gauge guide (Page 4)
SUPRA i-Connect
Hub
1m(3ft) Pre-installed Power cable and Connector
Extend using PN: 60-0401 (See Pg. 4)
3m Pre-installed Light Module
Cable & Connector
Removable
Fuse Cover

www.Lumishore.com
Lumishore UK Unit 3, Technium 1, Kings Road, Swansea, SA1 8PH, UK | [phone] | [e-mail]
Lumishore USA 7137 24TH Court East Sarasota, Florida 34234 |[phone] | [e-mail]
3
On/Off
Scene
Scene
Note: SY300 Lights MAX 3 per hub when using the 600W PSU.
PN : 60-0364 - SUPRA AC i-Connect Installation Kit
Includes 600W PSU, Hub & Switch.
PN : 60-0365 - SUPRA AC i-Connect
Additional Hub Kit Includes 600W PSU,
Hub & 1M DMX cable.
Installed with switch control
SUPRA
i-Connect Hub Switch
SUPRA i-Connect
Hub
DMX Extension Cable
used to connect hubs
together;
1m PN: 60-0403
5m PN: 60-0404
15m PN: 60-0405
SY300 SUPRA With AC Supply

www.Lumishore.com
Lumishore UK Unit 3, Technium 1, Kings Road, Swansea, SA1 8PH, UK | [phone] | [e-mail]
Lumishore USA 7137 24TH Court East Sarasota, Florida 34234 |[phone] | [e-mail]
4
Garmin
Marine
Network
Cable
On/Off
Scene
Note: SY300 Lights MAX 3 per hub when using the 600W PSU.
Certied MFD
SUPRA
i-Connect
Hub Switch
SUPRA i-Connect
Hub
DMX Extension Cable
used to connect hubs
together;
1m PN: 60-0403
5m PN: 60-0404
15m PN: 60-0405
Lumi-Link SUPRA Bridge
Module PN: 60-0368
DMX Extension
Cable (Max 10m)
1m PN: 60-0403
5m PN: 60-0404
SY300 SUPRA With AC Supply & Lumi-Link
Installed with switch and MFD control

www.Lumishore.com
Lumishore UK Unit 3, Technium 1, Kings Road, Swansea, SA1 8PH, UK | [phone] | [e-mail]
Lumishore USA 7137 24TH Court East Sarasota, Florida 34234 |[phone] | [e-mail]
5
Cable Gauge Tables
It is important to use the correct cable gauge when extending the Power cables.
The driver power cable can be extended using the Lumishore pre-terminated extension cables PN: 60-0401, For the
maximum extension length follow the table below.
Model
SY300 Driver
Max Length of Cable
4m
Cable Length Fuse Table (Fitted to Hub)
Model
SY300
Fuse Rating
10A
Hub Power Cable Extension
Driver Power Cable Pre Made Extension
Note: To avoid Excessive Voltage drop keep the Power cable as short as possible
Vessel Voltage
0-10ft
10-20ft
20-30ft
30-40ft
40-50ft
50-60ft
12V
8AWG
6AWG
4AWG
2AWG
2AWG
1AWG
24V
12AWG
8AWG
6AWG
4AWG
4AWG
2AWG
Total Length (to Hub & back)
Extension example;
1m (3ft) Pre Installed Cable & Conn 3m (10ft) Extension Cable
Total Length of Cable
External Driver
230mm
(9.05in)
38mm
(1.49in)
Power
Fuse Holder
Light
Input
SY300 Driver Module - Overall Dimensions

www.Lumishore.com
Lumishore UK Unit 3, Technium 1, Kings Road, Swansea, SA1 8PH, UK | [phone] | [e-mail]
Lumishore USA 7137 24TH Court East Sarasota, Florida 34234 |[phone] | [e-mail]
6
i-Connect Switch Operation
The i-Connect switch has two operations - “On/O“ and “Scene“. Pressing“Scene“ advances the light to
the next function:
White
Blue
White strobe
Blue strobe
White / Blue strobe
Random fade
Synchronised strobe
MFD Light Control using Lumi-Link Bridge
Using the optional SUPRA Lumi-Link bridge module, all light controls can be displayed onto certied
MFD units. For full instructions consult SUPRA Lumi-Link bridge module instruction leaet.
Note: Switching the system o for 5 seconds and on again will restart the sequence in white mode.
S
Y
N
C
H
R
O
N
I
S
E
D
S
T
R
O
B
E
W
H
I
T
E
S
Y
N
C
H
R
O
N
I
S
E
D
F
A
D
E
R
A
N
D
O
M
F
A
D
E
B
L
U
E
W
H
I
T
E
S
T
R
O
B
E
B
L
U
E
S
T
R
O
B
E
ON/OFF
SCENE
LUMISHORE
Certified MFD

www.Lumishore.com
Lumishore UK Unit 3, Technium 1, Kings Road, Swansea, SA1 8PH, UK | [phone] | [e-mail]
Lumishore USA 7137 24TH Court East Sarasota, Florida 34234 |[phone] | [e-mail]
7
Testing the Lights
The underwater lighting system should always be tested before the boat goes back in the water. Check
that each light comes on, and all lights change in sequence as per the system operation section above.
See the problem solving guide for advice on resolving any issues.
Once the boat is back in the water, check for any water ingress on the installed lights. Any ingress should
be dealt with immediately. The lights should be checked several times over the rst 24-hours and
periodically after that to ensure installation is satisfactory.
Maintenance and Cleaning
LUMISHORE lights require simple cleaning. Lights should be checked often to ensure the light body and
lens area are free from sea growth. In the event that your light requires cleaning, we recommend the use
of a soft cloth or soft bristled brush. The glass should be kept clean with a plastic scraper or soft brush.
Regular cleaning of the lens will ensure that the light module delivers maximum optical output. DO NOT
use an abrasive cloth or cleaning agent as permanent damage to the lens may occur.
DO NOT use any abrasive cleaning materials as these may damage the body of the light.
DO NOT use any cleaning uids that contain solvents, acids or alkalis.
DO NOT clean using pressure washing or sandblasting equipment.
Slight discolouration of body may occur over life. This does not aect performance, and is not subject to
warranty.
Due to nature and high build quality it may on rare occasions be possible to see small levels of
condensation, this is normal for high power LEDs and will disappear after cooling and does not harm
operation in any way.
No chemicals, cleaners, chemical sprays or sandblasting should ever be applied / used on lights — this
will negate warranty
To prolong device lifetime and prevent marine growth build up, a good quality anti-fouling system must
be used to coat the external body of the device. This should be renewed regularly.
Product Support
If you have questions or comments, please e-mail [email protected] or call USA [phone],
United Kingdom [phone], or France [phone].
Maintenance & Support

www.Lumishore.com
Lumishore UK Unit 3, Technium 1, Kings Road, Swansea, SA1 8PH, UK | [phone] | [e-mail]
Lumishore USA 7137 24TH Court East Sarasota, Florida 34234 |[phone] | [e-mail]
8
Warranty
LUMISHORE Ltd warrants the SY300 SUPRA lighting system to be free from defects in workmanship for
a period of three years, starting from the date of original purchase. Should your lighting system have a
problem during this period, please contact your dealer as soon as you become aware of the defect.
Misuse, abuse, improper installation, neglect, improper shipping, damage caused by disasters (e.g. re,
ood and lightning), installation by unqualied personnel, unauthorized repair or modication will
void this warranty. For the avoidance of confusion and doubt, non compliance with all installation,
maintenance and operating instructions in this document constitute non conformance with warranty
terms.
Full warranty details are available at www.lumishore.com.
Troubleshooting
In the event of one or more of the lights not lighting up then check the LED status on the driver (at the
back of the light). The LED will either be continually ON (healthy), OFF (no power to driver) or ashing.
Please refer to the table below for what the number of ashes means and what action to take.
In the event of an issue, record the serial number(s) of the light(s) and contact your local dealer.
If a light does not switch on or function properly, it should be disconnected from the power source.
LED Status
No LED light on driver
Solid LED
Flashing 2 times
Flashing 3 times
Flashing 4 times
Flashing 7 times
Flashing 8 times
Continuous rapid ashing
Light temp too high
Driver temp too high
LED array voltage out of range
Light not detected
Driver program corrupt
Could happen when light is out of water or next
to exhaust
Driver is mounted too close to an engine or exhaust
Check the connections between light and driver
Check light in each colour to determine if all colours
are working
Light is not connected or cable is cut or pinched
Light has been connected incorrectly to the driver
Reset driver by switching o power for 1 minute, and
then switching on again
Contact LUMISHORE if problem persists
Meaning
No power to driver
Power On
Low input voltage to driver
Action to take / Things to check
Check fuse / breaker
Check connections
Check voltage at input to driver connections
Driver is receiving voltage and operating properly
Check the switch is operating correctly
Check power connections or battery voltage
Warranty & Troubleshooting
